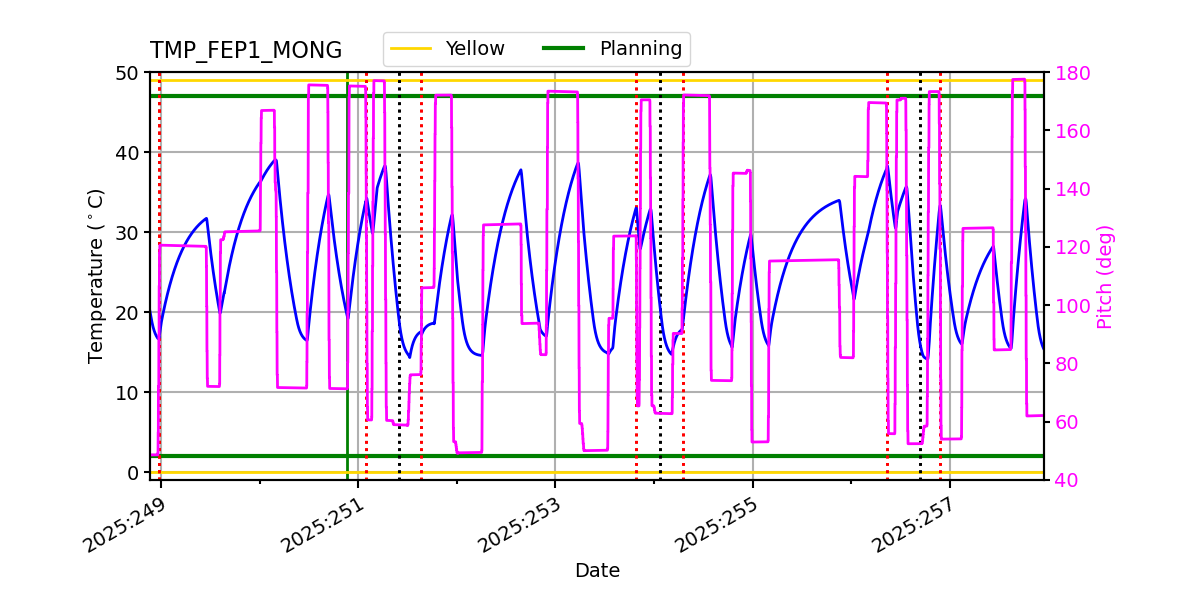

FEP1_MONG Temperatures Check
Summary
| Date start | 2025:250:21:15:18.716 |
| Date stop | 2025:257:23:00:15.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0825/oflsa |
| Run time | Thu Sep 4 14:10:30 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -5.82 | -5.05 | -3.21 | -0.97 | 0.71 | 1.78 | 2.21 |
| pitch | -9.240 | -0.113 | -0.004 | -0.000 | 0.004 | 0.087 | 10.819 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.728 | -0.050 | -0.006 | -0.000 | 0.005 | 0.050 | 1.861 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -5.82 | 2.00 |
| TMP_FEP1_MONG | 99 | 2.21 | 2.00 |
| PITCH | 1 | -9.24 | 3.00 |
| PITCH | 99 | 10.819 | 3.00 |

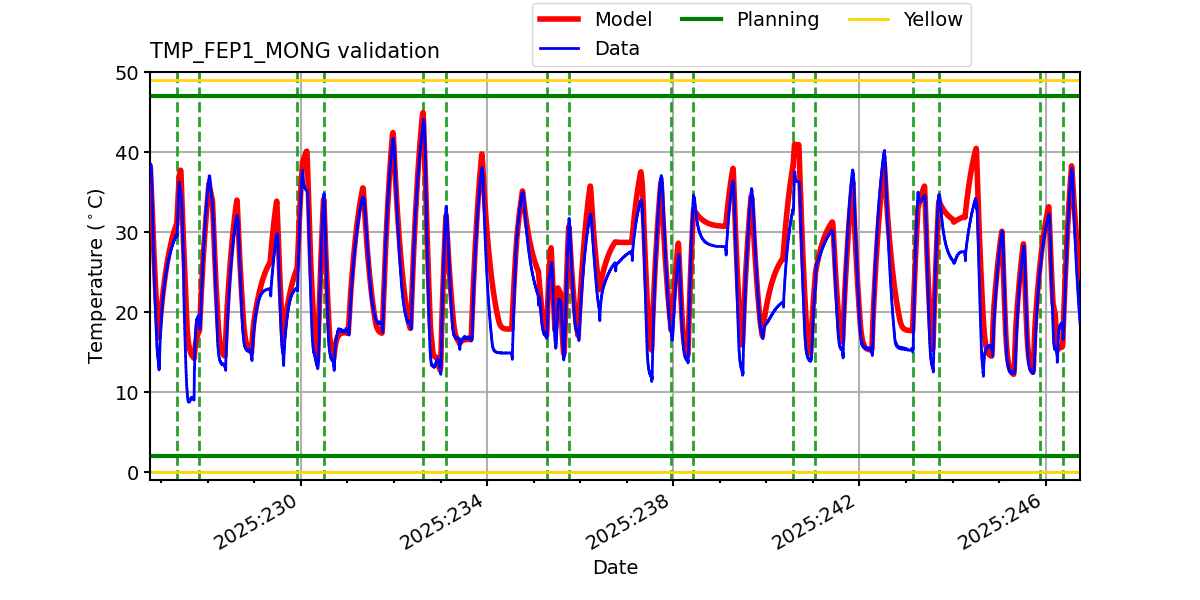

TMP_FEP1_MONG

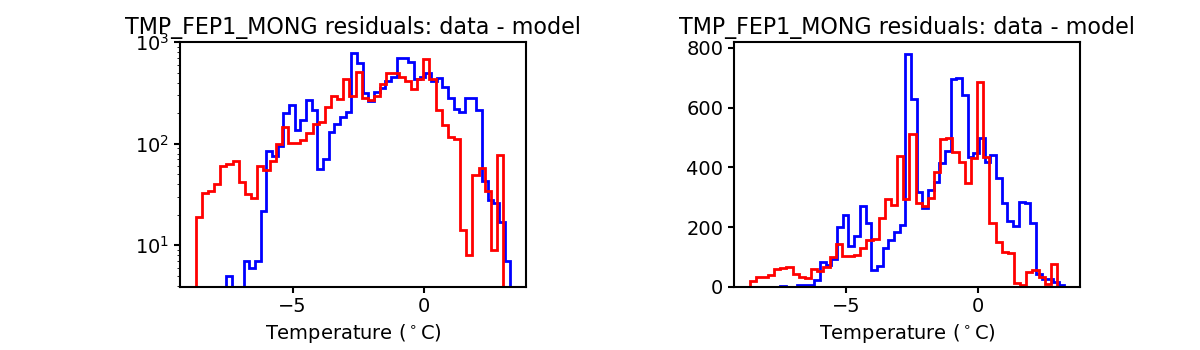

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

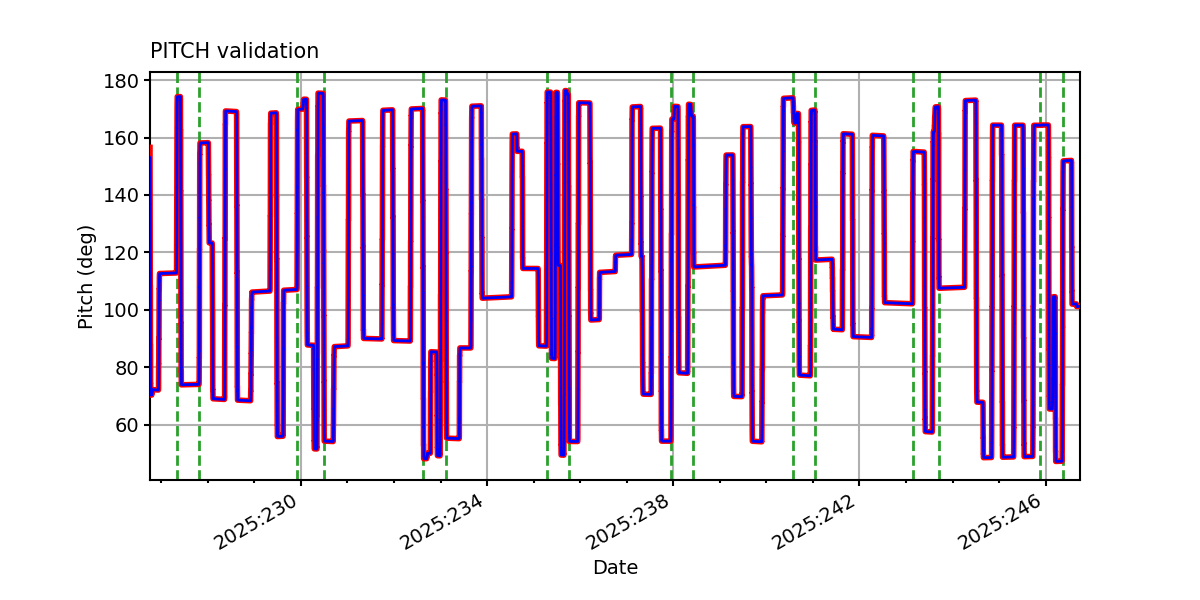

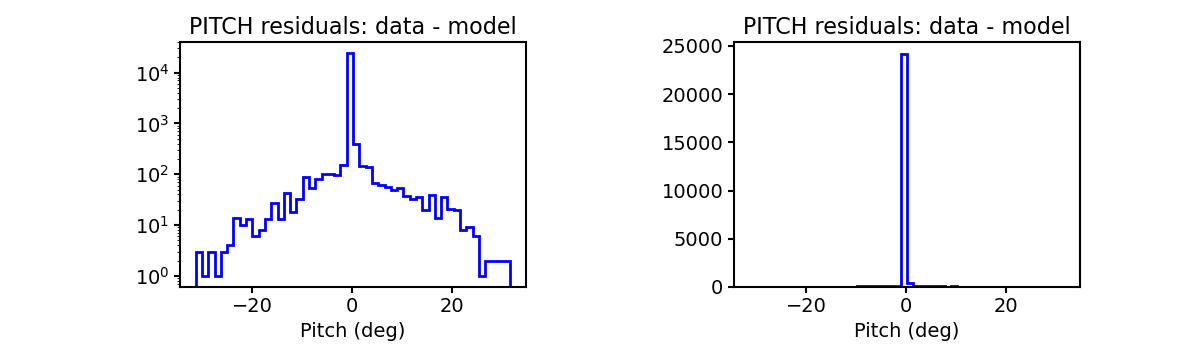

PITCH

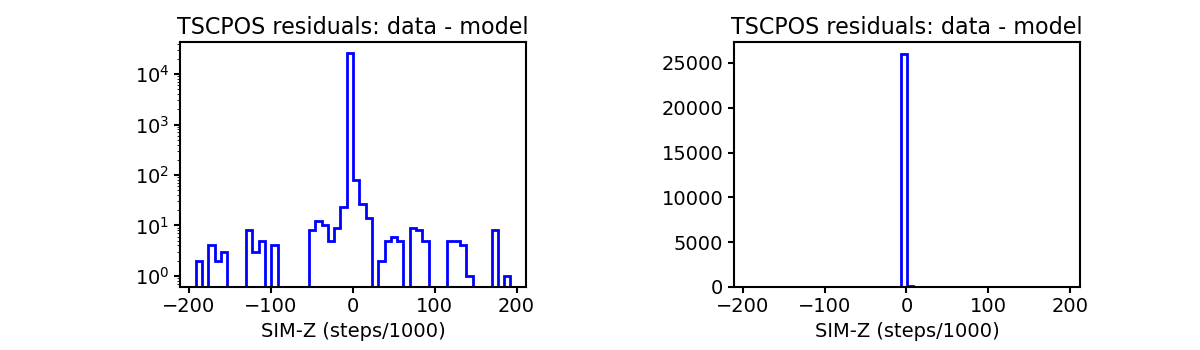

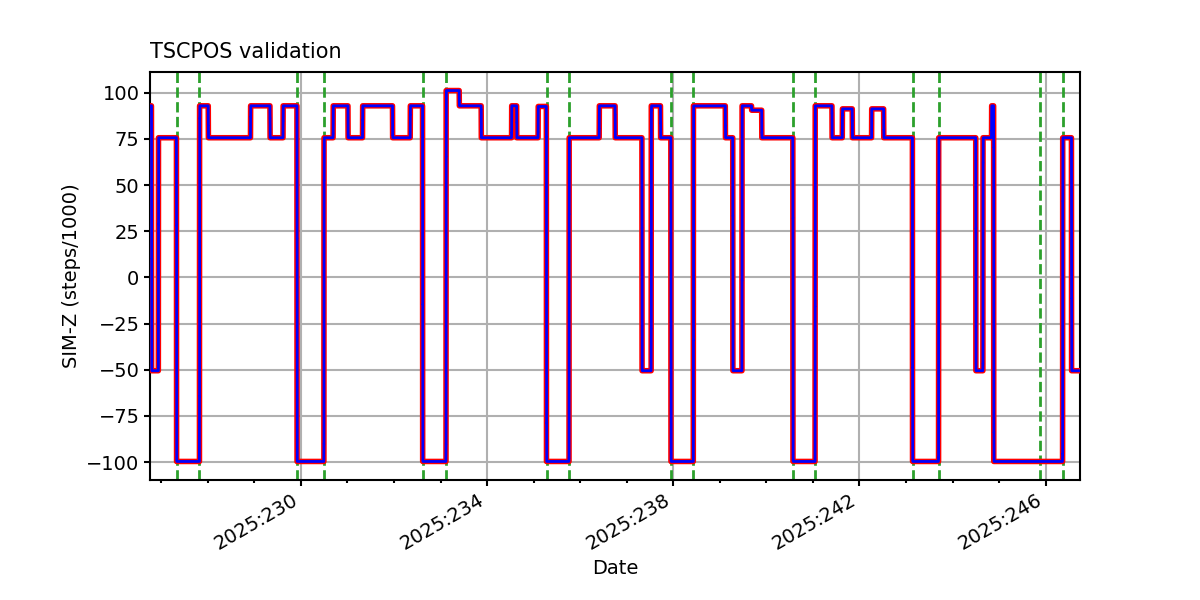

TSCPOS

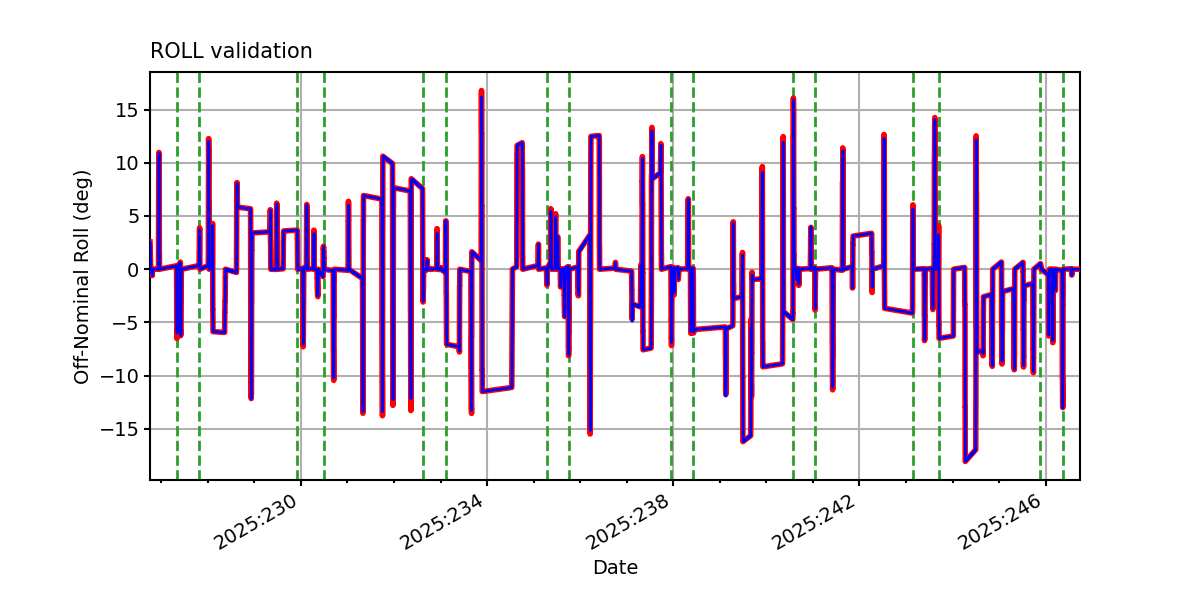

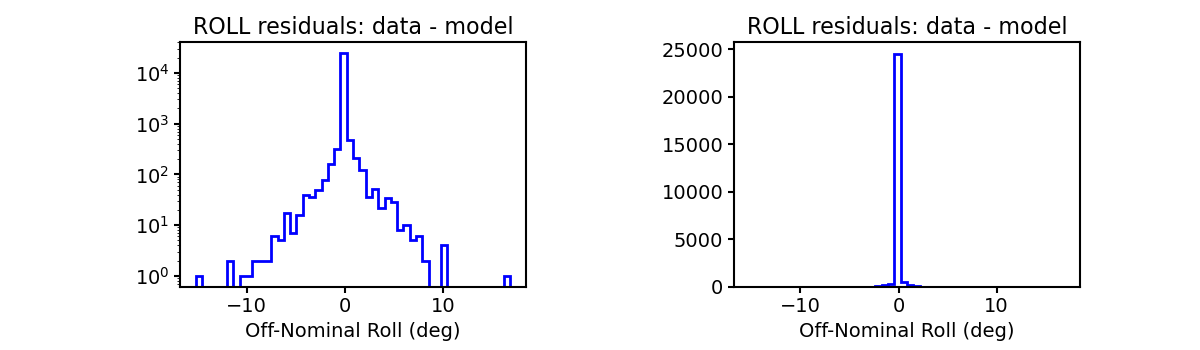

ROLL

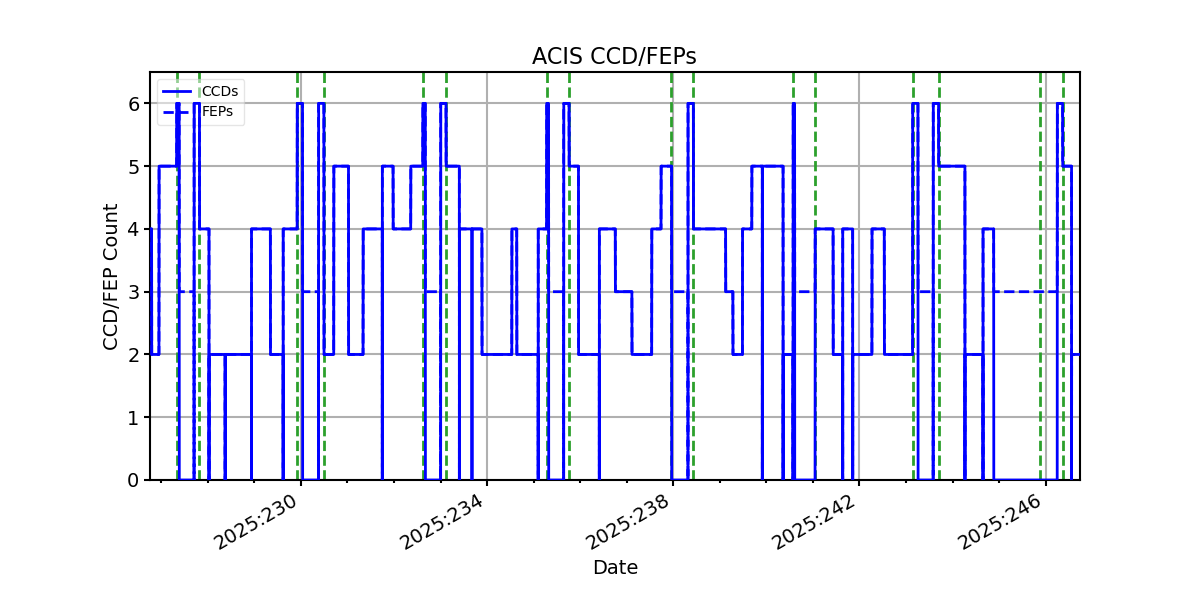

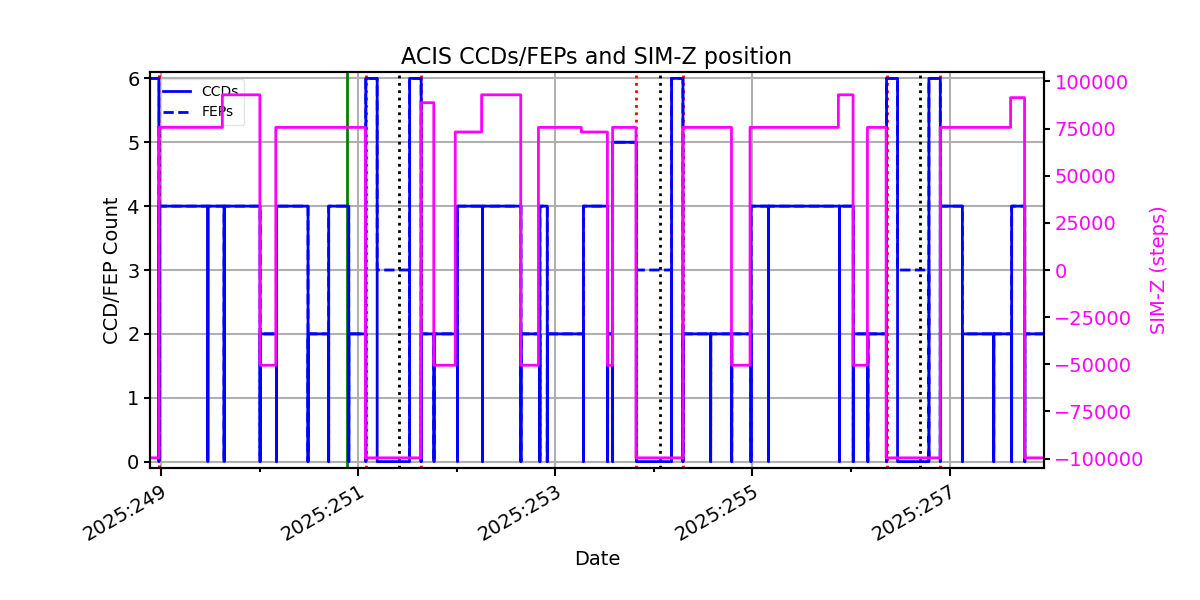

ACIS CCD/FEP Count
