FEP1_MONG Temperatures Check
Summary
| Date start | 2025:253:23:44:59.016 |
| Date stop | 2025:257:23:00:15.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP1025/oflsa |
| Run time | Mon Sep 8 18:28:22 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.31 | -5.86 | -4.28 | -1.57 | 0.39 | 1.69 | 2.17 |
| pitch | -9.253 | -0.101 | -0.004 | -0.000 | 0.004 | 0.063 | 10.386 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.953 | -0.072 | -0.007 | -0.000 | 0.006 | 0.069 | 1.905 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.31 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.57 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.17 | 2.00 |
| PITCH | 1 | -9.253 | 3.00 |
| PITCH | 99 | 10.386 | 3.00 |

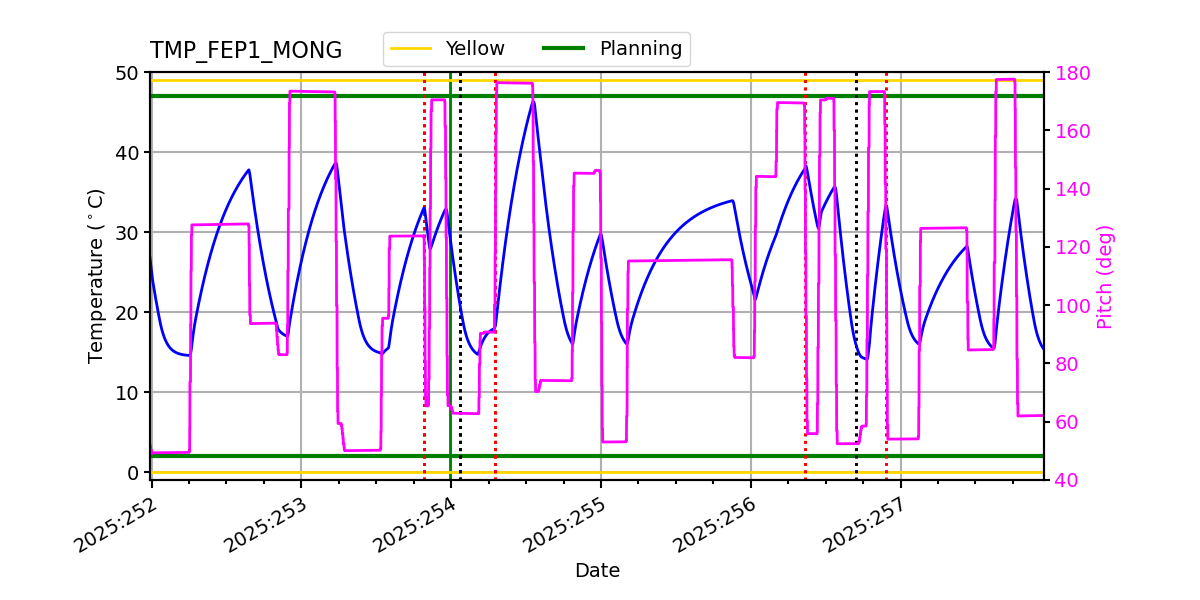

TMP_FEP1_MONG
Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

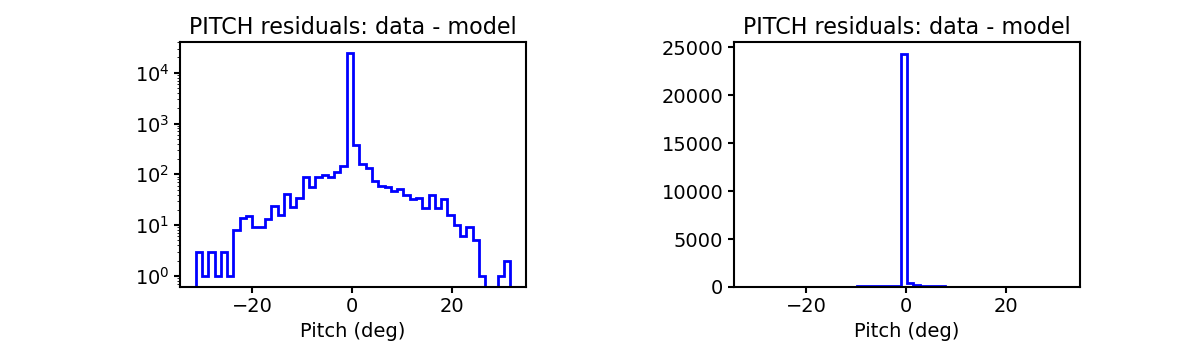

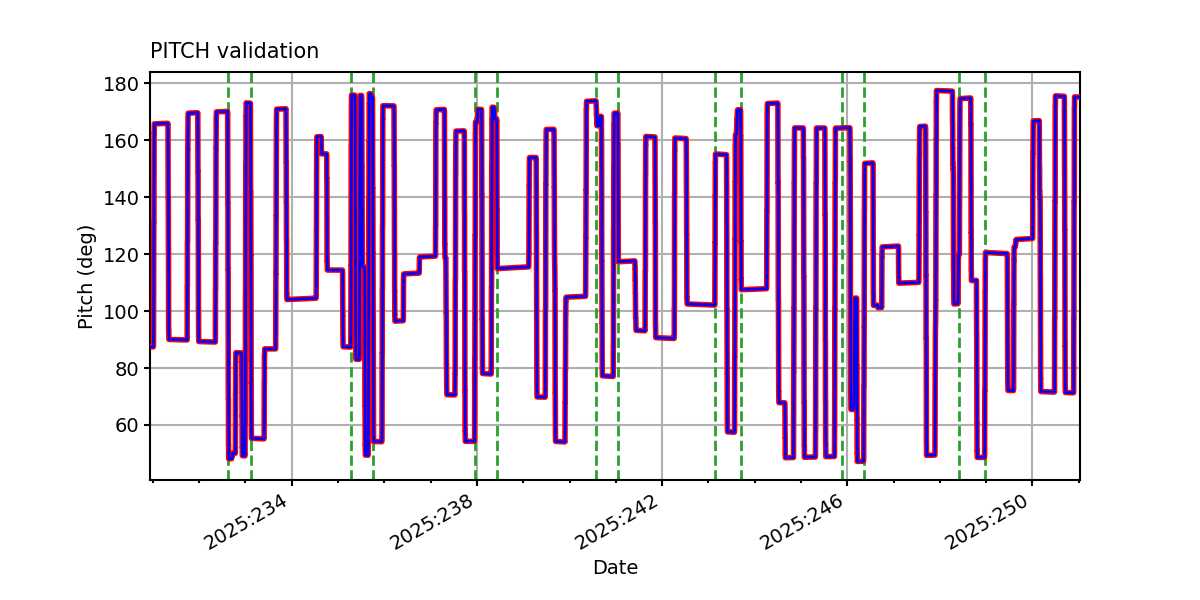

PITCH

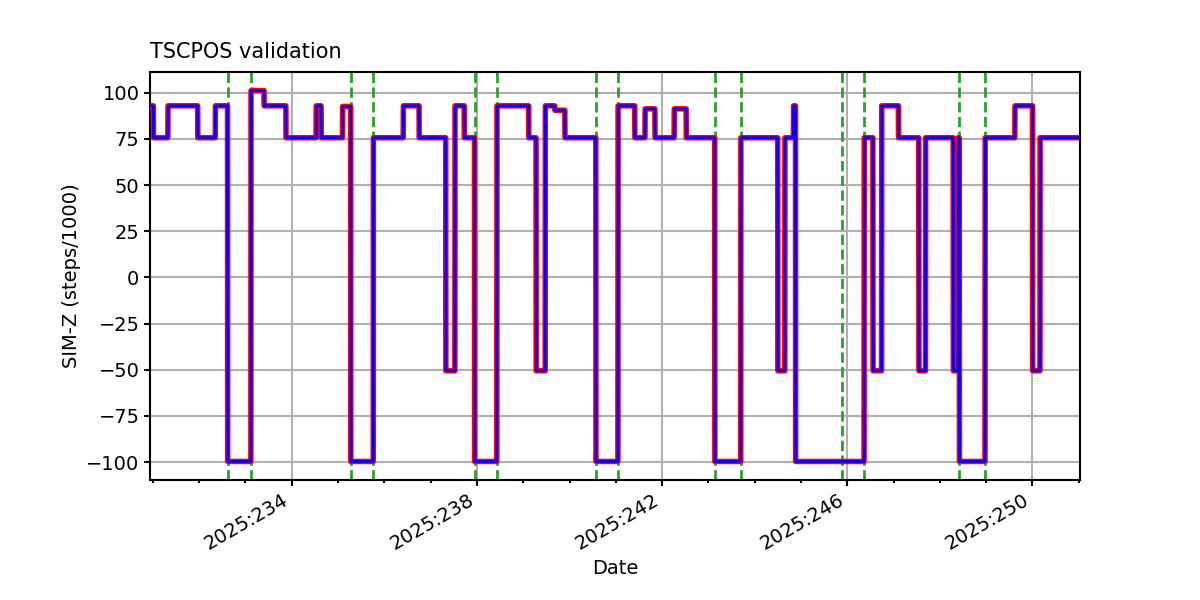

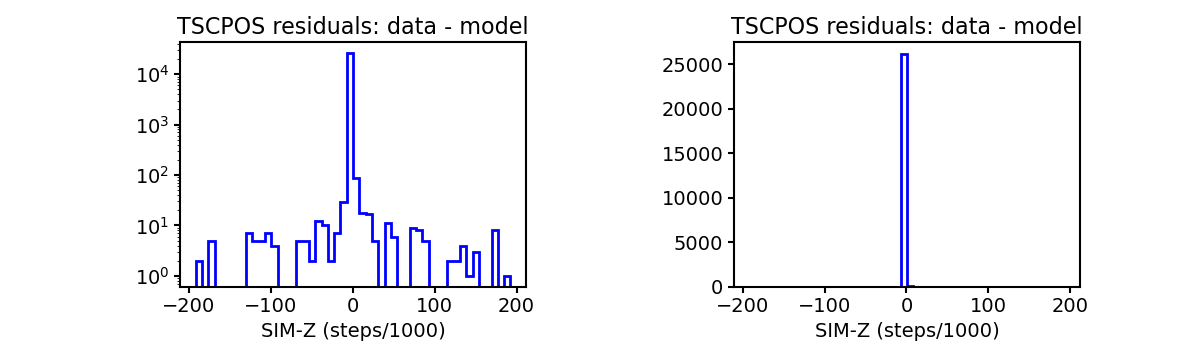

TSCPOS

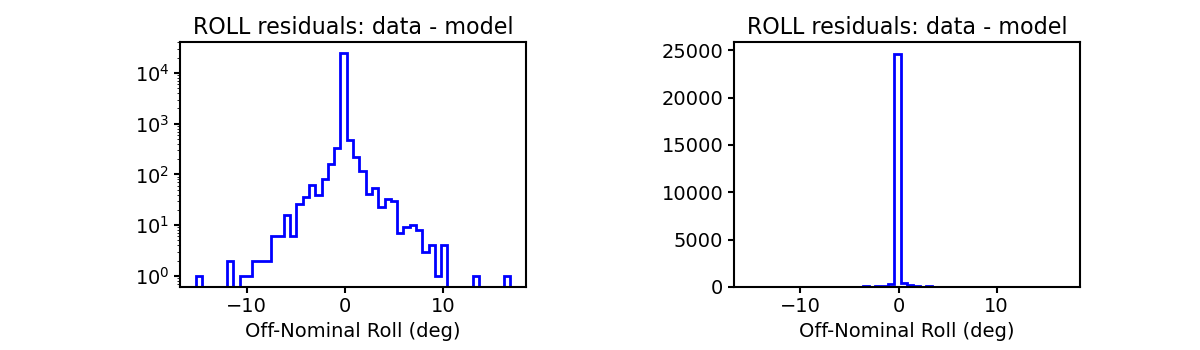

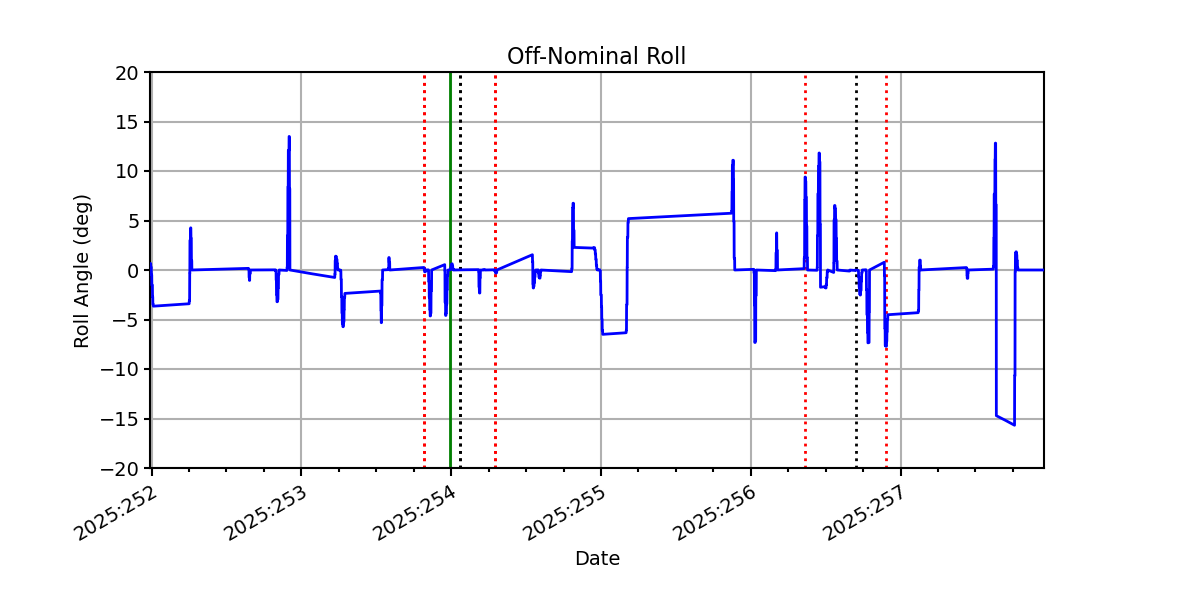

ROLL

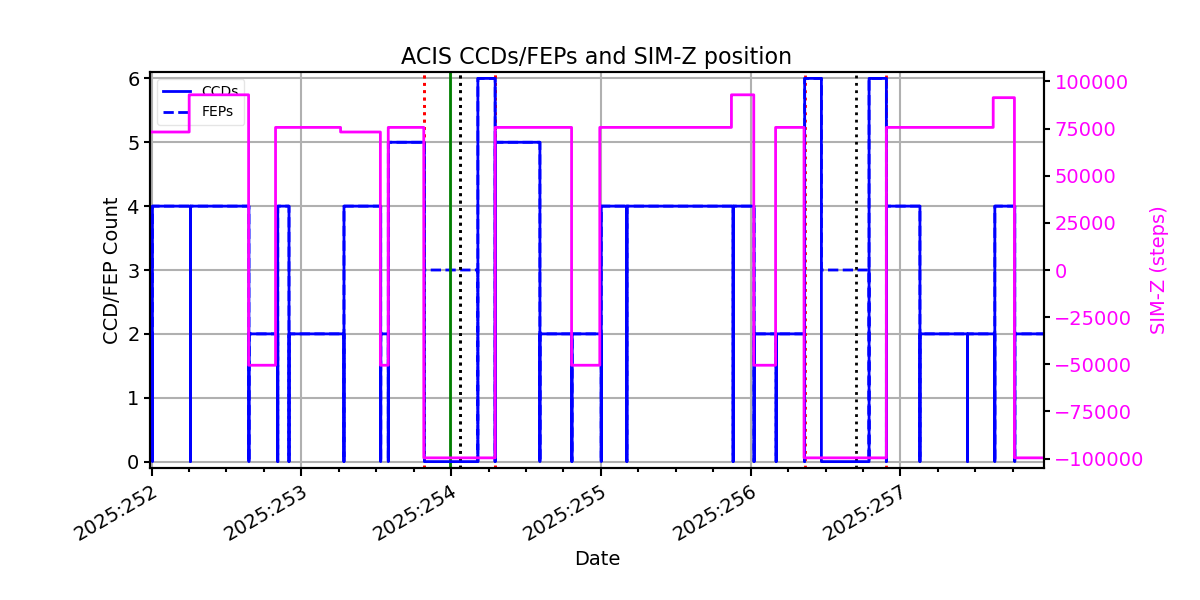

ACIS CCD/FEP Count
