FEP1_MONG Temperatures Check
Summary
| Date start | 2026:271:01:21:07.416 |
| Date stop | 2026:277:13:13:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2826/oflsa |
| Run time | Wed Sep 23 15:29:56 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.10 | -5.28 | -3.46 | -0.53 | 1.46 | 2.65 | 3.80 |
| pitch | -13.803 | -1.643 | -0.004 | -0.000 | 0.004 | 1.708 | 13.592 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.066 | -0.208 | -0.009 | 0.000 | 0.010 | 0.263 | 2.076 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.1 | 2.00 |
| TMP_FEP1_MONG | 99 | 3.8 | 2.00 |
| PITCH | 1 | -13.803 | 3.00 |
| PITCH | 99 | 13.592 | 3.00 |

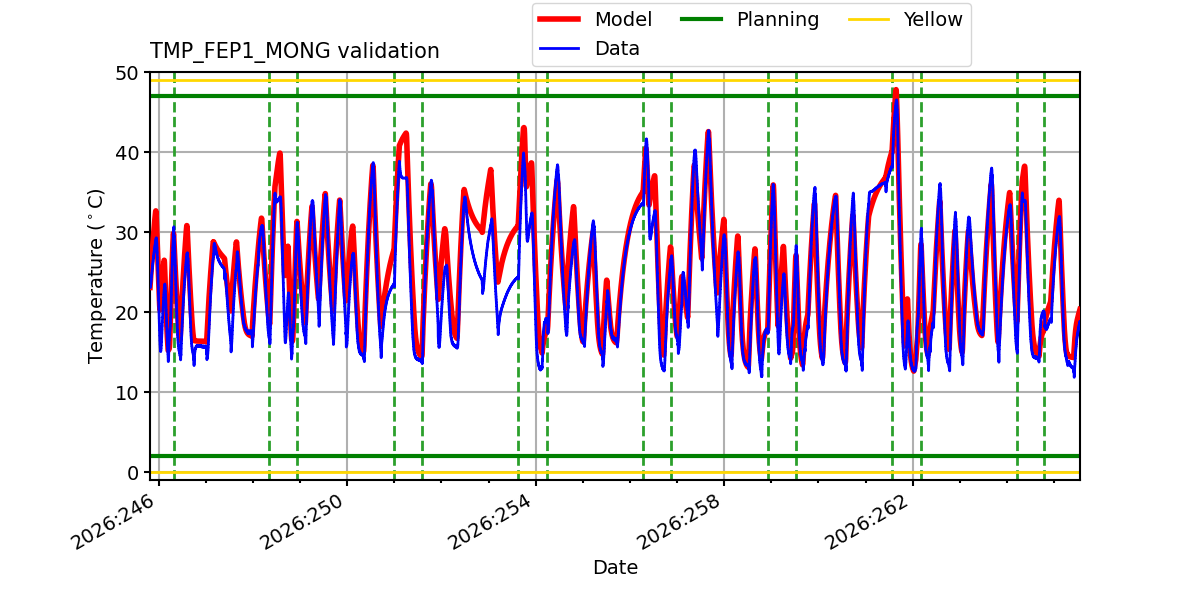

TMP_FEP1_MONG

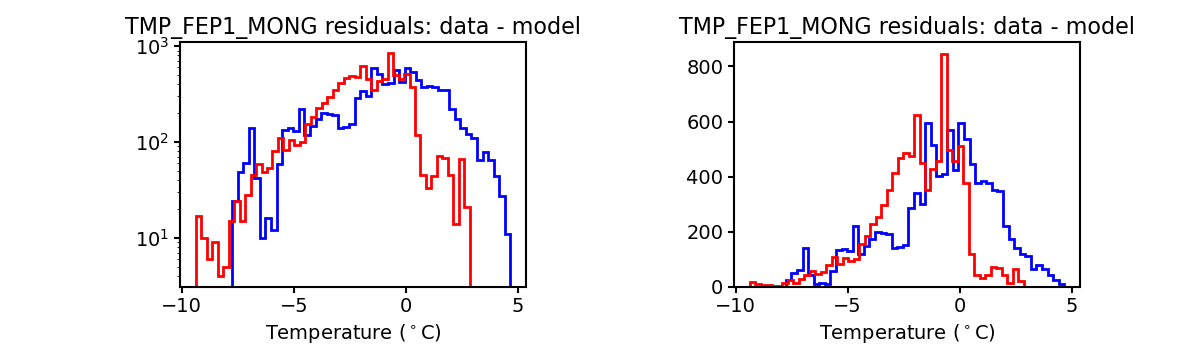

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.

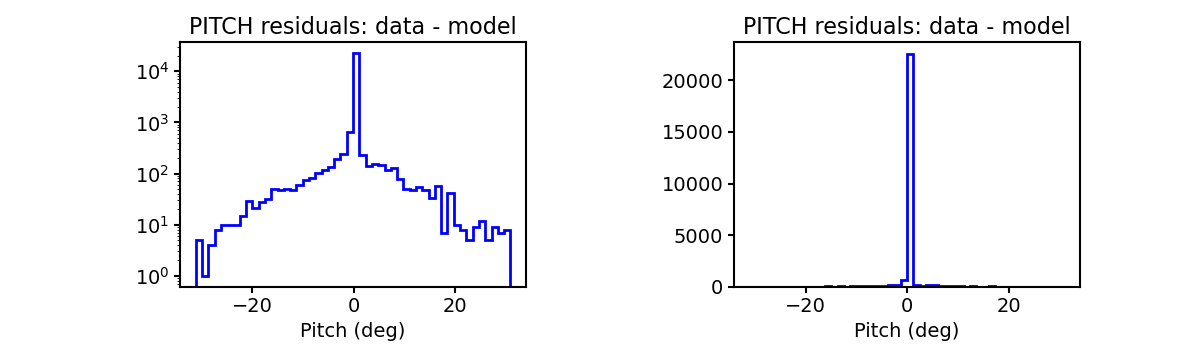

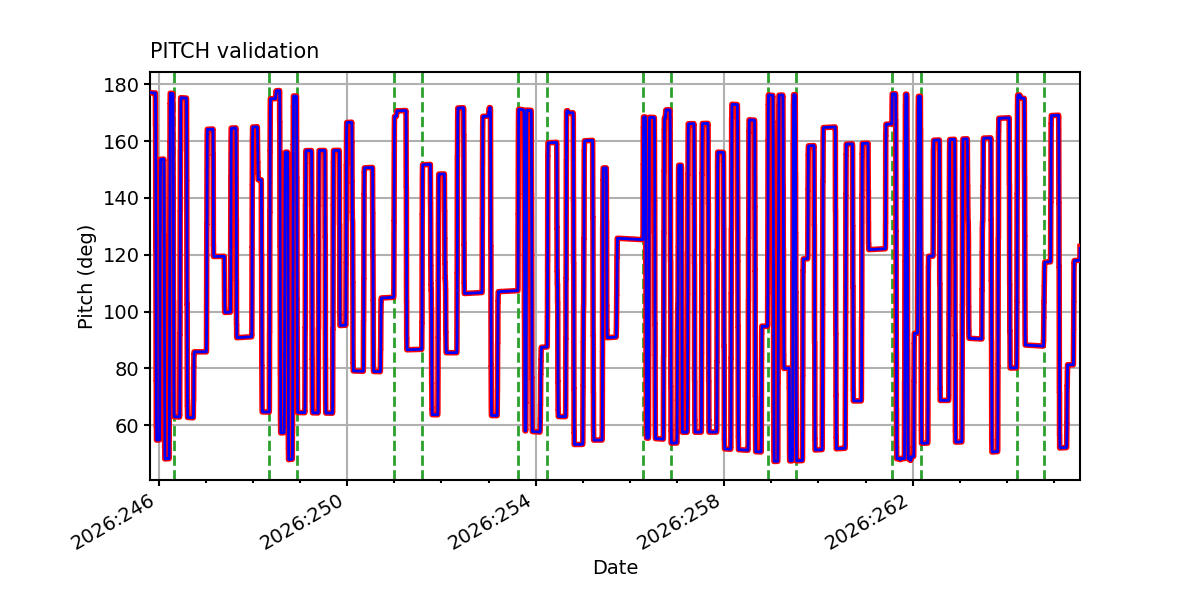

PITCH

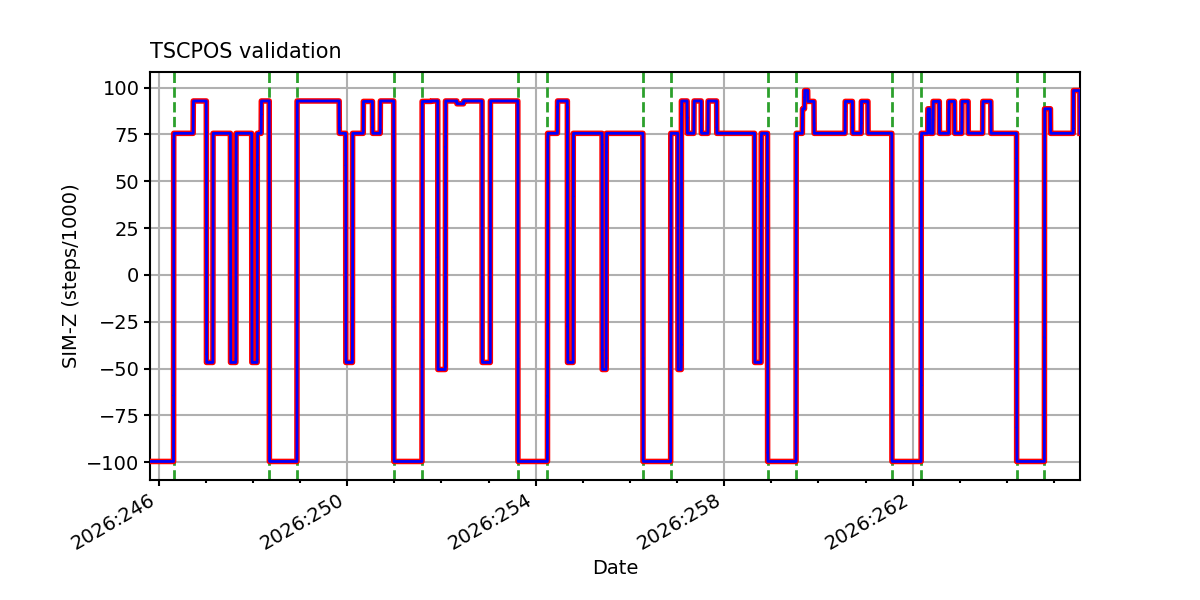

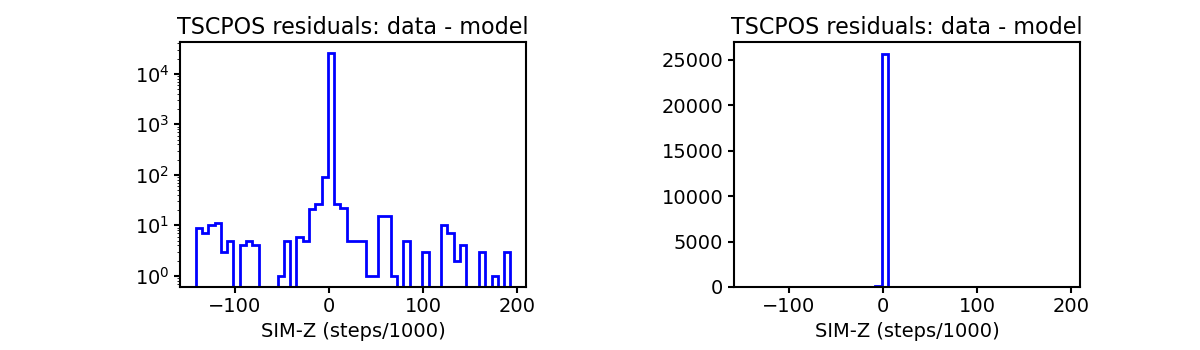

TSCPOS

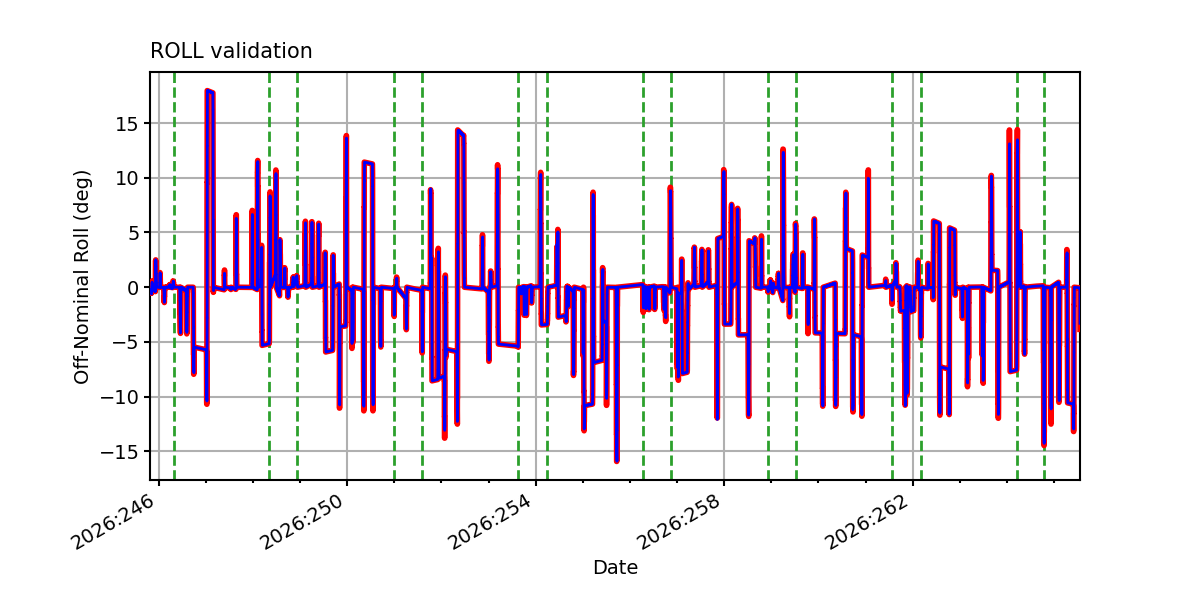

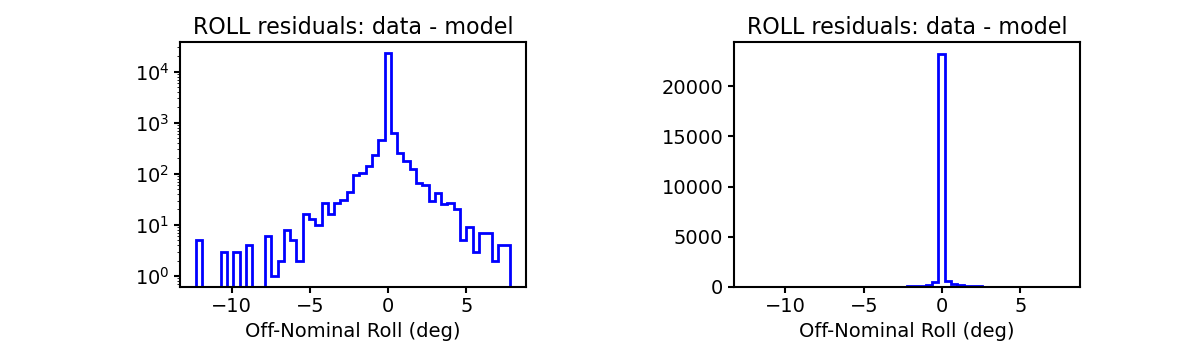

ROLL

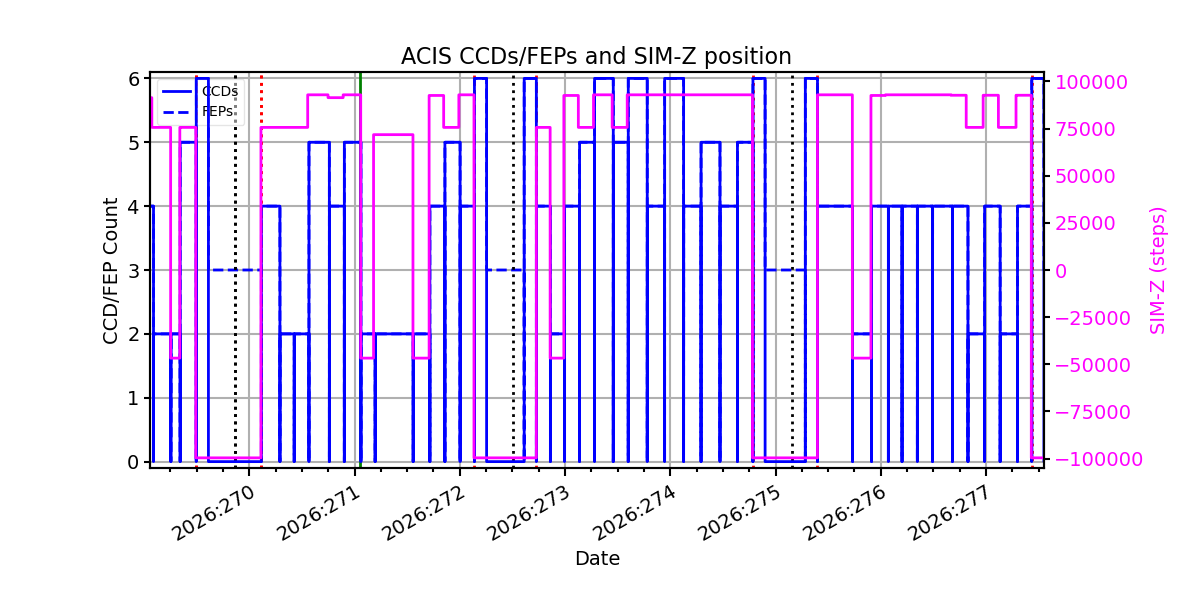

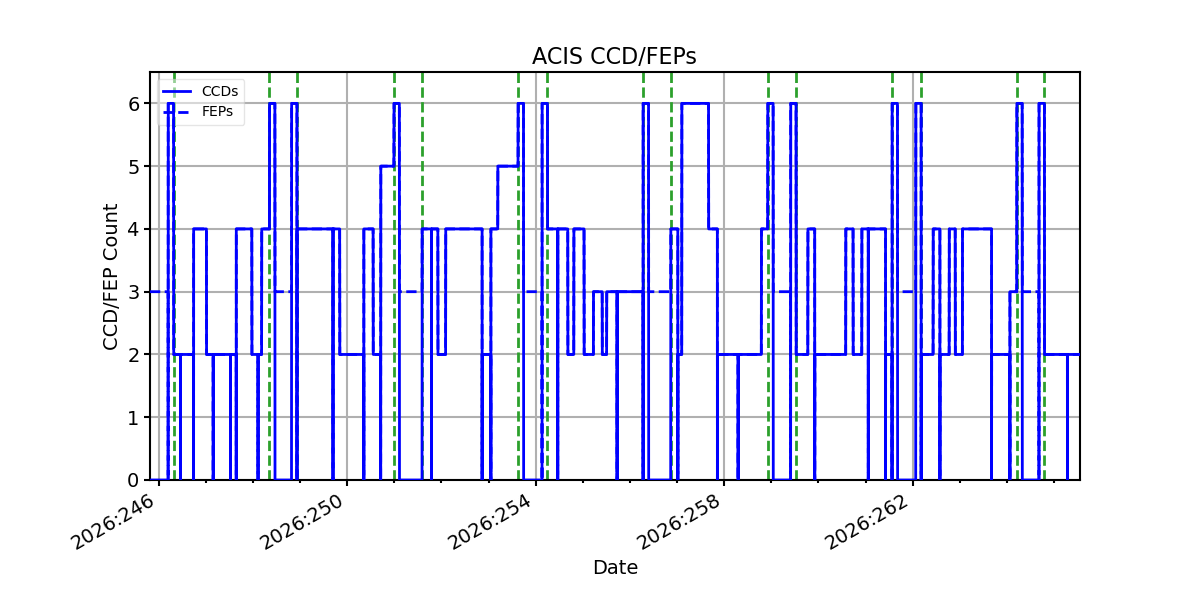

ACIS CCD/FEP Count
