FEP1_MONG Temperatures Check
Summary
| Date start | 2025:272:00:14:23.616 |
| Date stop | 2025:278:23:13:04.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2925/oflsa |
| Run time | Thu Sep 25 10:00:09 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_MONG Upper Limit Violations
No TMP_FEP1_MONG Lower Limit Violations
FEP1_MONG Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_MONG >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_mong | -7.62 | -6.52 | -4.26 | -1.15 | 0.51 | 1.37 | 2.51 |
| pitch | -9.966 | -0.584 | -0.004 | -0.000 | 0.004 | 0.494 | 12.932 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.926 | -0.150 | -0.008 | -0.000 | 0.008 | 0.139 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_MONG | 1 | -7.62 | 2.00 |
| TMP_FEP1_MONG | 50 | -1.15 | 1.00 |
| TMP_FEP1_MONG | 99 | 2.51 | 2.00 |
| PITCH | 1 | -9.966 | 3.00 |
| PITCH | 99 | 12.932 | 3.00 |

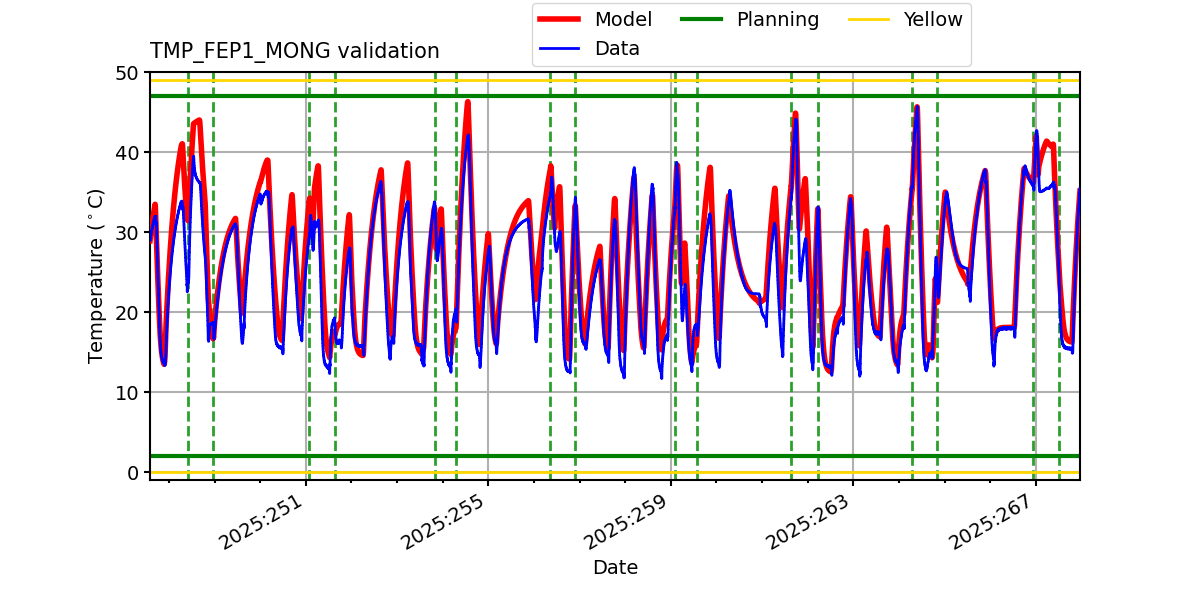

TMP_FEP1_MONG

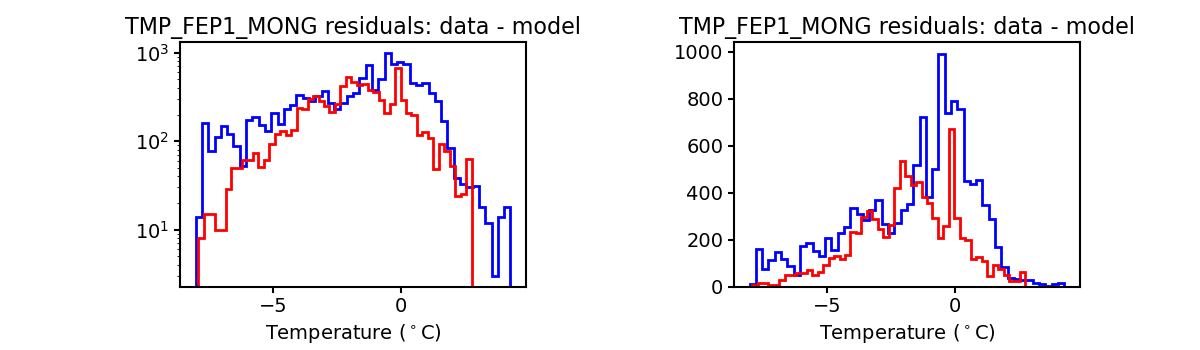

Note: TMP_FEP1_MONG residual histograms include only points where TMP_FEP1_MONG >= 25.0 C in blue and points where TMP_FEP1_MONG <= 20.0 C in red.
PITCH

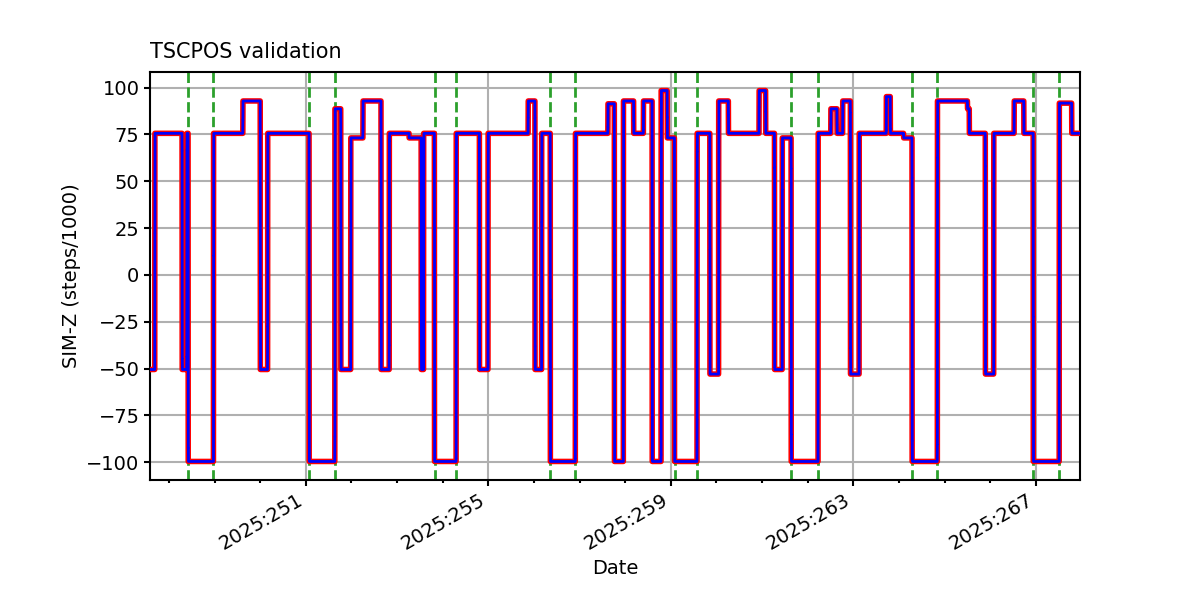

TSCPOS

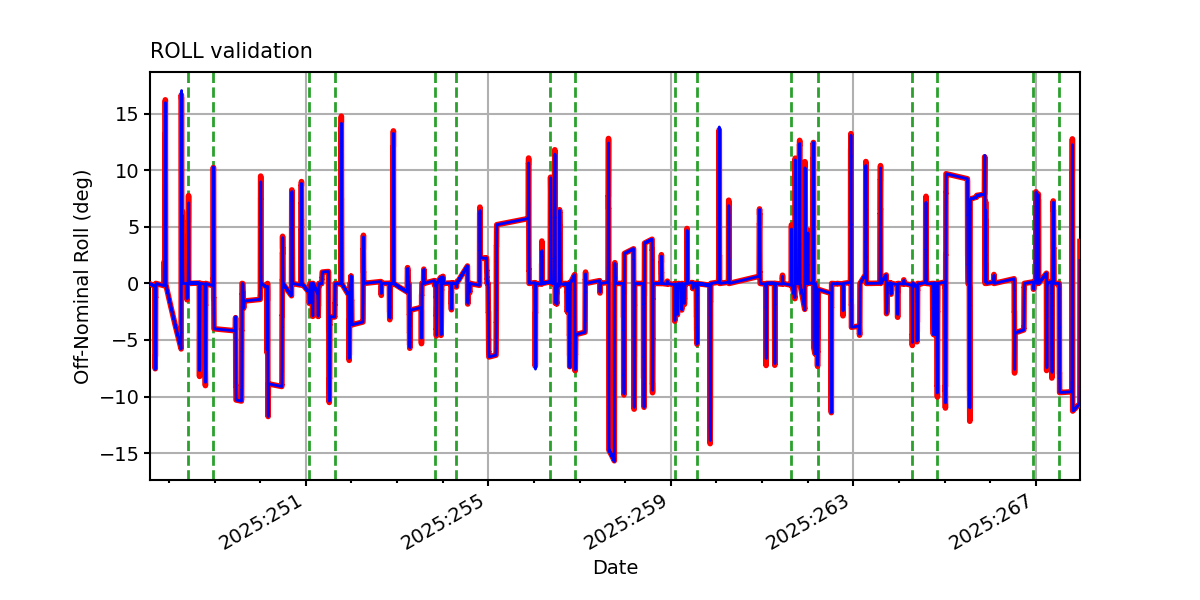

ROLL

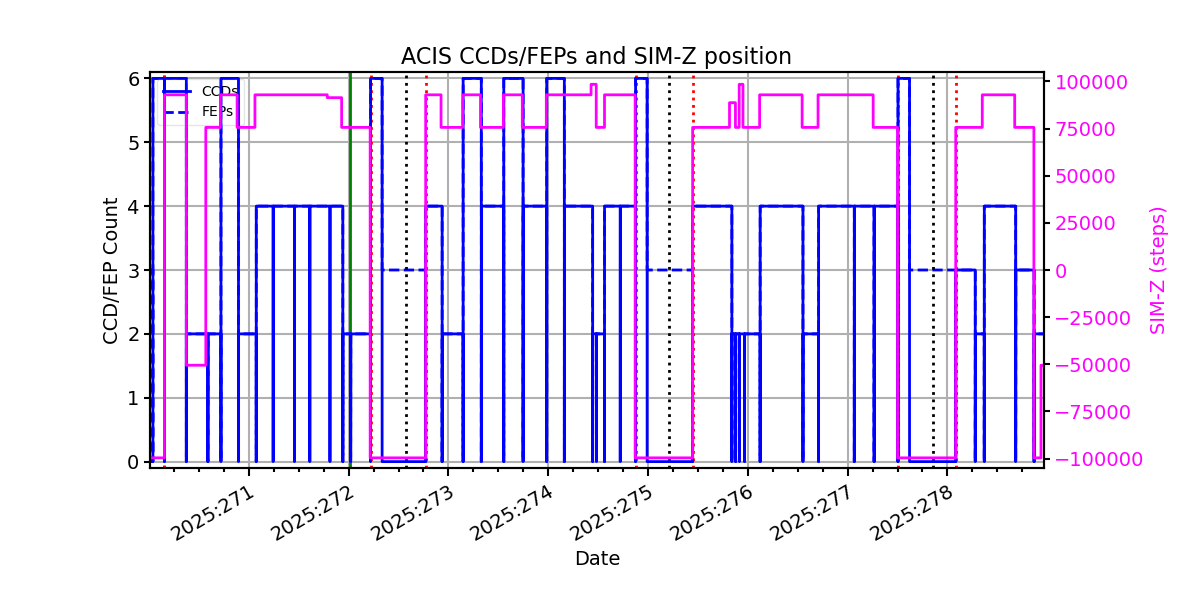

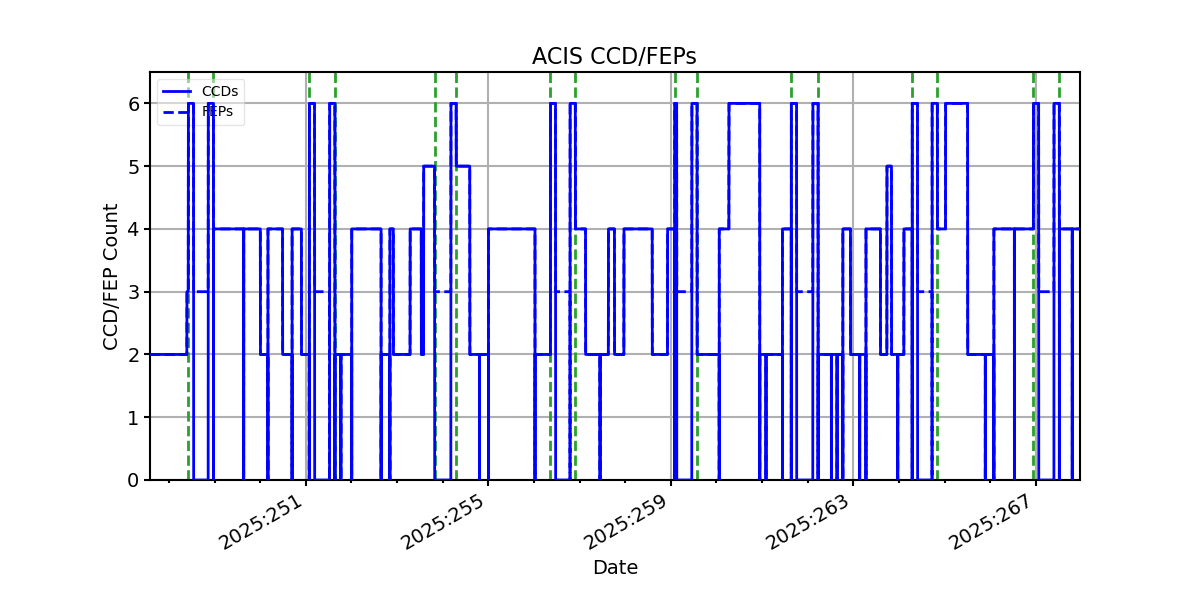

ACIS CCD/FEP Count
