ACISFP Temperatures Check
Summary
| Date start | 2026:095:21:40:32.216 |
| Date stop | 2026:103:00:29:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR0626/oflsa |
| Run time | Thu Apr 2 10:44:45 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:097:13:56:30.816 | 2026:097:14:07:26.816 | 0.66 / 12.10 | -110.98 / -111.00 | 32287 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.94 | -1.46 | -0.68 | 0.39 | 1.26 | 1.95 | 2.76 |
| pitch | -12.422 | -1.472 | -0.004 | -0.000 | 0.004 | 1.737 | 13.037 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.473 | -0.316 | -0.010 | -0.000 | 0.010 | 0.239 | 2.113 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.76 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 13.037 | 3.00 |

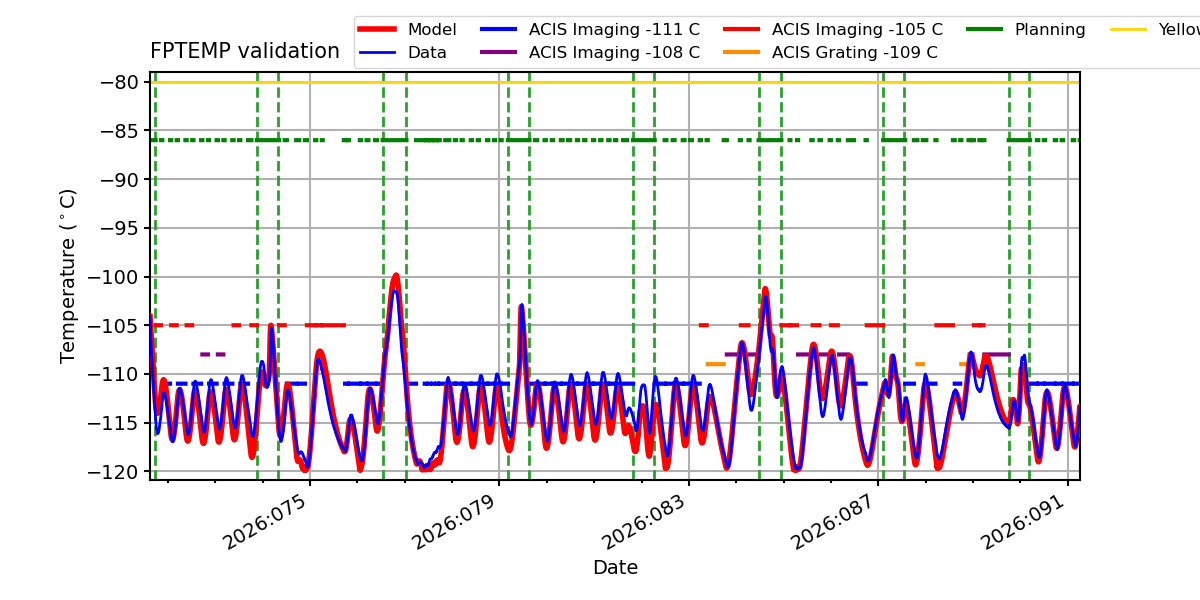

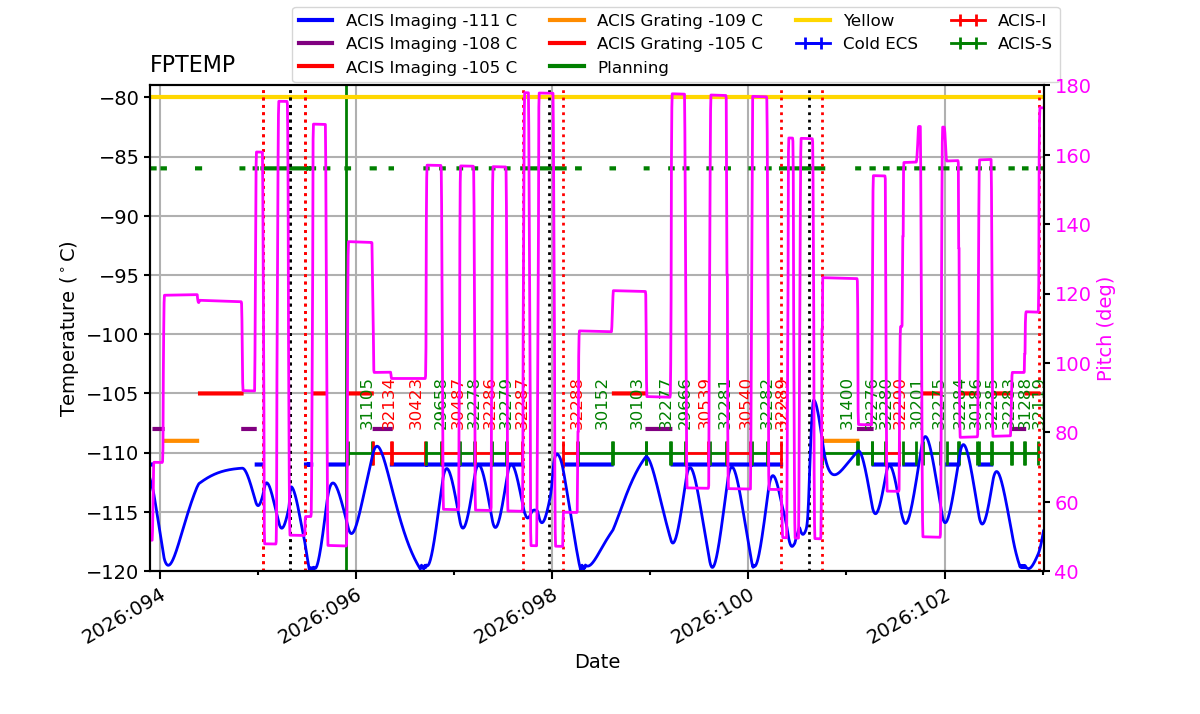

FPTEMP

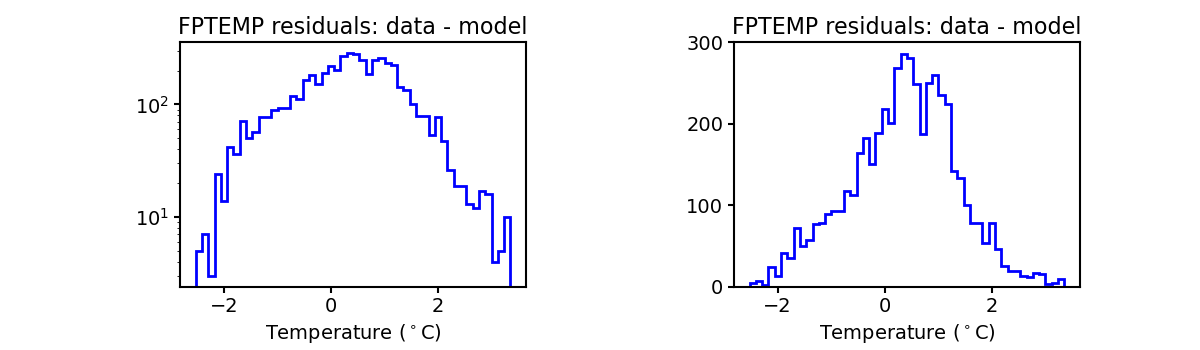

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH

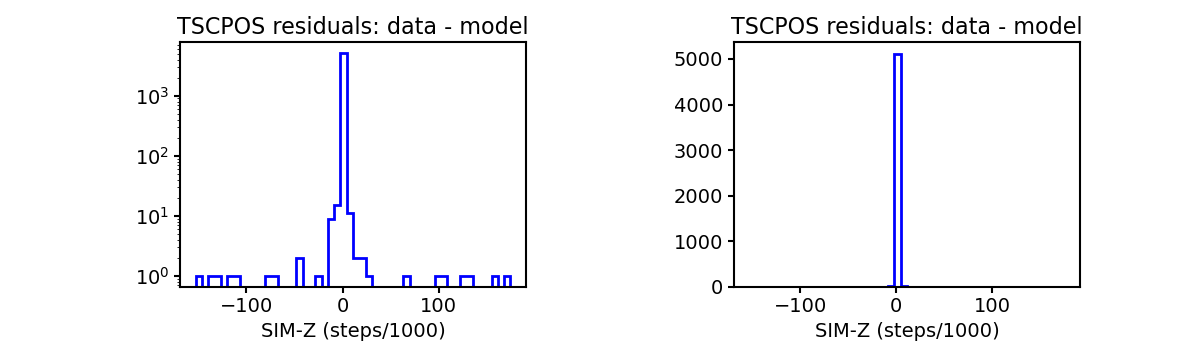

TSCPOS

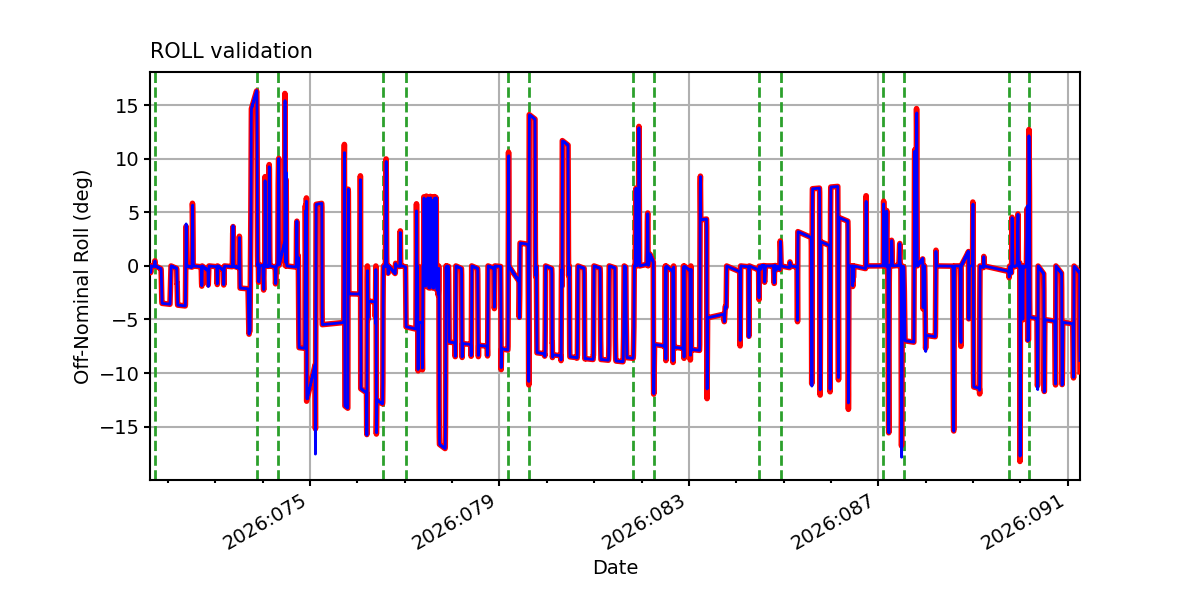

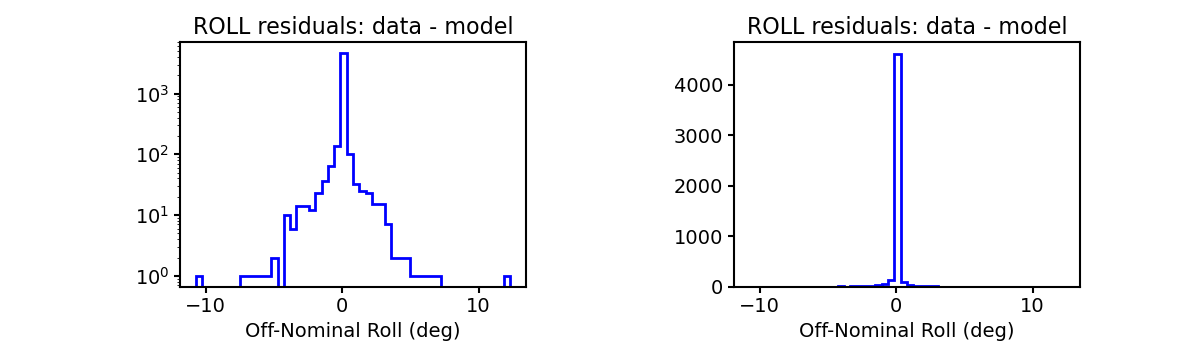

ROLL

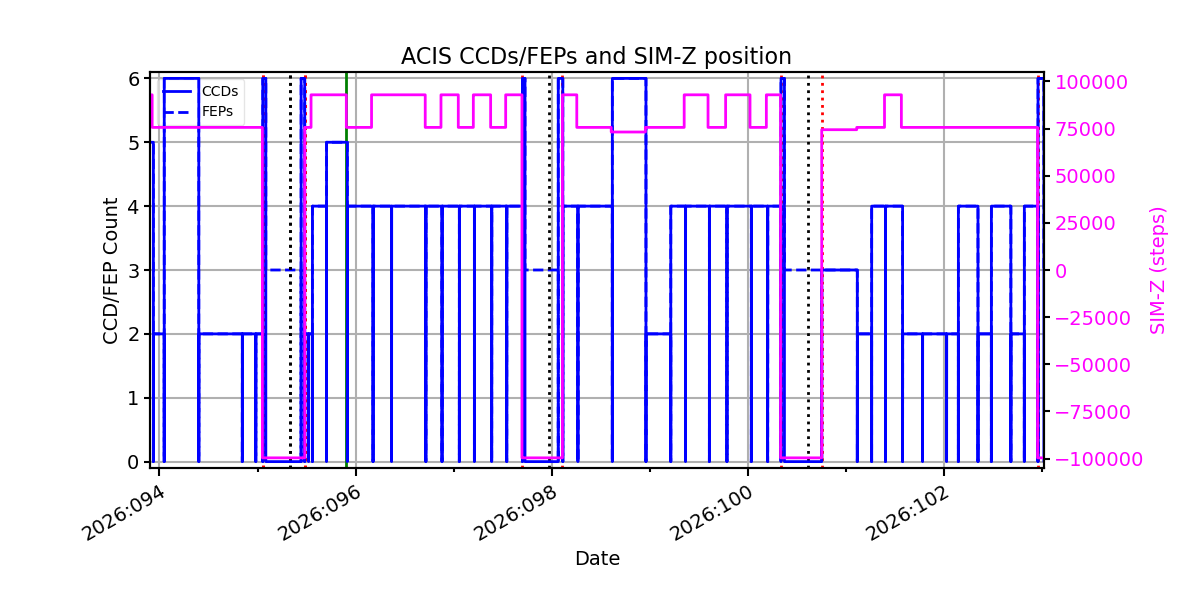

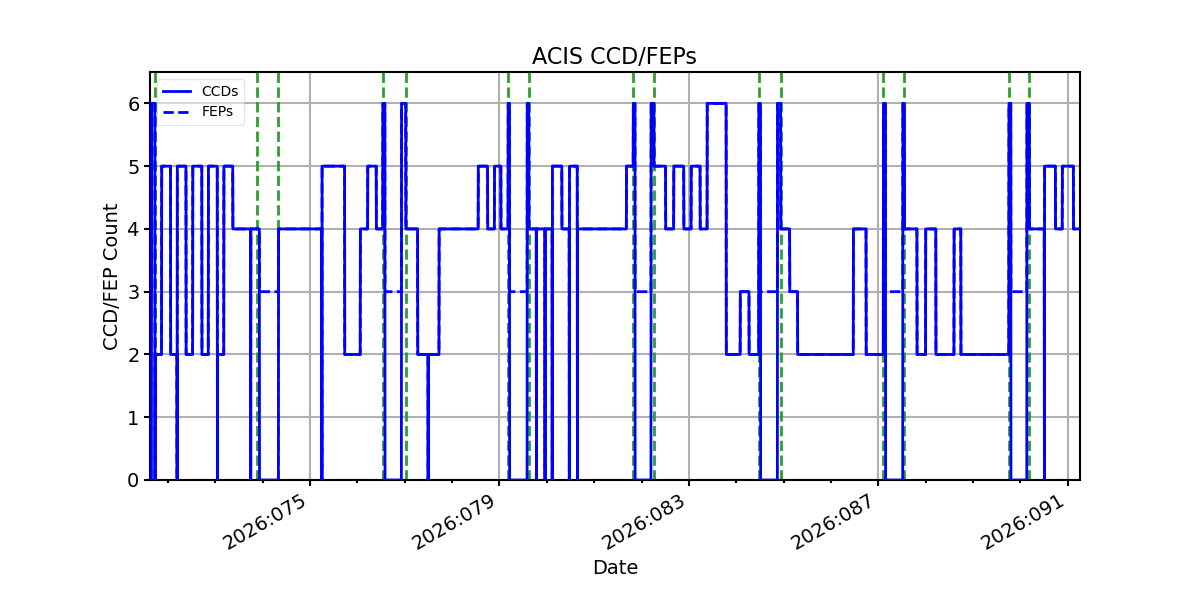

ACIS CCD/FEP Count

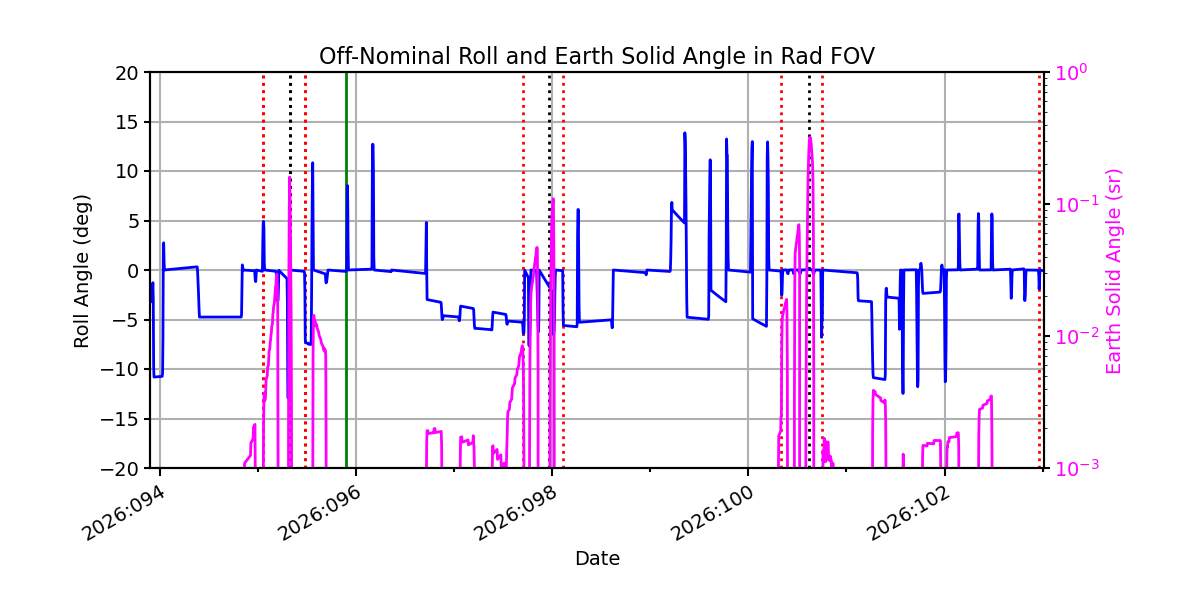

Earth Solid Angle
ADDITIONAL PLOTS

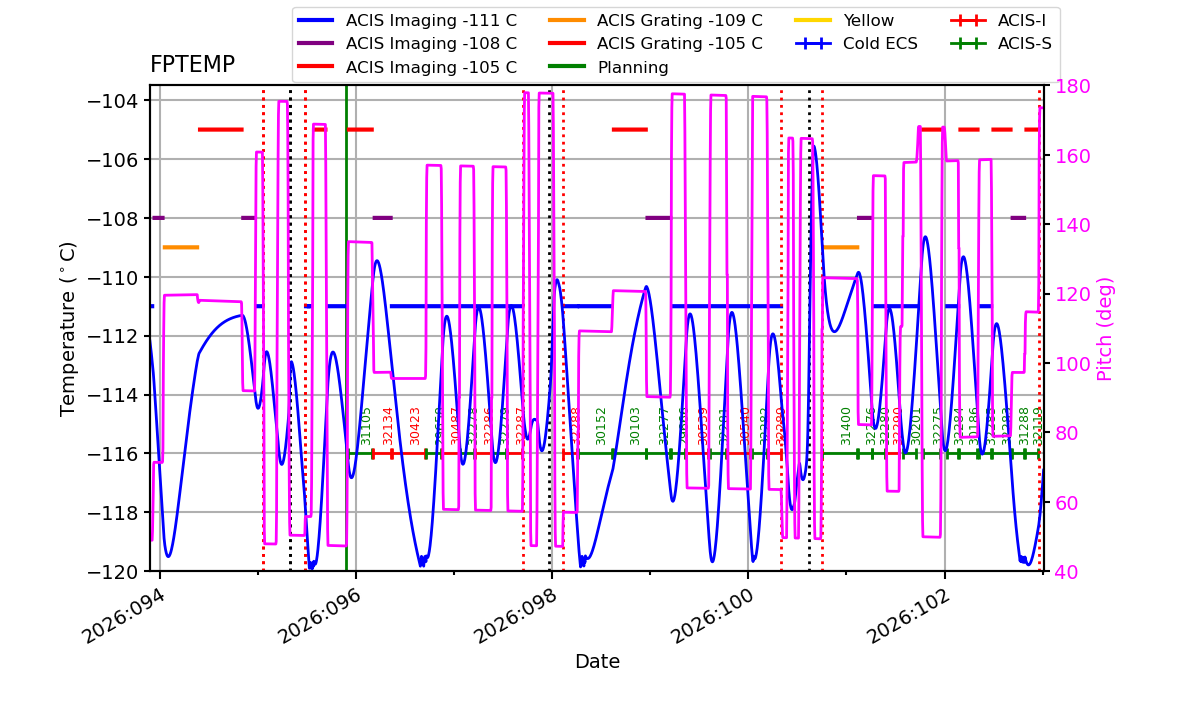

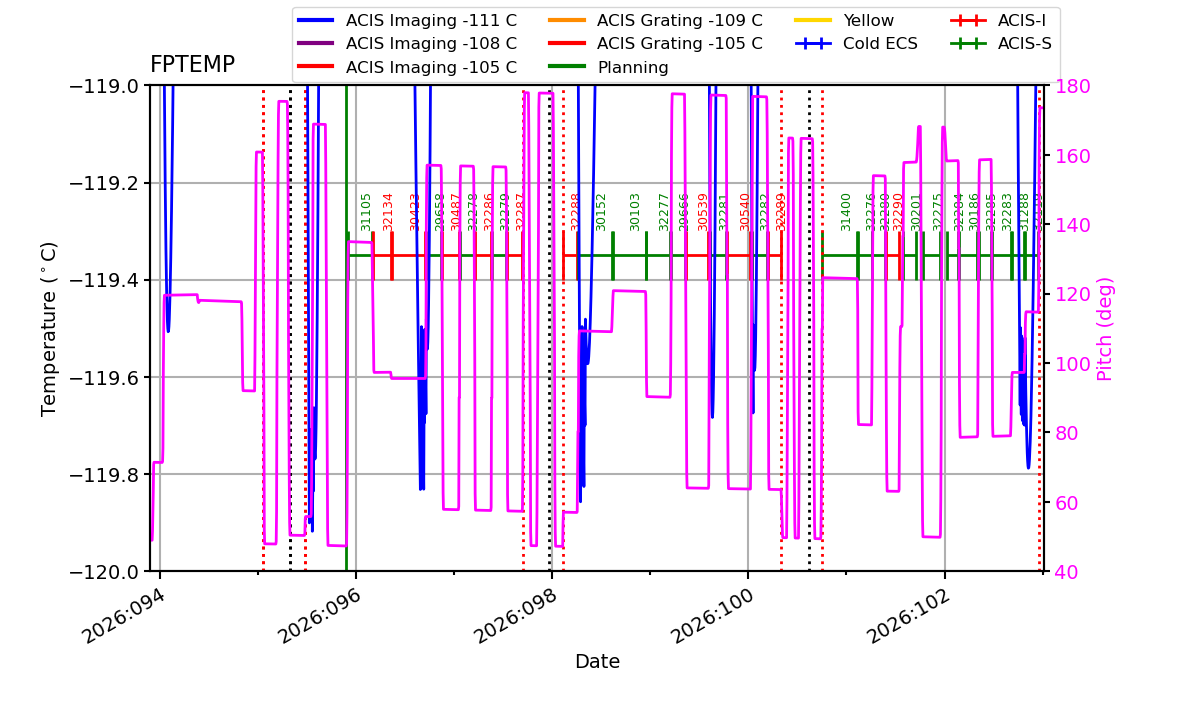

Additional plots of FPTEMP vs TIME for different temperature ranges
