ACISFP Temperatures Check
Summary
| Date start | 2026:103:00:26:00.016 |
| Date stop | 2026:110:01:32:52.116 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/APR1326/oflsa |
| Run time | Wed Apr 8 16:50:42 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.64 | -1.20 | -0.52 | 0.44 | 1.38 | 2.20 | 3.28 |
| pitch | -12.422 | -1.106 | -0.004 | -0.000 | 0.004 | 1.635 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.210 | -0.185 | -0.007 | -0.000 | 0.007 | 0.164 | 2.112 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 3.28 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

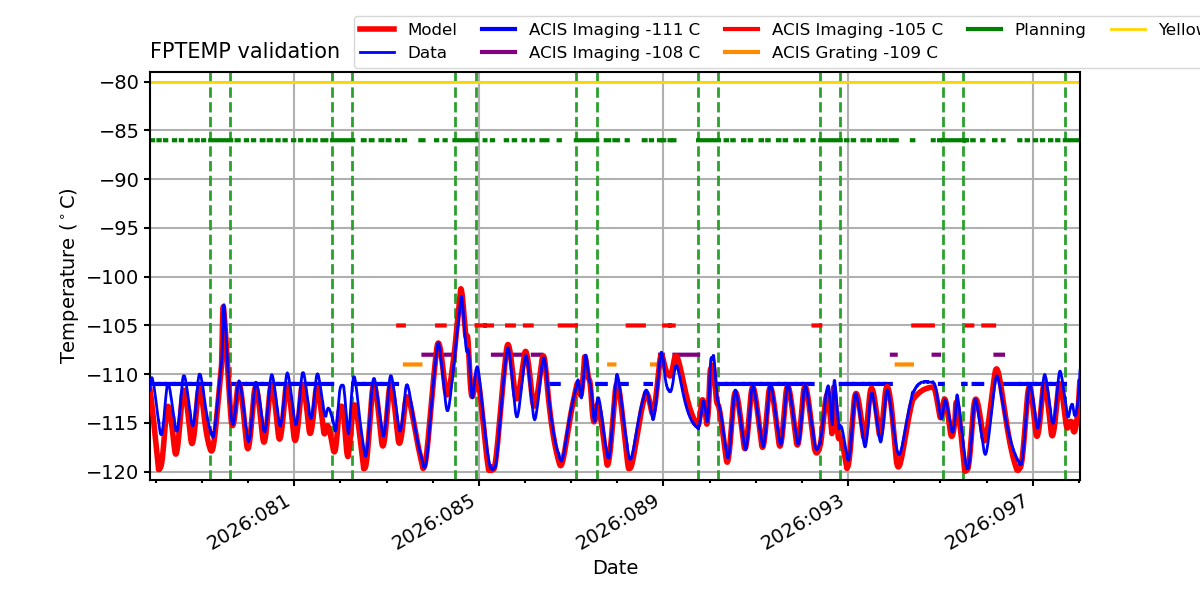

FPTEMP

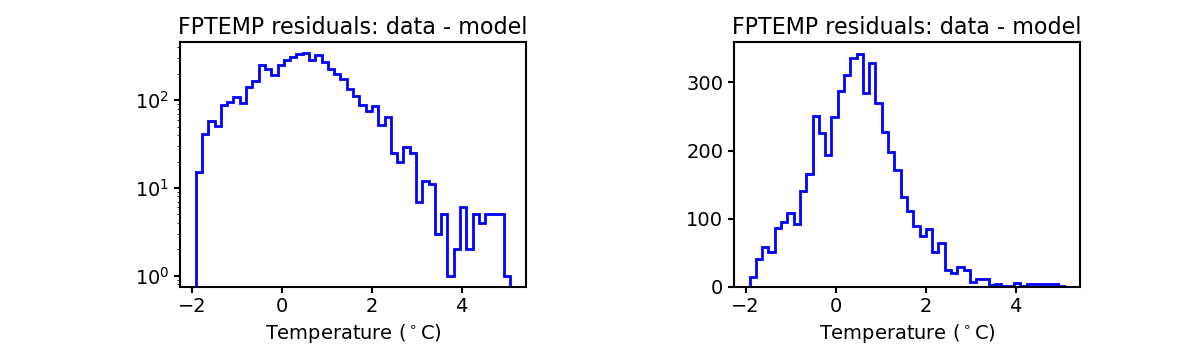

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

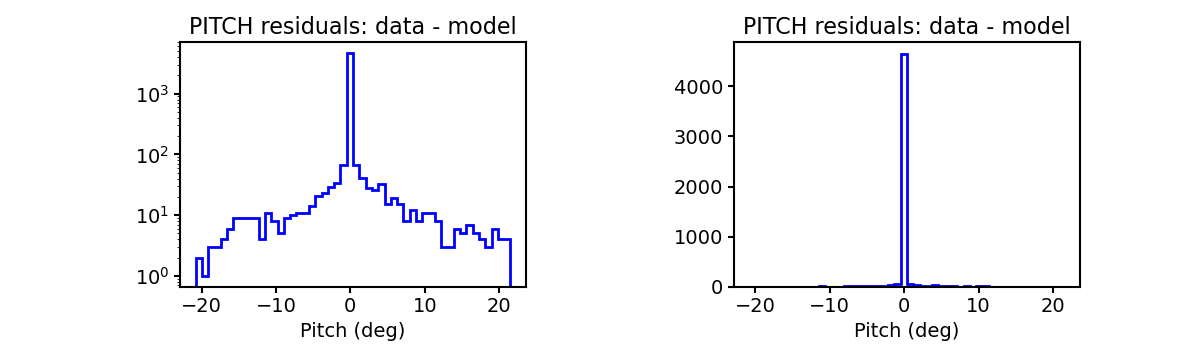

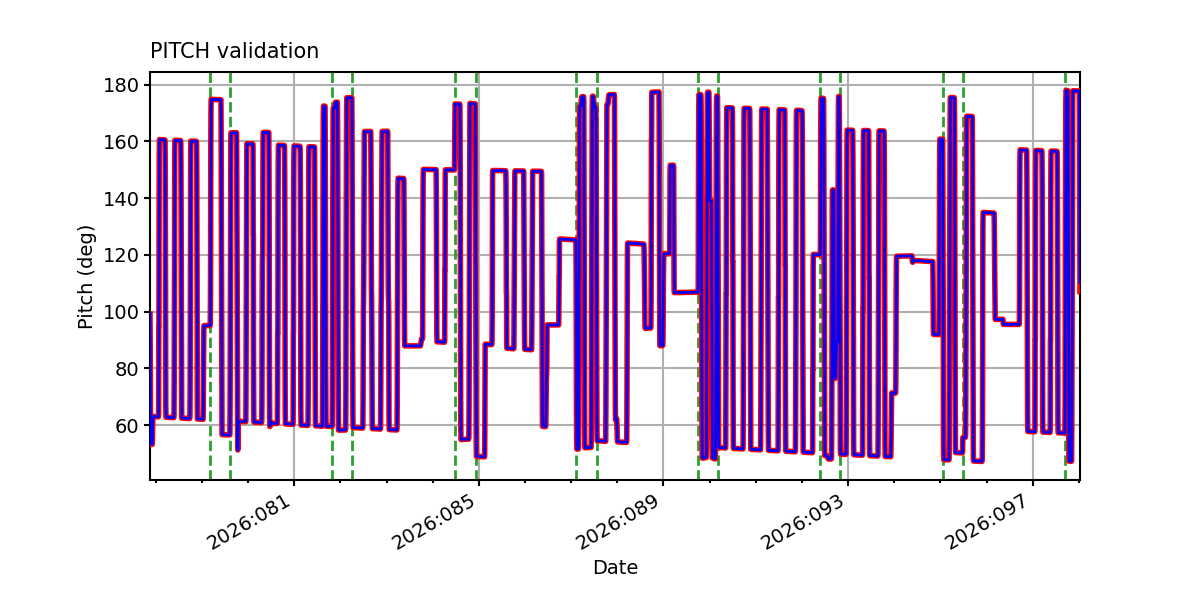

PITCH

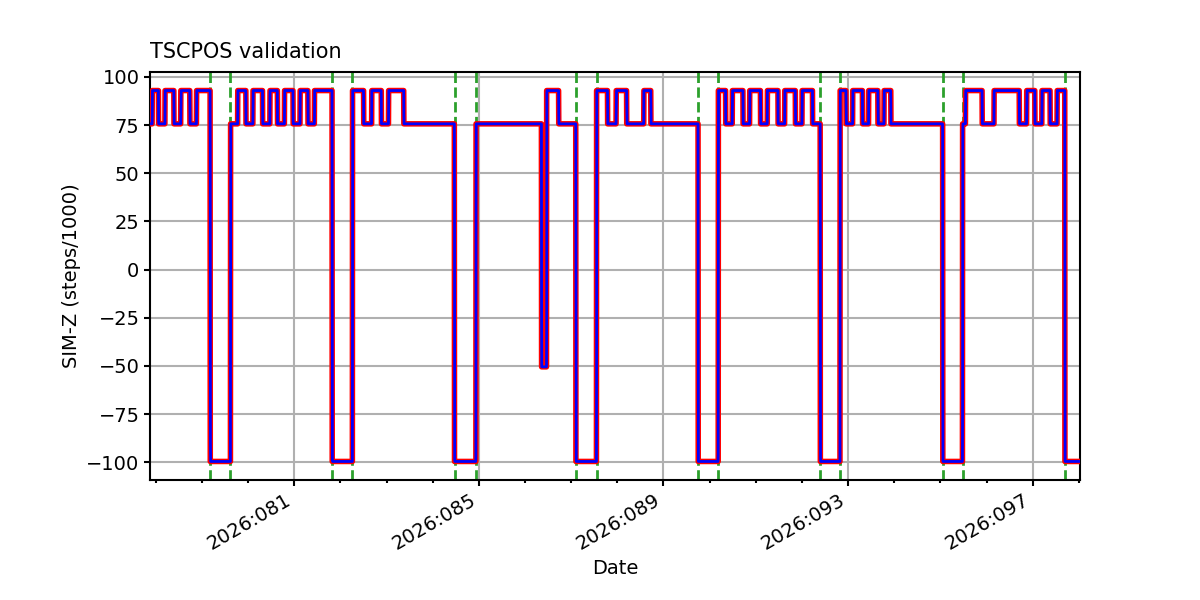

TSCPOS

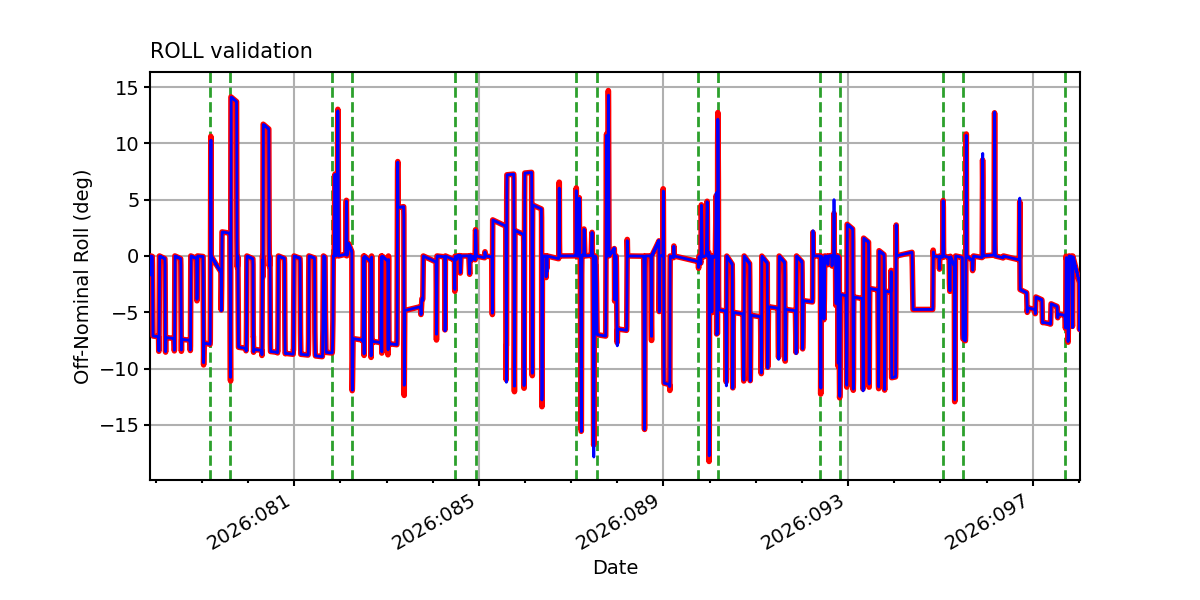

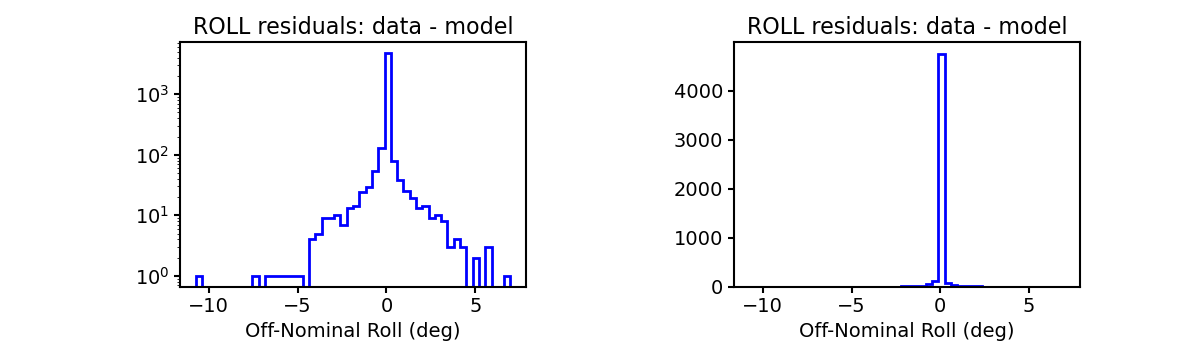

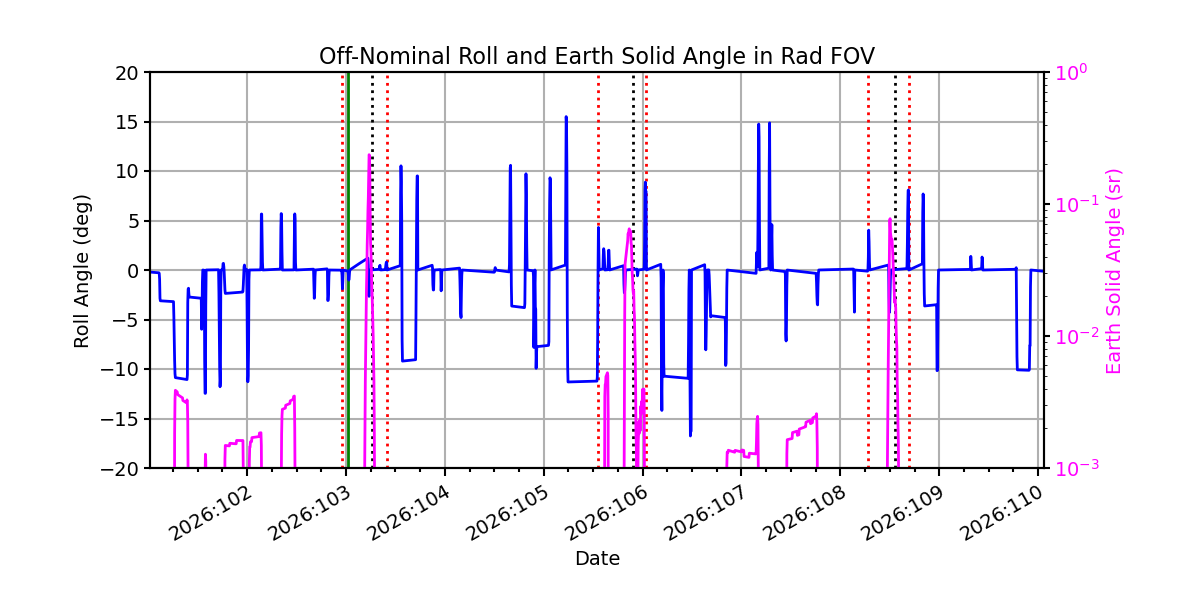

ROLL

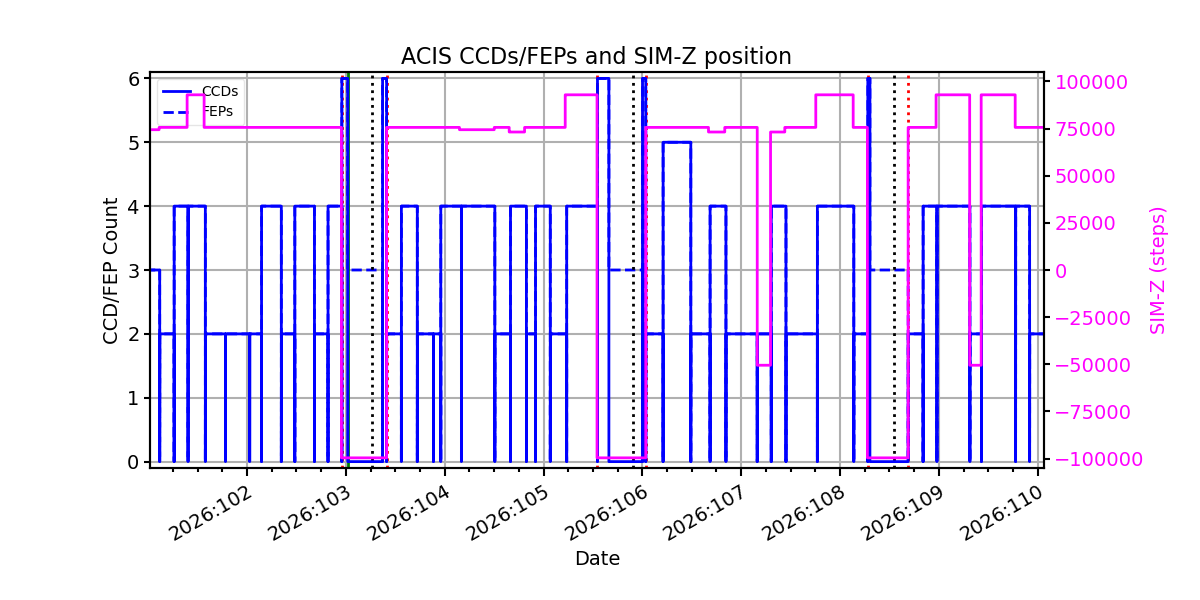

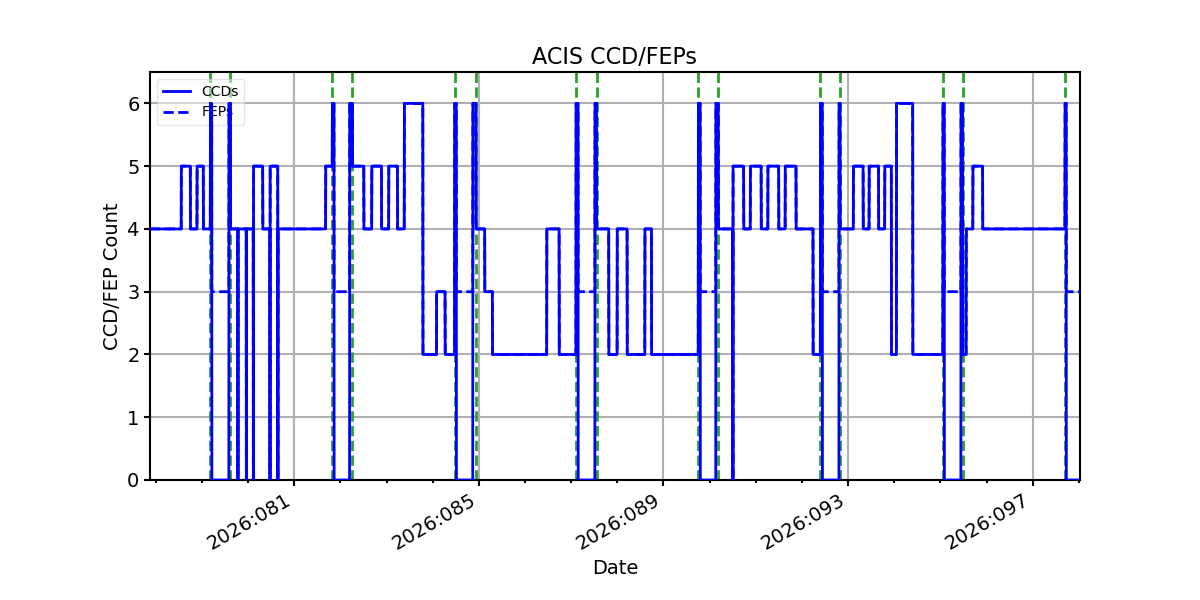

ACIS CCD/FEP Count

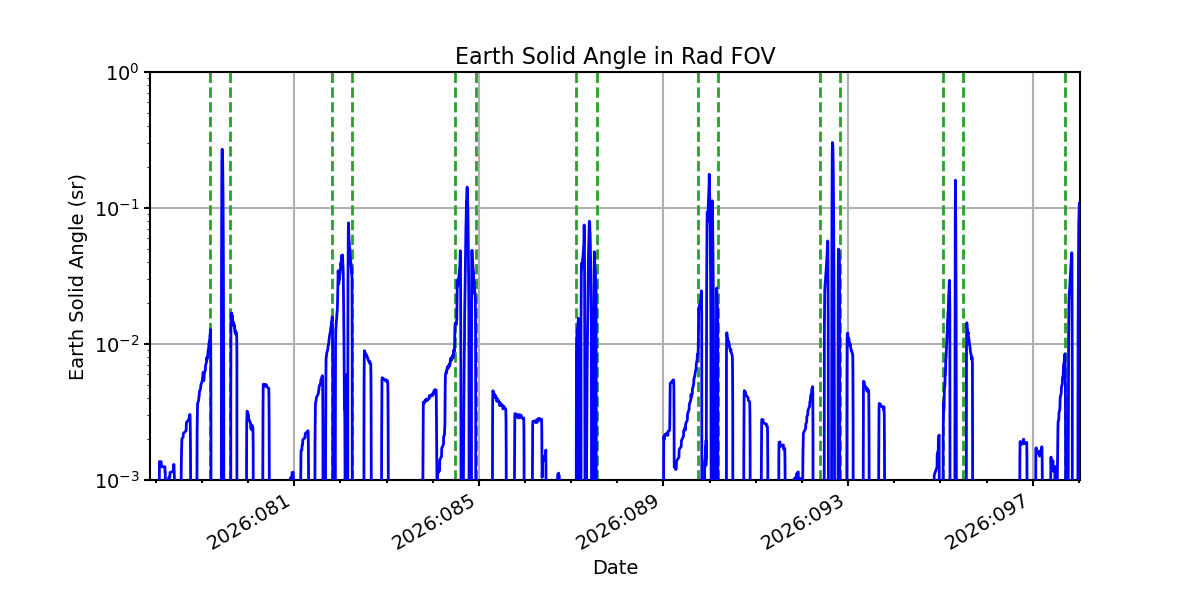

Earth Solid Angle
ADDITIONAL PLOTS

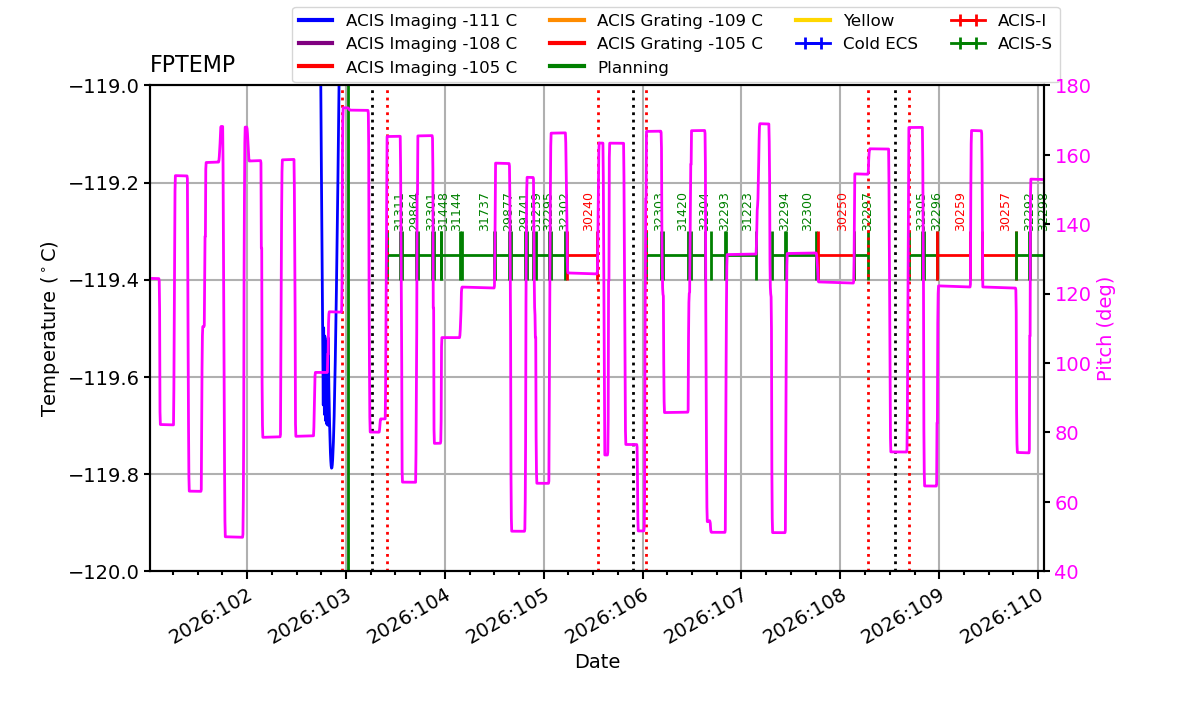

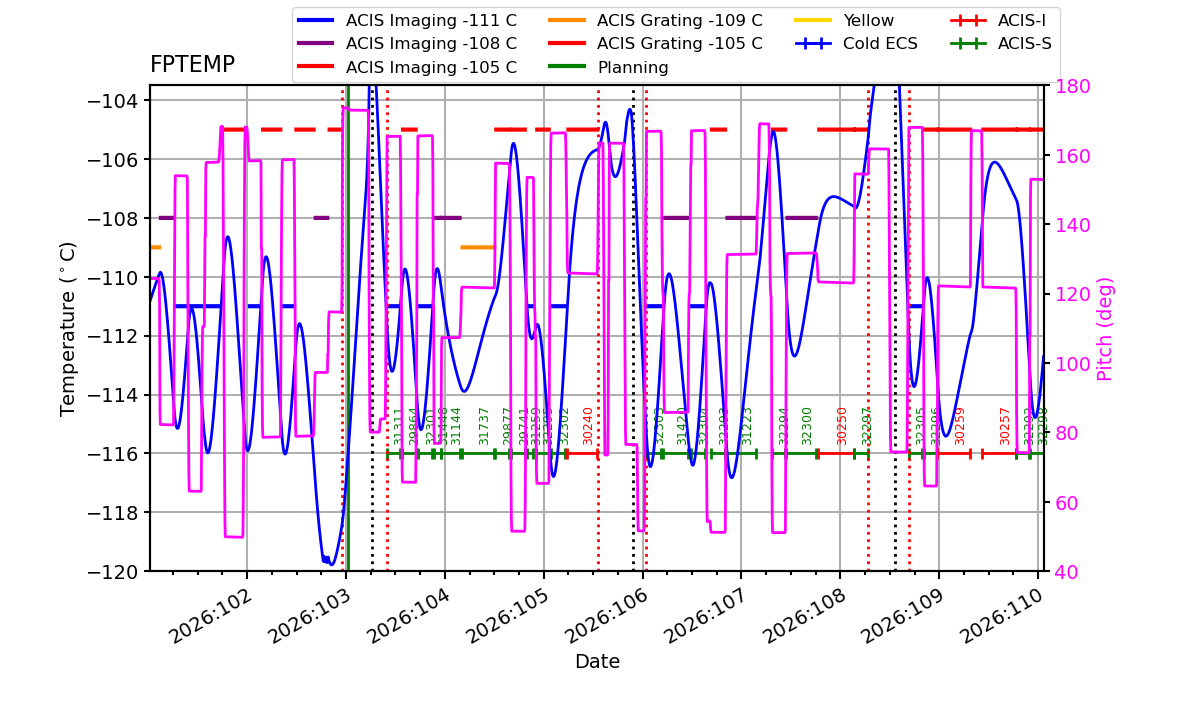

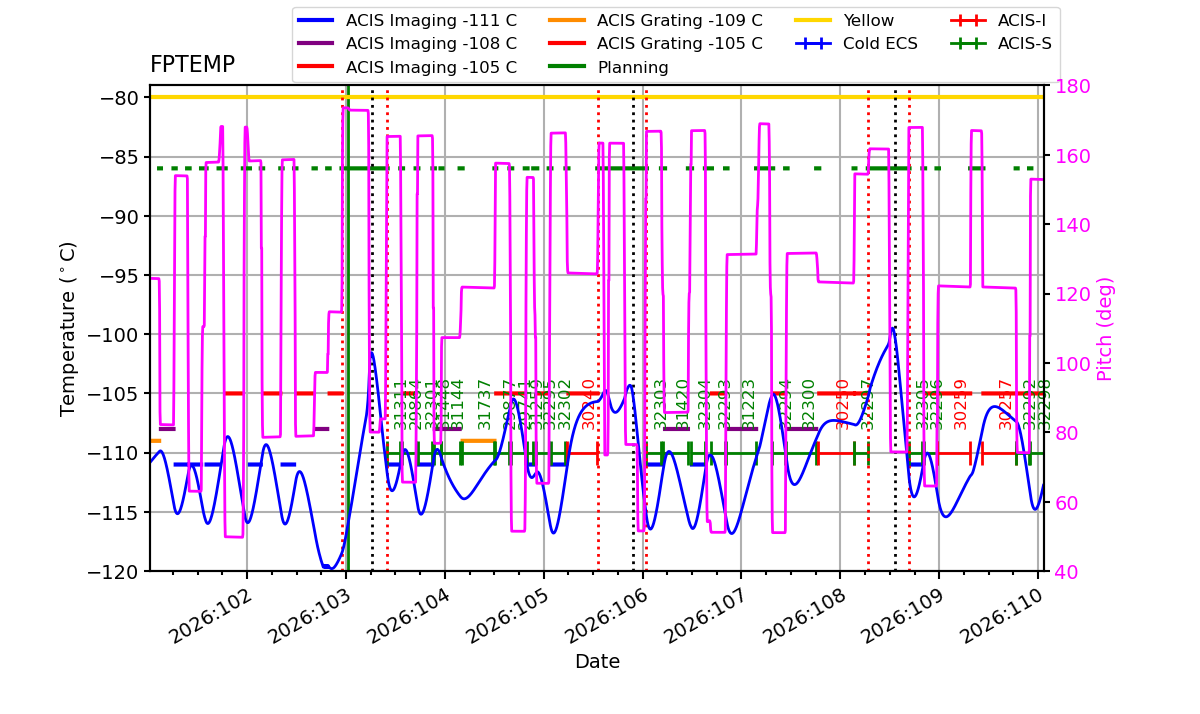

Additional plots of FPTEMP vs TIME for different temperature ranges
