ACISFP Temperatures Check
Summary
| Date start | 2025:118:00:21:12.316 |
| Date stop | 2025:125:01:52:24.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/APR2825/ofls |
| Run time | Wed Apr 23 11:34:00 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2025:122:12:17:58.816 | 2025:122:12:23:26.816 | 0.33 / 9.30 | -110.99 / -111.00 | 30144 |
| 2025:122:19:40:46.816 | 2025:122:20:08:06.816 | 1.64 / 28.00 | -110.97 / -111.00 | 29641 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.32 | -1.39 | -0.65 | 0.31 | 1.60 | 2.14 | 2.93 |
| pitch | -6.220 | -0.438 | -0.004 | 0.000 | 0.004 | 0.999 | 5.813 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.486 | -0.103 | -0.008 | 0.000 | 0.011 | 0.207 | 1.493 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.32 | 2.00 |
| FPTEMP | 99 | 2.93 | 2.00 |
| PITCH | 1 | -6.22 | 3.00 |
| PITCH | 99 | 5.813 | 3.00 |
FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH
TSCPOS
ROLL

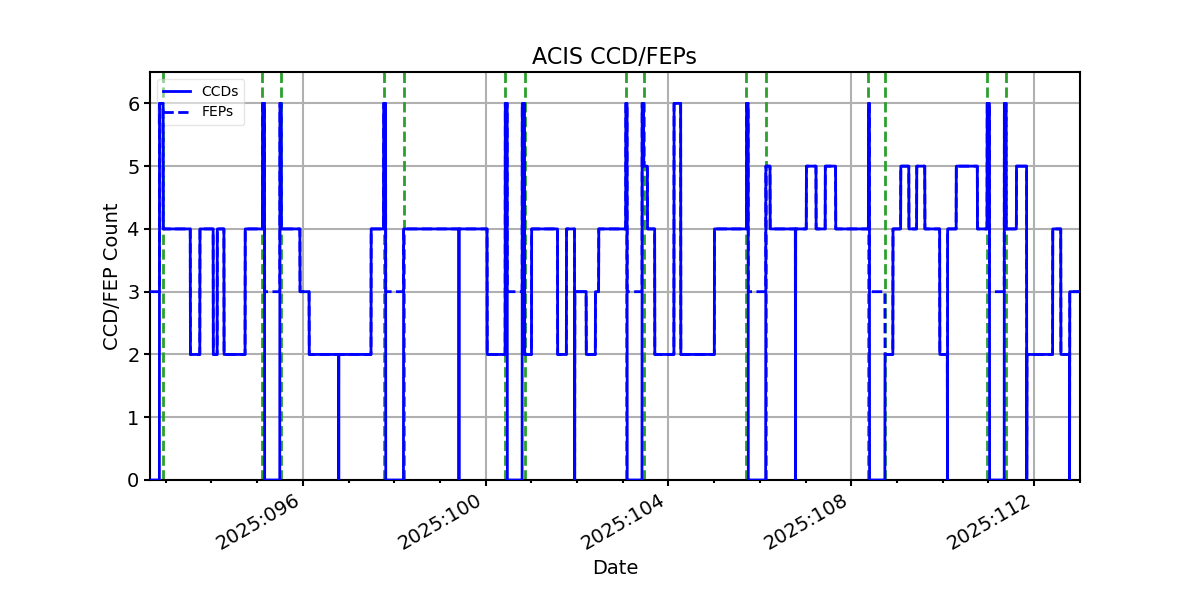

ACIS CCD/FEP Count
Earth Solid Angle
ADDITIONAL PLOTS
Additional plots of FPTEMP vs TIME for different temperature ranges
