ACISFP Temperatures Check
Summary
| Date start | 2026:222:00:50:00.016 |
| Date stop | 2026:229:01:19:21.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1026/oflsb |
| Run time | Wed Aug 5 10:55:03 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:222:22:53:10.816 | 2026:222:23:53:18.816 | 3.61 / 20.00 | -107.92 / -108.00 | 32498 |
| 2026:227:18:59:19.029 | 2026:227:19:14:06.816 | 0.89 / 32.00 | -110.92 / -111.00 | 30349 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -3.87 | -1.98 | -1.16 | 0.90 | 1.88 | 2.54 | 3.32 |
| pitch | -12.462 | -1.186 | -0.004 | -0.000 | 0.004 | 1.072 | 12.800 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.057 | -0.193 | -0.009 | 0.000 | 0.010 | 0.281 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -3.87 | 2.00 |
| FPTEMP | 99 | 3.32 | 2.00 |
| PITCH | 1 | -12.462 | 3.00 |
| PITCH | 99 | 12.8 | 3.00 |

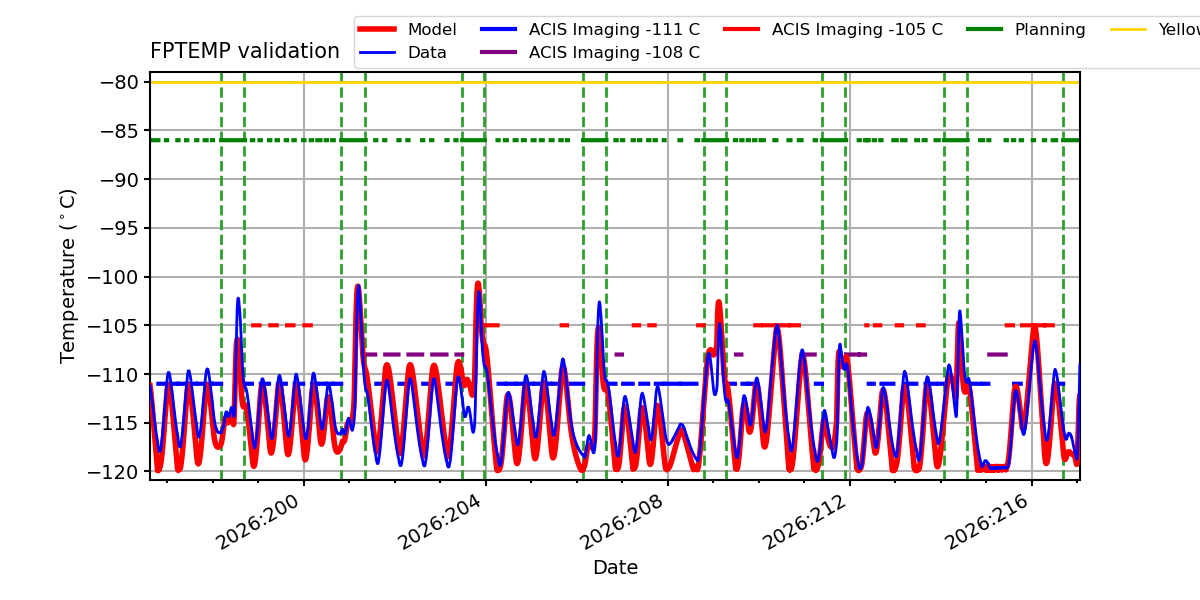

FPTEMP

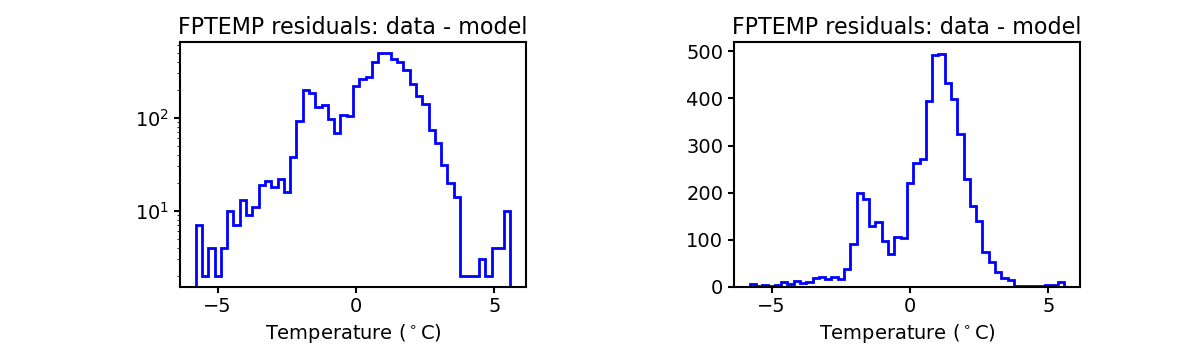

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

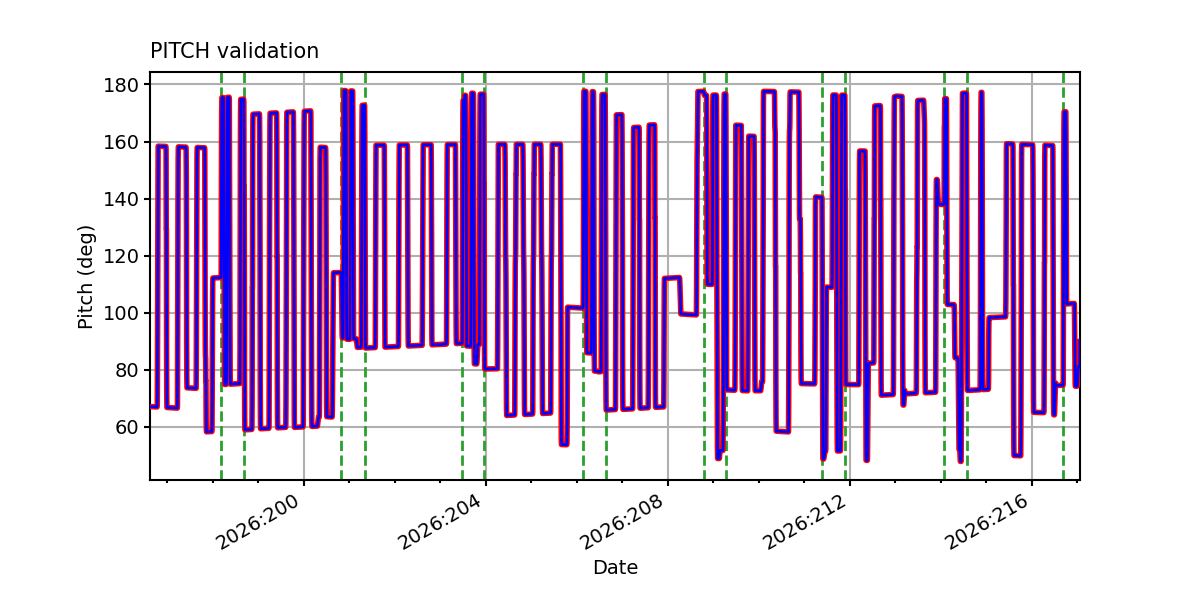

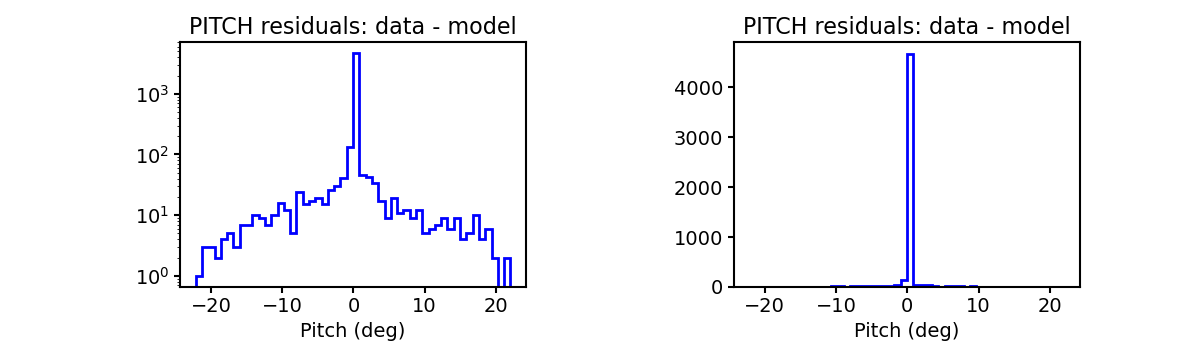

PITCH

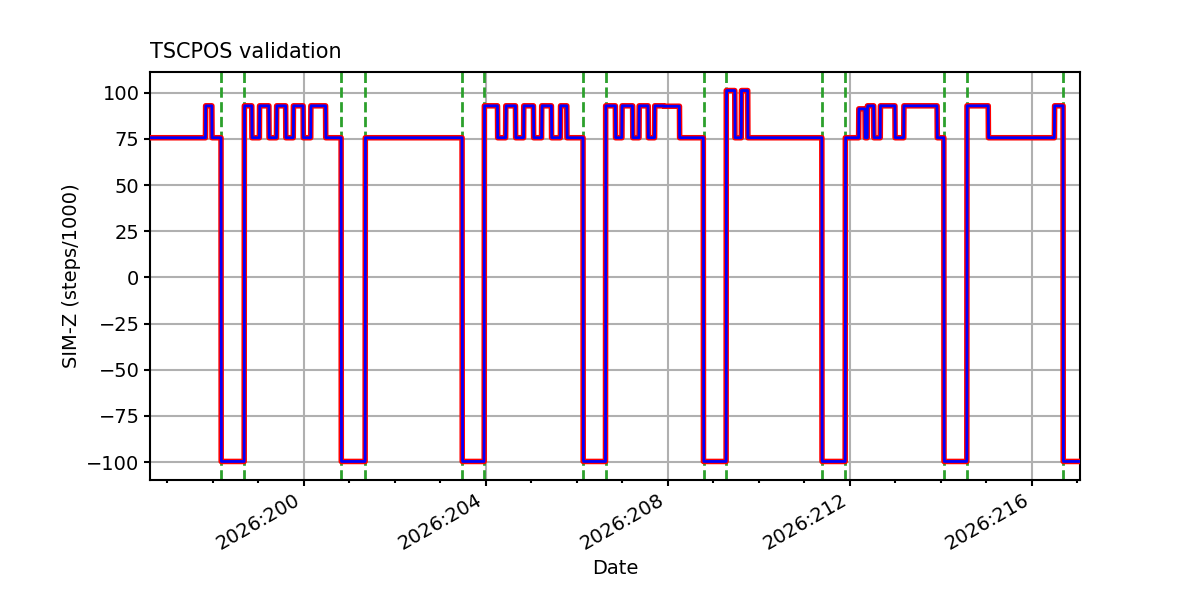

TSCPOS

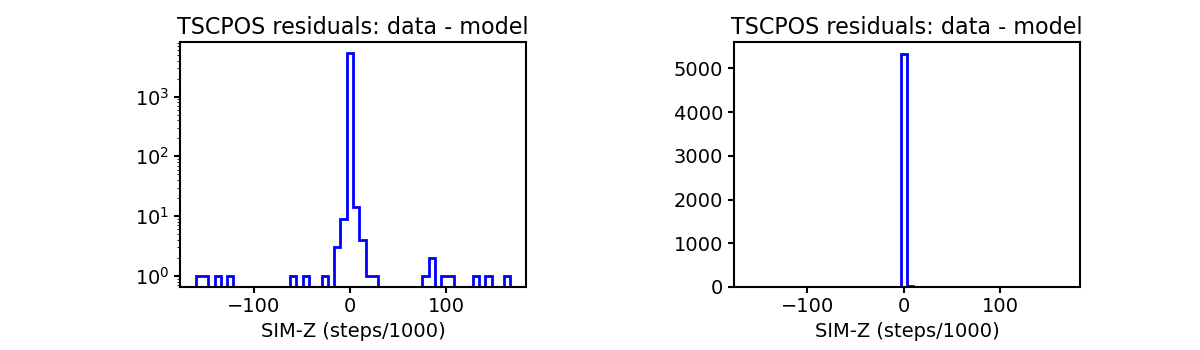

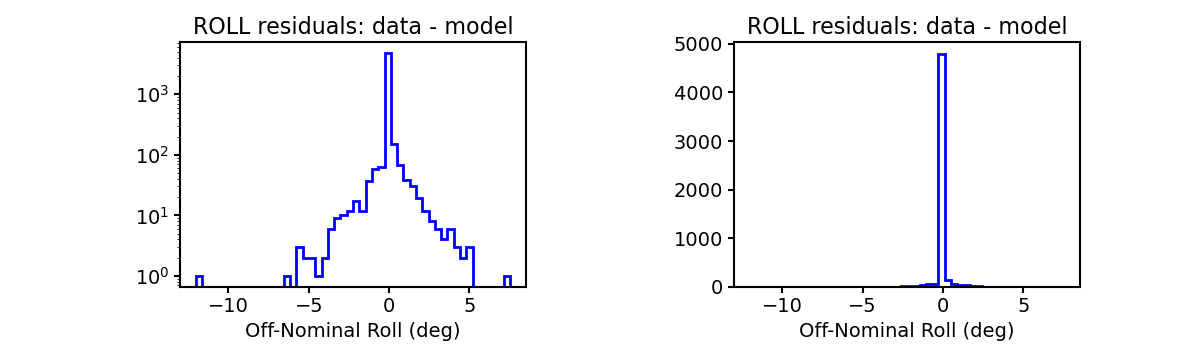

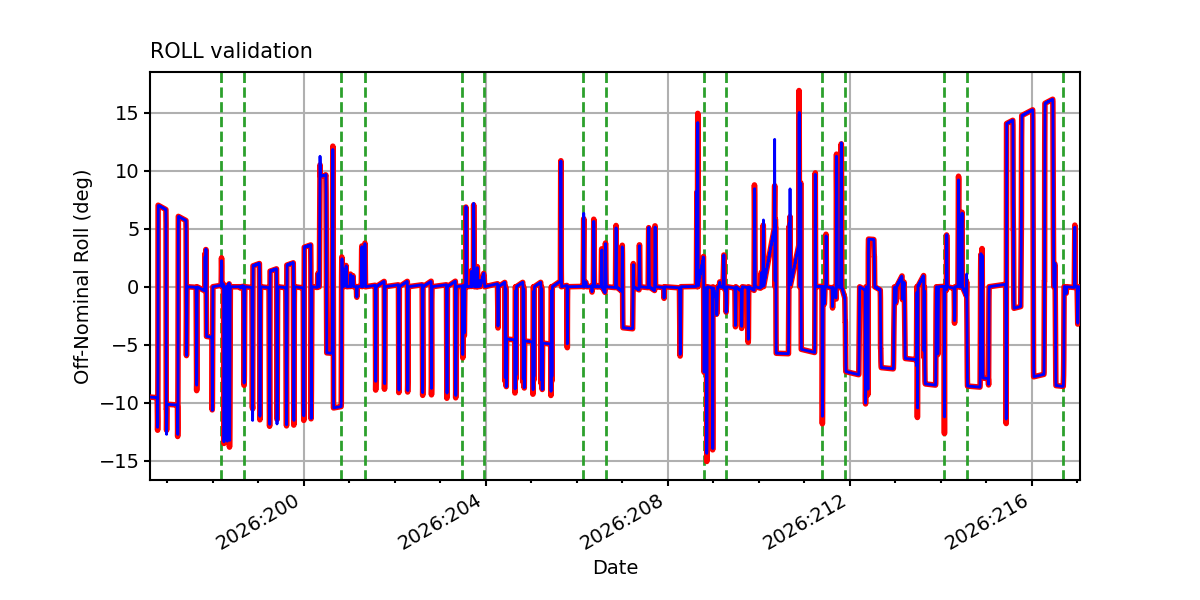

ROLL

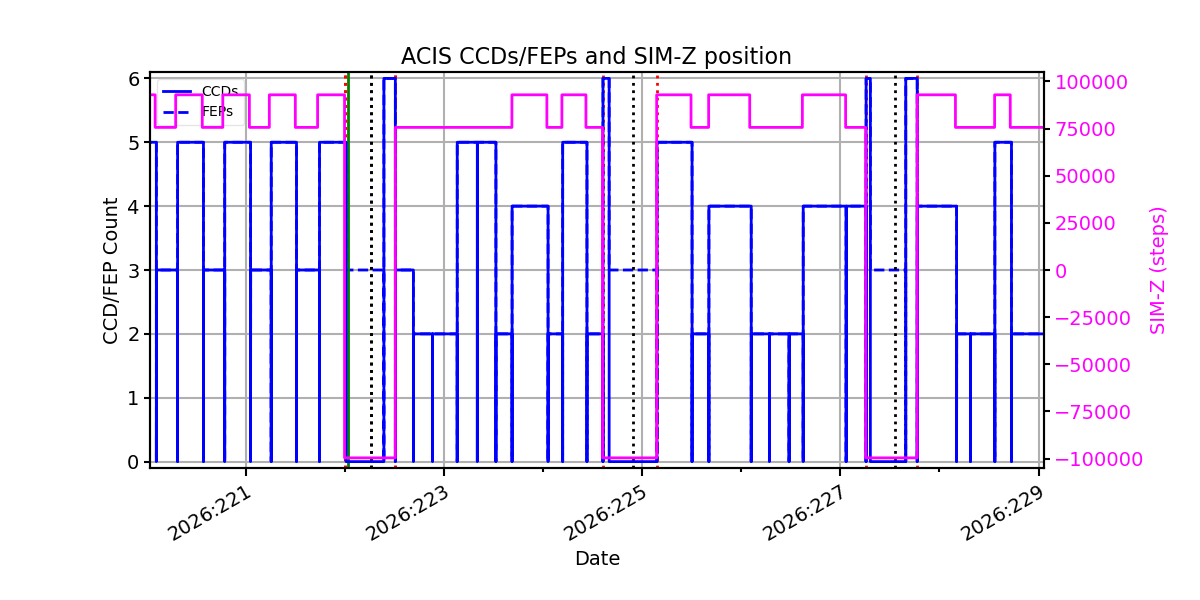

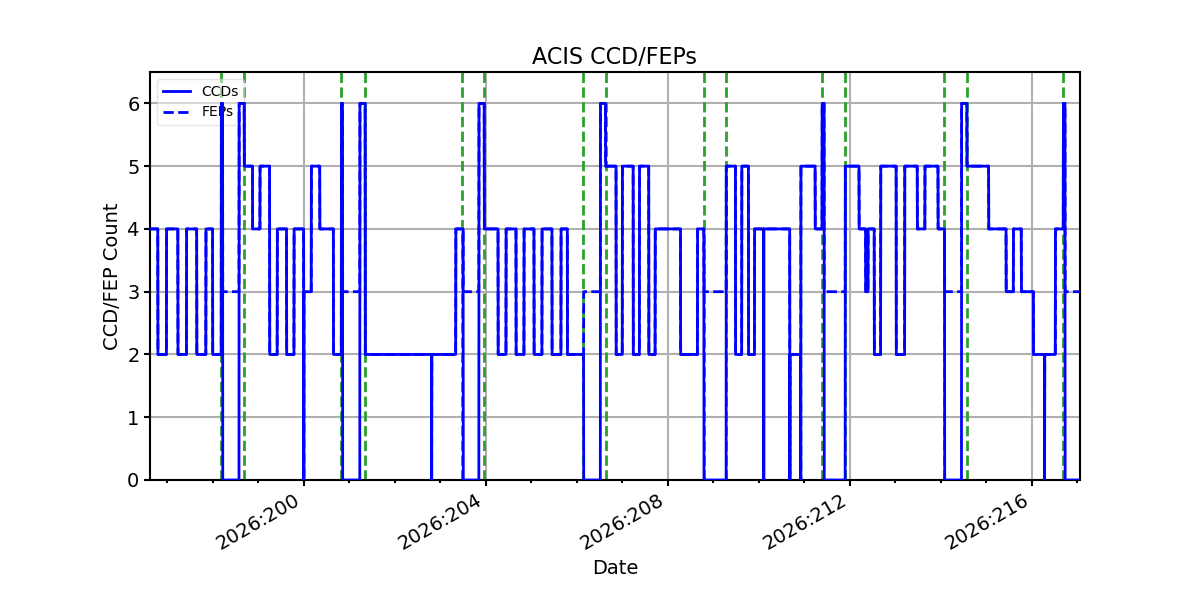

ACIS CCD/FEP Count

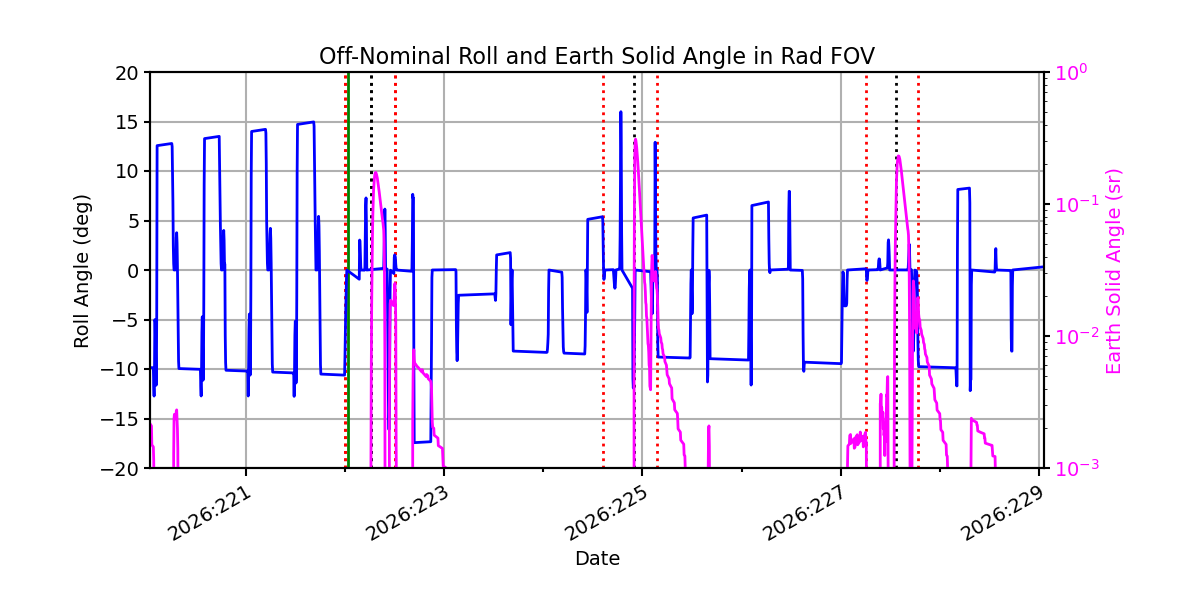

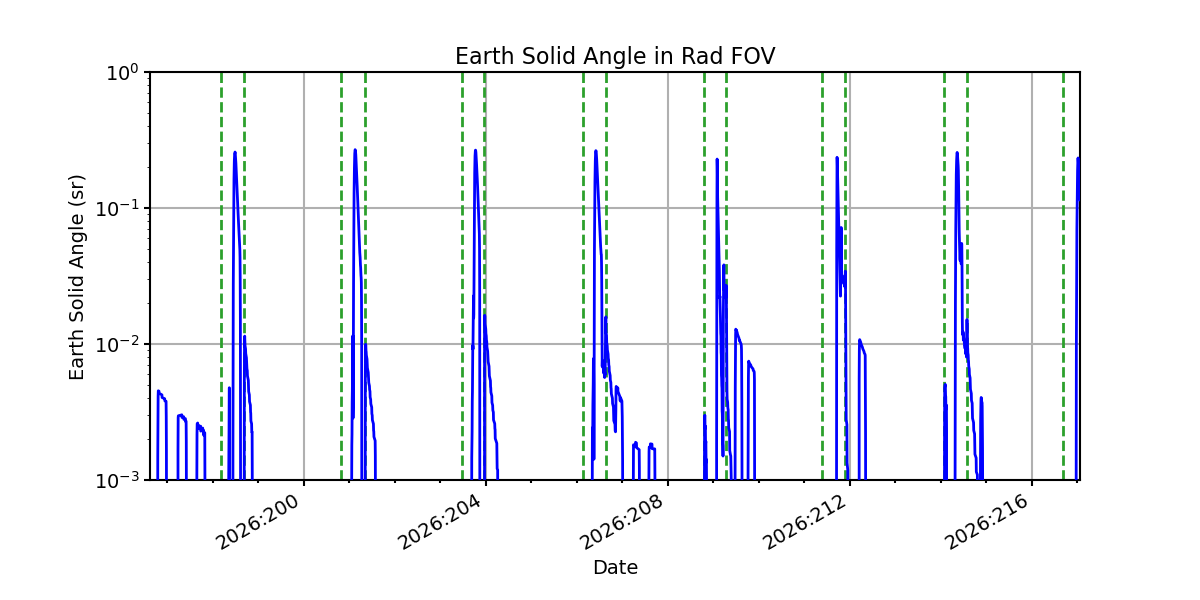

Earth Solid Angle
ADDITIONAL PLOTS

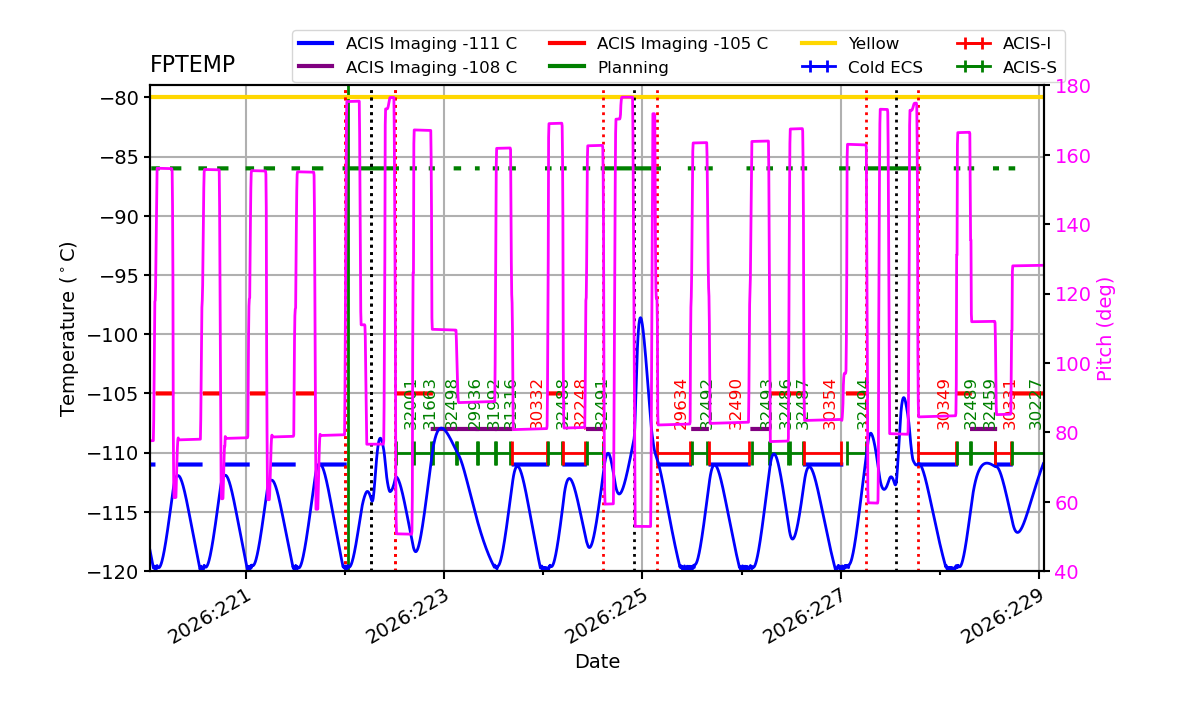

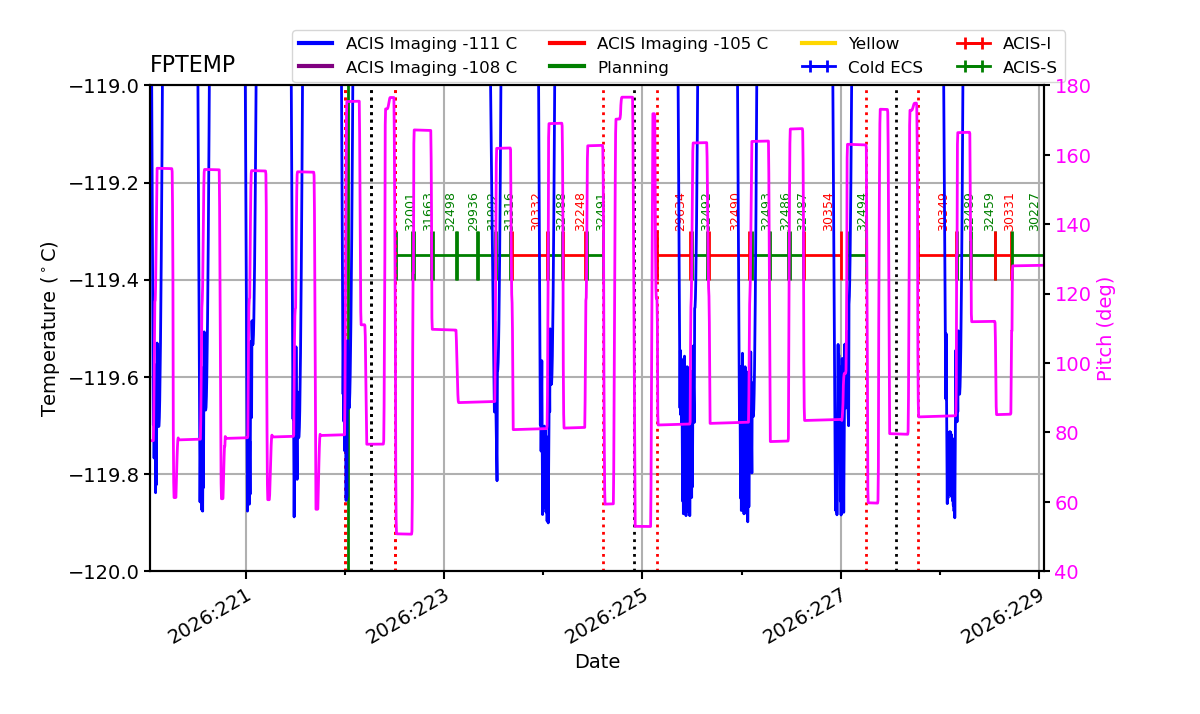

Additional plots of FPTEMP vs TIME for different temperature ranges
