ACISFP Temperatures Check
Summary
| Date start | 2025:230:00:50:00.016 |
| Date stop | 2025:237:02:29:32.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1825/oflsb |
| Run time | Fri Aug 15 09:26:42 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2025:235:18:33:21.801 | 2025:235:19:03:18.816 | 1.80 / 15.00 | -108.62 / -109.00 | 30501 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.53 | -1.58 | -1.07 | 0.06 | 1.40 | 2.28 | 4.00 |
| pitch | -9.857 | -0.323 | -0.004 | -0.000 | 0.004 | 0.285 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.302 | -0.081 | -0.004 | -0.000 | 0.005 | 0.099 | 1.685 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.53 | 2.00 |
| FPTEMP | 99 | 4.0 | 2.00 |
| PITCH | 1 | -9.857 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |

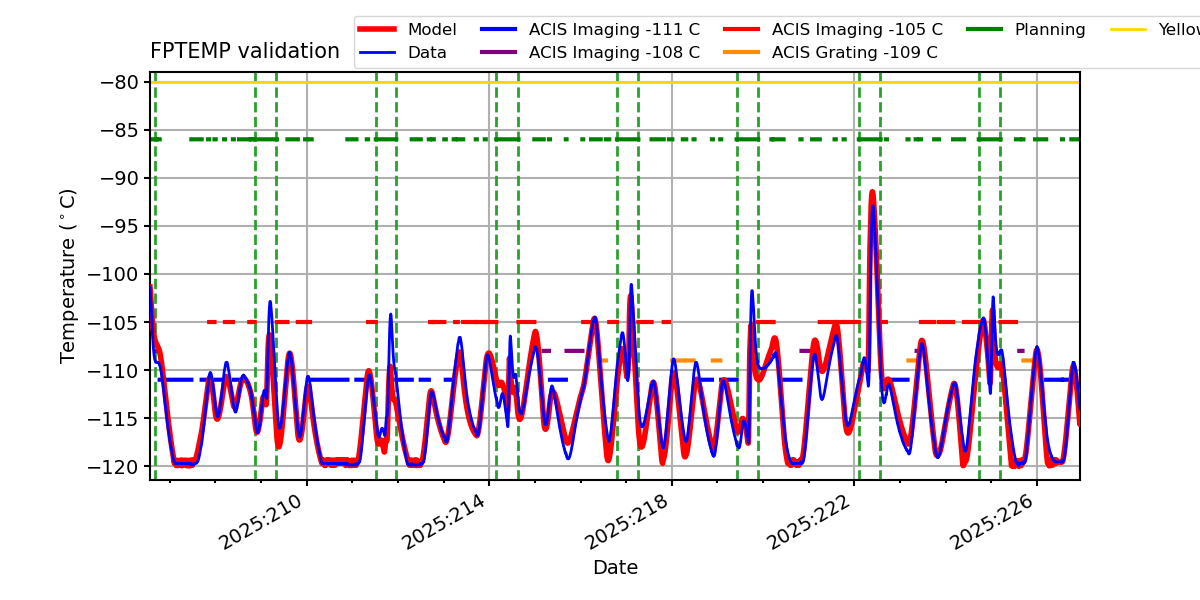

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

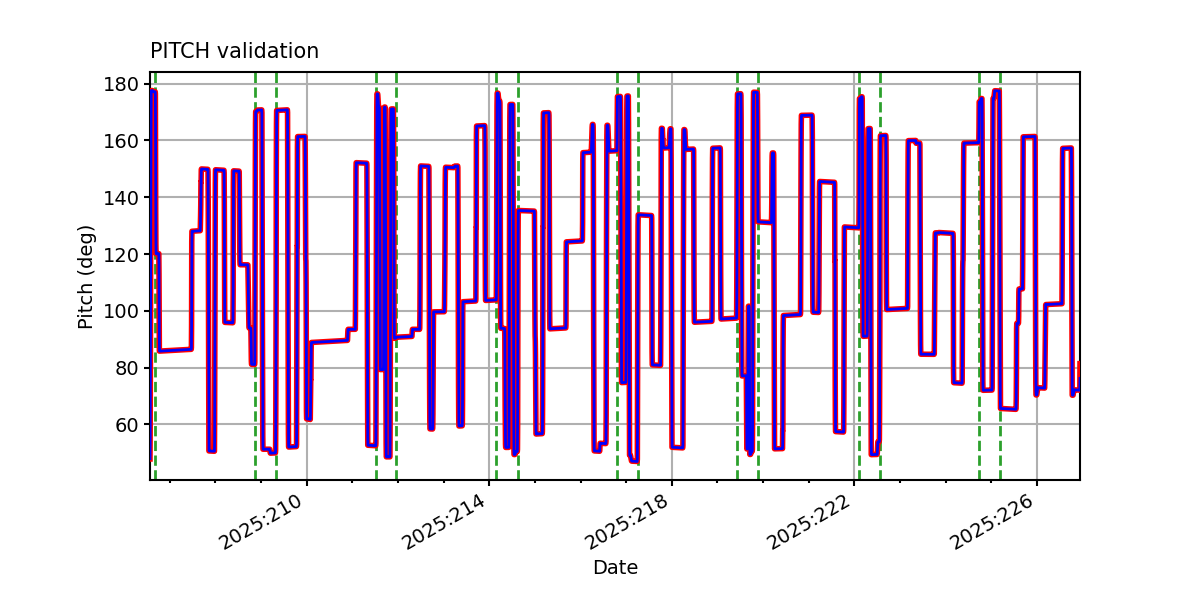

PITCH

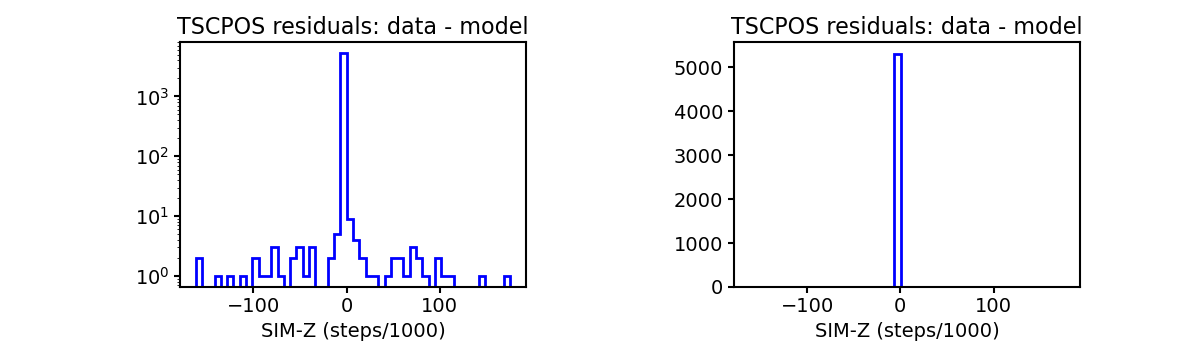

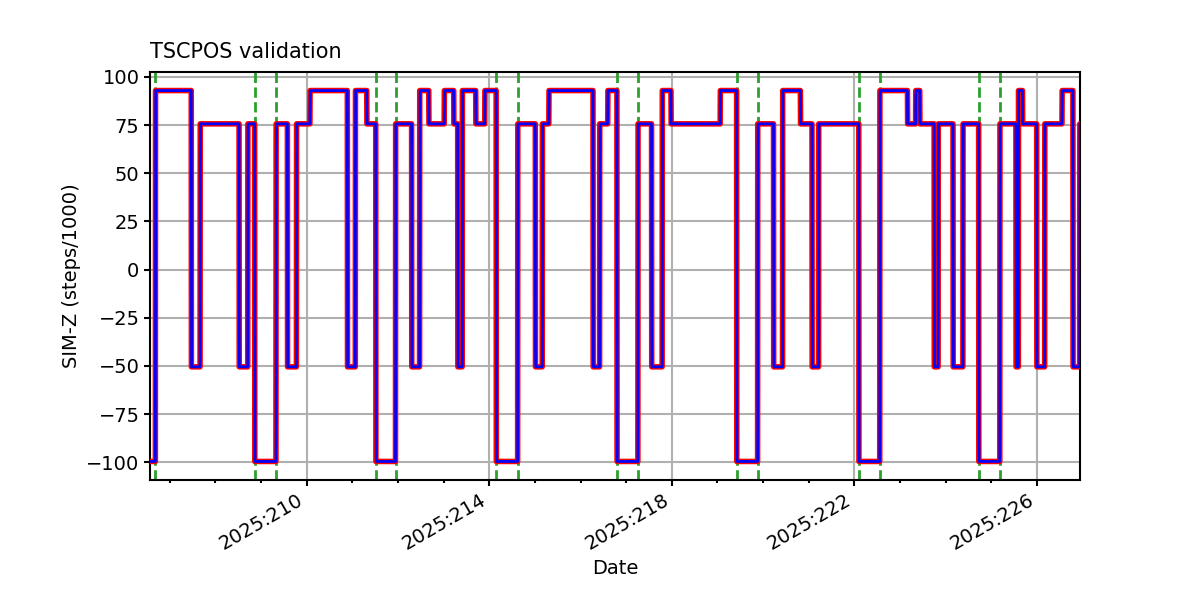

TSCPOS

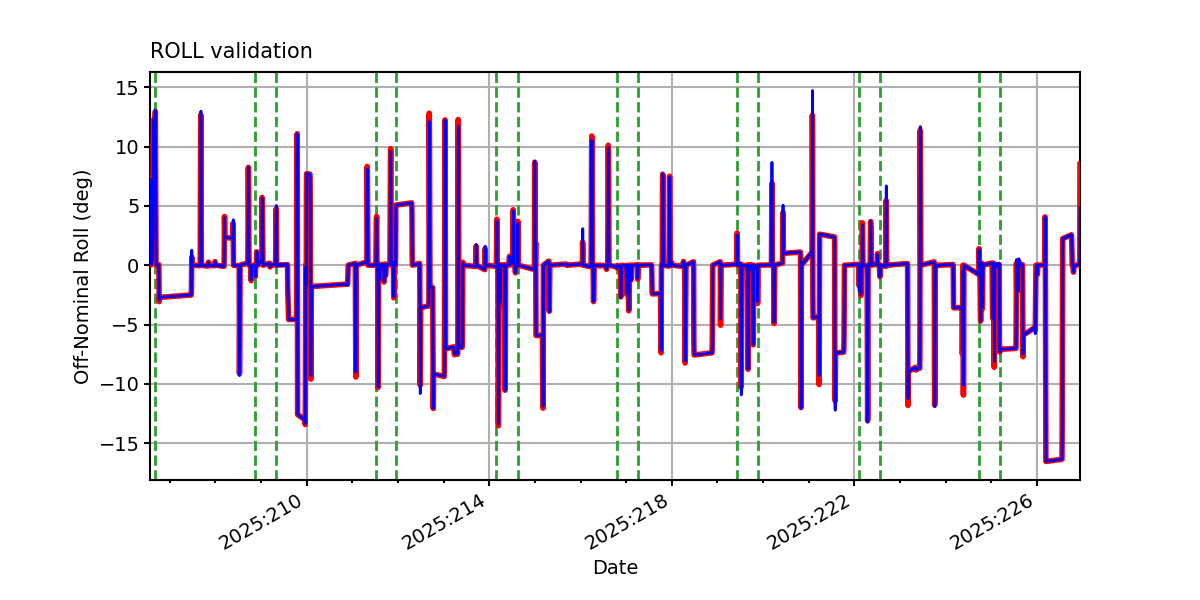

ROLL
ACIS CCD/FEP Count

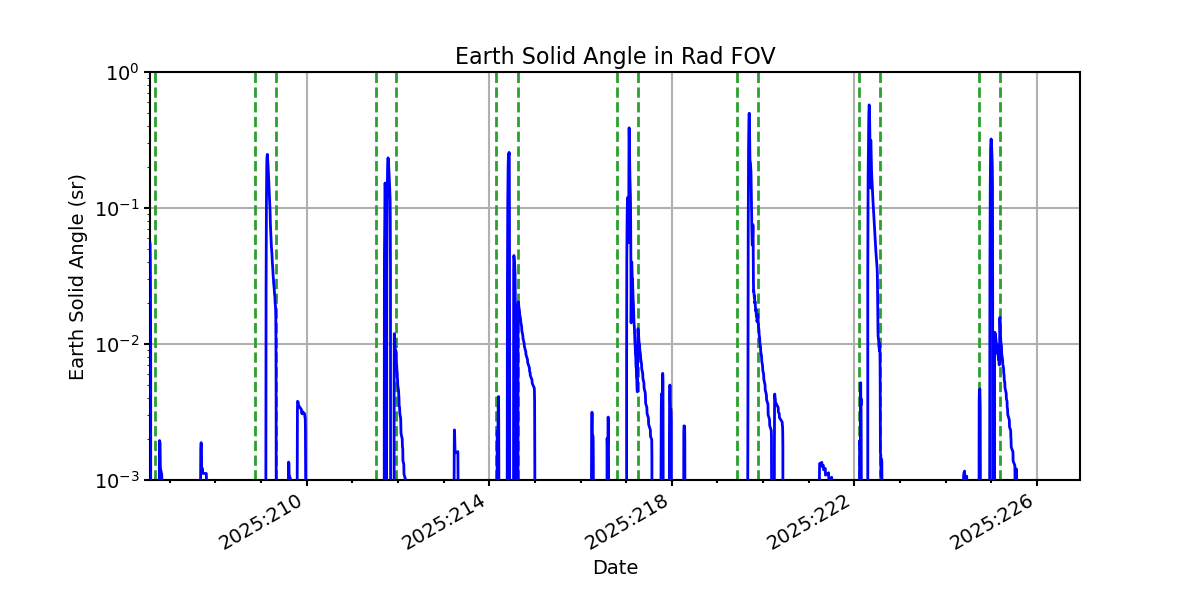

Earth Solid Angle
ADDITIONAL PLOTS

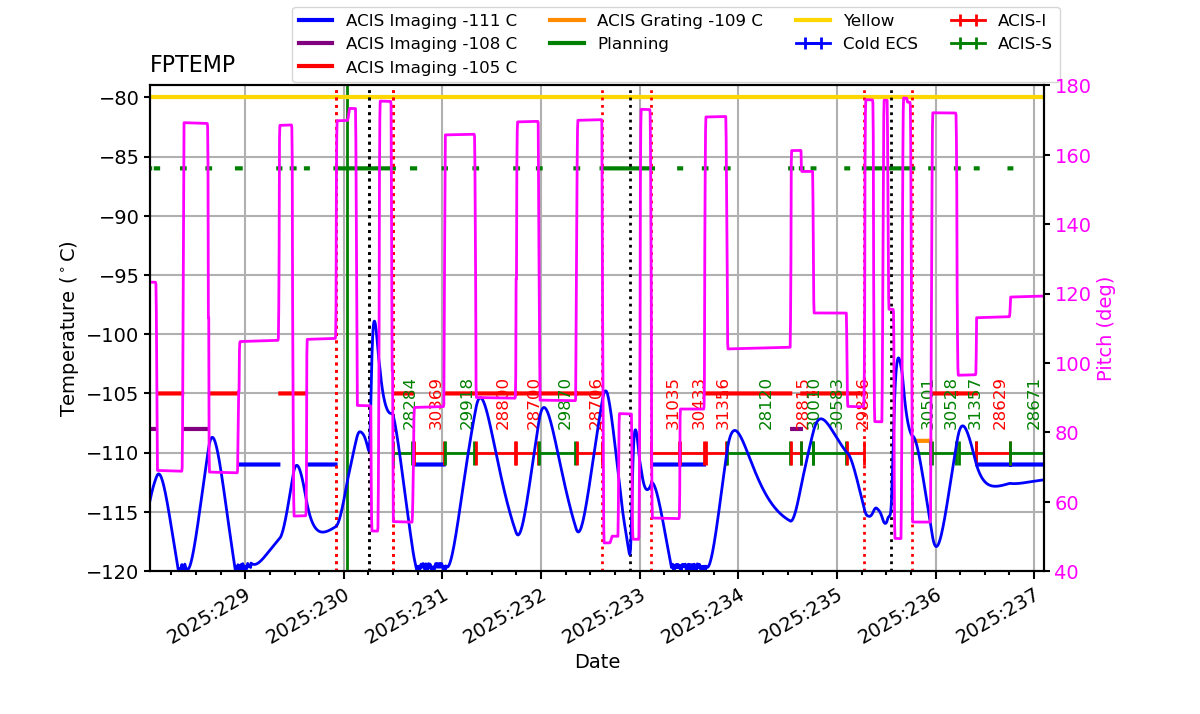

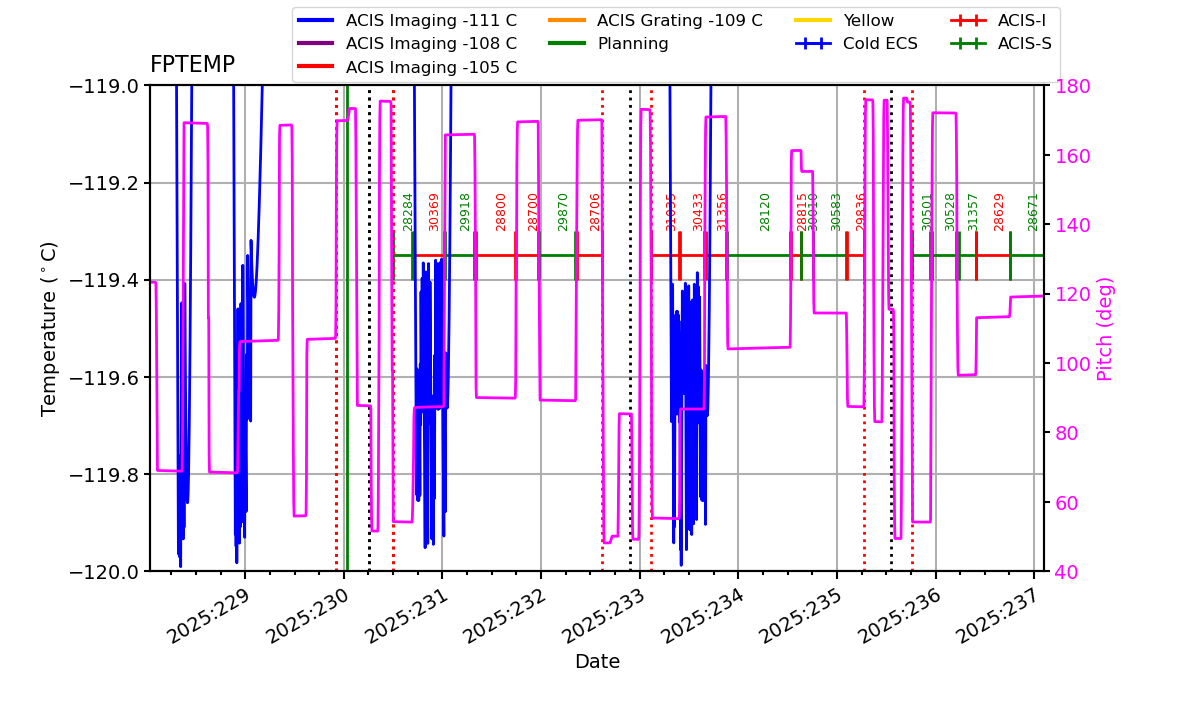

Additional plots of FPTEMP vs TIME for different temperature ranges
