ACISFP Temperatures Check
Summary
| Date start | 2026:235:21:56:21.316 |
| Date stop | 2026:242:22:06:33.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG2426/oflsa |
| Run time | Wed Aug 19 13:21:20 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.59 | -1.15 | -0.86 | -0.31 | 0.35 | 1.18 | 2.55 |
| pitch | -10.154 | -1.094 | -0.004 | -0.000 | 0.004 | 1.033 | 10.524 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.829 | -0.202 | -0.008 | 0.000 | 0.008 | 0.296 | 1.955 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.55 | 2.00 |
| PITCH | 1 | -10.154 | 3.00 |
| PITCH | 99 | 10.524 | 3.00 |

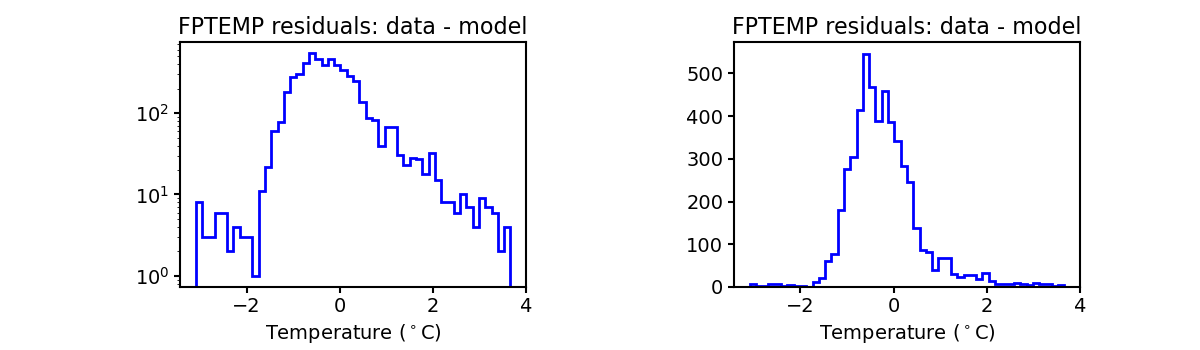

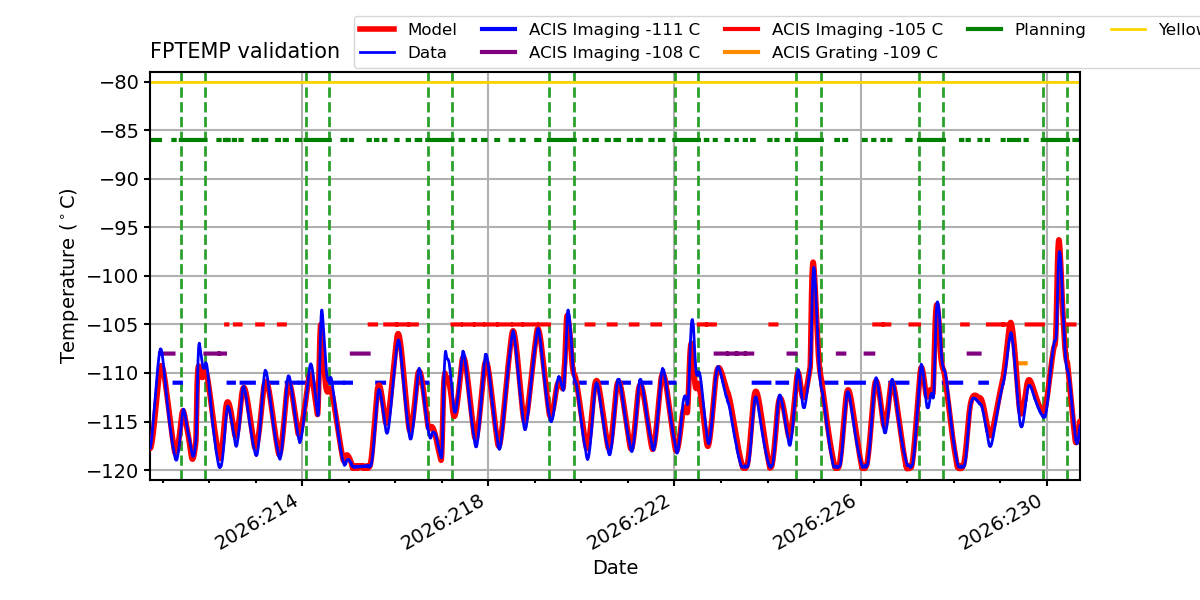

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

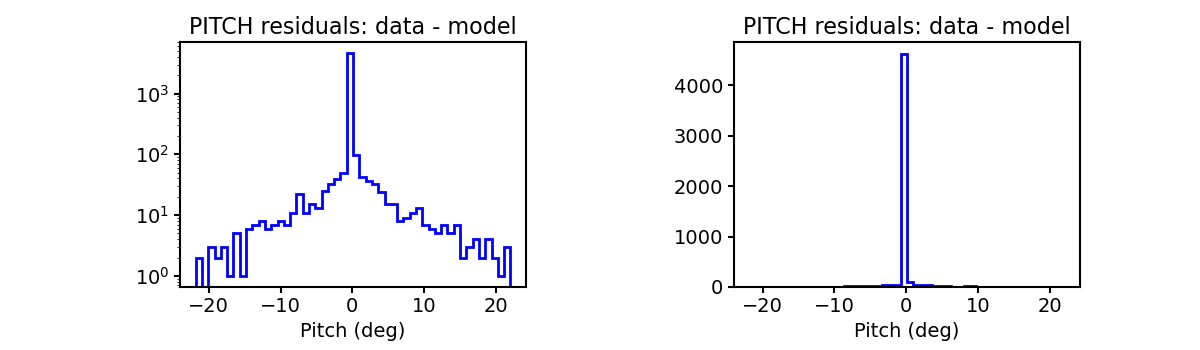

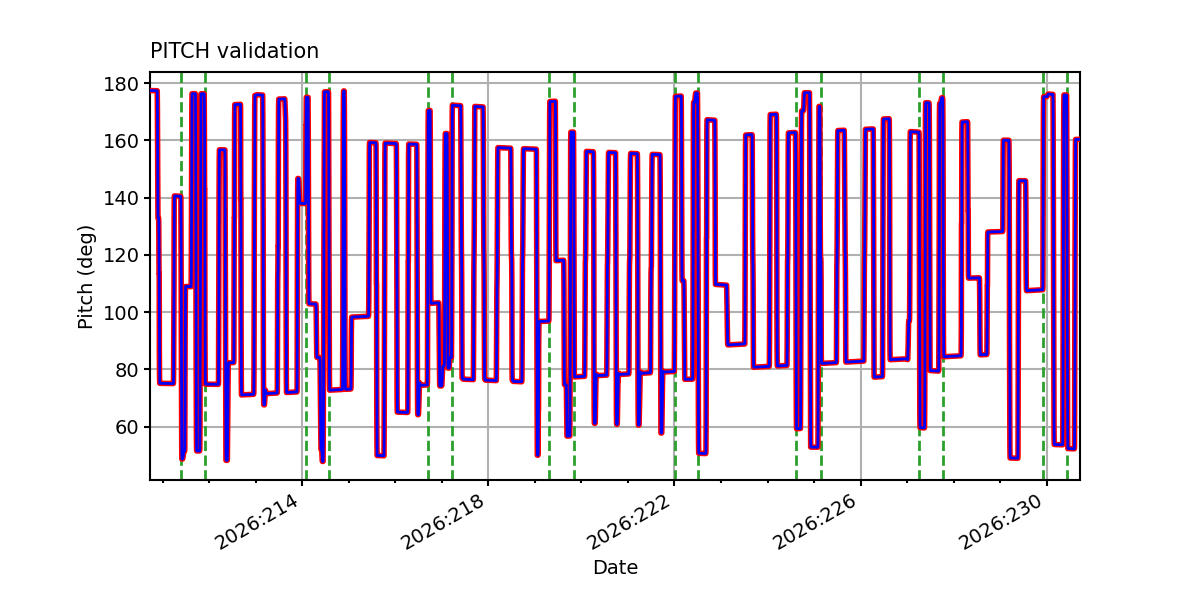

PITCH

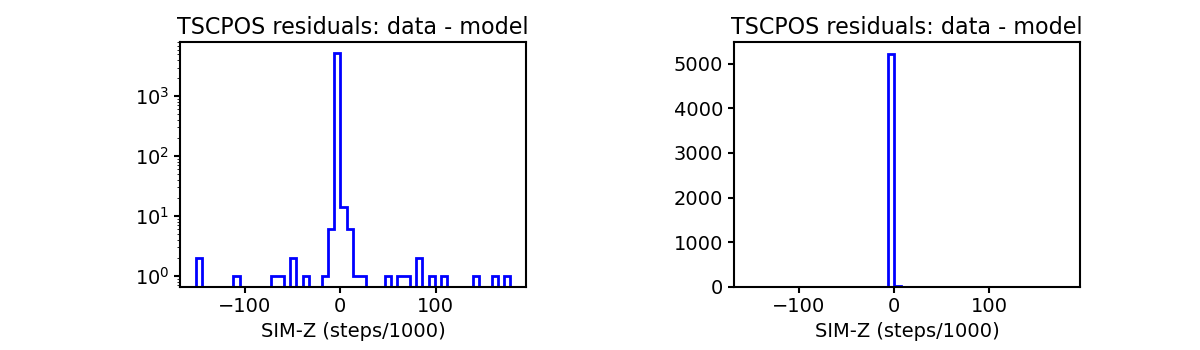

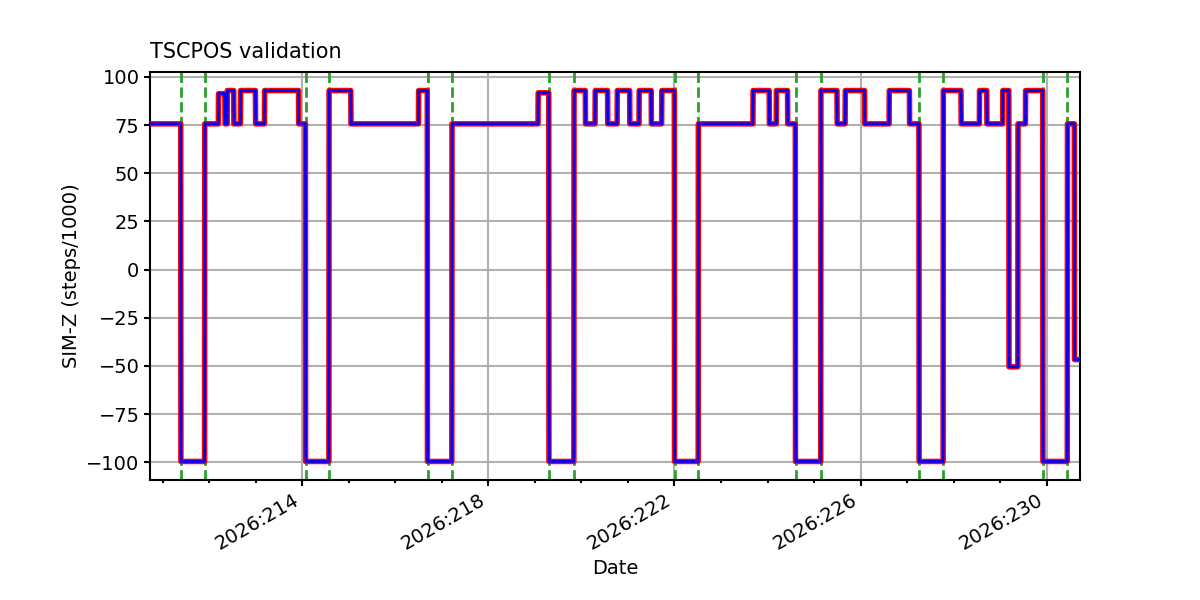

TSCPOS

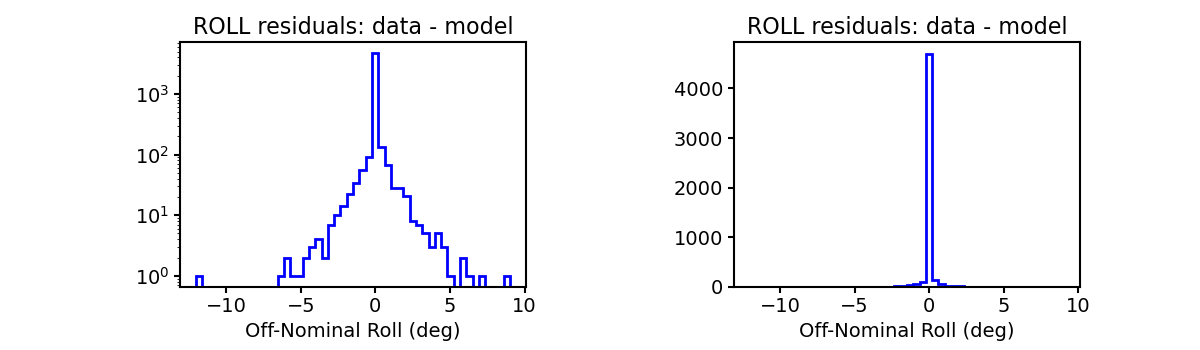

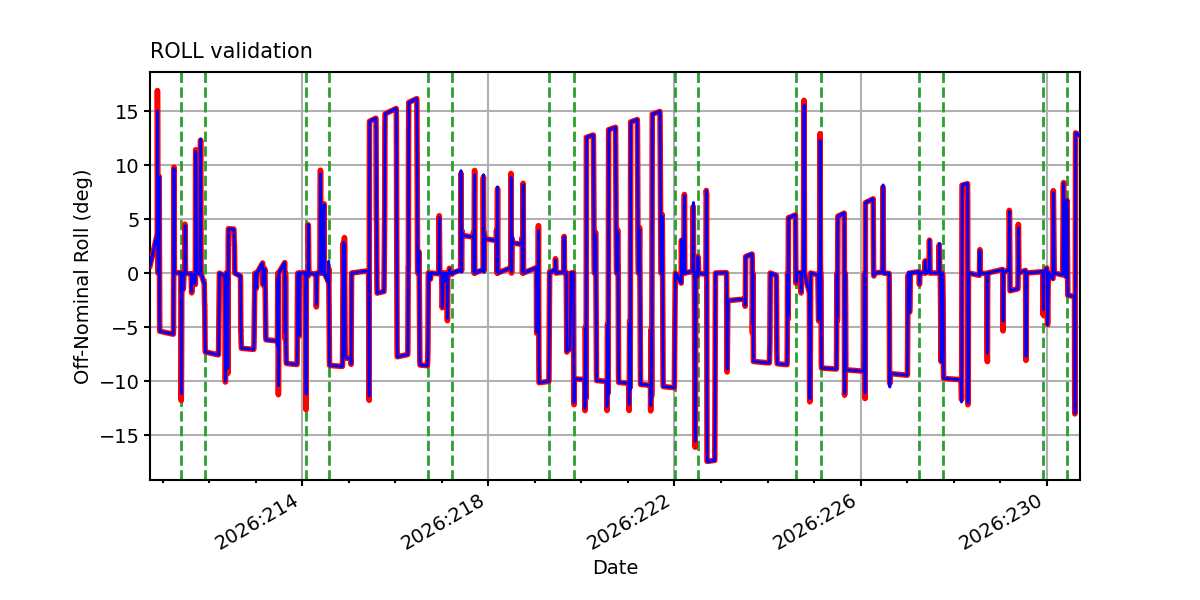

ROLL

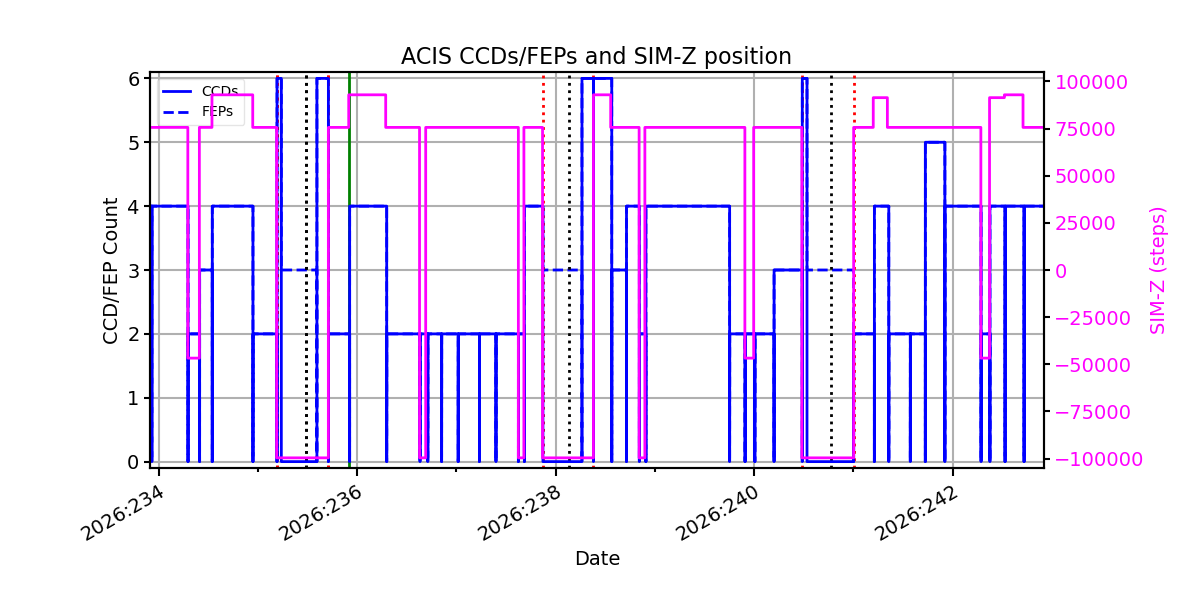

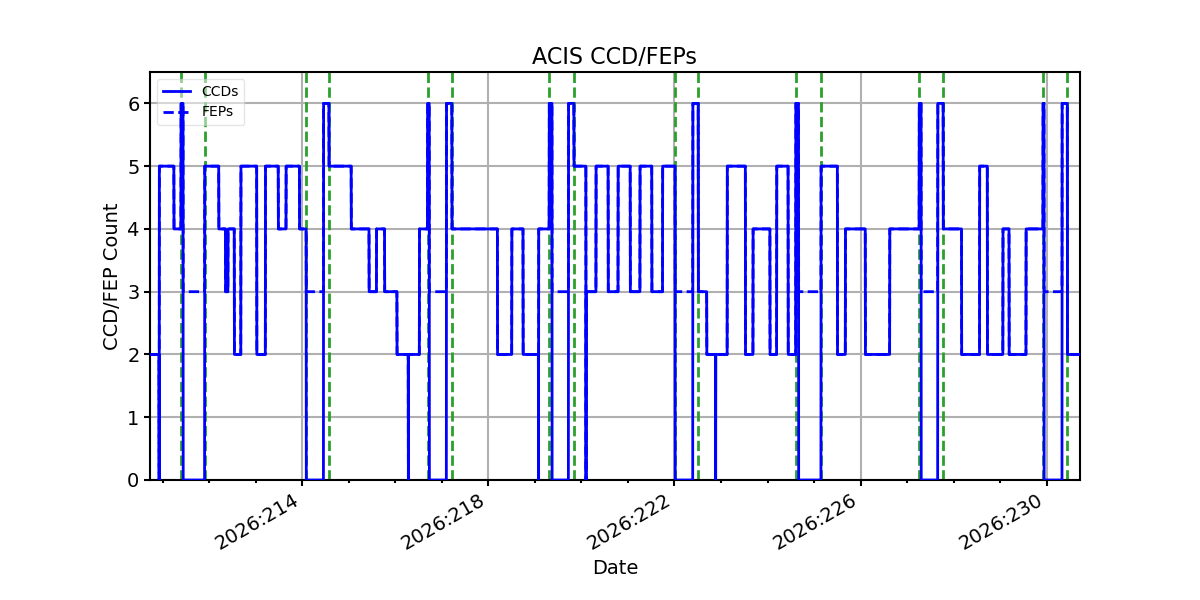

ACIS CCD/FEP Count

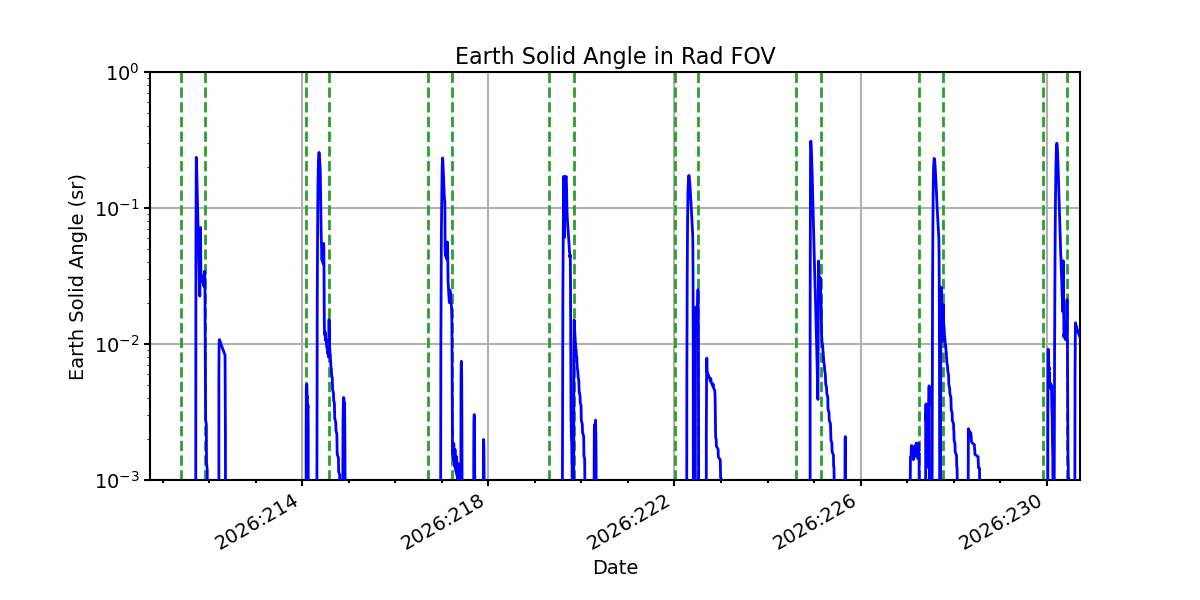

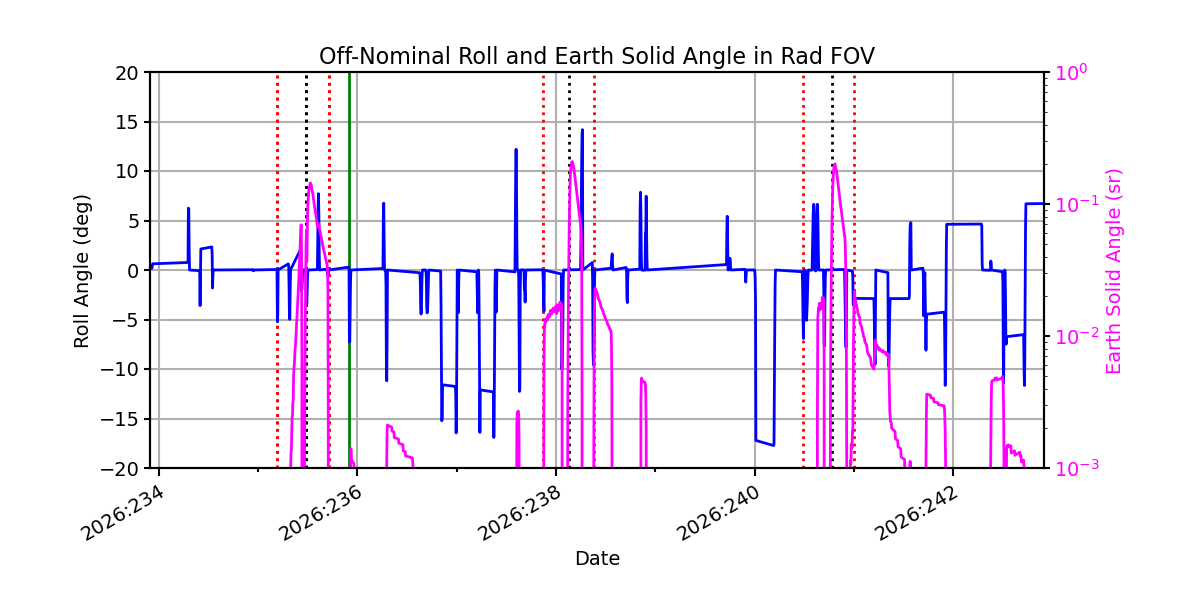

Earth Solid Angle
ADDITIONAL PLOTS

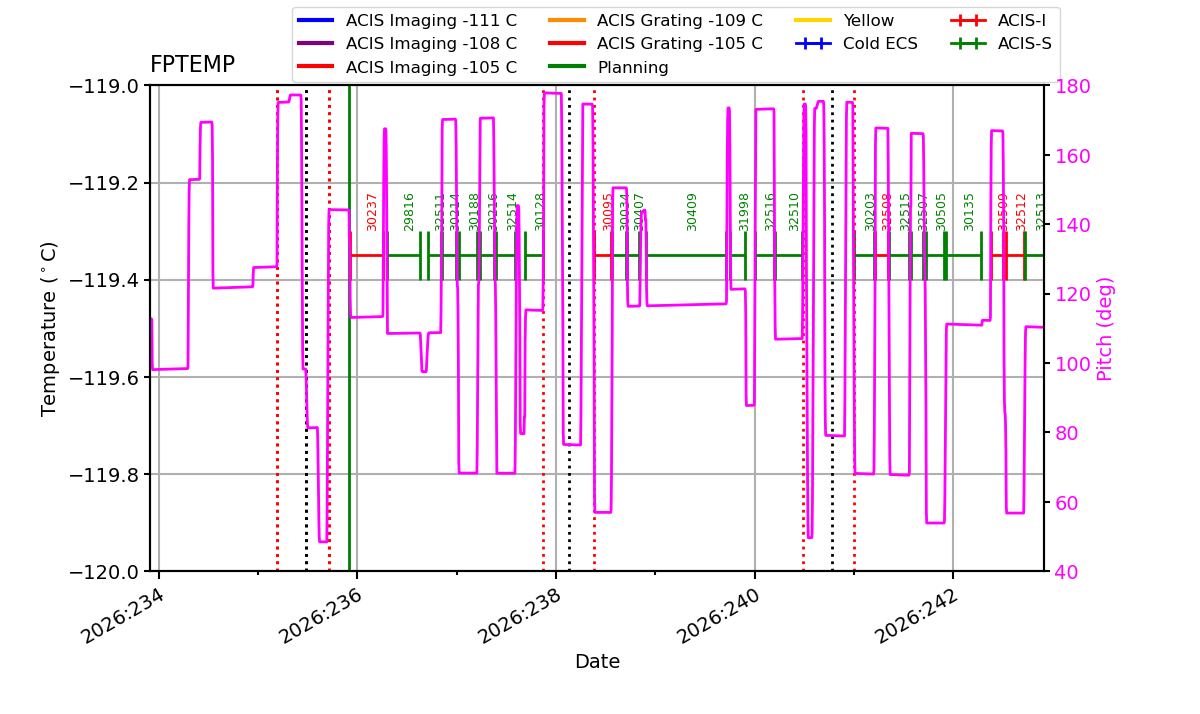

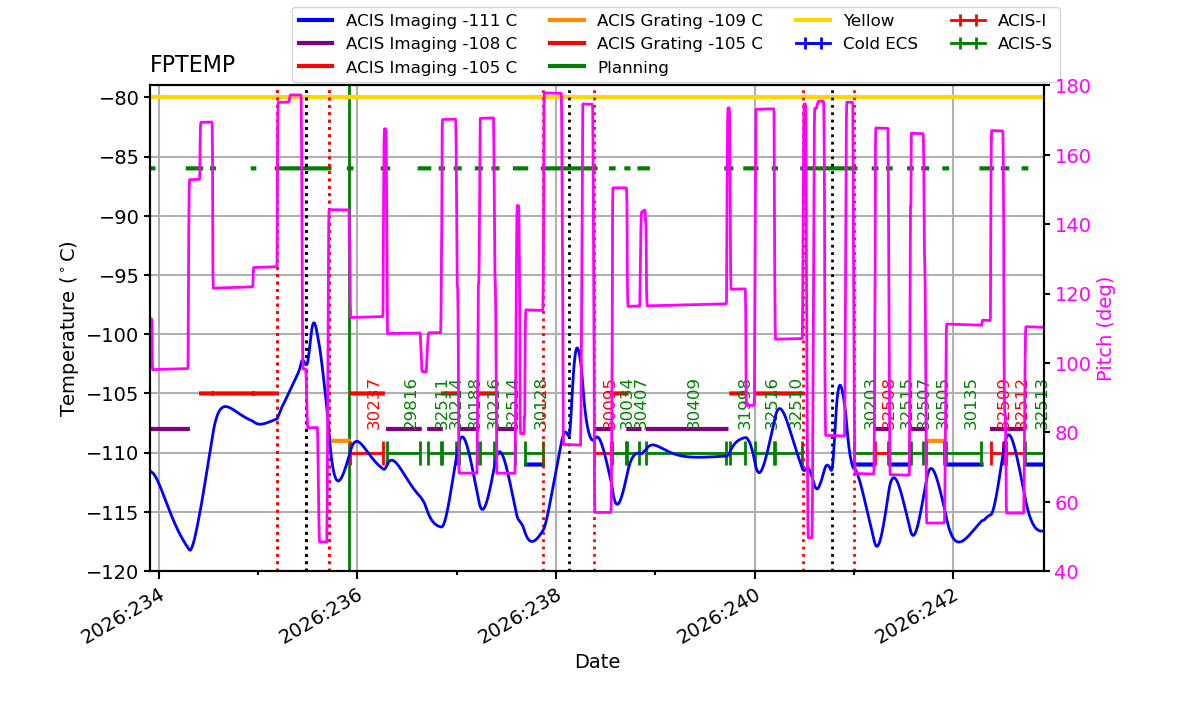

Additional plots of FPTEMP vs TIME for different temperature ranges
