ACISFP Temperatures Check
Summary
| Date start | 2025:355:22:55:21.916 |
| Date stop | 2025:363:02:43:37.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2225/oflsa |
| Run time | Thu Dec 18 20:06:20 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.48 | -1.01 | -0.54 | 0.24 | 1.05 | 1.54 | 2.09 |
| pitch | -10.709 | -0.383 | -0.004 | 0.000 | 0.004 | 0.546 | 11.156 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.555 | -0.091 | -0.007 | 0.000 | 0.007 | 0.126 | 1.573 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.09 | 2.00 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 11.156 | 3.00 |

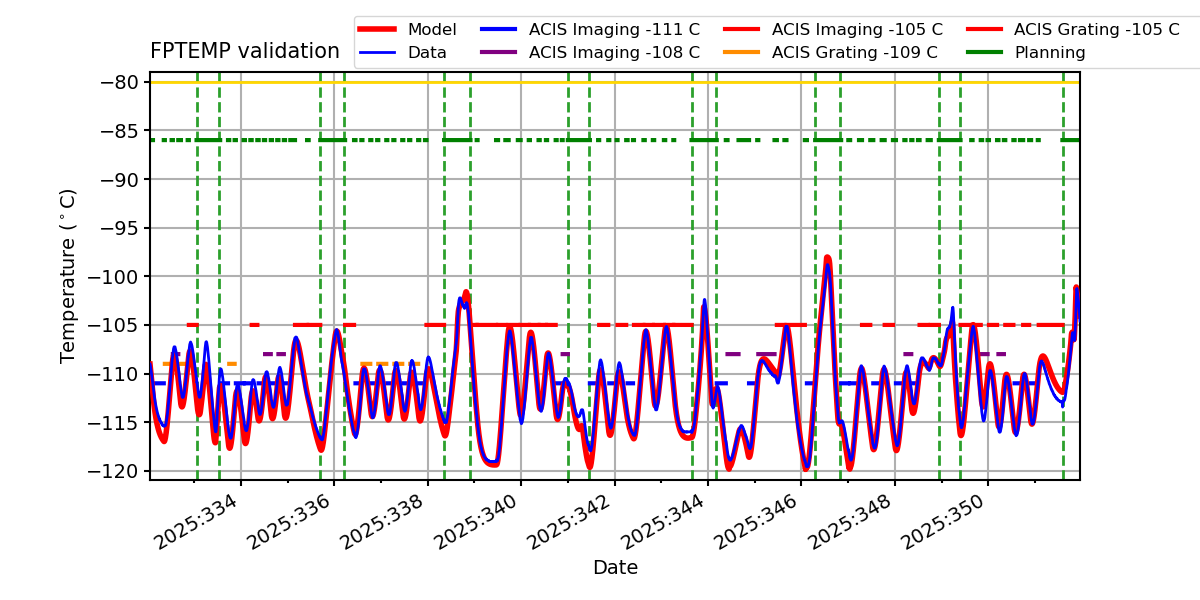

FPTEMP

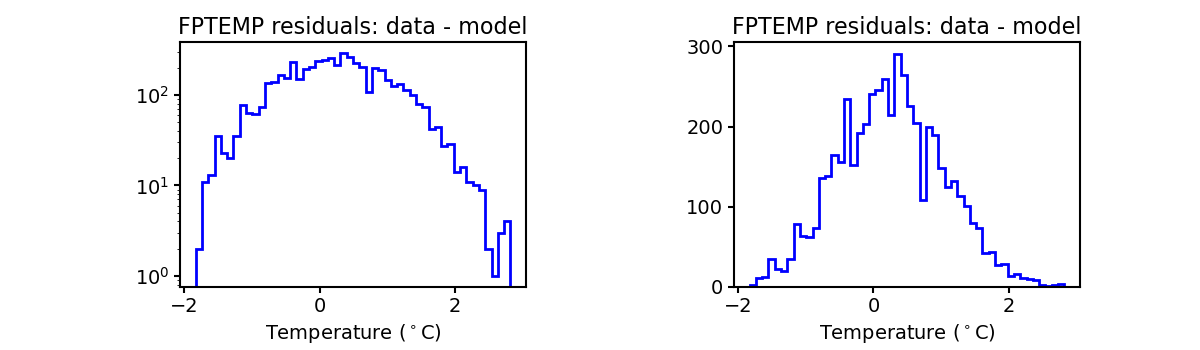

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

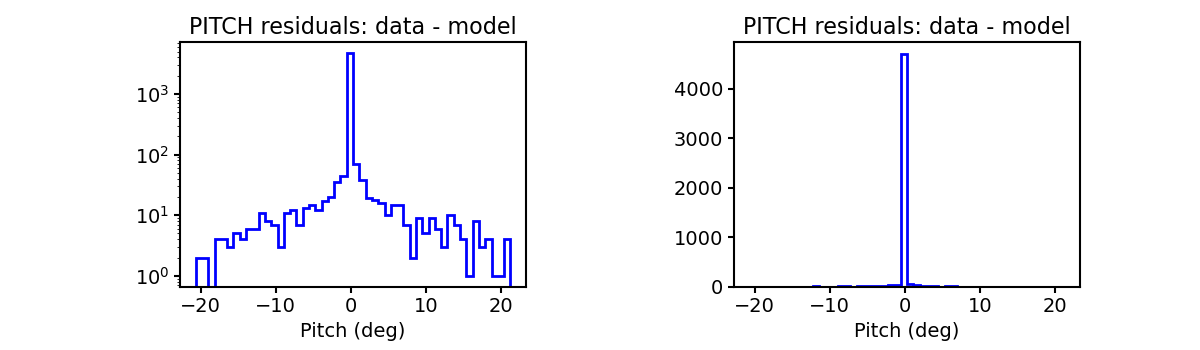

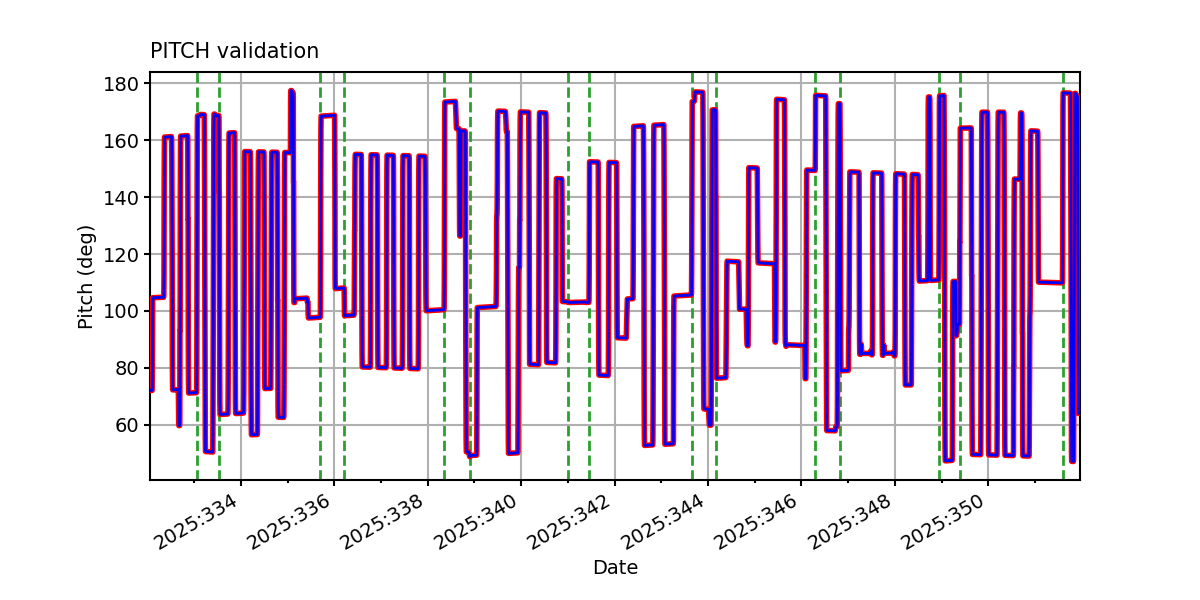

PITCH

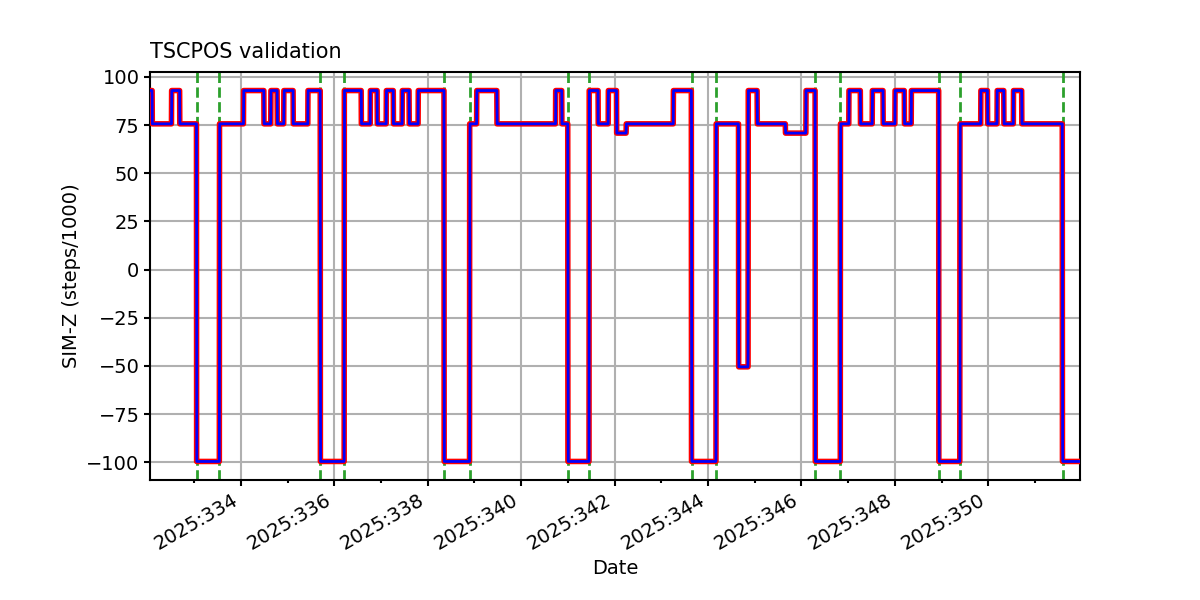

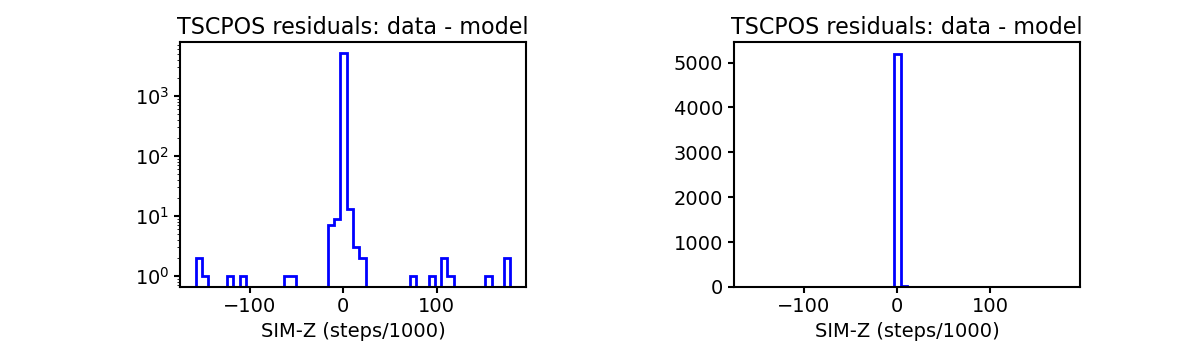

TSCPOS

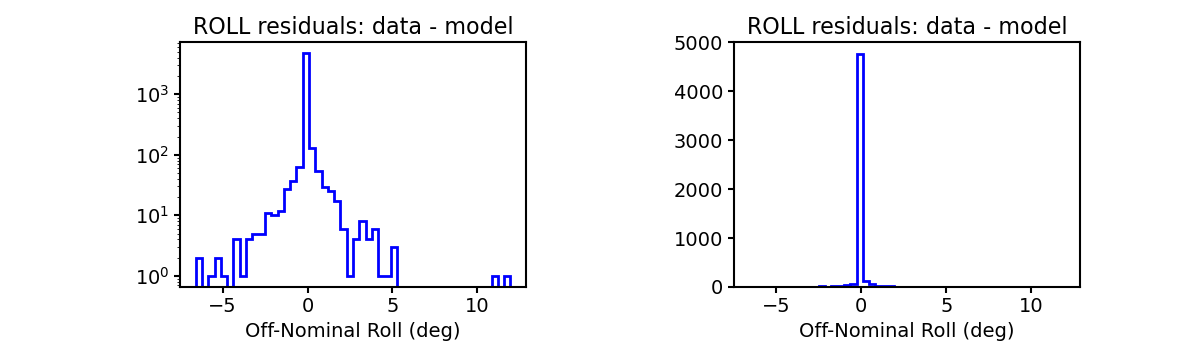

ROLL

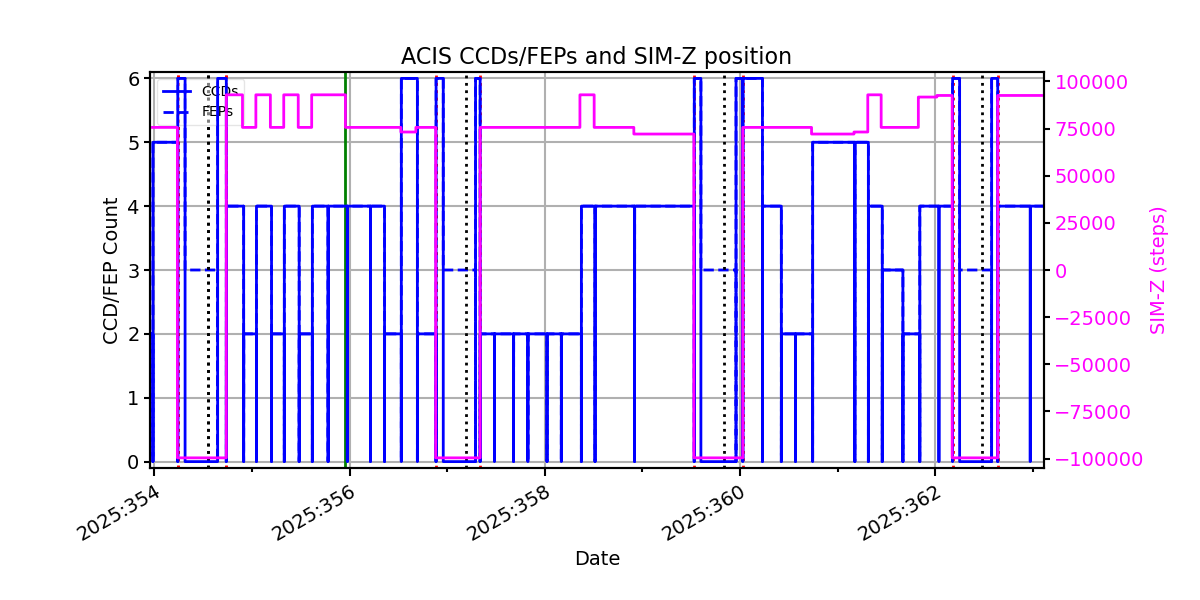

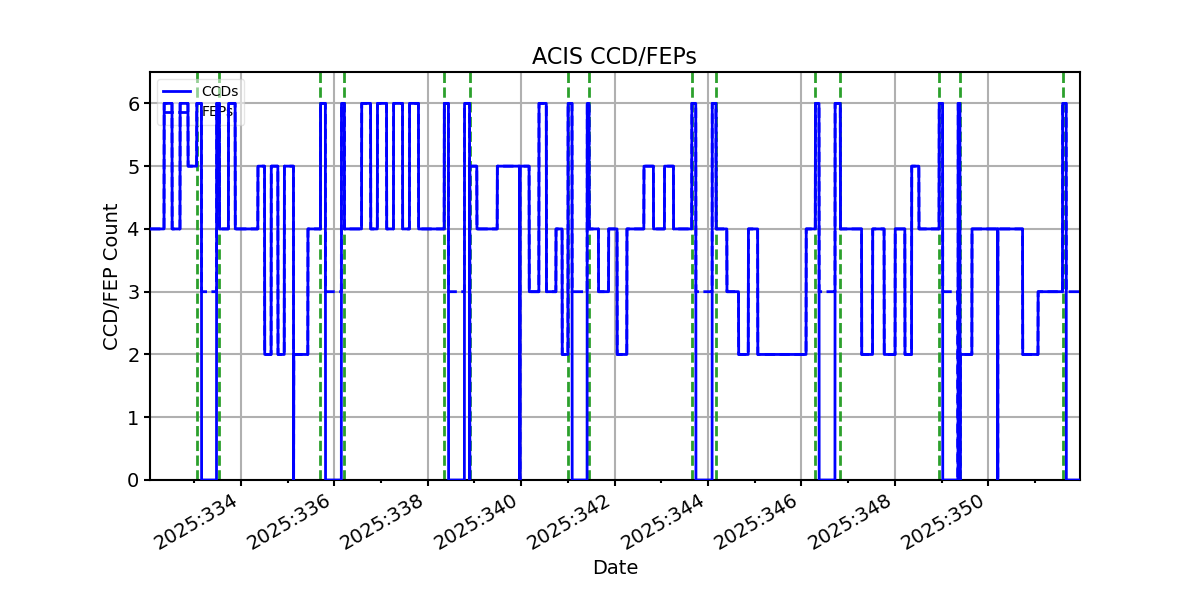

ACIS CCD/FEP Count

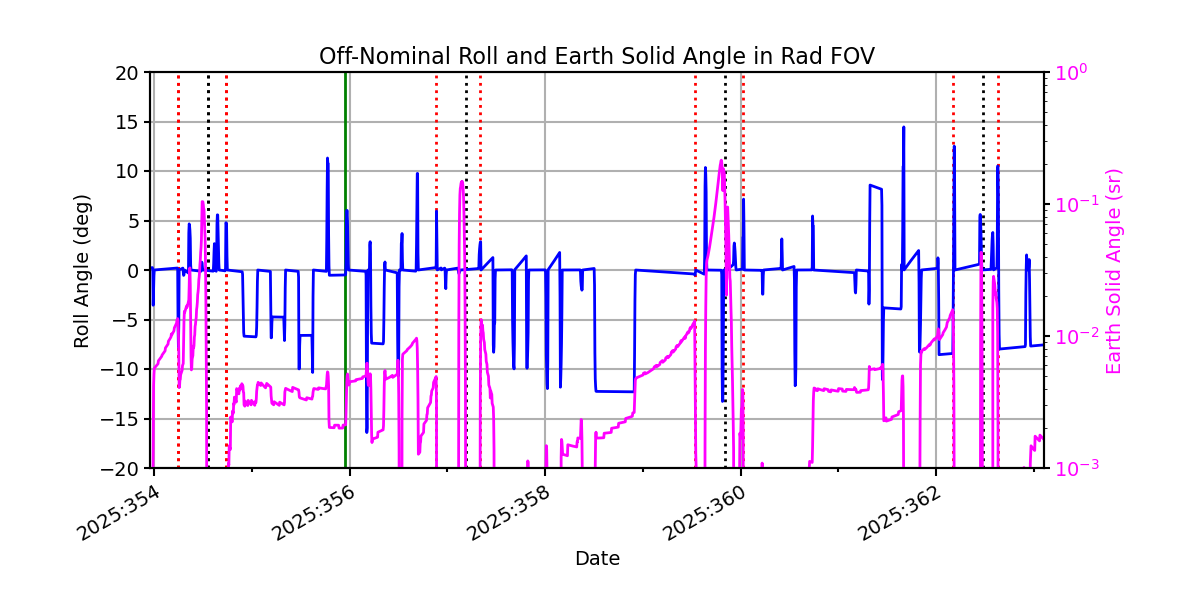

Earth Solid Angle
ADDITIONAL PLOTS

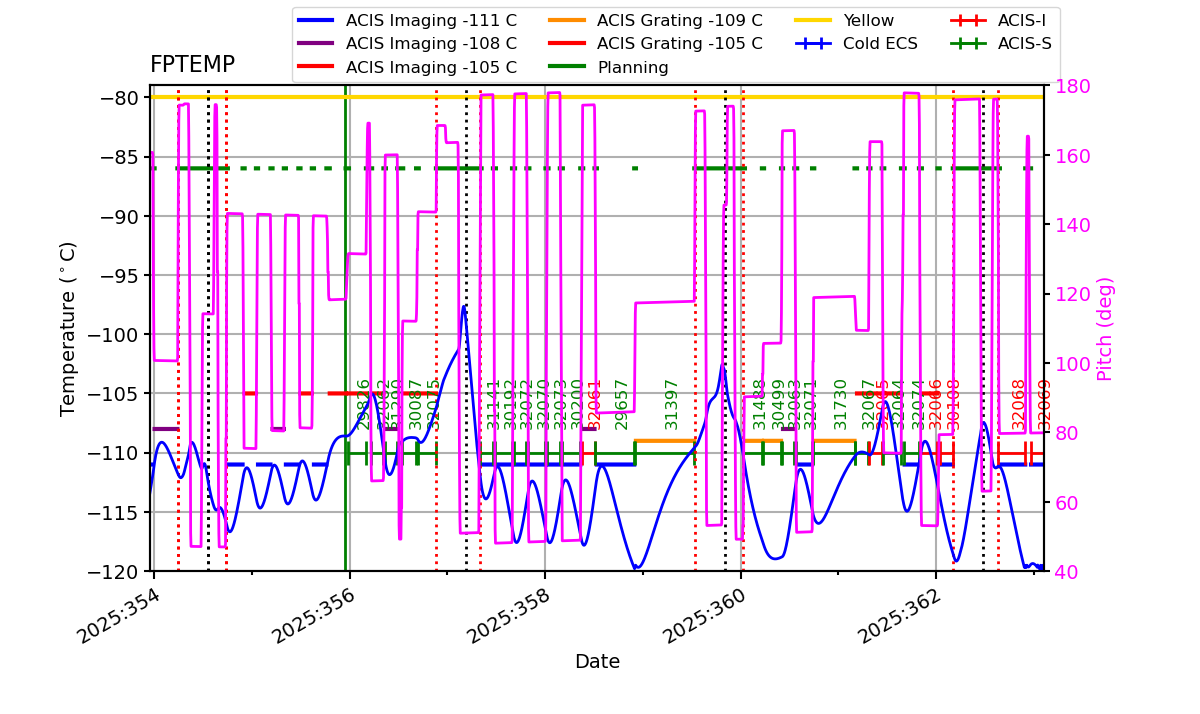

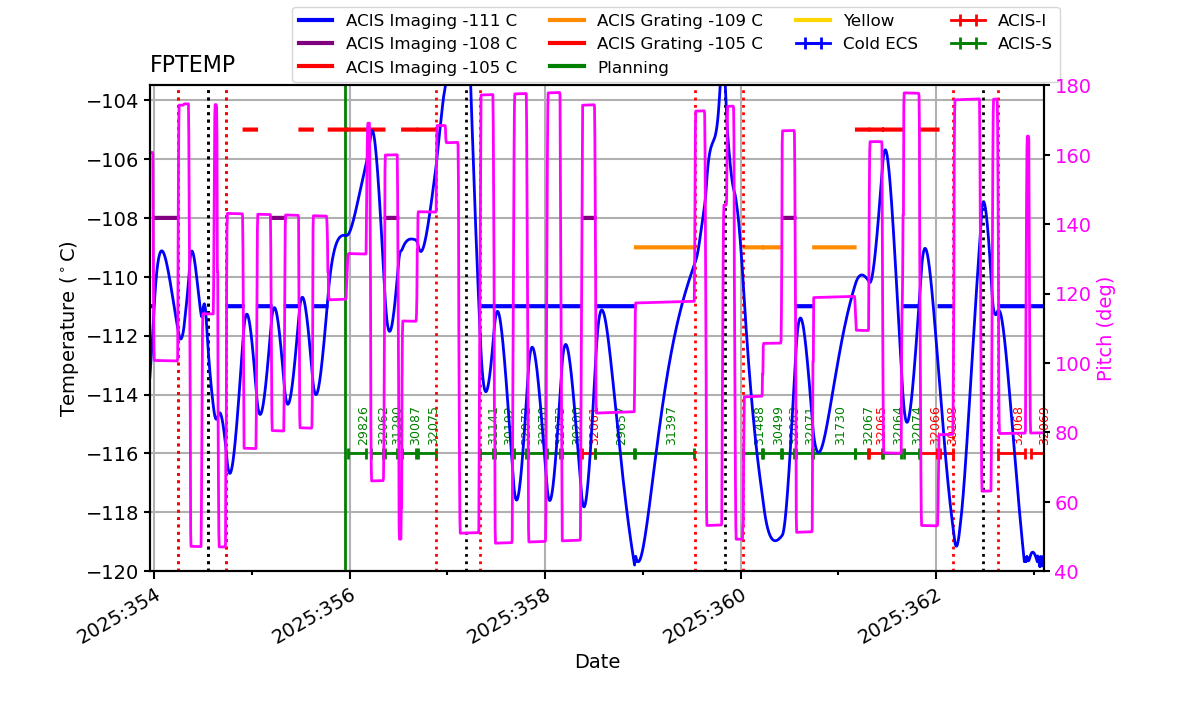

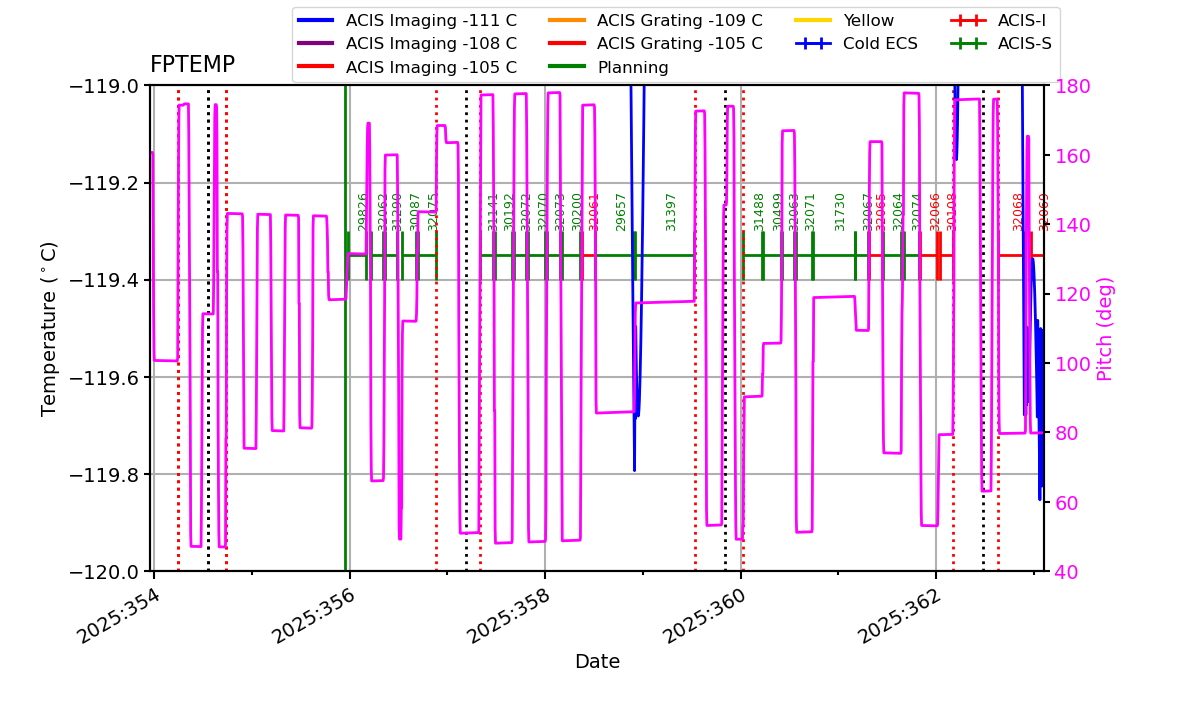

Additional plots of FPTEMP vs TIME for different temperature ranges
