ACISFP Temperatures Check
Summary
| Date start | 2025:363:02:40:37.616 |
| Date stop | 2026:012:00:54:56.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2925/oflsb |
| Run time | Tue Dec 23 11:50:53 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:001:02:15:42.816 | 2026:001:02:21:10.816 | 0.33 / 12.50 | -110.99 / -111.00 | 31587 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.48 | -1.01 | -0.59 | 0.10 | 0.85 | 1.31 | 1.87 |
| pitch | -10.709 | -0.505 | -0.004 | -0.000 | 0.004 | 0.541 | 10.879 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.593 | -0.096 | -0.006 | 0.000 | 0.006 | 0.152 | 1.530 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 10.879 | 3.00 |

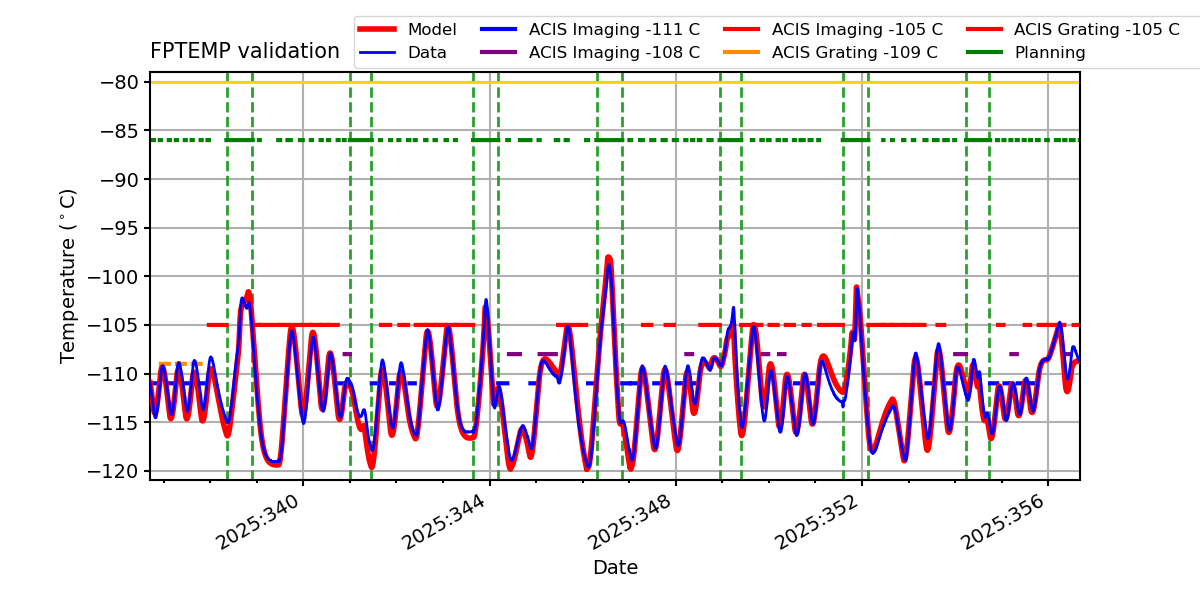

FPTEMP

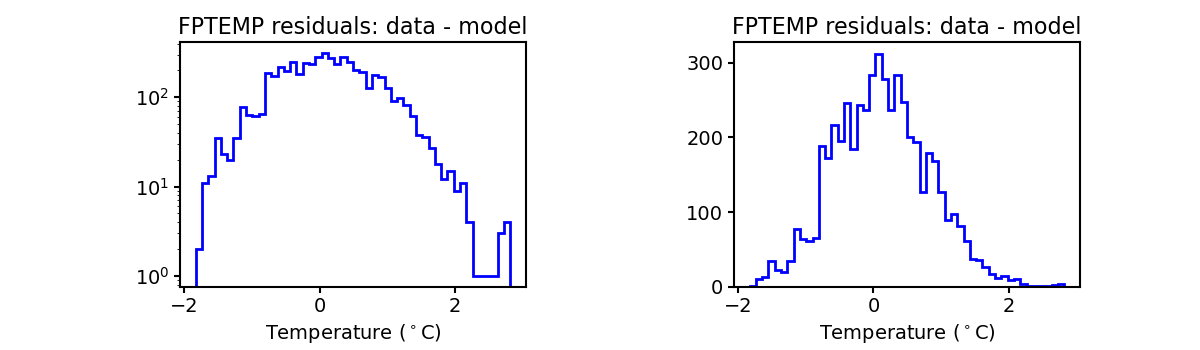

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

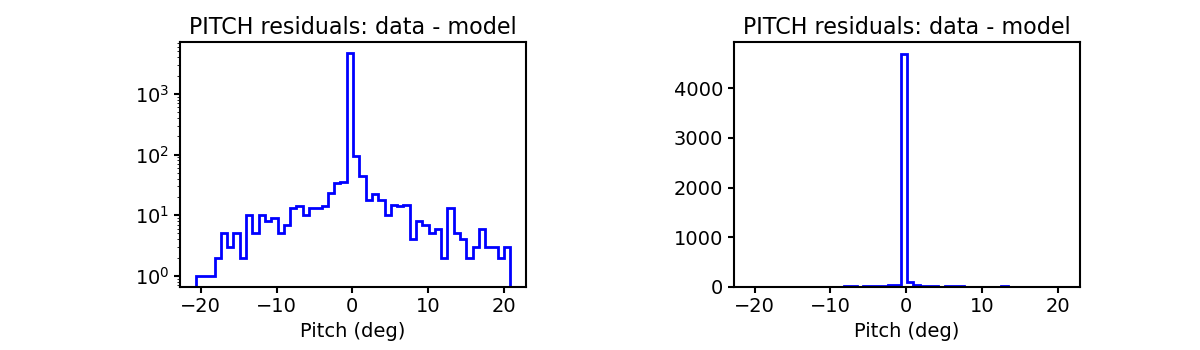

PITCH

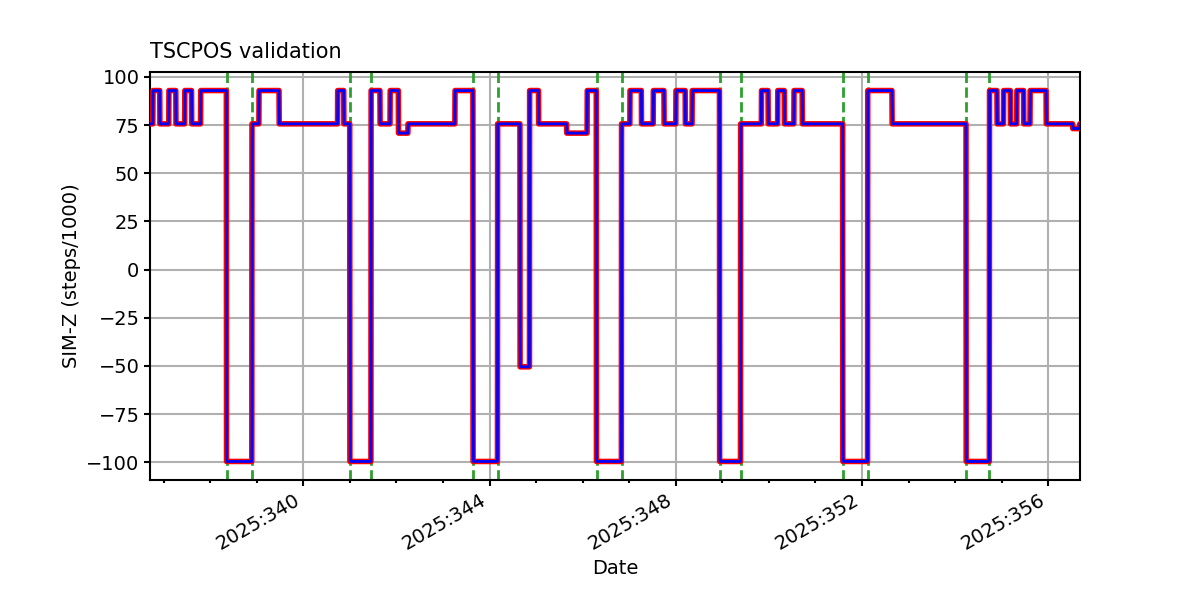

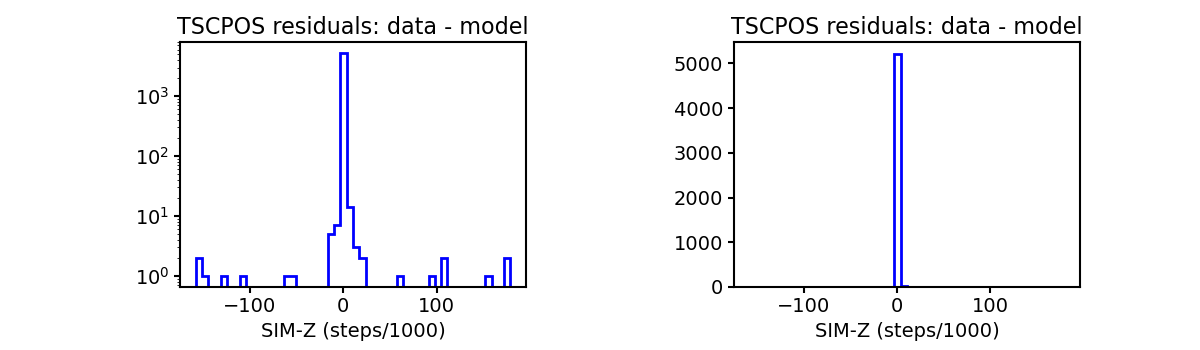

TSCPOS

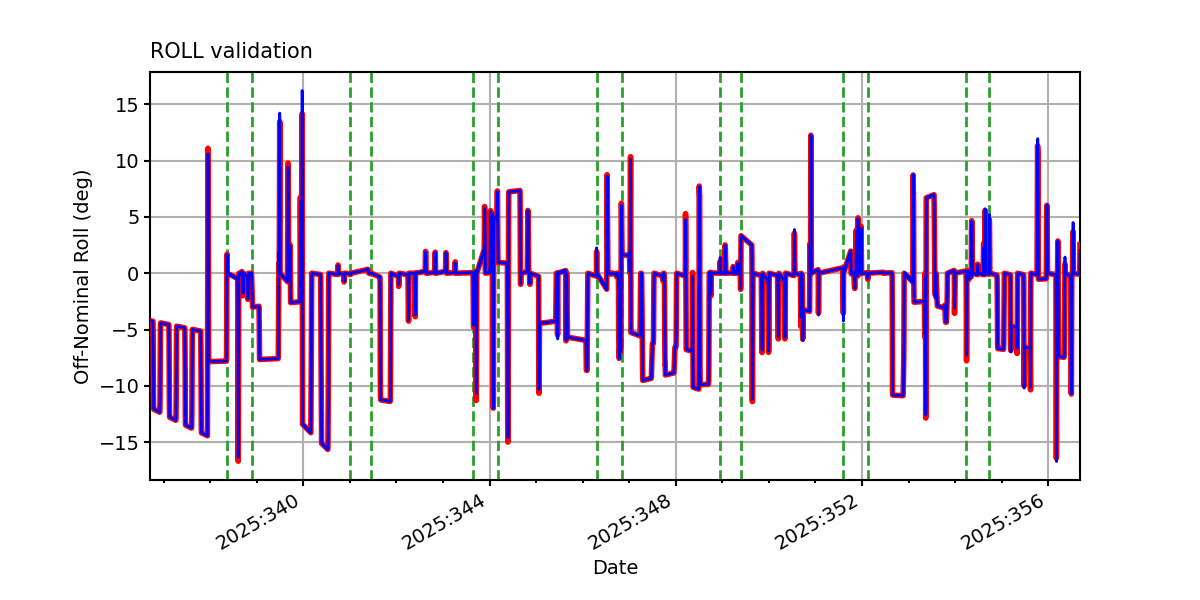

ROLL

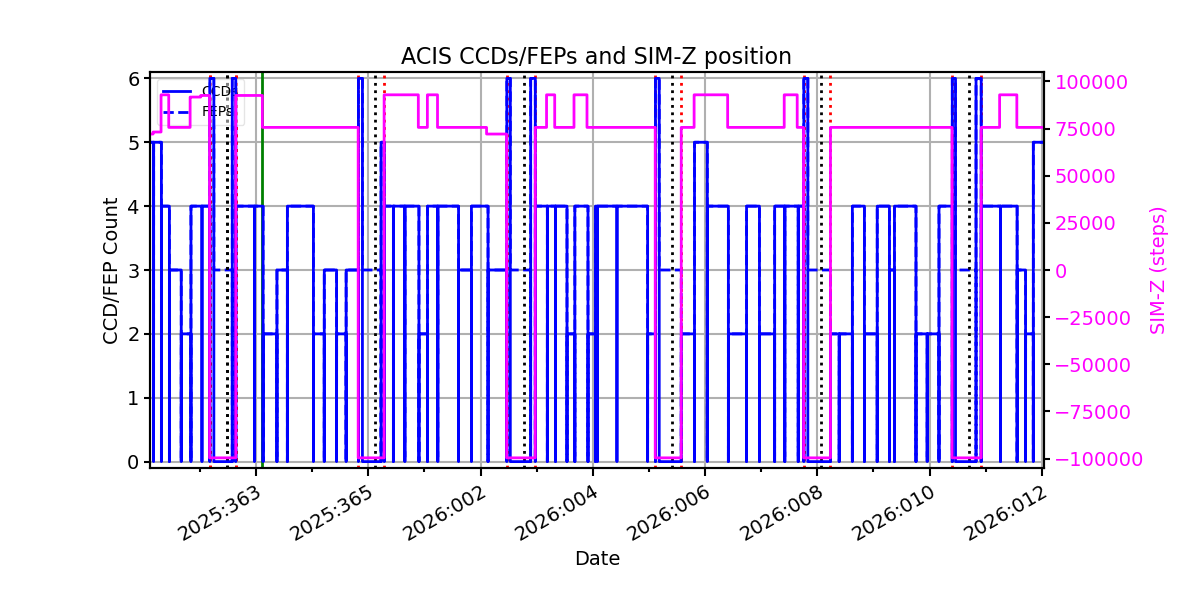

ACIS CCD/FEP Count
Earth Solid Angle
ADDITIONAL PLOTS

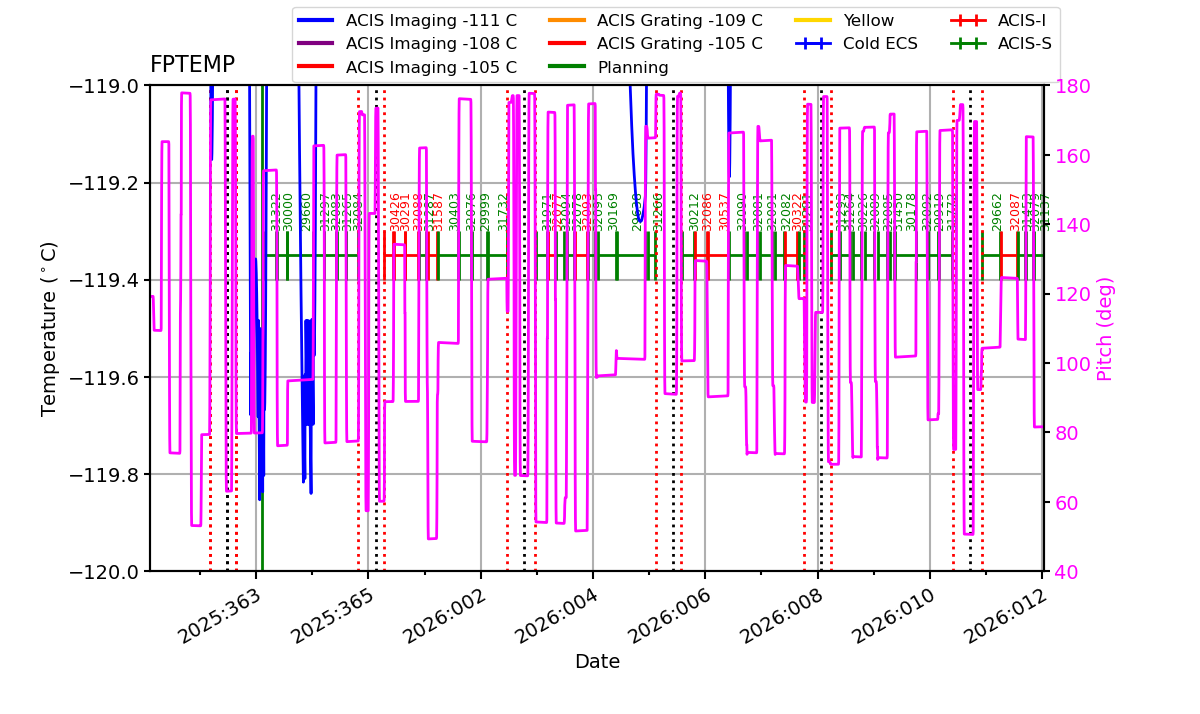

Additional plots of FPTEMP vs TIME for different temperature ranges
