ACISFP Temperatures Check
Summary
| Date start | 2026:037:13:10:00.016 |
| Date stop | 2026:046:22:07:13.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB0626/oflsa |
| Run time | Tue Feb 3 16:01:36 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.54 | -1.07 | -0.57 | 0.09 | 0.76 | 1.20 | 1.59 |
| pitch | -9.086 | -0.459 | -0.004 | 0.000 | 0.004 | 0.449 | 8.479 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.044 | -0.166 | -0.007 | -0.000 | 0.004 | 0.070 | 1.888 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.086 | 3.00 |
| PITCH | 99 | 8.479 | 3.00 |

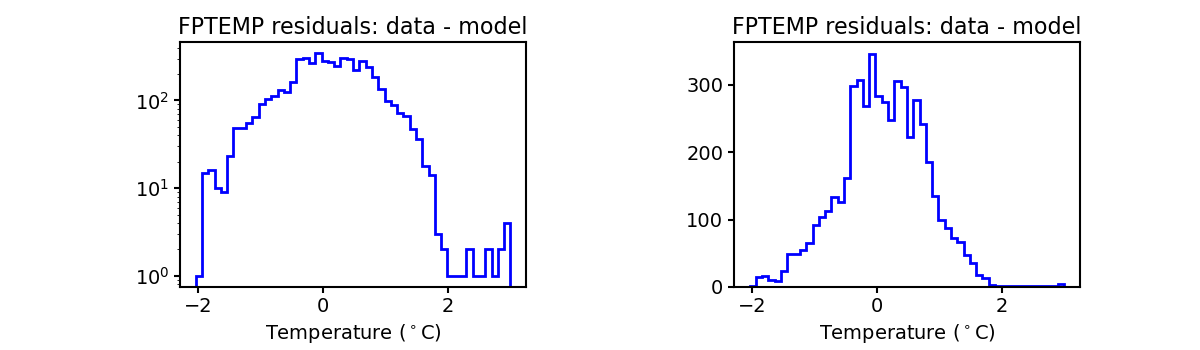

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

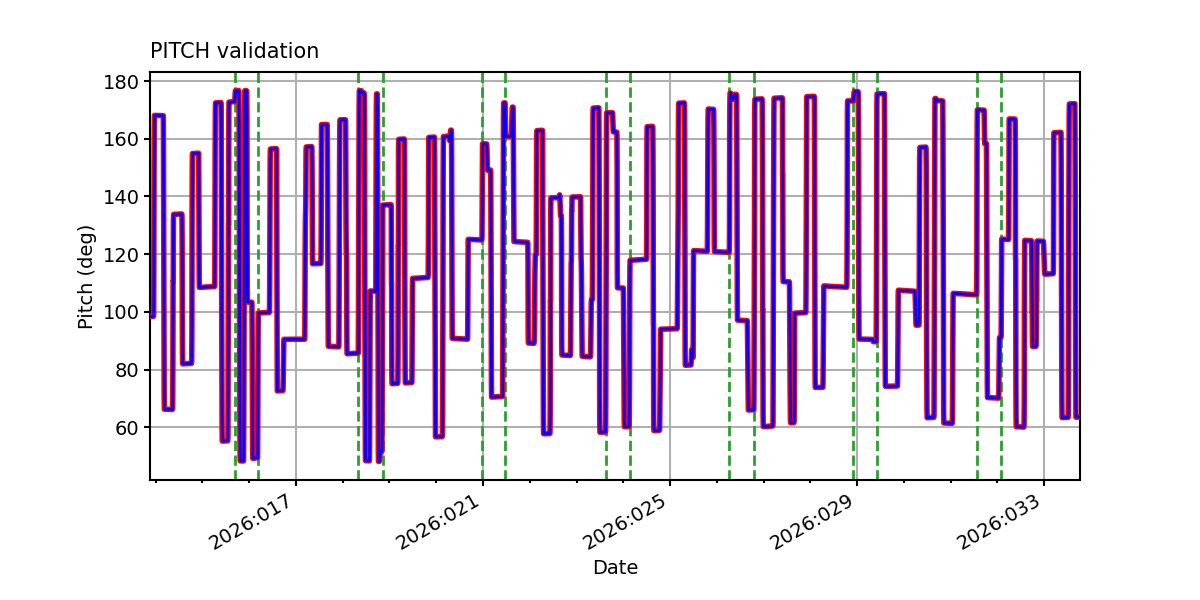

PITCH

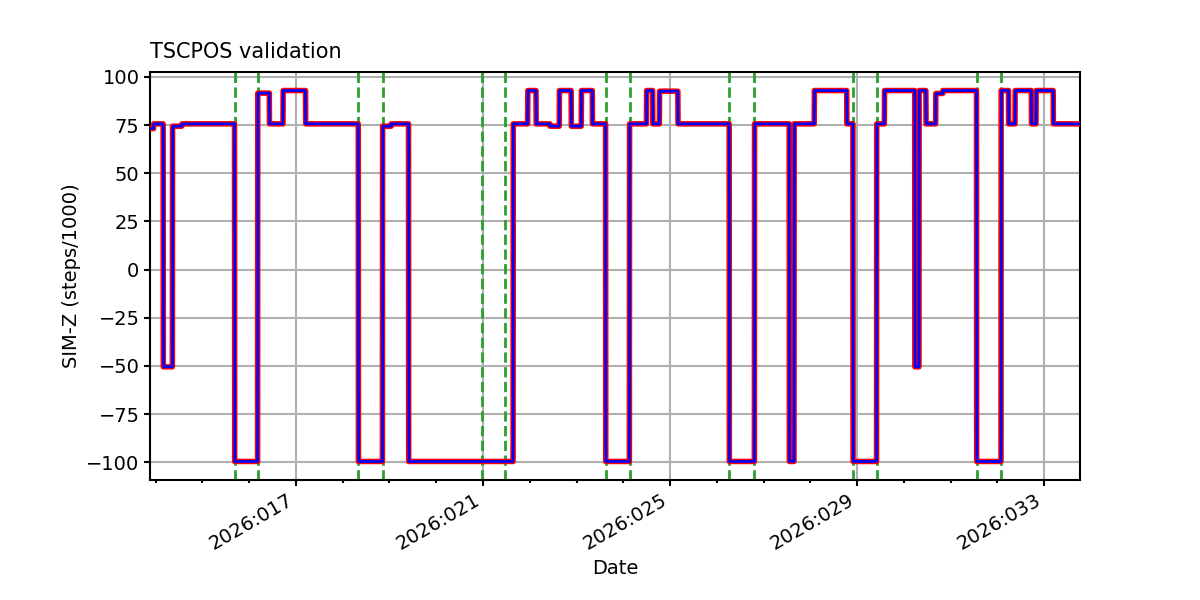

TSCPOS

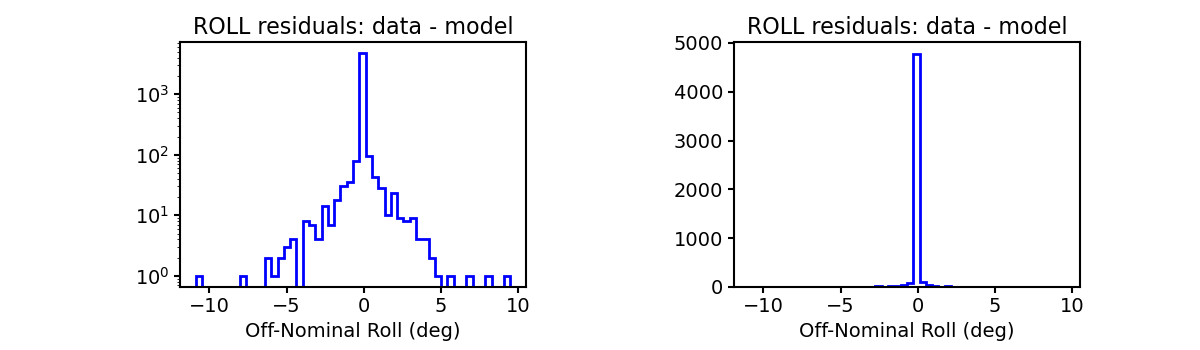

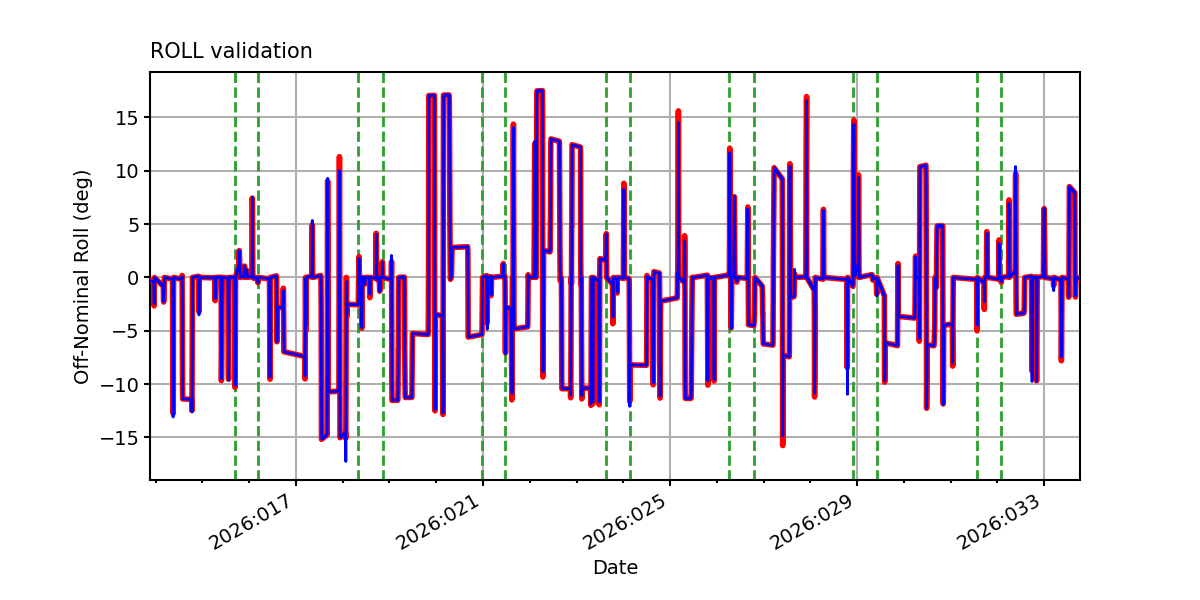

ROLL

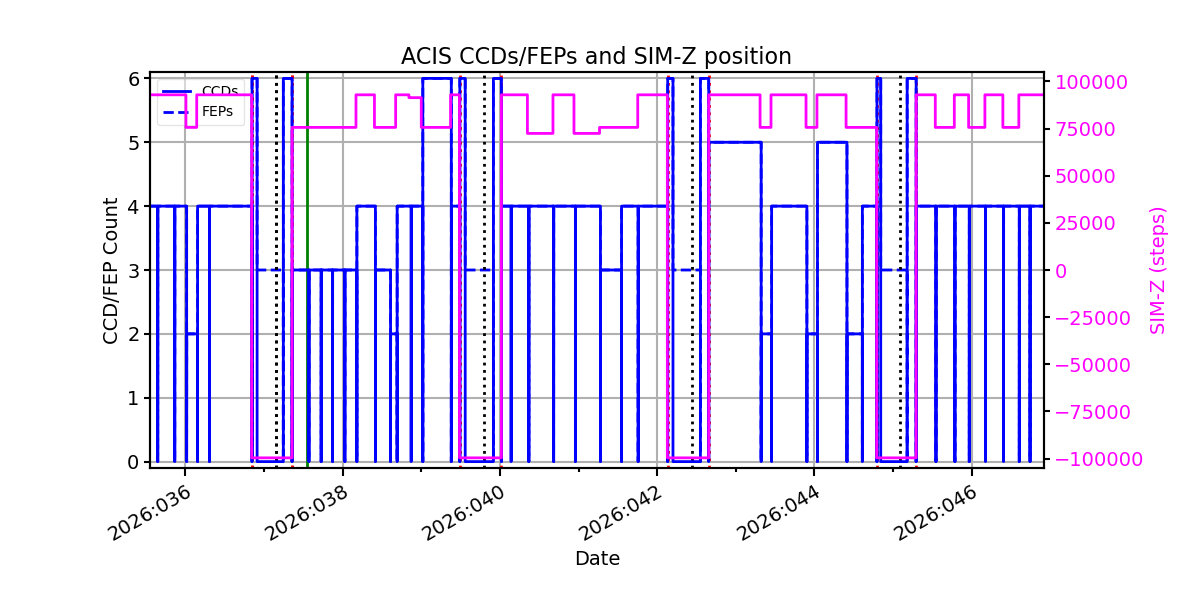

ACIS CCD/FEP Count

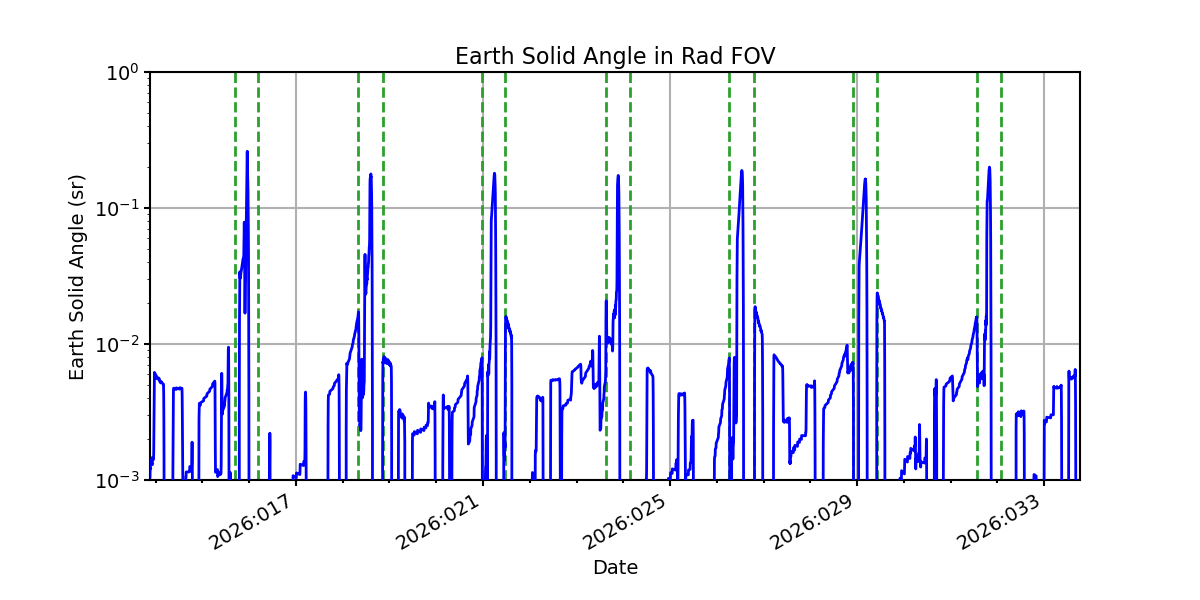

Earth Solid Angle
ADDITIONAL PLOTS

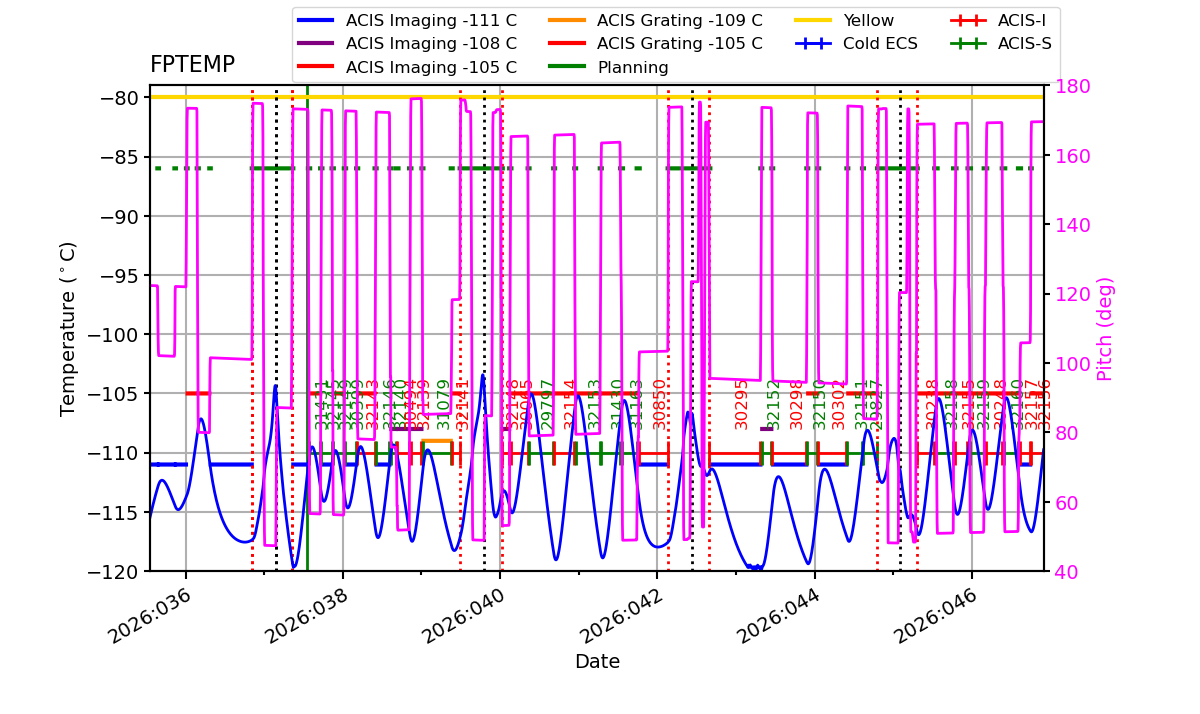

Additional plots of FPTEMP vs TIME for different temperature ranges
