ACISFP Temperatures Check
Summary
| Date start | 2026:046:22:04:13.416 |
| Date stop | 2026:054:01:55:44.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB1626/oflsa |
| Run time | Wed Feb 11 15:18:10 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.52 | -0.96 | -0.33 | 0.31 | 0.93 | 1.42 | 2.39 |
| pitch | -8.760 | -0.476 | -0.004 | 0.000 | 0.004 | 0.273 | 9.387 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.833 | -0.148 | -0.009 | 0.000 | 0.007 | 0.088 | 1.852 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.39 | 2.00 |
| PITCH | 1 | -8.76 | 3.00 |
| PITCH | 99 | 9.387 | 3.00 |

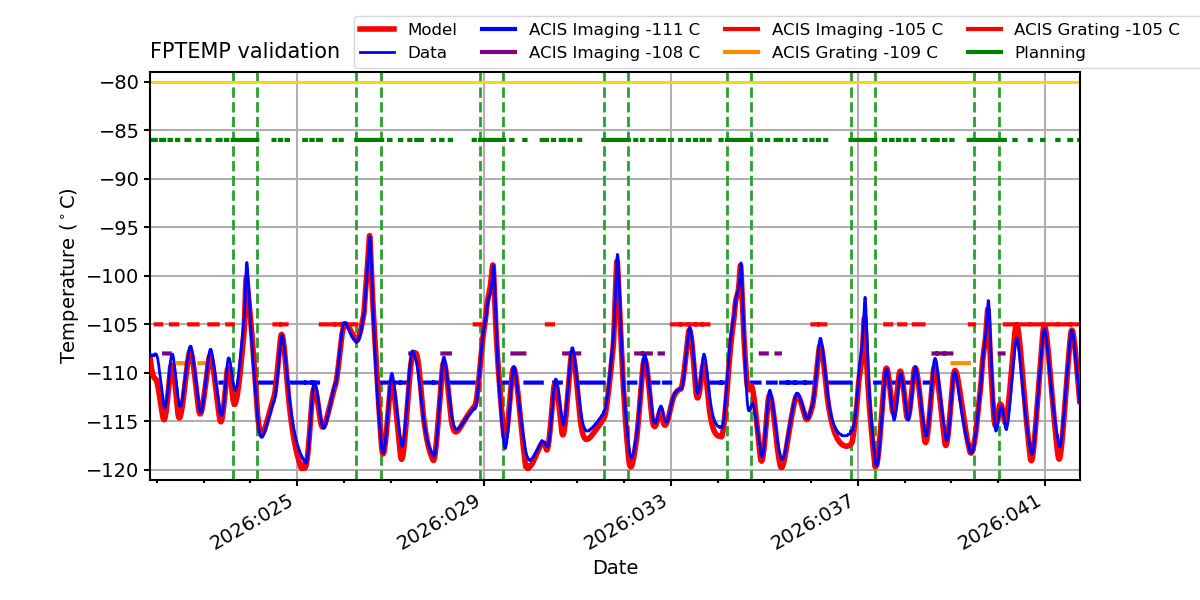

FPTEMP

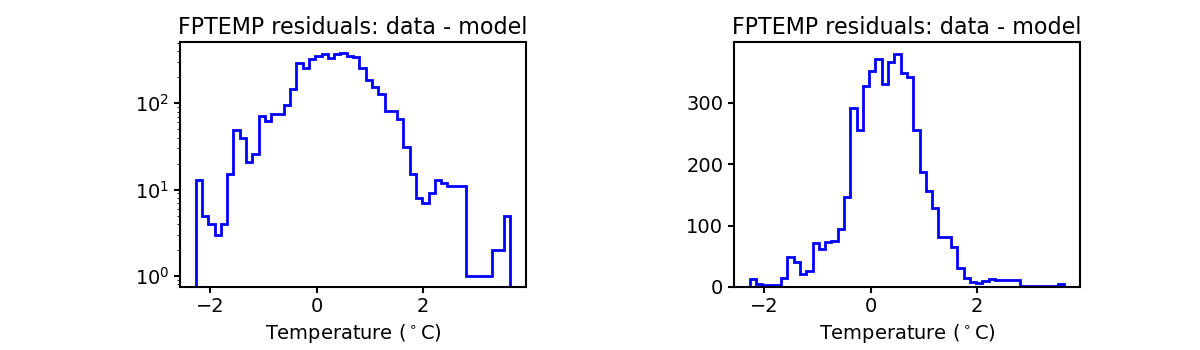

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

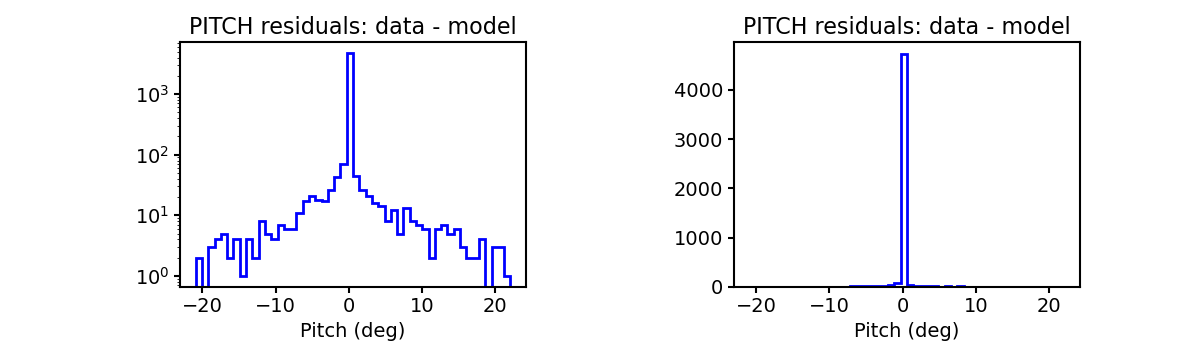

PITCH

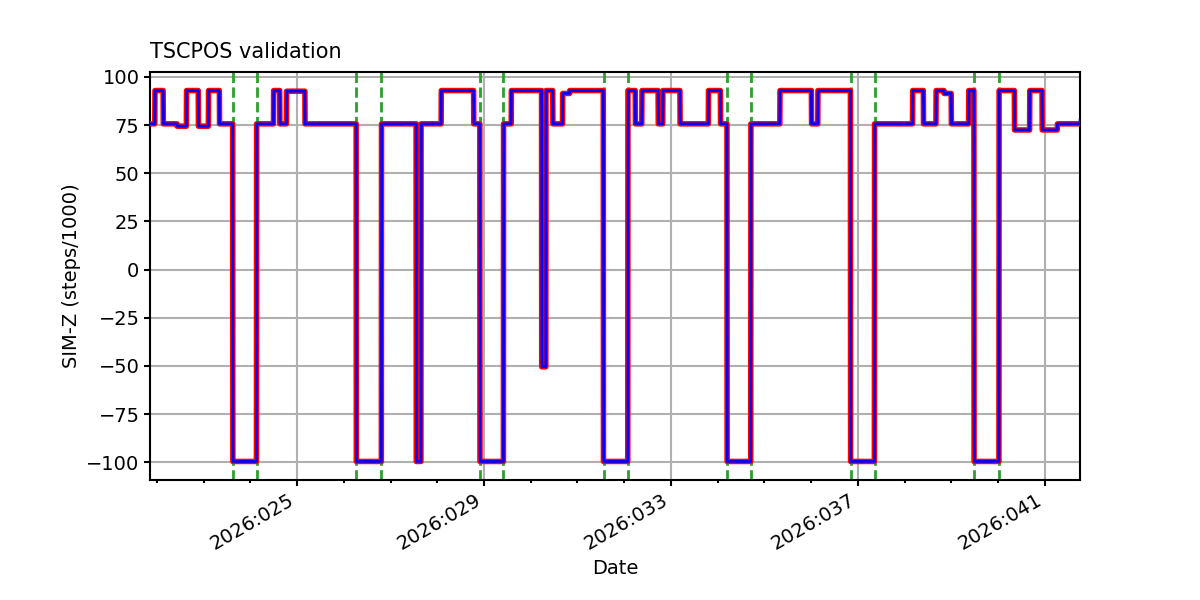

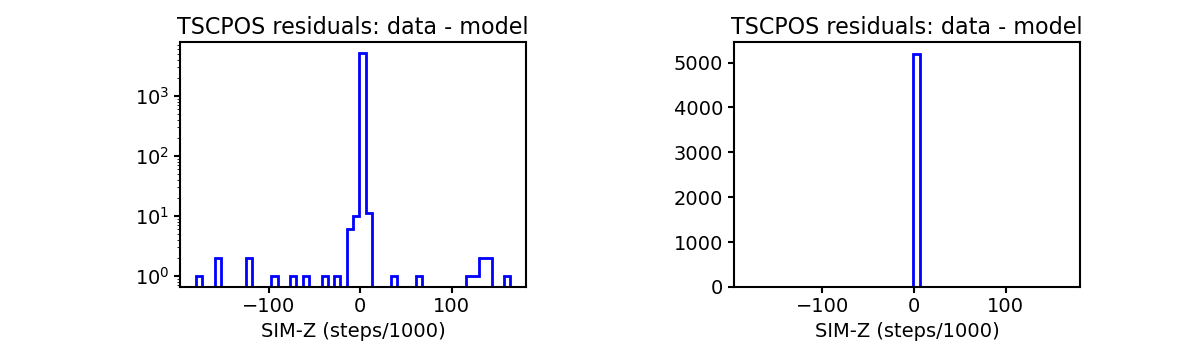

TSCPOS

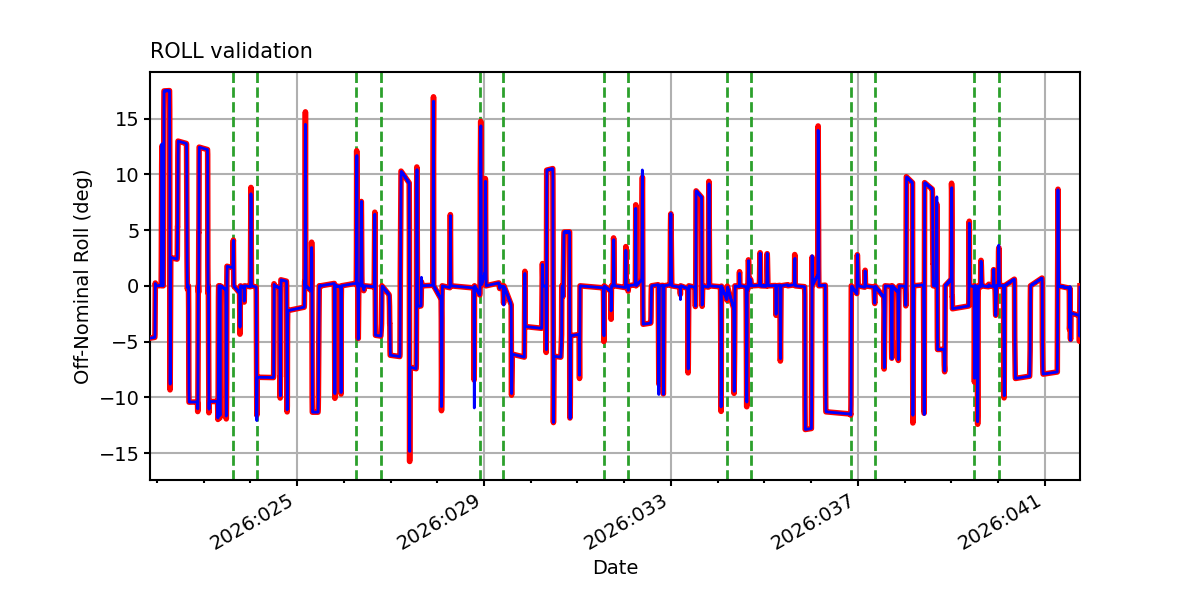

ROLL

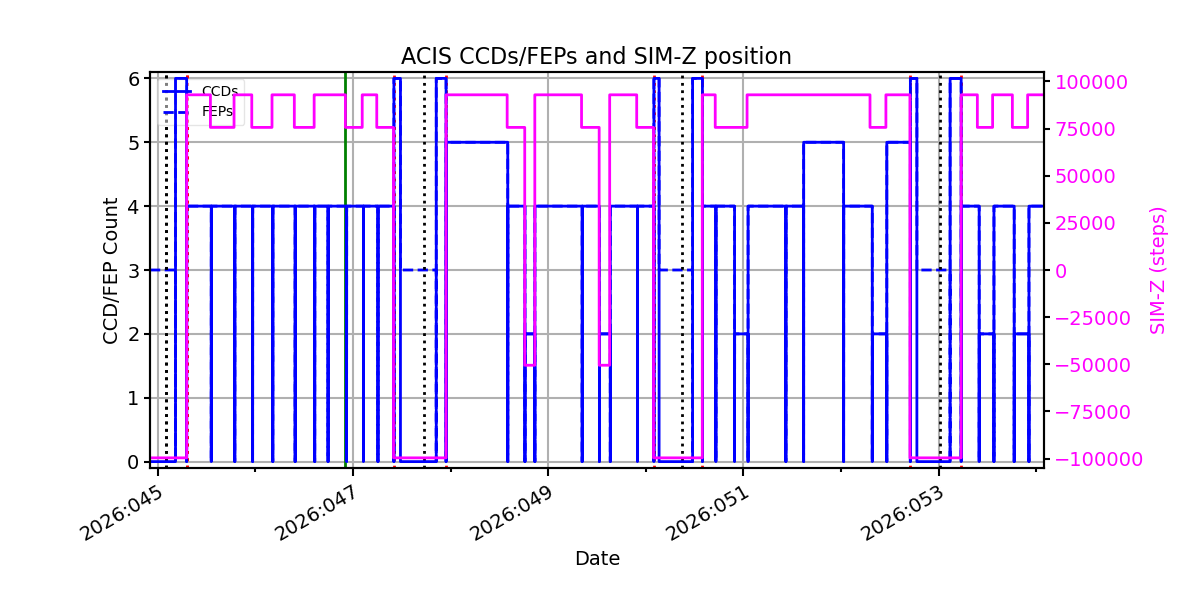

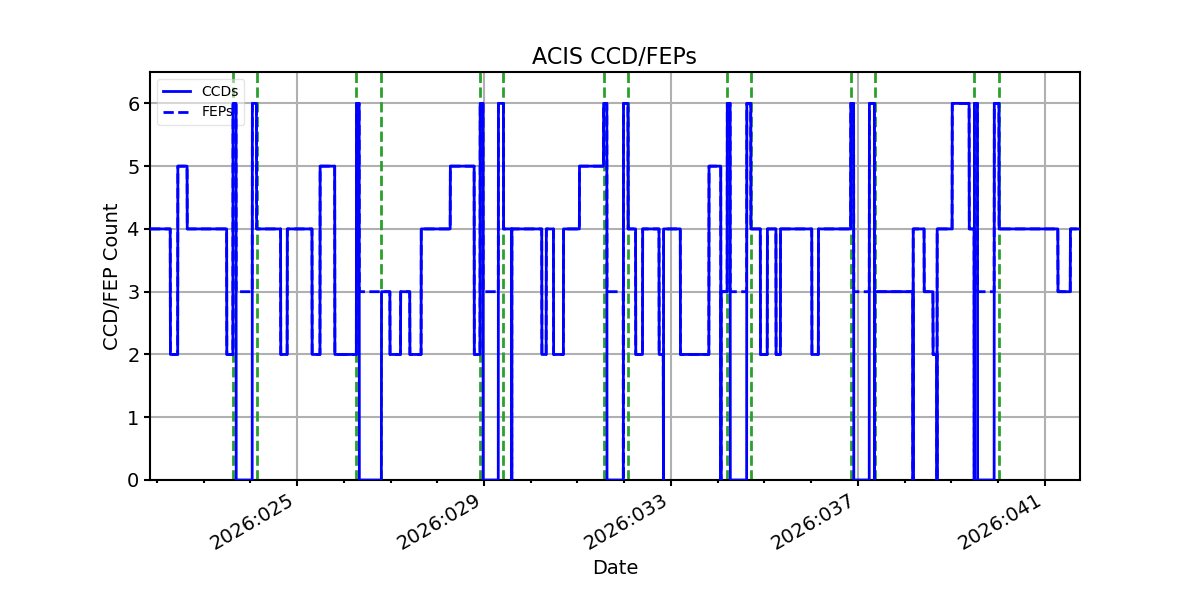

ACIS CCD/FEP Count

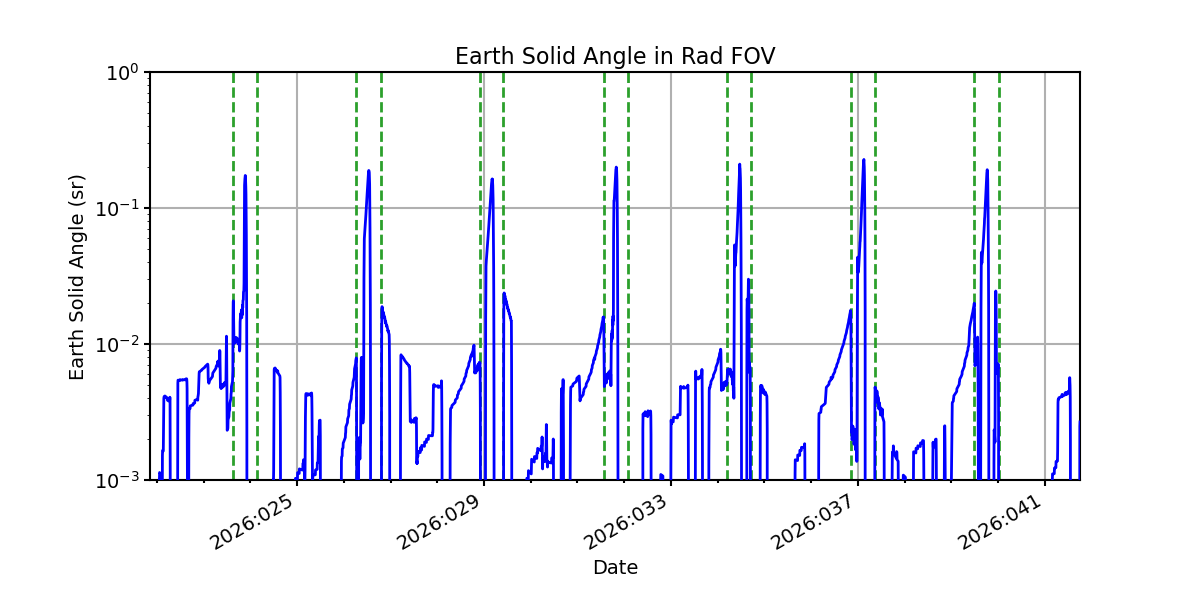

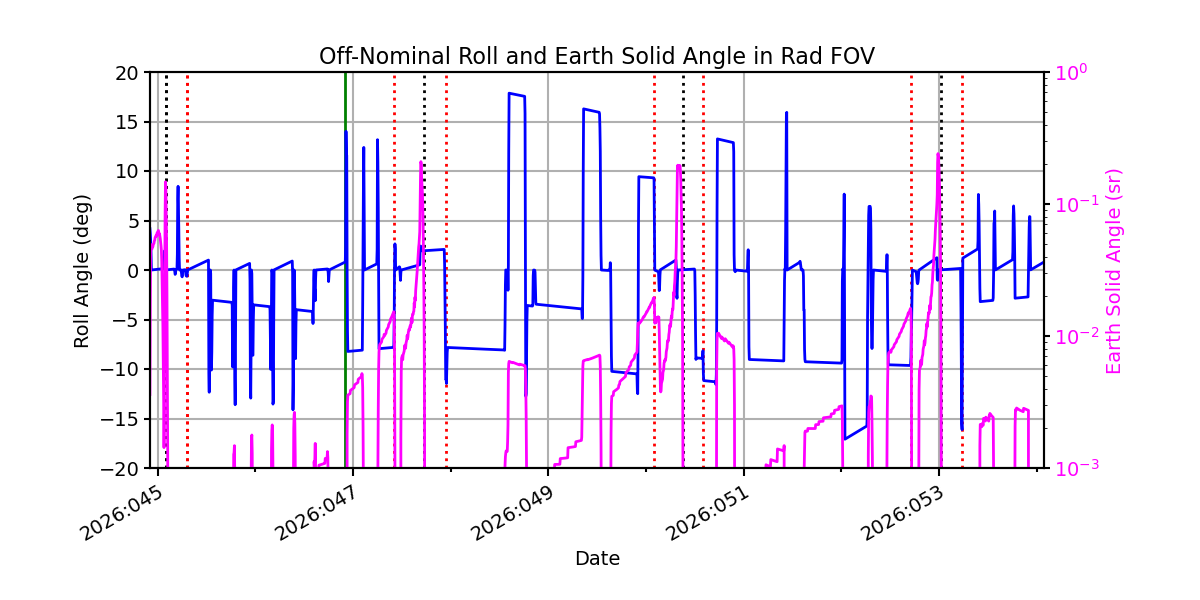

Earth Solid Angle
ADDITIONAL PLOTS

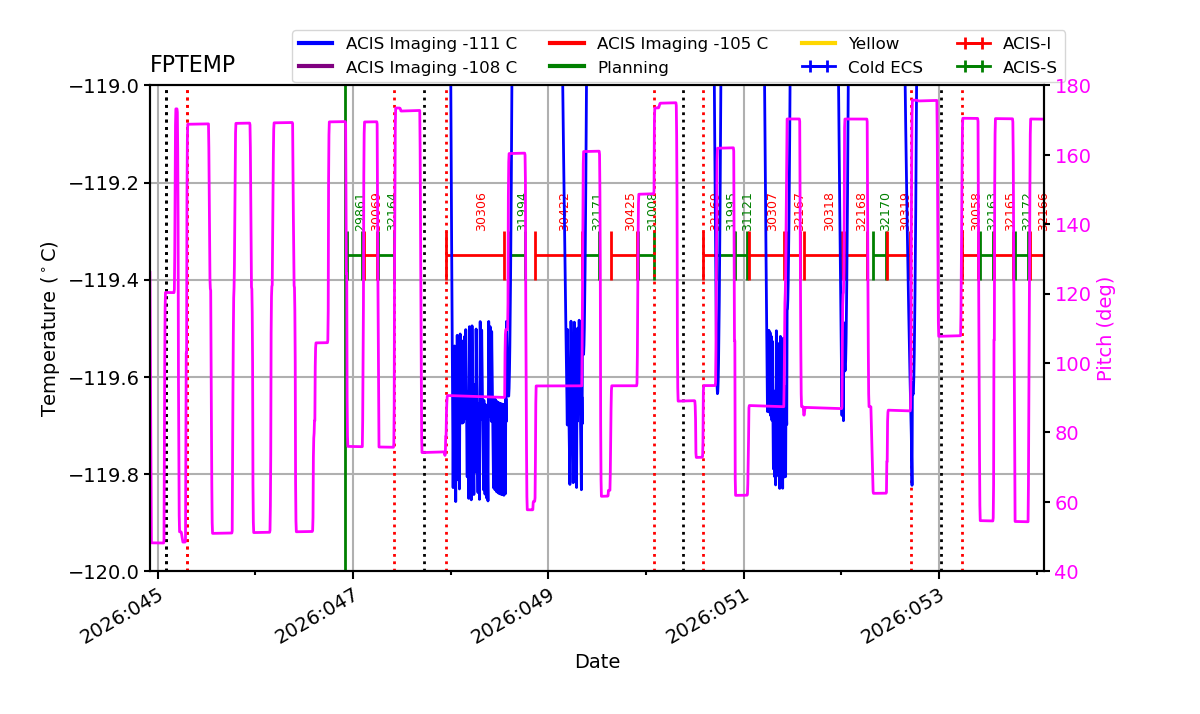

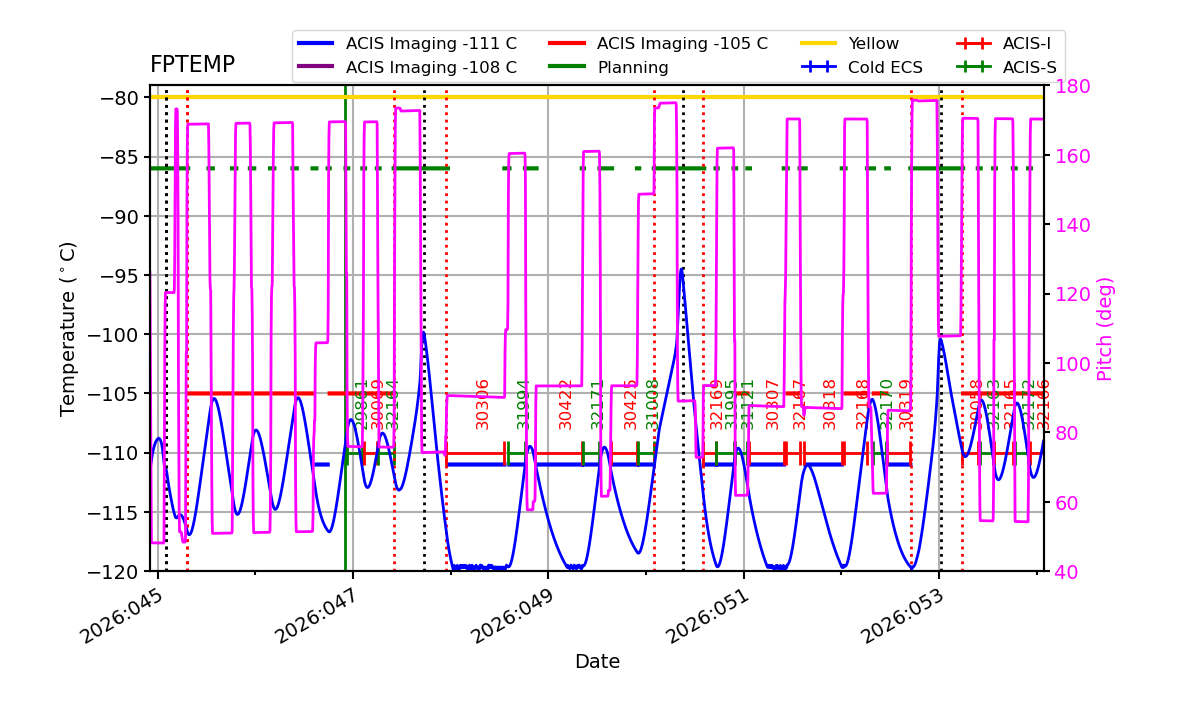

Additional plots of FPTEMP vs TIME for different temperature ranges
