ACISFP Temperatures Check
Summary
| Date start | 2026:054:01:52:44.816 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2326/oflsa |
| Run time | Wed Feb 18 17:46:01 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.78 | -1.37 | -0.75 | 0.13 | 0.87 | 1.38 | 3.64 |
| pitch | -9.415 | -0.674 | -0.004 | -0.000 | 0.004 | 0.440 | 11.565 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.695 | -0.146 | -0.010 | -0.000 | 0.010 | 0.092 | 1.742 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 3.64 | 2.00 |
| PITCH | 1 | -9.415 | 3.00 |
| PITCH | 99 | 11.565 | 3.00 |

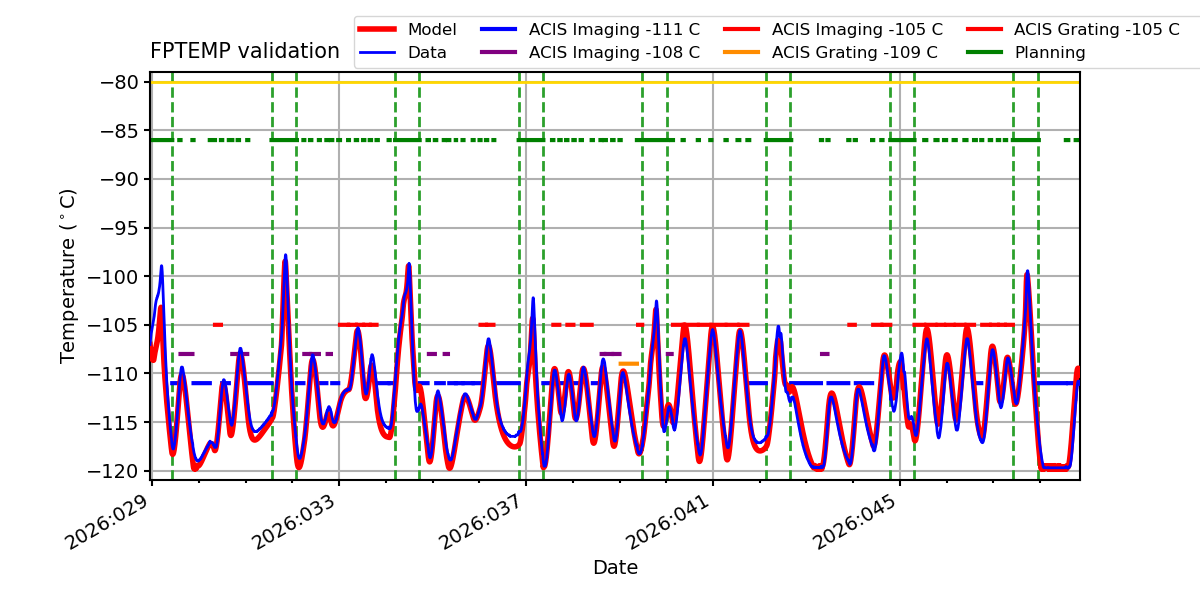

FPTEMP

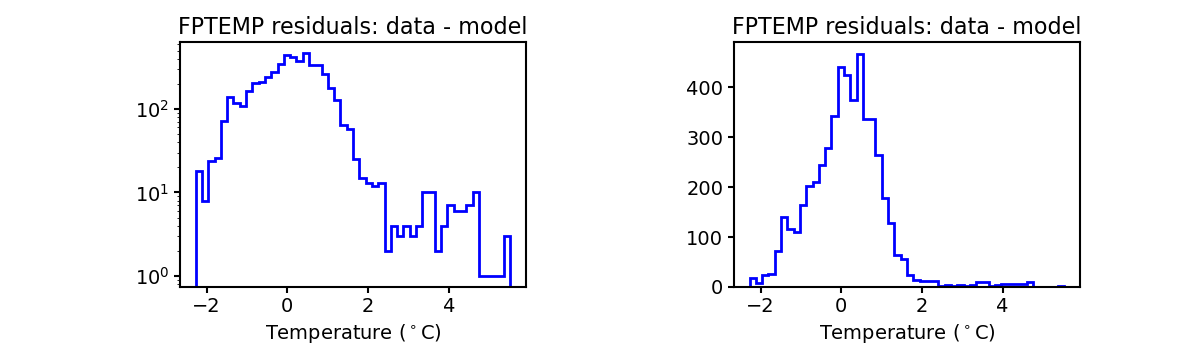

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

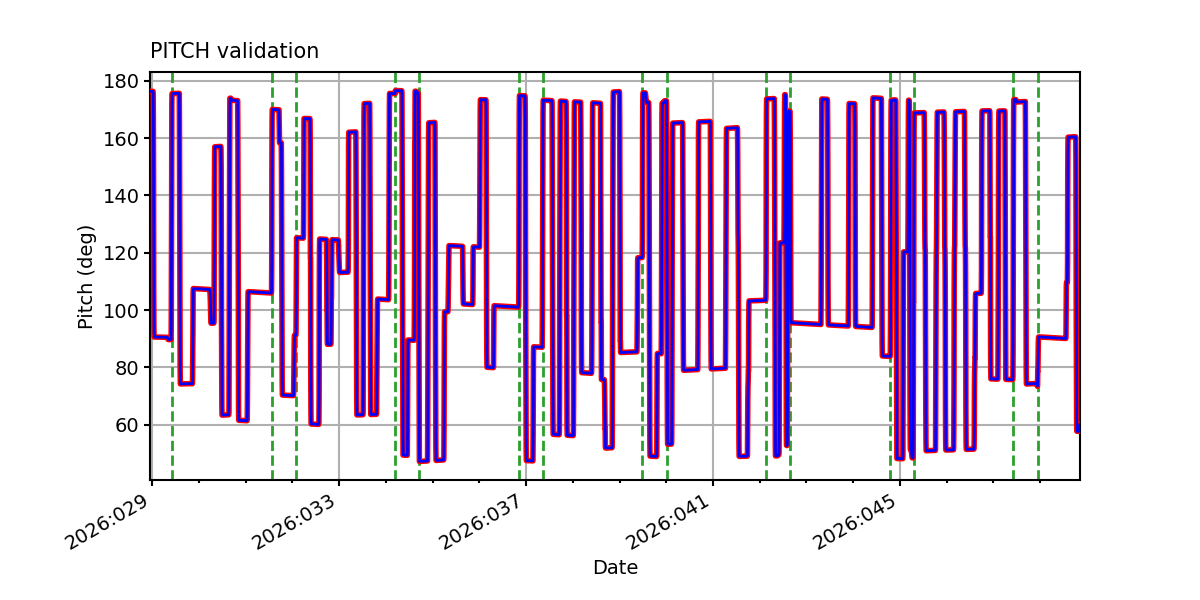

PITCH
TSCPOS

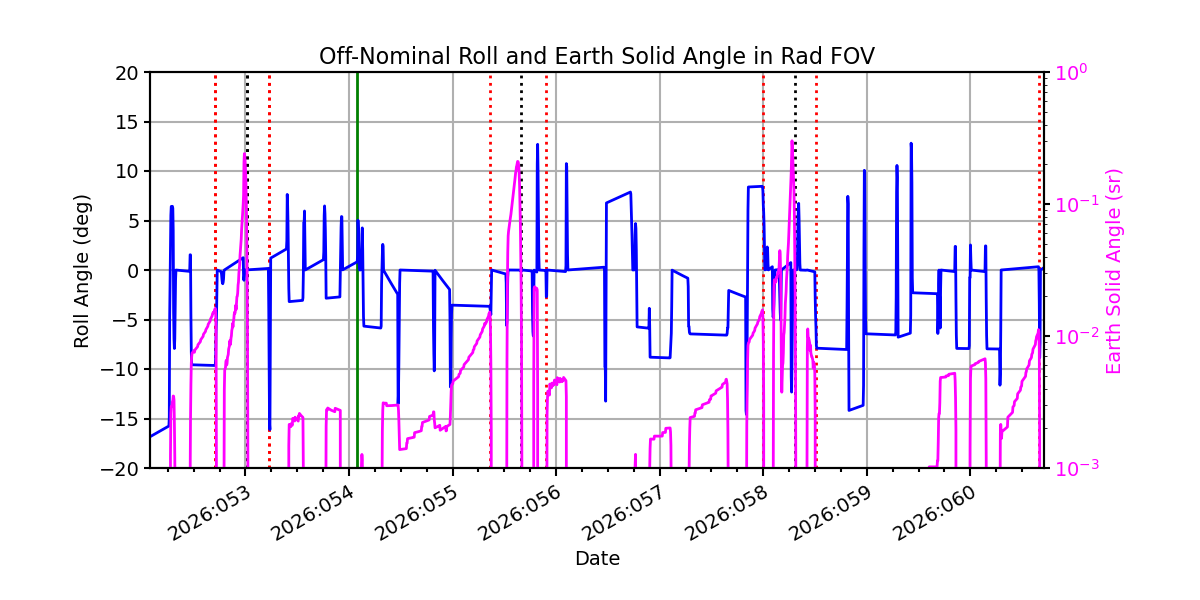

ROLL

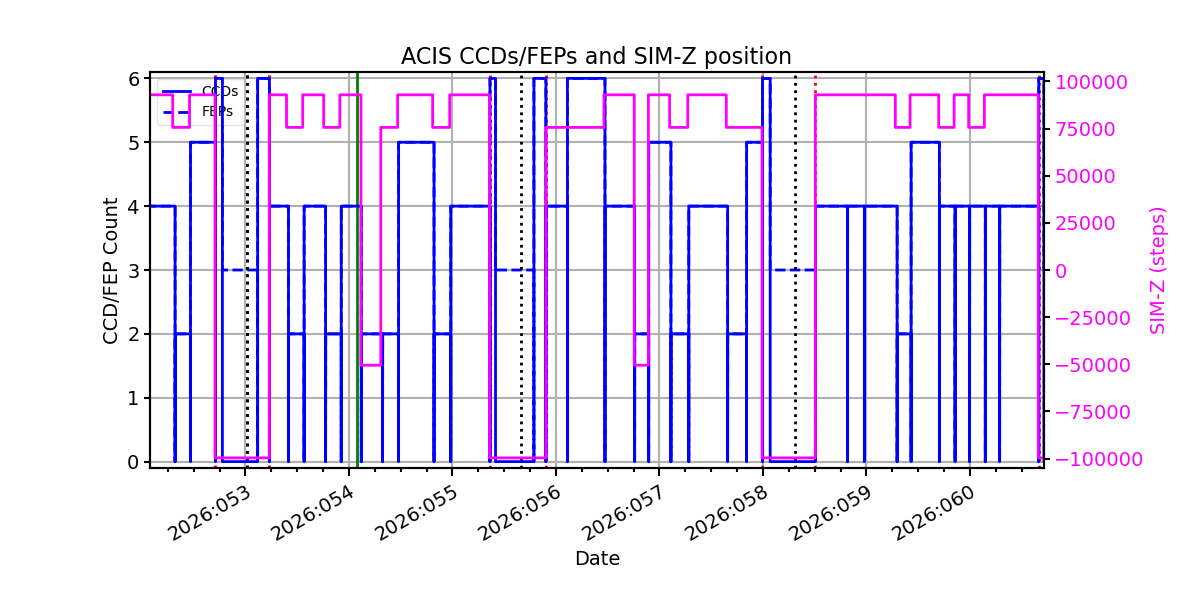

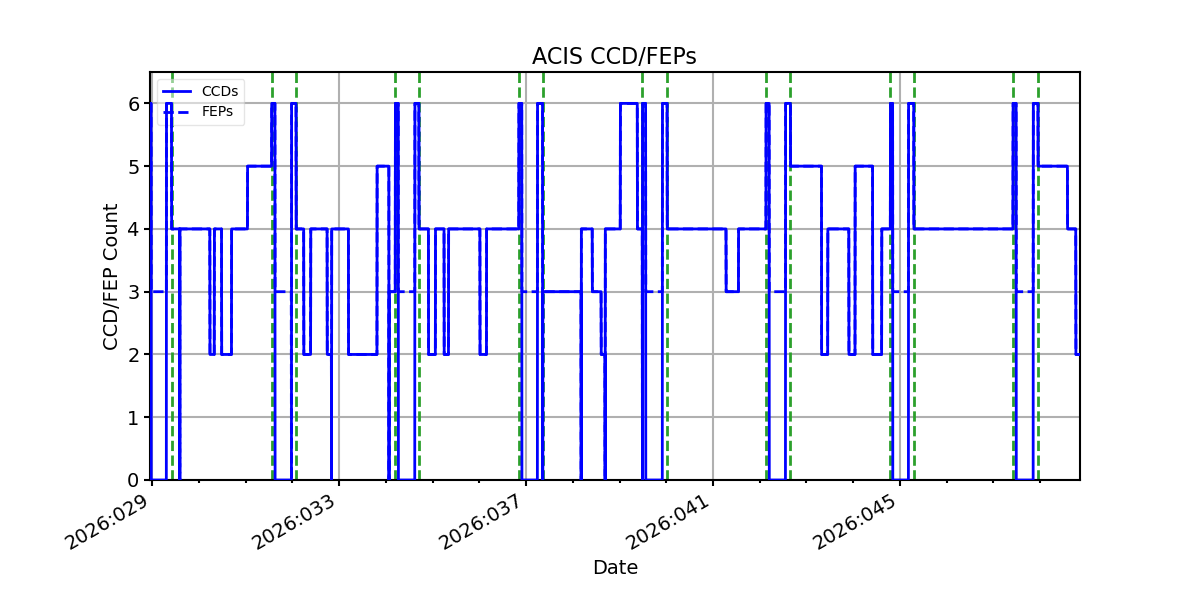

ACIS CCD/FEP Count

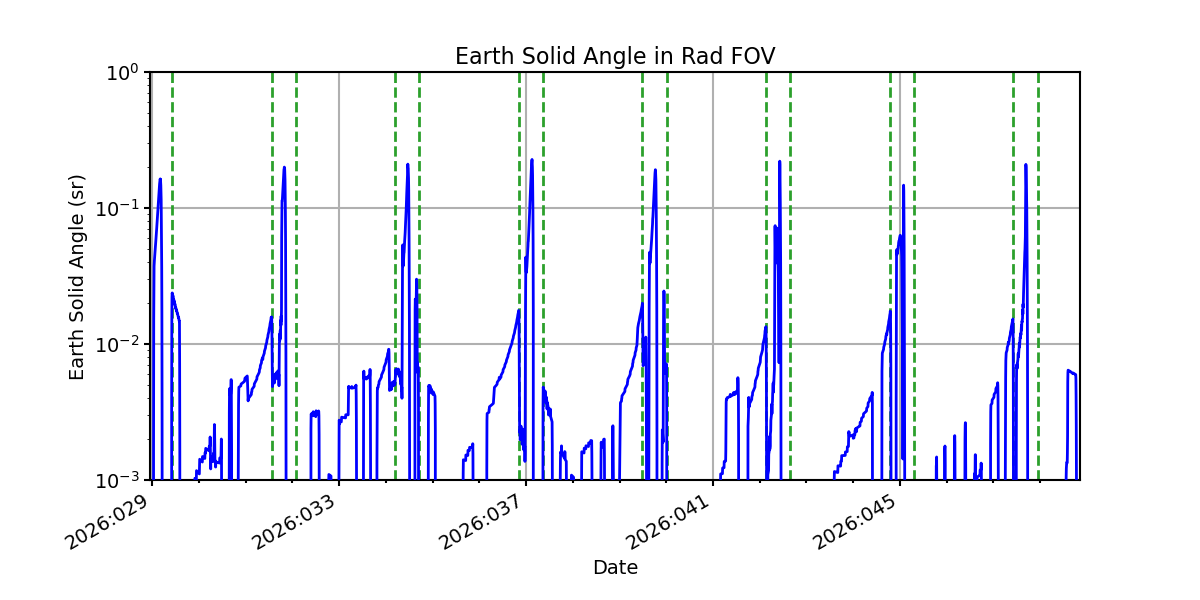

Earth Solid Angle
ADDITIONAL PLOTS

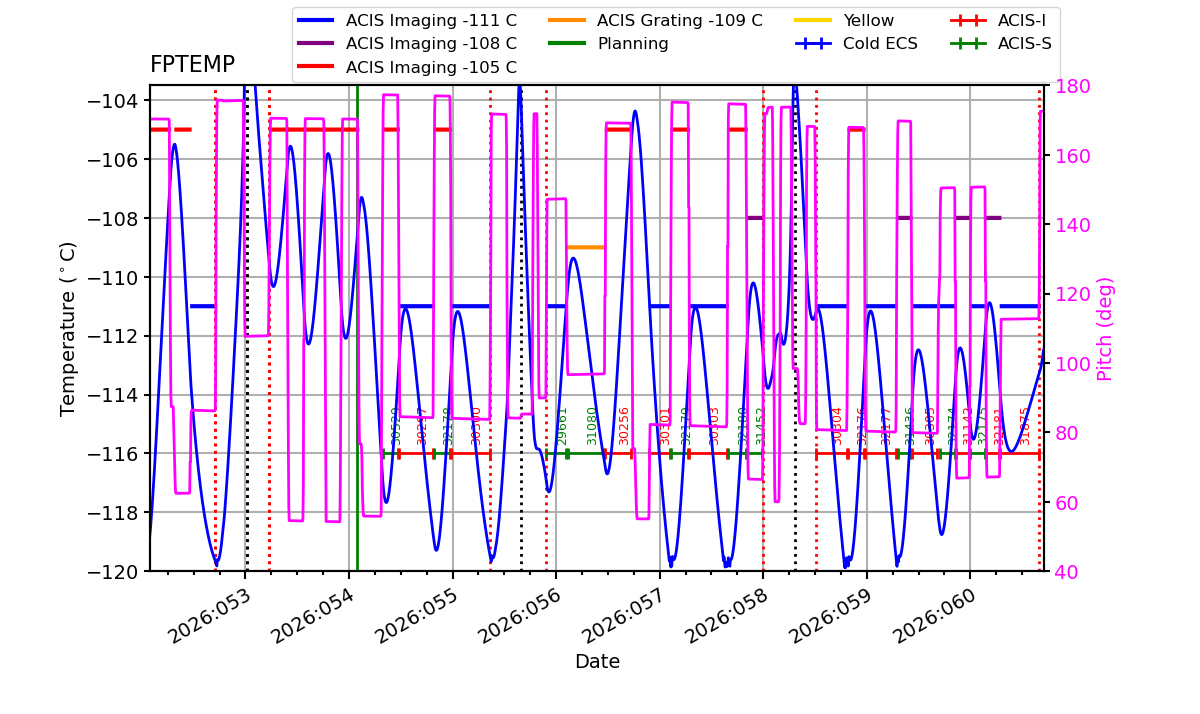

Additional plots of FPTEMP vs TIME for different temperature ranges
