ACISFP Temperatures Check
Summary
| Date start | 2026:012:00:51:56.516 |
| Date stop | 2026:019:00:52:29.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1226/oflsa |
| Run time | Thu Jan 8 08:39:30 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.19 | -0.75 | -0.46 | 0.16 | 0.96 | 1.46 | 1.88 |
| pitch | -11.683 | -0.797 | -0.004 | -0.000 | 0.004 | 0.560 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.739 | -0.205 | -0.007 | -0.000 | 0.007 | 0.152 | 2.005 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -11.683 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |

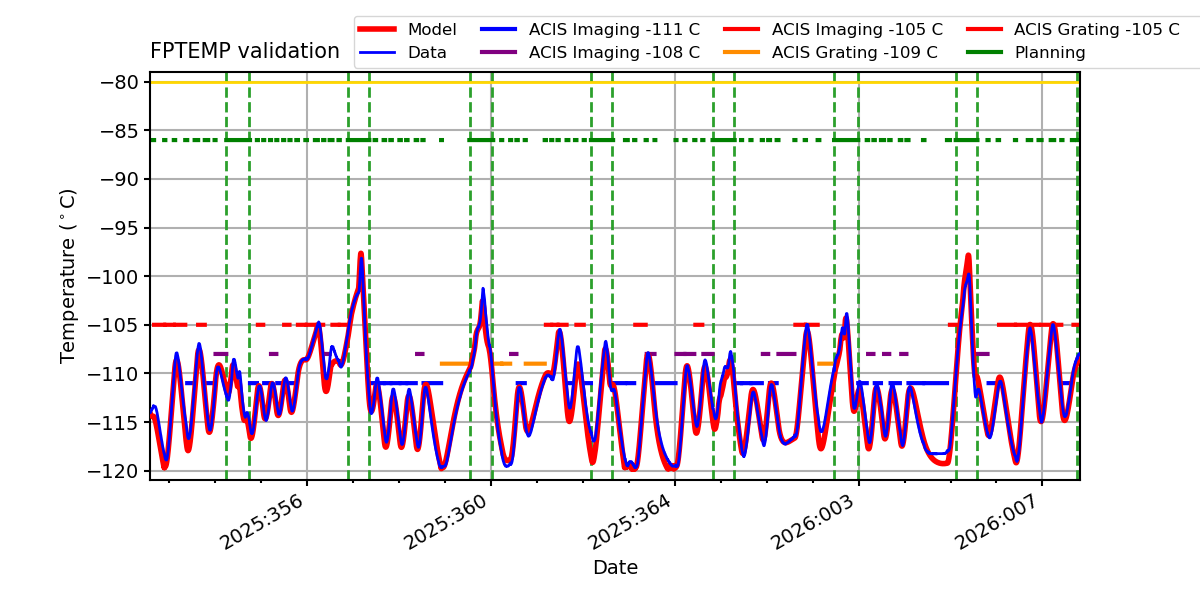

FPTEMP

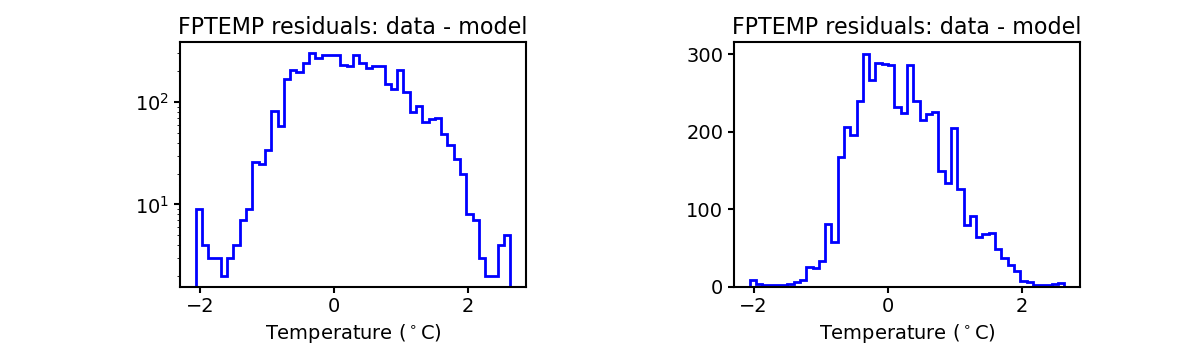

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

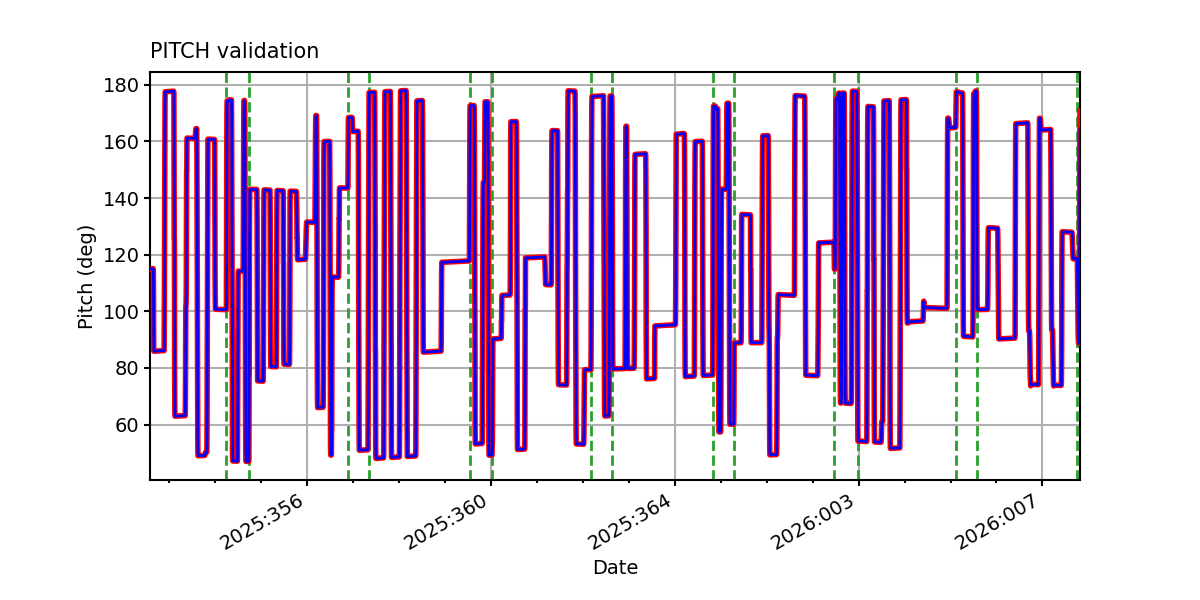

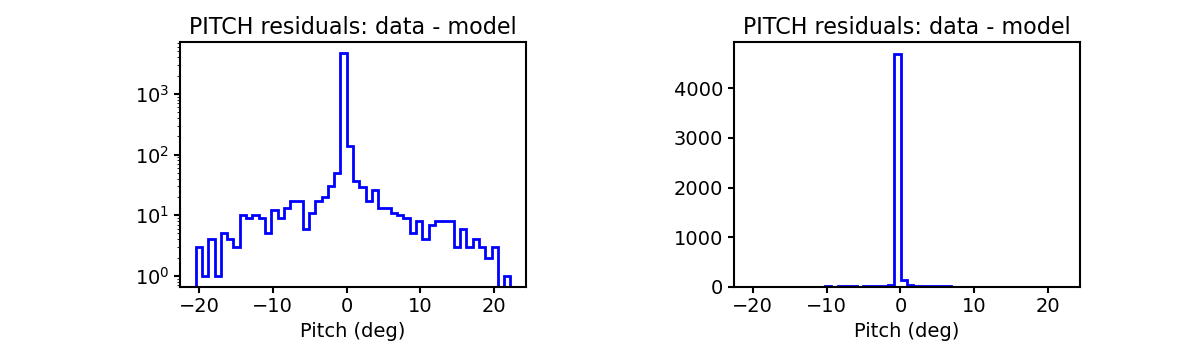

PITCH

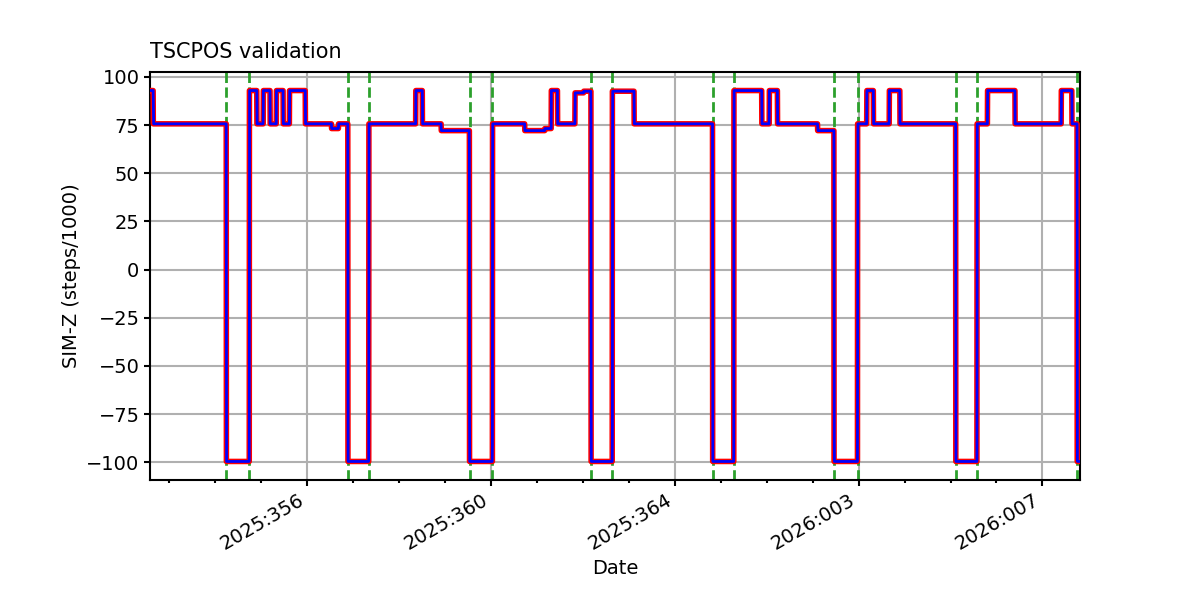

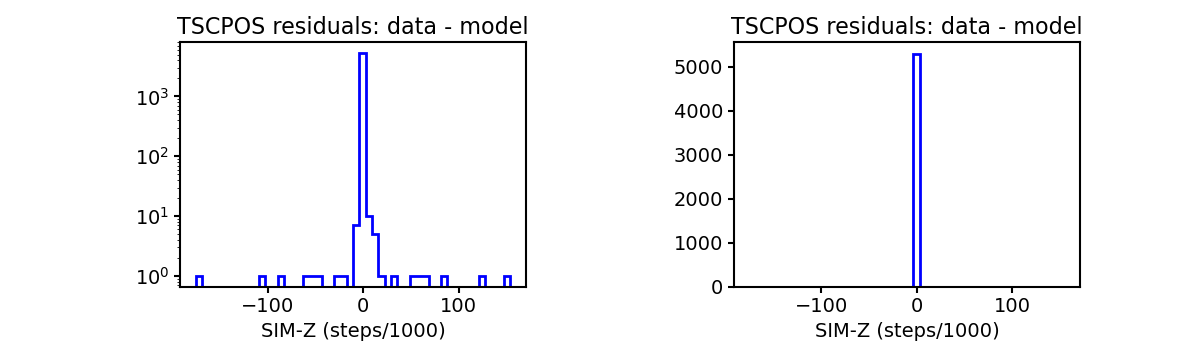

TSCPOS

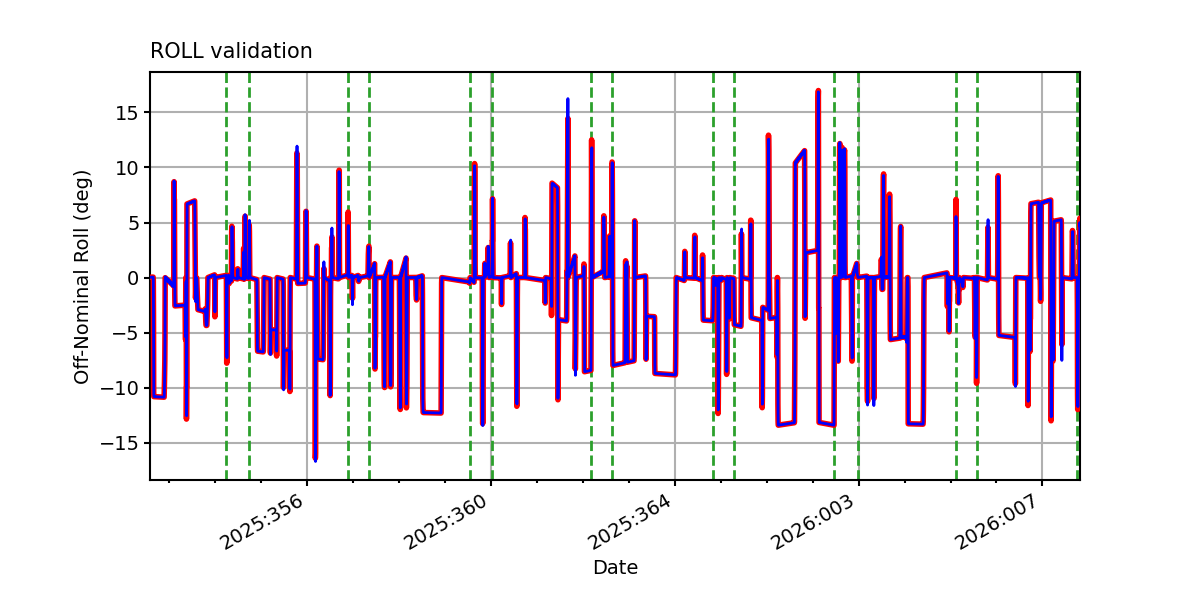

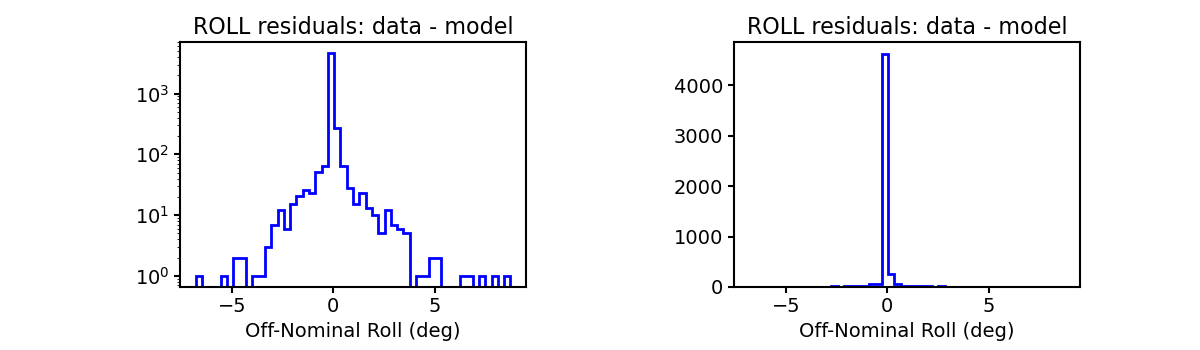

ROLL

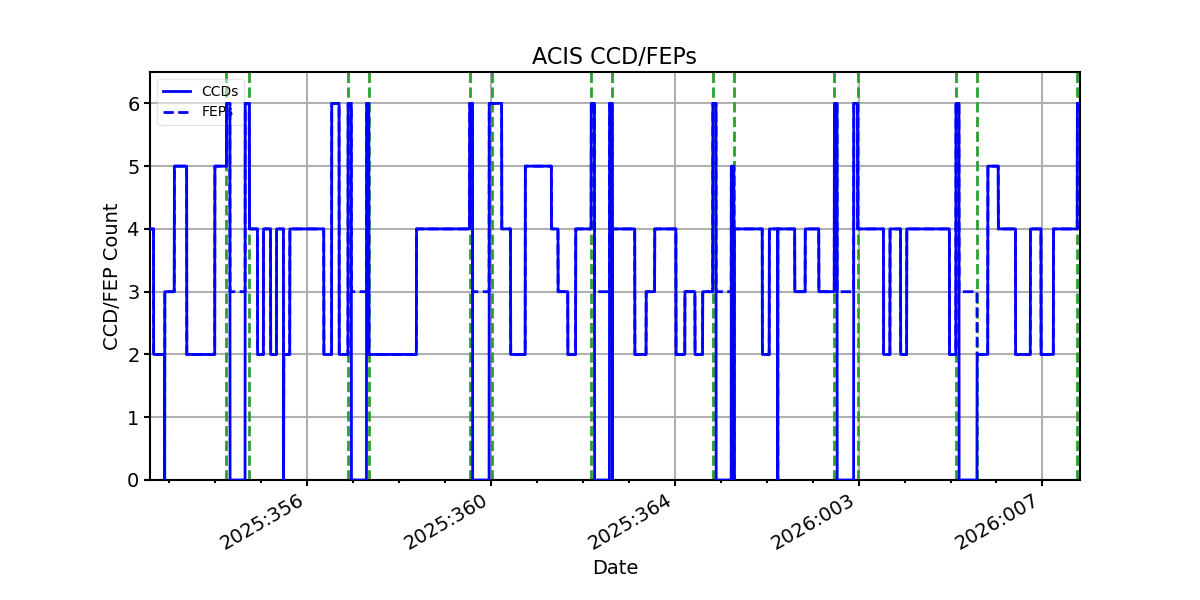

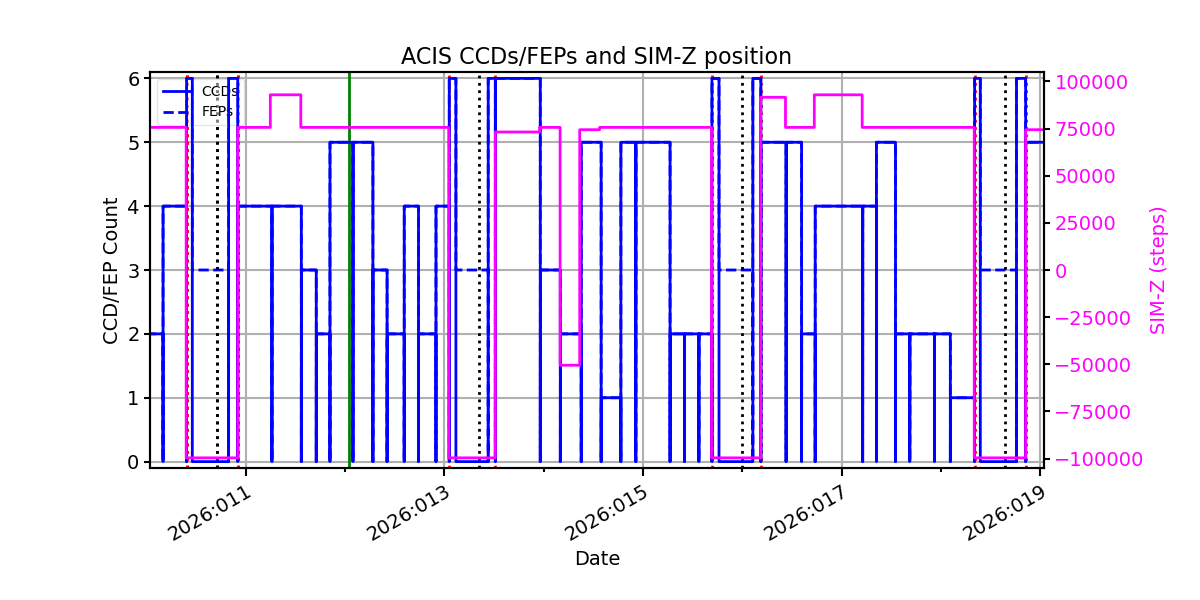

ACIS CCD/FEP Count

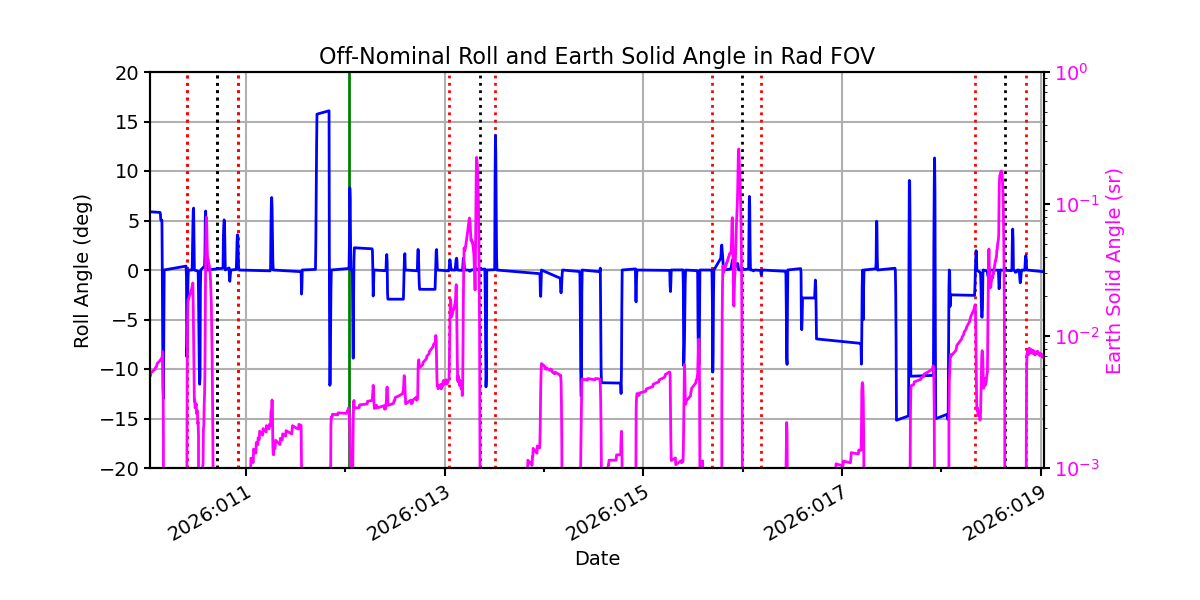

Earth Solid Angle
ADDITIONAL PLOTS

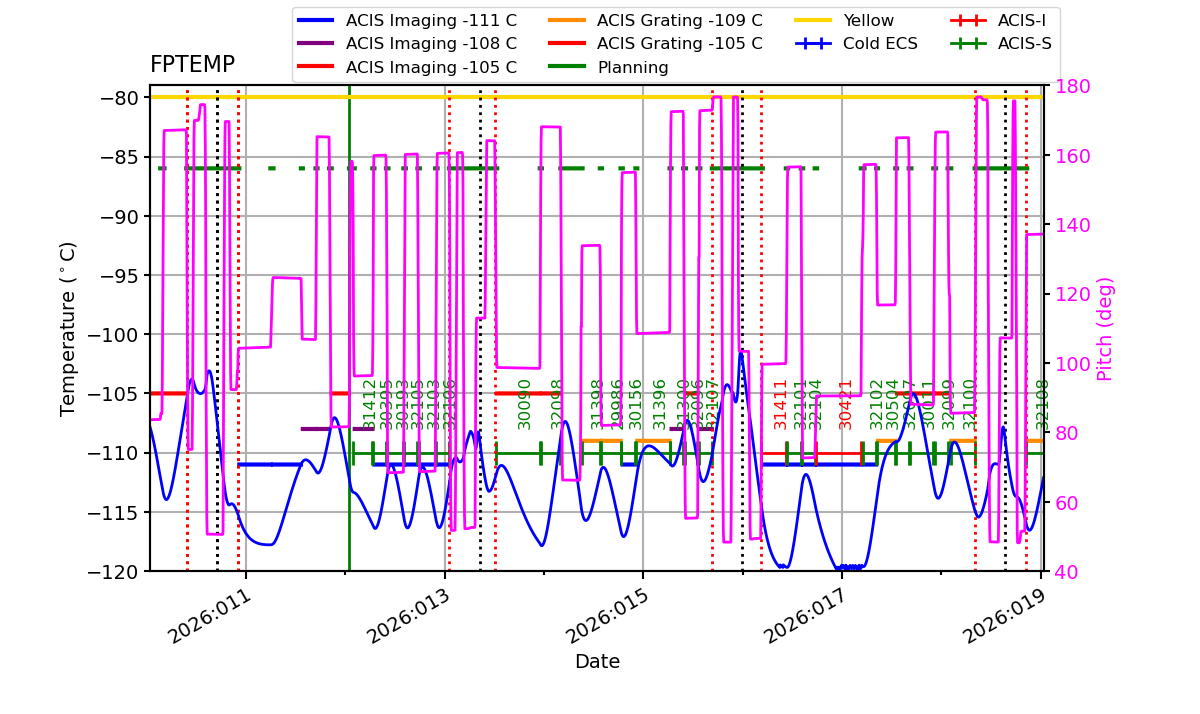

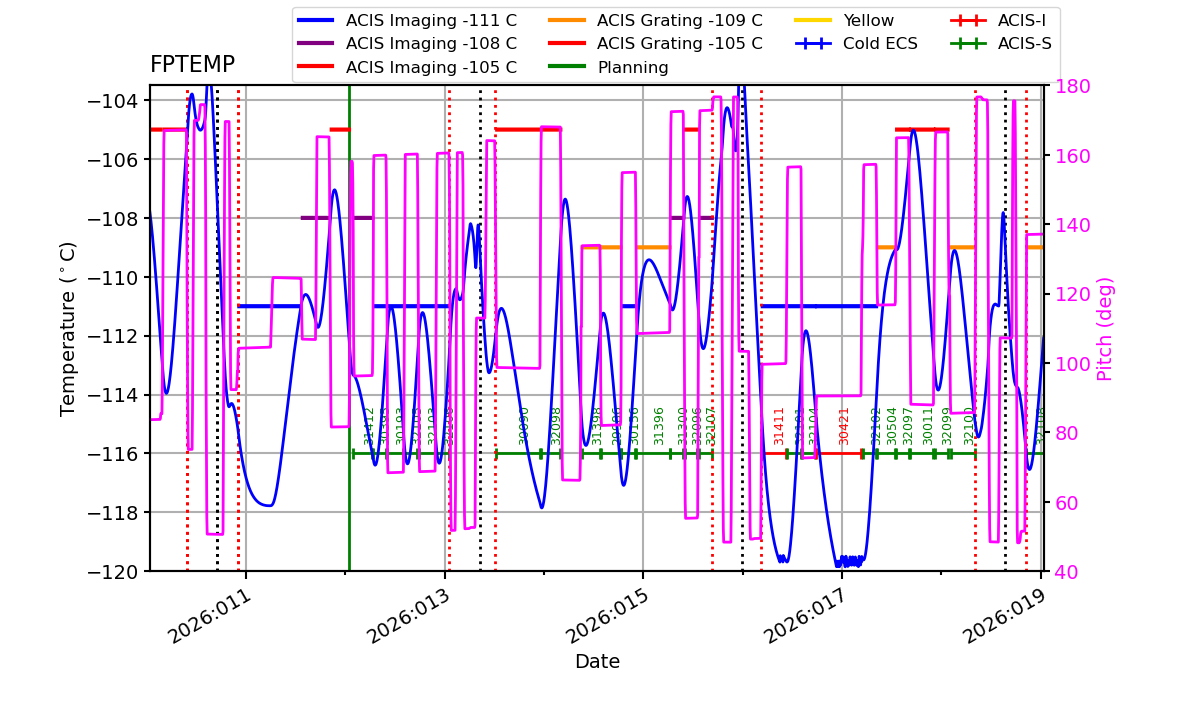

Additional plots of FPTEMP vs TIME for different temperature ranges
