ACISFP Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsb |
| Run time | Thu Jan 15 22:02:00 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:019:01:29:26.816 | 2026:019:01:56:46.816 | 1.64 / 10.30 | -110.94 / -111.00 | 30190 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.89 | -1.04 | -0.53 | 0.08 | 0.95 | 1.52 | 2.18 |
| pitch | -11.776 | -0.585 | -0.004 | 0.000 | 0.004 | 0.635 | 11.568 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.950 | -0.242 | -0.009 | -0.000 | 0.008 | 0.172 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.18 | 2.00 |
| PITCH | 1 | -11.776 | 3.00 |
| PITCH | 99 | 11.568 | 3.00 |

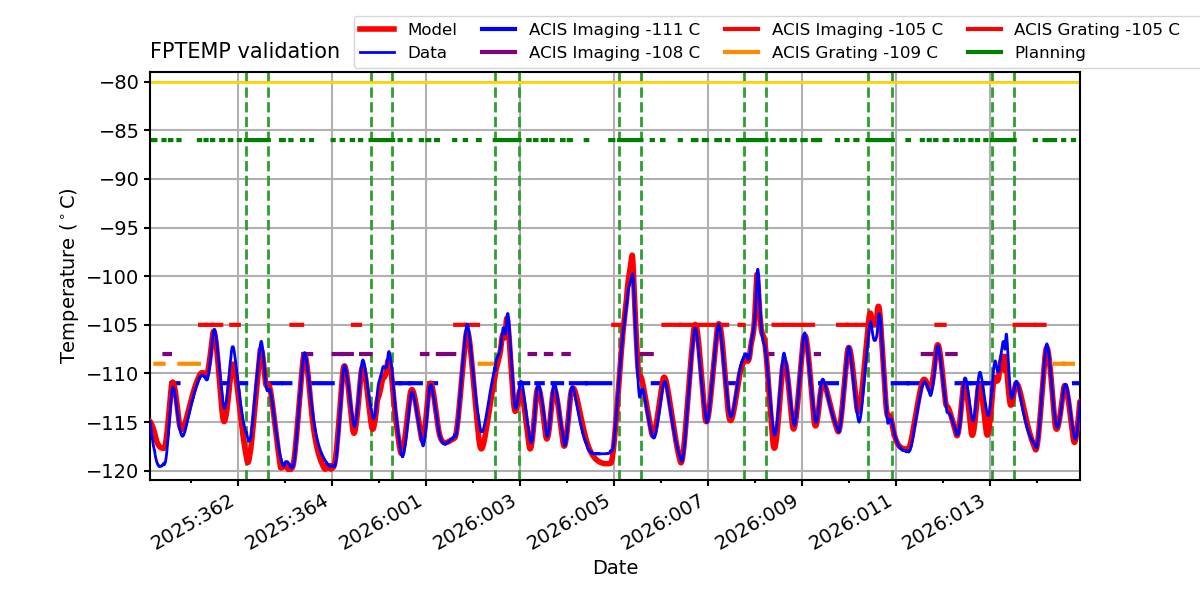

FPTEMP

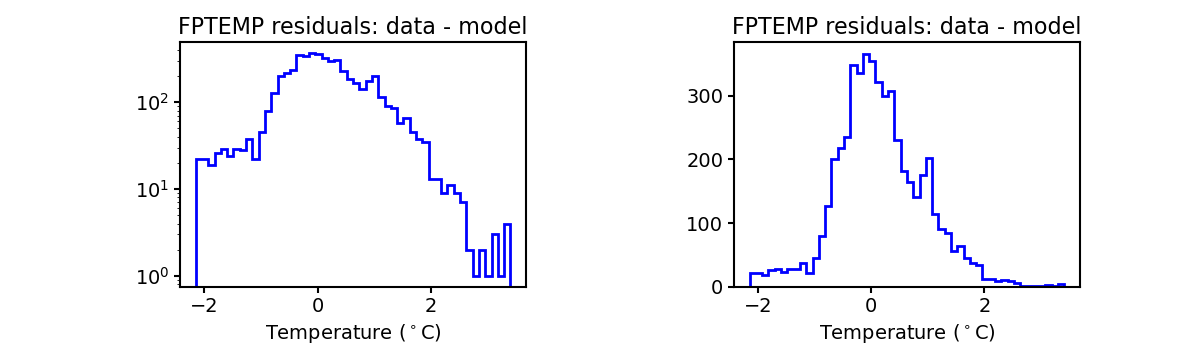

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH

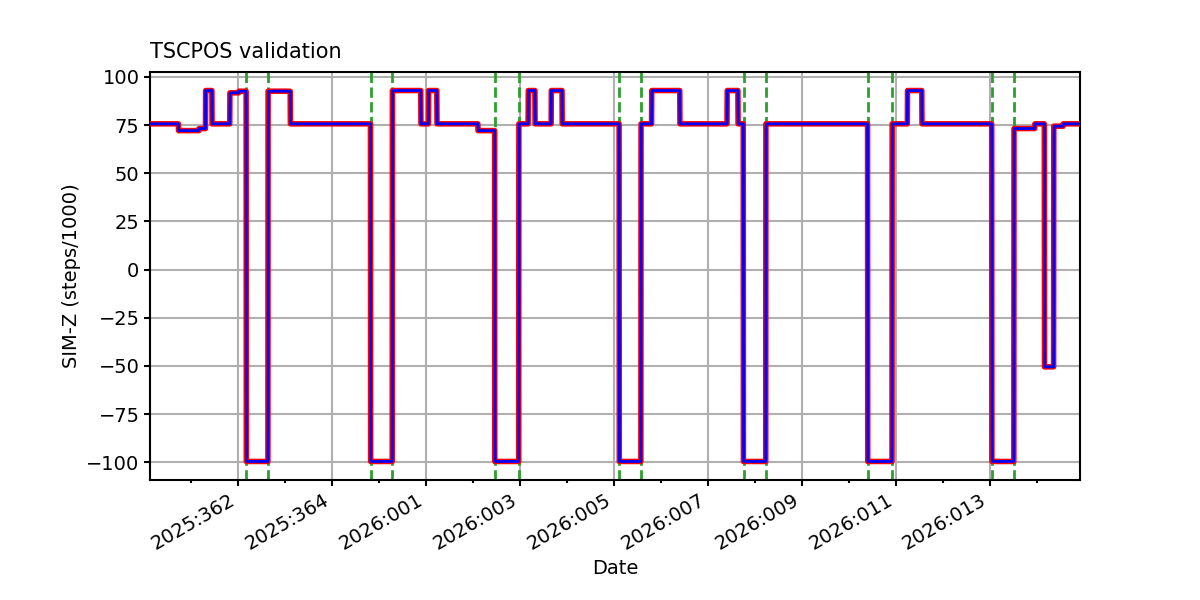

TSCPOS

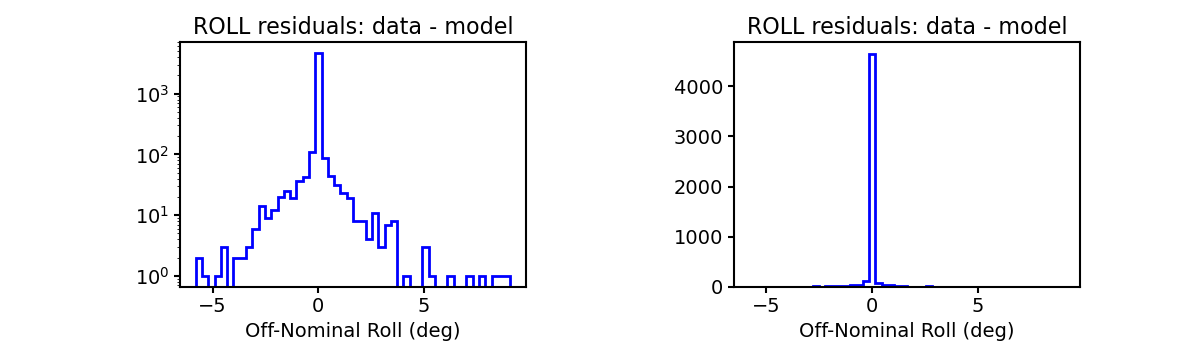

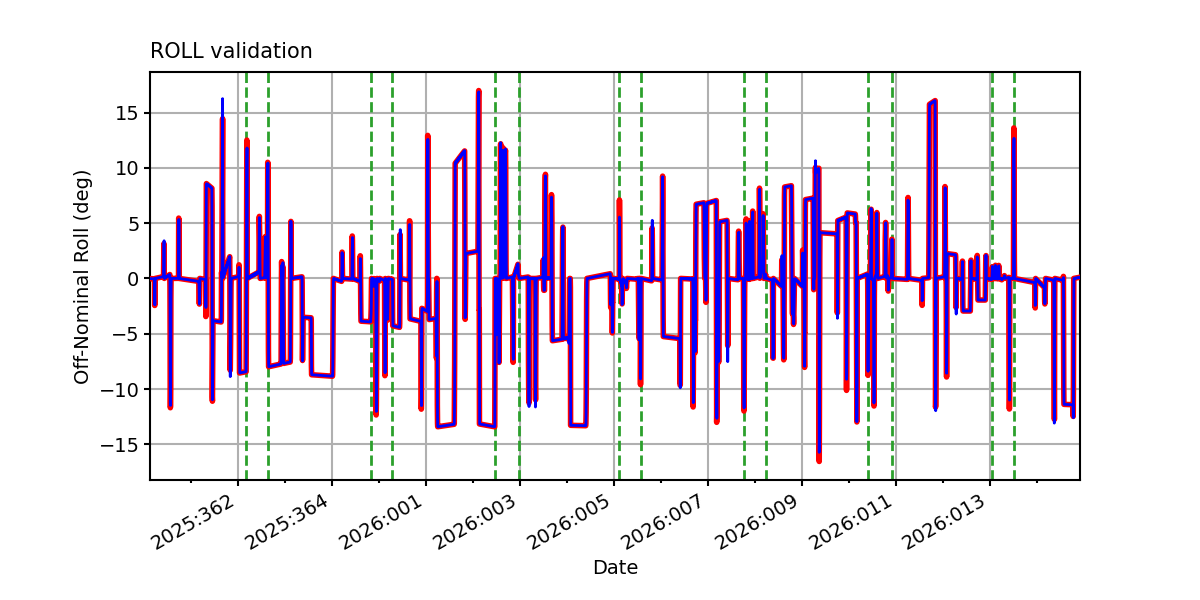

ROLL

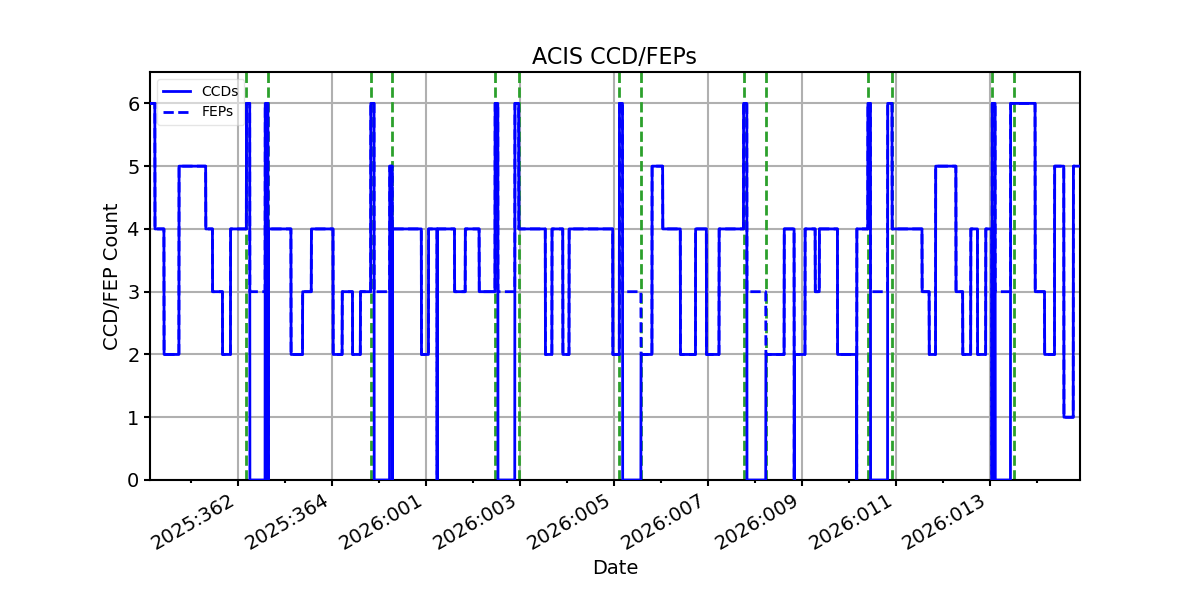

ACIS CCD/FEP Count

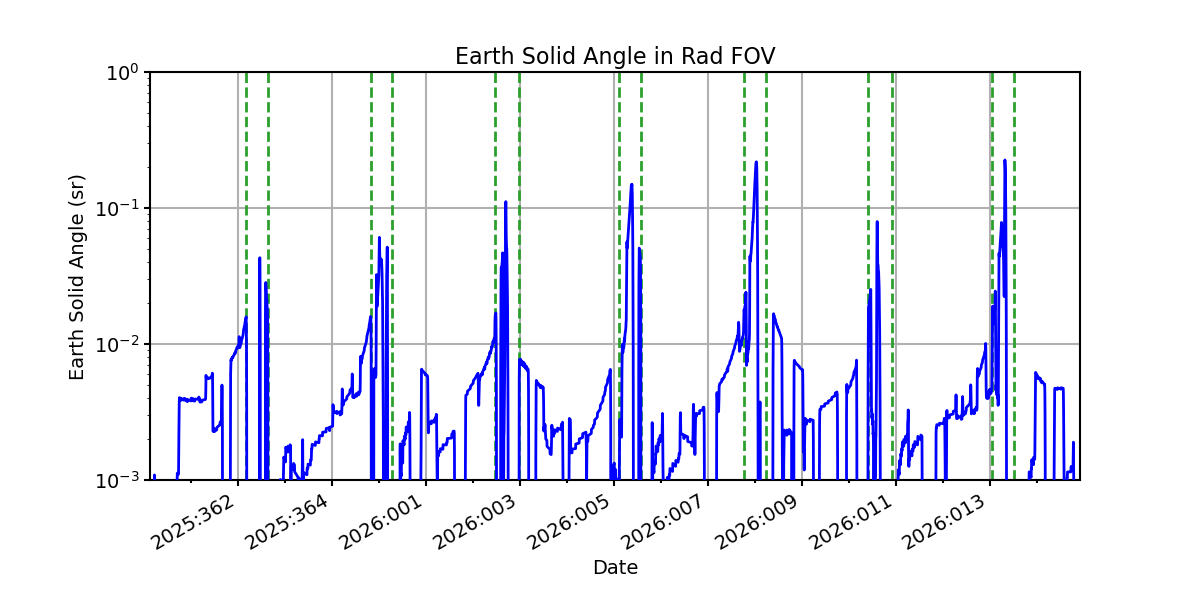

Earth Solid Angle
ADDITIONAL PLOTS
Additional plots of FPTEMP vs TIME for different temperature ranges
