ACISFP Temperatures Check
Summary
| Date start | 2026:025:19:05:18.516 |
| Date stop | 2026:032:23:33:17.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2626/oflsa |
| Run time | Thu Jan 22 12:58:09 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:026:00:46:14.816 | 2026:026:01:24:30.816 | 2.30 / 26.98 | -104.98 / -105.00 | 32124 |
| 2026:027:00:27:34.816 | 2026:027:00:38:30.816 | 0.66 / 17.47 | -110.99 / -111.00 | 31463 |
| 2026:027:11:50:54.816 | 2026:027:12:56:30.816 | 3.94 / 11.00 | -107.91 / -108.00 | 31286 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.55 | -0.99 | -0.58 | 0.01 | 0.86 | 1.79 | 4.39 |
| pitch | -11.371 | -0.587 | -0.004 | -0.000 | 0.004 | 0.706 | 11.234 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.128 | -0.234 | -0.009 | -0.000 | 0.006 | 0.175 | 1.777 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 4.39 | 2.00 |
| PITCH | 1 | -11.371 | 3.00 |
| PITCH | 99 | 11.234 | 3.00 |
FPTEMP

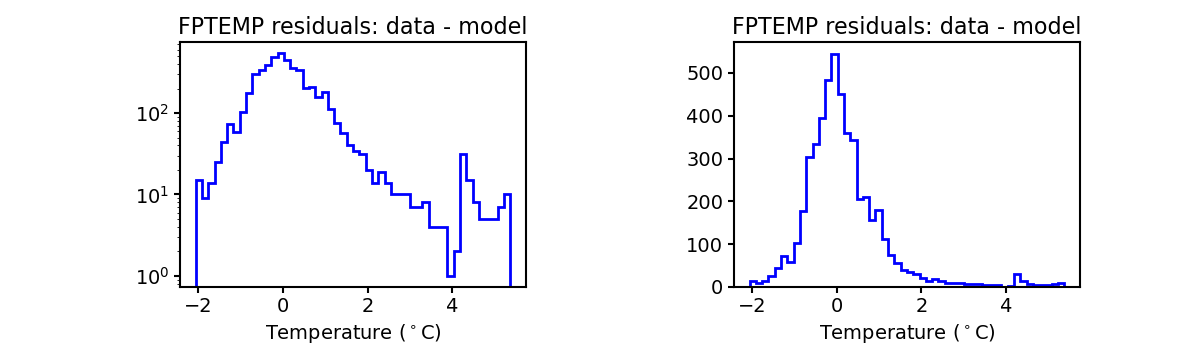

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

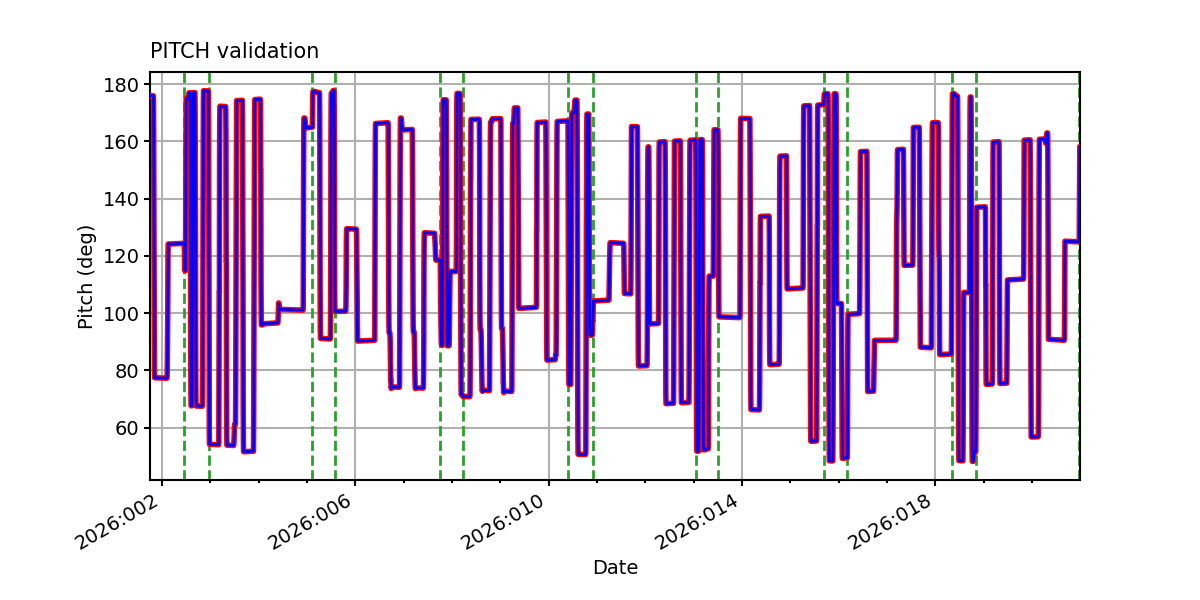

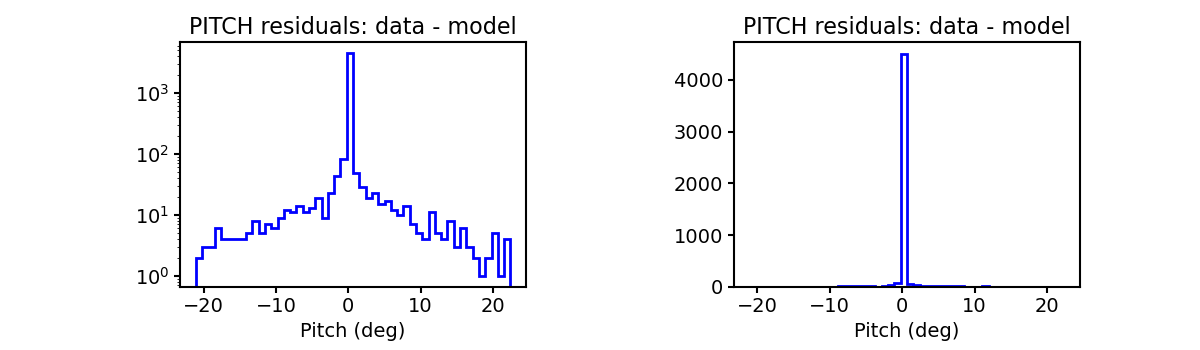

PITCH
TSCPOS

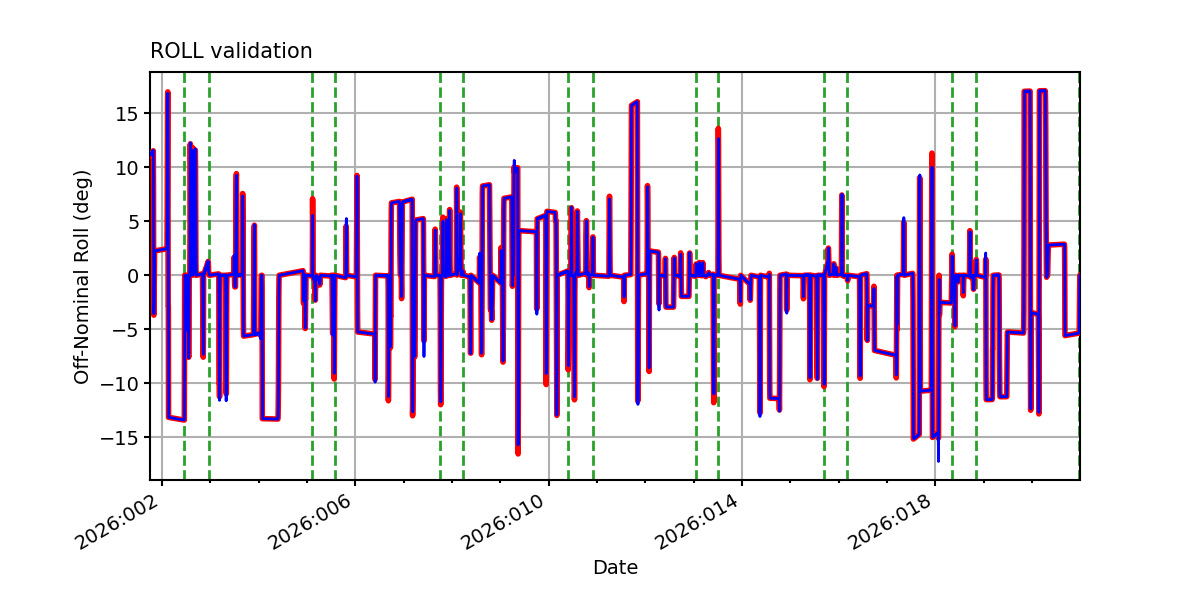

ROLL

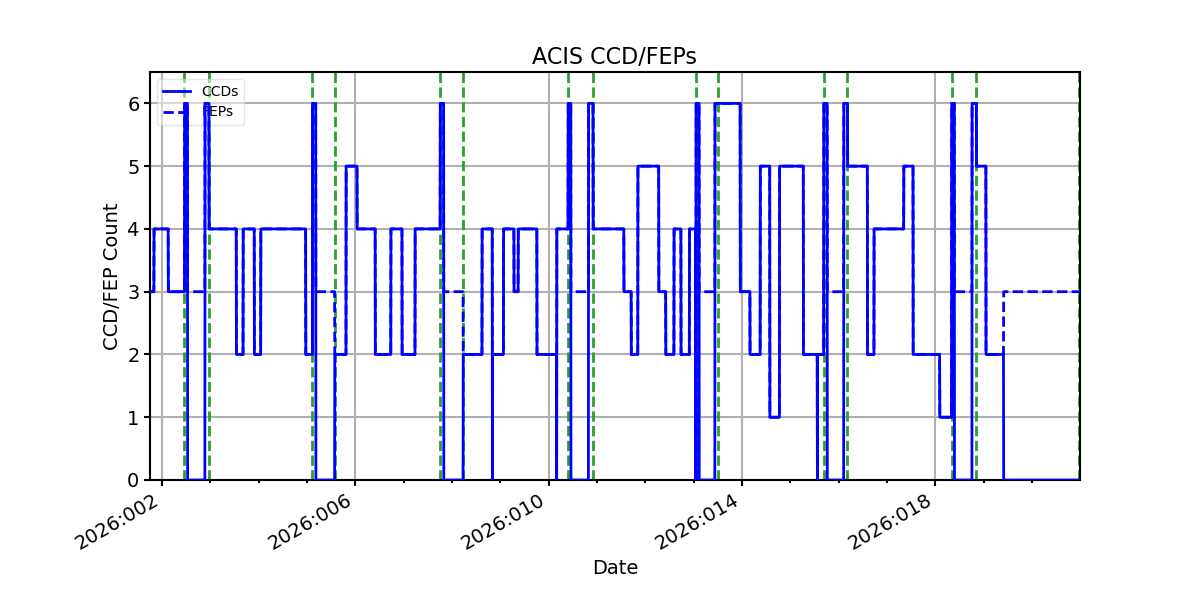

ACIS CCD/FEP Count

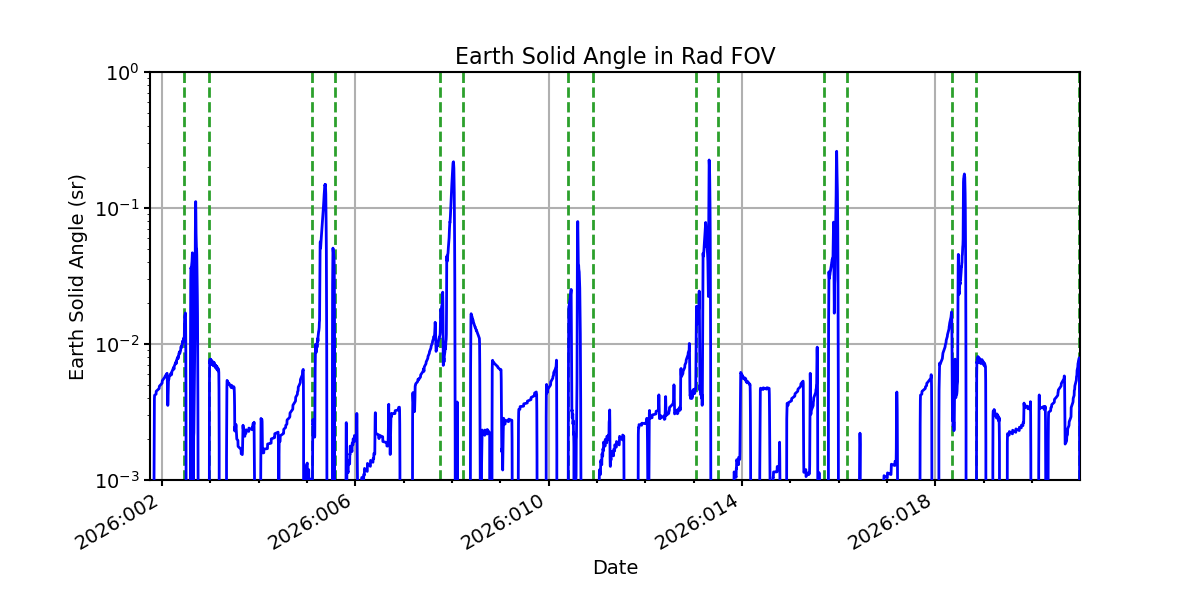

Earth Solid Angle
ADDITIONAL PLOTS
Additional plots of FPTEMP vs TIME for different temperature ranges
