ACISFP Temperatures Check
Summary
| Date start | 2026:186:23:47:27.716 |
| Date stop | 2026:193:22:57:34.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUL0626/oflsa |
| Run time | Tue Jun 30 18:22:56 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:193:10:29:37.424 | 2026:193:10:29:50.816 | 0.01 / 15.00 | -110.99 / -111.00 | 30334 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.84 | -1.42 | -0.81 | 0.08 | 1.43 | 2.24 | 3.07 |
| pitch | -10.607 | -0.346 | -0.004 | -0.000 | 0.004 | 0.367 | 10.159 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.994 | -0.093 | -0.009 | 0.000 | 0.008 | 0.084 | 1.701 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 3.07 | 2.00 |
| PITCH | 1 | -10.607 | 3.00 |
| PITCH | 99 | 10.159 | 3.00 |

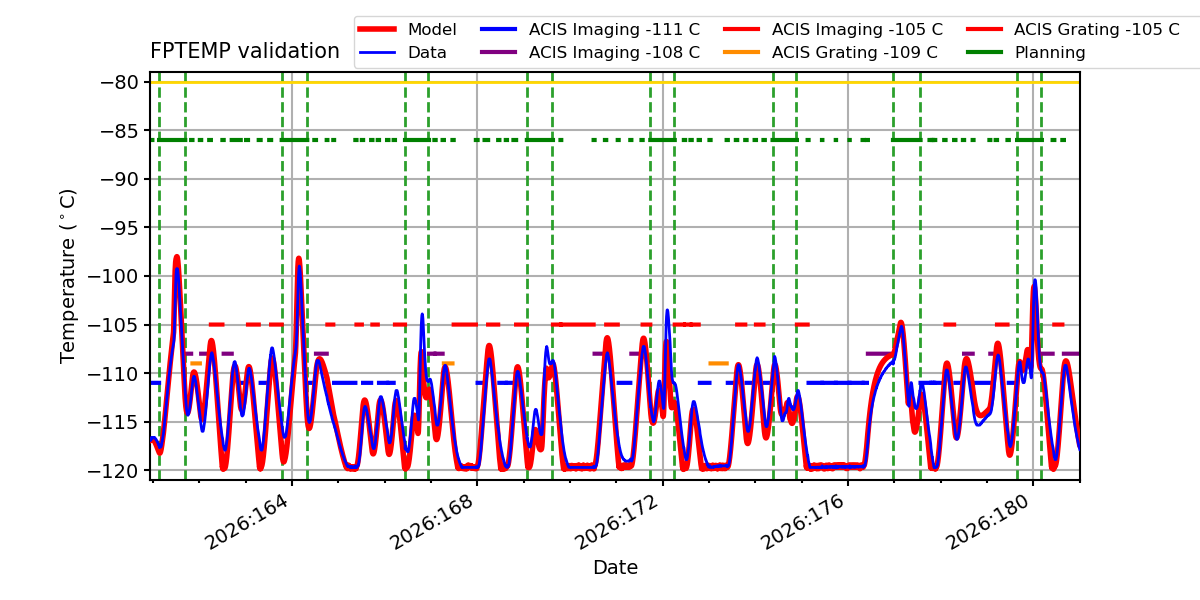

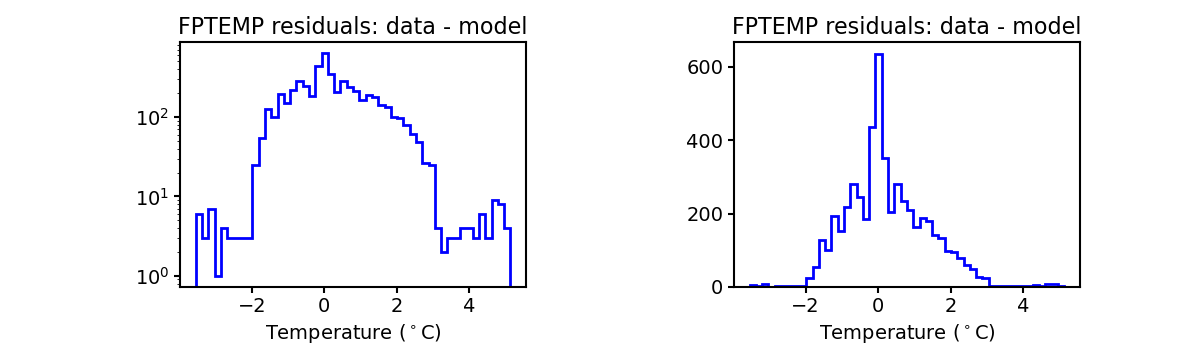

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

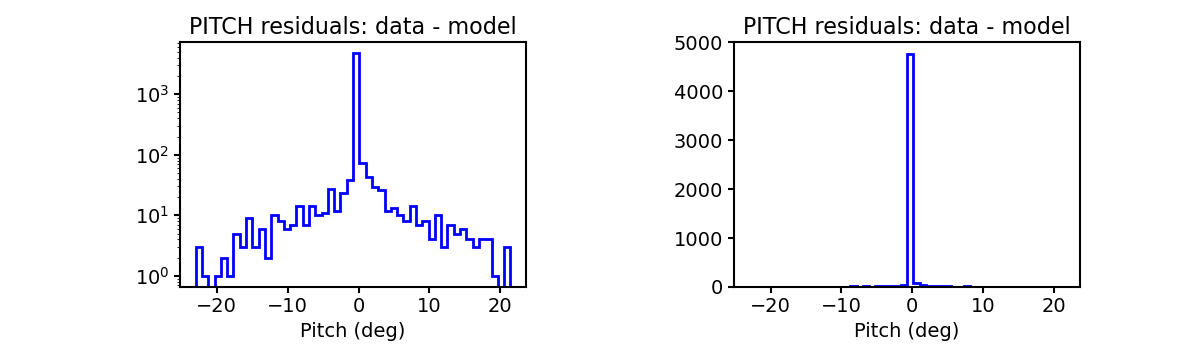

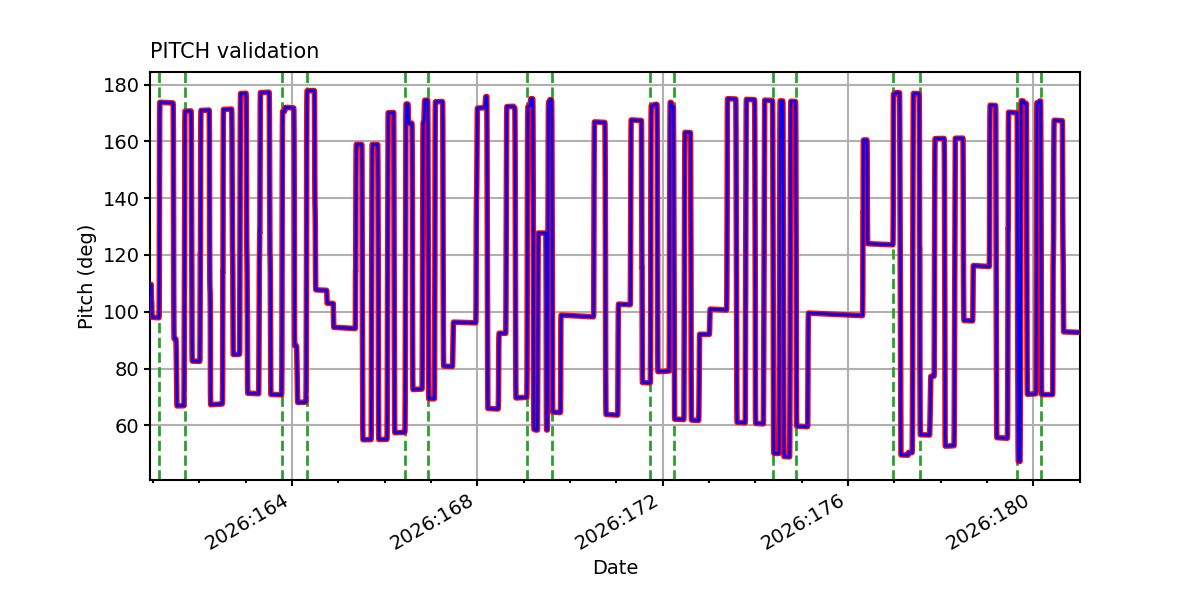

PITCH

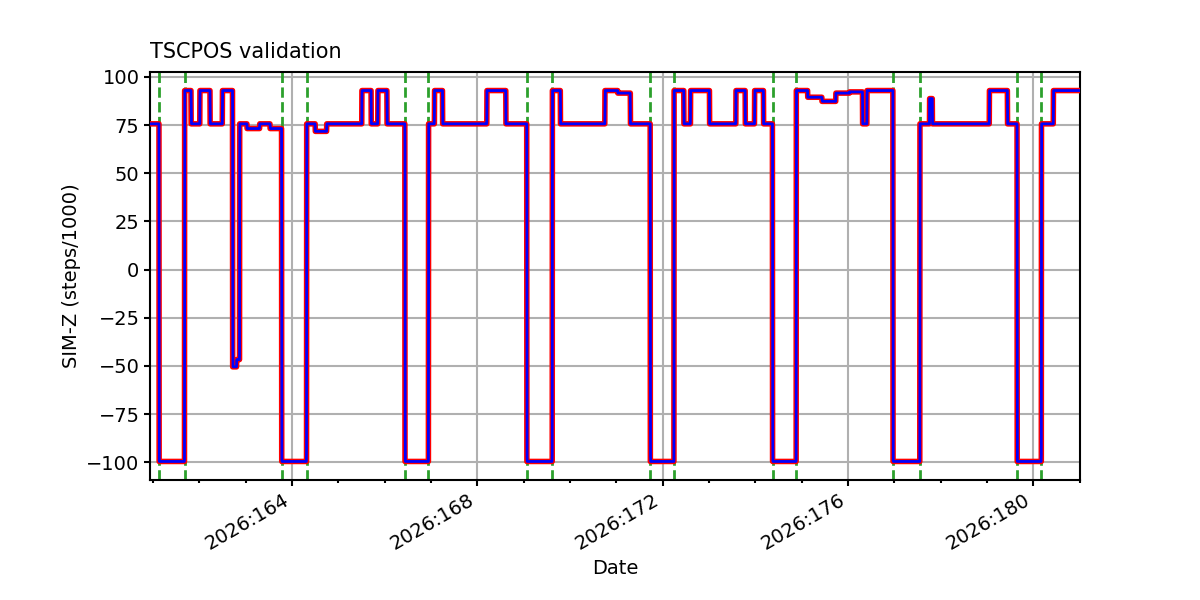

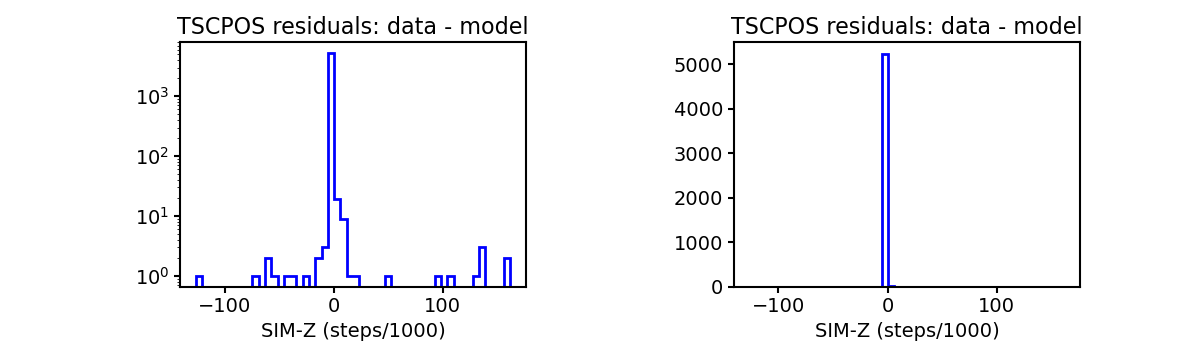

TSCPOS

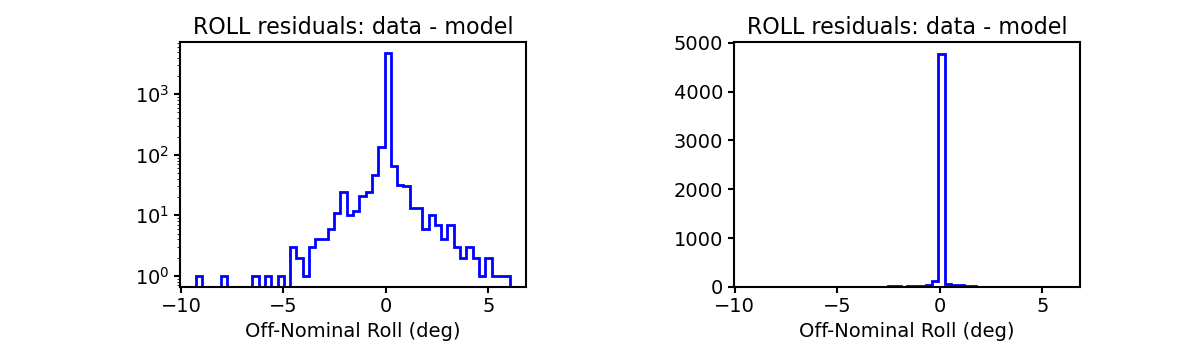

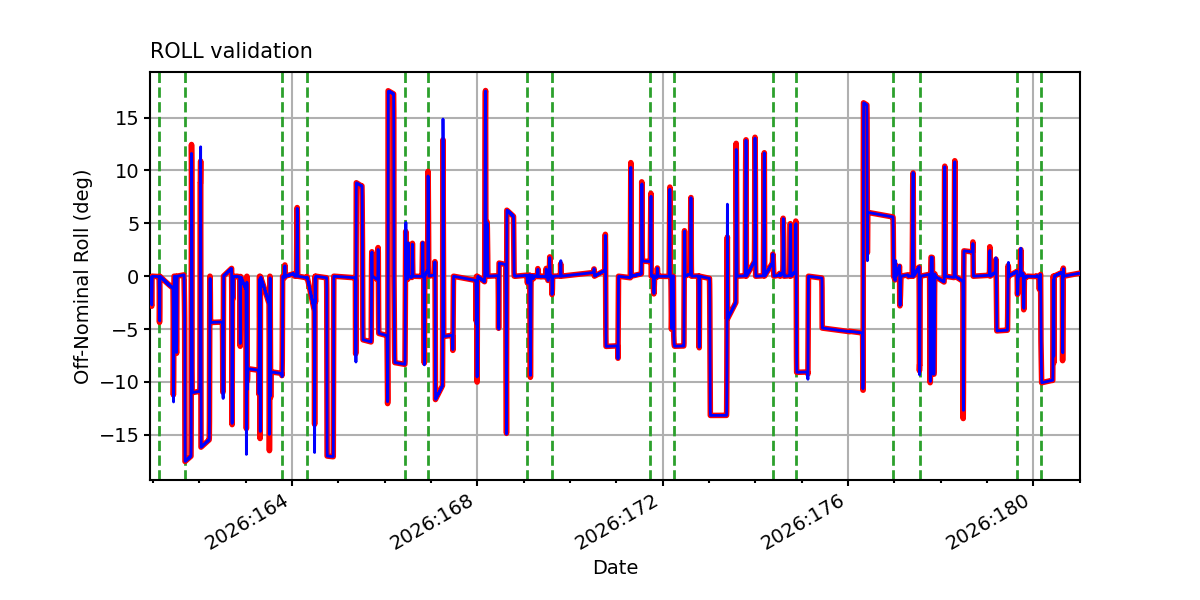

ROLL

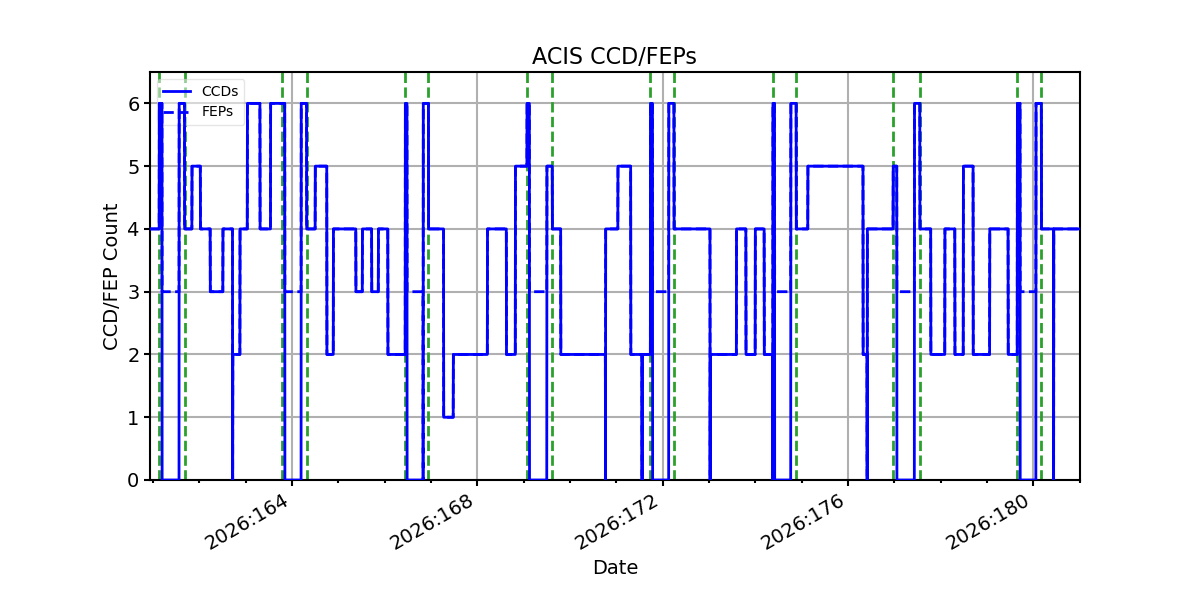

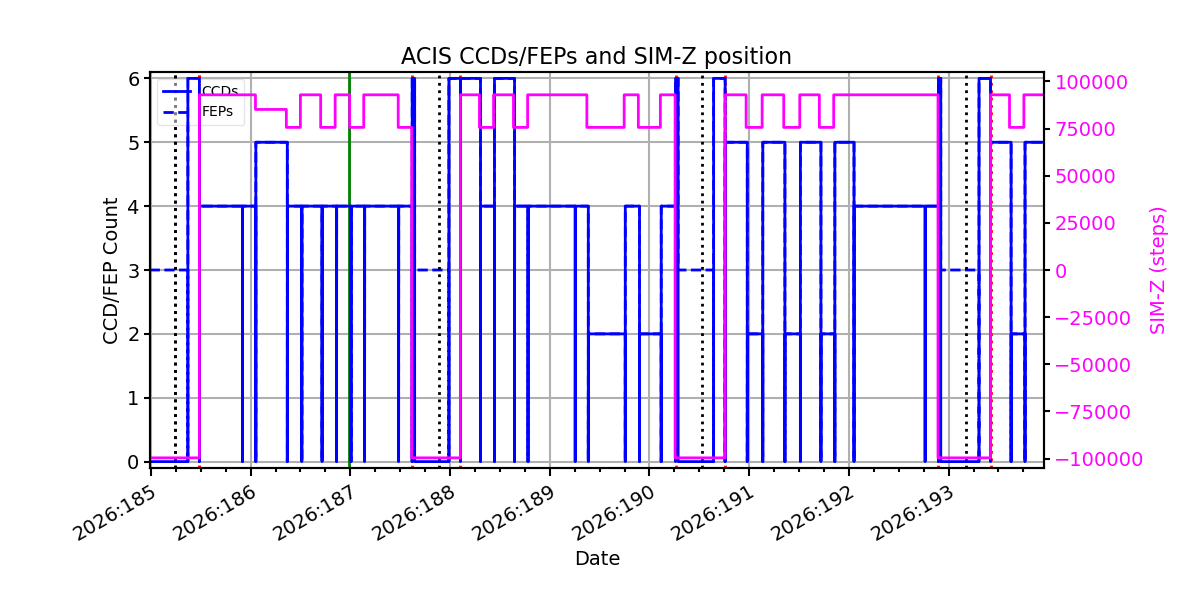

ACIS CCD/FEP Count

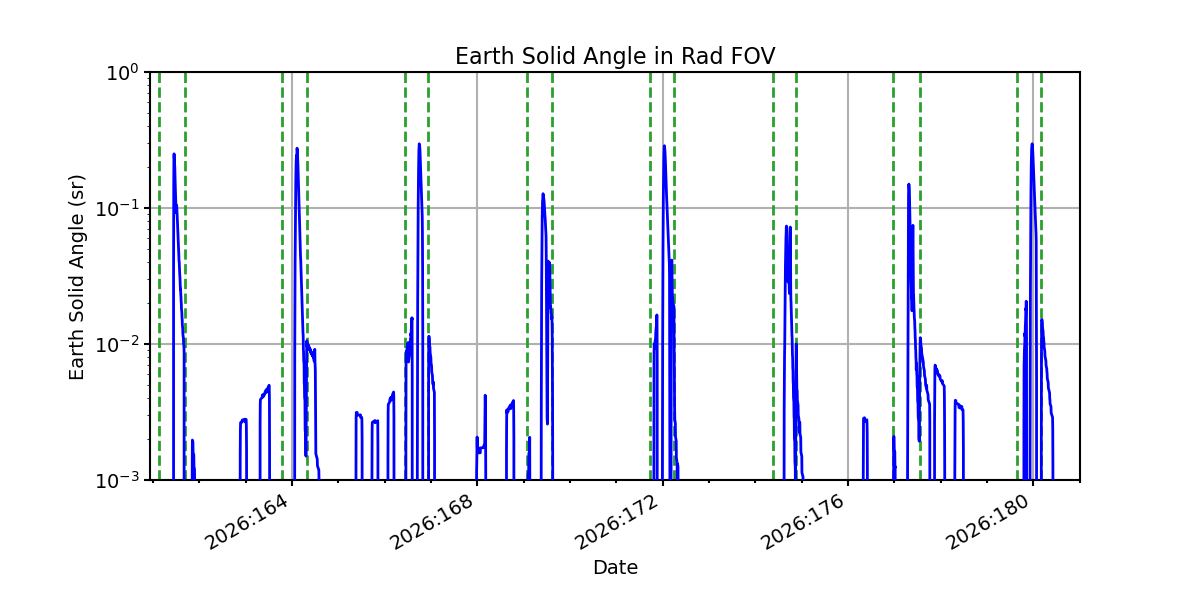

Earth Solid Angle
ADDITIONAL PLOTS

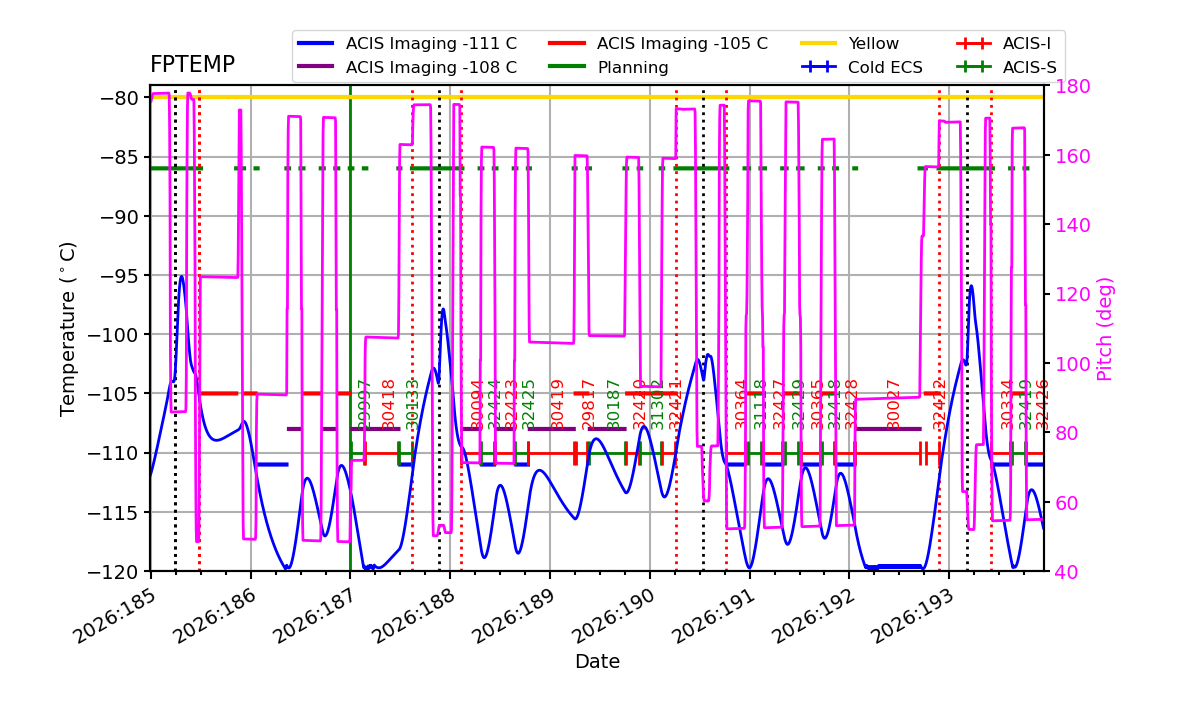

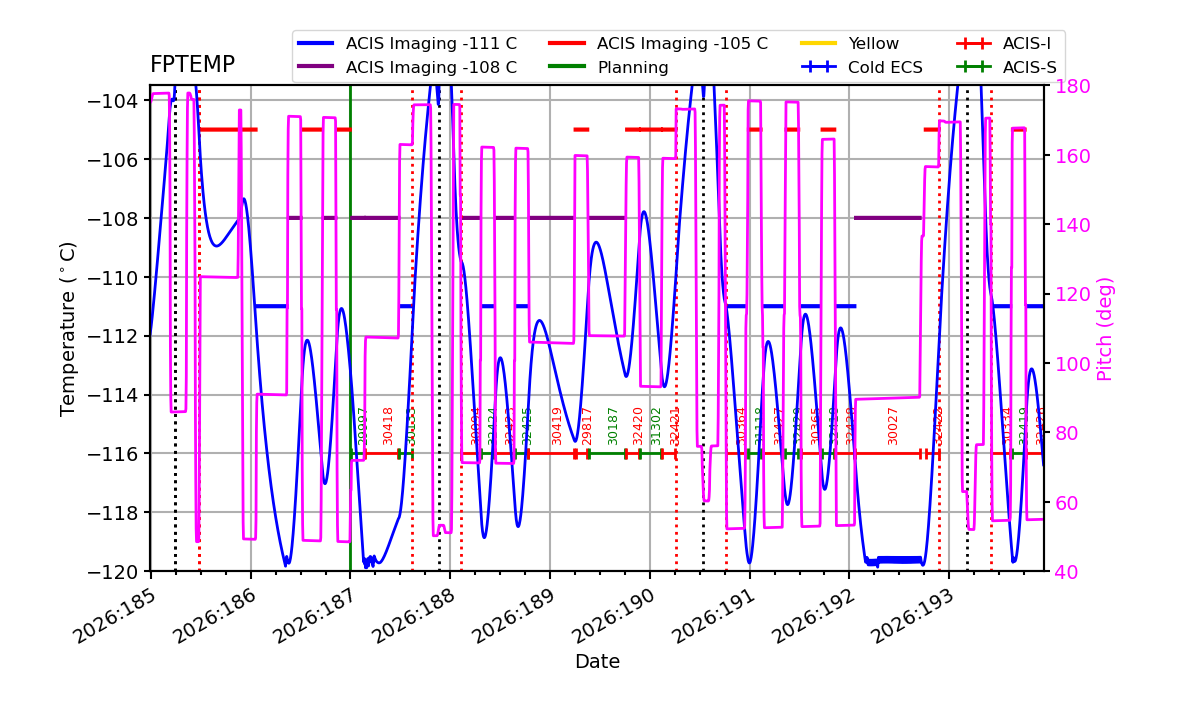

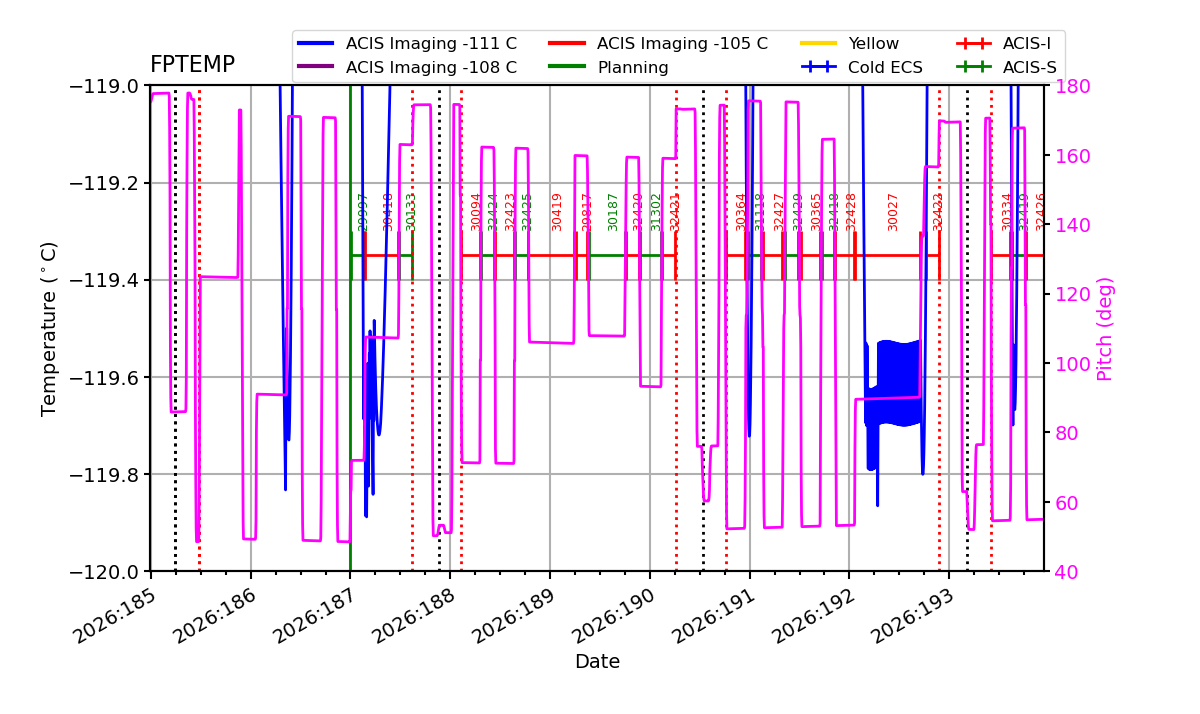

Additional plots of FPTEMP vs TIME for different temperature ranges
