ACISFP Temperatures Check
Summary
| Date start | 2026:193:22:54:34.016 |
| Date stop | 2026:200:20:48:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUL1326/oflsa |
| Run time | Wed Jul 8 16:00:30 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:199:11:05:26.816 | 2026:199:11:16:22.816 | 0.66 / 15.00 | -110.98 / -111.00 | 32436 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.88 | -1.51 | -0.98 | 0.02 | 1.38 | 2.40 | 3.81 |
| pitch | -10.563 | -0.406 | -0.004 | -0.000 | 0.004 | 0.102 | 10.807 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.788 | -0.077 | -0.006 | 0.000 | 0.006 | 0.072 | 1.559 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 3.81 | 2.00 |
| PITCH | 1 | -10.563 | 3.00 |
| PITCH | 99 | 10.807 | 3.00 |

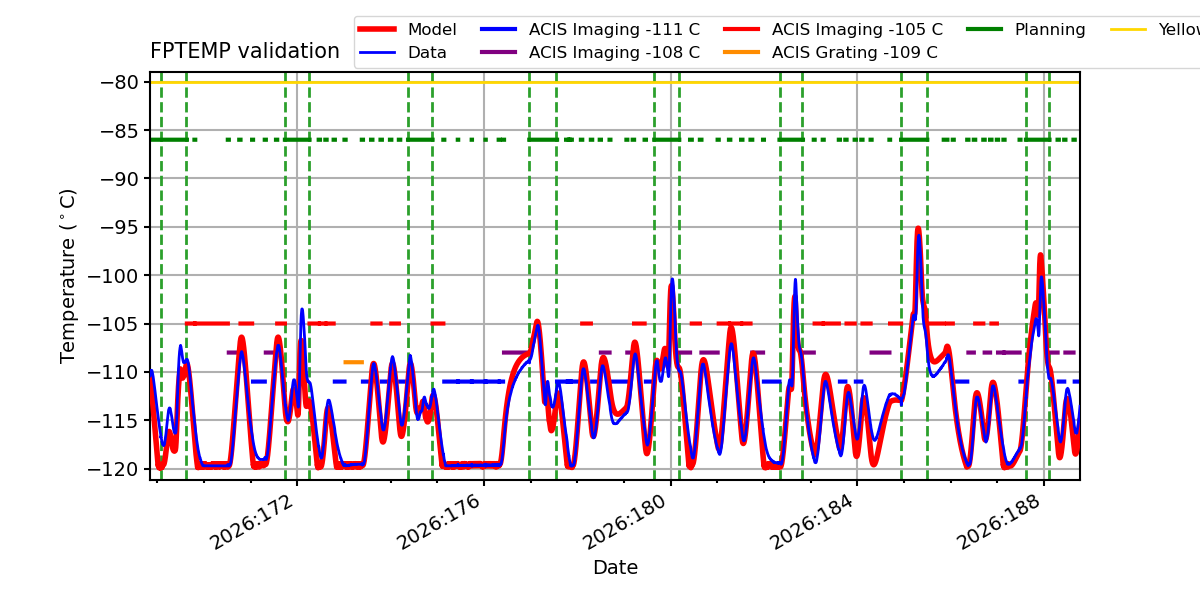

FPTEMP

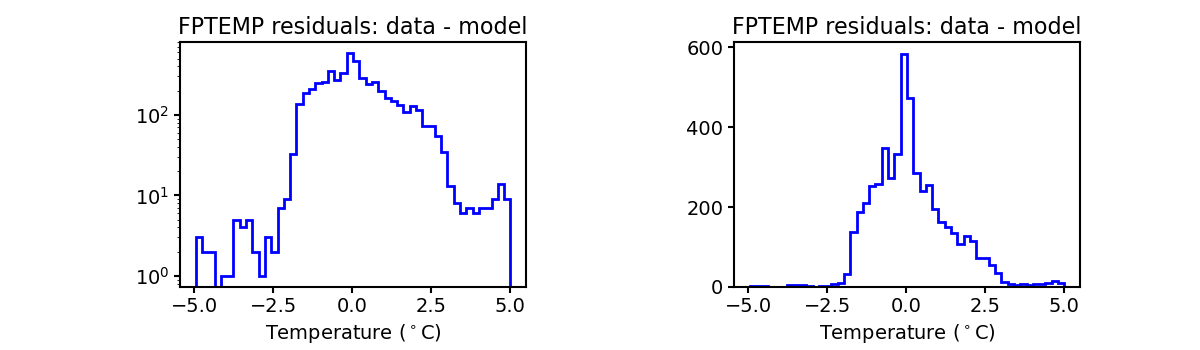

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

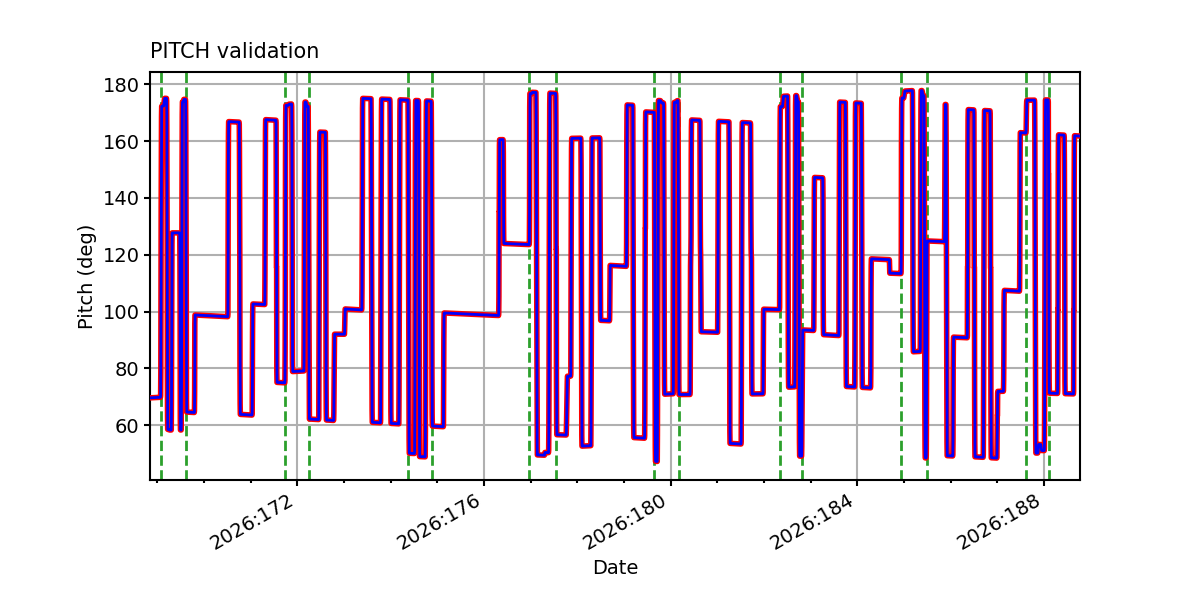

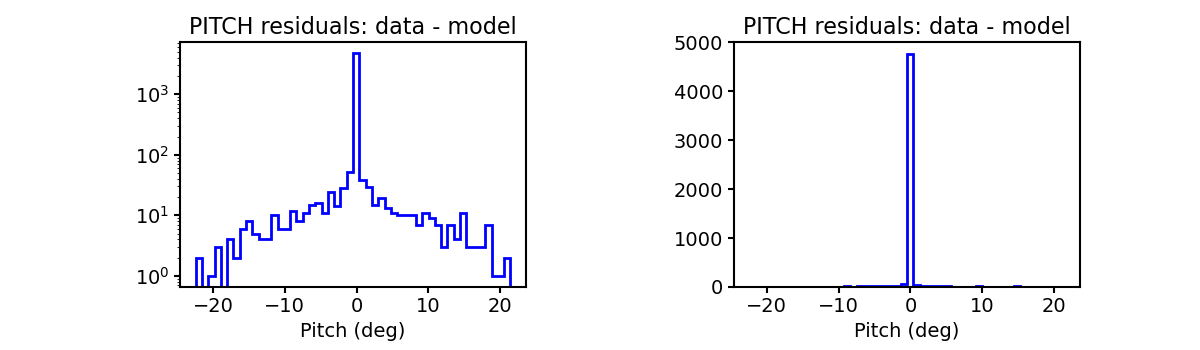

PITCH

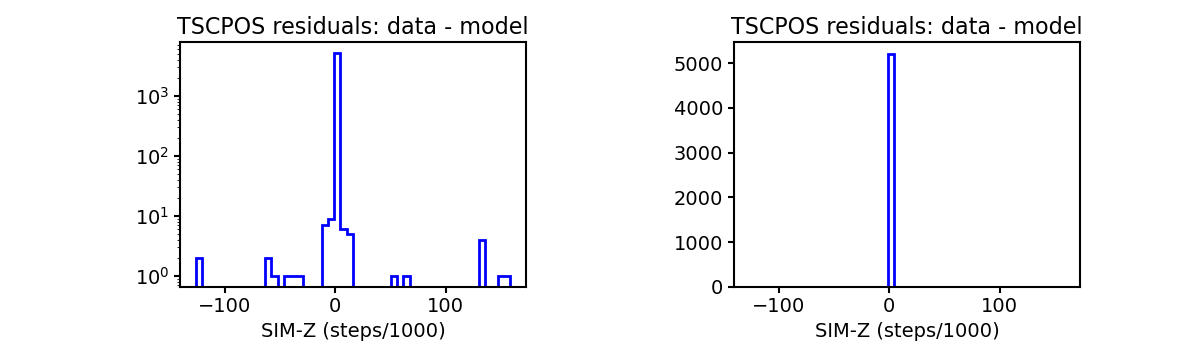

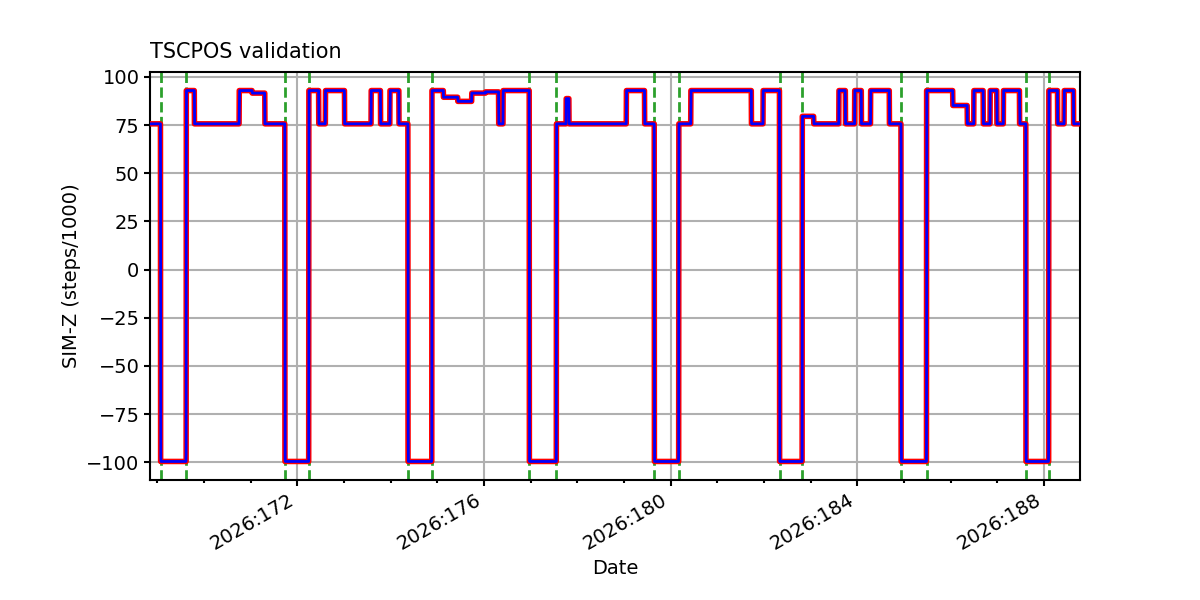

TSCPOS
ROLL
ACIS CCD/FEP Count

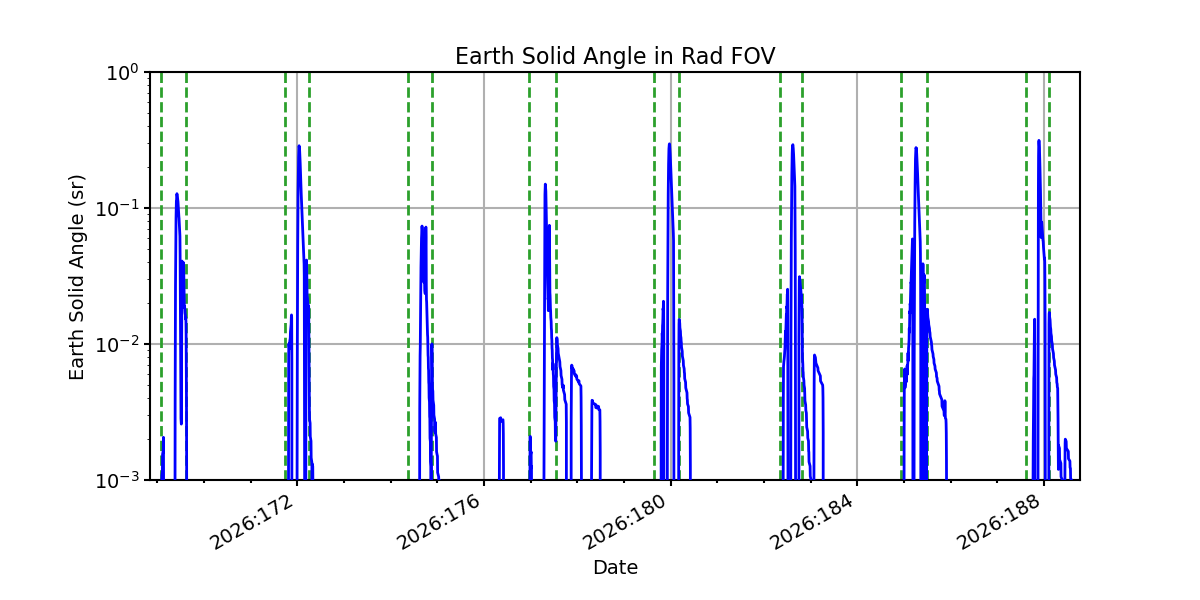

Earth Solid Angle
ADDITIONAL PLOTS

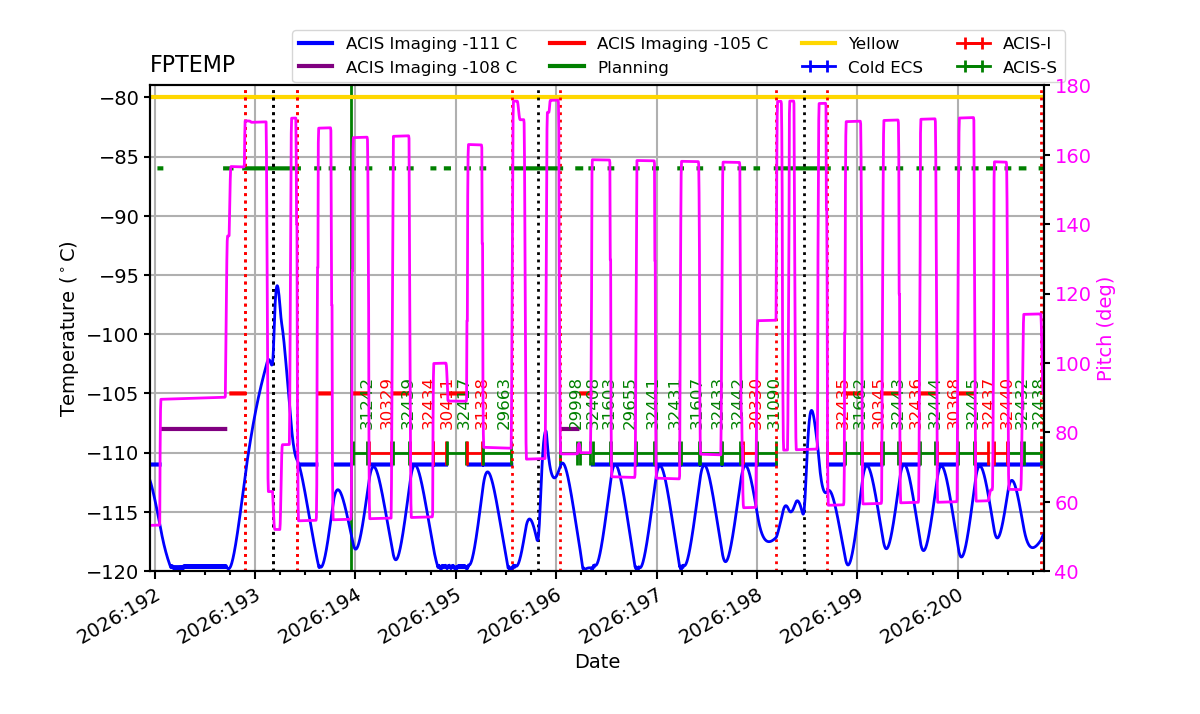

Additional plots of FPTEMP vs TIME for different temperature ranges
