ACISFP Temperatures Check
Summary
| Date start | 2026:200:20:45:00.016 |
| Date stop | 2026:207:21:54:34.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2026/oflsa |
| Run time | Wed Jul 15 08:18:58 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:205:06:23:58.816 | 2026:205:07:02:14.816 | 2.30 / 15.00 | -110.89 / -111.00 | 30346 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.66 | -1.94 | -1.29 | -0.12 | 0.96 | 1.87 | 2.72 |
| pitch | -8.799 | -0.454 | -0.004 | -0.000 | 0.004 | 0.270 | 10.598 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.953 | -0.107 | -0.007 | 0.000 | 0.006 | 0.099 | 1.870 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.66 | 2.00 |
| FPTEMP | 99 | 2.72 | 2.00 |
| PITCH | 1 | -8.799 | 3.00 |
| PITCH | 99 | 10.598 | 3.00 |

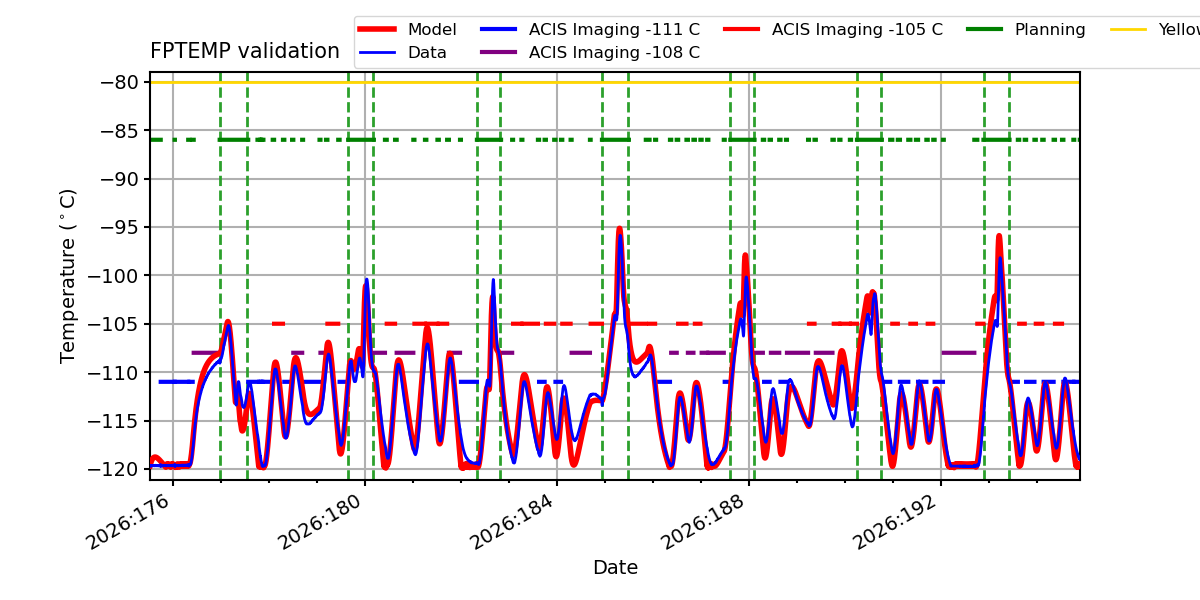

FPTEMP

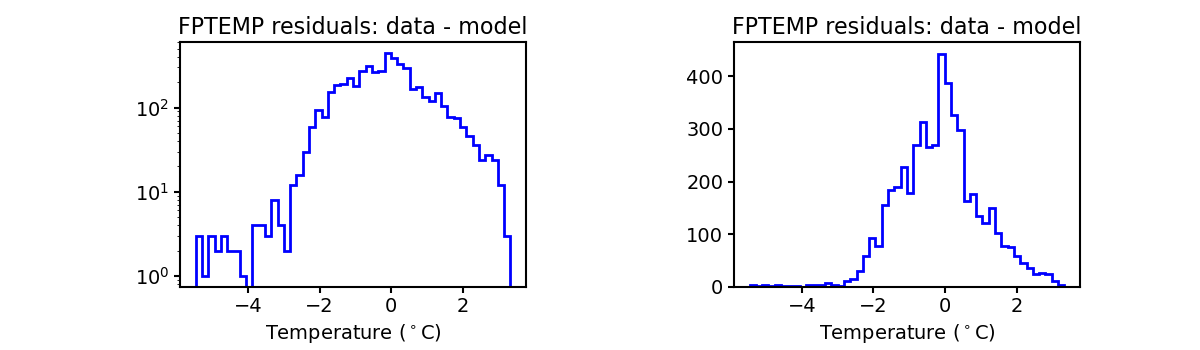

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

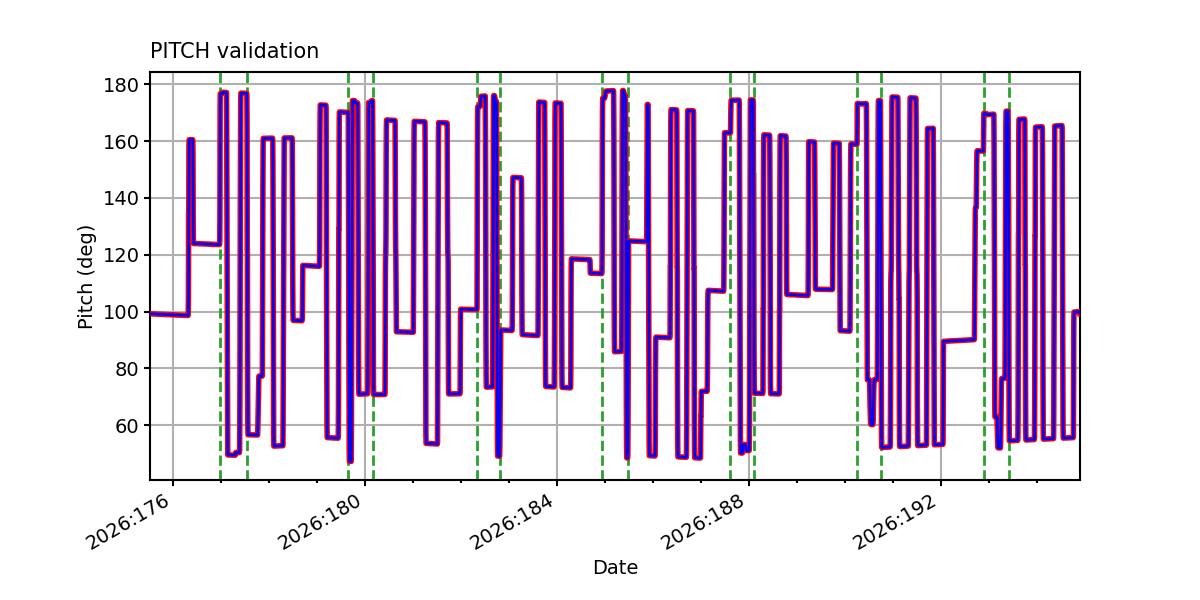

PITCH

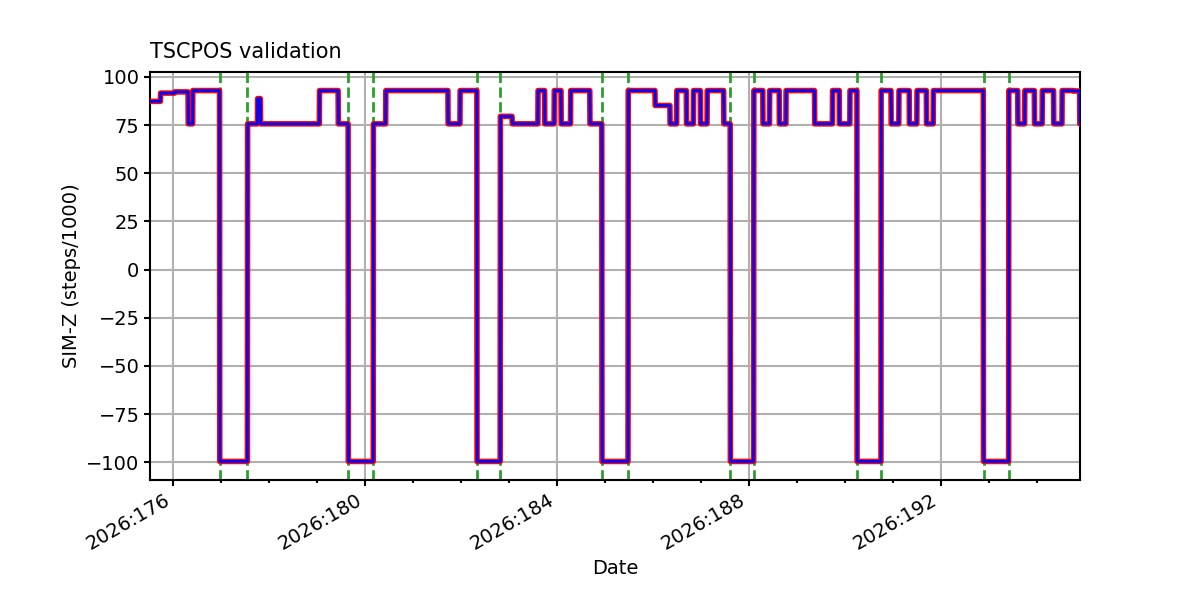

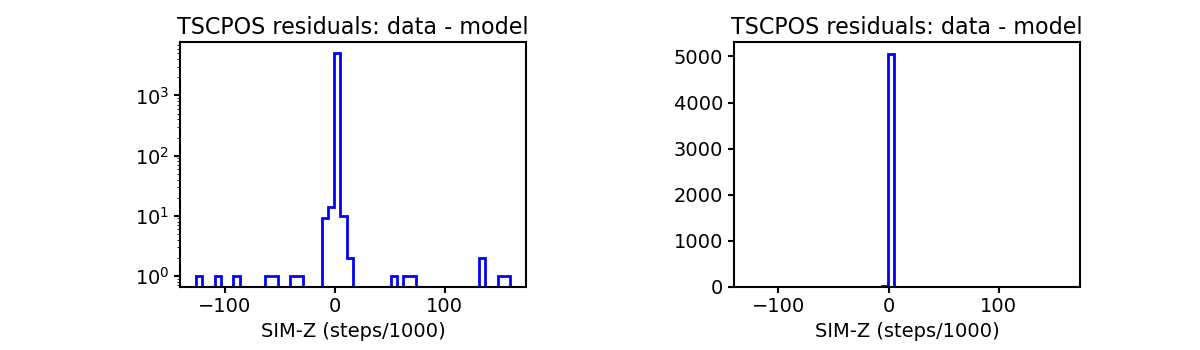

TSCPOS

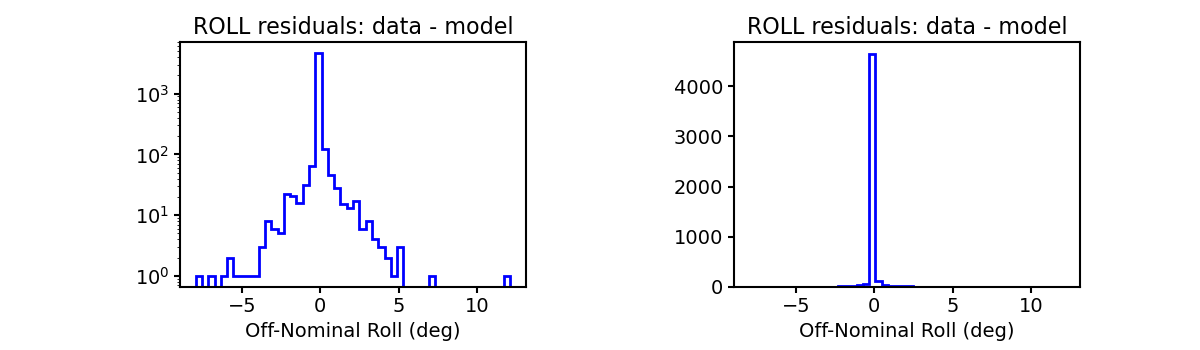

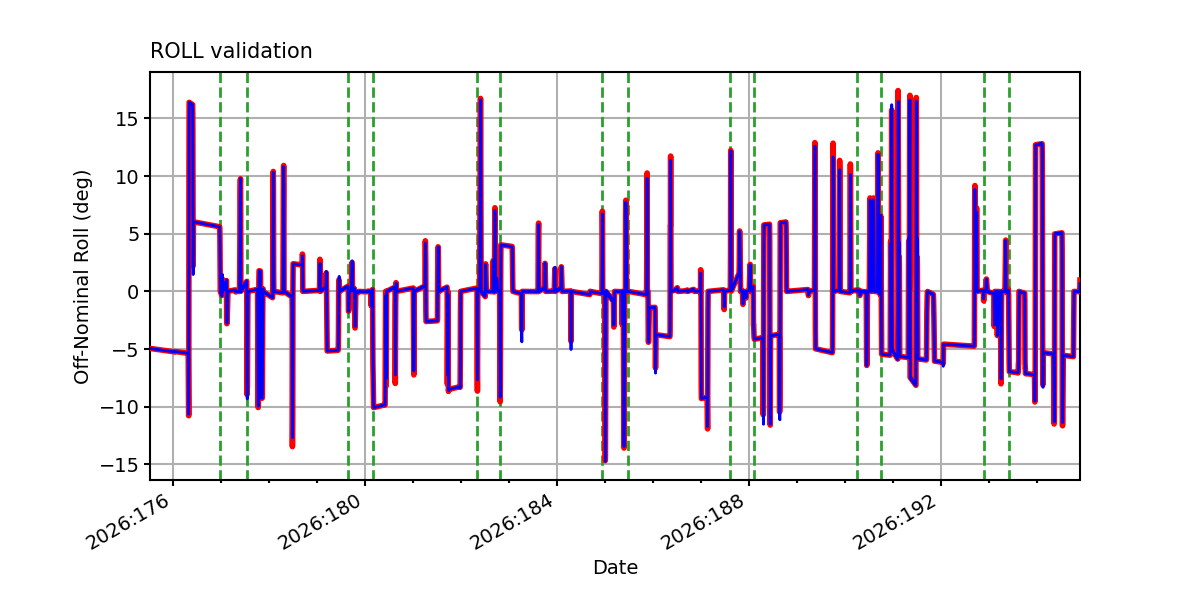

ROLL
ACIS CCD/FEP Count

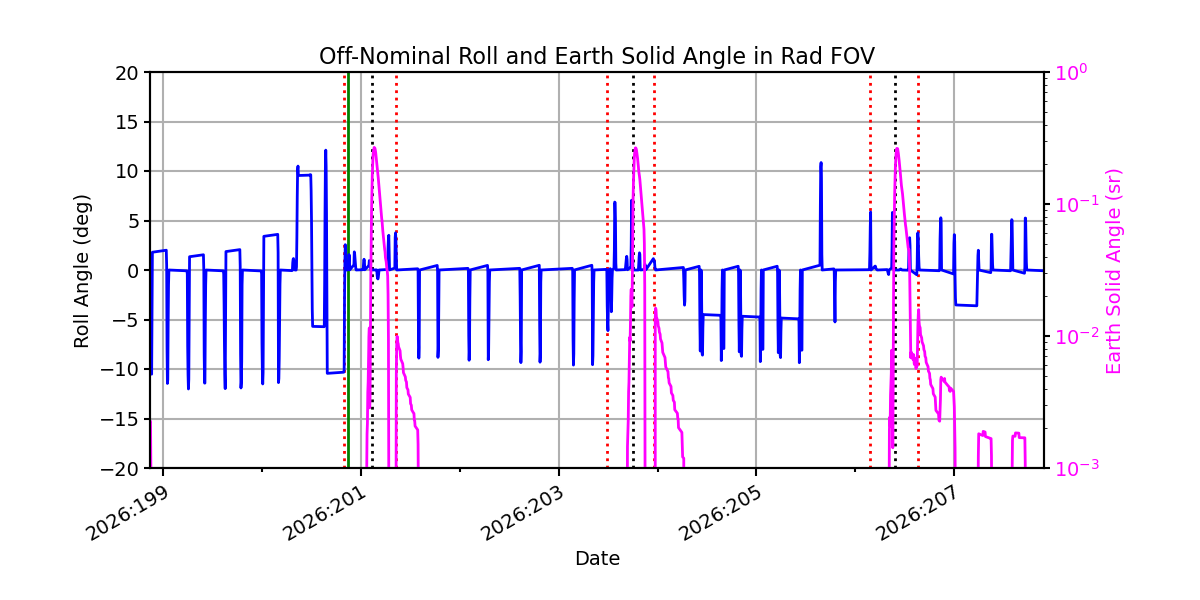

Earth Solid Angle
ADDITIONAL PLOTS
Additional plots of FPTEMP vs TIME for different temperature ranges
