ACISFP Temperatures Check
Summary
| Date start | 2025:208:21:28:00.016 |
| Date stop | 2025:216:00:58:48.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL2825/ofls |
| Run time | Wed Jul 23 18:21:41 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.56 | -2.02 | -1.17 | 0.63 | 2.30 | 2.91 | 4.23 |
| pitch | -8.836 | -0.401 | -0.004 | 0.000 | 0.004 | 0.467 | 9.377 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.050 | -0.136 | -0.007 | 0.000 | 0.007 | 0.168 | 1.773 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.56 | 2.00 |
| FPTEMP | 99 | 4.23 | 2.00 |
| PITCH | 1 | -8.836 | 3.00 |
| PITCH | 99 | 9.377 | 3.00 |

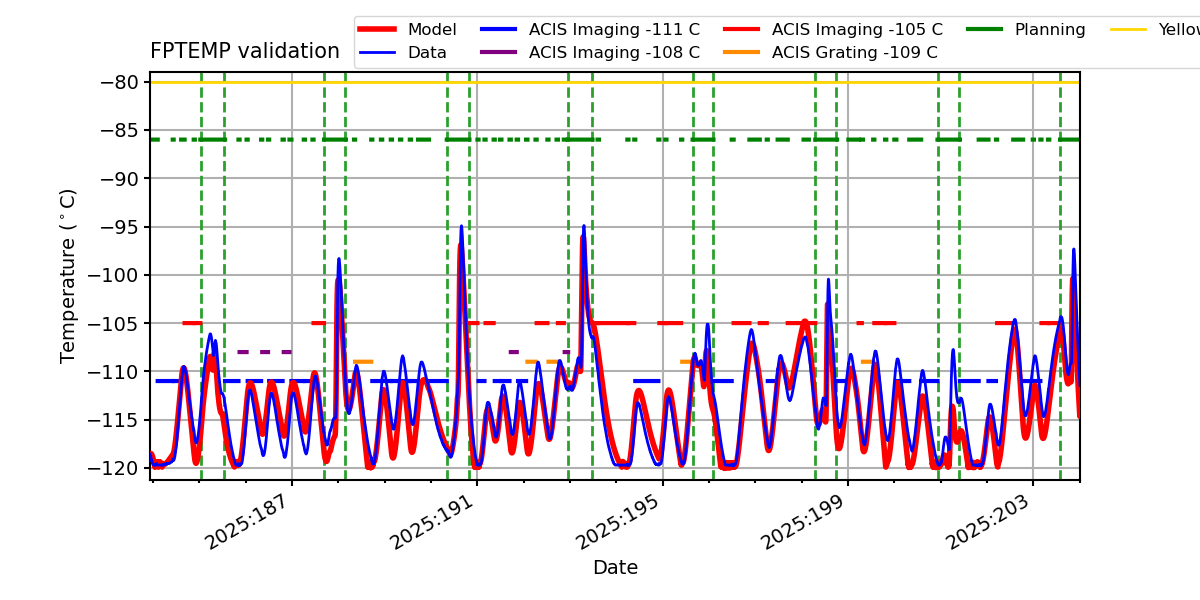

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

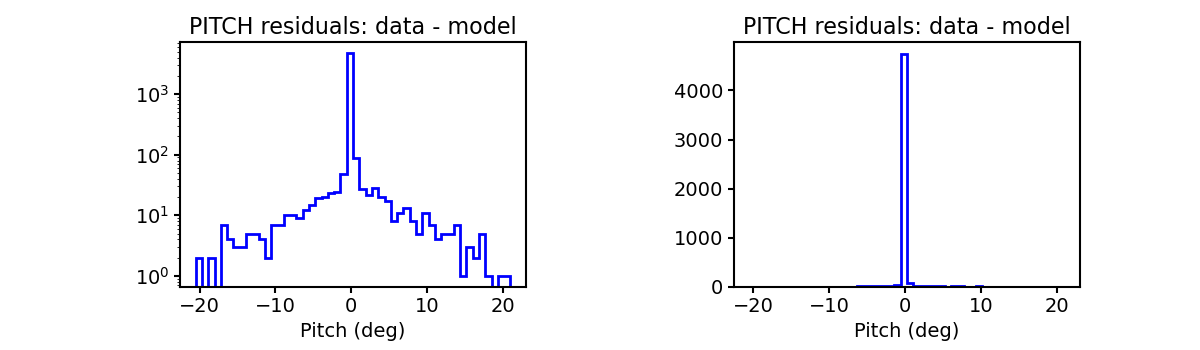

PITCH
TSCPOS

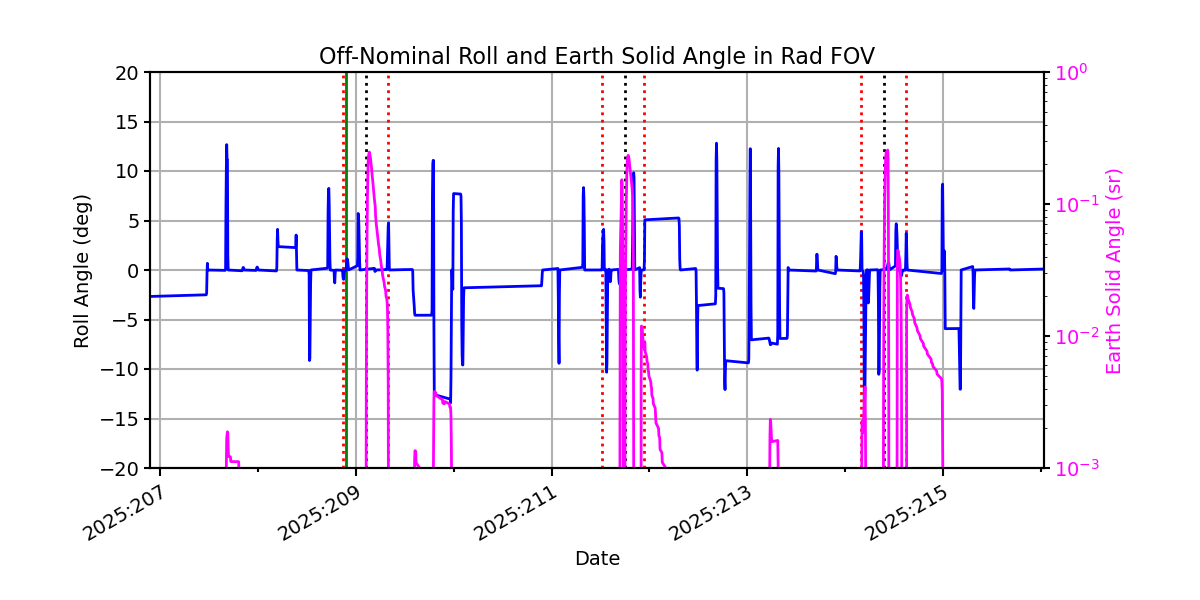

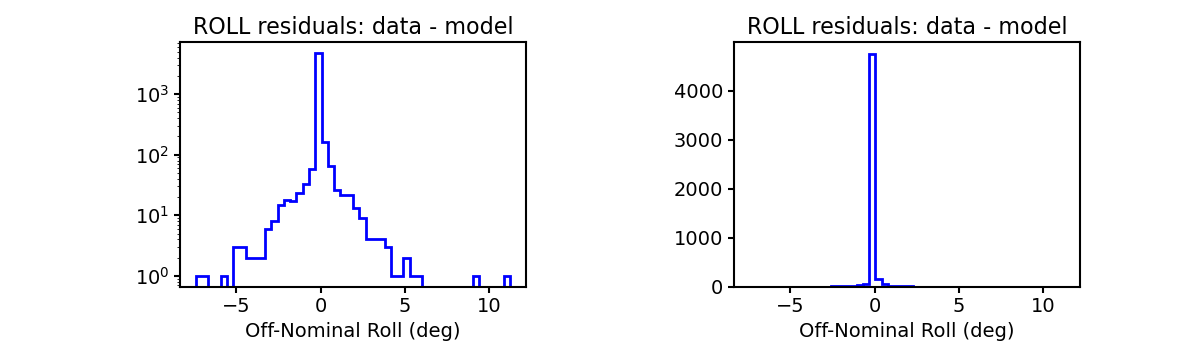

ROLL

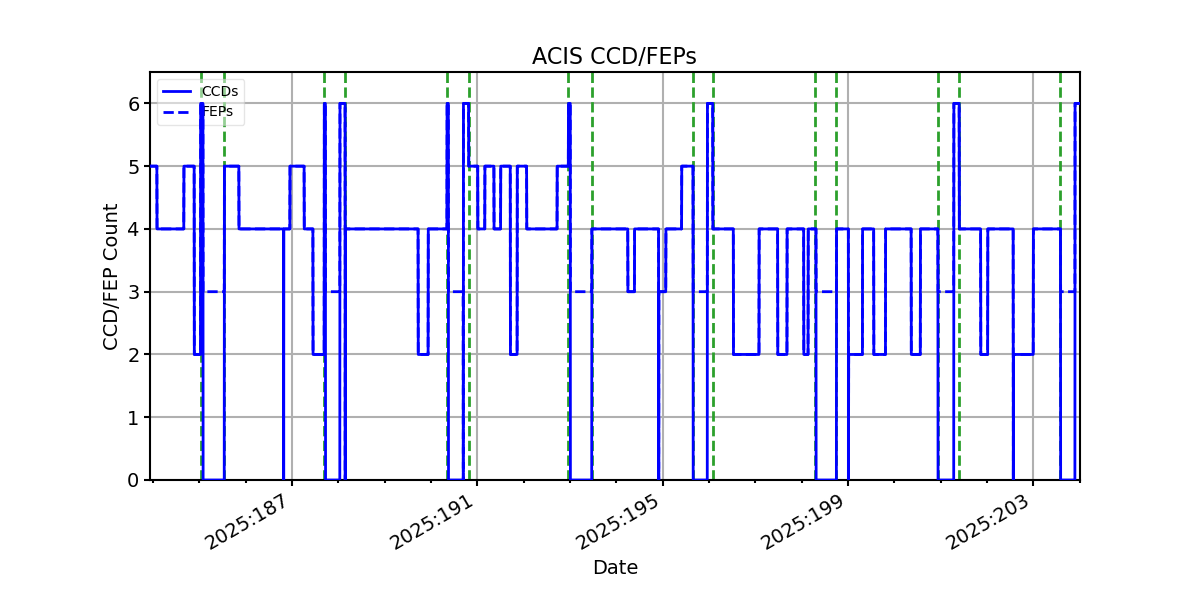

ACIS CCD/FEP Count

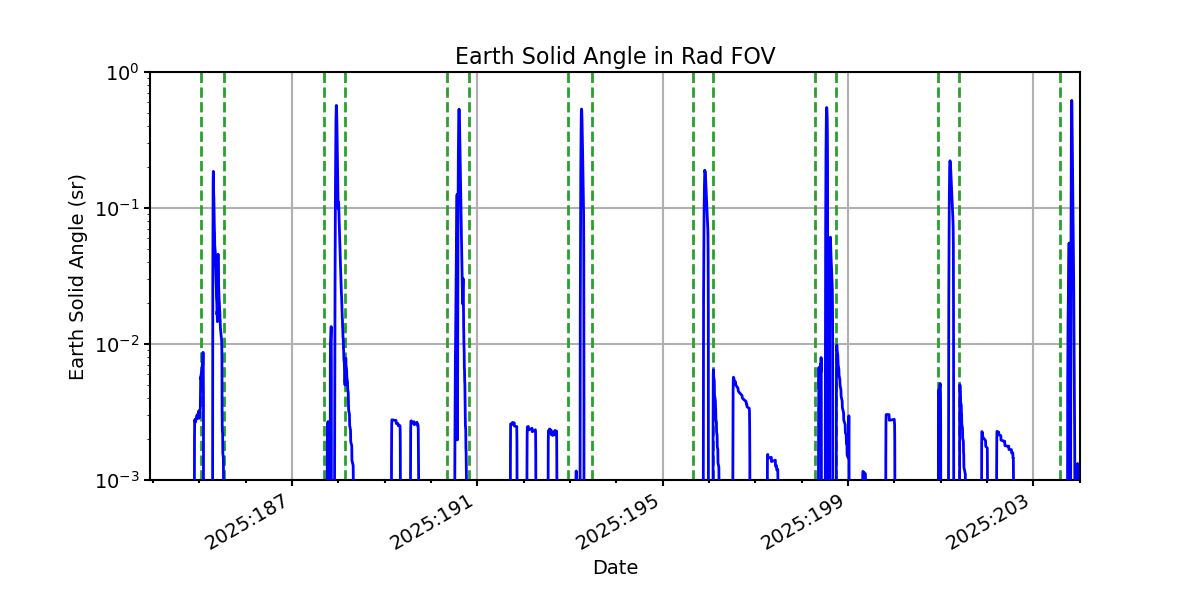

Earth Solid Angle
ADDITIONAL PLOTS

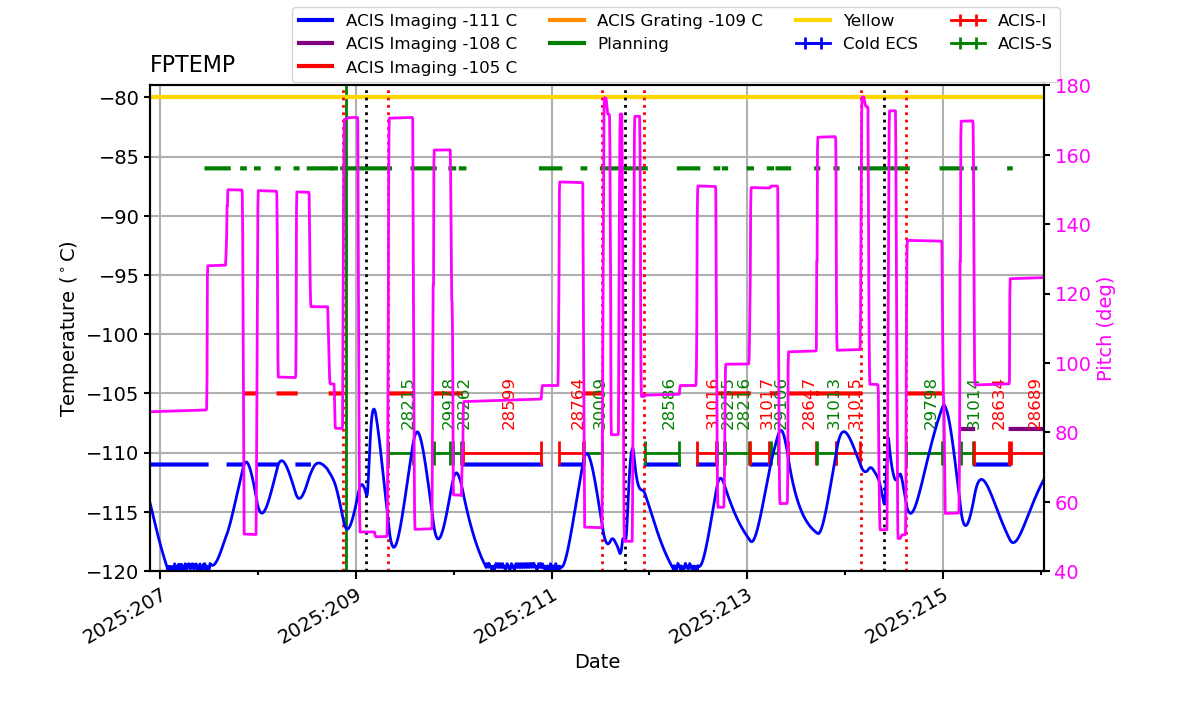

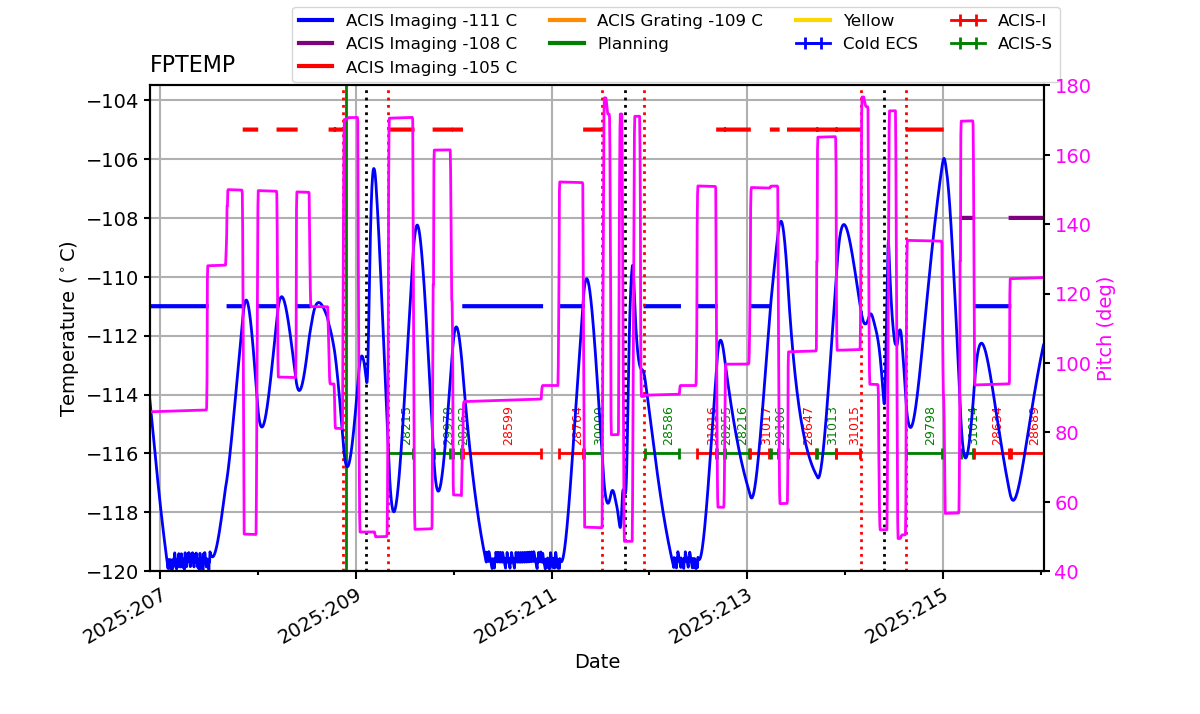

Additional plots of FPTEMP vs TIME for different temperature ranges
