ACISFP Temperatures Check
Summary
| Date start | 2026:210:23:59:59.016 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2926/oflsa |
| Run time | Tue Jul 28 09:30:39 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -3.41 | -2.16 | -1.60 | 0.41 | 1.64 | 2.35 | 3.67 |
| pitch | -11.700 | -1.139 | -0.004 | 0.000 | 0.004 | 1.072 | 11.467 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.050 | -0.209 | -0.008 | 0.000 | 0.009 | 0.242 | 1.833 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -3.41 | 2.00 |
| FPTEMP | 99 | 3.67 | 2.00 |
| PITCH | 1 | -11.7 | 3.00 |
| PITCH | 99 | 11.467 | 3.00 |

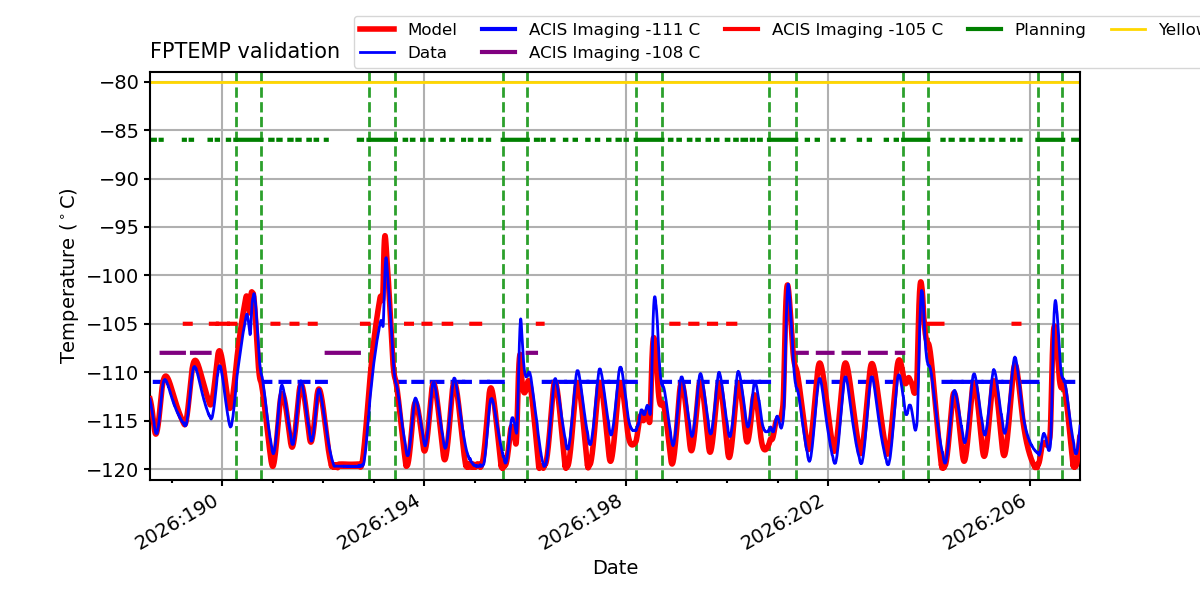

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH

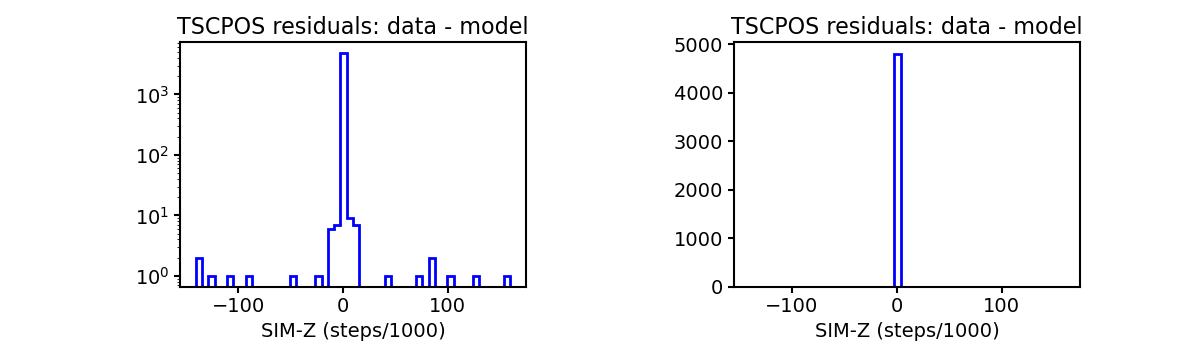

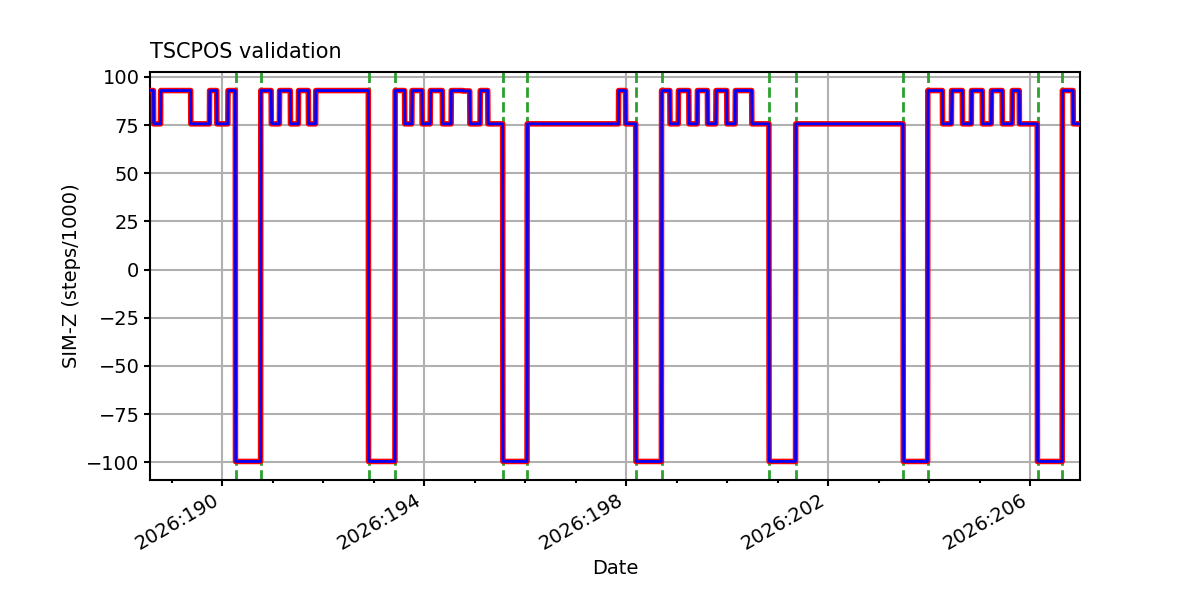

TSCPOS

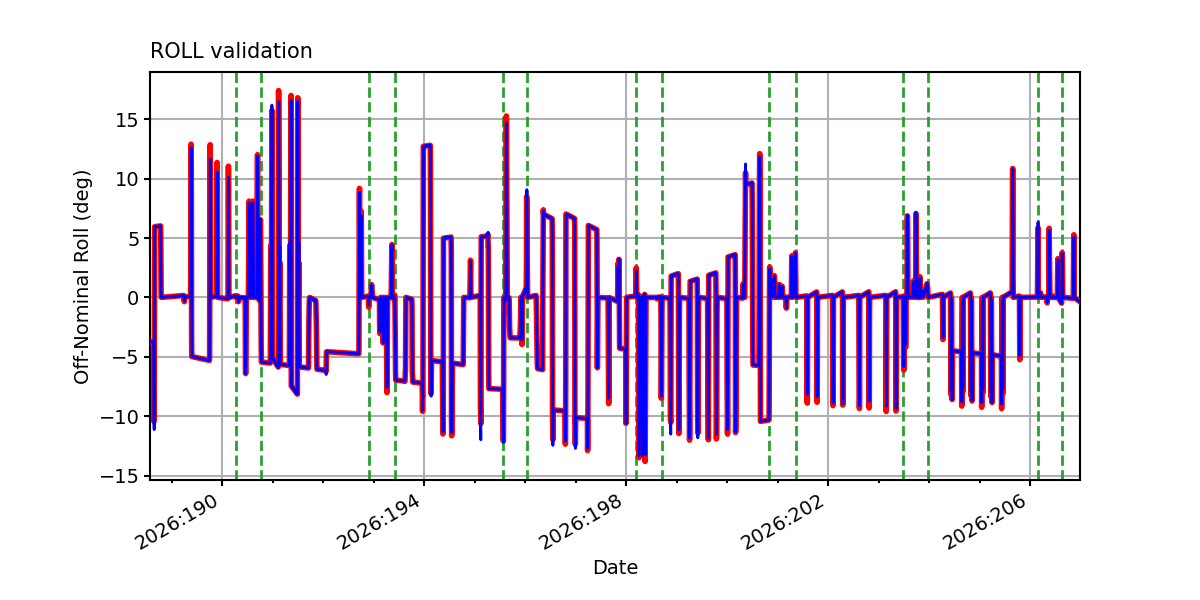

ROLL
ACIS CCD/FEP Count

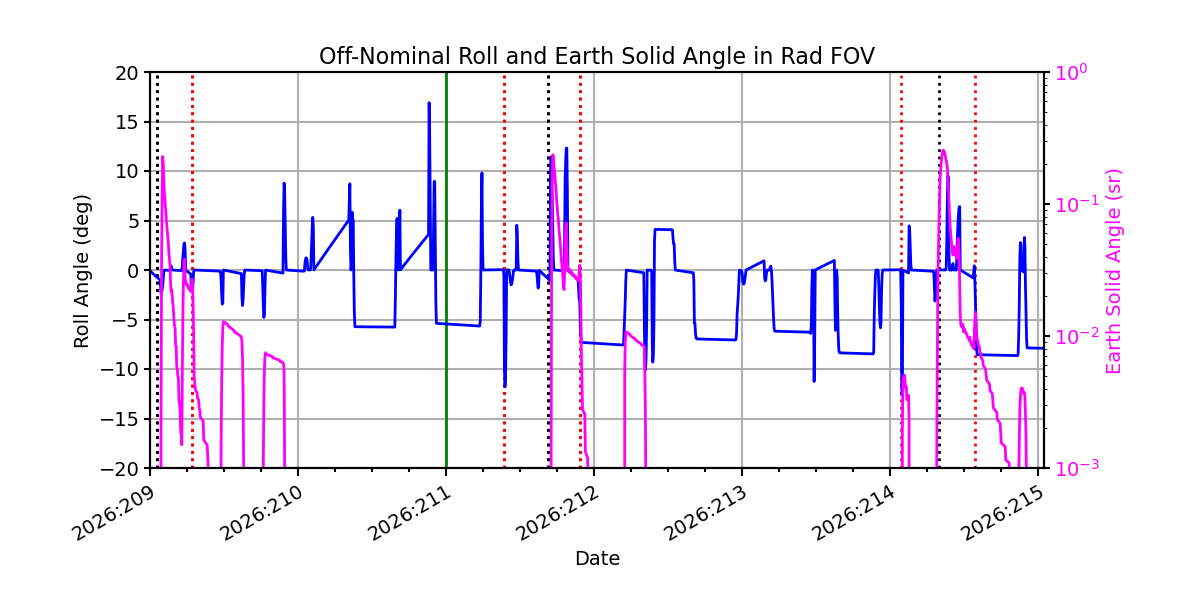

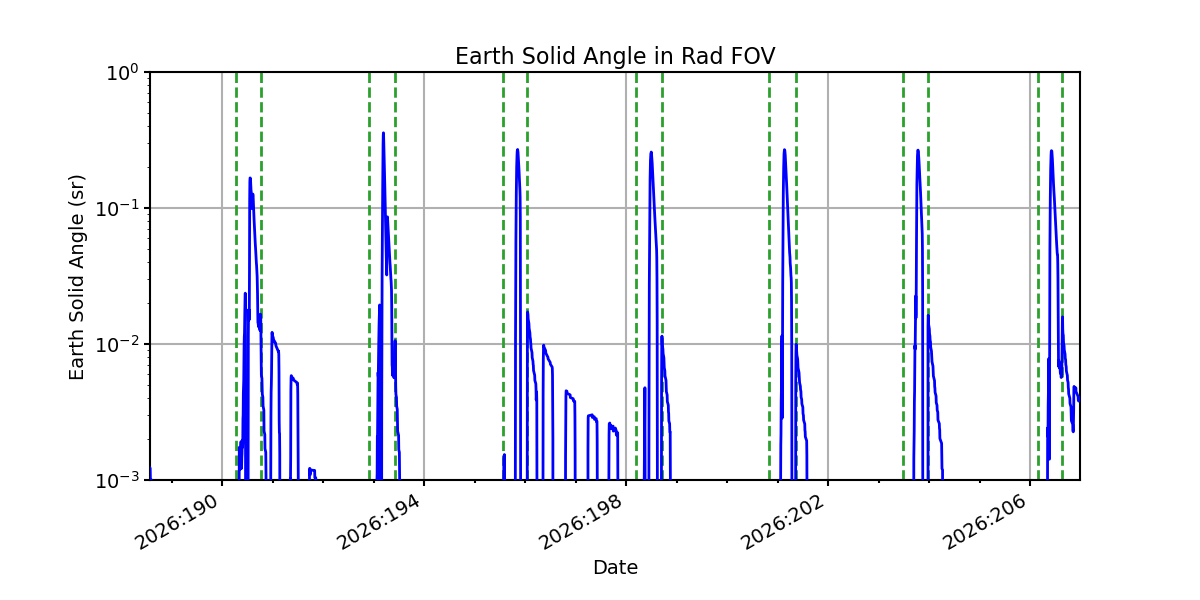

Earth Solid Angle
ADDITIONAL PLOTS

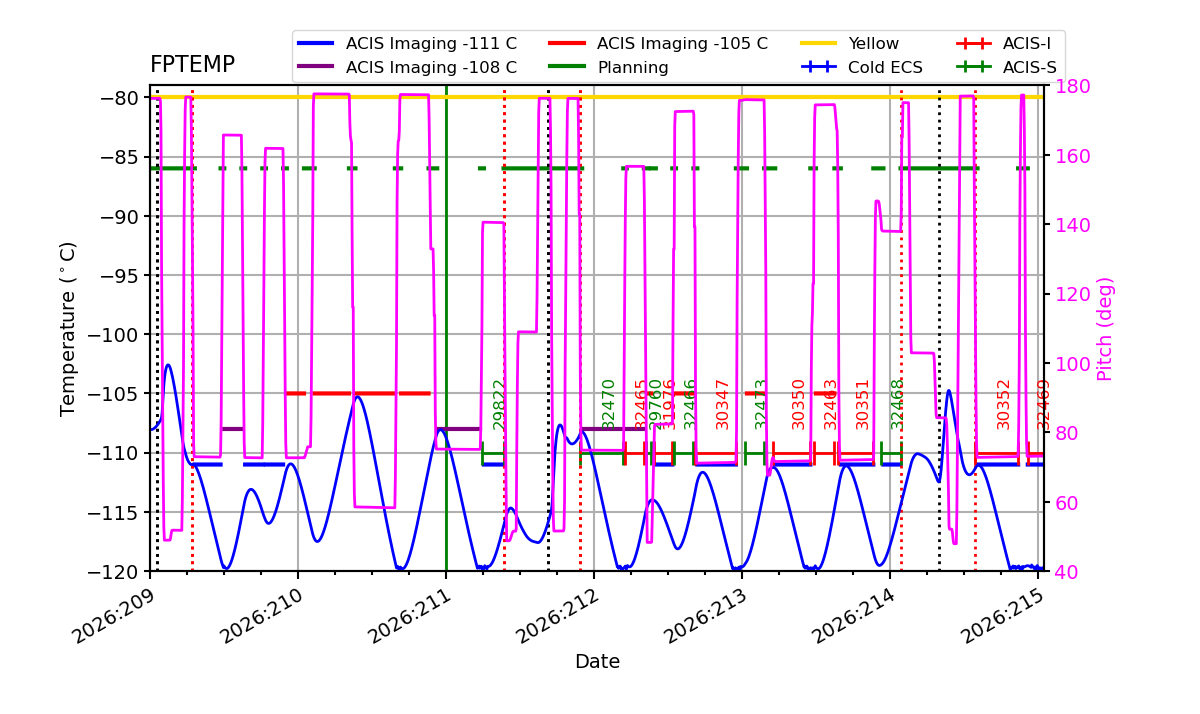

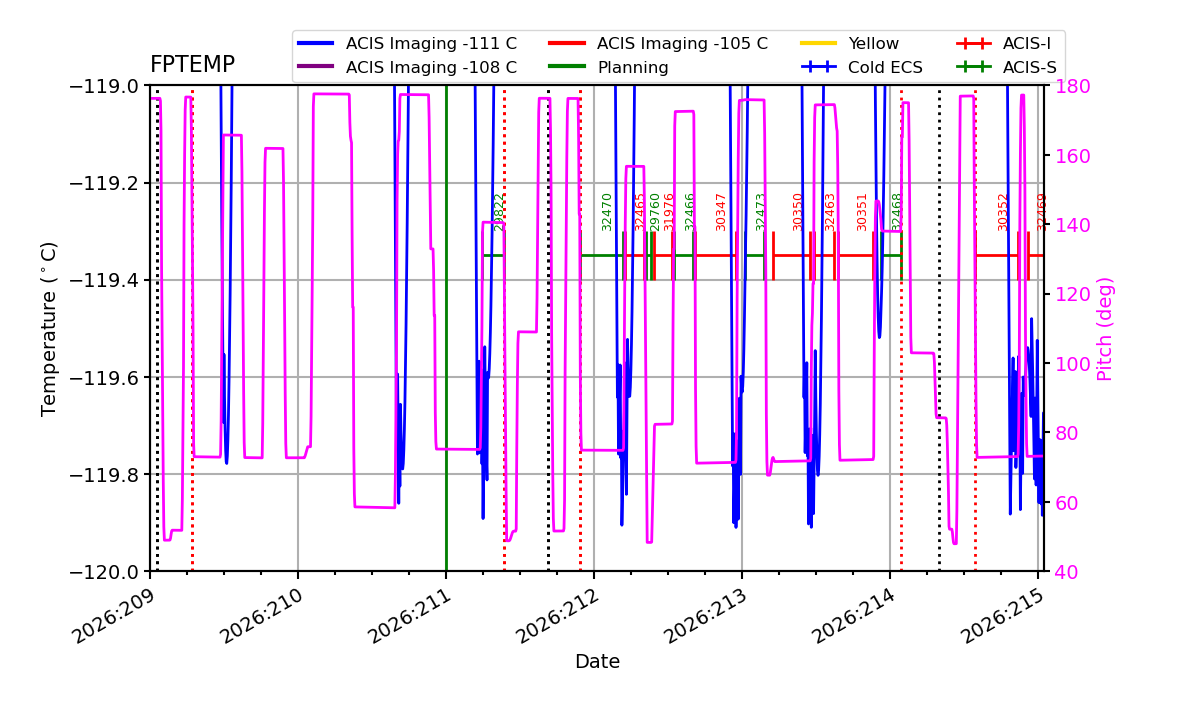

Additional plots of FPTEMP vs TIME for different temperature ranges
