ACISFP Temperatures Check
Summary
| Date start | 2026:151:22:27:10.716 |
| Date stop | 2026:159:03:18:11.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0126/oflsa |
| Run time | Thu May 28 08:14:11 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:155:16:01:58.816 | 2026:155:16:18:22.816 | 0.98 / 21.87 | -107.99 / -108.00 | 30119 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.09 | -1.67 | -1.09 | -0.37 | 0.64 | 1.30 | 1.85 |
| pitch | -7.524 | -0.393 | -0.004 | -0.000 | 0.004 | 0.118 | 9.520 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.816 | -0.080 | -0.005 | -0.000 | 0.005 | 0.092 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.09 | 2.00 |
| PITCH | 1 | -7.524 | 3.00 |
| PITCH | 99 | 9.52 | 3.00 |

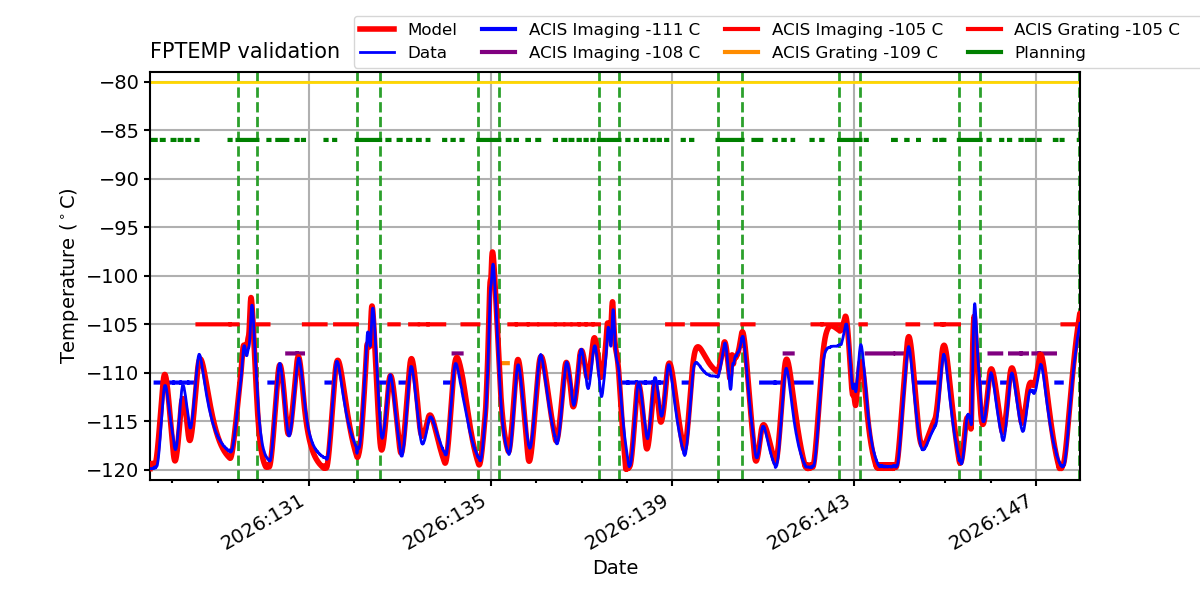

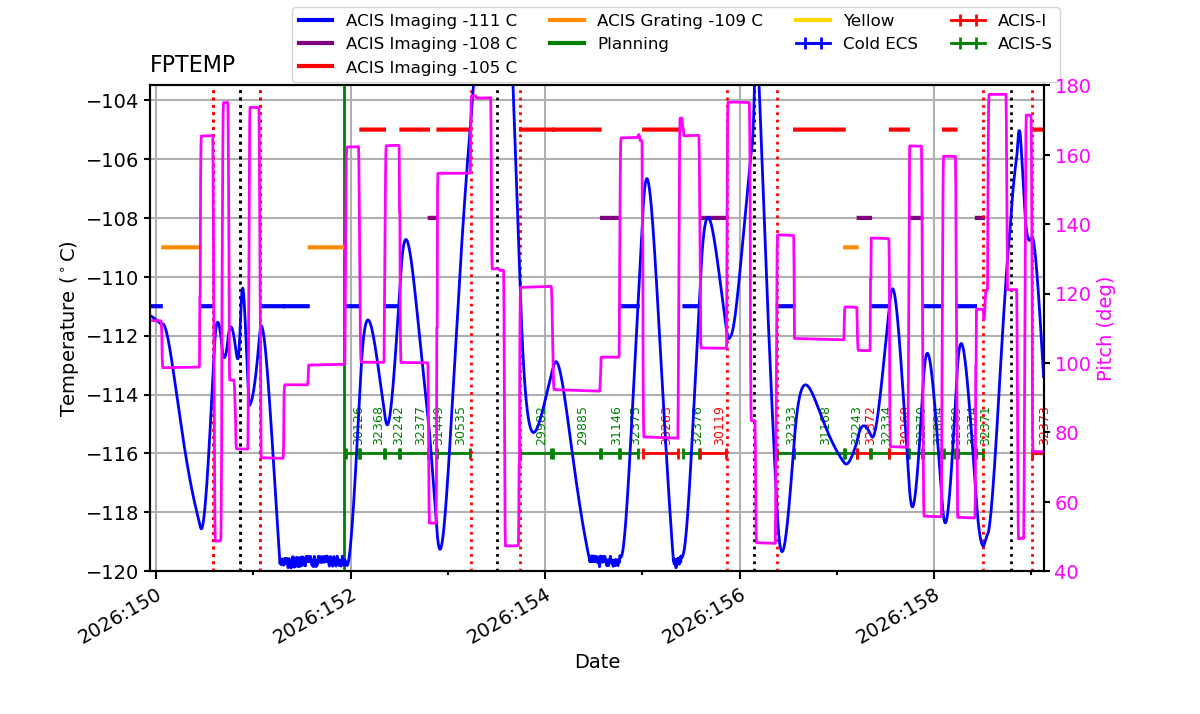

FPTEMP

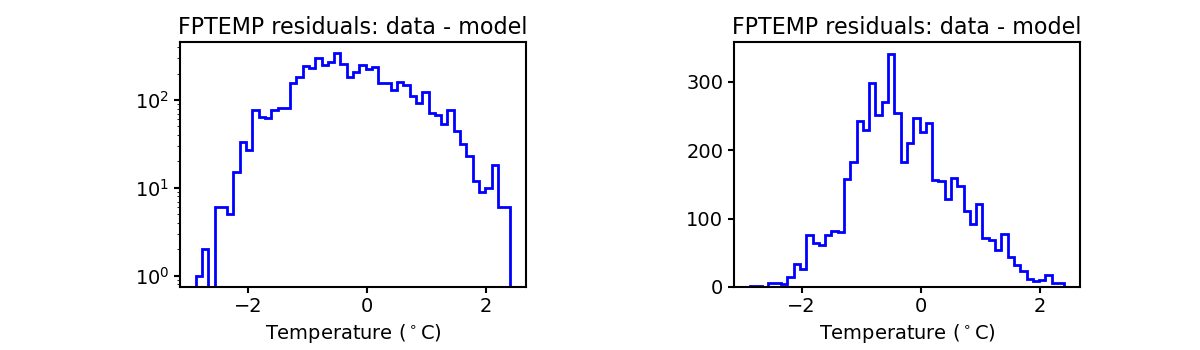

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

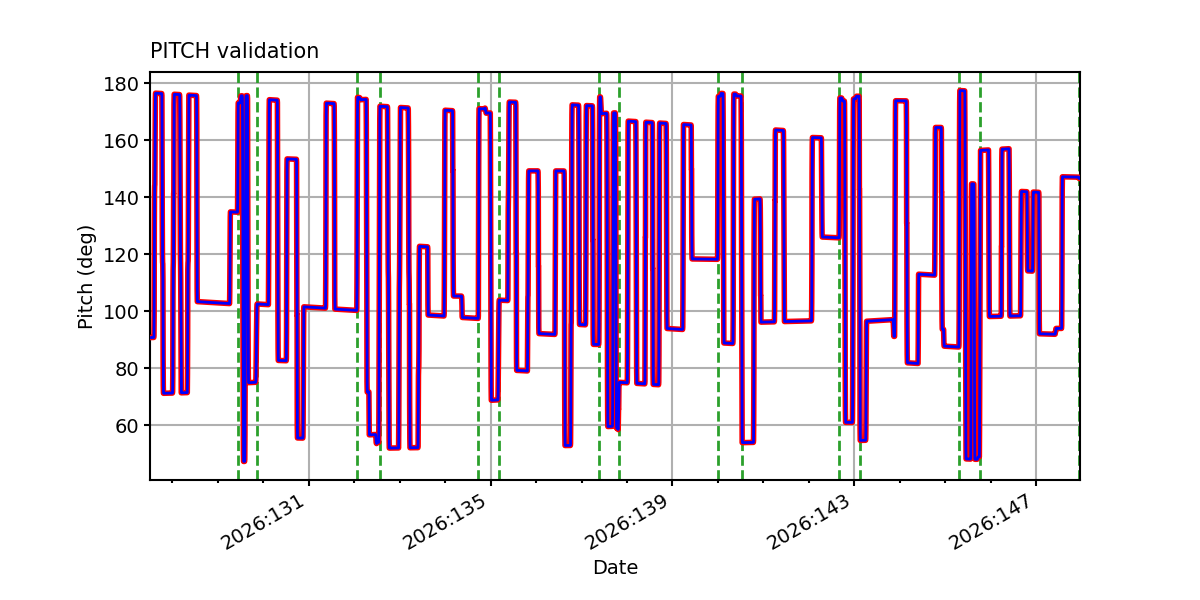

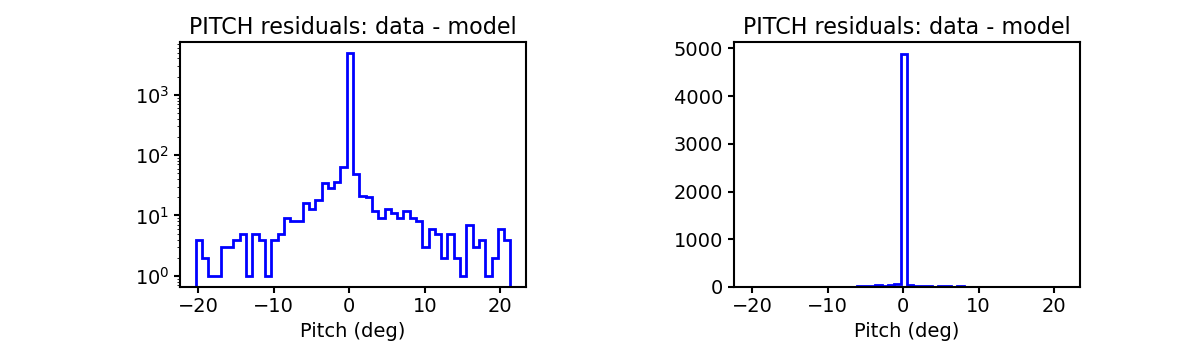

PITCH

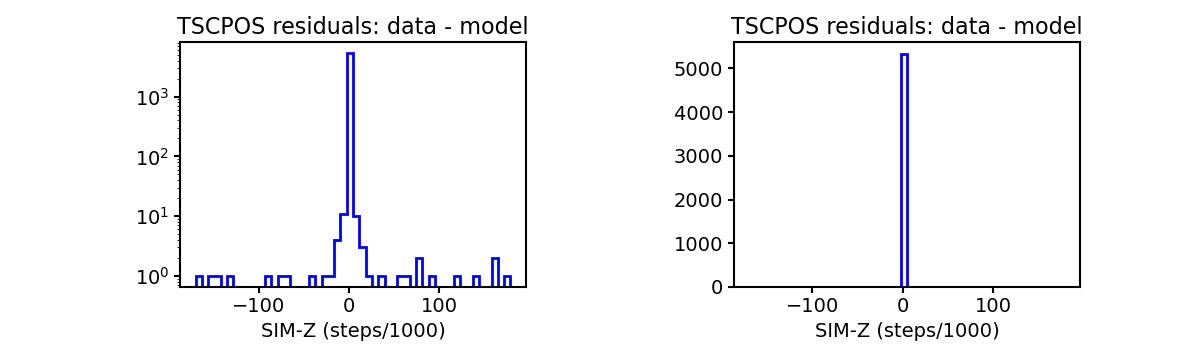

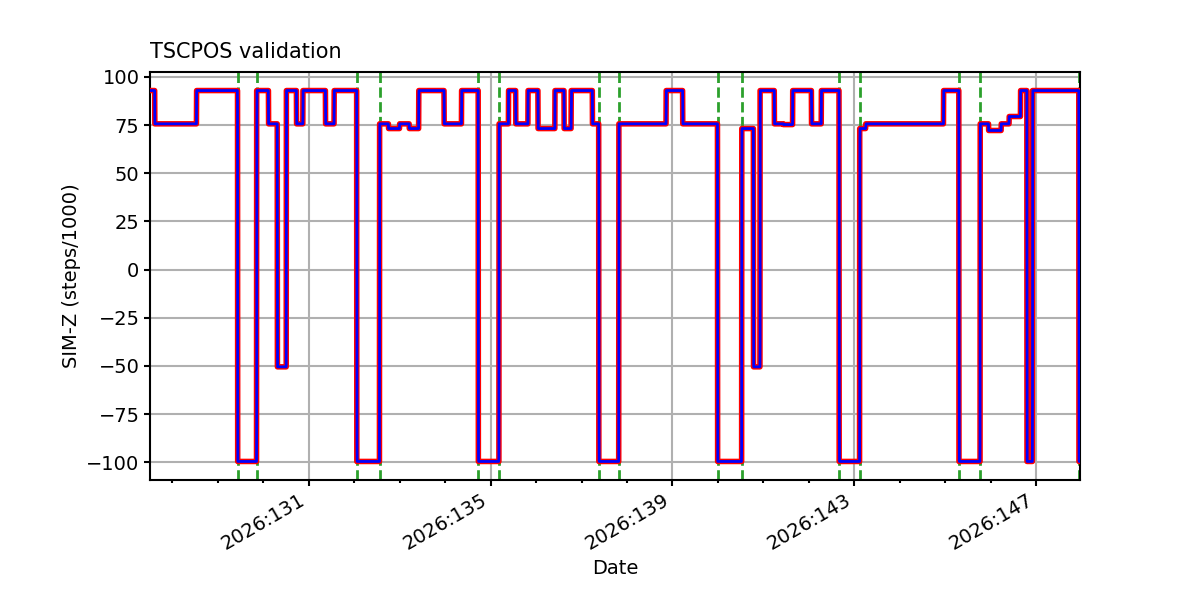

TSCPOS

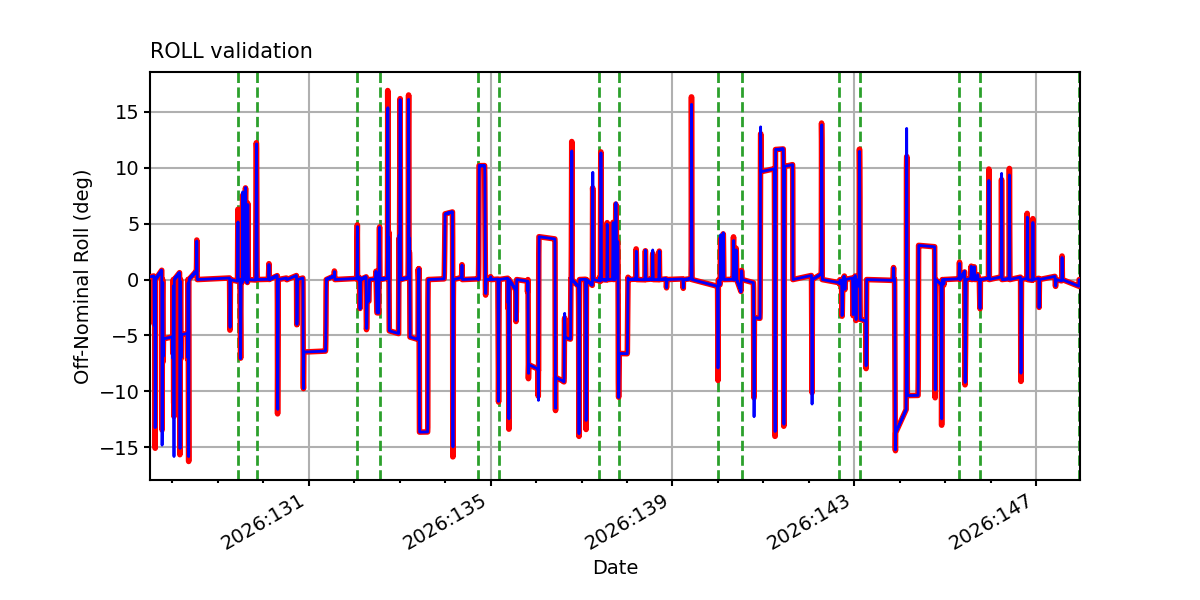

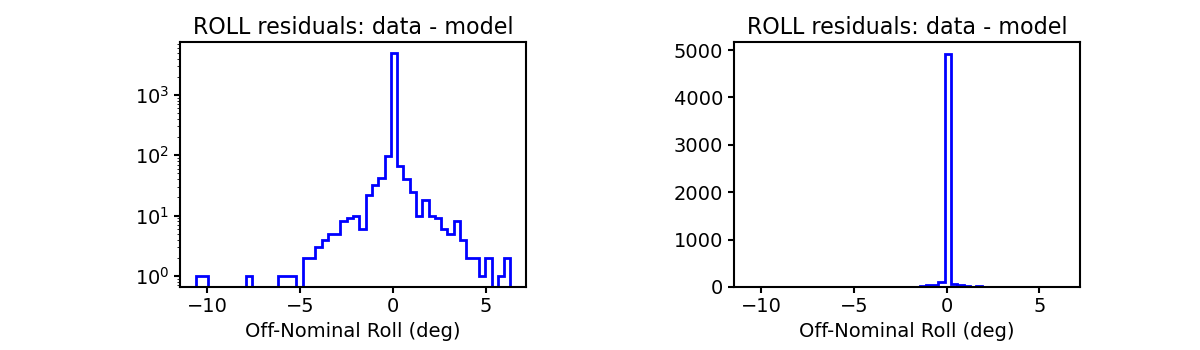

ROLL

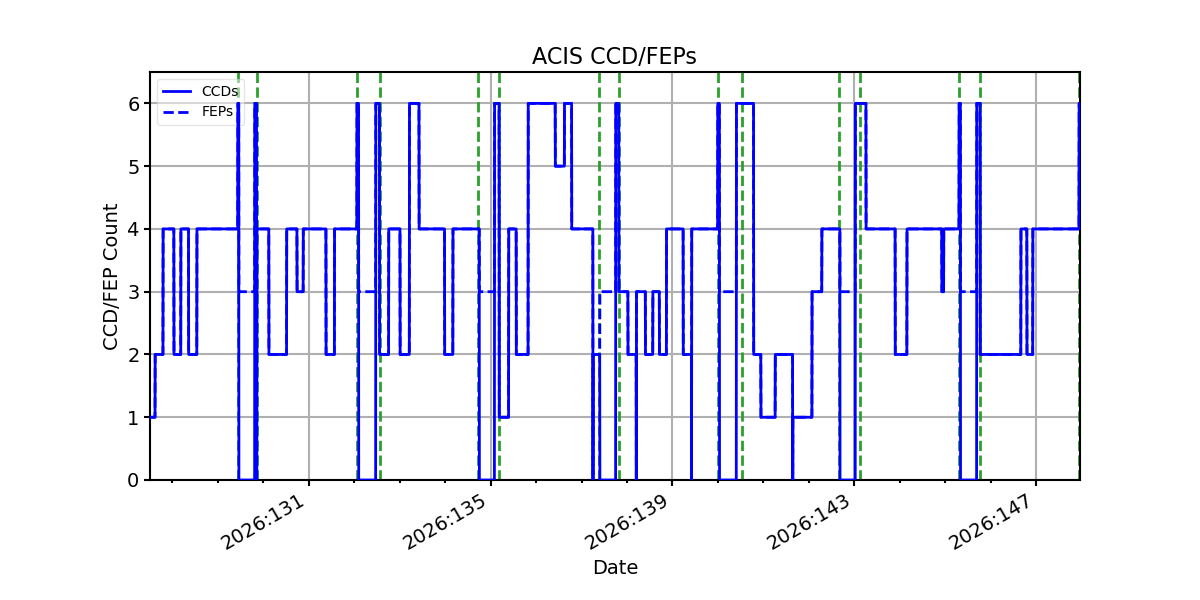

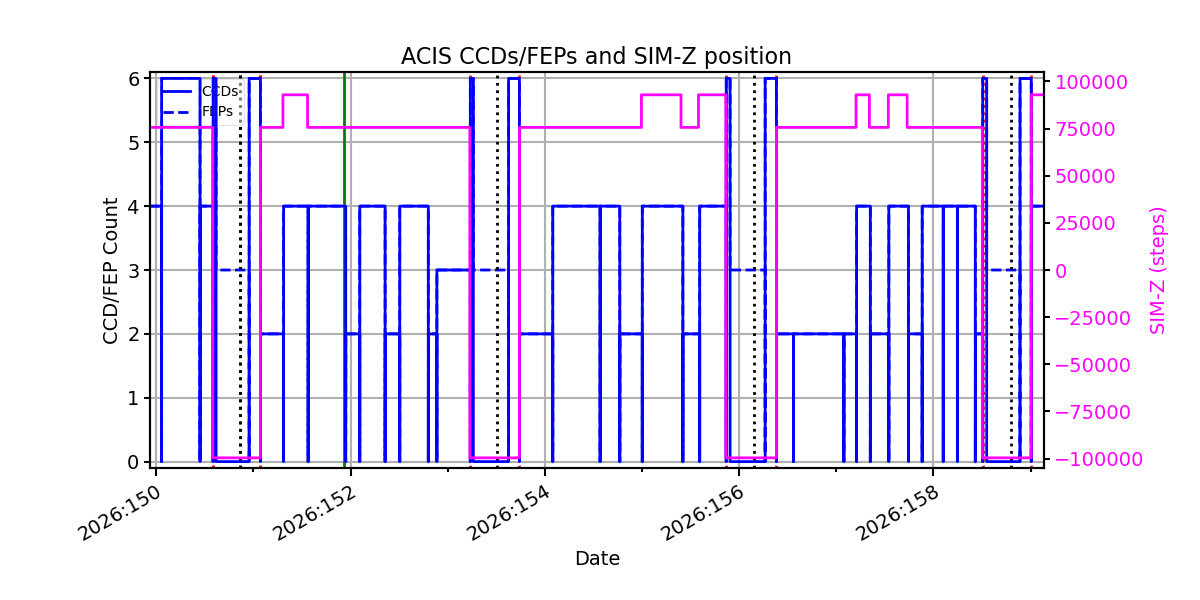

ACIS CCD/FEP Count

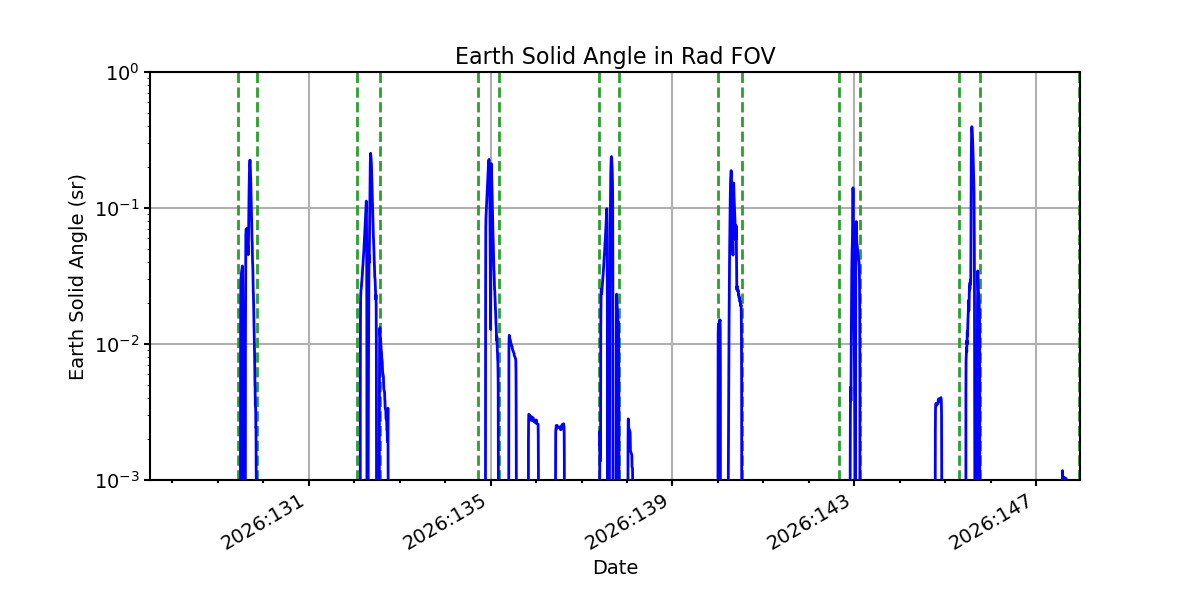

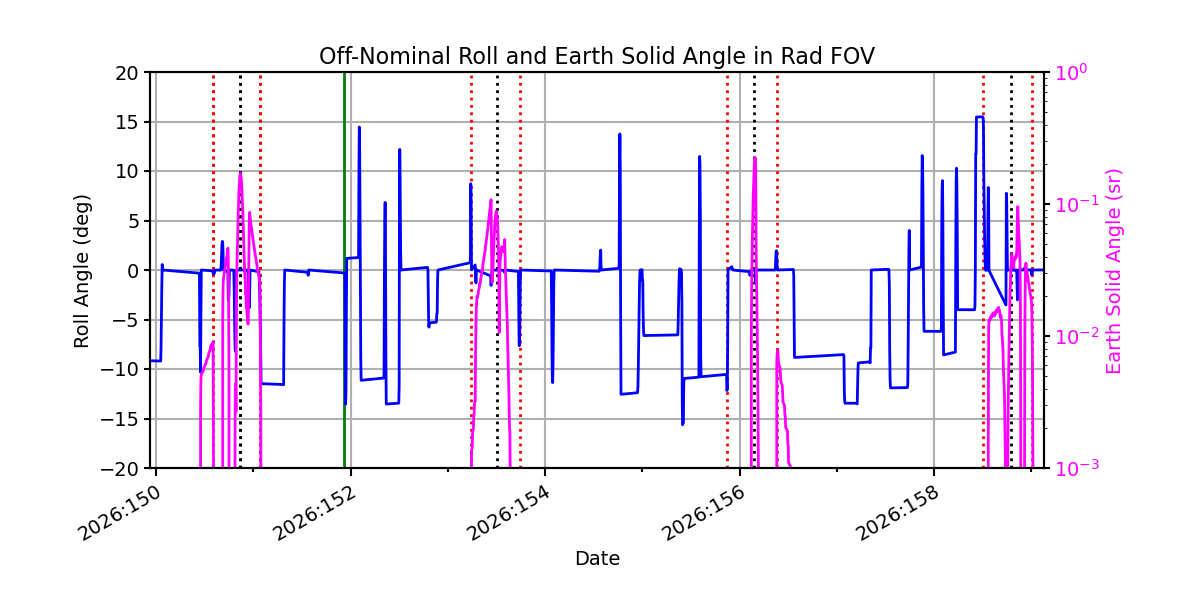

Earth Solid Angle
ADDITIONAL PLOTS

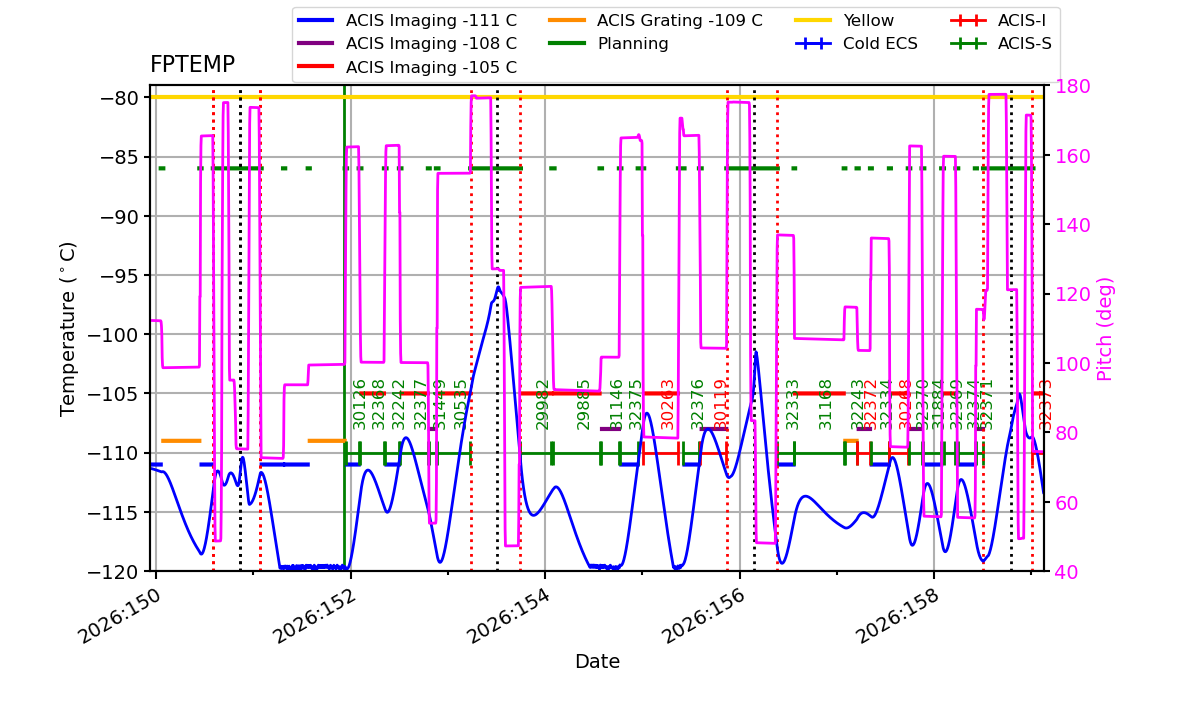

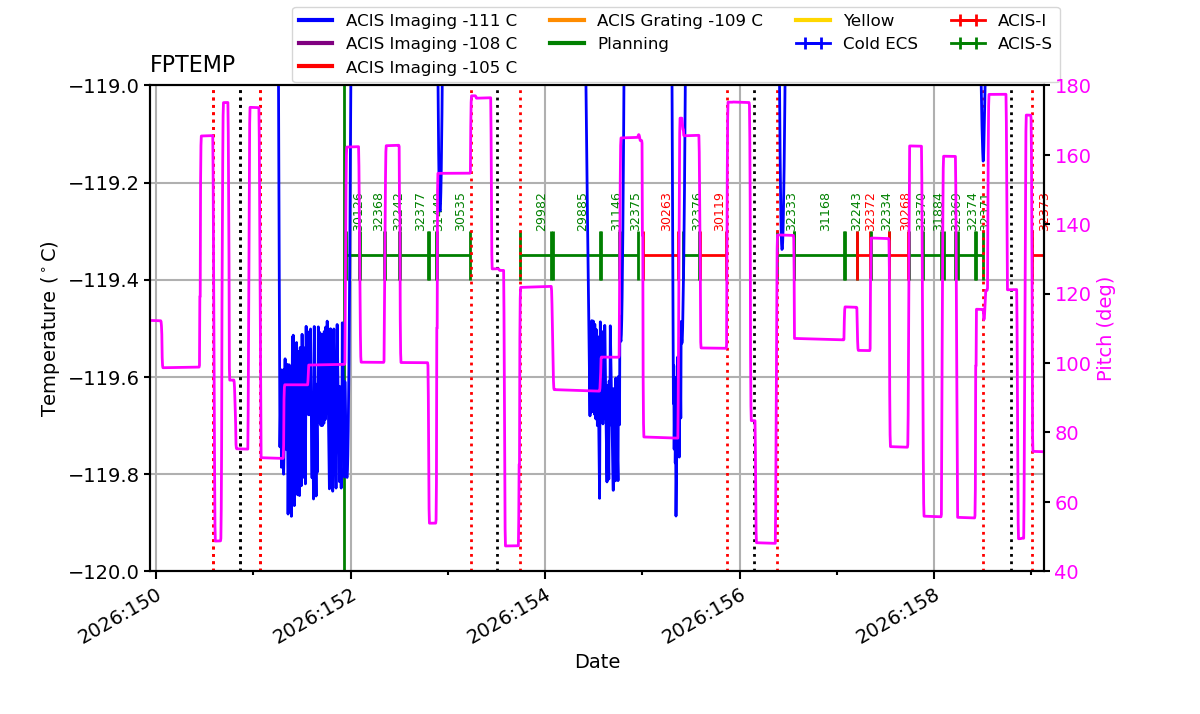

Additional plots of FPTEMP vs TIME for different temperature ranges
