ACISFP Temperatures Check
Summary
| Date start | 2025:166:13:51:00.016 |
| Date stop | 2025:174:00:04:24.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/JUN1625/ofls |
| Run time | Wed Jun 11 12:15:57 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2025:169:22:43:58.816 | 2025:169:23:16:46.816 | 1.97 / 10.00 | -107.92 / -108.00 | 28803 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.91 | -1.46 | -0.89 | 0.45 | 1.86 | 2.49 | 4.08 |
| pitch | -5.124 | -0.247 | -0.004 | 0.000 | 0.004 | 0.296 | 5.162 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.307 | -0.118 | -0.005 | -0.000 | 0.005 | 0.080 | 1.325 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 4.08 | 2.00 |
| PITCH | 1 | -5.124 | 3.00 |
| PITCH | 99 | 5.162 | 3.00 |

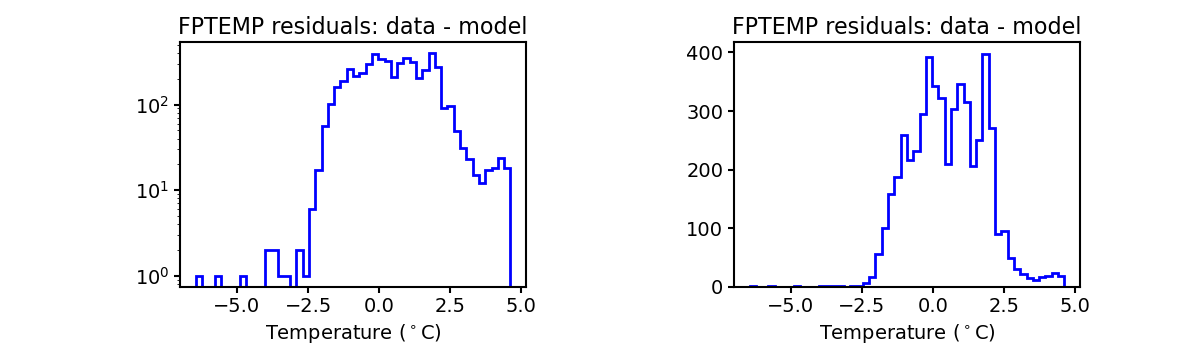

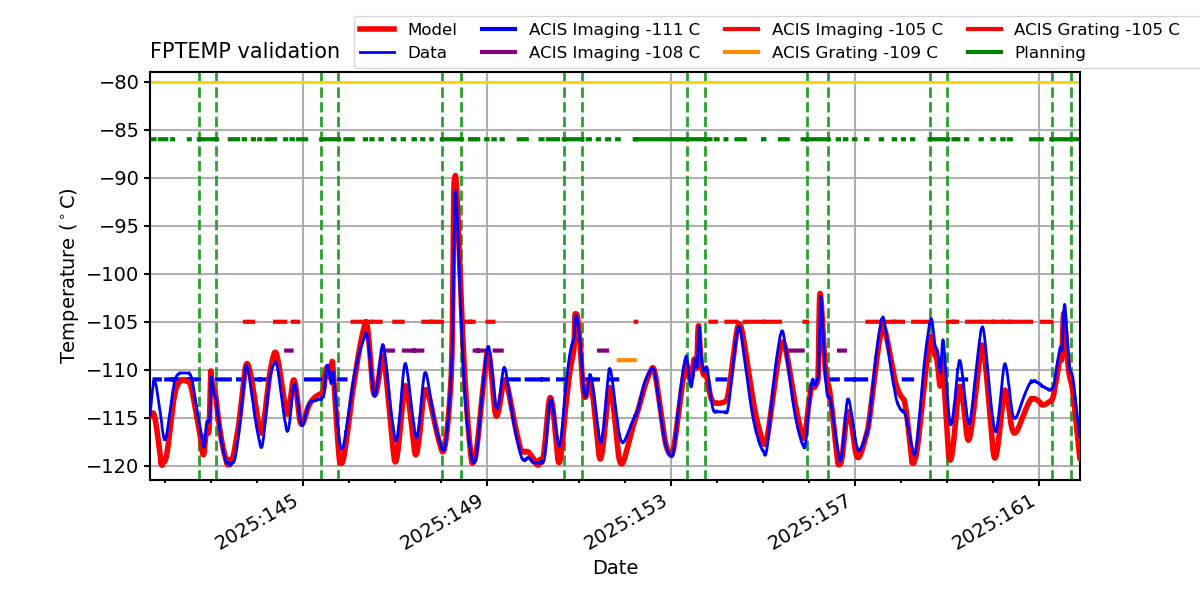

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

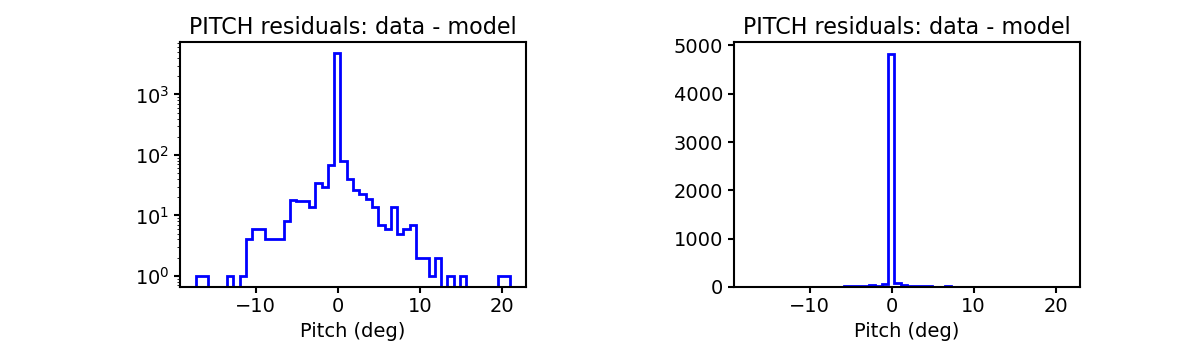

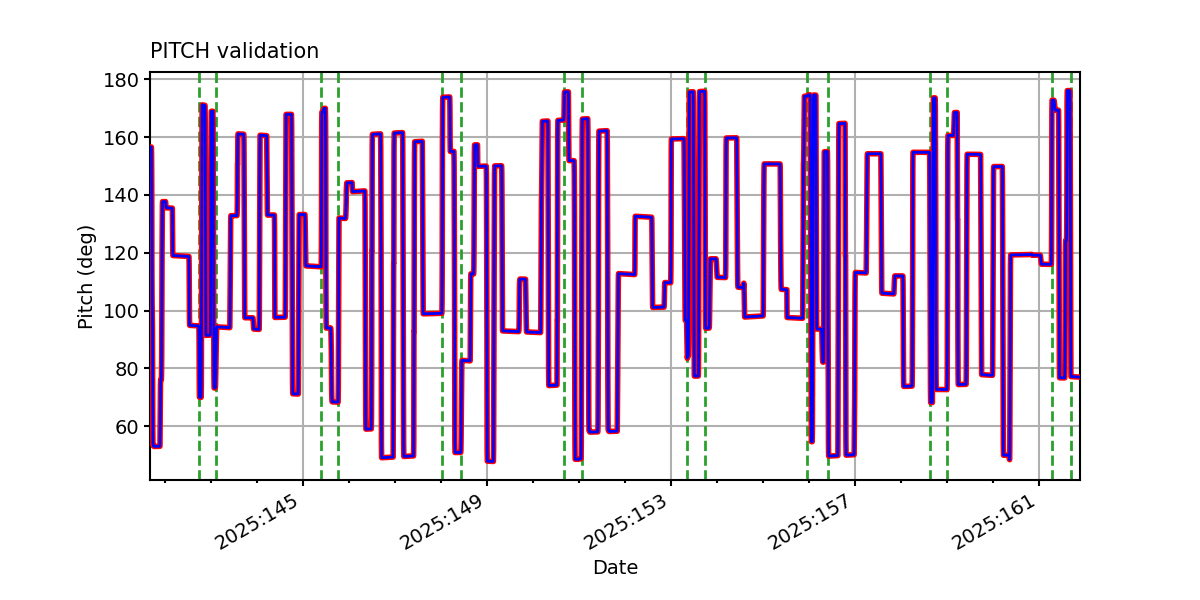

PITCH

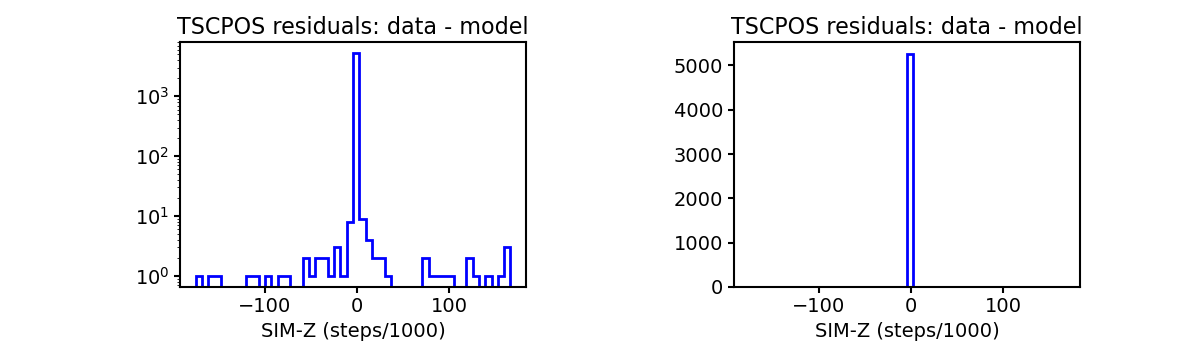

TSCPOS

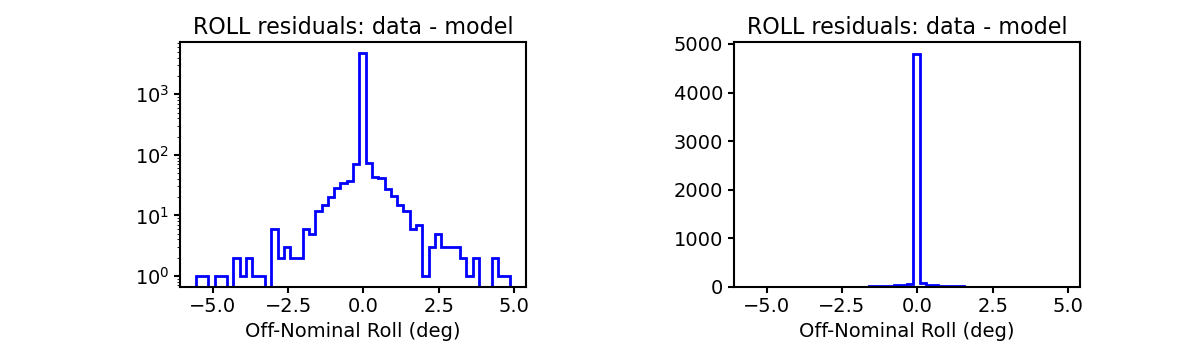

ROLL
ACIS CCD/FEP Count

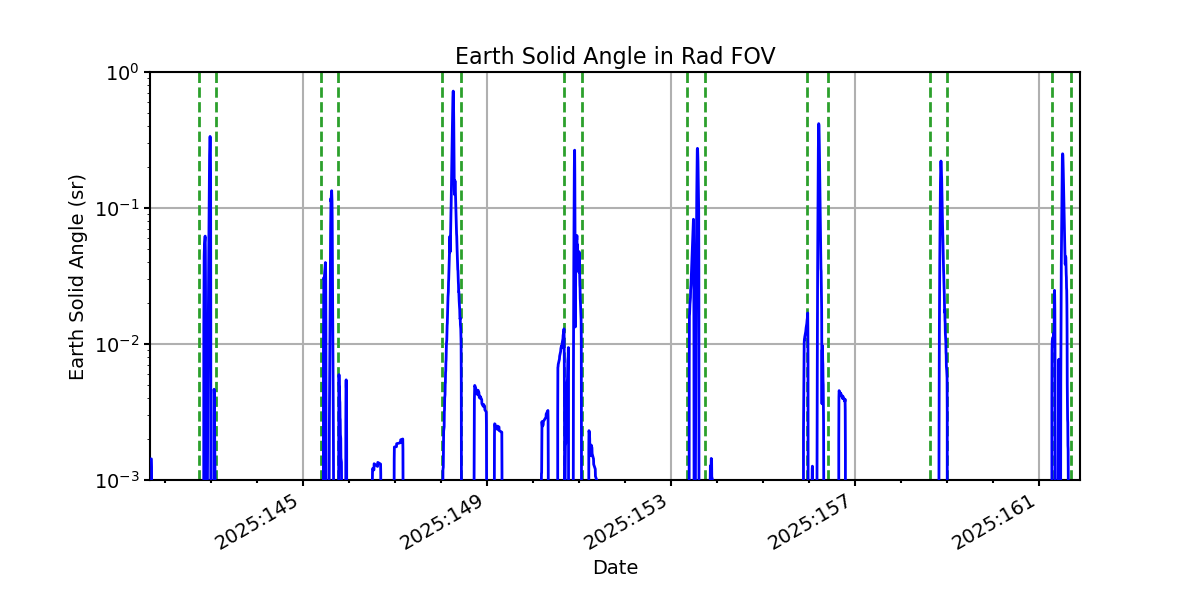

Earth Solid Angle
ADDITIONAL PLOTS

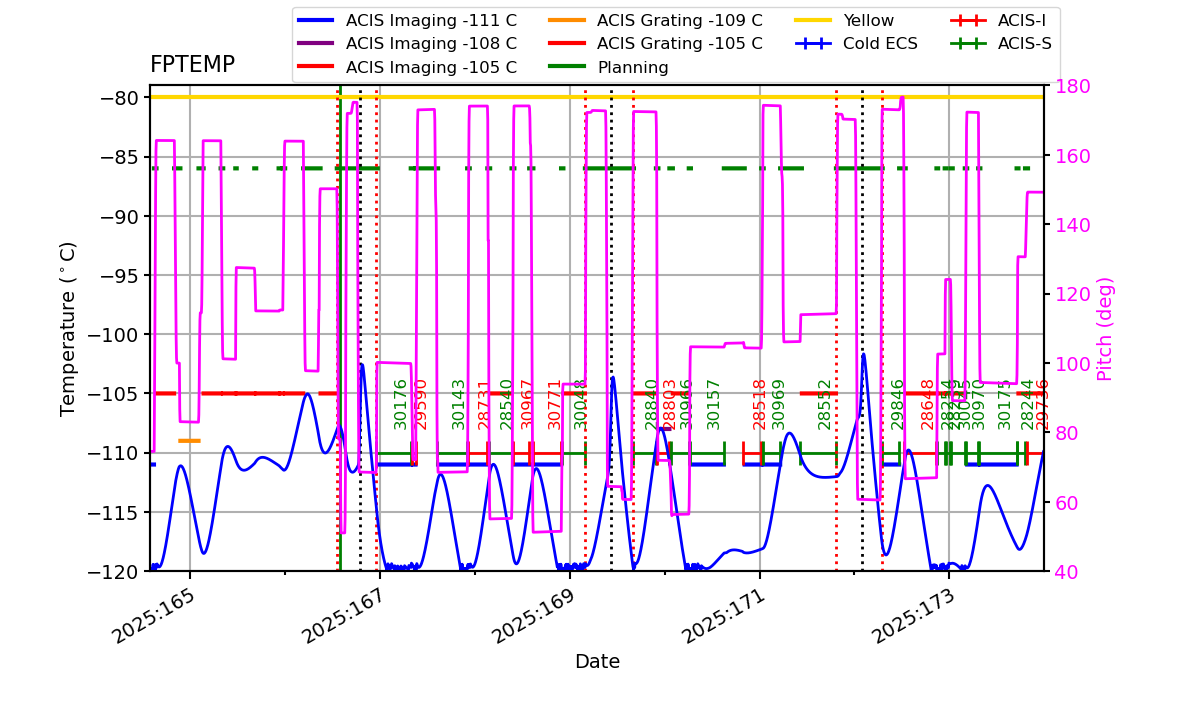

Additional plots of FPTEMP vs TIME for different temperature ranges
