ACISFP Temperatures Check
Summary
| Date start | 2026:173:00:11:21.816 |
| Date stop | 2026:179:17:09:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2226/oflsa |
| Run time | Wed Jun 17 18:33:10 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.96 | -1.43 | -0.87 | 0.24 | 1.64 | 2.41 | 4.09 |
| pitch | -10.750 | -0.265 | -0.004 | 0.000 | 0.004 | 0.681 | 8.611 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.148 | -0.110 | -0.007 | -0.000 | 0.007 | 0.108 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 4.09 | 2.00 |
| PITCH | 1 | -10.75 | 3.00 |
| PITCH | 99 | 8.611 | 3.00 |

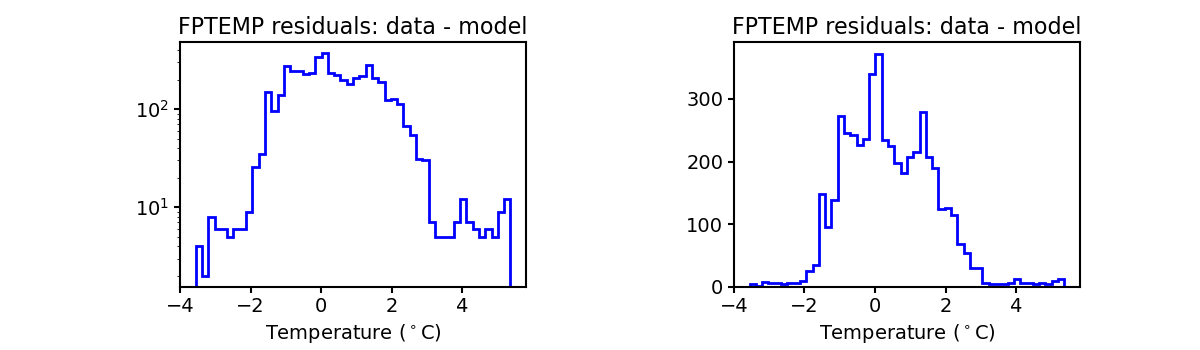

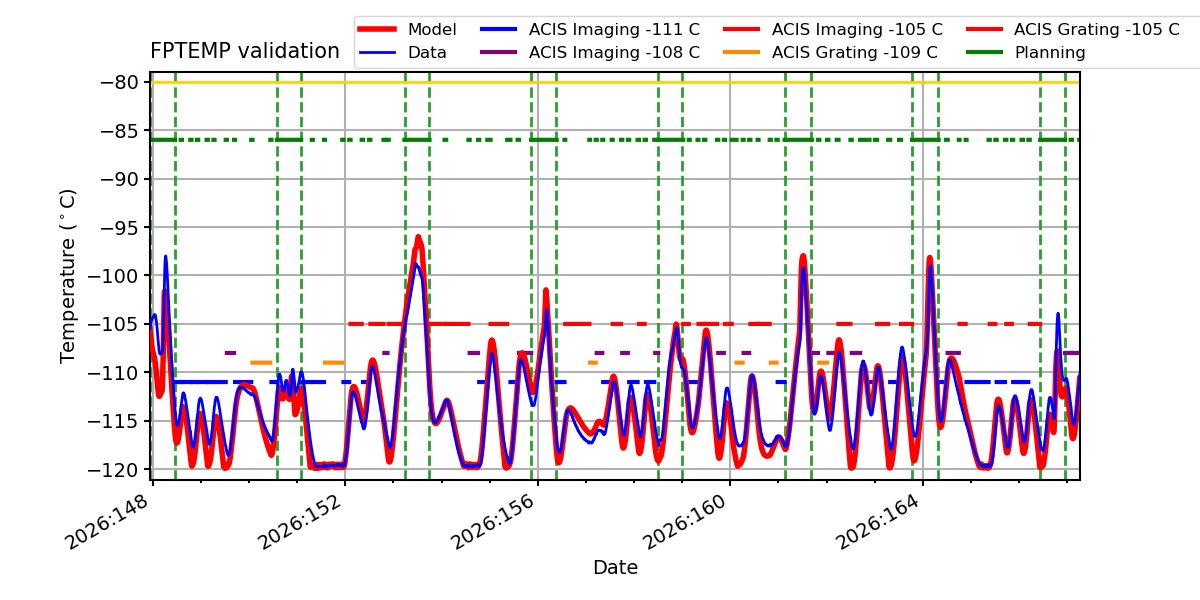

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

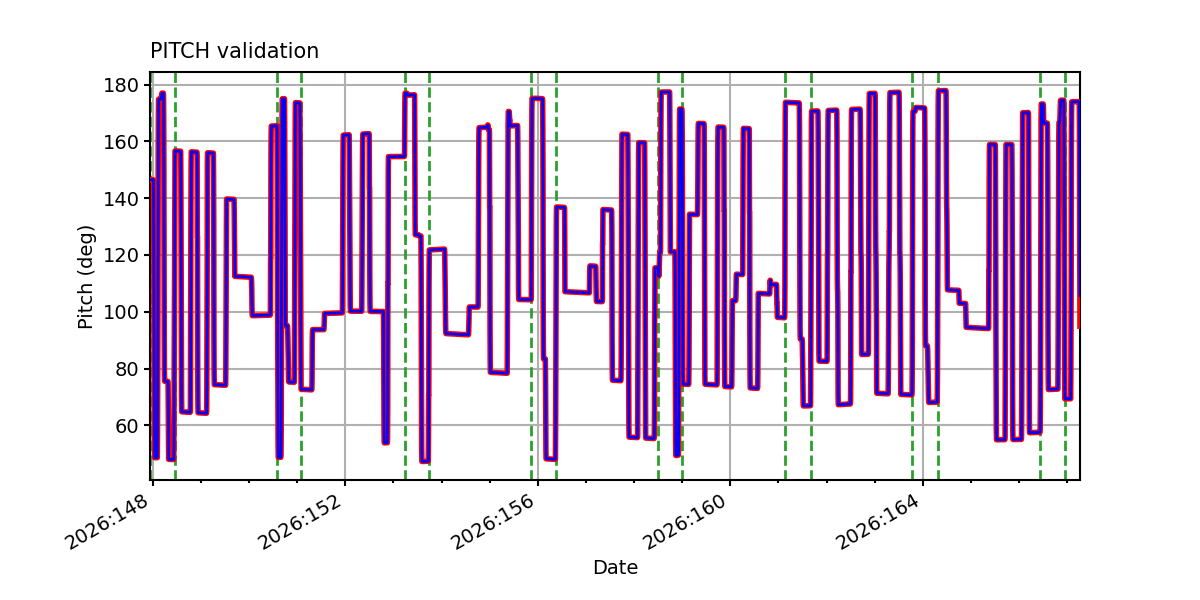

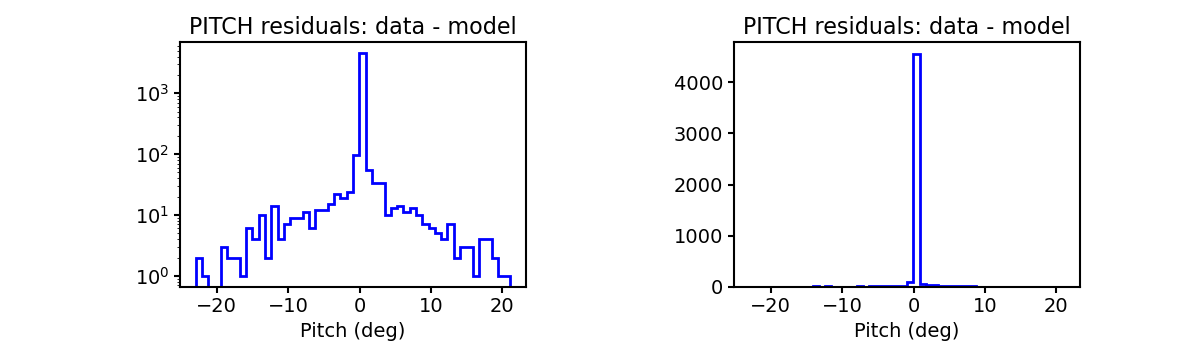

PITCH

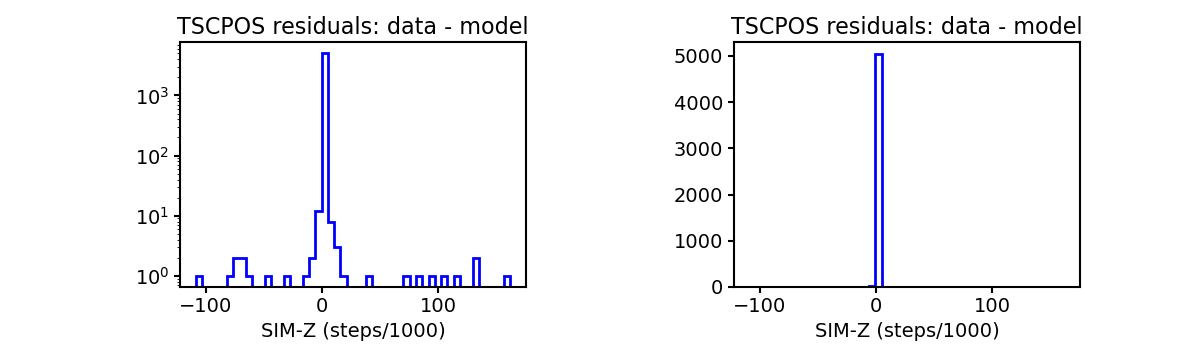

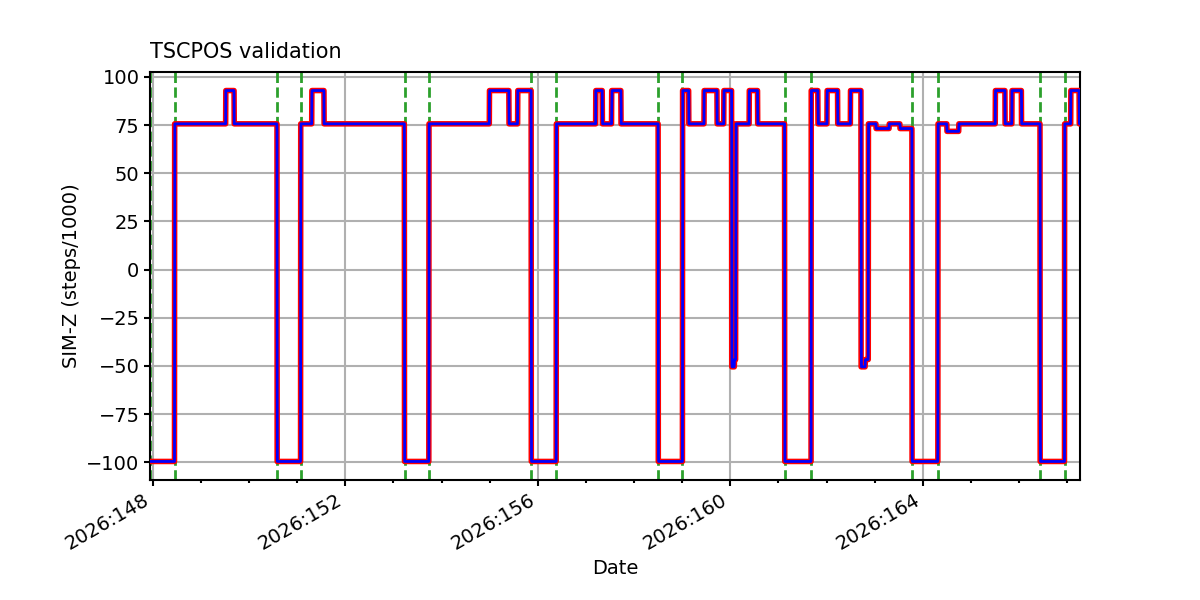

TSCPOS

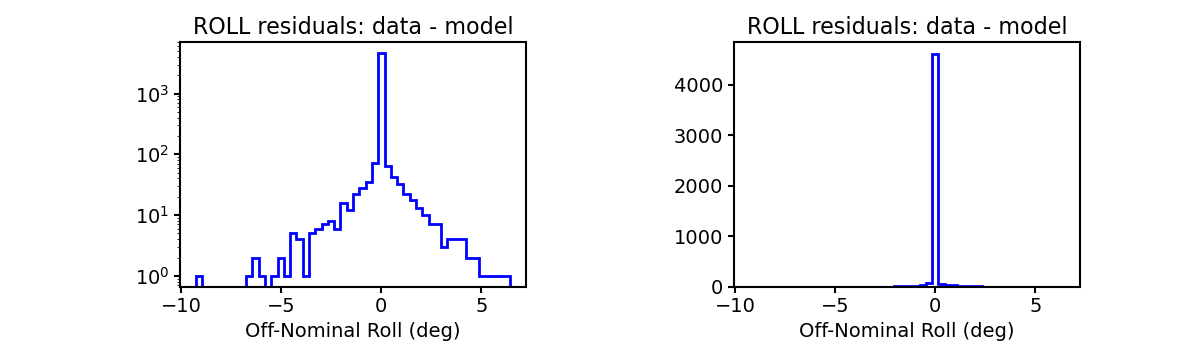

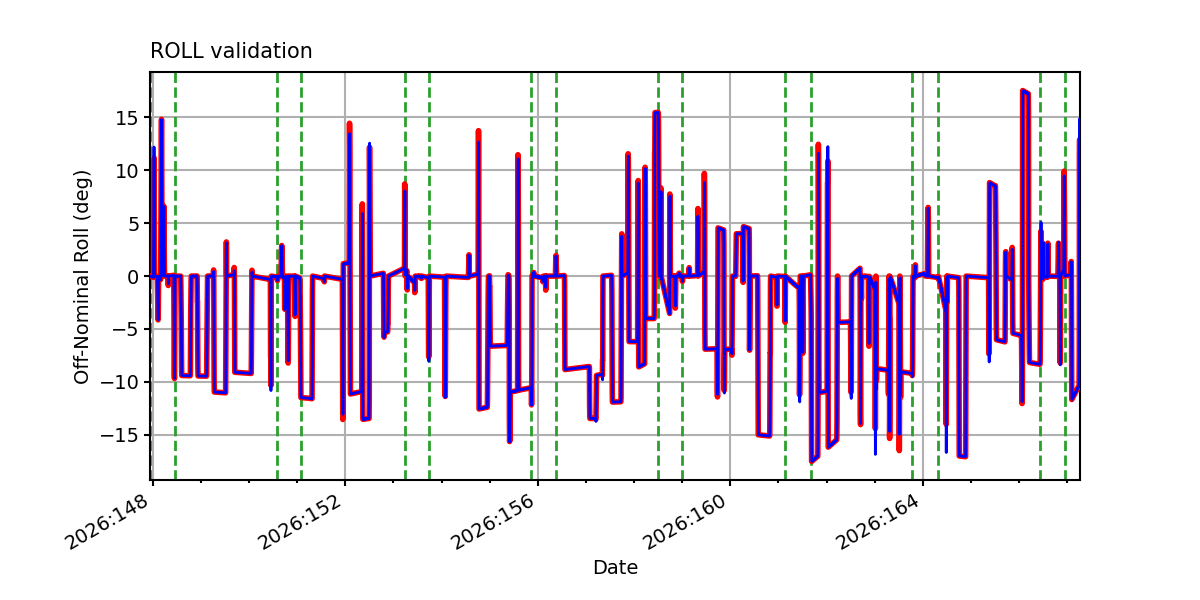

ROLL

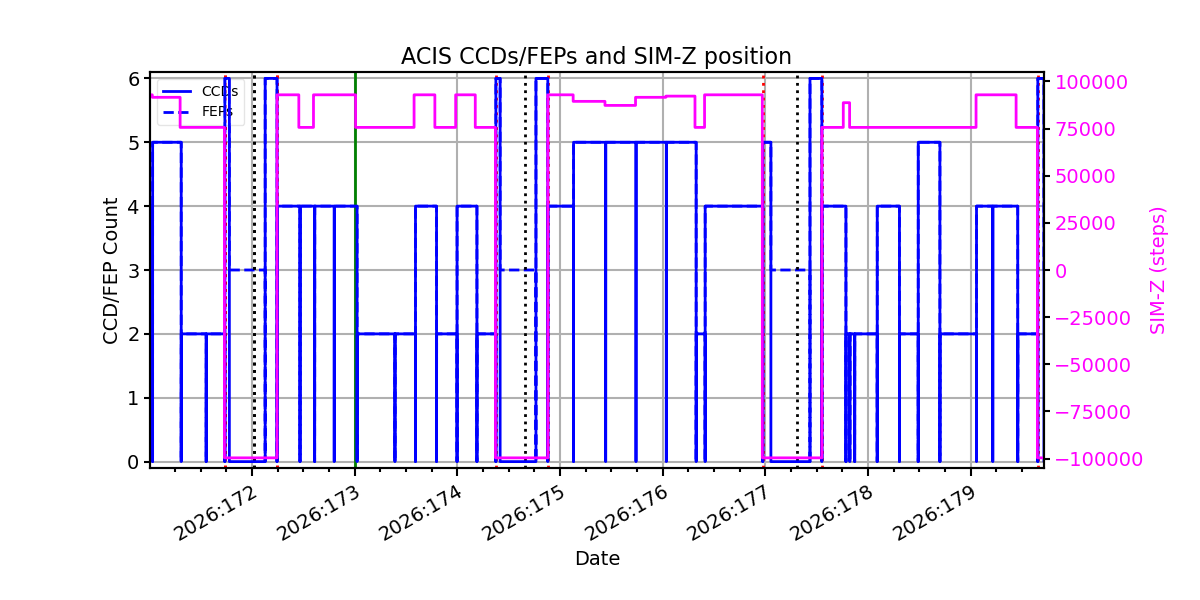

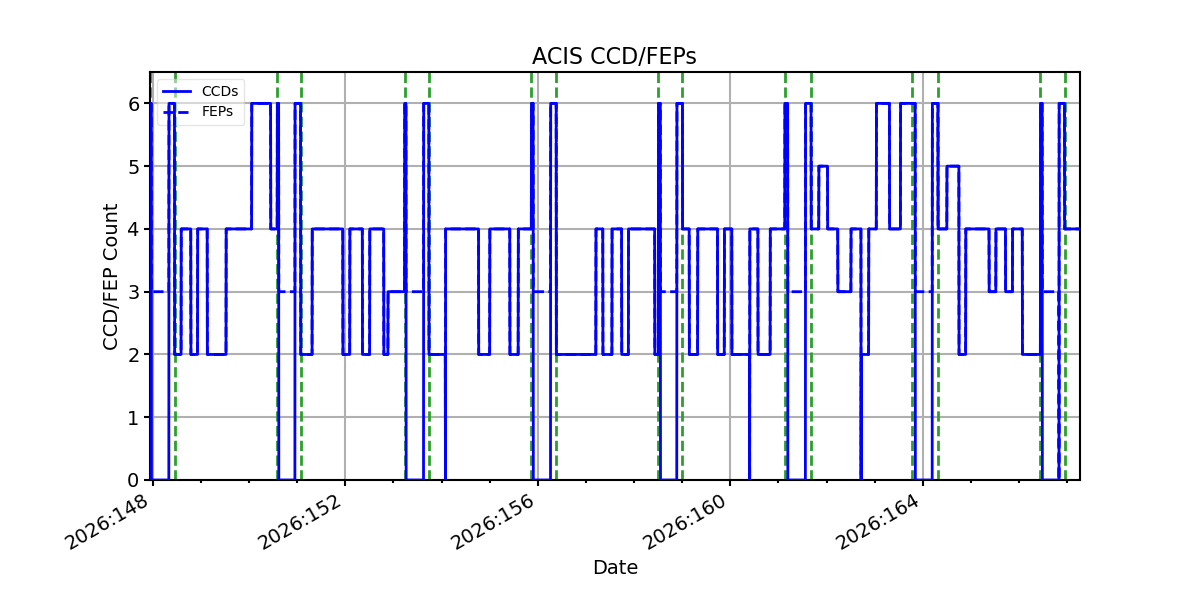

ACIS CCD/FEP Count

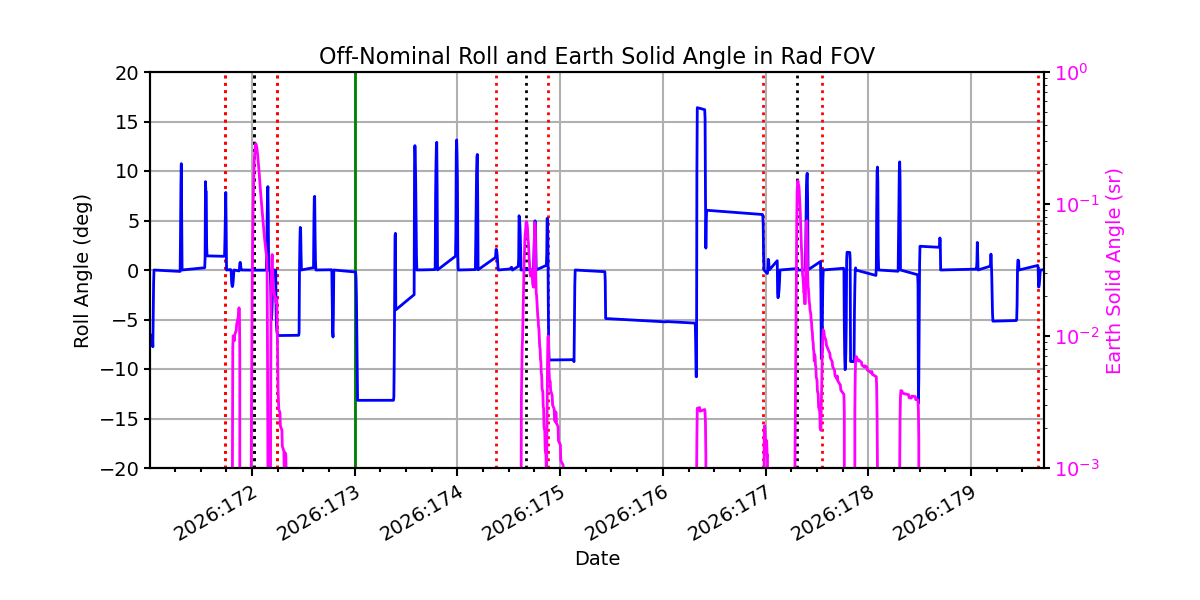

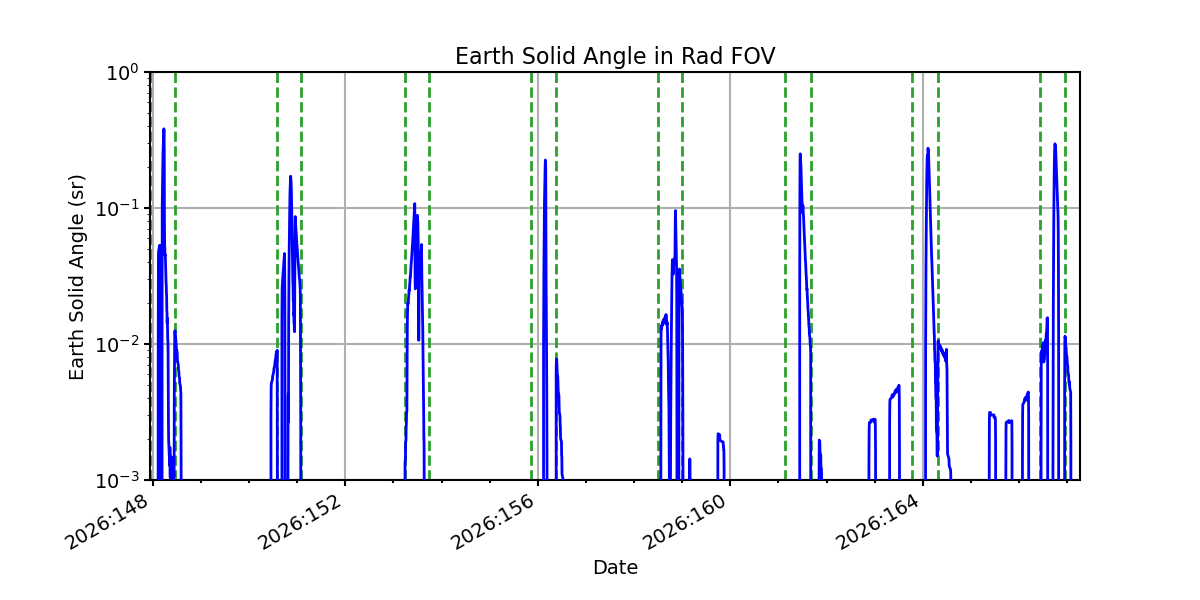

Earth Solid Angle
ADDITIONAL PLOTS

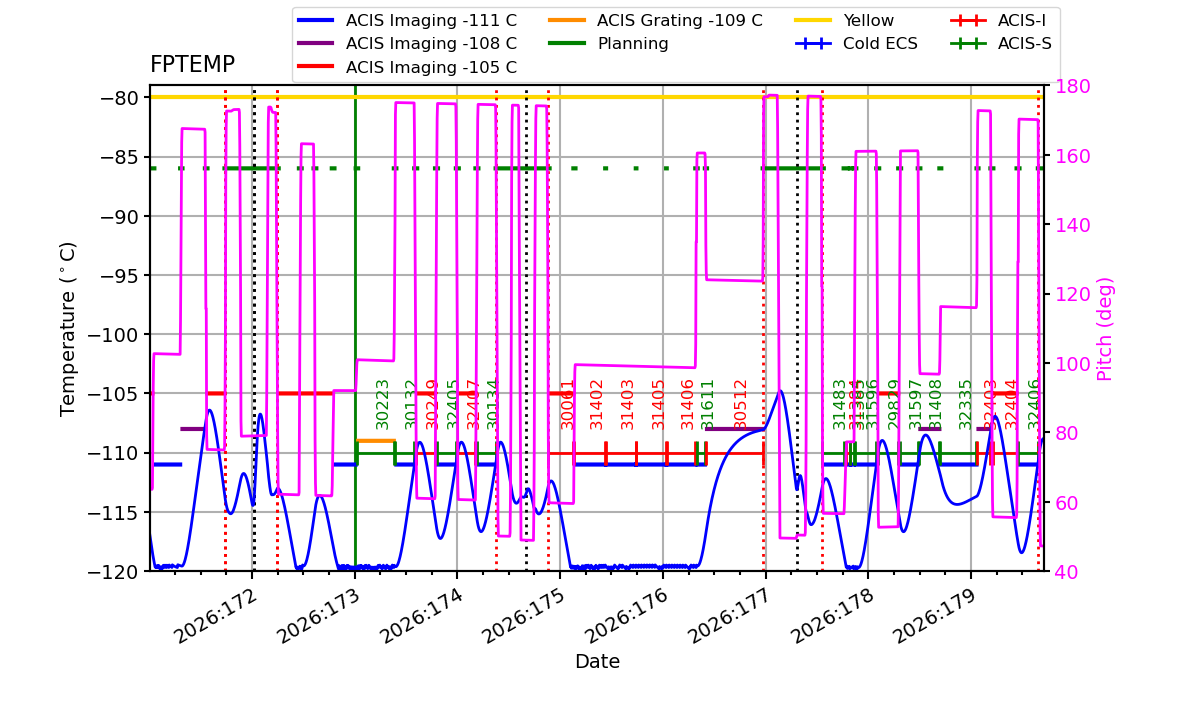

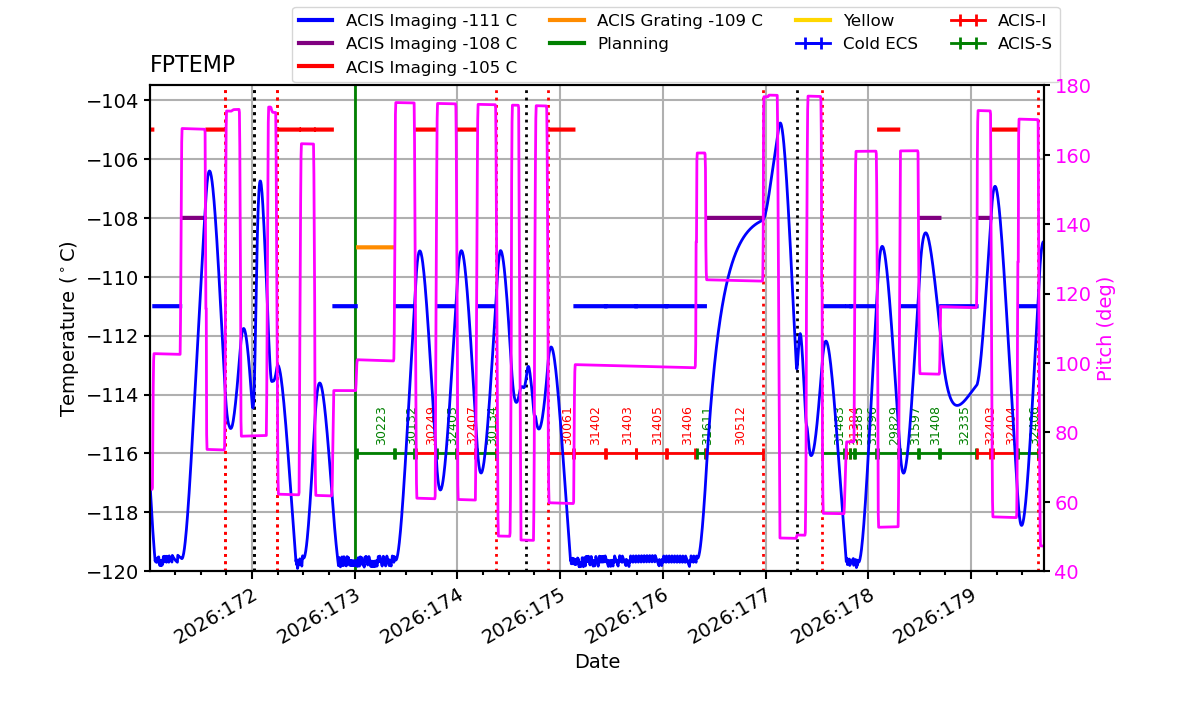

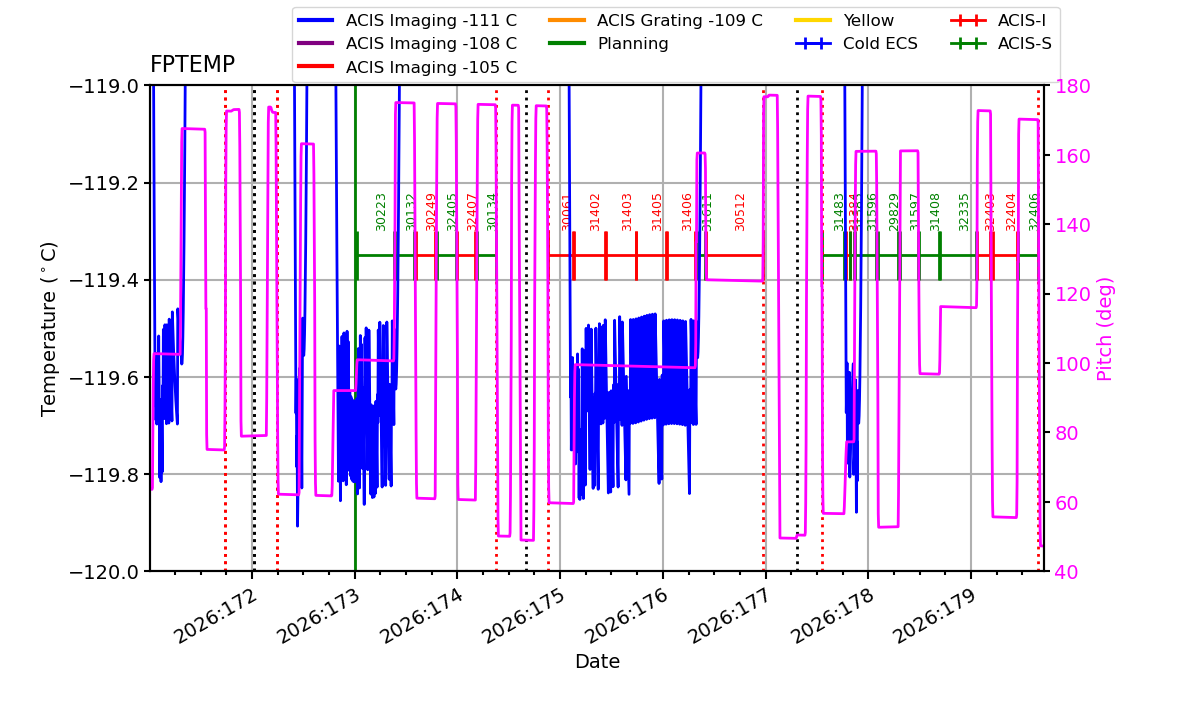

Additional plots of FPTEMP vs TIME for different temperature ranges
