ACISFP Temperatures Check
Summary
| Date start | 2026:083:16:59:59.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2426/oflsa |
| Run time | Sun Mar 22 20:42:48 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:084:11:09:10.816 | 2026:084:11:14:38.816 | 0.33 / 16.50 | -107.83 / -108.00 | 32254 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.07 | -1.40 | -0.41 | 0.47 | 1.17 | 1.64 | 2.04 |
| pitch | -13.425 | -1.625 | -0.004 | 0.000 | 0.004 | 2.035 | 12.726 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.391 | -0.281 | -0.011 | 0.000 | 0.013 | 0.323 | 2.183 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.07 | 2.00 |
| FPTEMP | 99 | 2.04 | 2.00 |
| PITCH | 1 | -13.425 | 3.00 |
| PITCH | 99 | 12.726 | 3.00 |

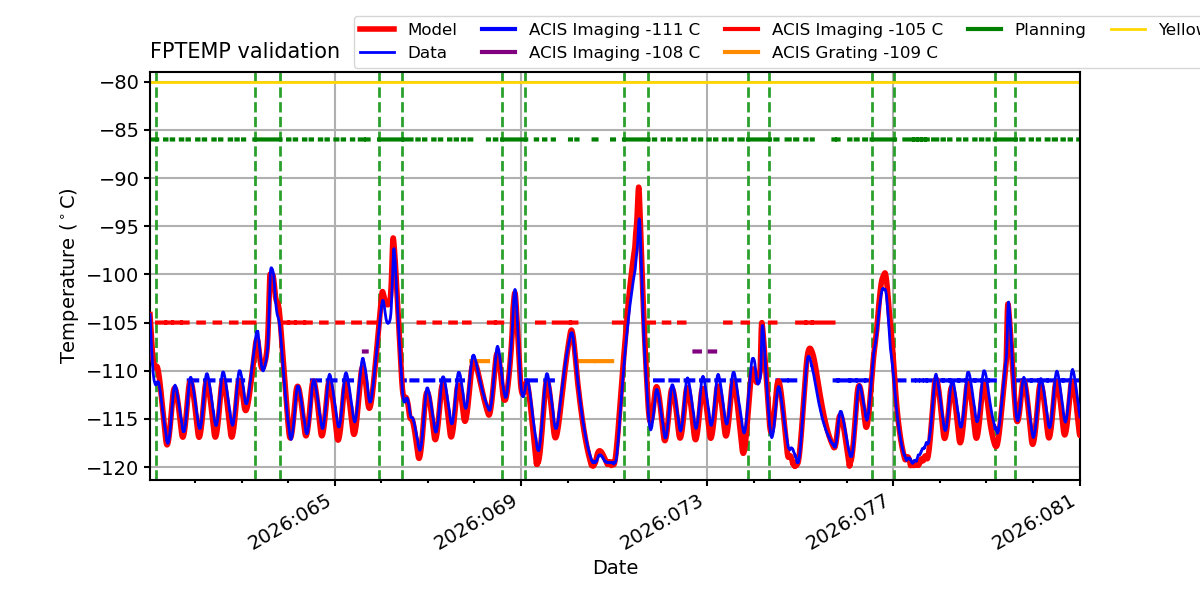

FPTEMP

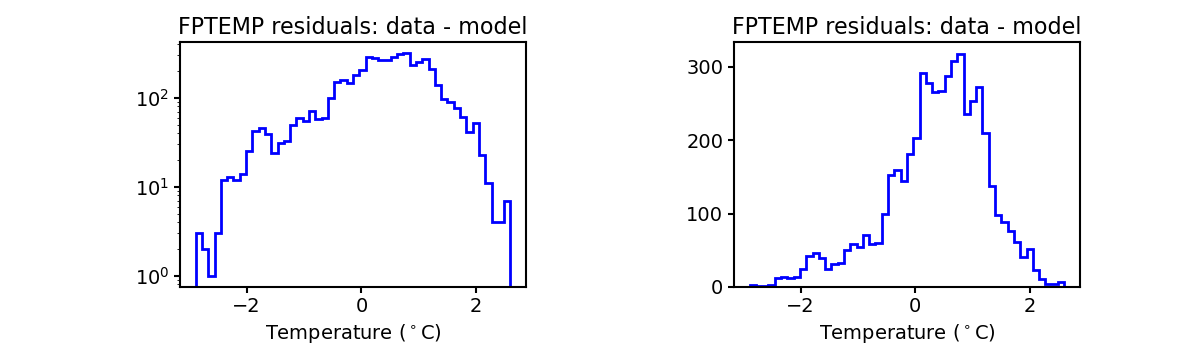

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

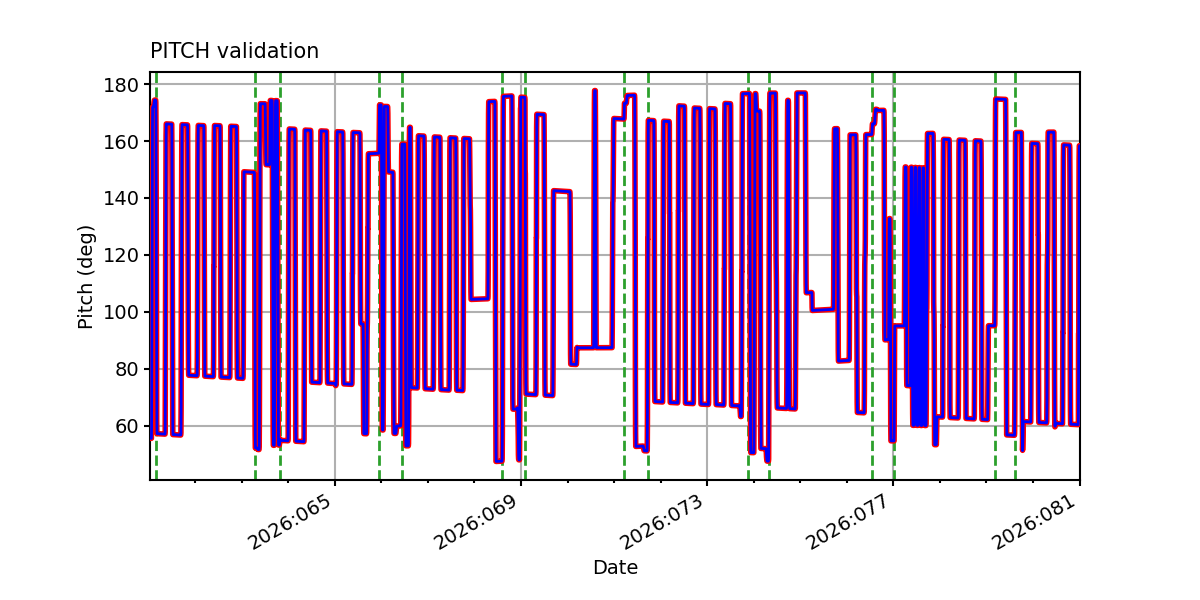

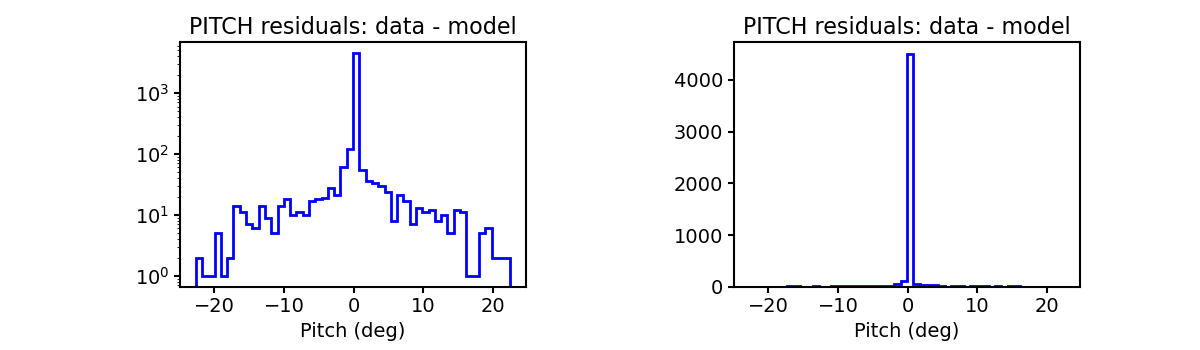

PITCH

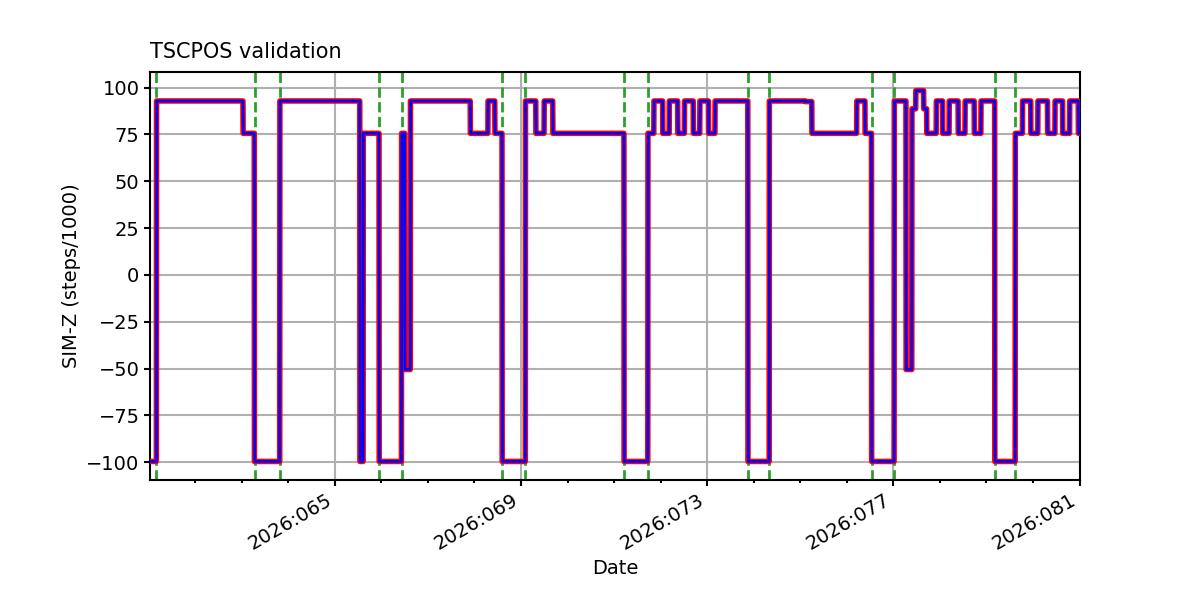

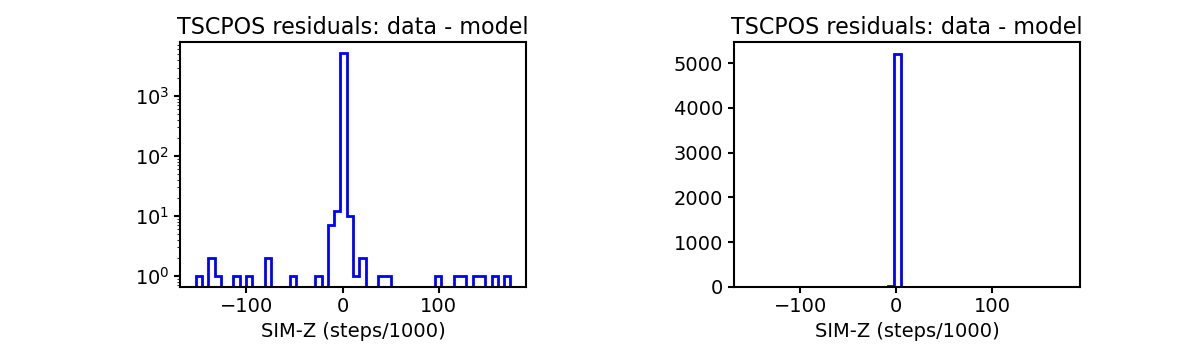

TSCPOS

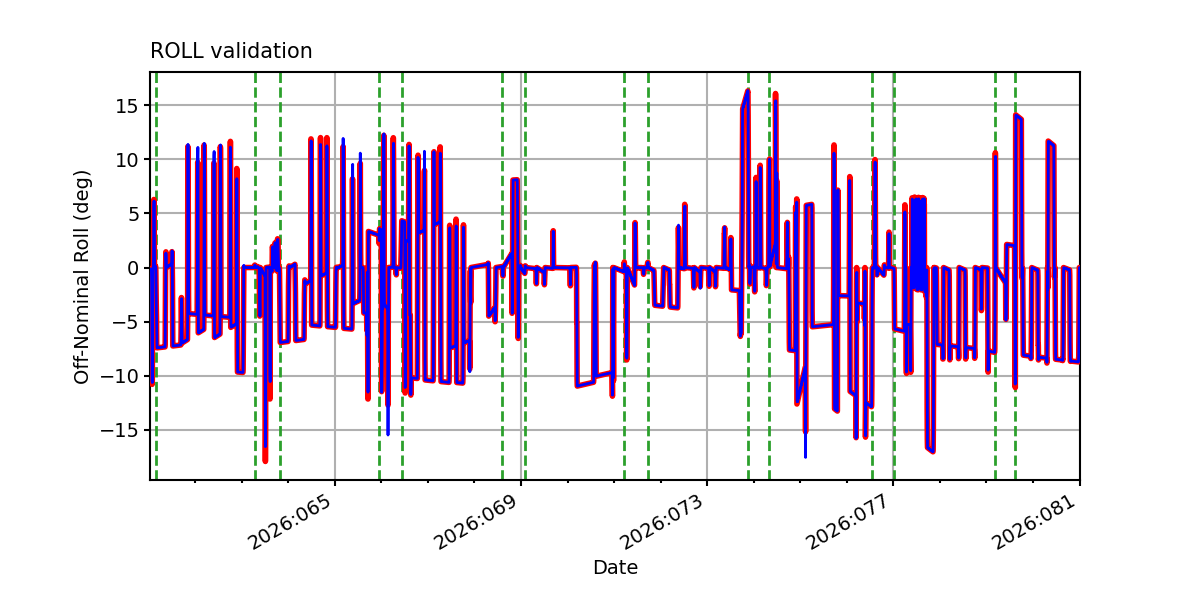

ROLL

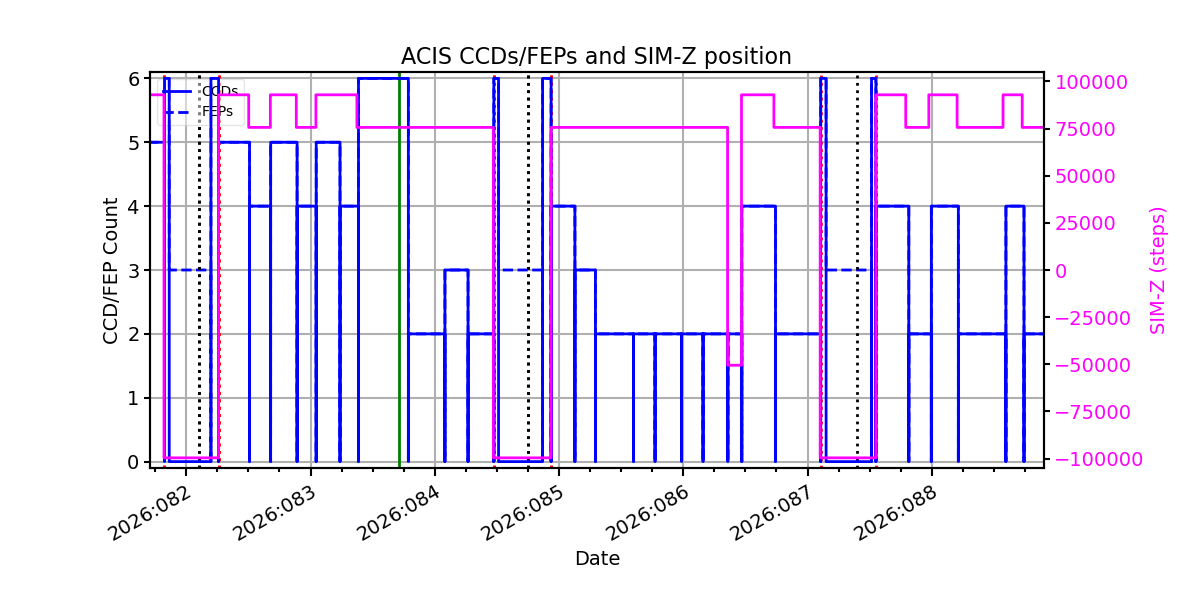

ACIS CCD/FEP Count

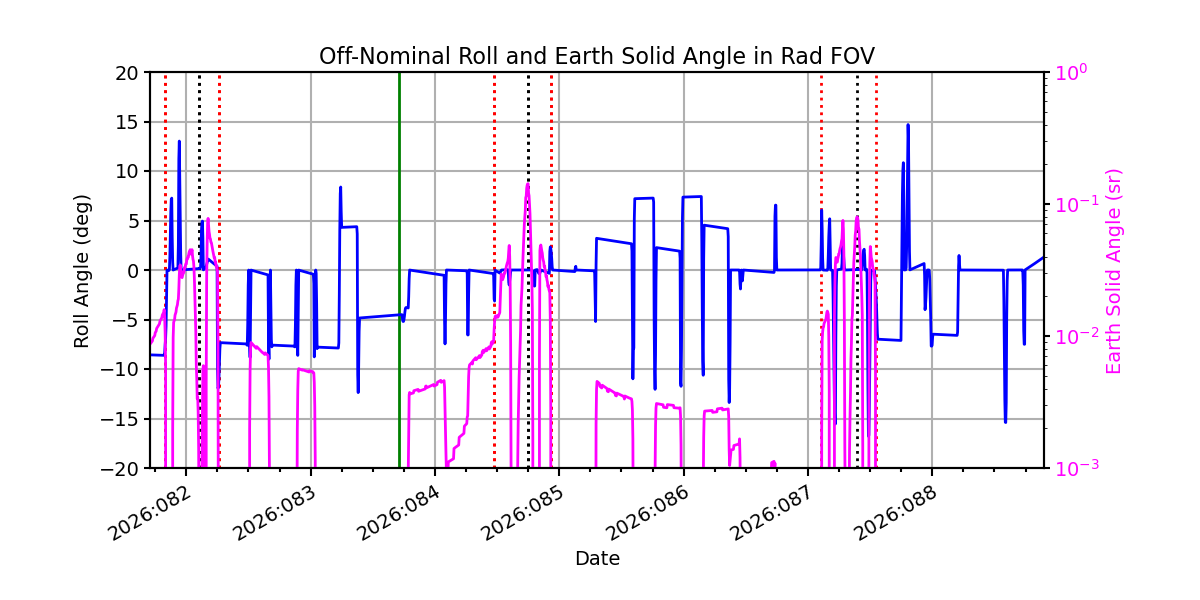

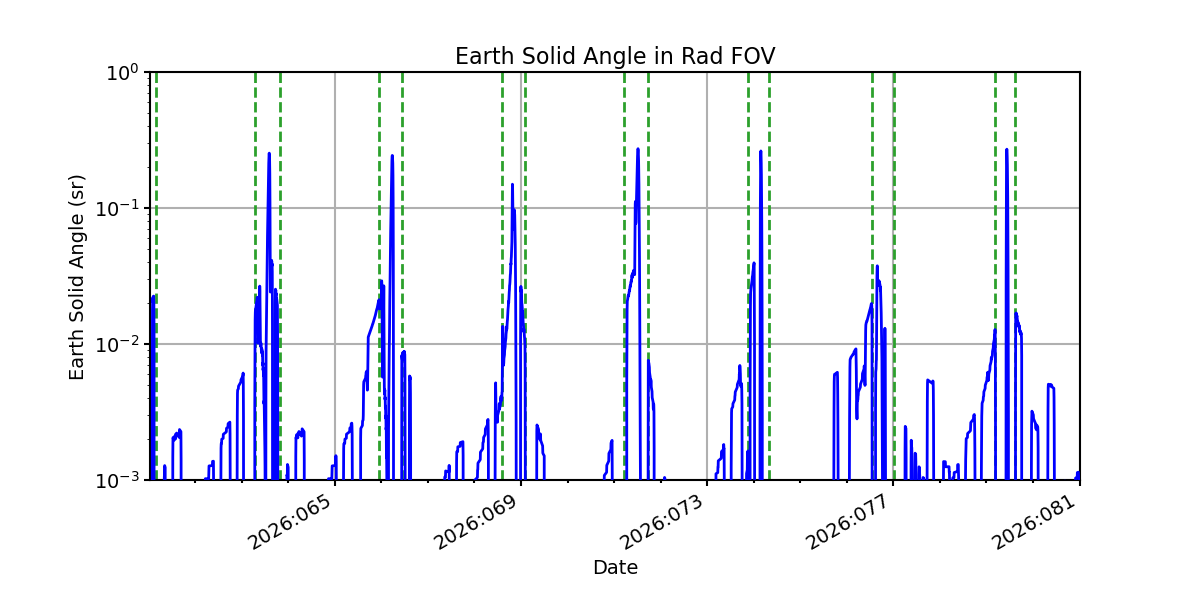

Earth Solid Angle
ADDITIONAL PLOTS

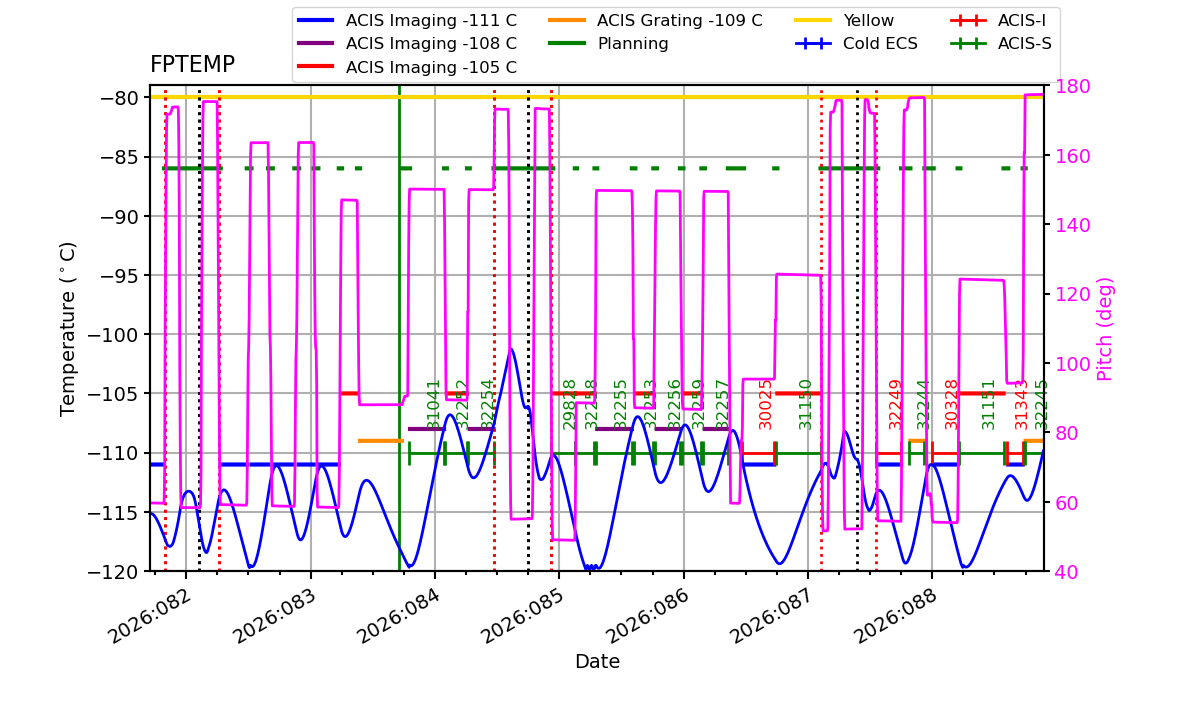

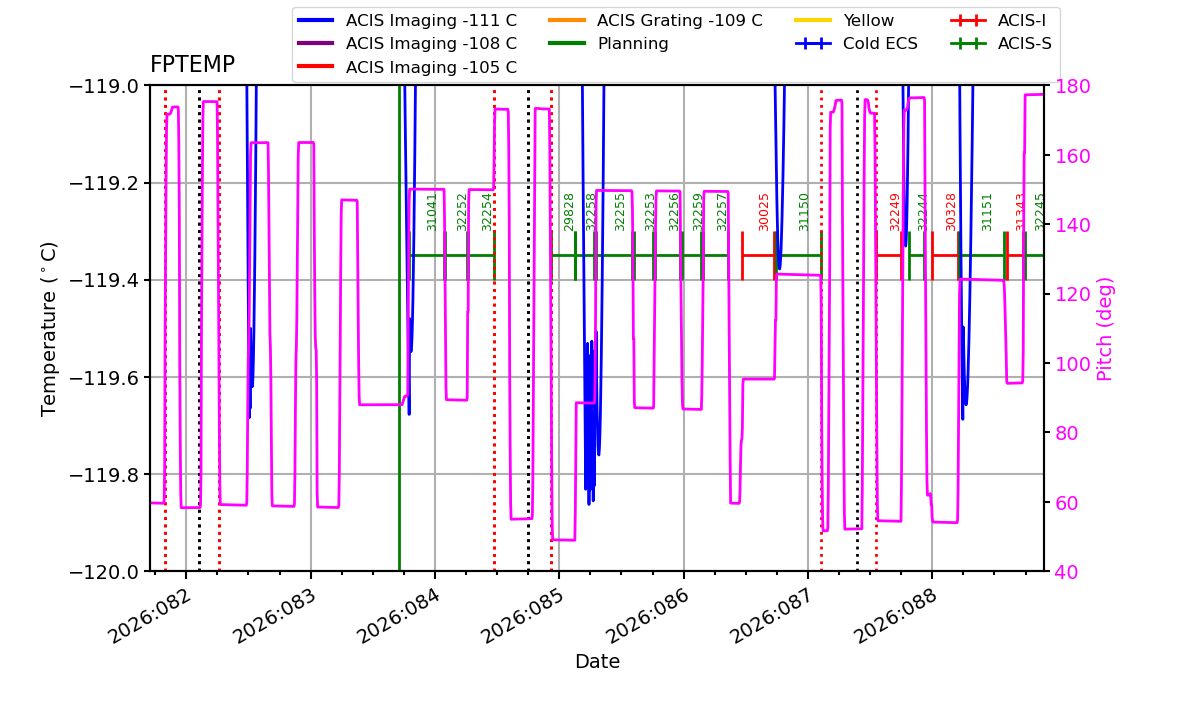

Additional plots of FPTEMP vs TIME for different temperature ranges
