ACISFP Temperatures Check
Summary
| Date start | 2026:088:21:37:04.616 |
| Date stop | 2026:095:21:43:32.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR3026/oflsa |
| Run time | Thu Mar 26 12:40:17 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.07 | -1.44 | -0.34 | 0.55 | 1.35 | 1.97 | 2.78 |
| pitch | -13.075 | -1.399 | -0.004 | -0.000 | 0.004 | 1.910 | 12.918 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.295 | -0.286 | -0.011 | -0.000 | 0.011 | 0.240 | 2.264 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.07 | 2.00 |
| FPTEMP | 99 | 2.78 | 2.00 |
| PITCH | 1 | -13.075 | 3.00 |
| PITCH | 99 | 12.918 | 3.00 |
FPTEMP

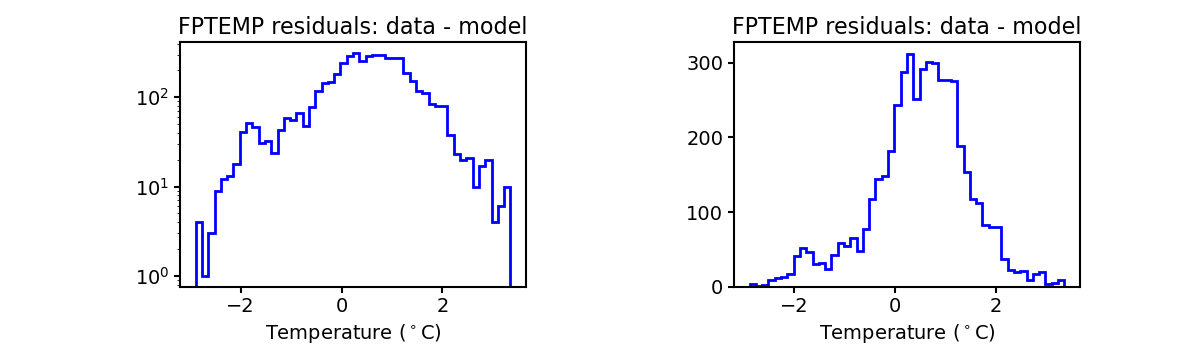

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

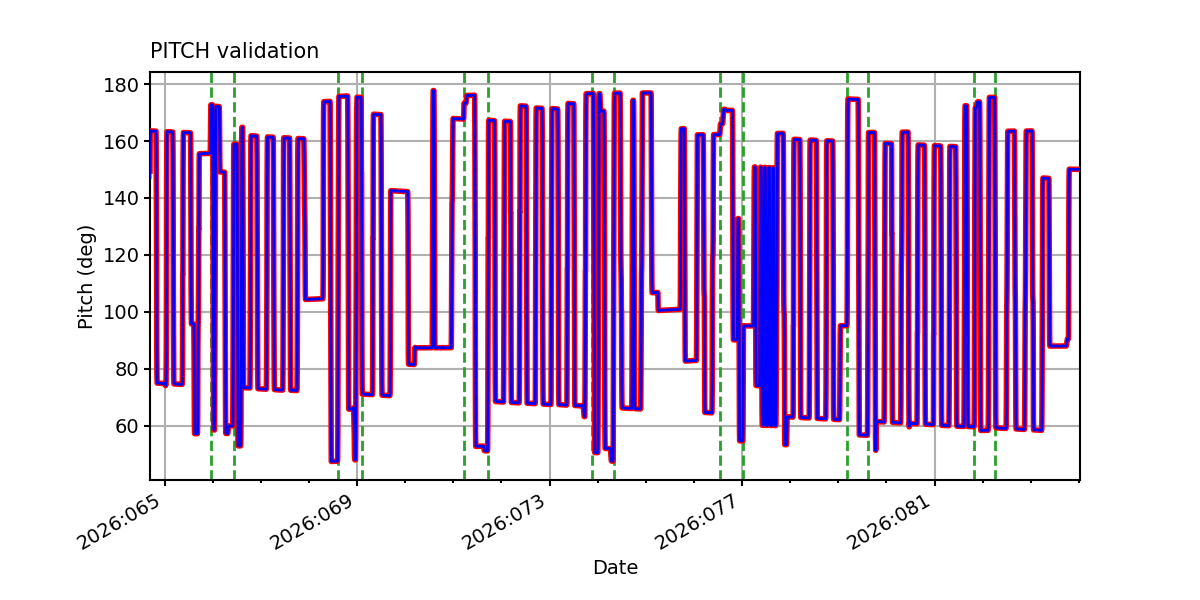

PITCH

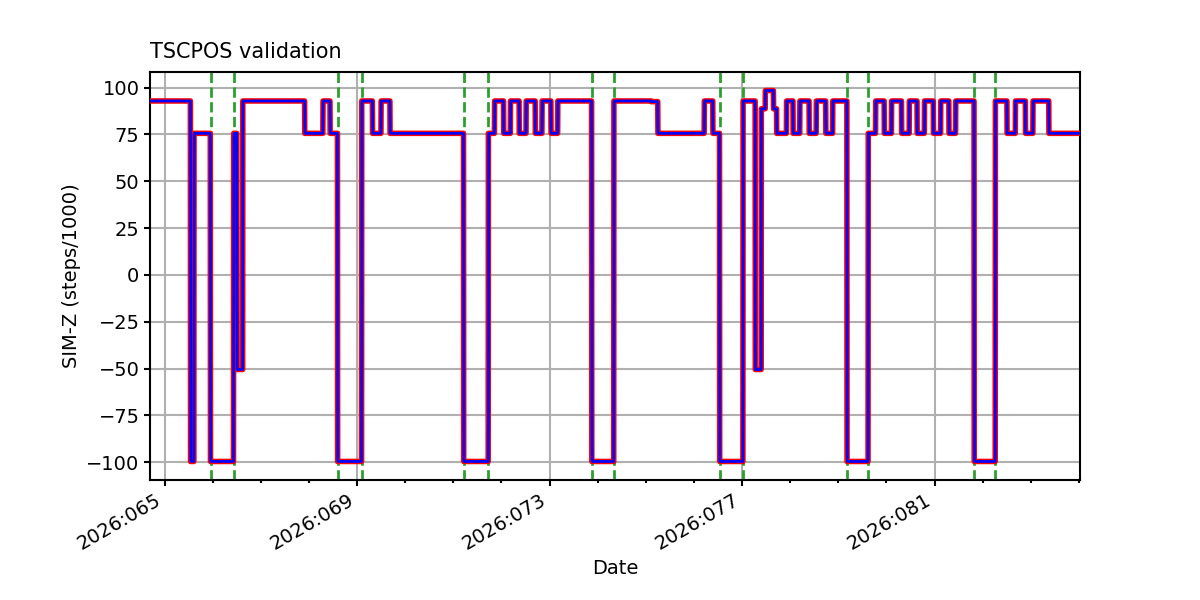

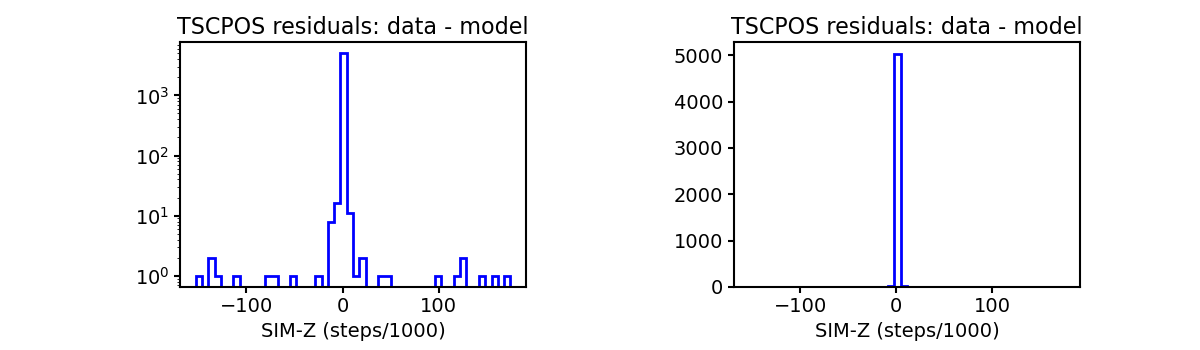

TSCPOS

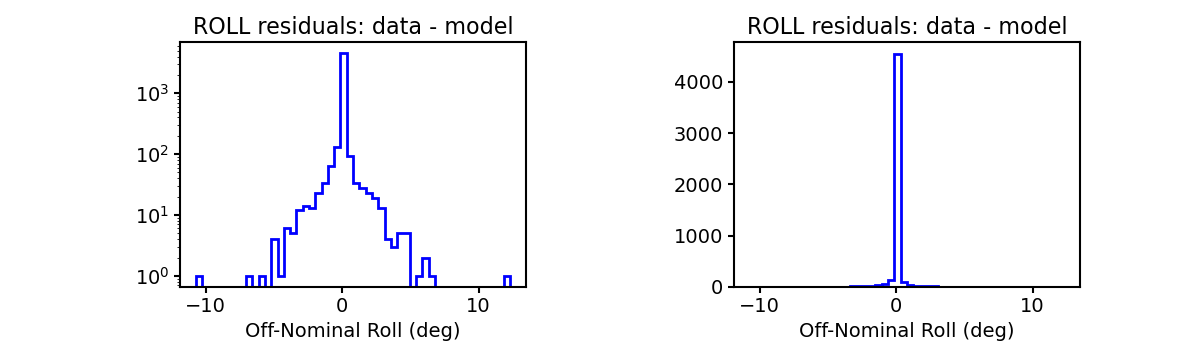

ROLL

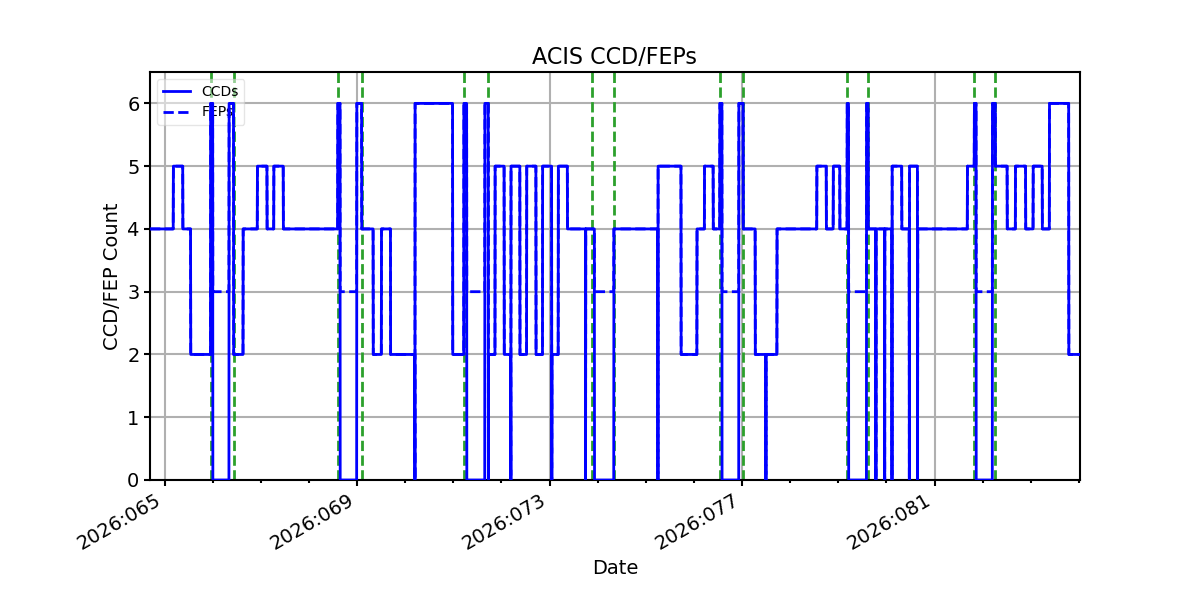

ACIS CCD/FEP Count

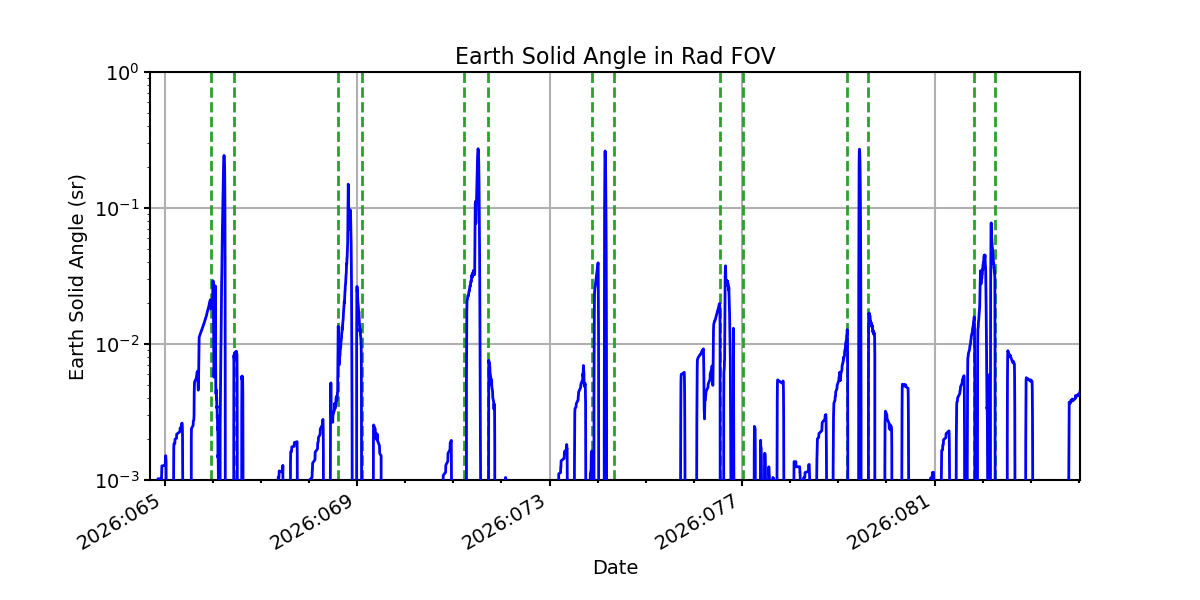

Earth Solid Angle
ADDITIONAL PLOTS

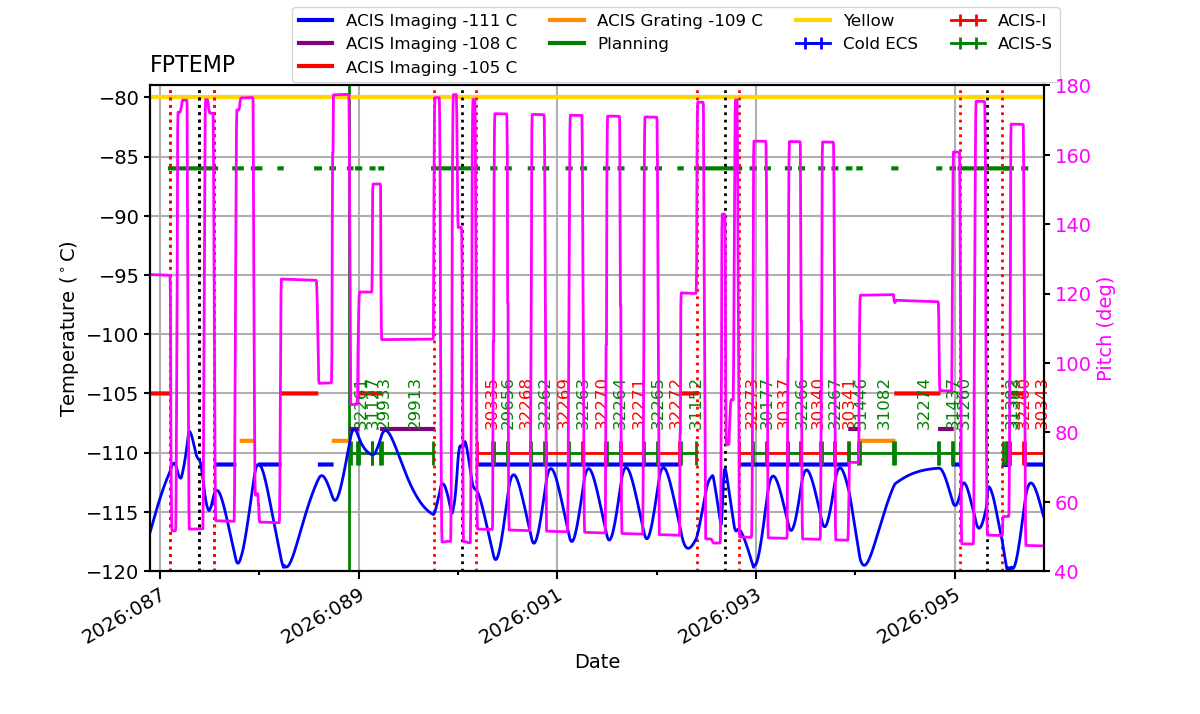

Additional plots of FPTEMP vs TIME for different temperature ranges
