ACISFP Temperatures Check
Summary
| Date start | 2026:123:23:20:16.016 |
| Date stop | 2026:130:20:58:40.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY0426/oflsa |
| Run time | Thu Apr 30 10:19:09 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.84 | -1.13 | -0.77 | 0.17 | 1.05 | 1.84 | 2.47 |
| pitch | -10.470 | -0.636 | -0.004 | 0.000 | 0.004 | 0.599 | 11.057 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.842 | -0.139 | -0.007 | -0.000 | 0.008 | 0.158 | 2.137 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.47 | 2.00 |
| PITCH | 1 | -10.47 | 3.00 |
| PITCH | 99 | 11.057 | 3.00 |

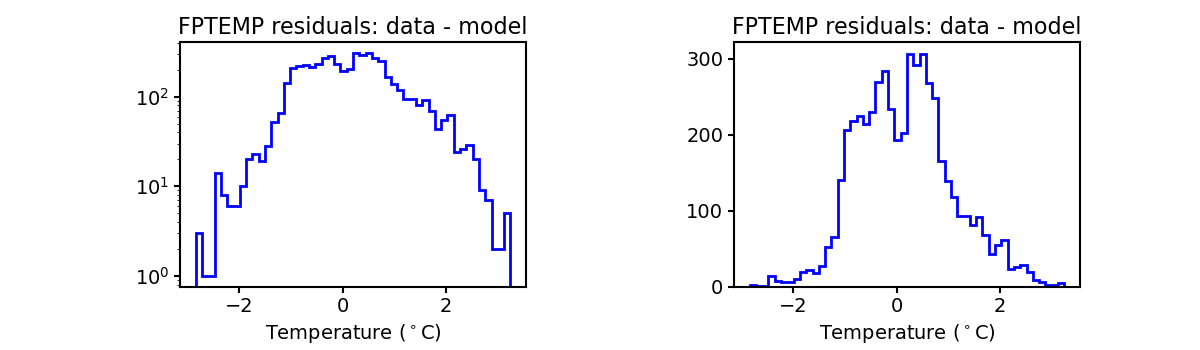

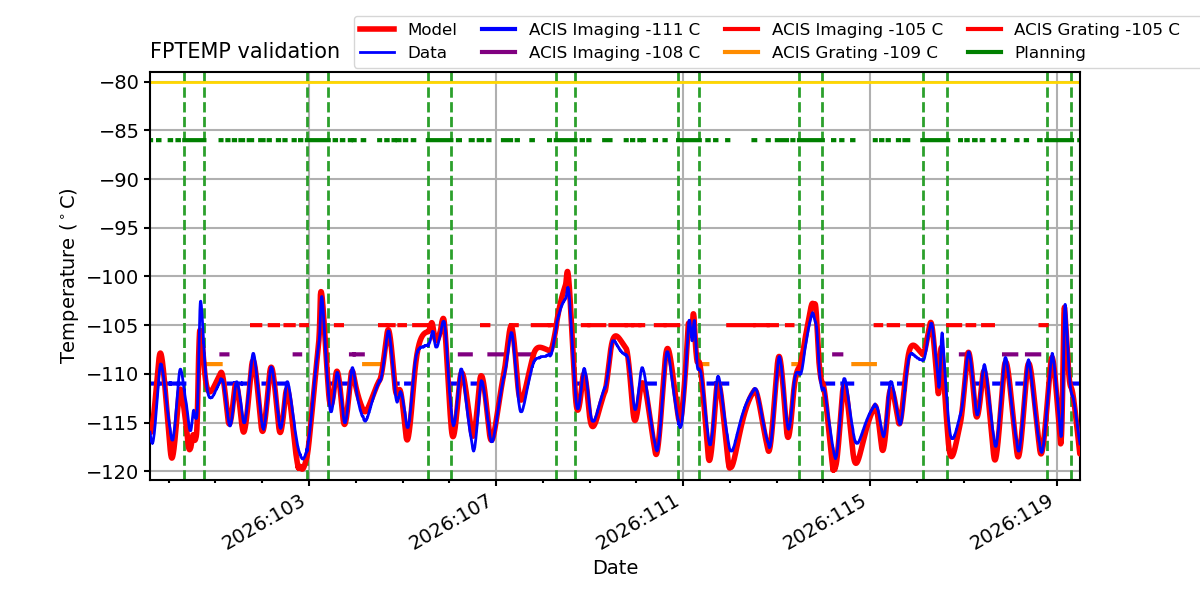

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

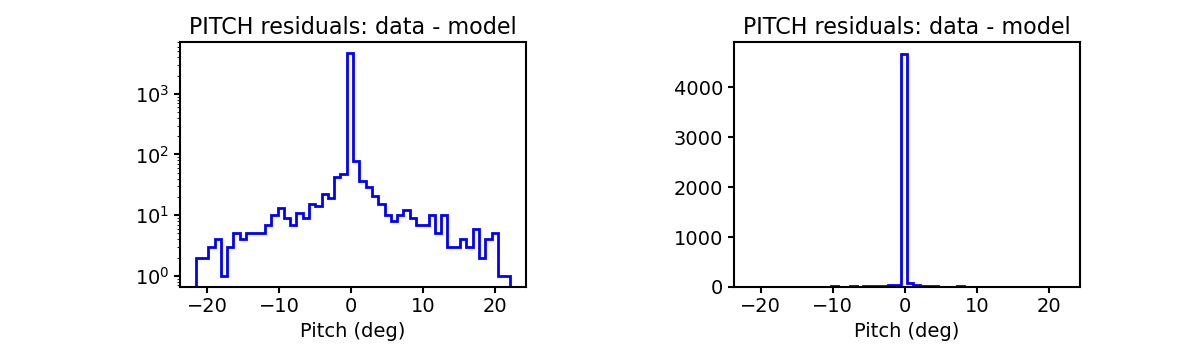

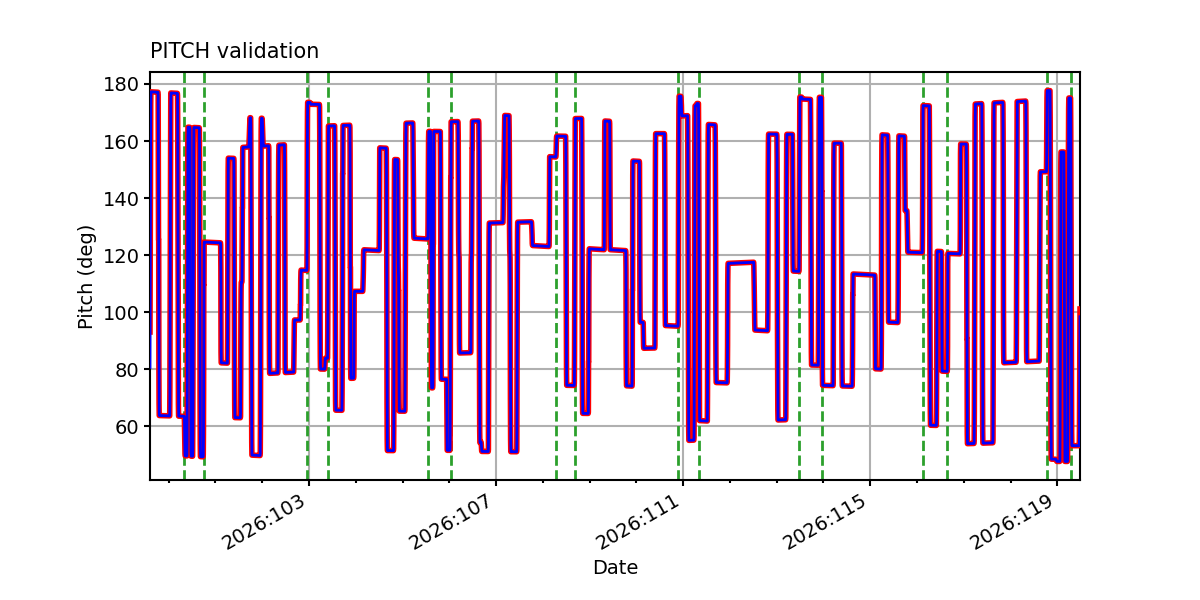

PITCH

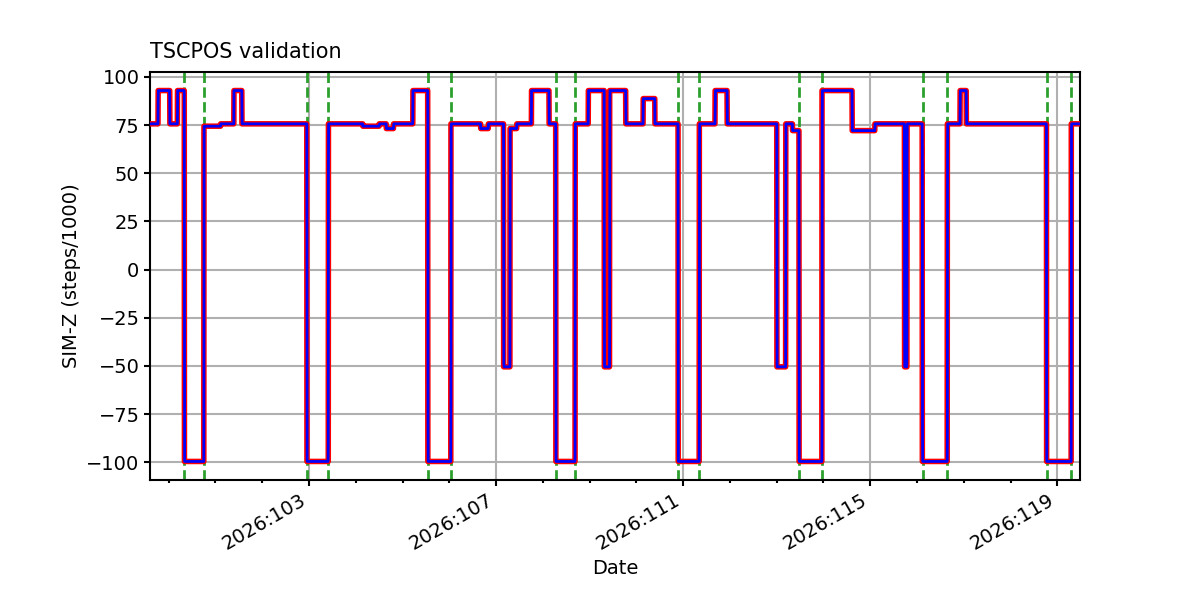

TSCPOS

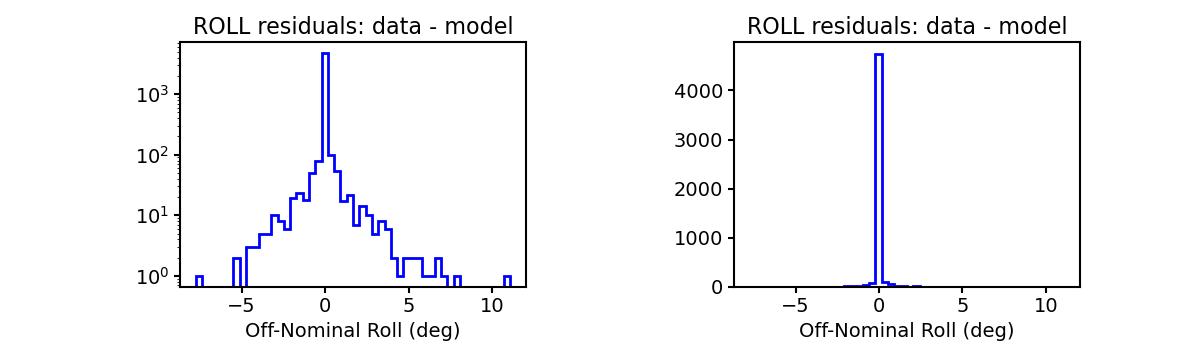

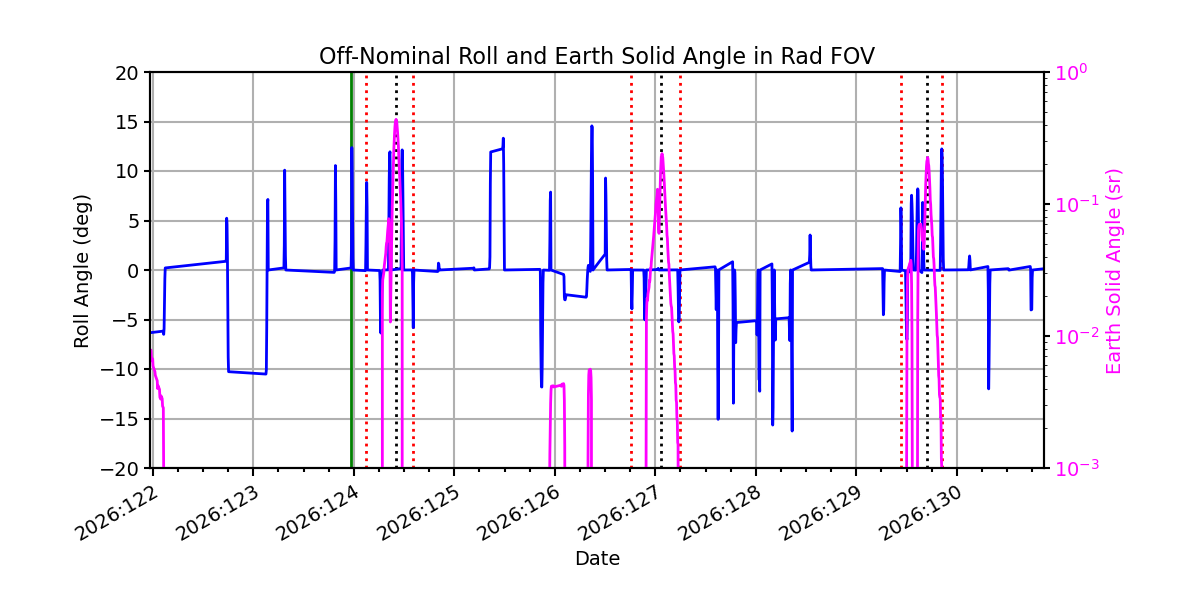

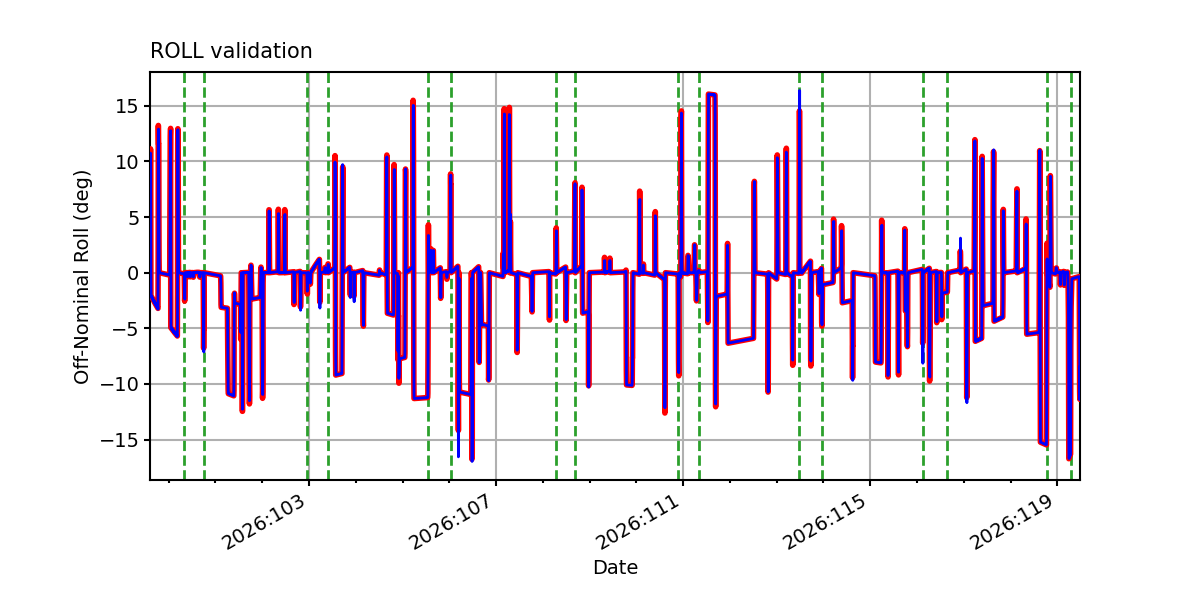

ROLL

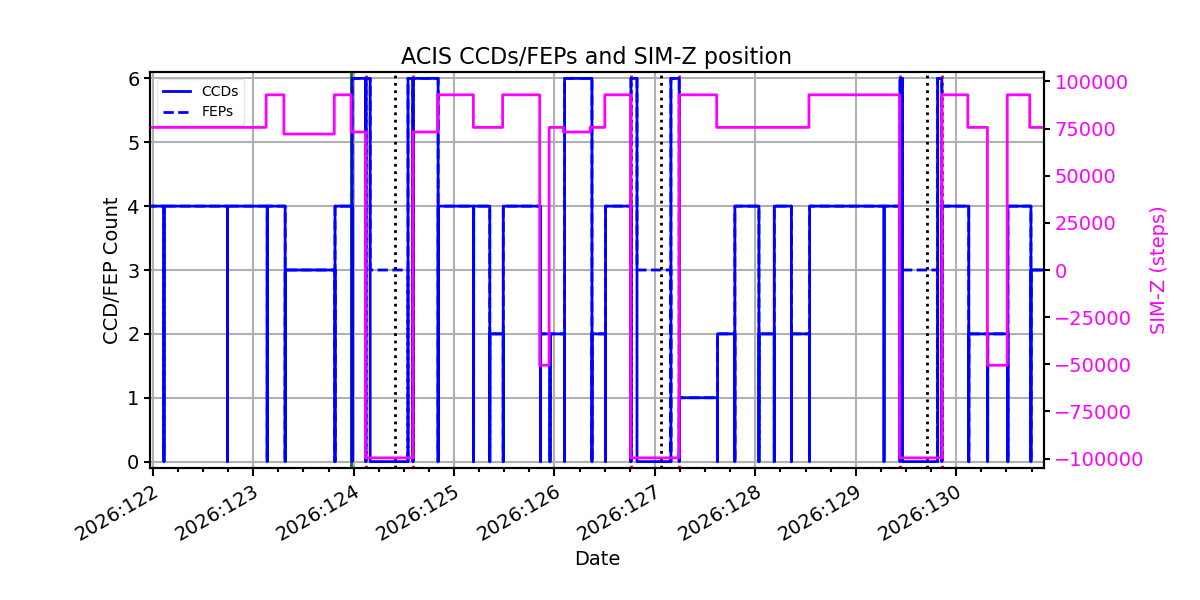

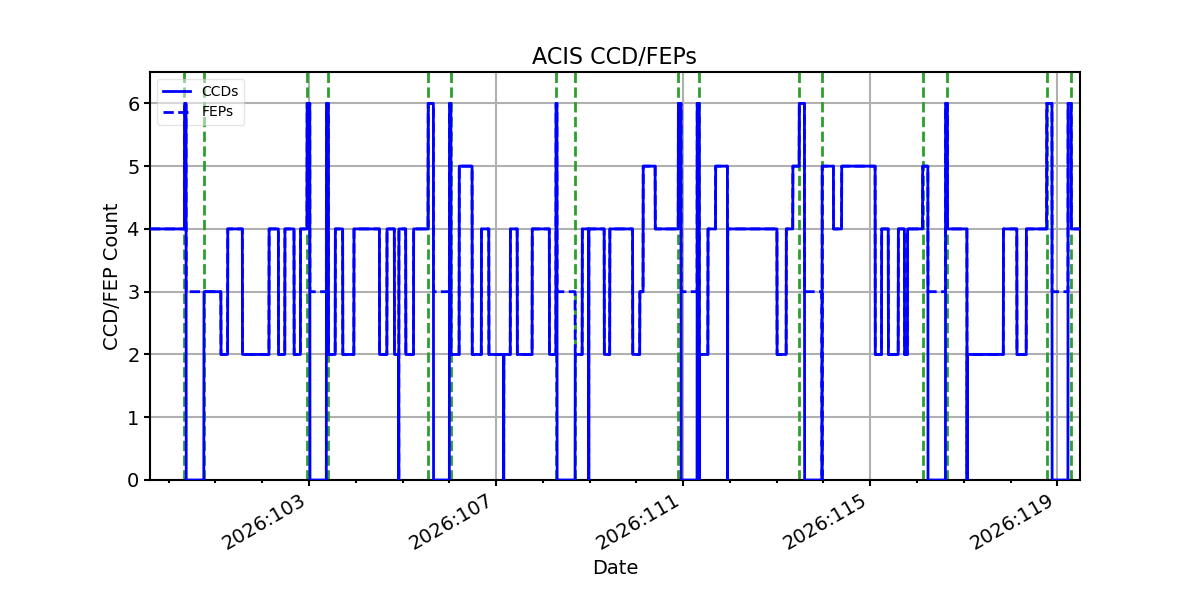

ACIS CCD/FEP Count

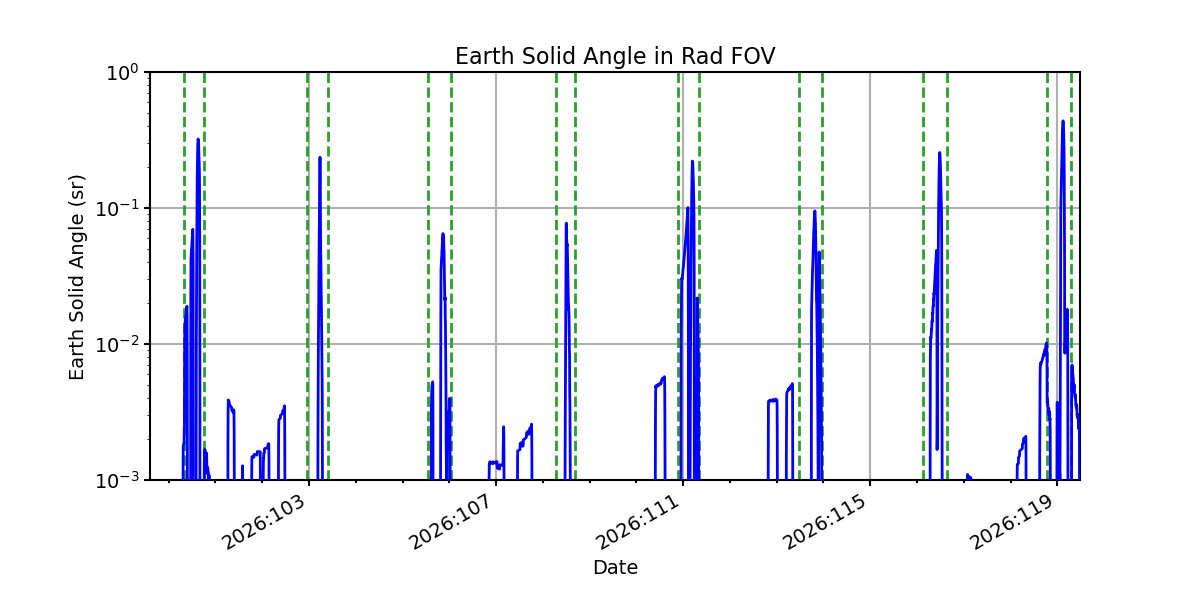

Earth Solid Angle
ADDITIONAL PLOTS

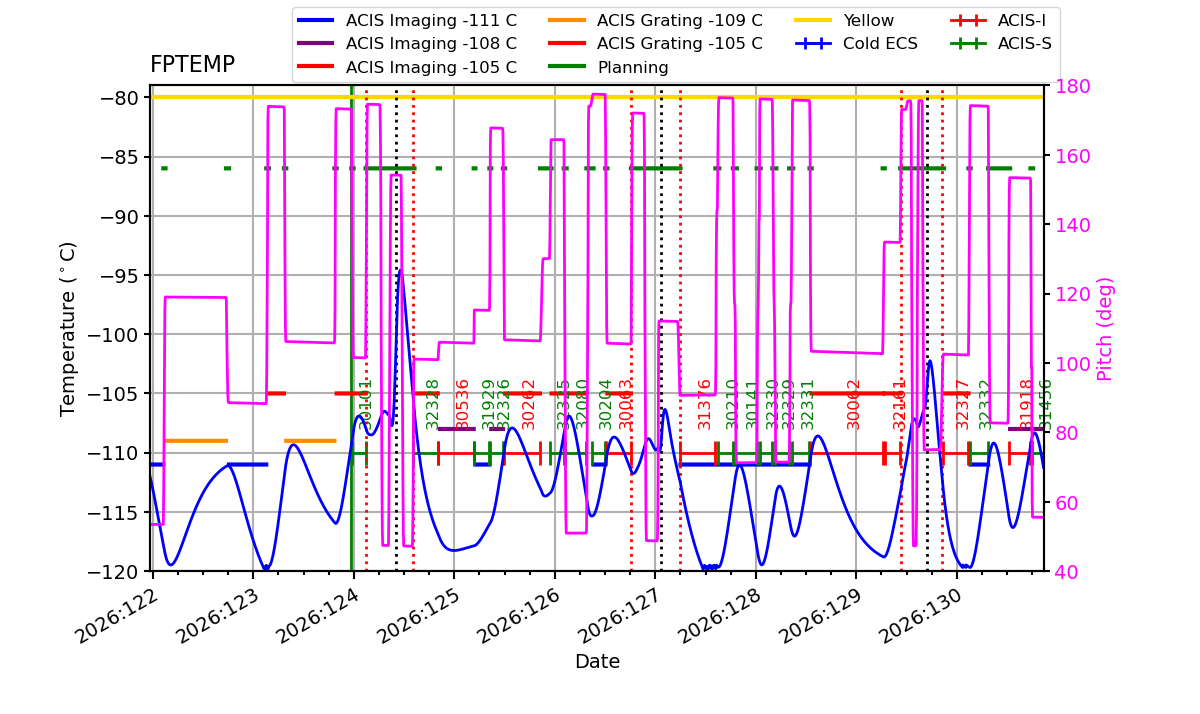

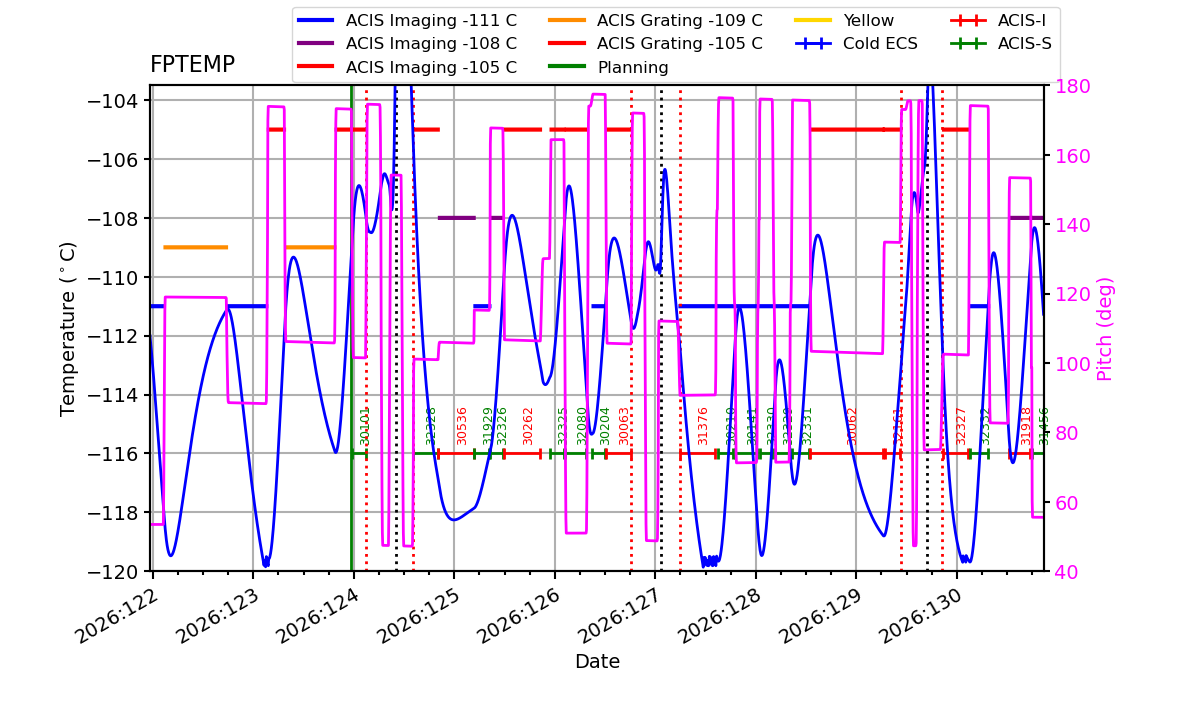

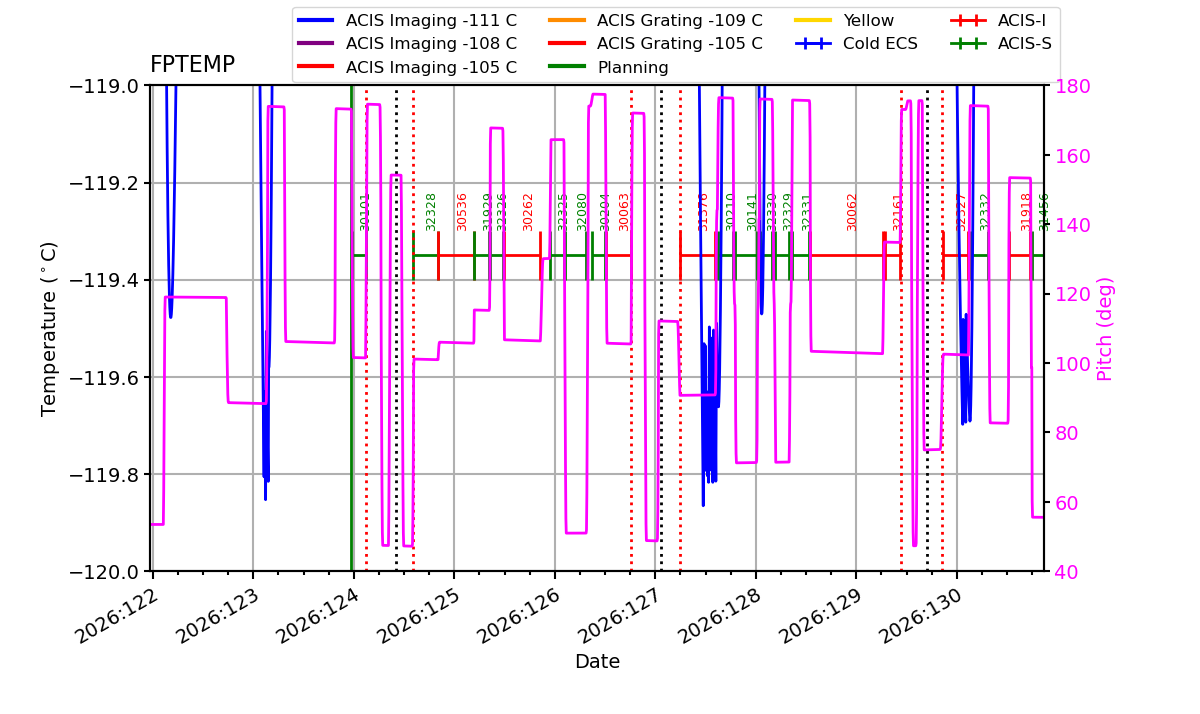

Additional plots of FPTEMP vs TIME for different temperature ranges
