ACISFP Temperatures Check
Summary
| Date start | 2025:125:01:49:24.916 |
| Date stop | 2025:131:21:15:39.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY0525/ofls |
| Run time | Wed Apr 30 12:13:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.58 | -1.89 | -1.27 | 0.05 | 1.36 | 1.94 | 2.41 |
| pitch | -6.644 | -0.416 | -0.004 | 0.000 | 0.004 | 0.666 | 5.803 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.413 | -0.079 | -0.004 | 0.000 | 0.006 | 0.166 | 1.367 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.58 | 2.00 |
| FPTEMP | 99 | 2.41 | 2.00 |
| PITCH | 1 | -6.644 | 3.00 |
| PITCH | 99 | 5.803 | 3.00 |

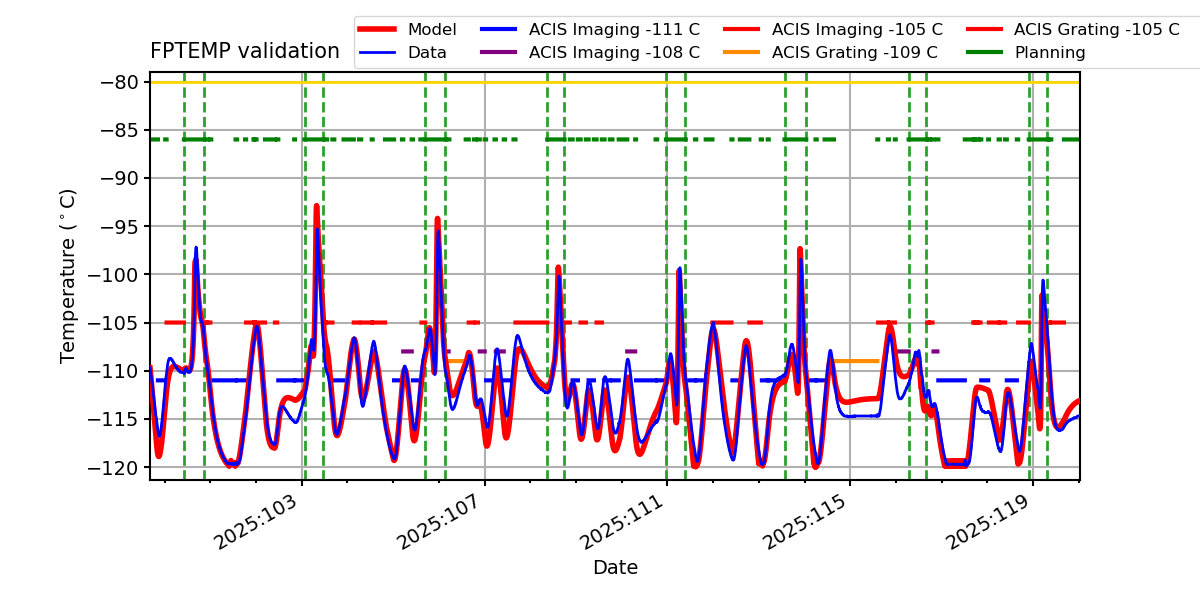

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

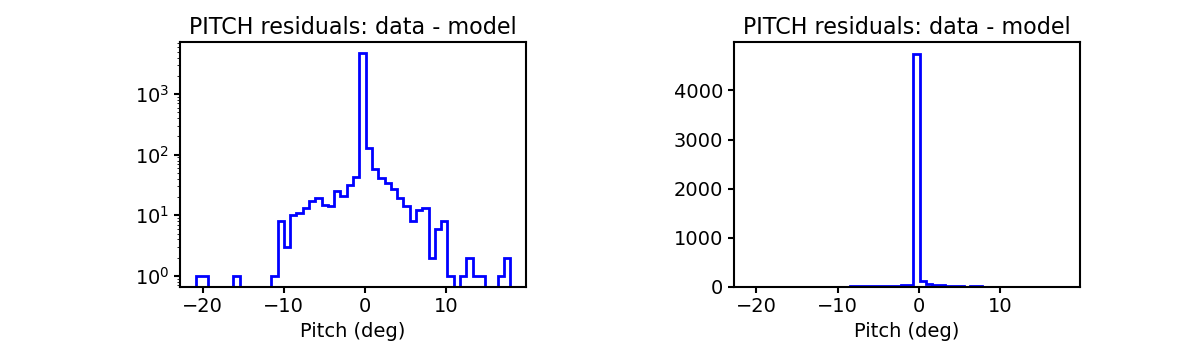

PITCH

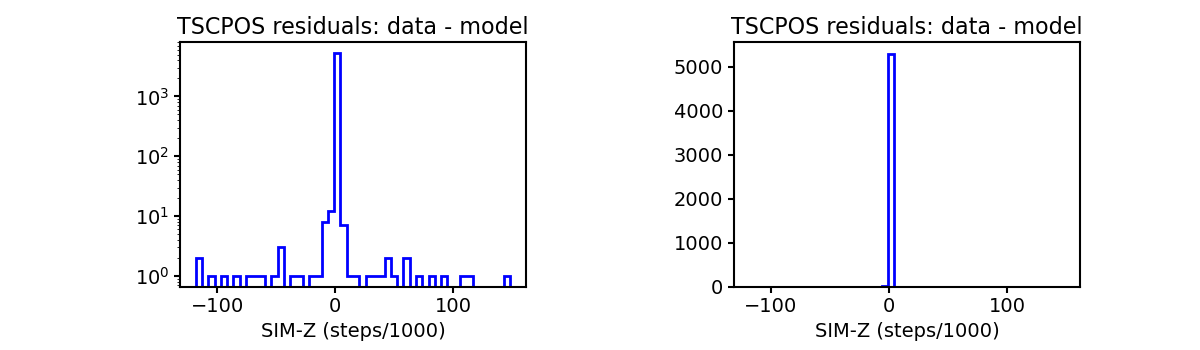

TSCPOS

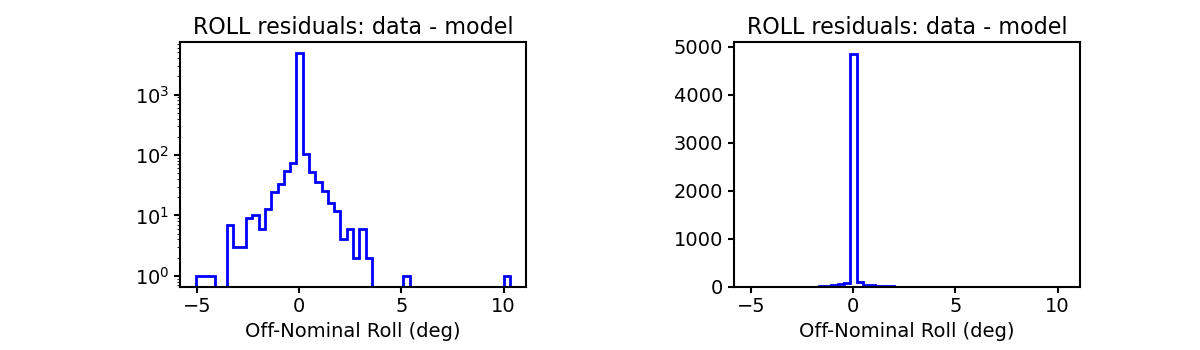

ROLL

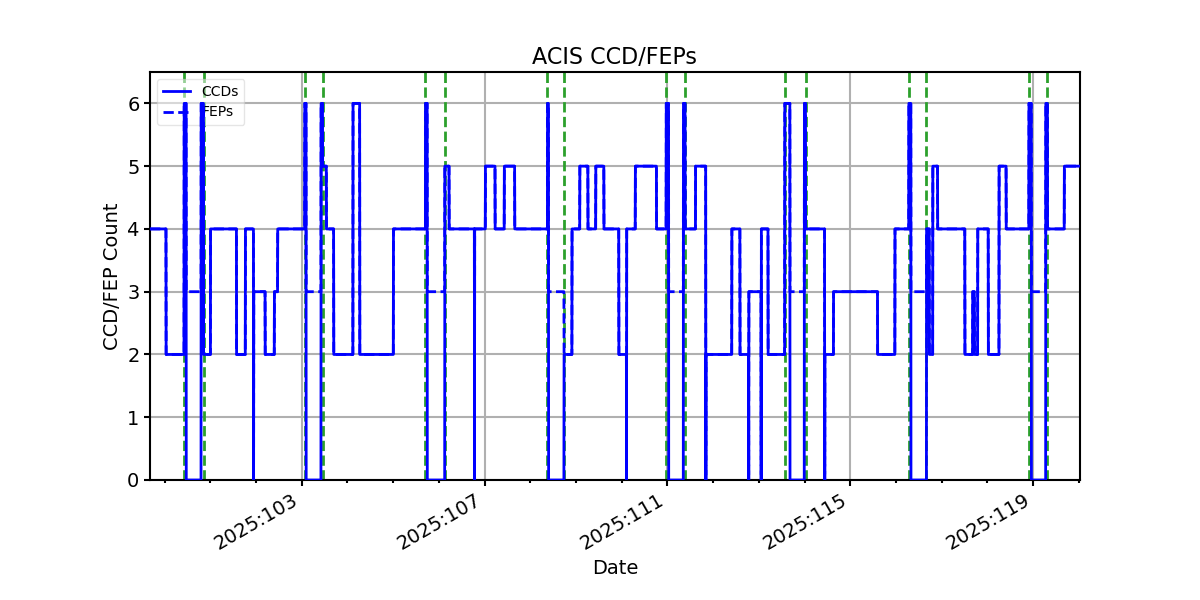

ACIS CCD/FEP Count

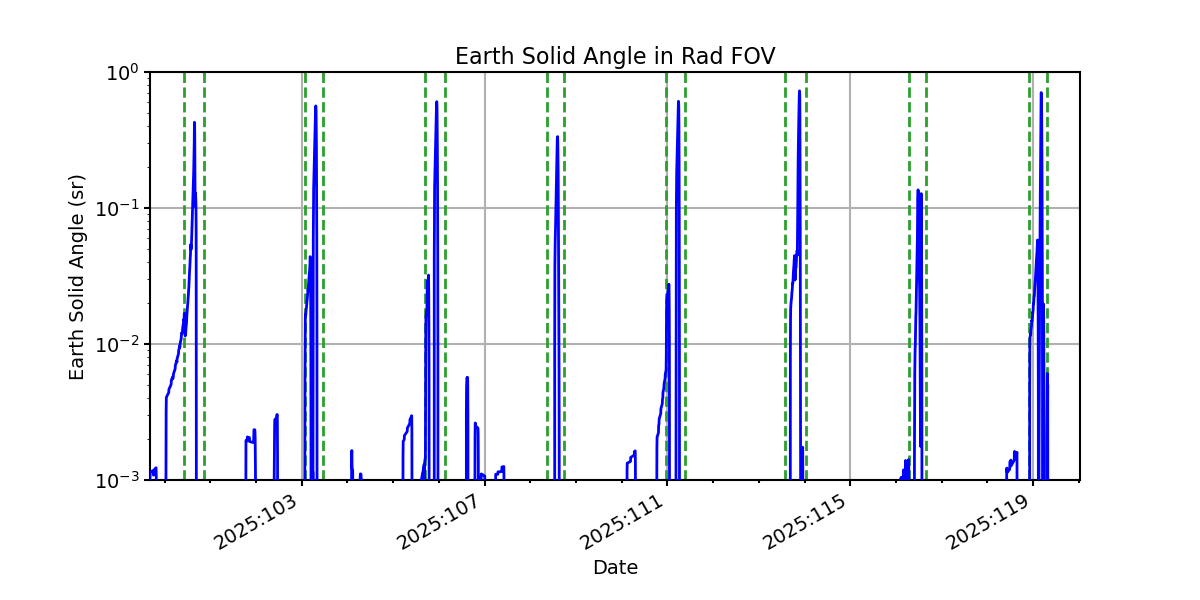

Earth Solid Angle
ADDITIONAL PLOTS

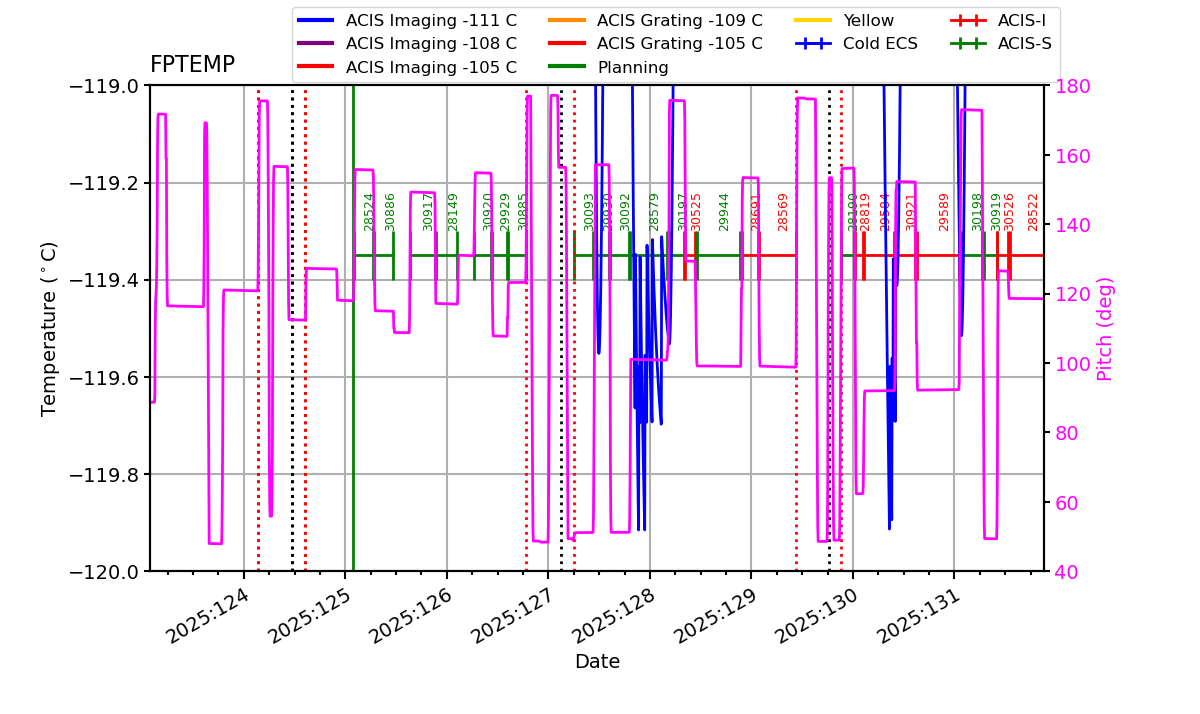

Additional plots of FPTEMP vs TIME for different temperature ranges
