ACISFP Temperatures Check
Summary
| Date start | 2025:318:21:50:00.016 |
| Date stop | 2025:327:21:06:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/NOV1425/oflsa |
| Run time | Thu Nov 13 11:25:07 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2025:326:01:59:43.046 | 2025:326:02:24:22.816 | 1.48 / 10.50 | -110.91 / -111.00 | 32004 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.97 | -1.18 | -0.68 | -0.09 | 0.60 | 1.04 | 1.52 |
| pitch | -12.858 | -1.629 | -0.004 | -0.000 | 0.004 | 1.061 | 12.290 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.247 | -0.221 | -0.007 | -0.000 | 0.007 | 0.229 | 2.500 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.858 | 3.00 |
| PITCH | 99 | 12.29 | 3.00 |
FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH
TSCPOS
ROLL

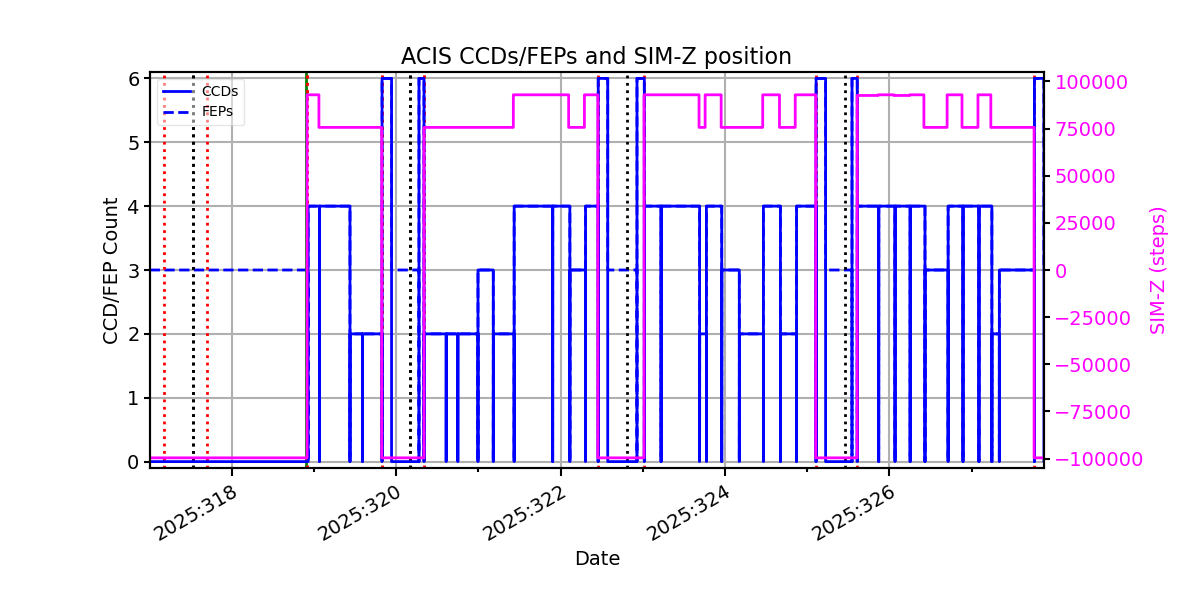

ACIS CCD/FEP Count
Earth Solid Angle
ADDITIONAL PLOTS

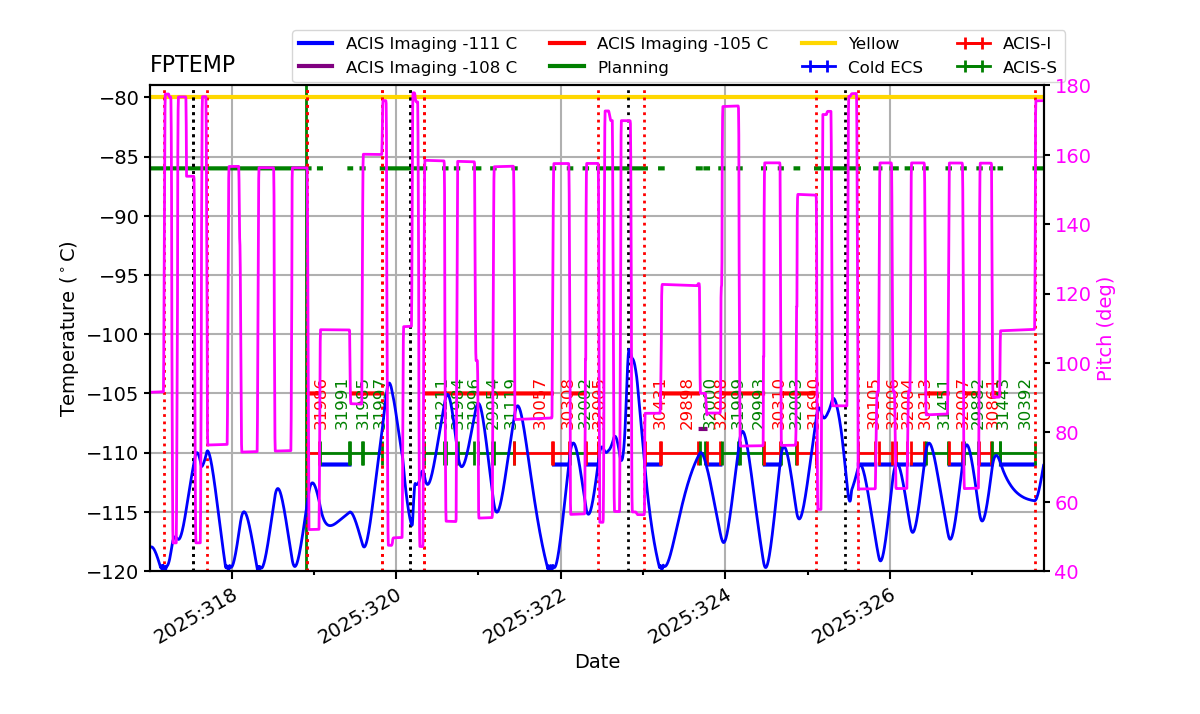

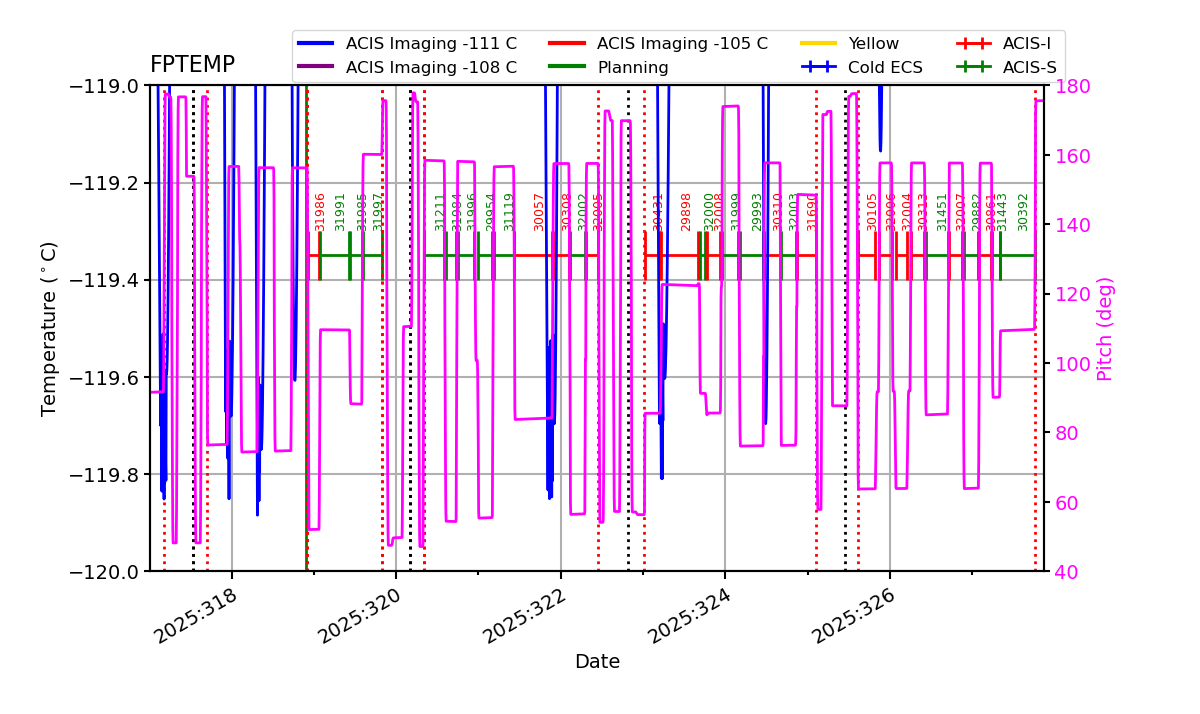

Additional plots of FPTEMP vs TIME for different temperature ranges
