ACISFP Temperatures Check
Summary
| Date start | 2025:327:21:03:00.016 |
| Date stop | 2025:335:01:22:35.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/NOV2425/ofls |
| Run time | Wed Nov 19 21:49:29 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2025:328:06:32:54.070 | 2025:328:06:36:46.816 | 0.23 / 14.50 | -104.90 / -105.00 | 31879 |
| 2025:332:13:34:06.816 | 2025:332:13:45:02.816 | 0.66 / 10.00 | -107.98 / -108.00 | 32012 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.50 | -0.94 | -0.64 | -0.02 | 0.71 | 1.21 | 4.04 |
| pitch | -12.655 | -1.630 | -0.004 | 0.000 | 0.004 | 1.404 | 12.292 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.475 | -0.209 | -0.007 | -0.000 | 0.007 | 0.270 | 2.420 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 4.04 | 2.00 |
| PITCH | 1 | -12.655 | 3.00 |
| PITCH | 99 | 12.292 | 3.00 |

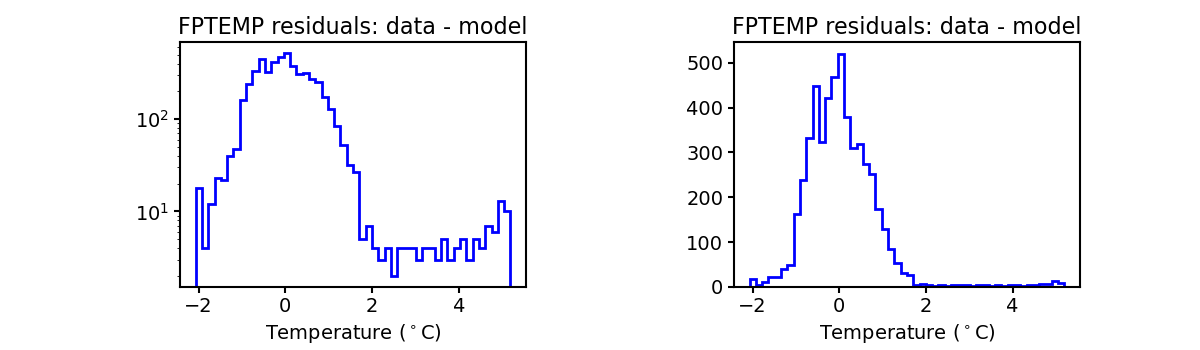

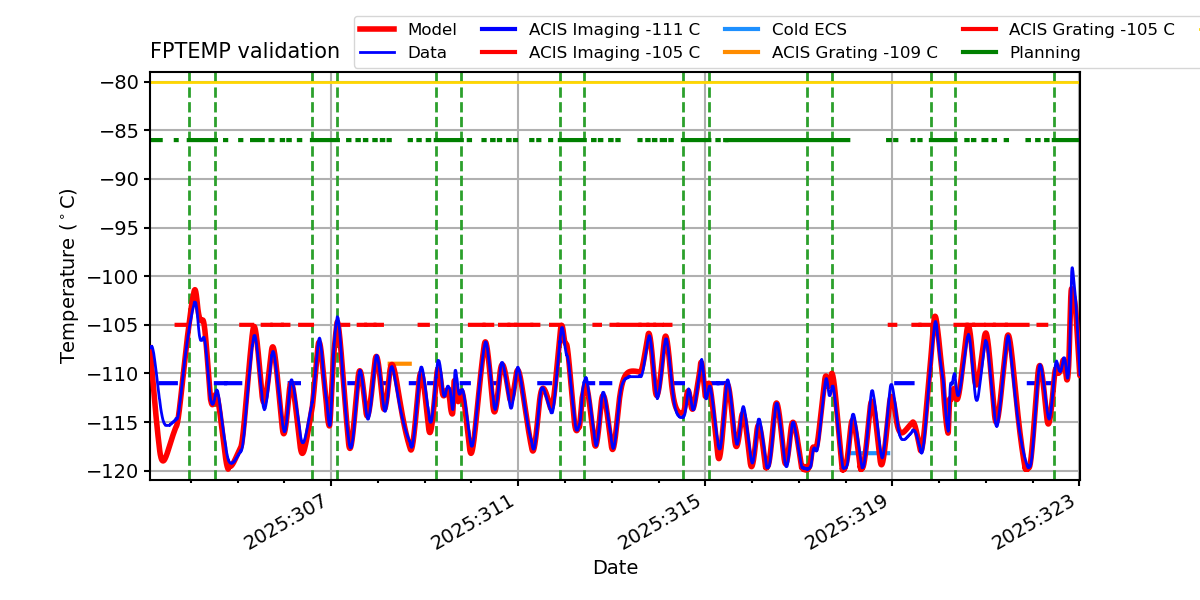

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

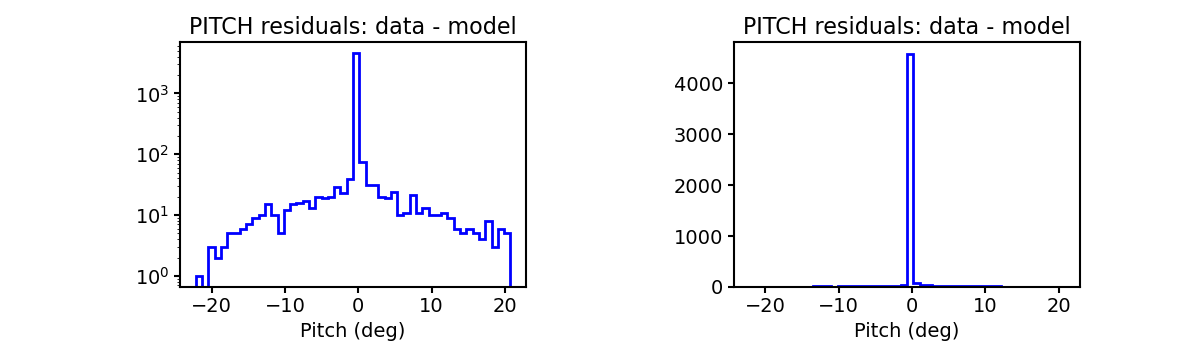

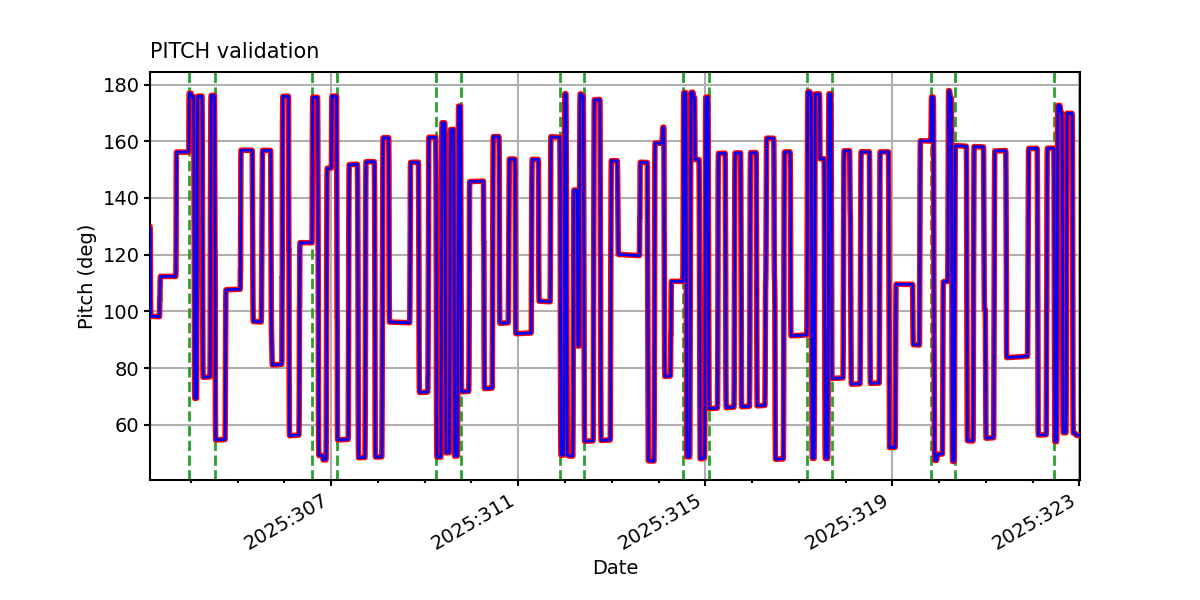

PITCH

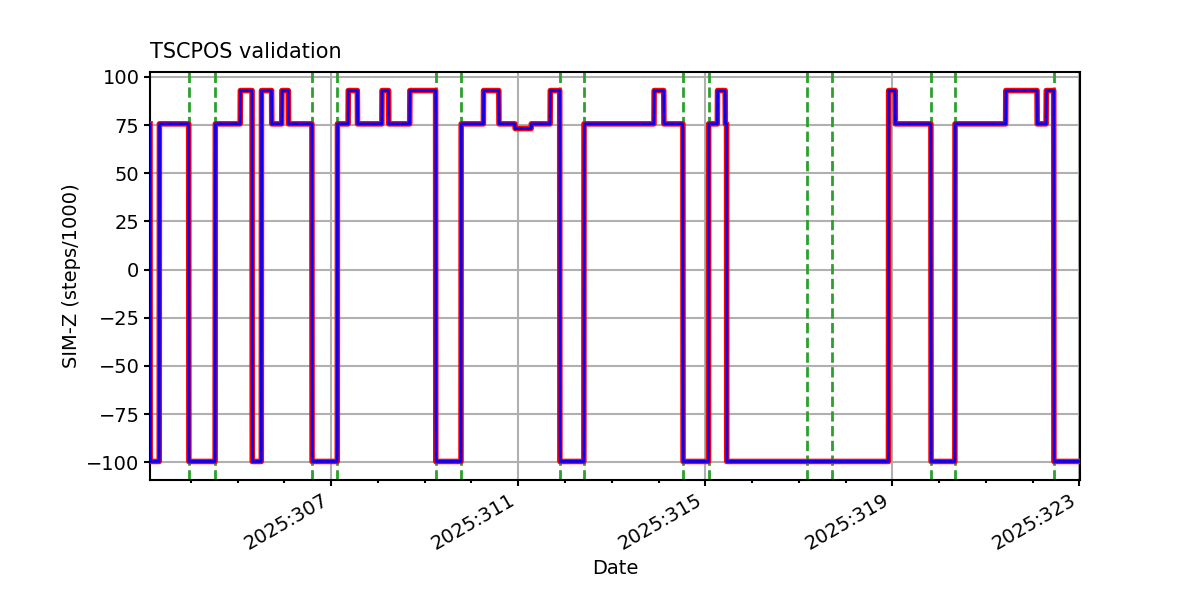

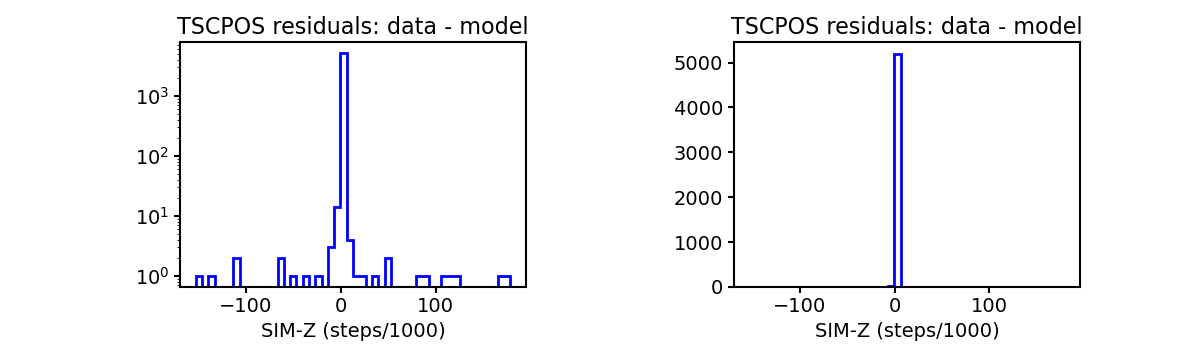

TSCPOS

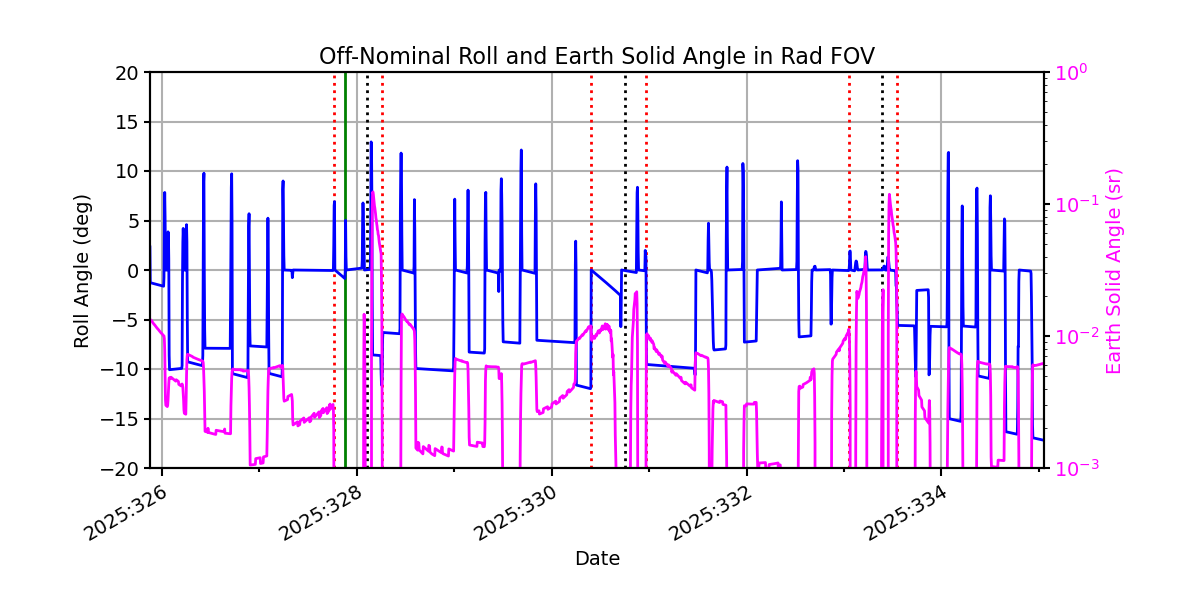

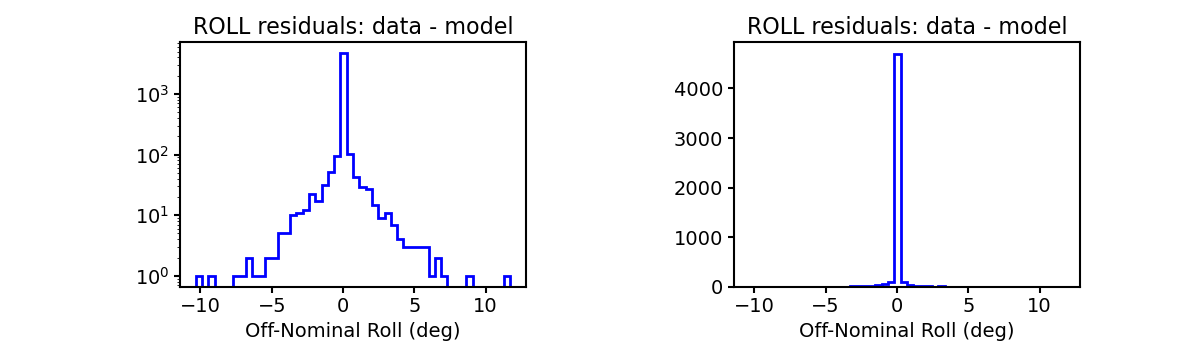

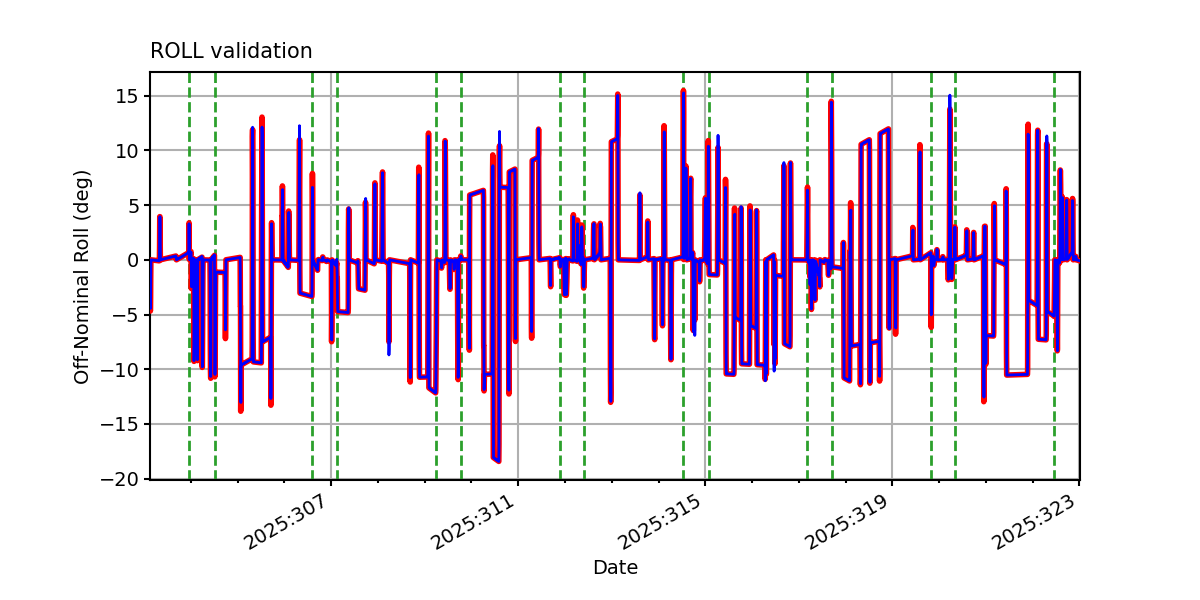

ROLL

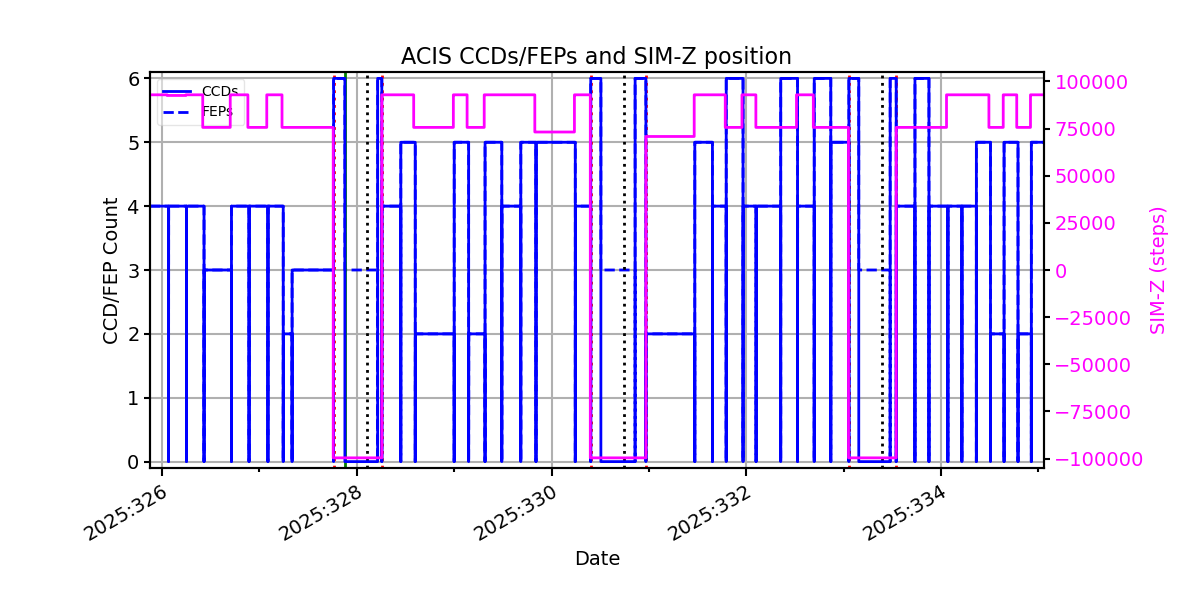

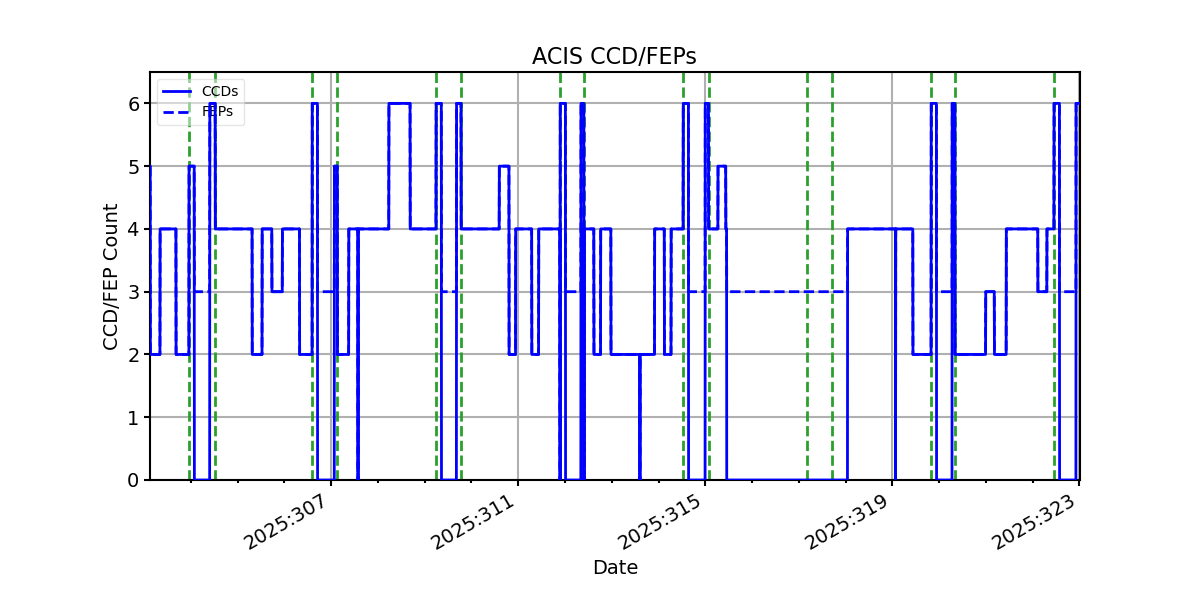

ACIS CCD/FEP Count

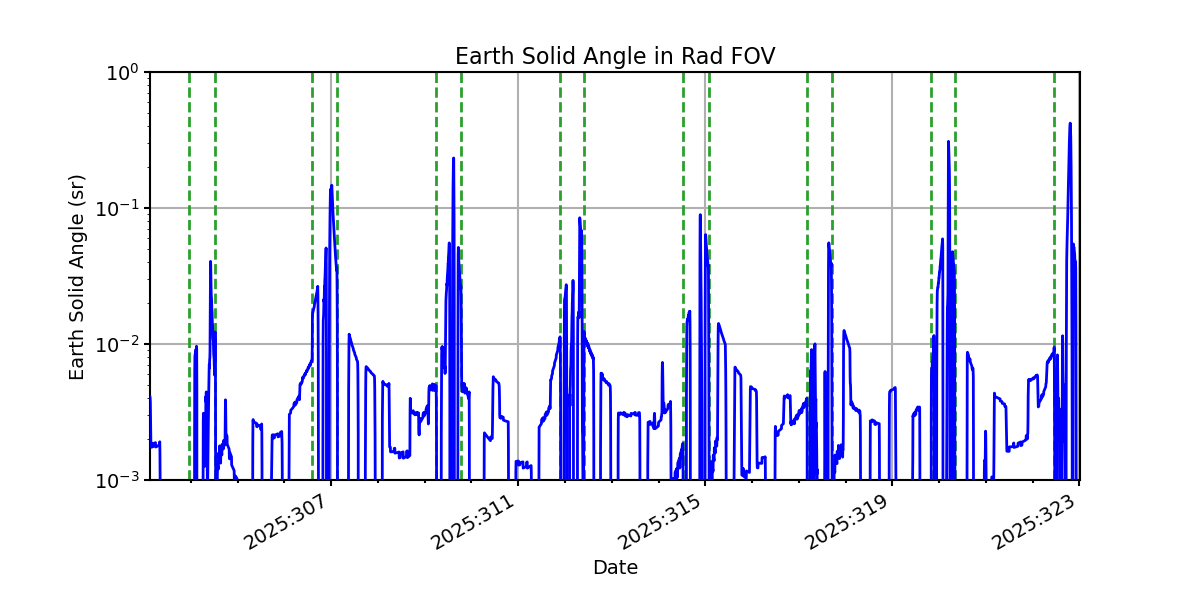

Earth Solid Angle
ADDITIONAL PLOTS

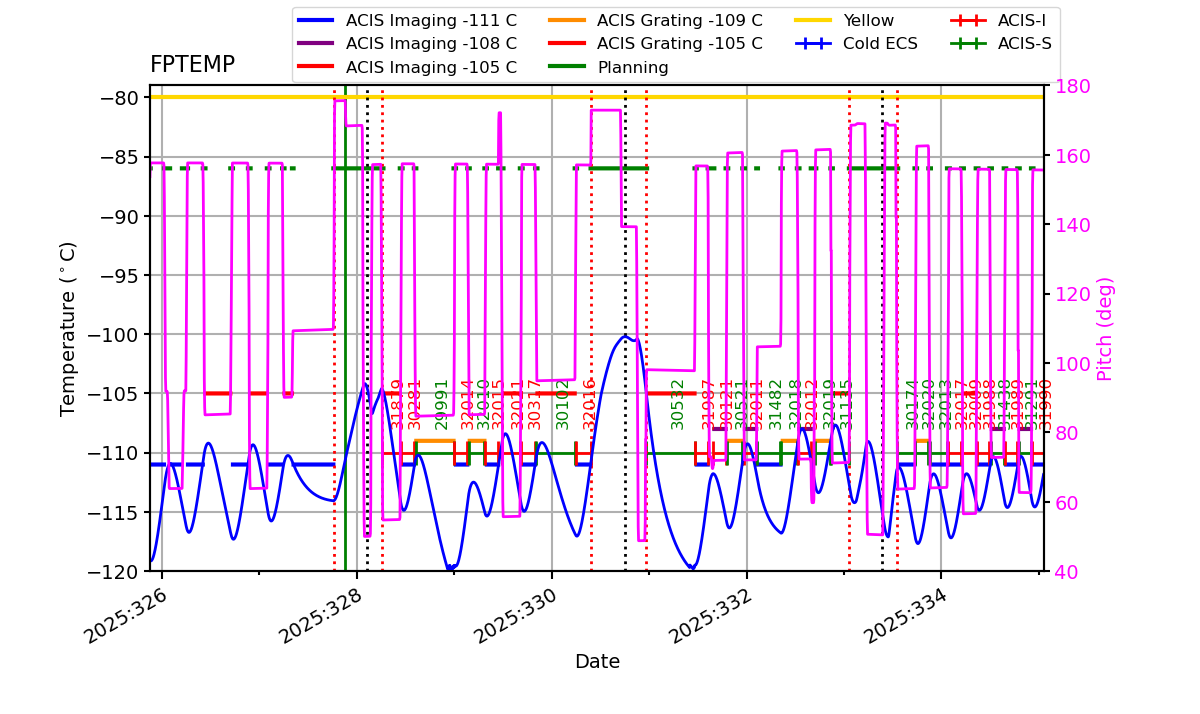

Additional plots of FPTEMP vs TIME for different temperature ranges
