ACISFP Temperatures Check
Summary
| Date start | 2026:277:13:10:00.016 |
| Date stop | 2026:284:19:12:22.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/OCT0526/oflsa |
| Run time | Thu Oct 1 08:47:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.12 | -1.68 | -1.16 | -0.48 | 0.33 | 0.82 | 1.35 |
| pitch | -12.048 | -1.672 | -0.004 | -0.000 | 0.004 | 1.769 | 12.896 |
| tscpos | -303 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.106 | -0.273 | -0.010 | 0.000 | 0.010 | 0.250 | 1.801 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.12 | 2.00 |
| PITCH | 1 | -12.048 | 3.00 |
| PITCH | 99 | 12.896 | 3.00 |
| TSCPOS | 1 | -303.0 | 2.50 |

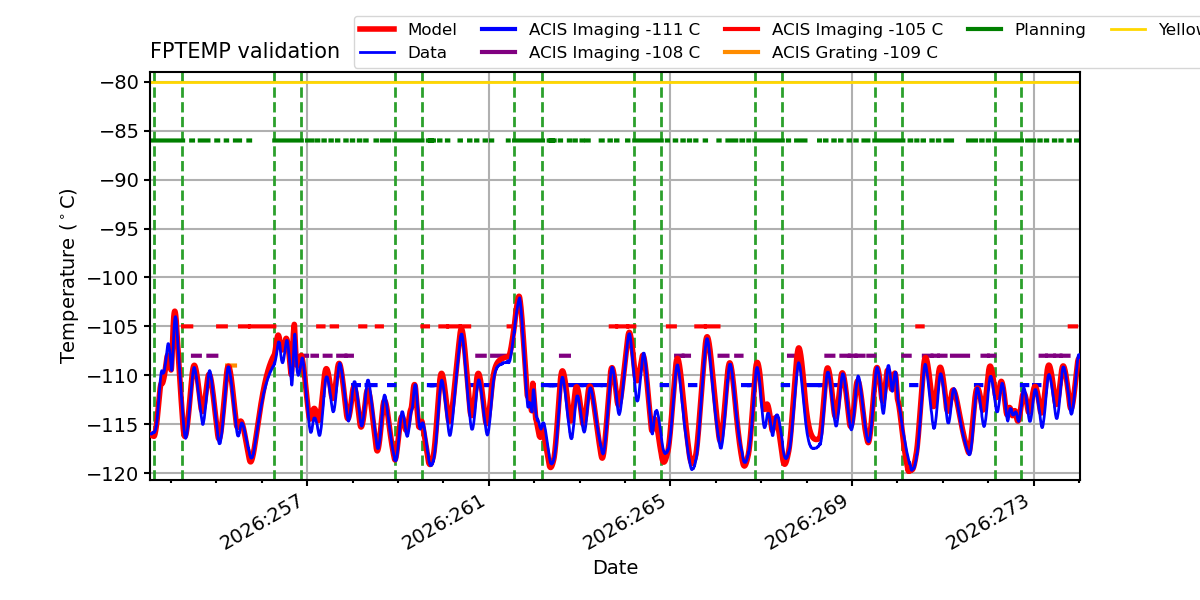

FPTEMP

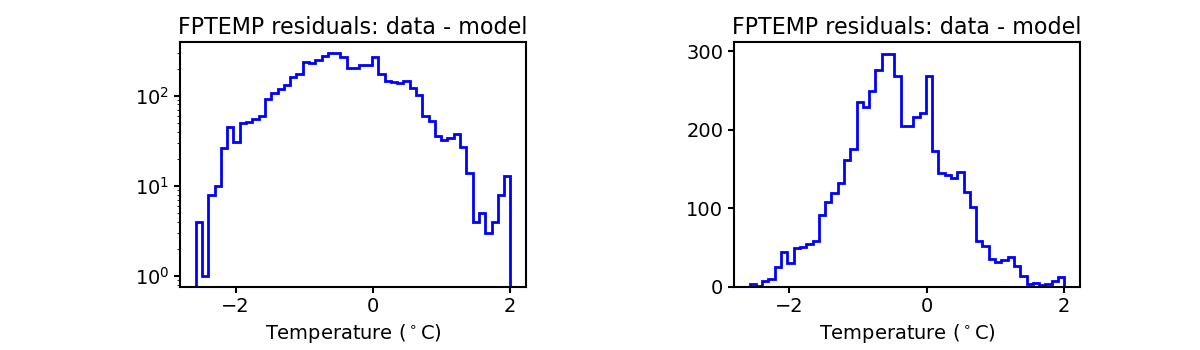

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

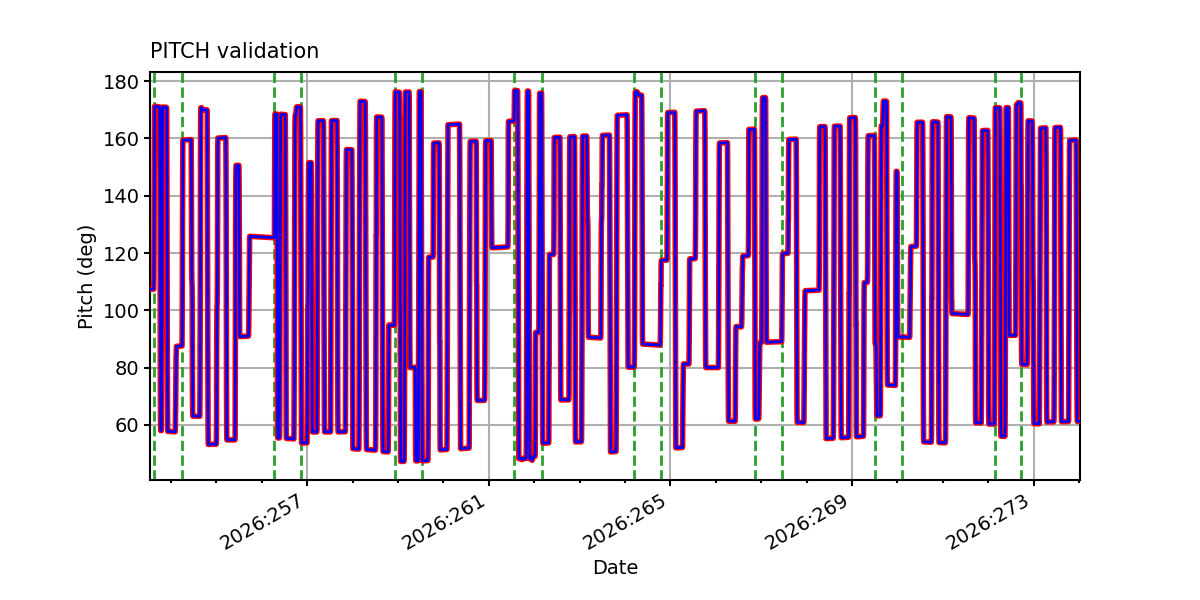

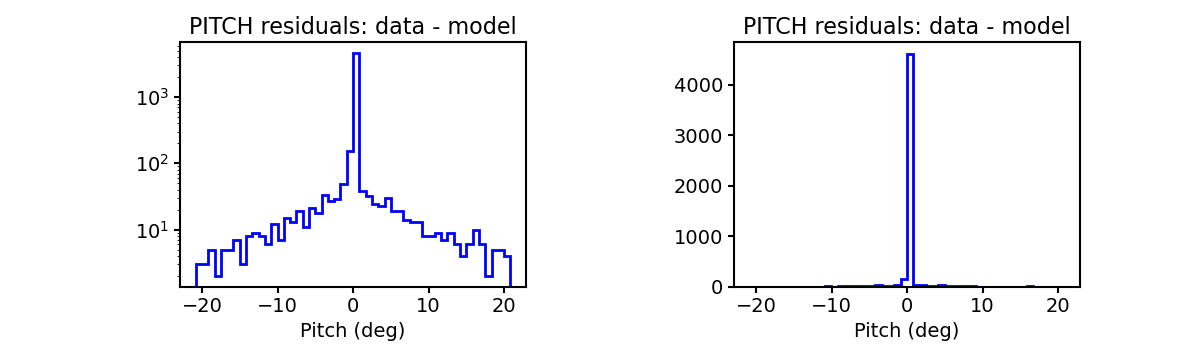

PITCH

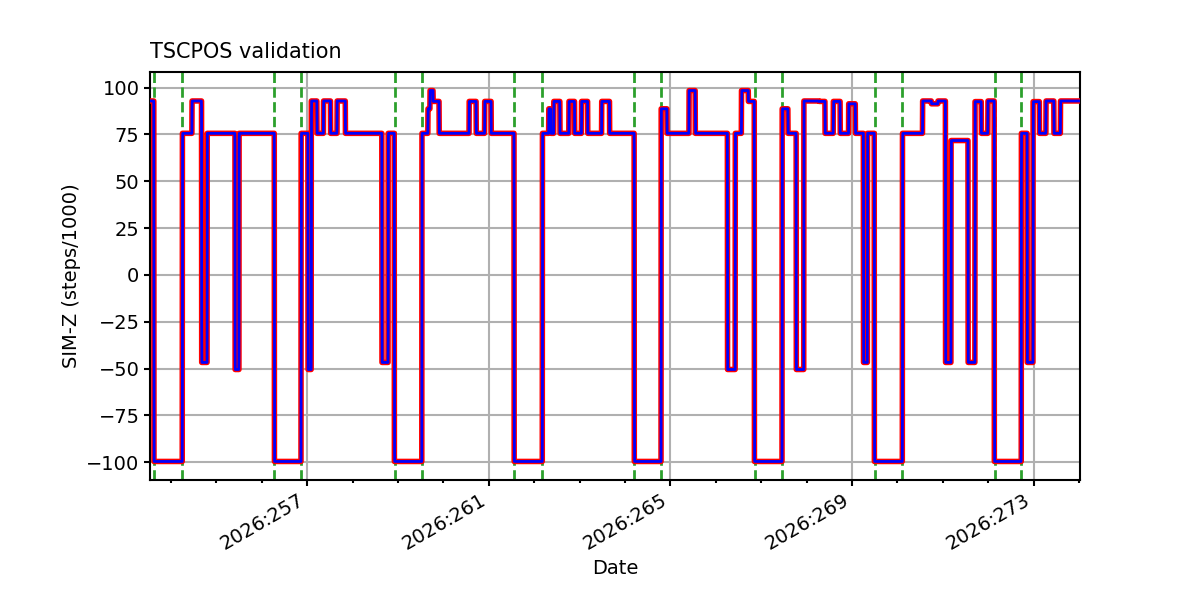

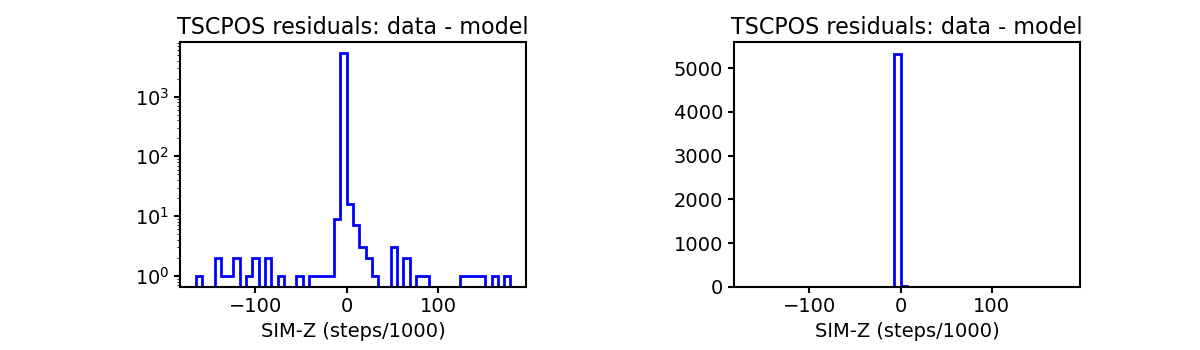

TSCPOS

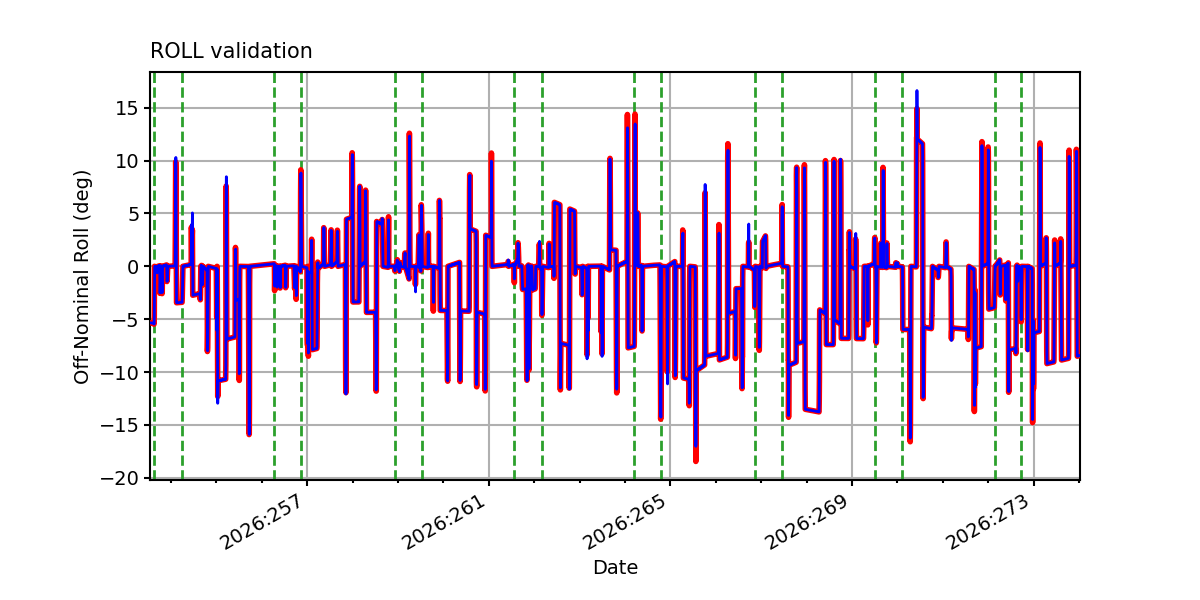

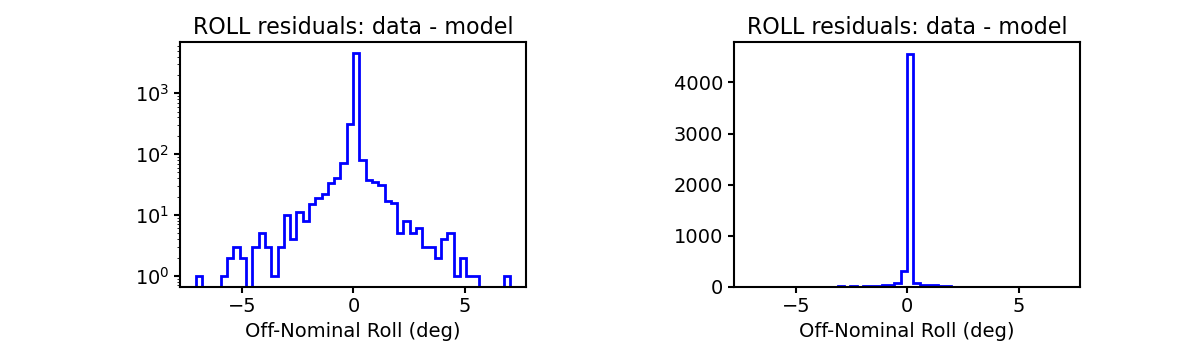

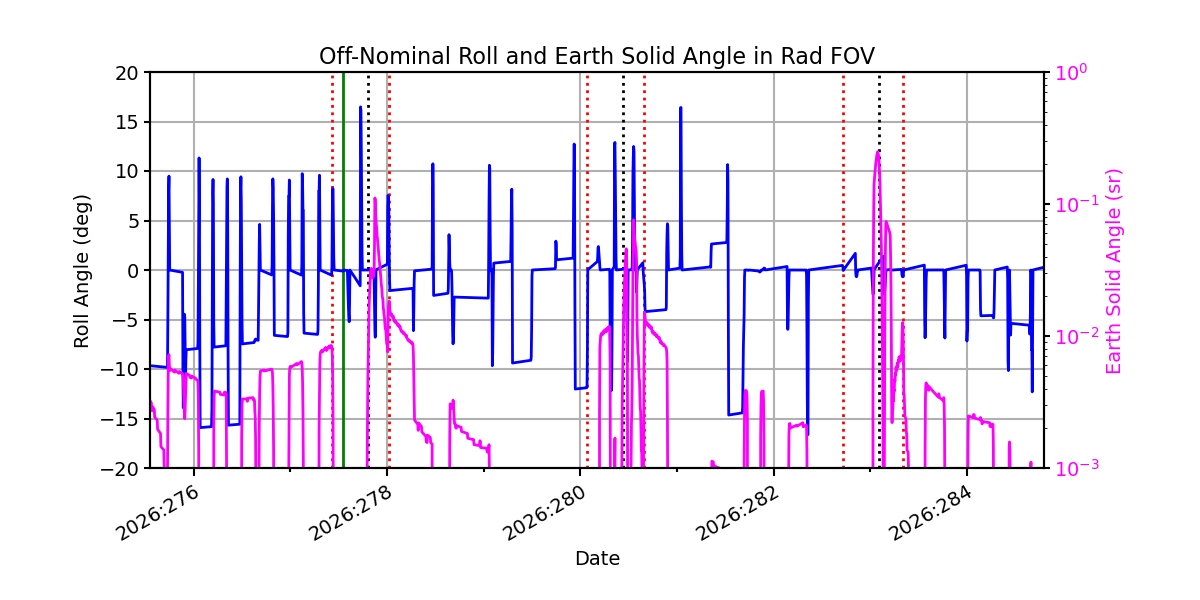

ROLL

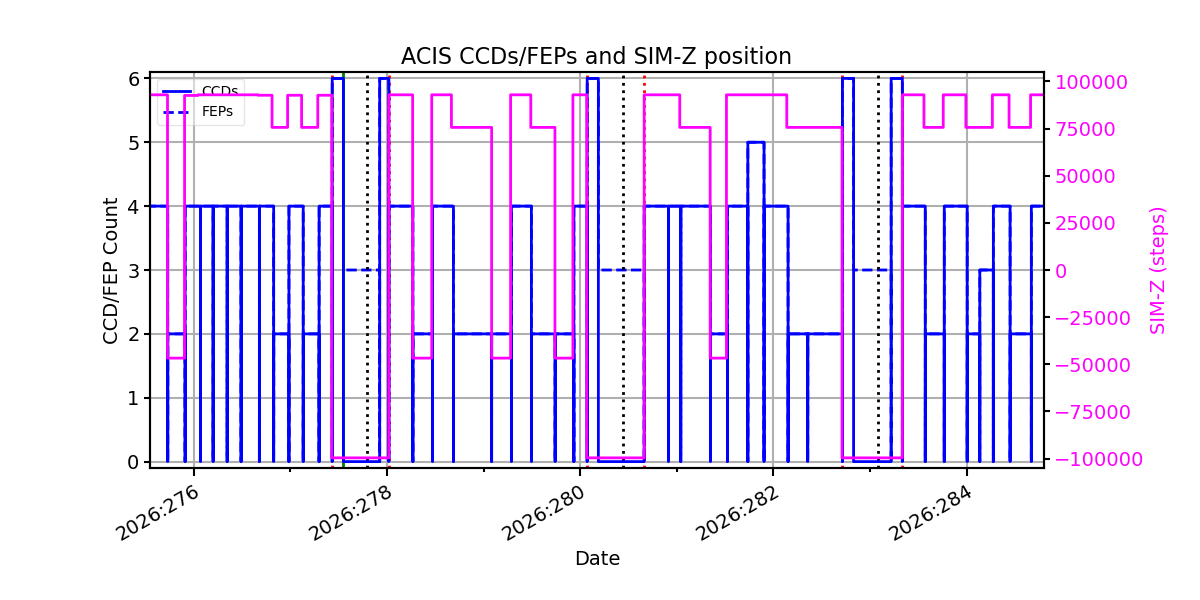

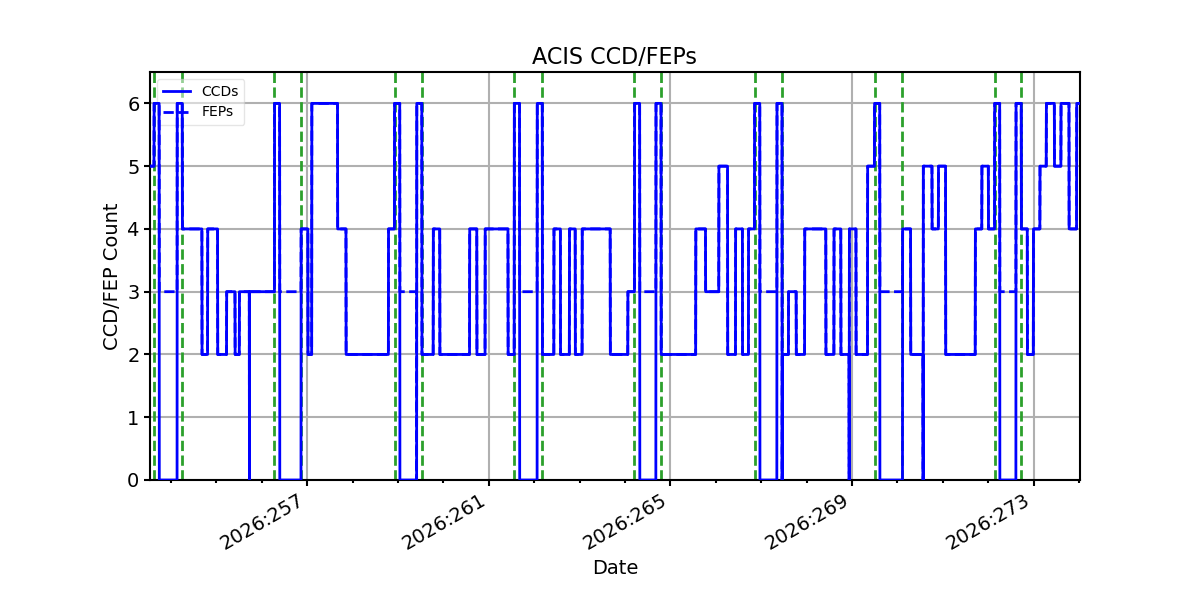

ACIS CCD/FEP Count

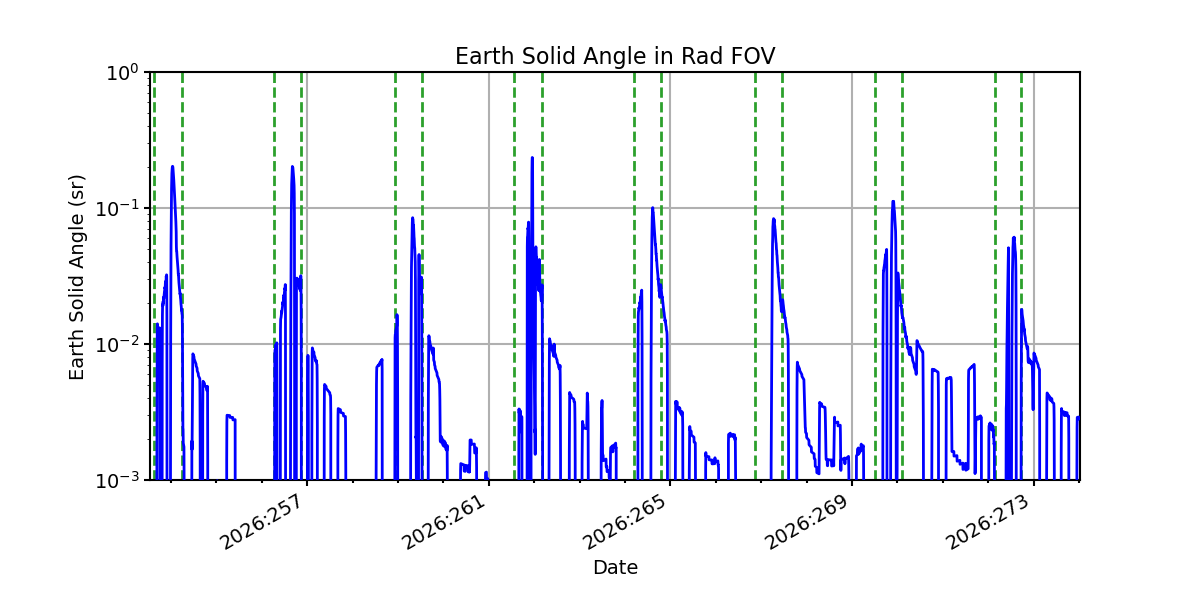

Earth Solid Angle
ADDITIONAL PLOTS

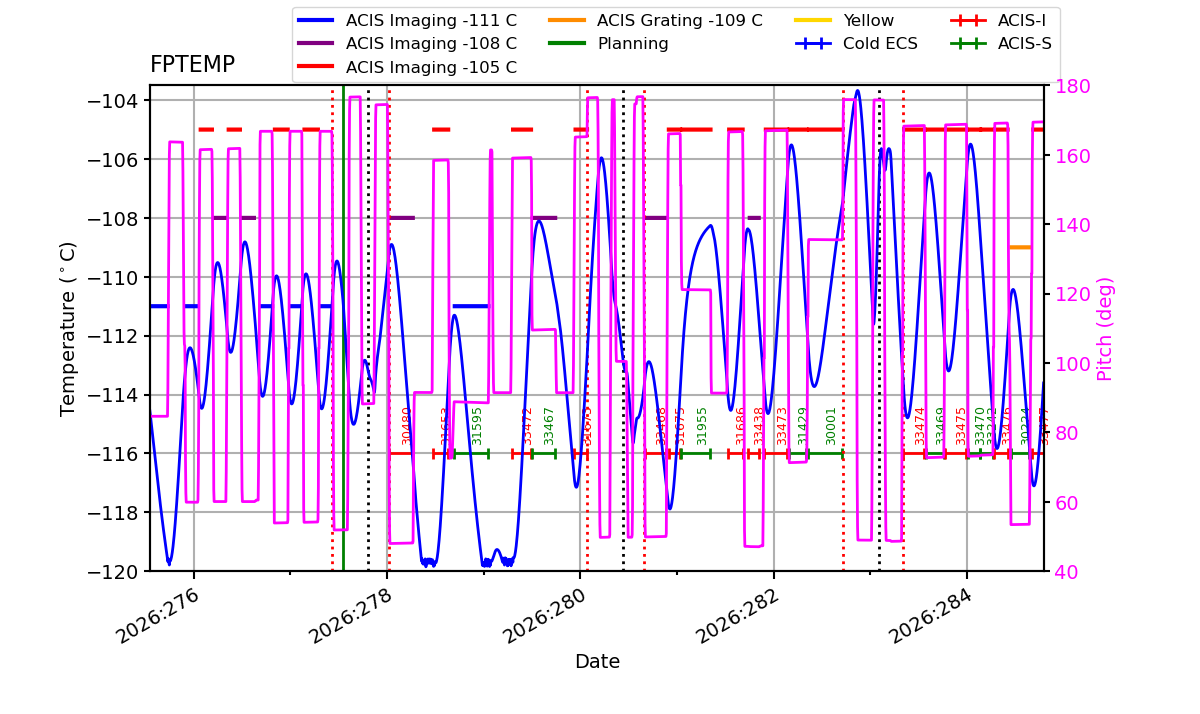

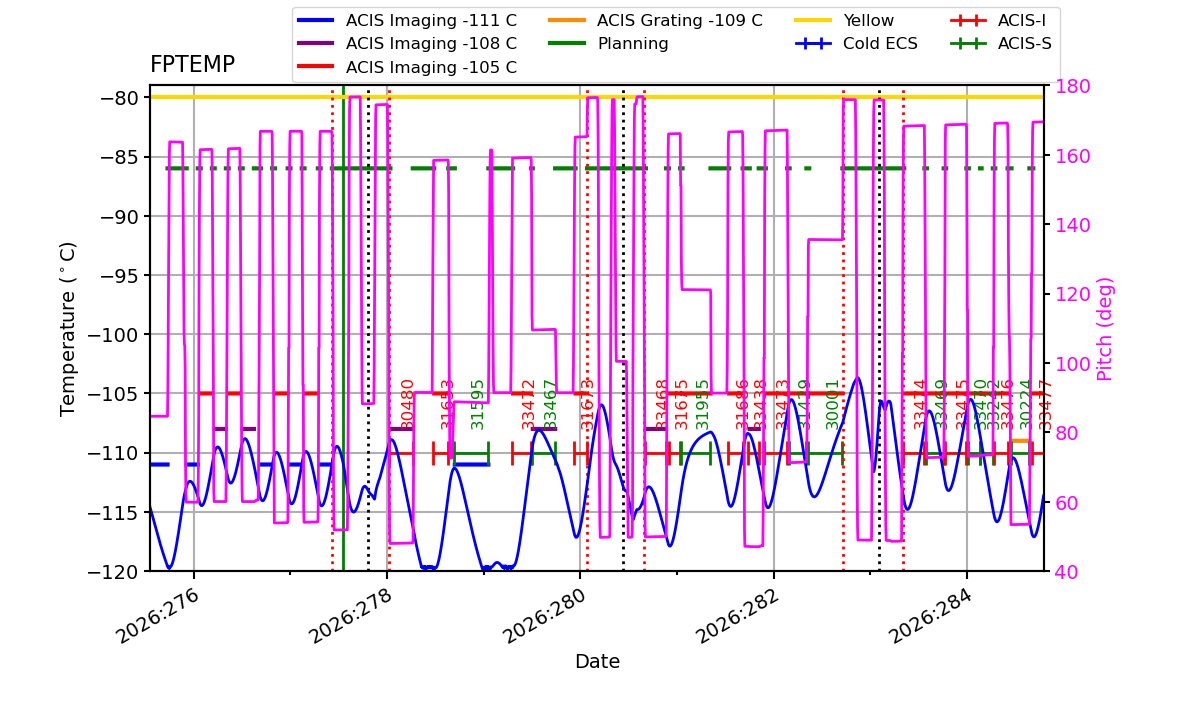

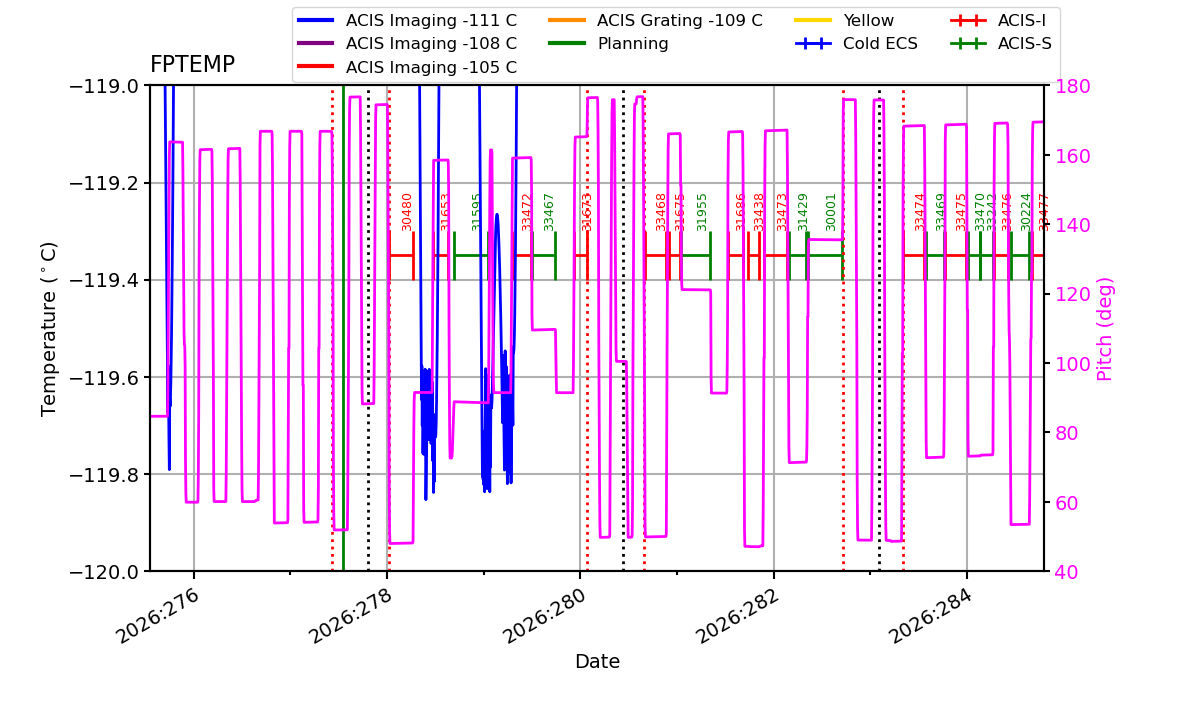

Additional plots of FPTEMP vs TIME for different temperature ranges
