ACISFP Temperatures Check
Summary
| Date start | 2026:284:19:09:22.016 |
| Date stop | 2026:291:23:52:06.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1226/oflsa |
| Run time | Thu Oct 8 08:16:23 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2026:291:20:49:34.816 | 2026:291:21:05:58.816 | 0.98 / 12.60 | -110.98 / -111.00 | 33488 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.09 | -1.61 | -1.14 | -0.43 | 0.31 | 0.88 | 1.49 |
| pitch | -11.369 | -1.552 | -0.004 | -0.000 | 0.004 | 1.531 | 12.148 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.432 | -0.299 | -0.009 | 0.000 | 0.010 | 0.328 | 2.269 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.09 | 2.00 |
| PITCH | 1 | -11.369 | 3.00 |
| PITCH | 99 | 12.148 | 3.00 |

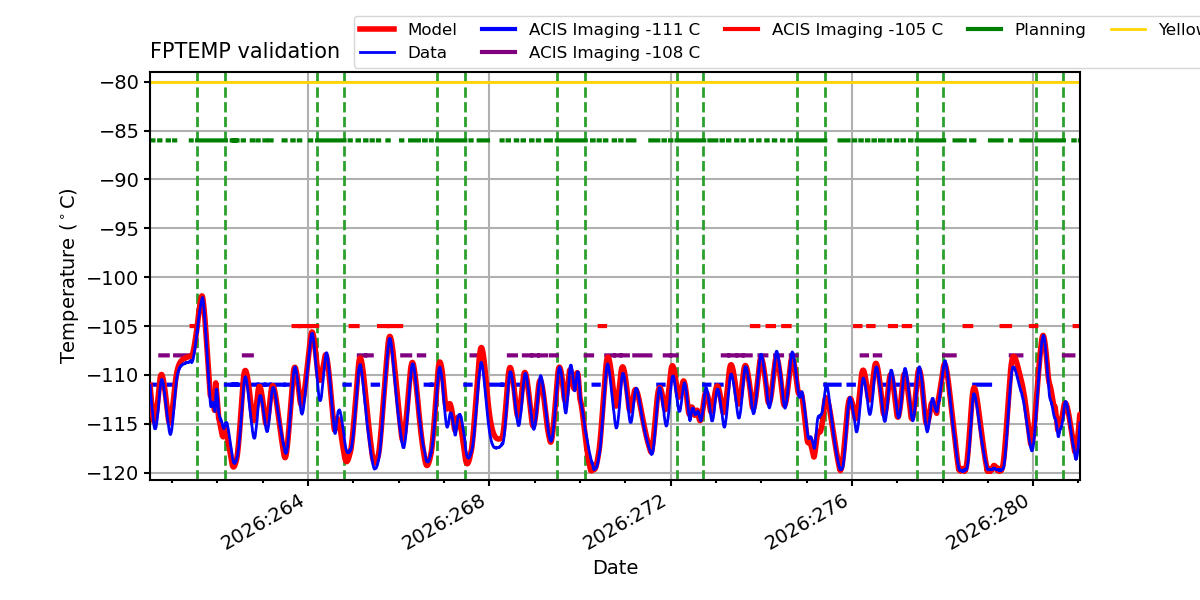

FPTEMP

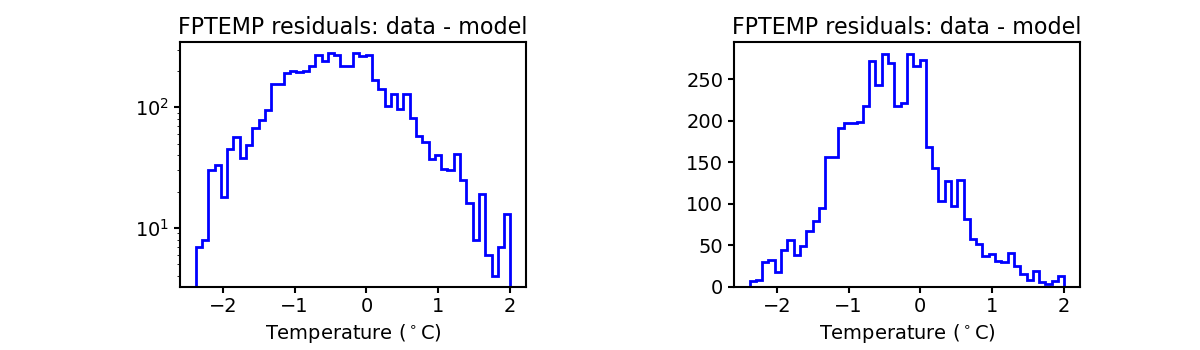

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH

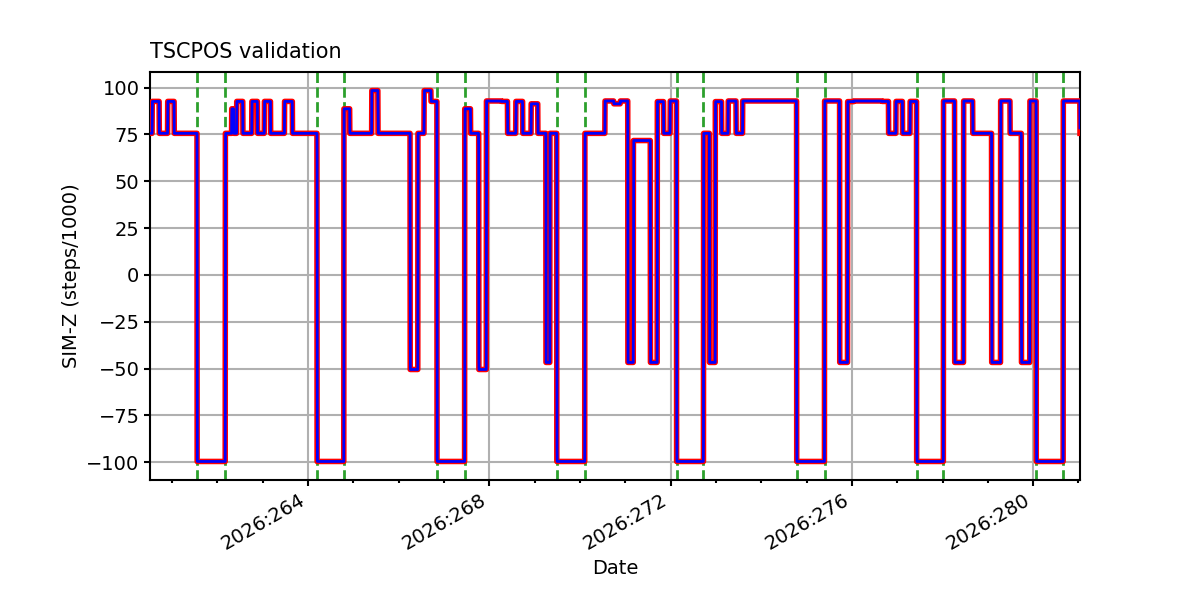

TSCPOS

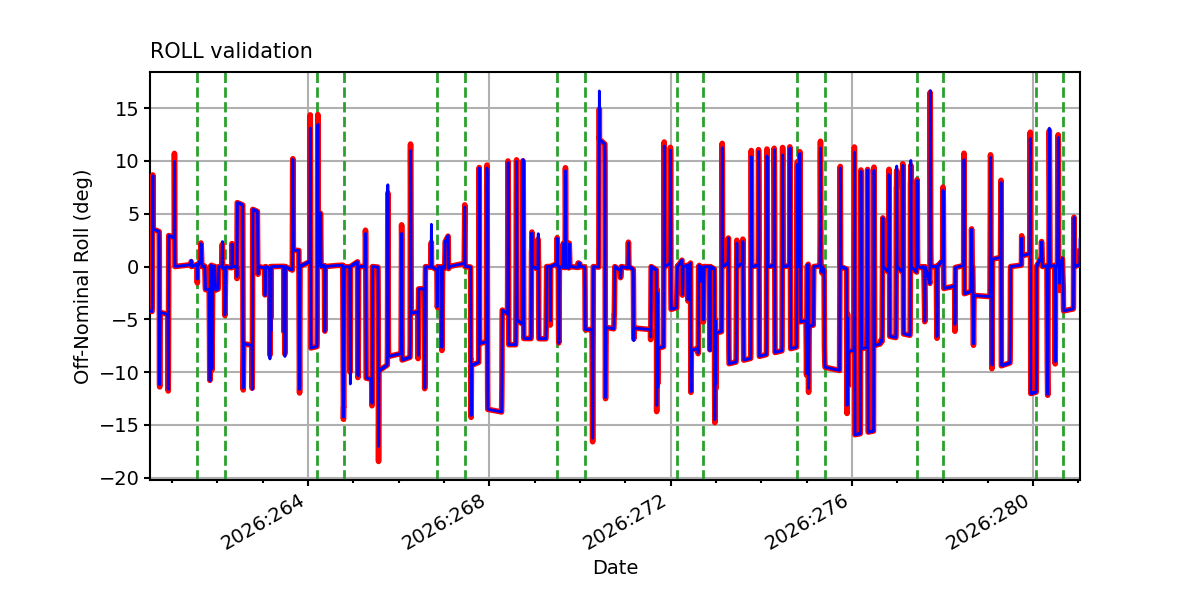

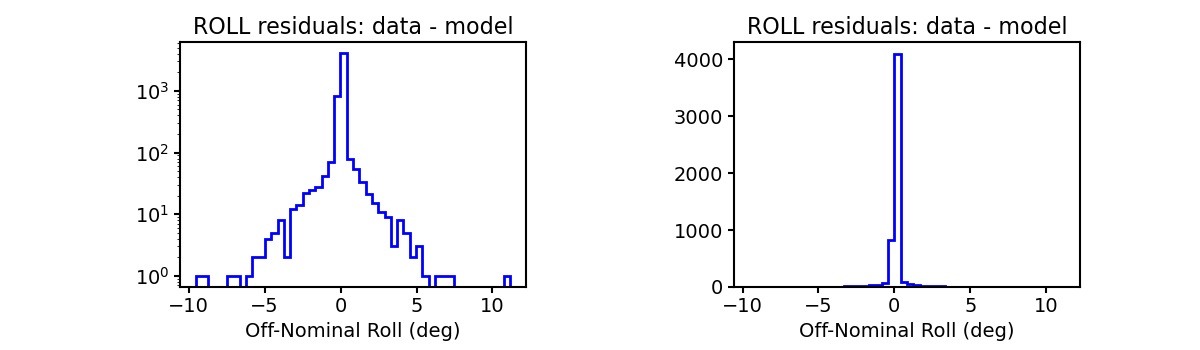

ROLL

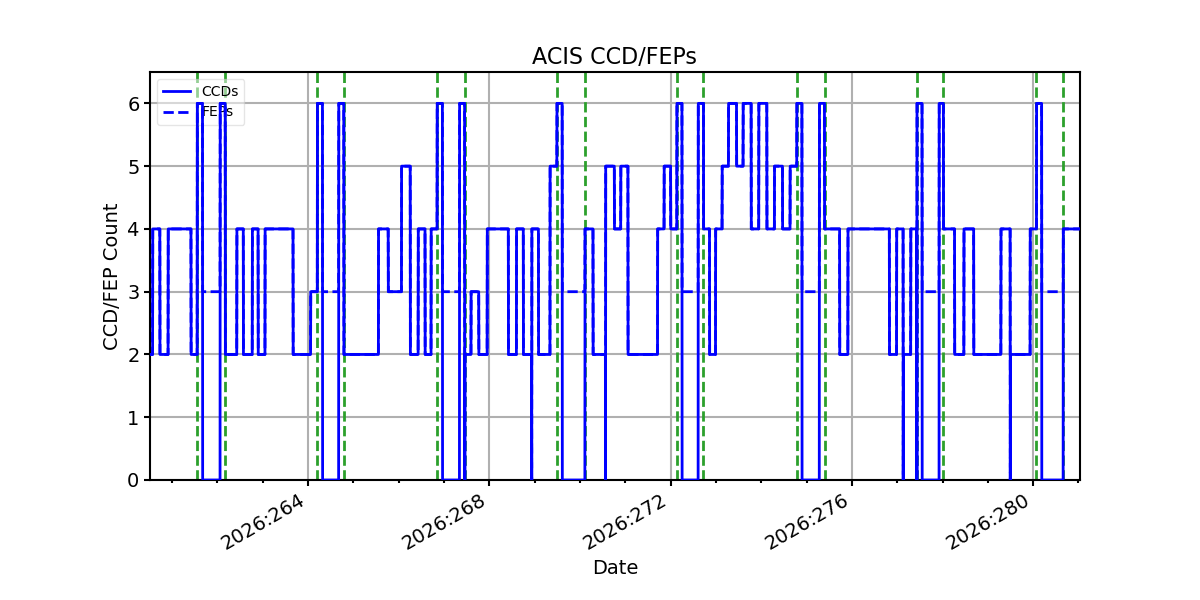

ACIS CCD/FEP Count

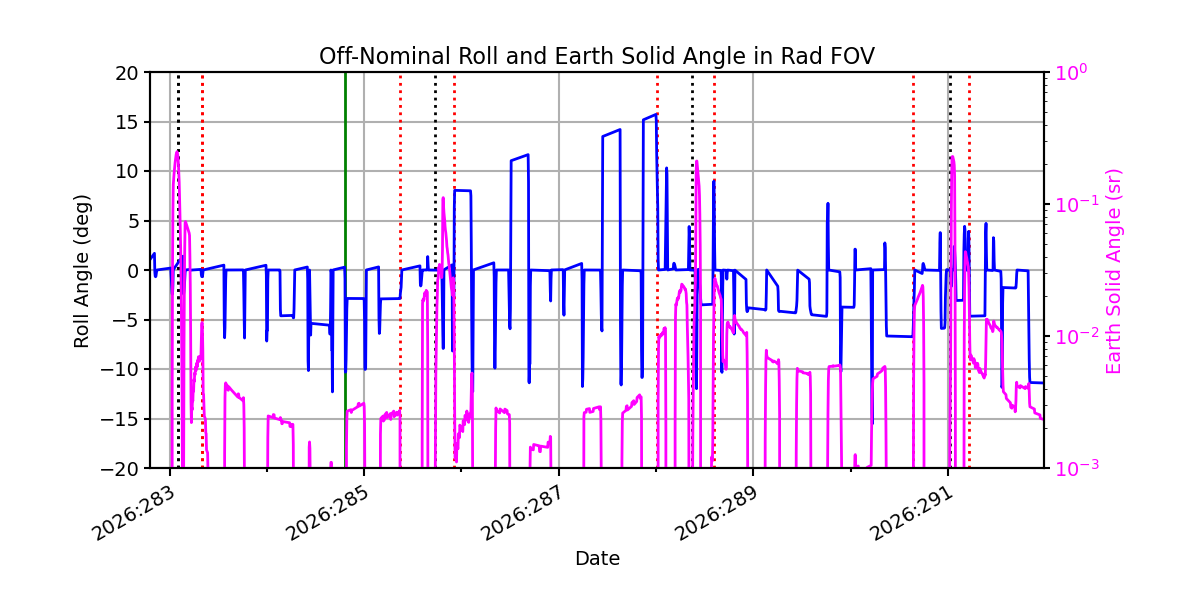

Earth Solid Angle
ADDITIONAL PLOTS

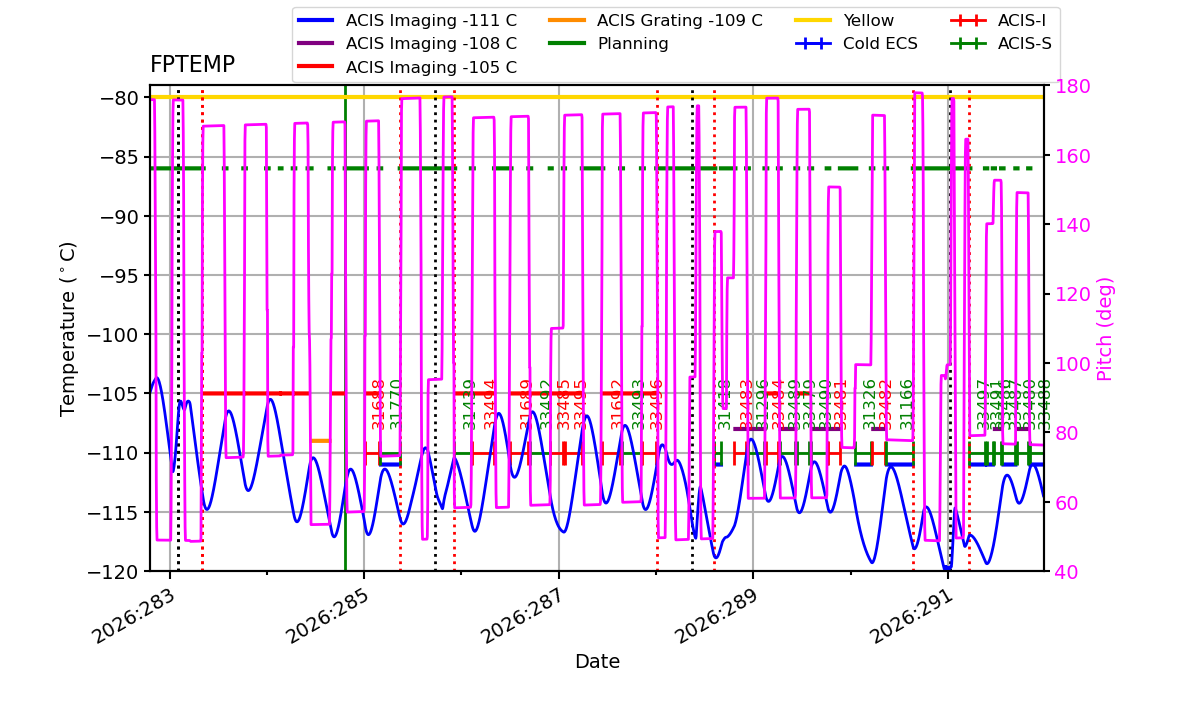

Additional plots of FPTEMP vs TIME for different temperature ranges
