ACISFP Temperatures Check
Summary
| Date start | 2026:291:23:49:06.416 |
| Date stop | 2026:298:16:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1926/oflsa |
| Run time | Thu Oct 15 08:40:01 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.10 | -1.71 | -1.16 | -0.48 | 0.21 | 0.68 | 1.24 |
| pitch | -12.547 | -1.543 | -0.004 | 0.000 | 0.004 | 1.729 | 12.779 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.287 | -0.267 | -0.011 | -0.000 | 0.011 | 0.224 | 2.289 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.1 | 2.00 |
| PITCH | 1 | -12.547 | 3.00 |
| PITCH | 99 | 12.779 | 3.00 |
FPTEMP

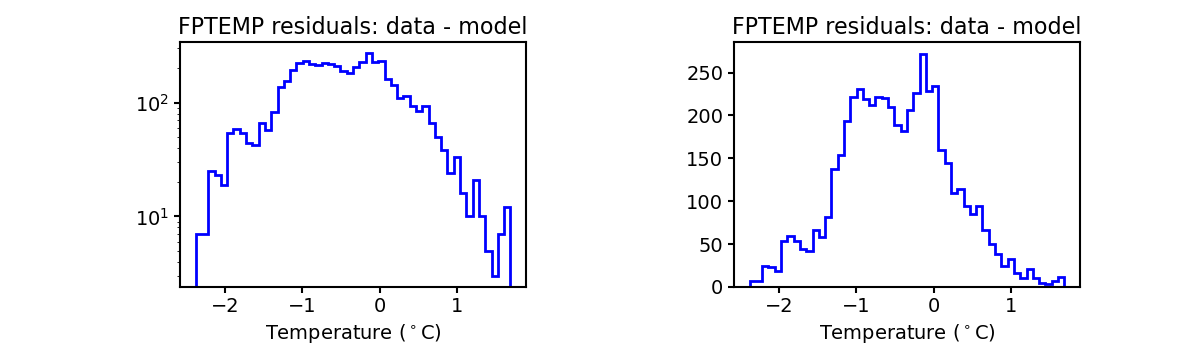

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH

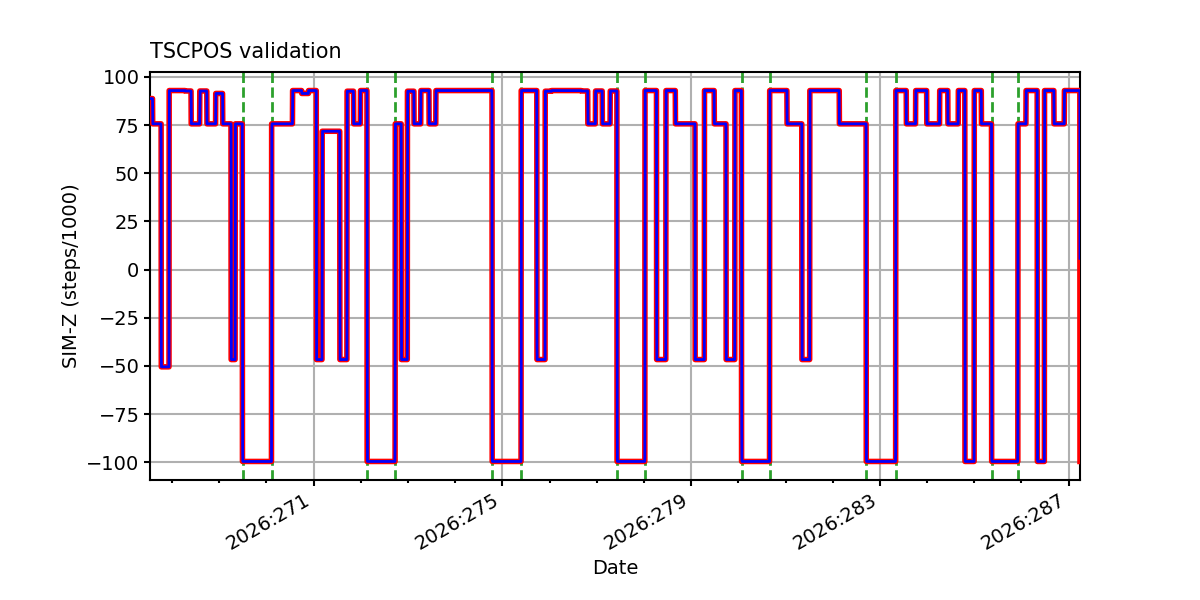

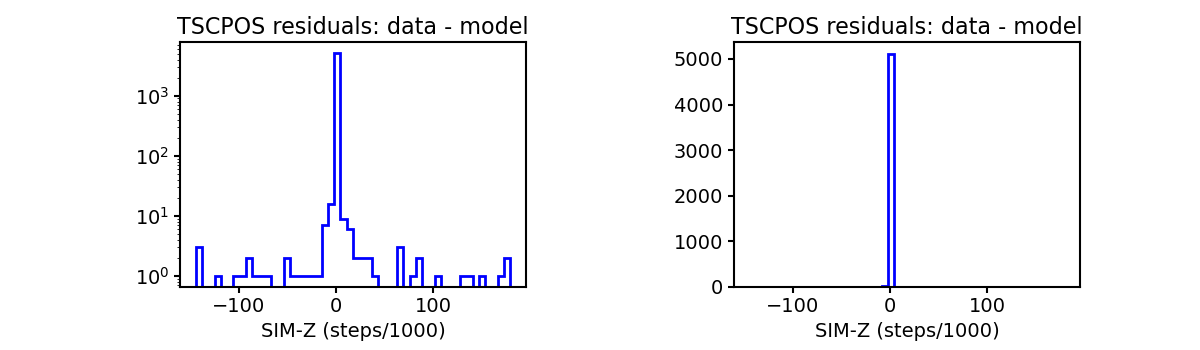

TSCPOS

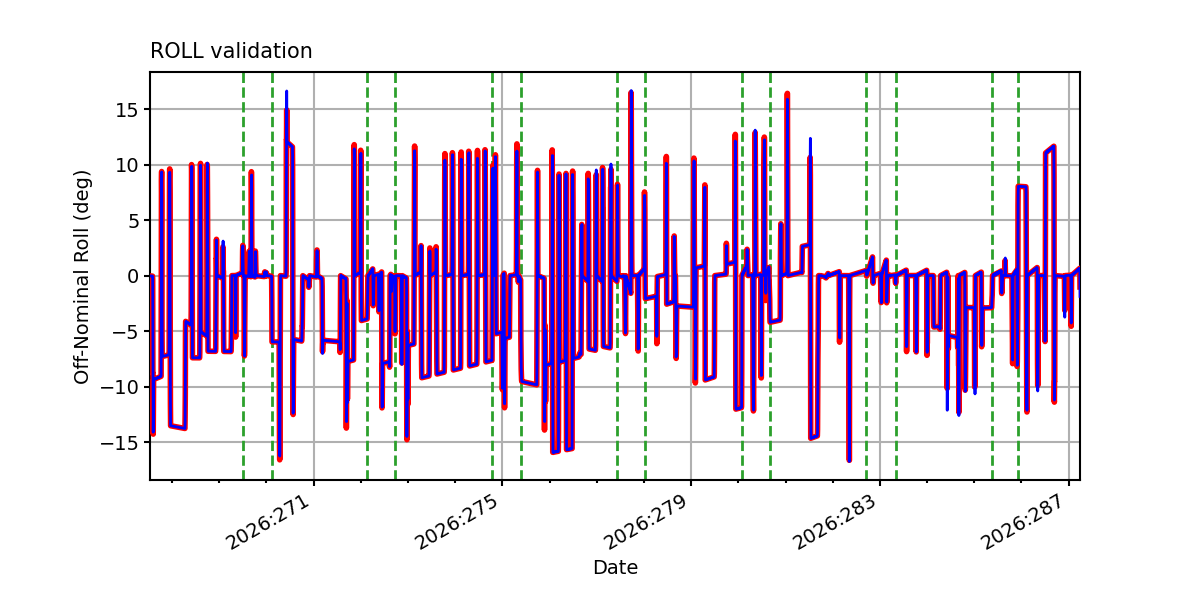

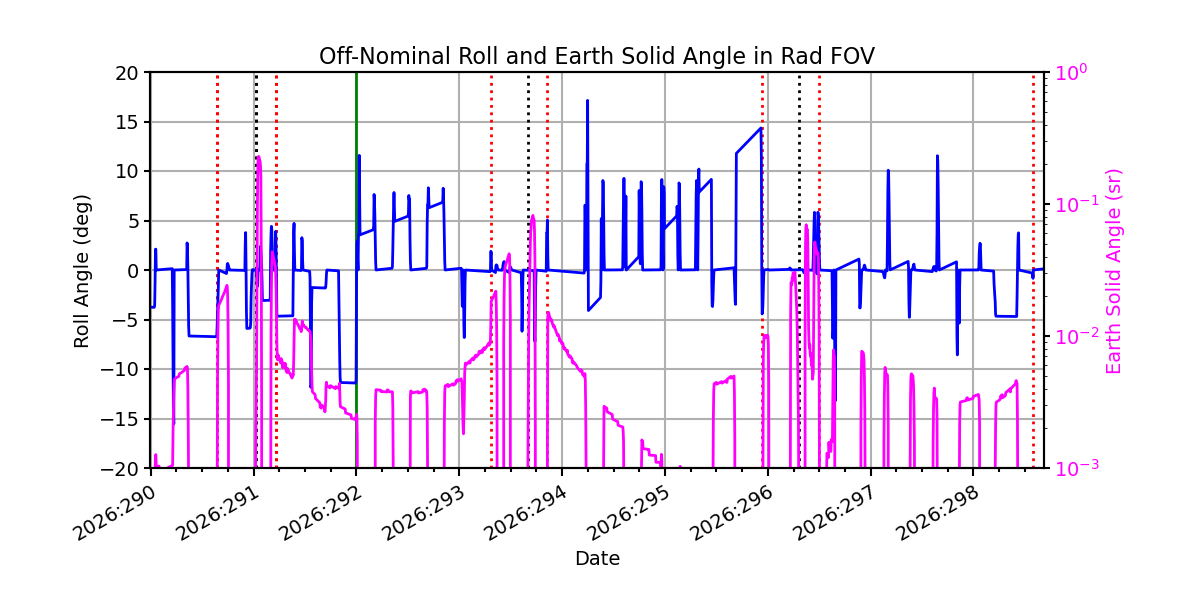

ROLL
ACIS CCD/FEP Count

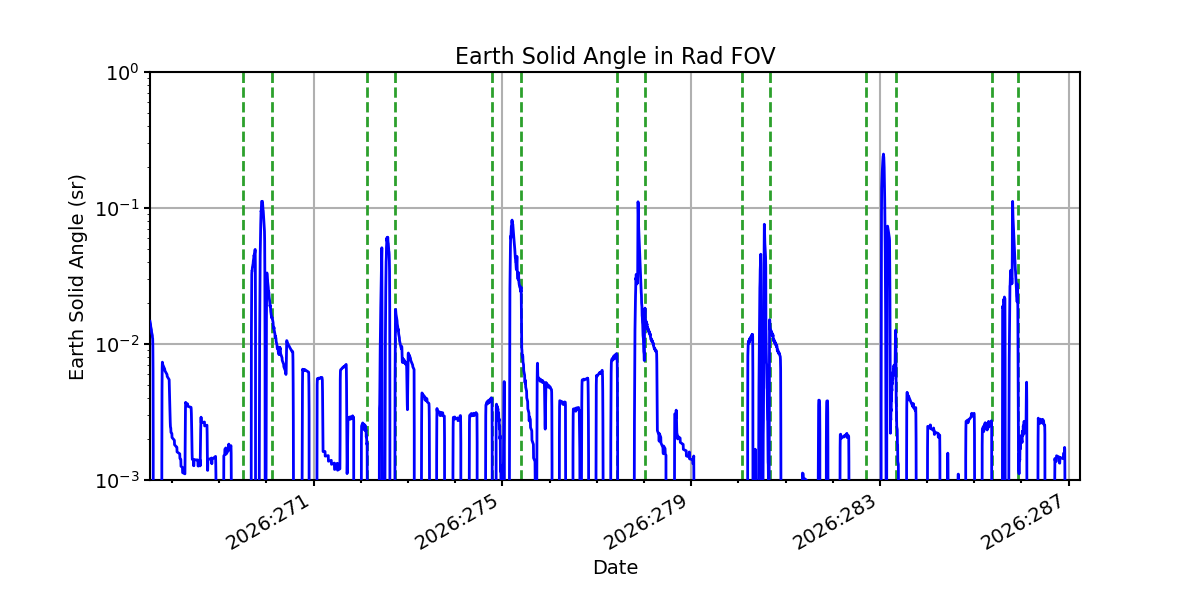

Earth Solid Angle
ADDITIONAL PLOTS

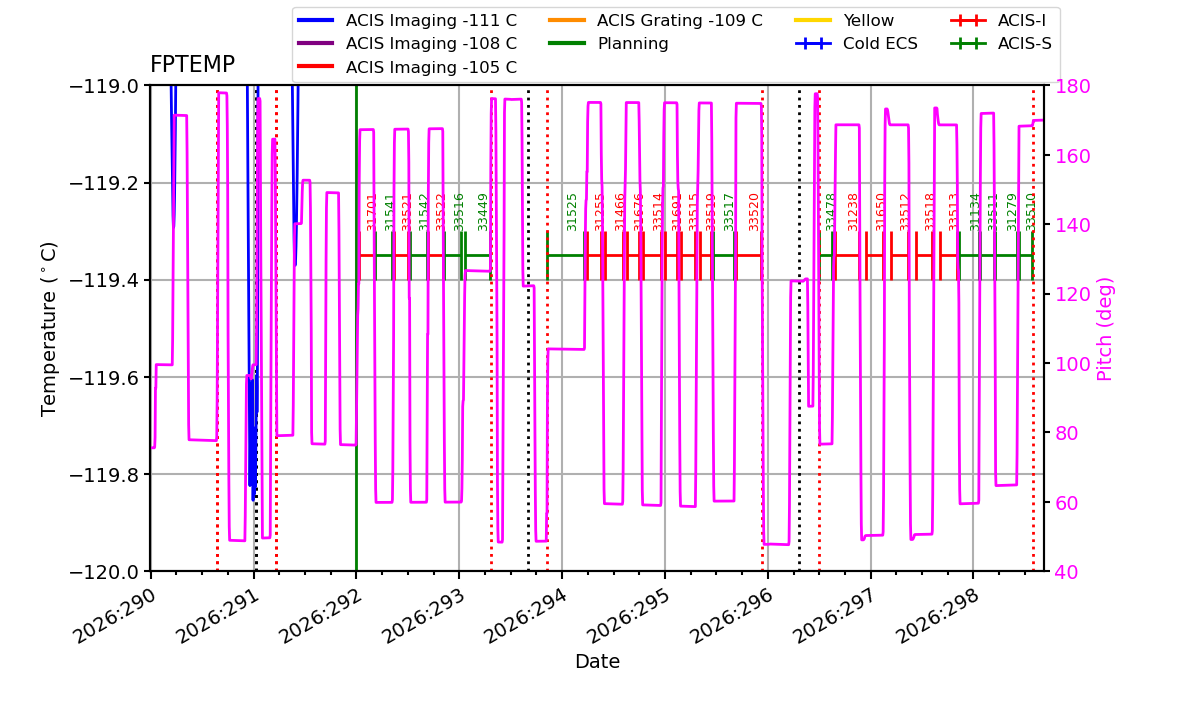

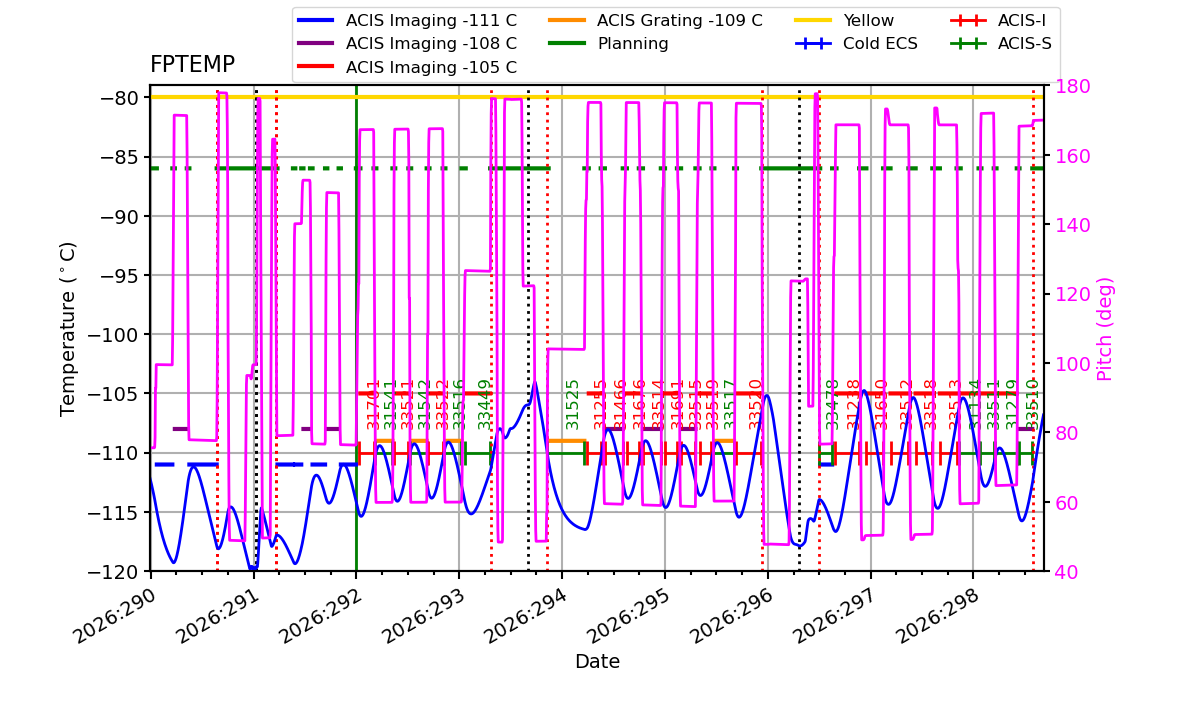

Additional plots of FPTEMP vs TIME for different temperature ranges
