ACISFP Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:20:21 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.61 | -1.27 | -0.69 | 0.05 | 0.77 | 1.37 | 2.10 |
| pitch | -11.161 | -1.258 | -0.004 | -0.000 | 0.004 | 1.276 | 11.847 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.089 | -0.200 | -0.008 | 0.000 | 0.009 | 0.332 | 2.337 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.1 | 2.00 |
| PITCH | 1 | -11.161 | 3.00 |
| PITCH | 99 | 11.847 | 3.00 |

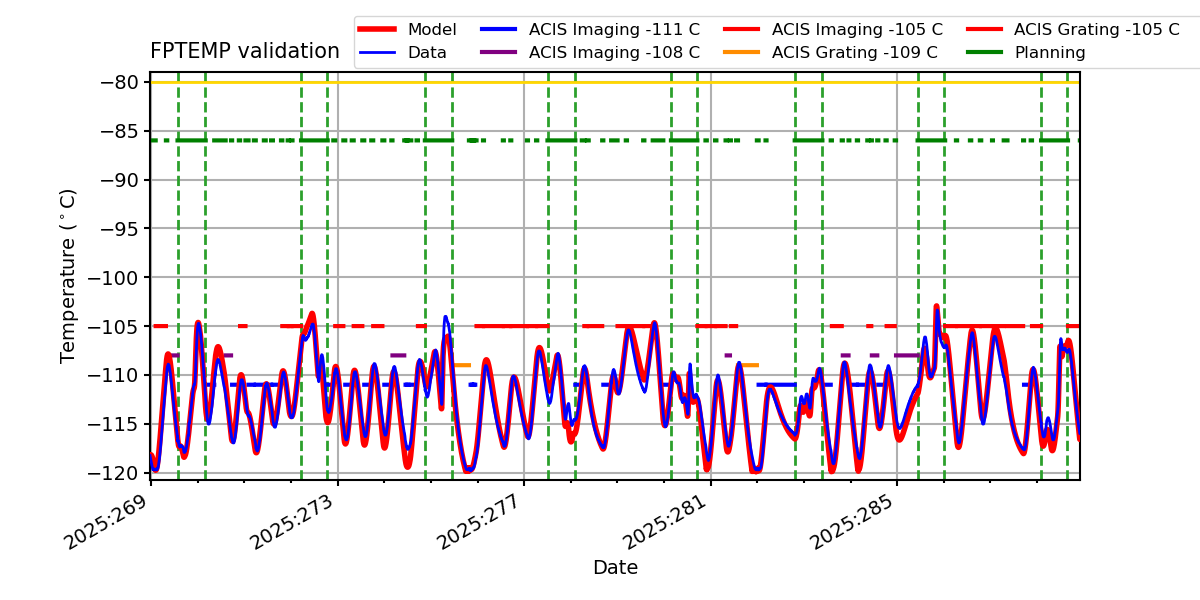

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

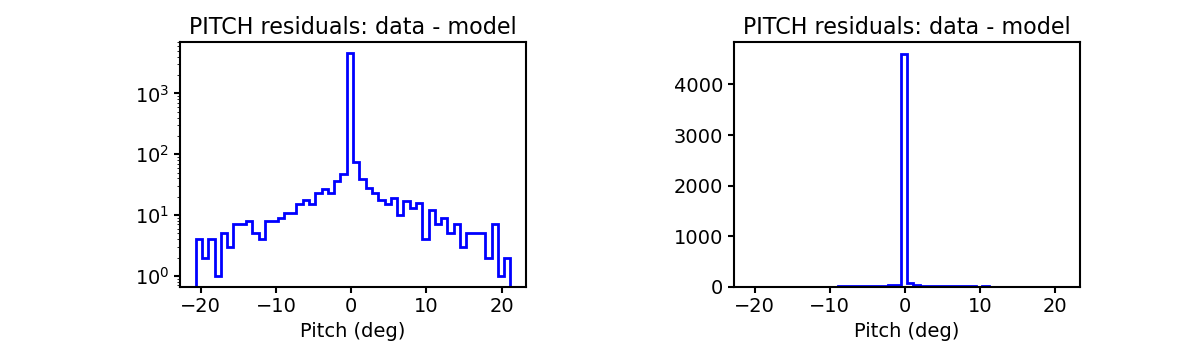

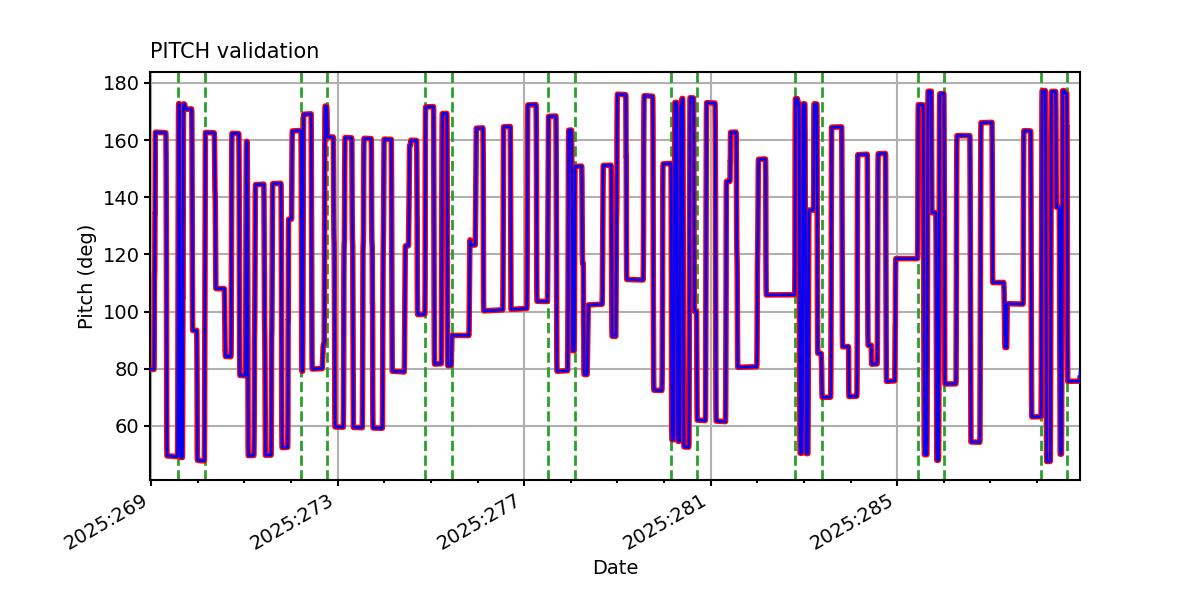

PITCH

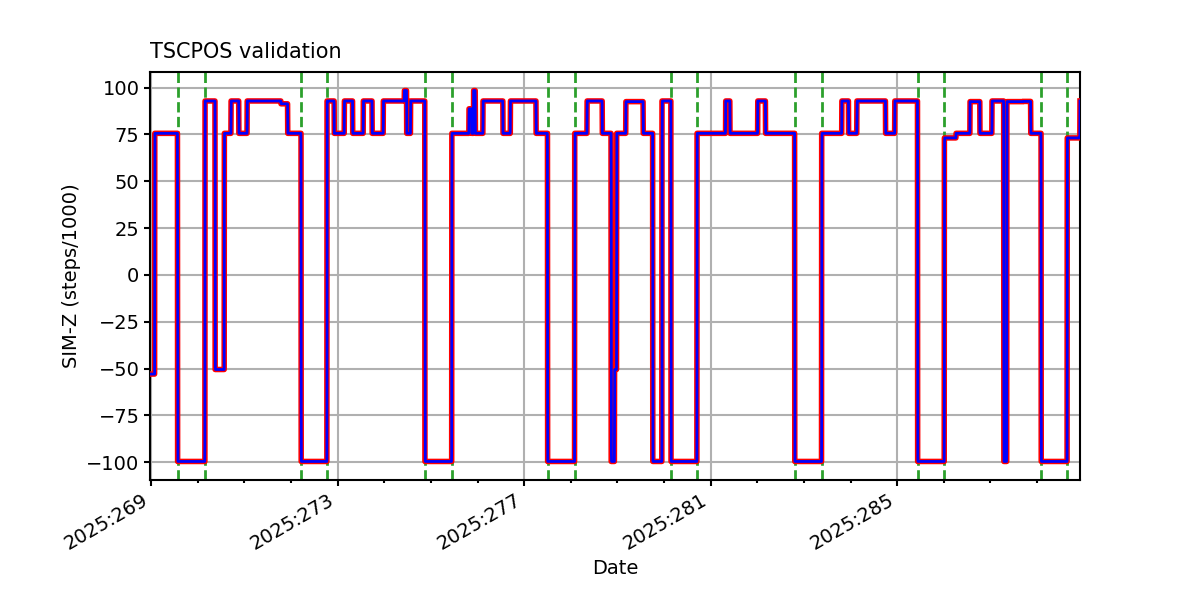

TSCPOS

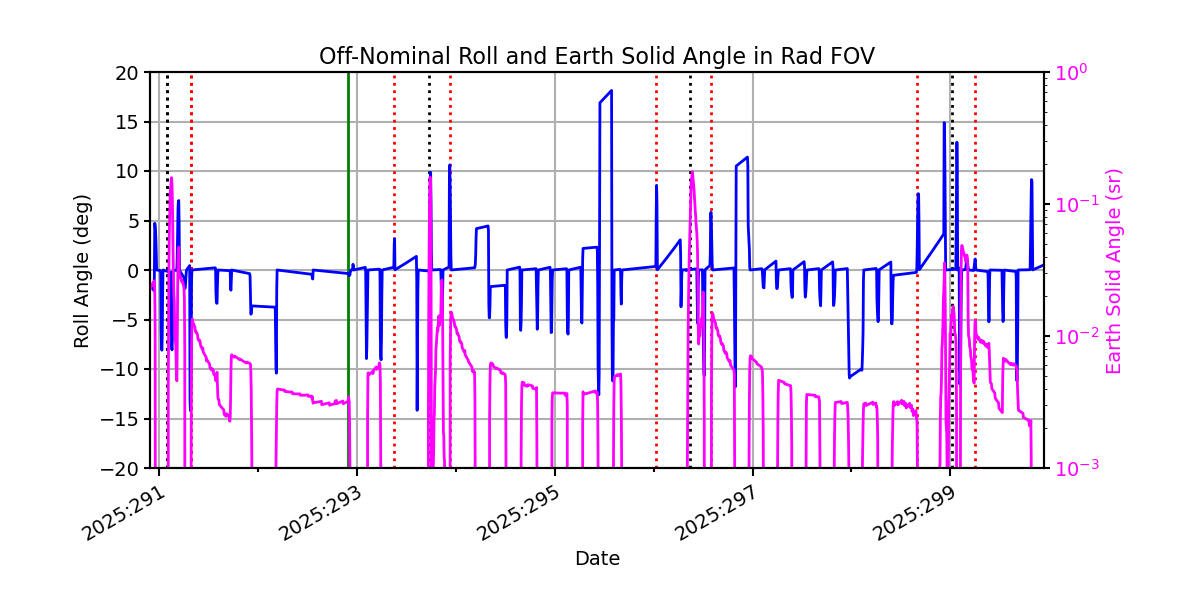

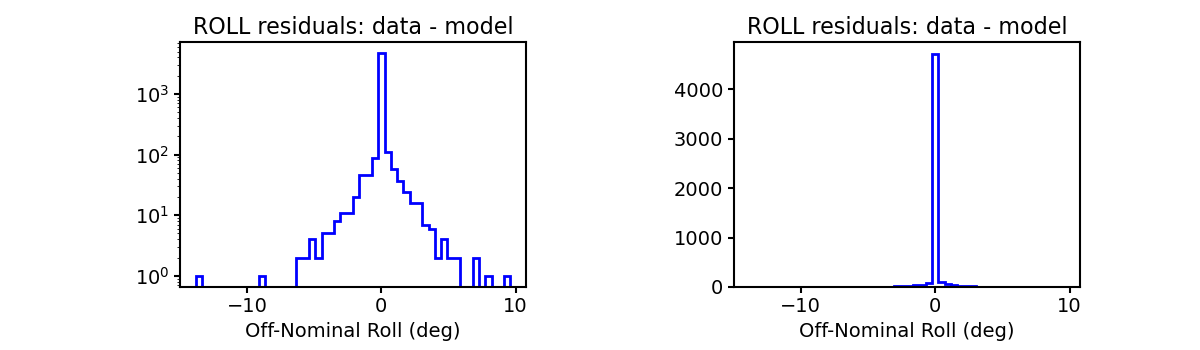

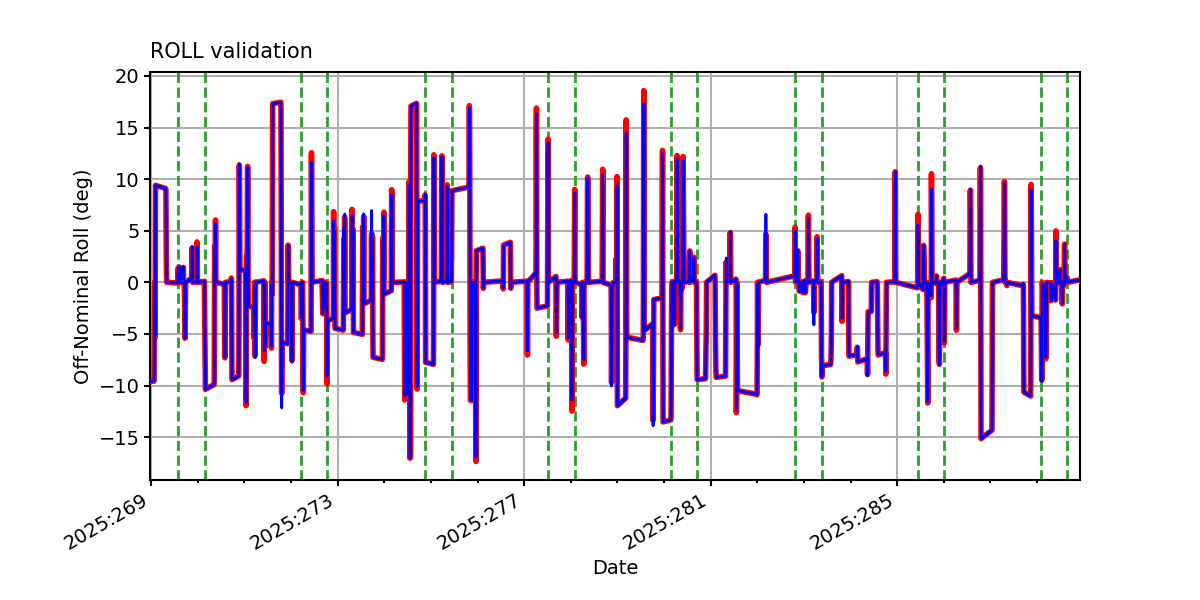

ROLL

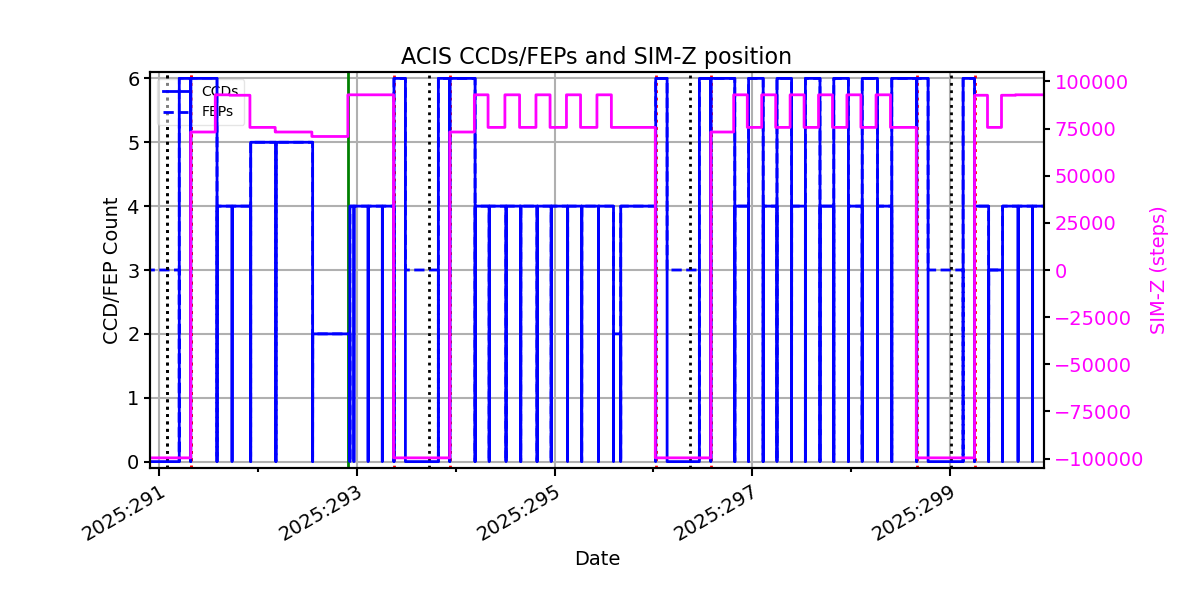

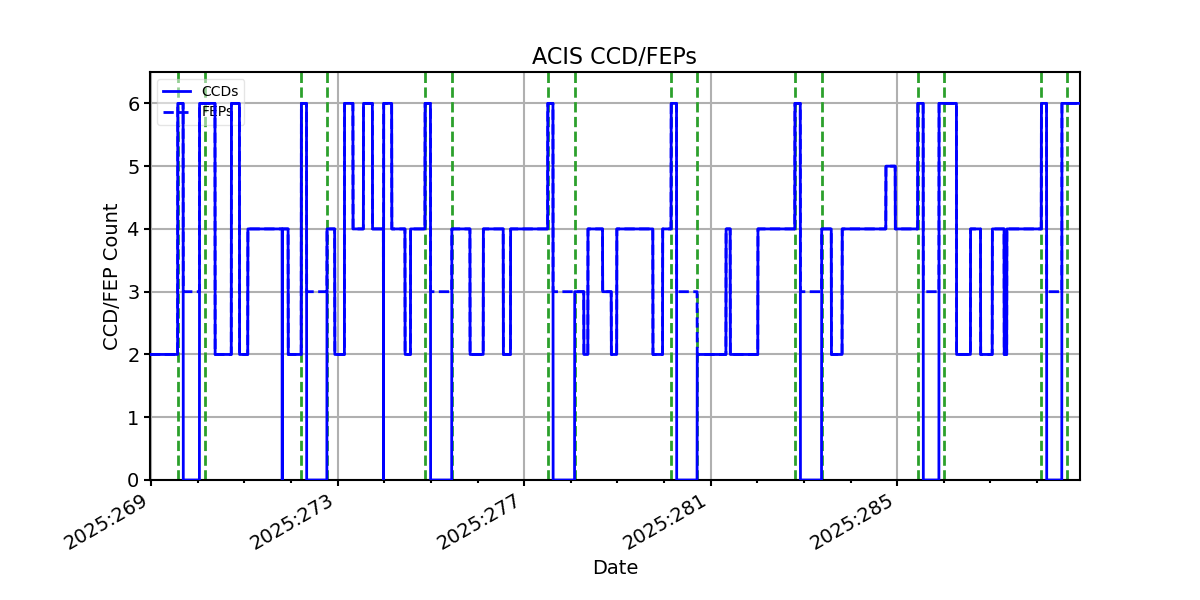

ACIS CCD/FEP Count

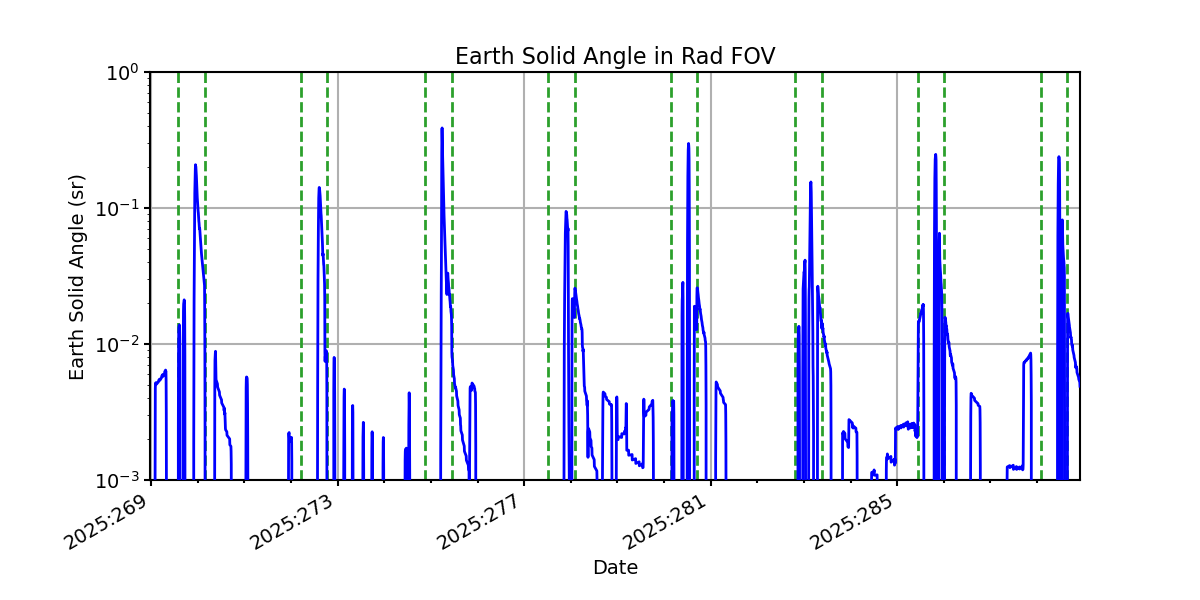

Earth Solid Angle
ADDITIONAL PLOTS

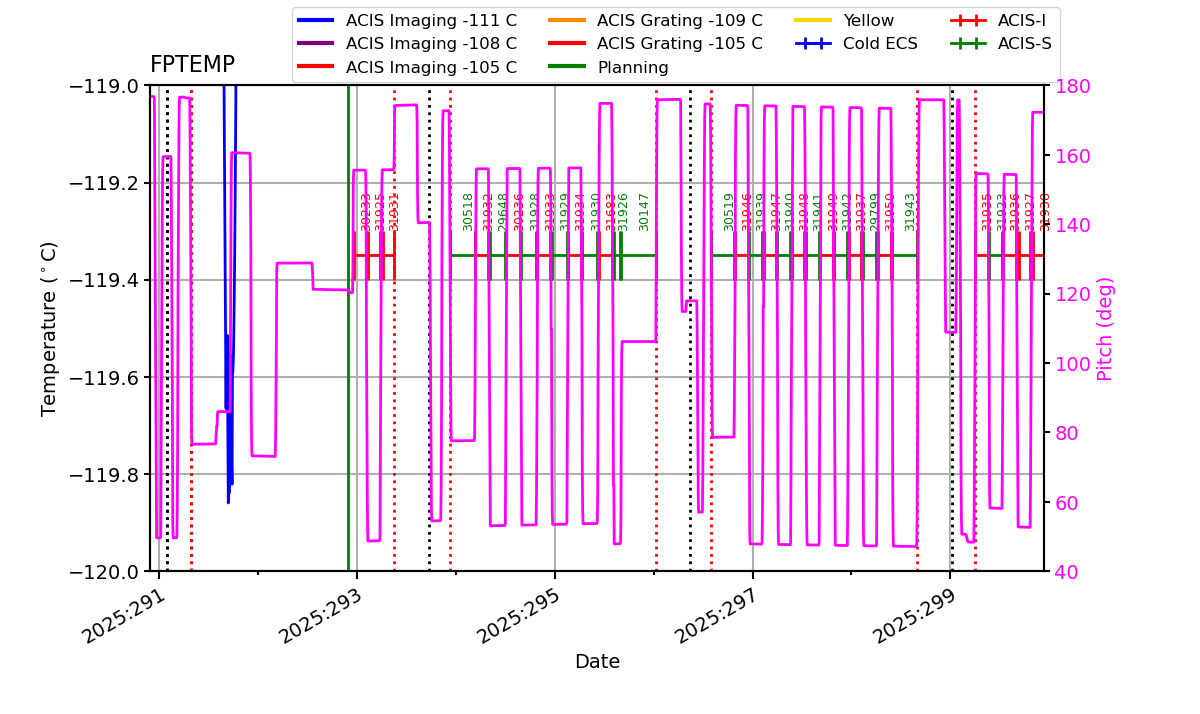

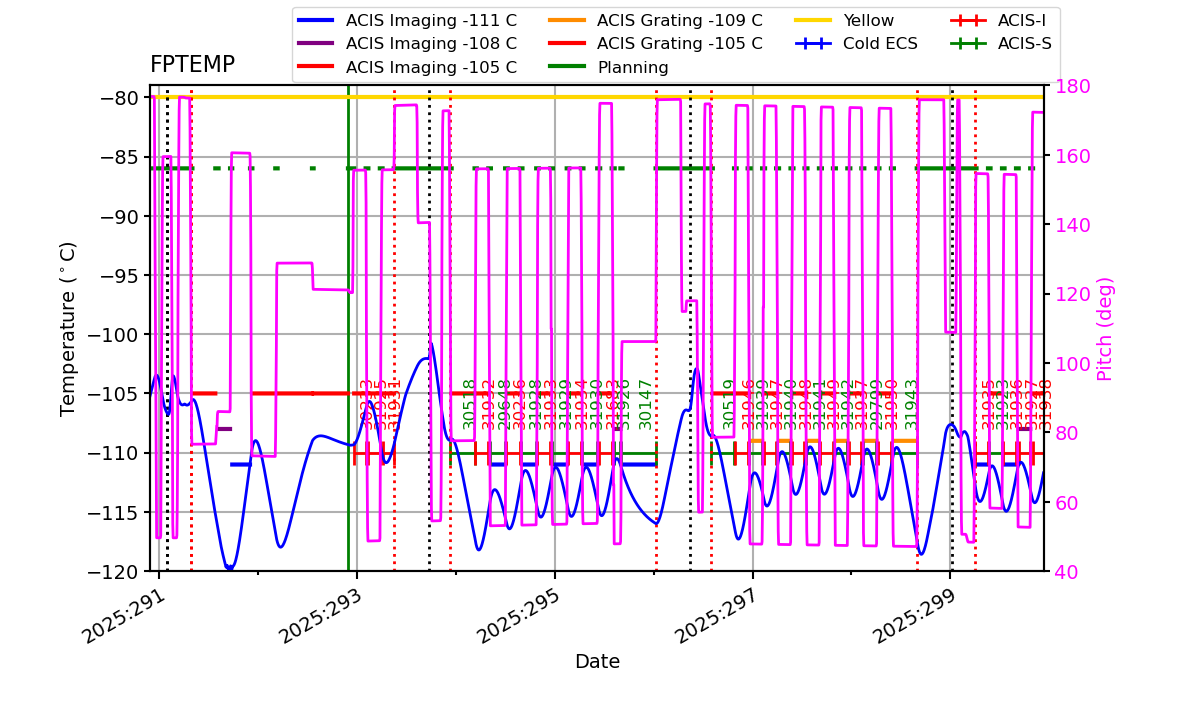

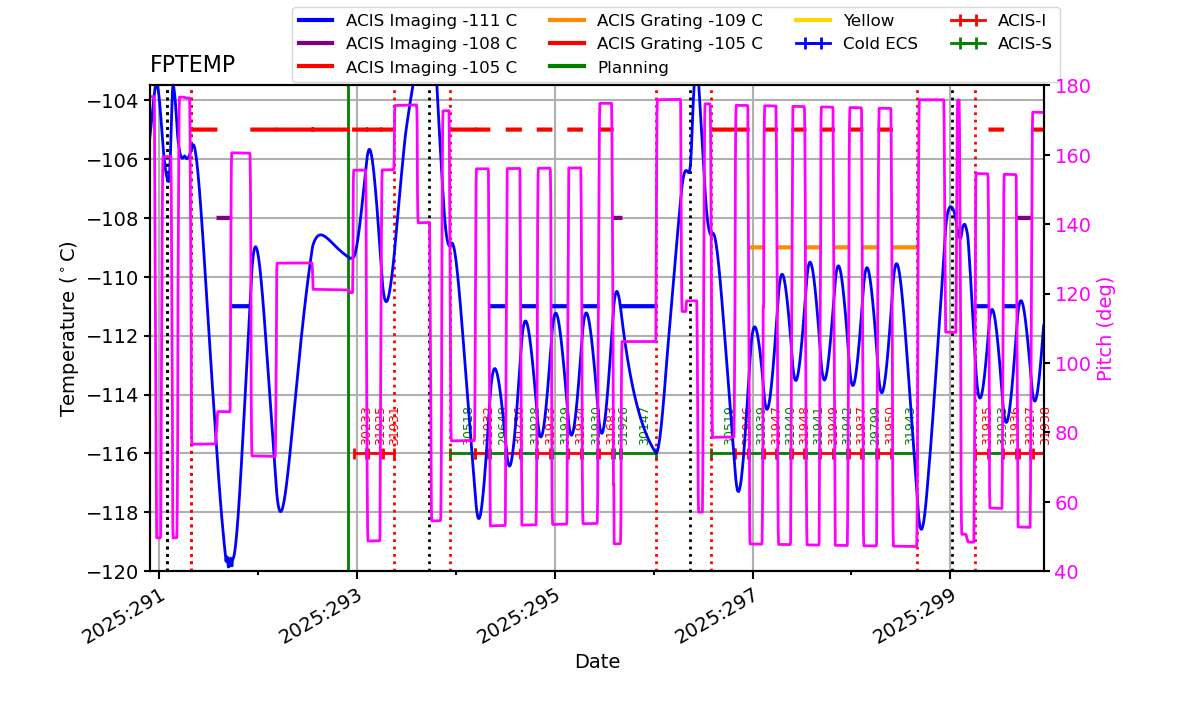

Additional plots of FPTEMP vs TIME for different temperature ranges
