ACISFP Temperatures Check
Summary
| Date start | 2025:295:21:30:00.016 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2225/oflsa |
| Run time | Mon Oct 20 22:03:36 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.90 | -1.21 | -0.61 | 0.08 | 0.84 | 1.38 | 2.02 |
| pitch | -10.614 | -1.241 | -0.004 | -0.000 | 0.004 | 0.821 | 12.240 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.049 | -0.104 | -0.007 | 0.000 | 0.009 | 0.284 | 2.326 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 2.02 | 2.00 |
| PITCH | 1 | -10.614 | 3.00 |
| PITCH | 99 | 12.24 | 3.00 |

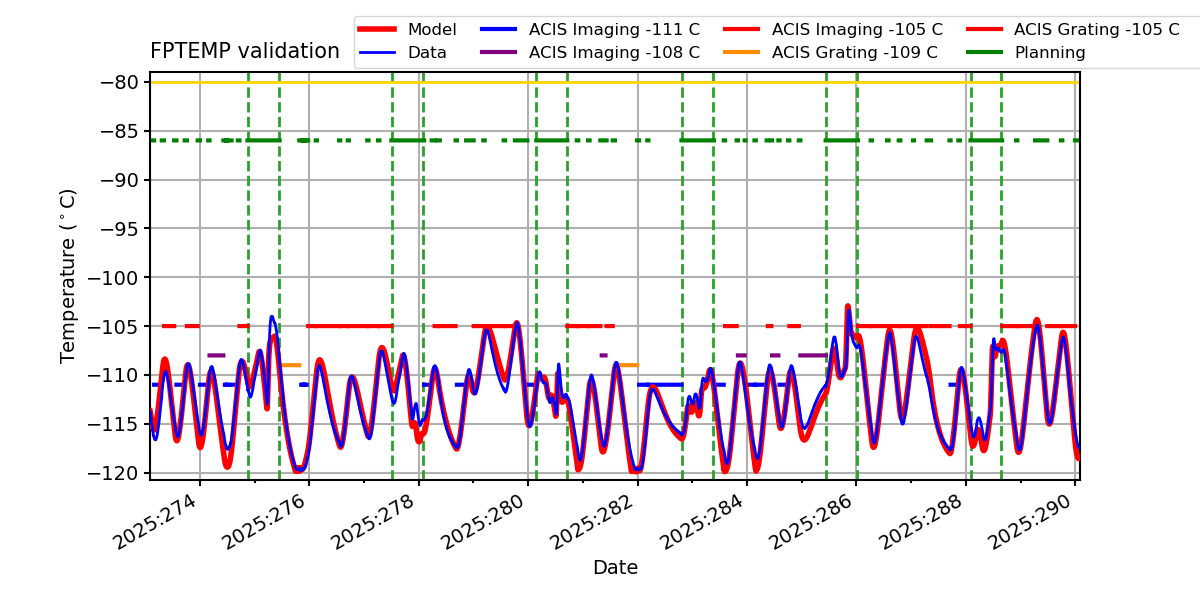

FPTEMP

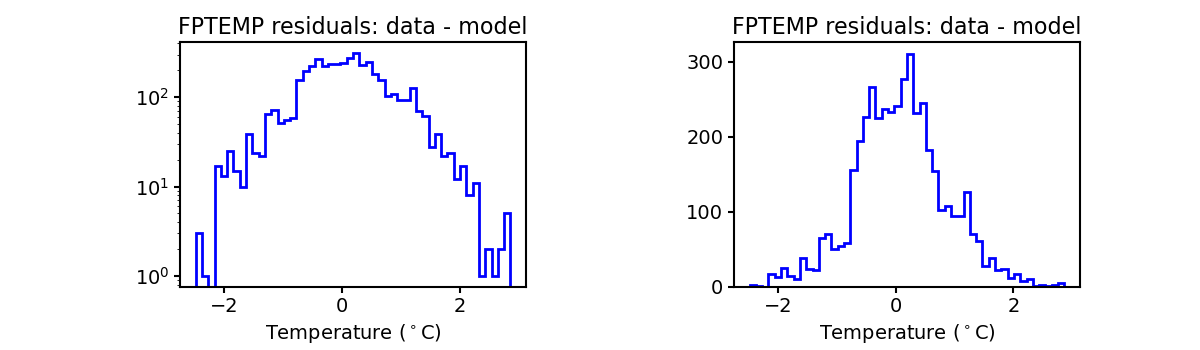

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.
PITCH

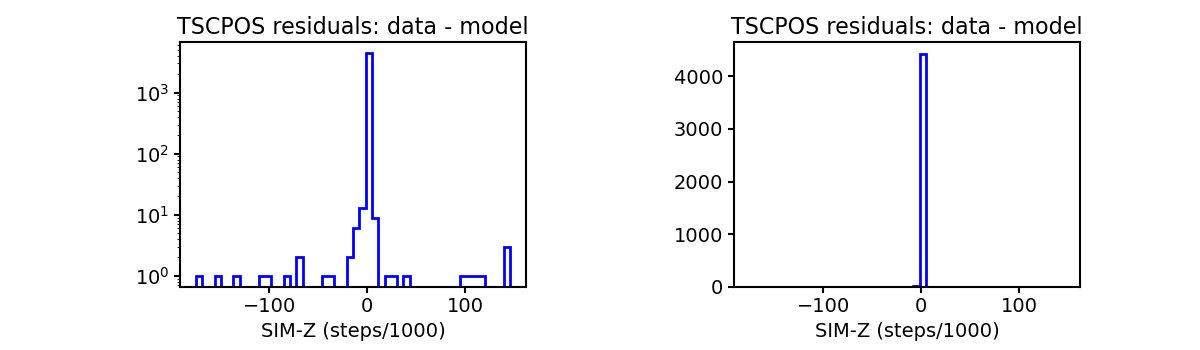

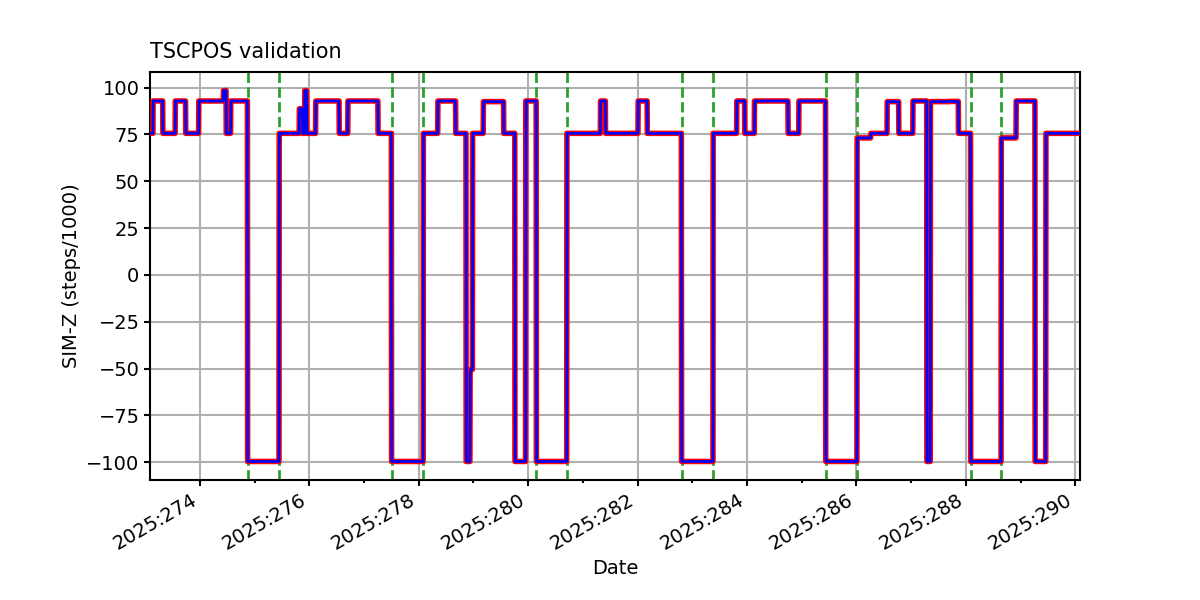

TSCPOS
ROLL

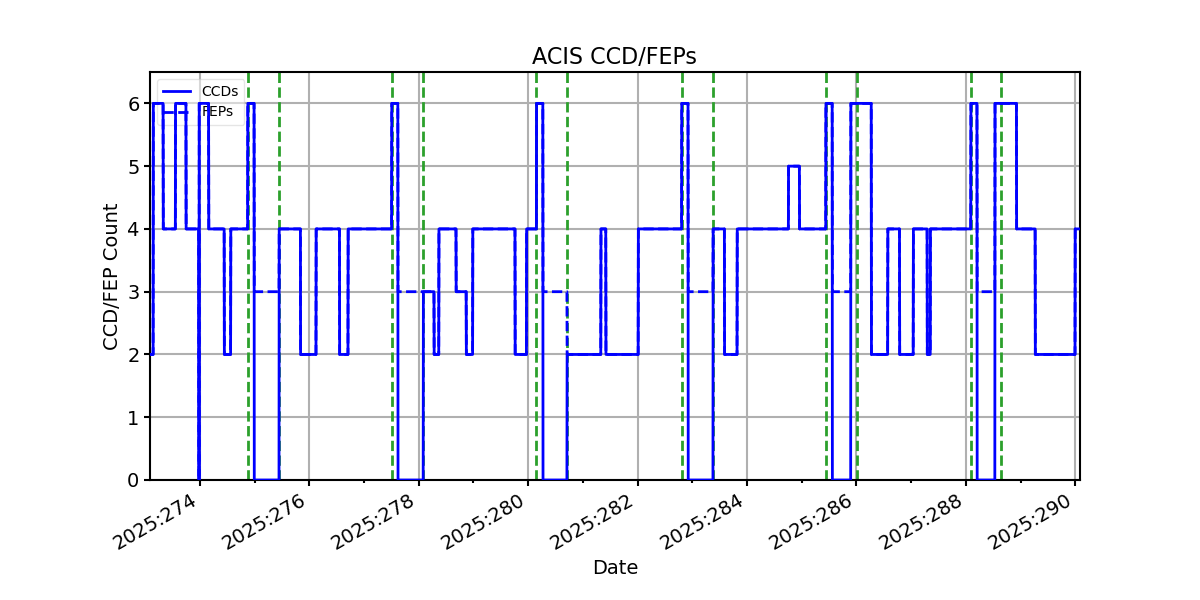

ACIS CCD/FEP Count

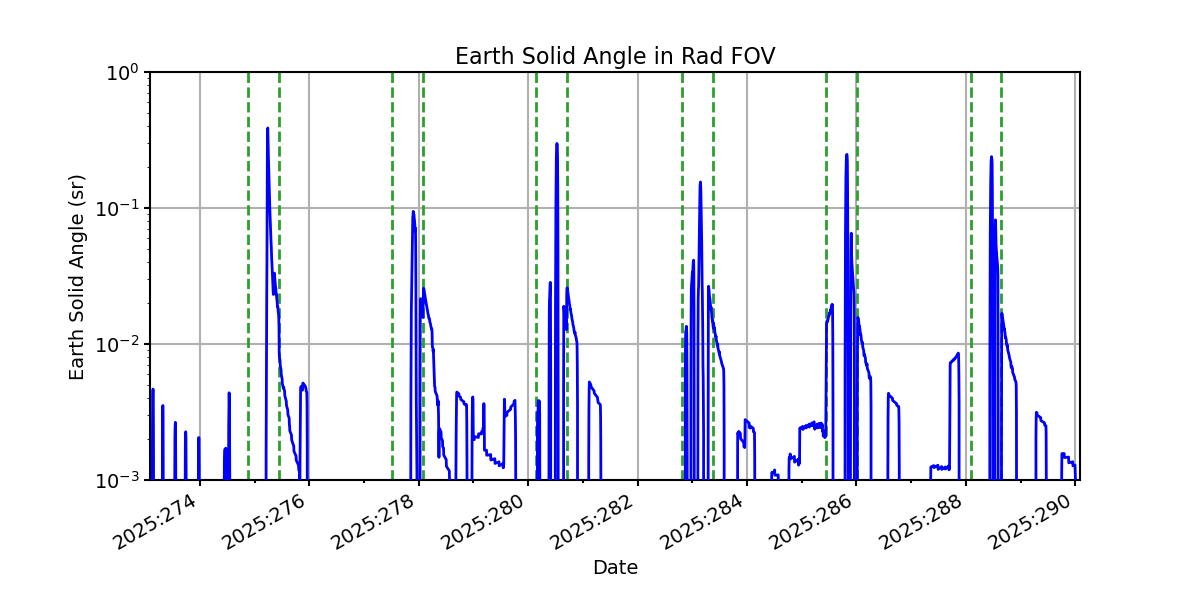

Earth Solid Angle
ADDITIONAL PLOTS

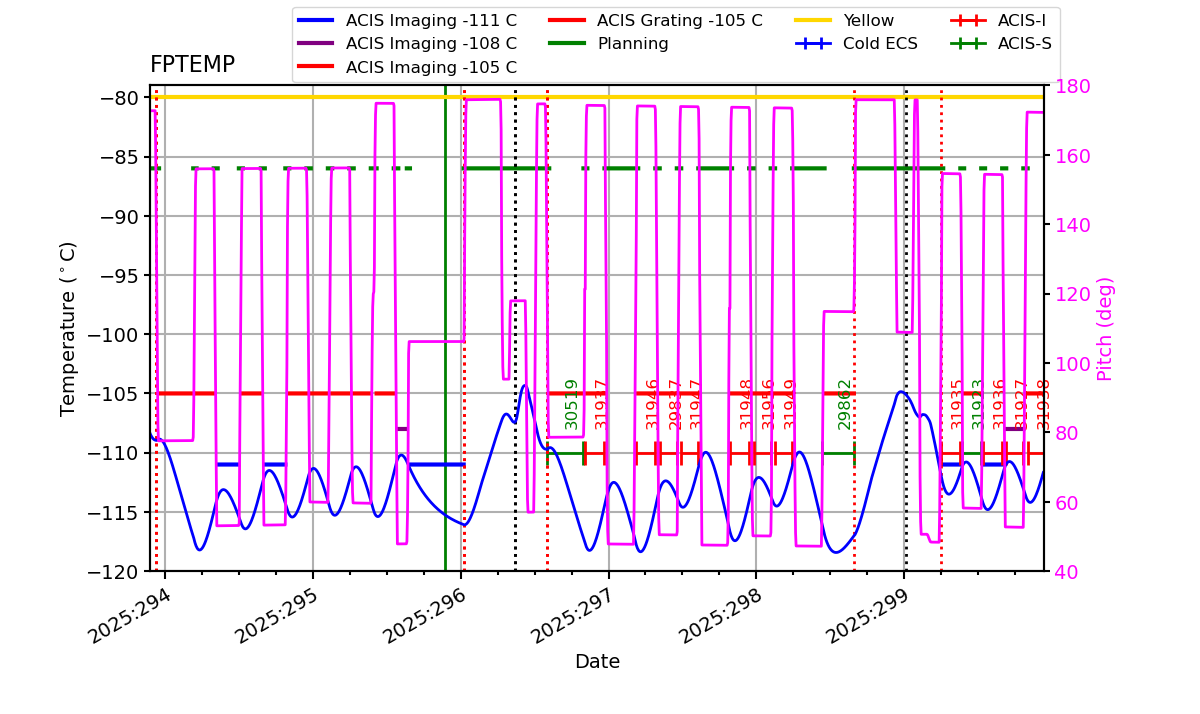

Additional plots of FPTEMP vs TIME for different temperature ranges
