ACISFP Temperatures Check
Summary
| Date start | 2025:299:22:49:08.316 |
| Date stop | 2025:306:17:02:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2725/oflsa |
| Run time | Wed Oct 22 21:28:16 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
FPTEMP Upper Limit Violations
| Date start | Date stop | Duration / Exposure (ks) | Max Temperature / Limit | Obsid |
|---|---|---|---|---|
| 2025:300:12:35:26.816 | 2025:300:12:40:54.816 | 0.33 / 30.60 | -110.99 / -111.00 | 29962 |
| 2025:301:20:39:43.071 | 2025:301:20:45:10.816 | 0.33 / 10.00 | -104.88 / -105.00 | 31922 |
| 2025:306:03:26:06.816 | 2025:306:03:31:34.816 | 0.33 / 17.00 | -110.99 / -111.00 | 31962 |
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.72 | -1.16 | -0.60 | 0.08 | 0.93 | 1.59 | 4.66 |
| pitch | -11.079 | -1.018 | -0.004 | -0.000 | 0.004 | 0.776 | 12.615 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.701 | -0.086 | -0.007 | 0.000 | 0.008 | 0.206 | 2.081 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 4.66 | 2.00 |
| PITCH | 1 | -11.079 | 3.00 |
| PITCH | 99 | 12.615 | 3.00 |

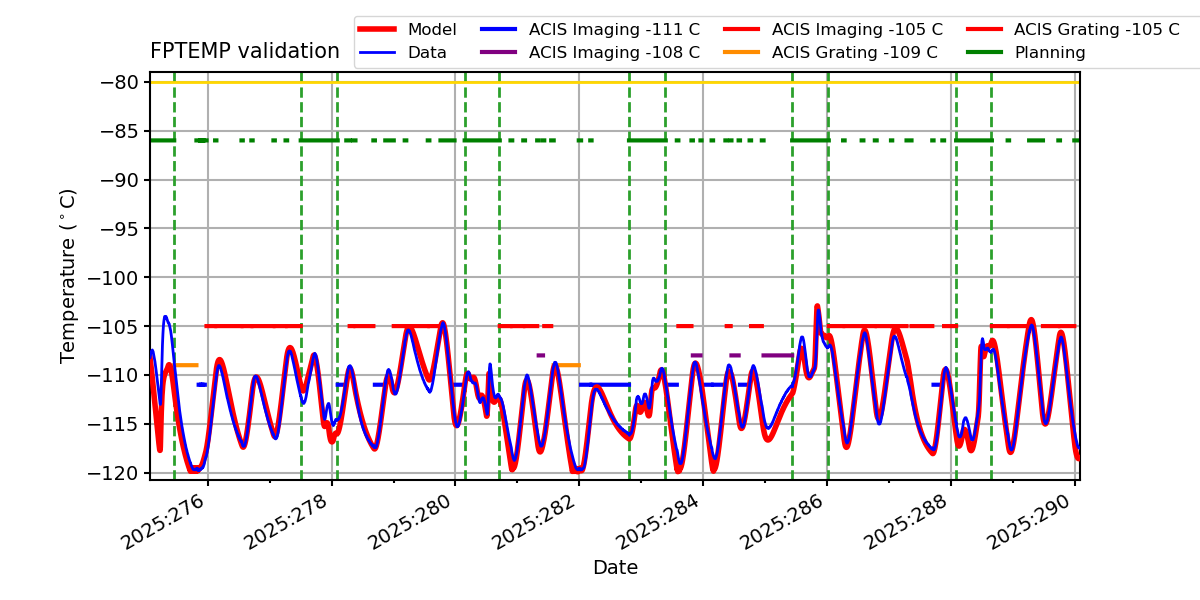

FPTEMP

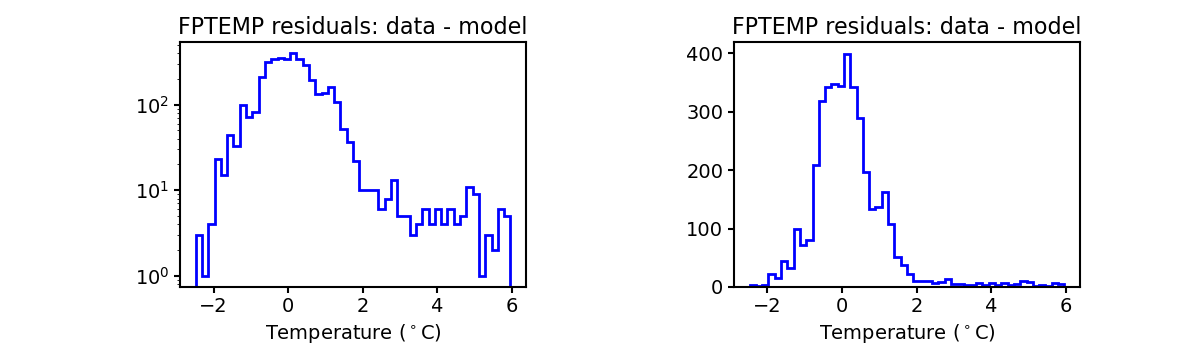

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

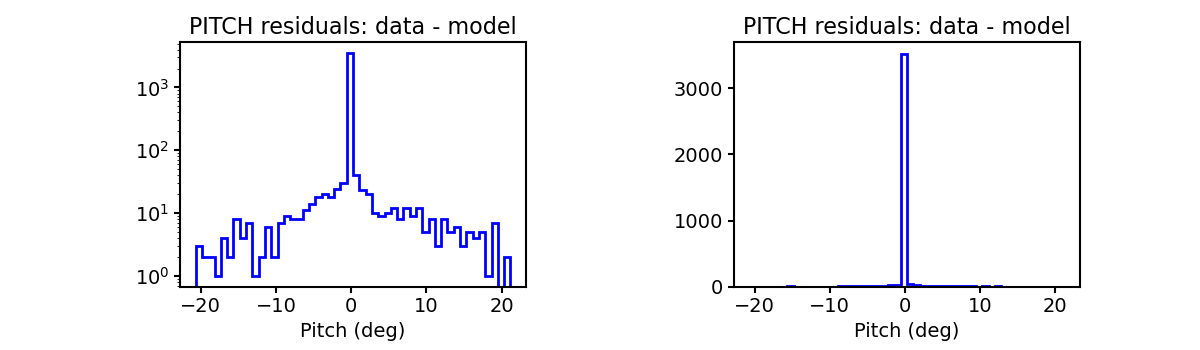

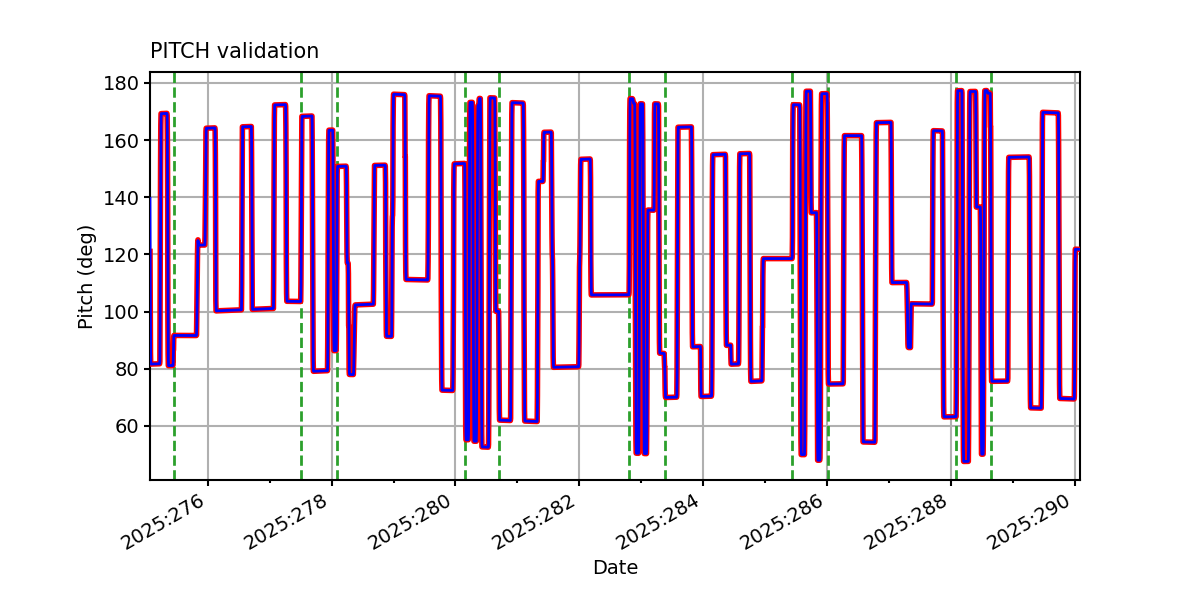

PITCH

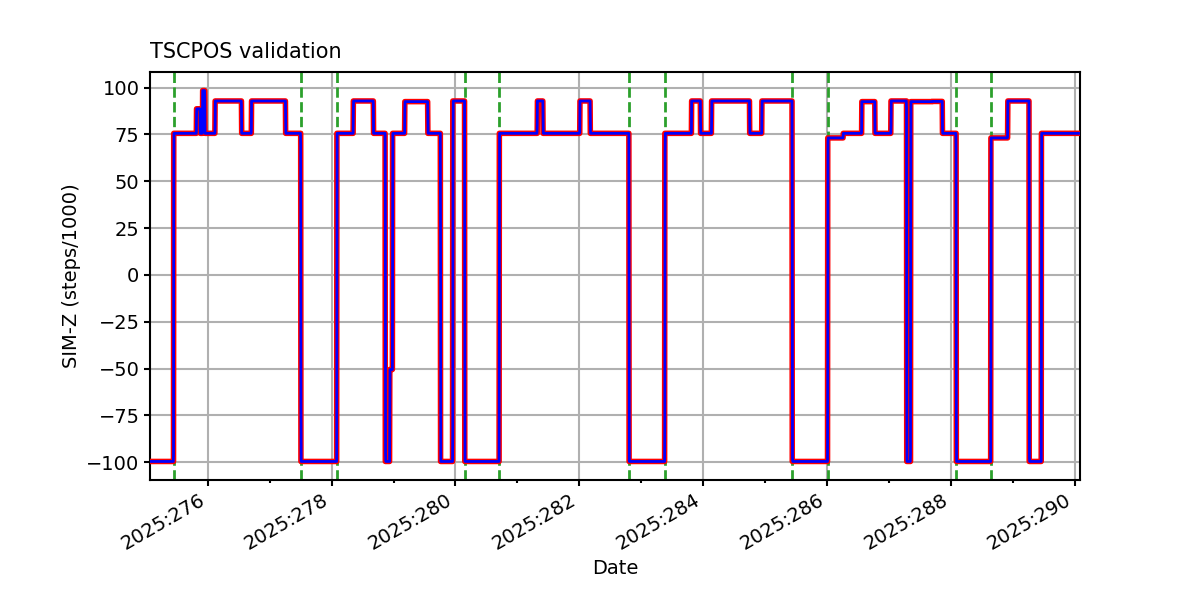

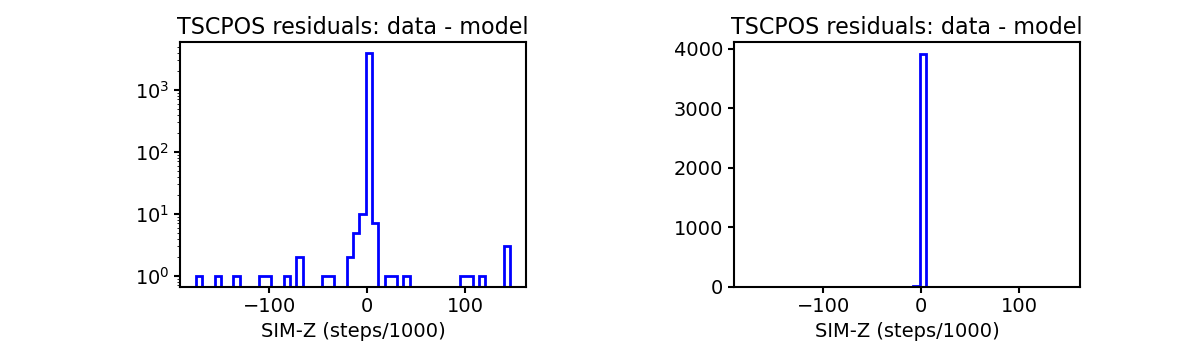

TSCPOS

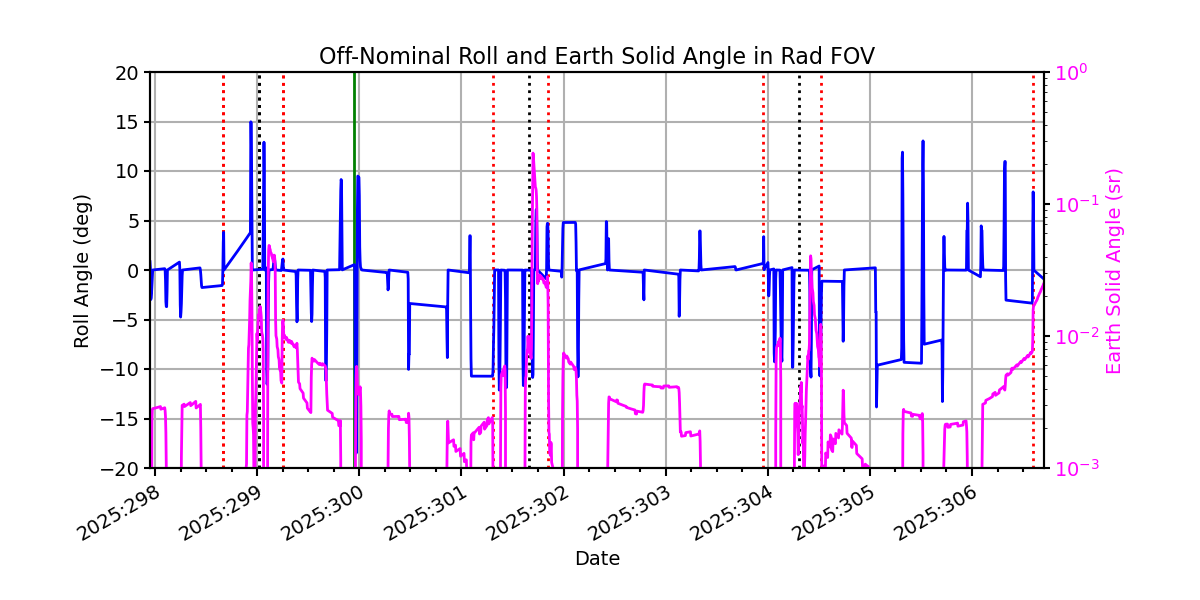

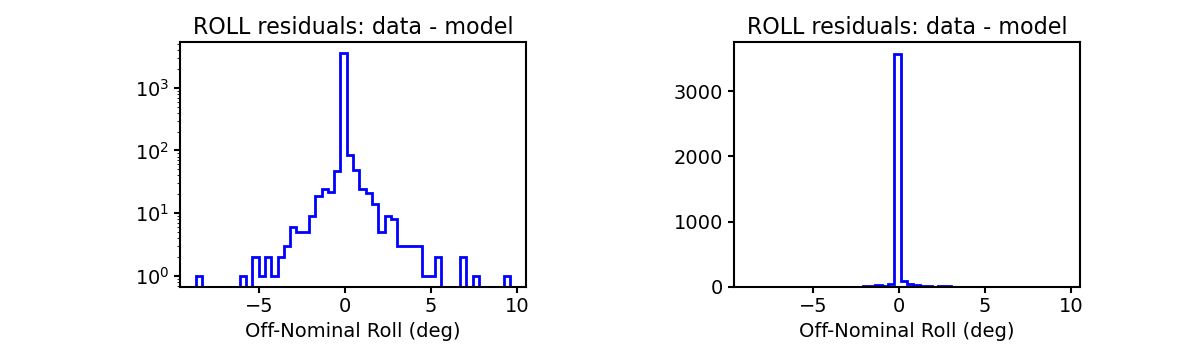

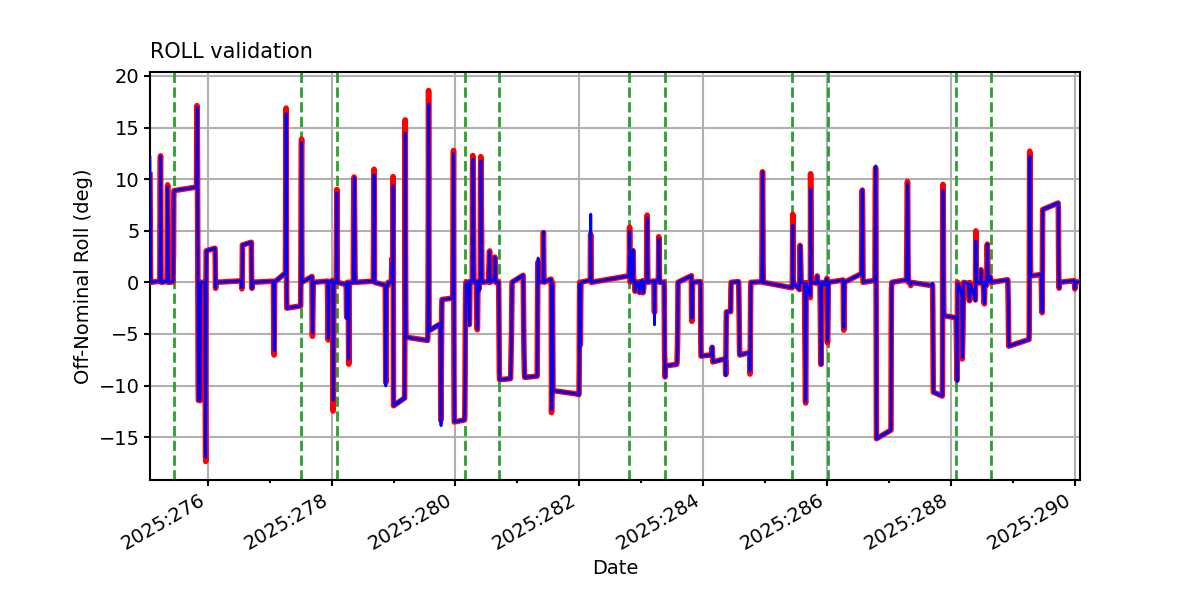

ROLL

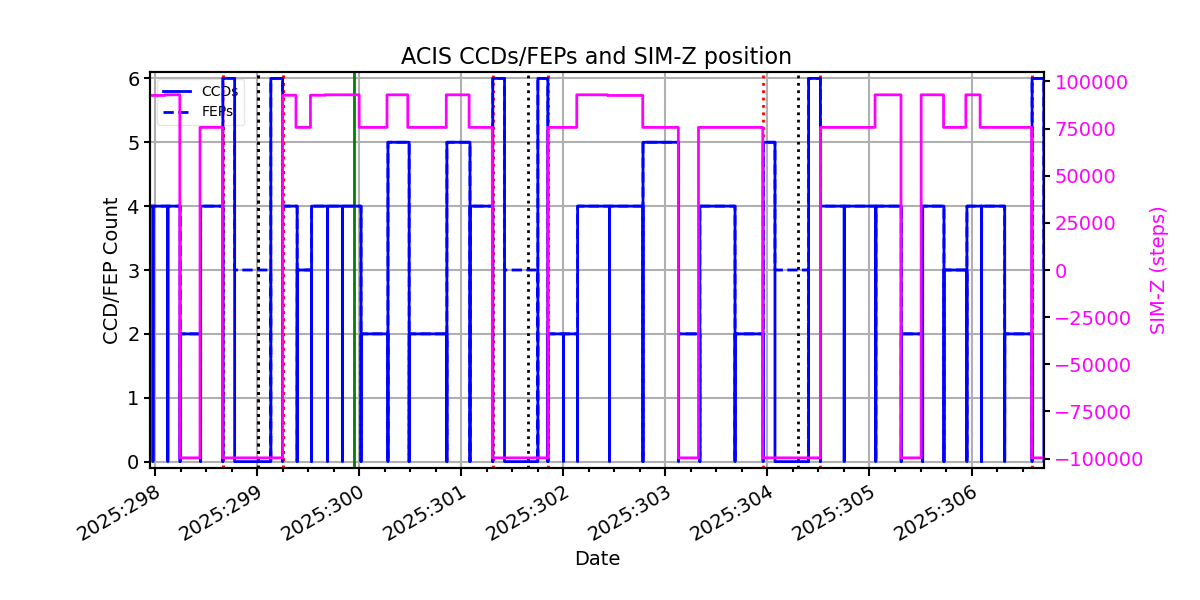

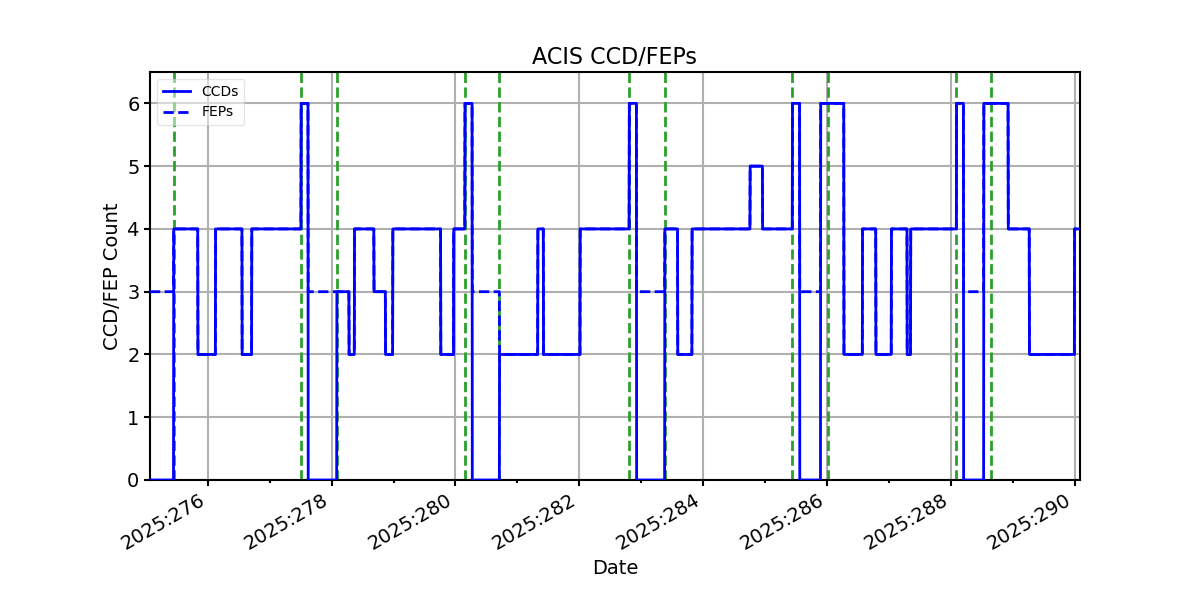

ACIS CCD/FEP Count

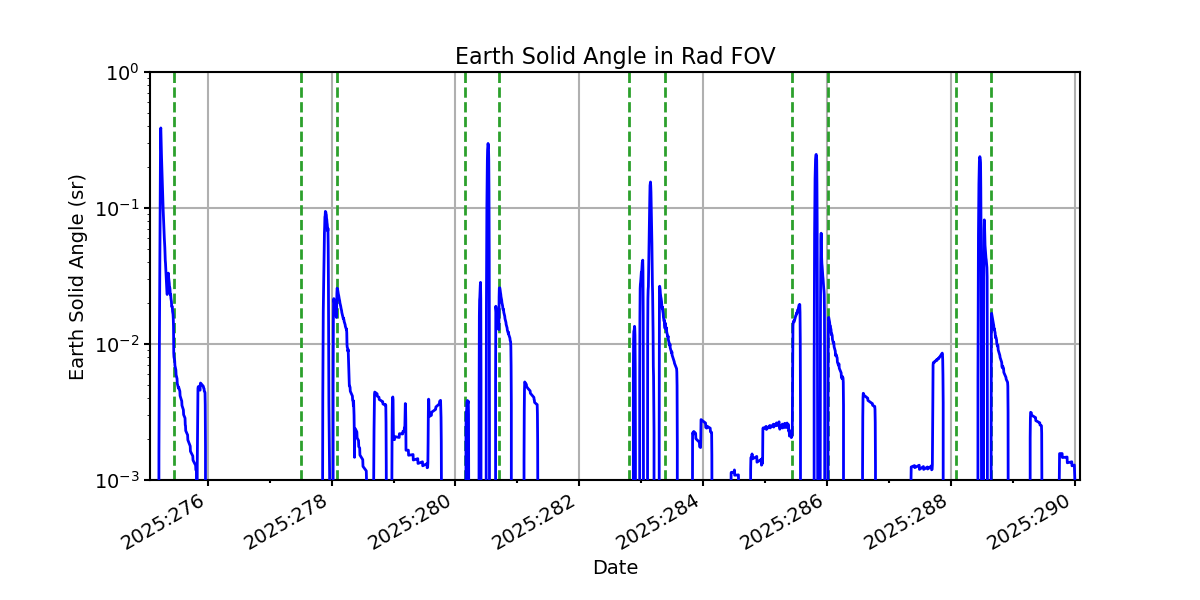

Earth Solid Angle
ADDITIONAL PLOTS

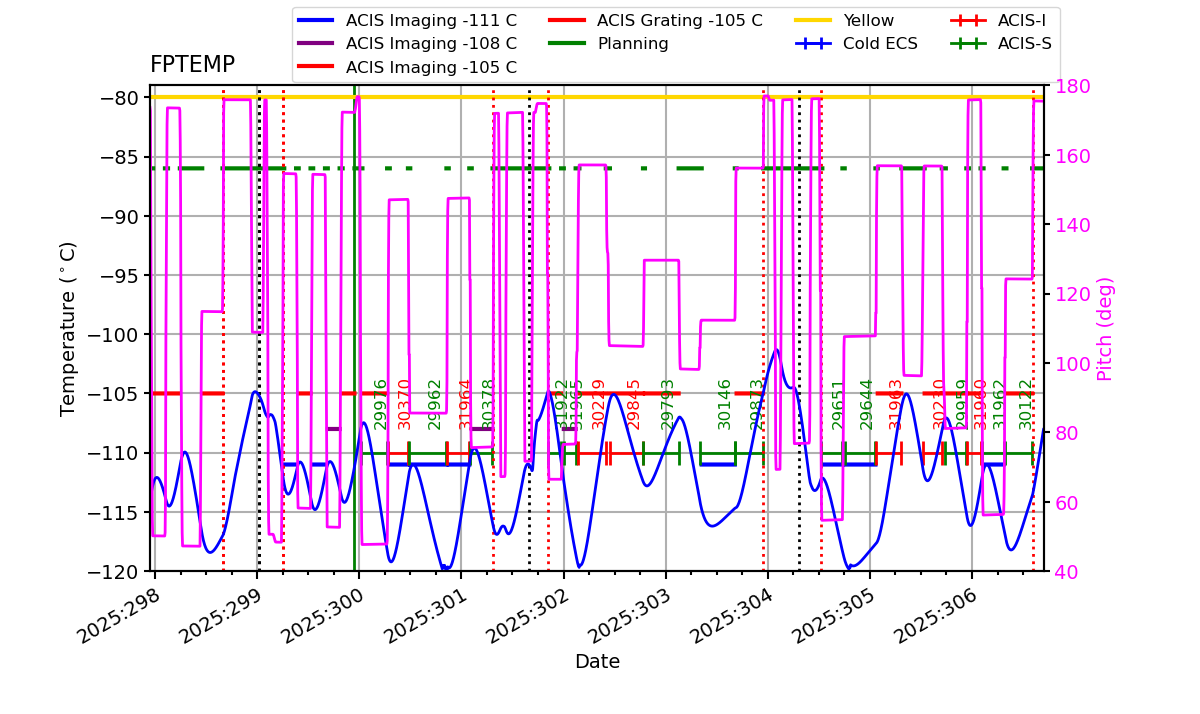

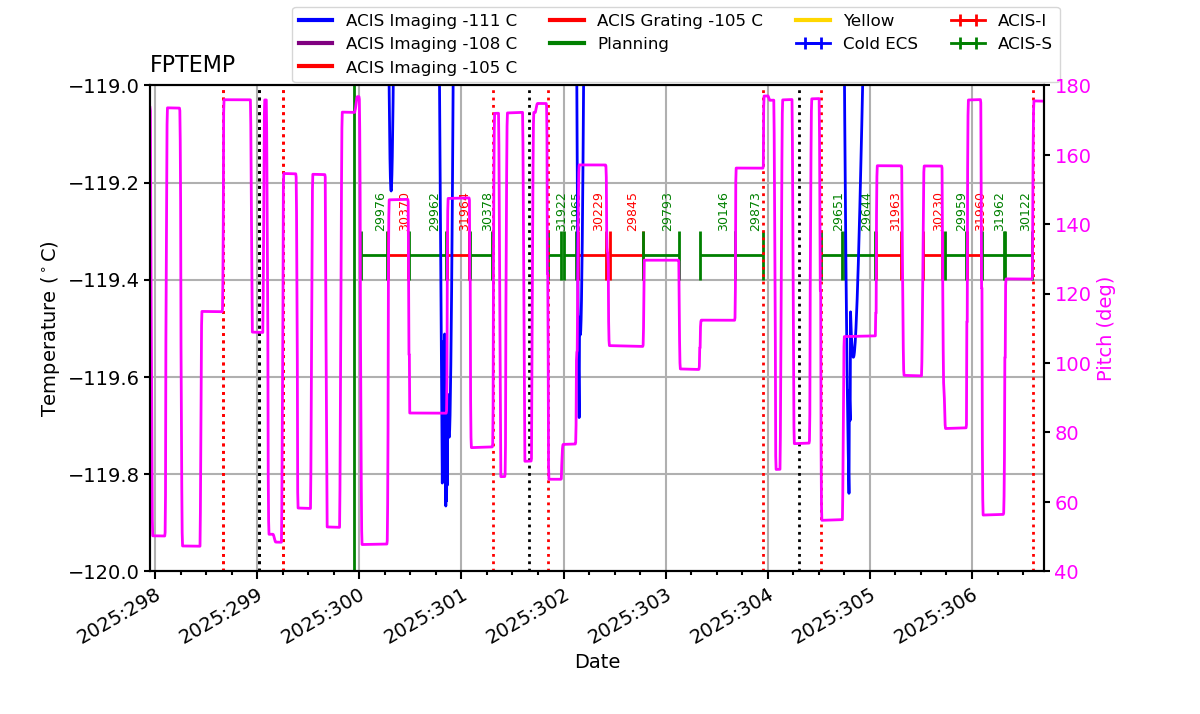

Additional plots of FPTEMP vs TIME for different temperature ranges
