ACISFP Temperatures Check
Summary
| Date start | 2025:244:00:20:40.116 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0125/oflsa |
| Run time | Thu Aug 28 10:26:15 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -3.45 | -2.92 | -1.77 | -0.17 | 1.45 | 2.41 | 5.47 |
| pitch | -8.328 | -0.190 | -0.004 | -0.000 | 0.004 | 0.035 | 9.308 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.290 | -0.057 | -0.005 | 0.000 | 0.005 | 0.066 | 1.640 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -3.45 | 2.00 |
| FPTEMP | 99 | 5.47 | 2.00 |
| PITCH | 1 | -8.328 | 3.00 |
| PITCH | 99 | 9.308 | 3.00 |

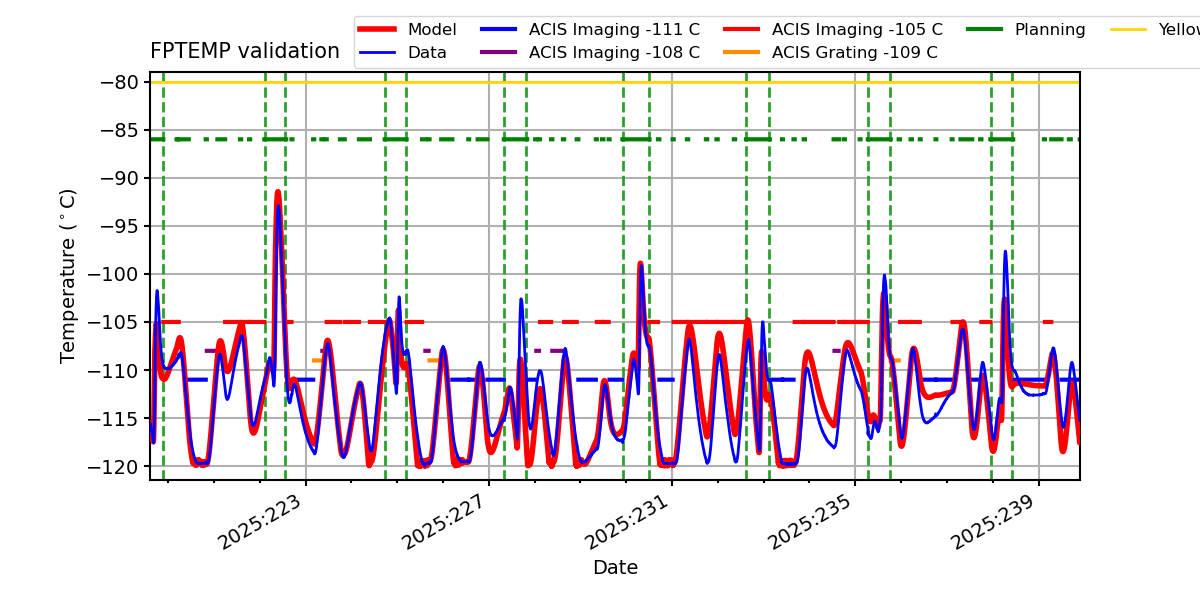

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

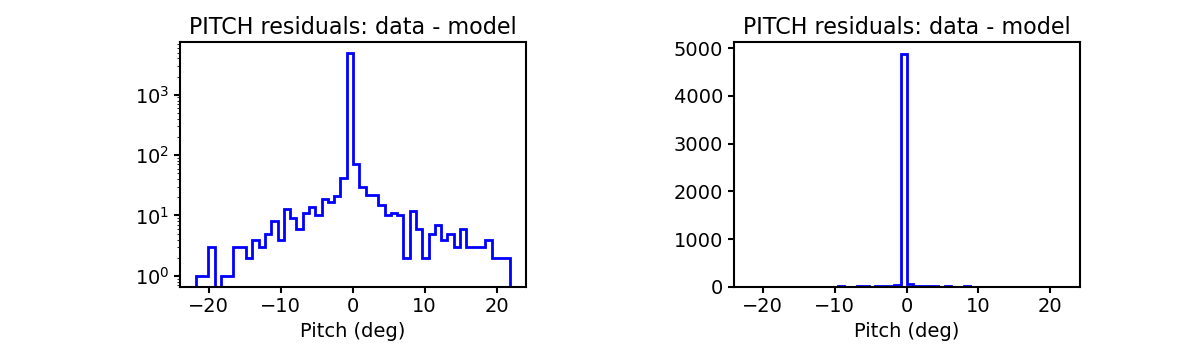

PITCH

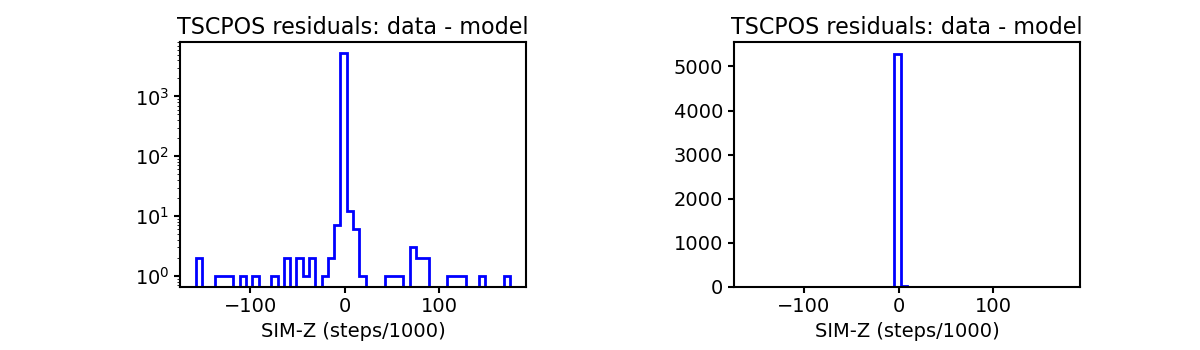

TSCPOS

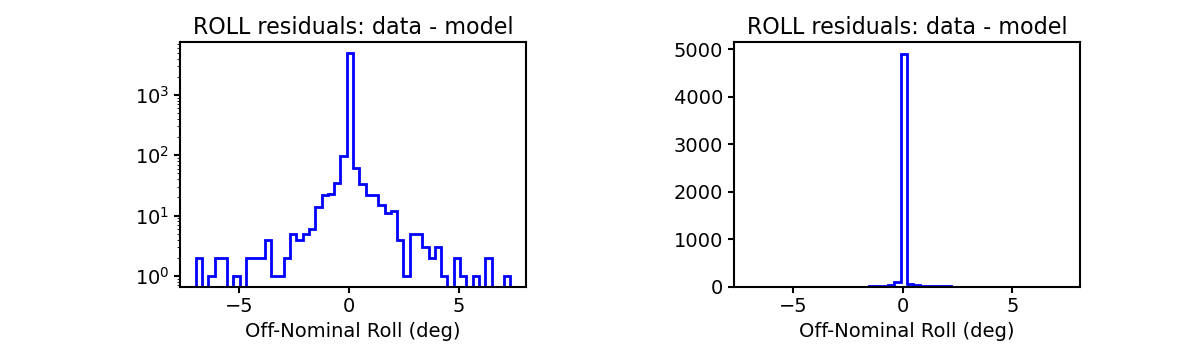

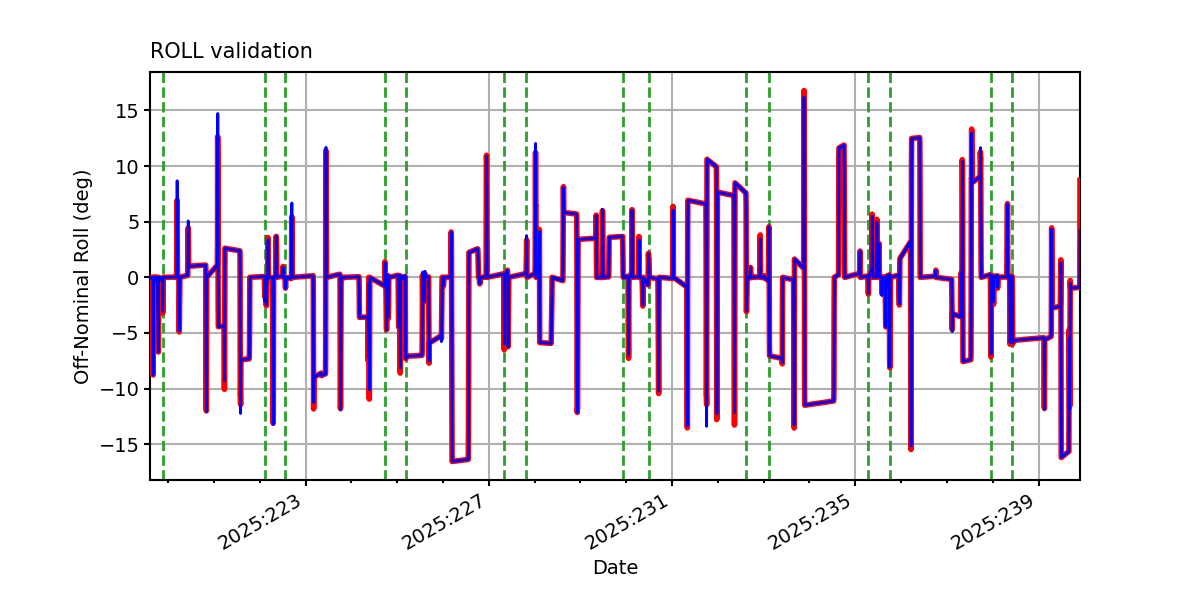

ROLL

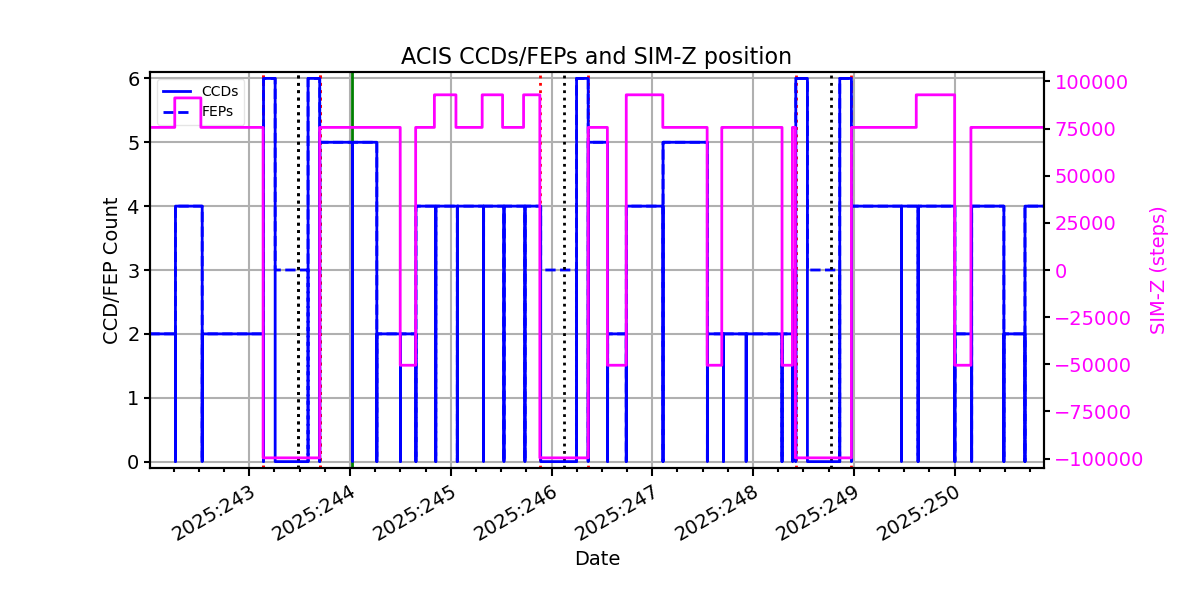

ACIS CCD/FEP Count

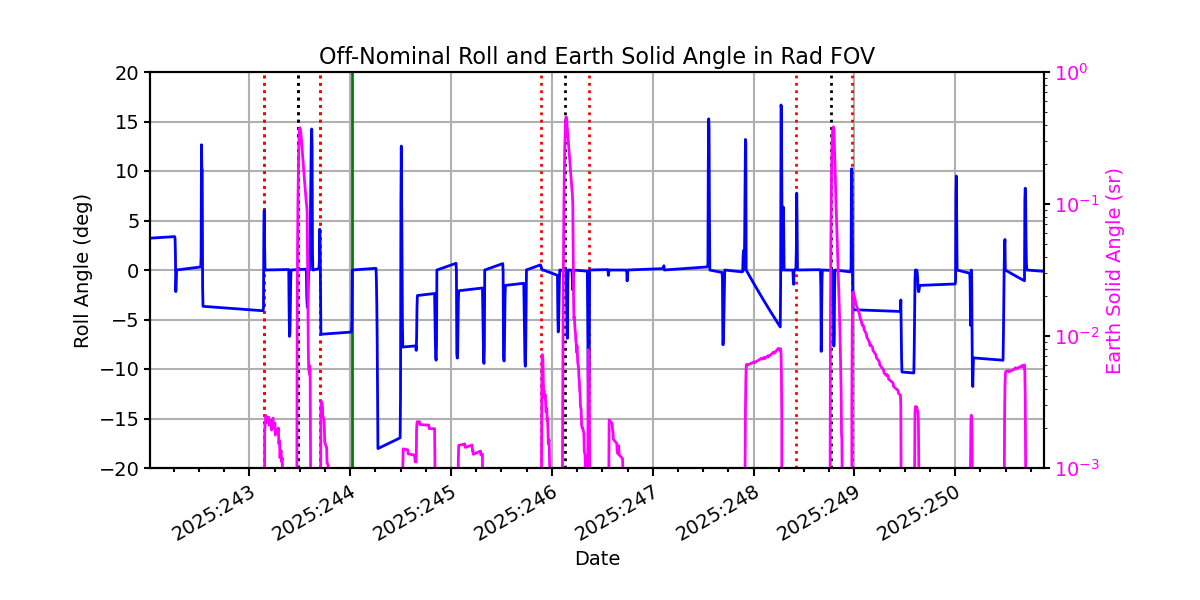

Earth Solid Angle
ADDITIONAL PLOTS

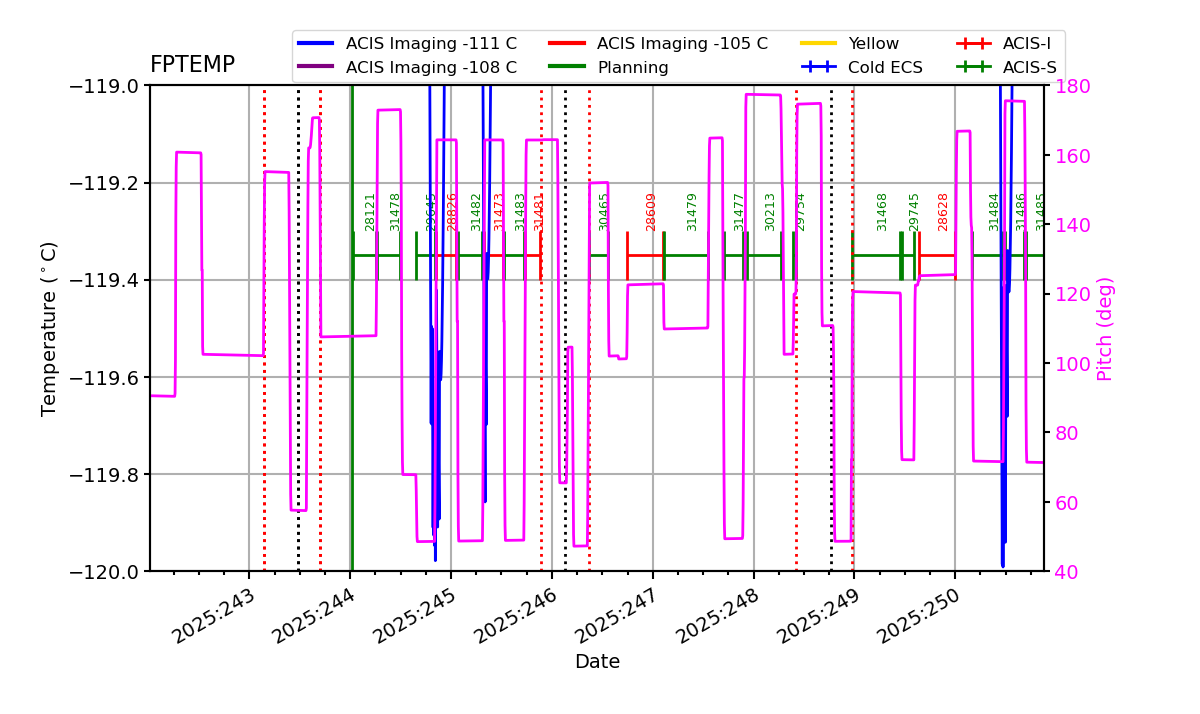

Additional plots of FPTEMP vs TIME for different temperature ranges
