ACISFP Temperatures Check
Summary
| Date start | 2025:246:00:40:00.016 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0325/oflsa |
| Run time | Mon Sep 1 23:20:18 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -3.44 | -2.94 | -1.94 | -0.19 | 1.69 | 2.66 | 5.80 |
| pitch | -8.799 | -0.117 | -0.004 | -0.000 | 0.004 | 0.053 | 8.420 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.357 | -0.052 | -0.006 | -0.000 | 0.006 | 0.053 | 1.515 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -3.44 | 2.00 |
| FPTEMP | 99 | 5.8 | 2.00 |
| PITCH | 1 | -8.799 | 3.00 |
| PITCH | 99 | 8.42 | 3.00 |

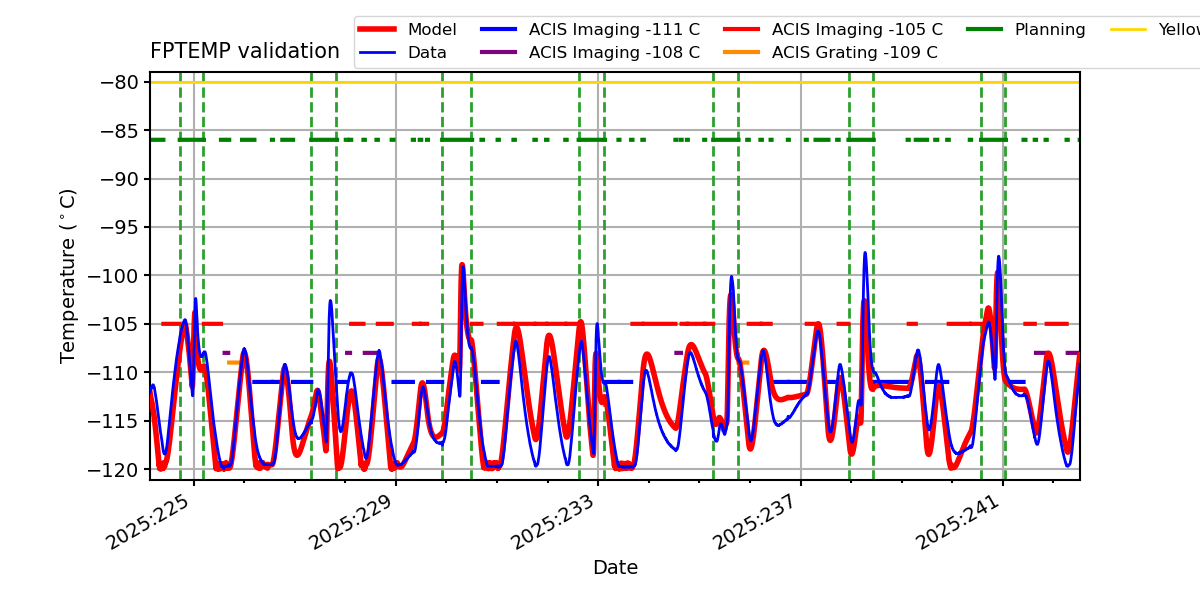

FPTEMP

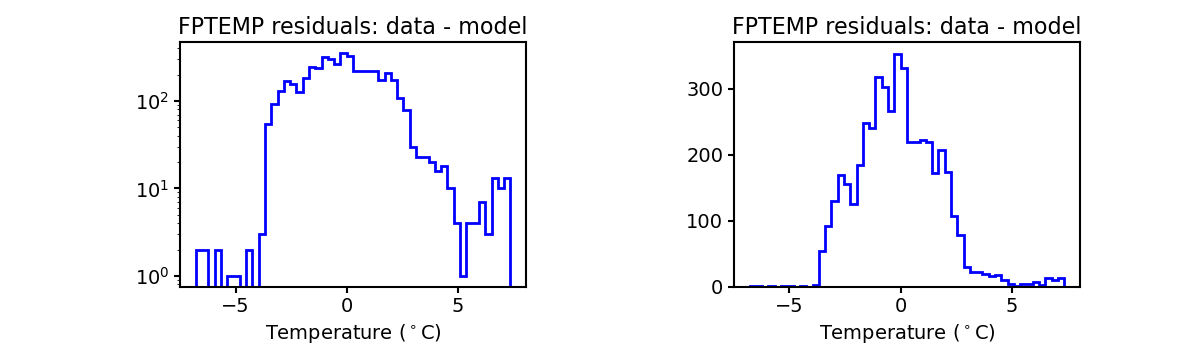

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

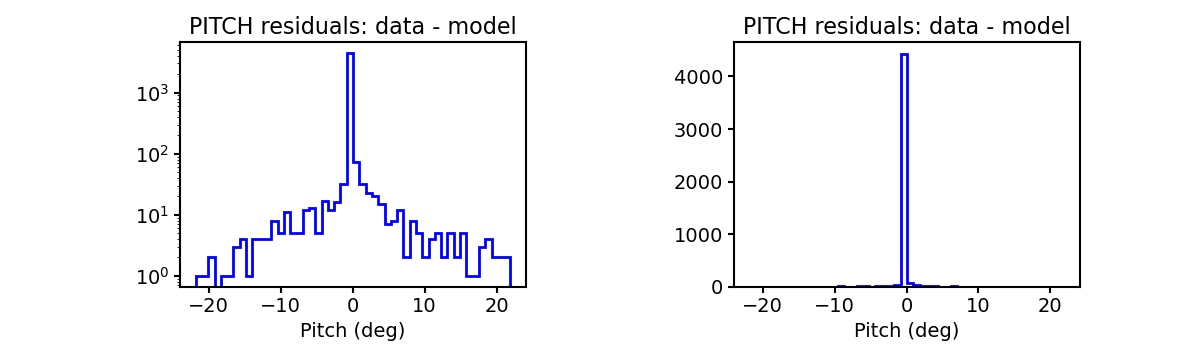

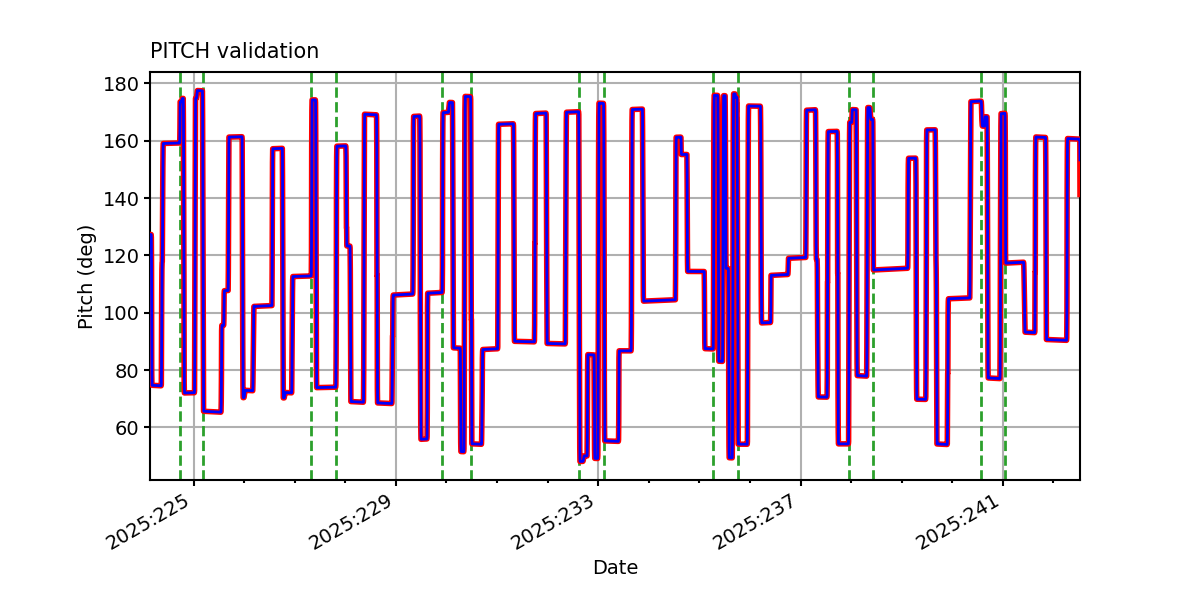

PITCH
TSCPOS

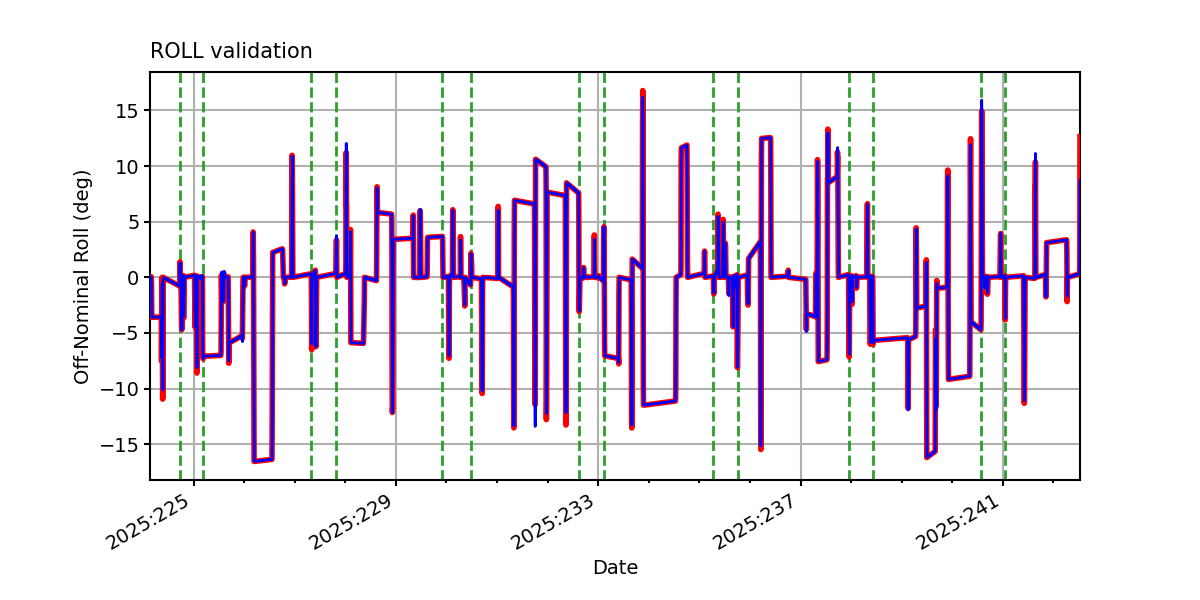

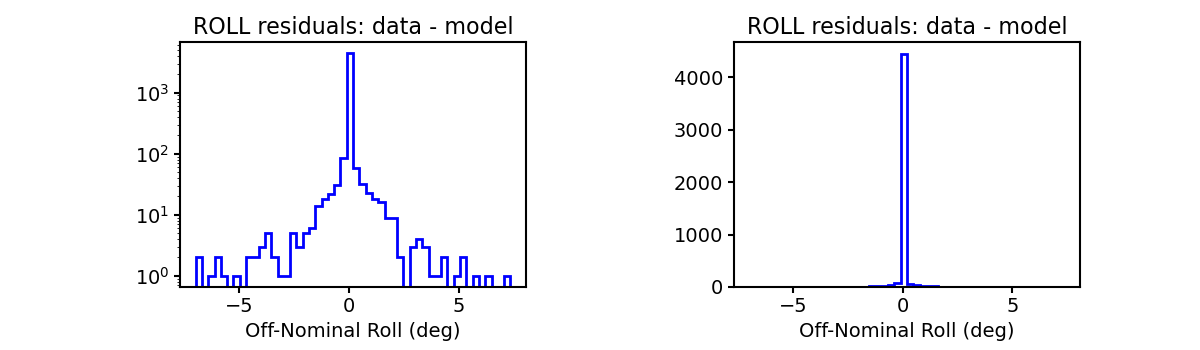

ROLL

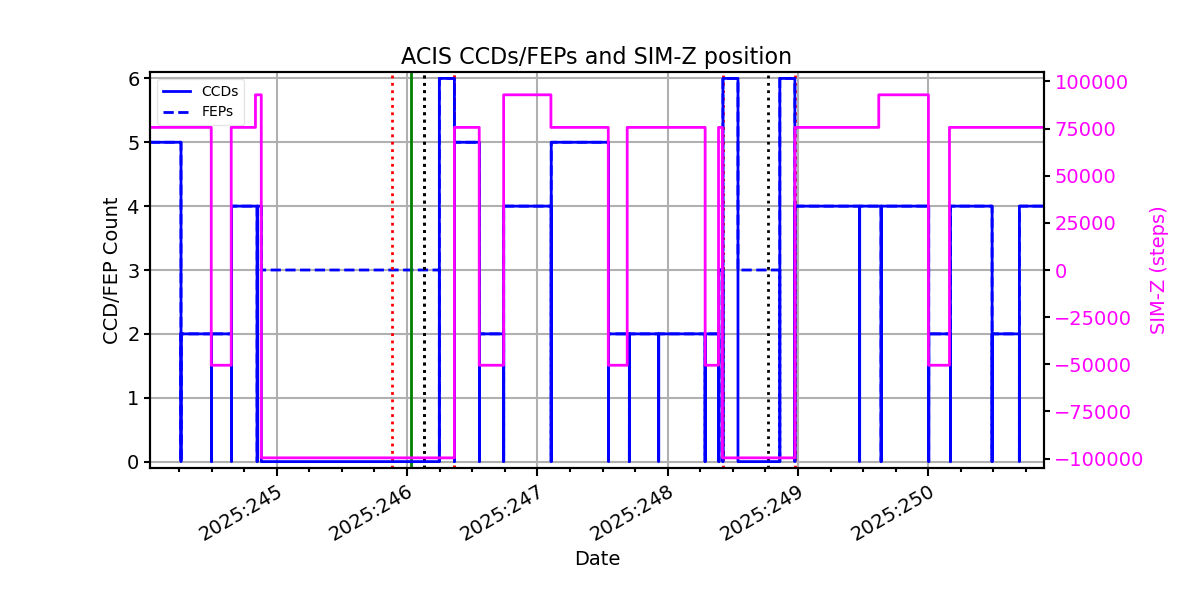

ACIS CCD/FEP Count
Earth Solid Angle
ADDITIONAL PLOTS

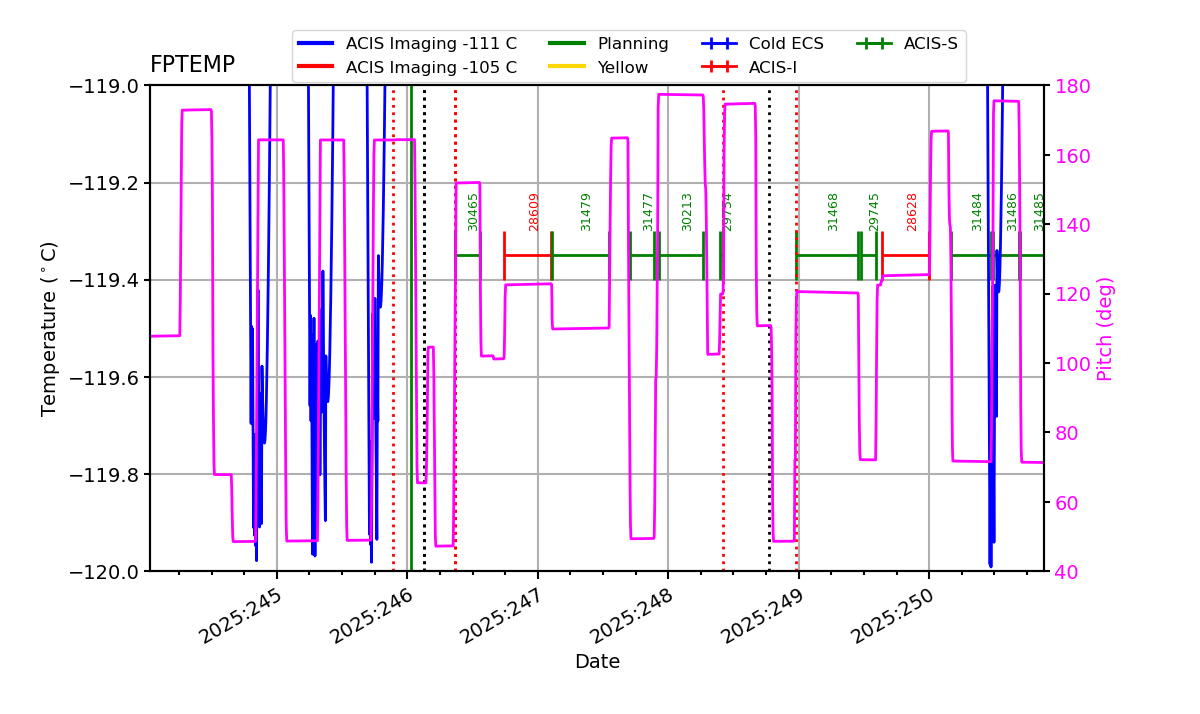

Additional plots of FPTEMP vs TIME for different temperature ranges
