ACISFP Temperatures Check
Summary
| Date start | 2026:250:02:14:56.816 |
| Date stop | 2026:257:02:09:19.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP0726/oflsa |
| Run time | Thu Sep 3 09:54:29 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -1.82 | -1.25 | -0.94 | -0.35 | 0.10 | 0.58 | 1.34 |
| pitch | -9.464 | -0.298 | -0.004 | 0.000 | 0.004 | 0.476 | 9.000 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.873 | -0.119 | -0.005 | -0.000 | 0.004 | 0.104 | 1.616 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.464 | 3.00 |
| PITCH | 99 | 9.0 | 3.00 |
FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

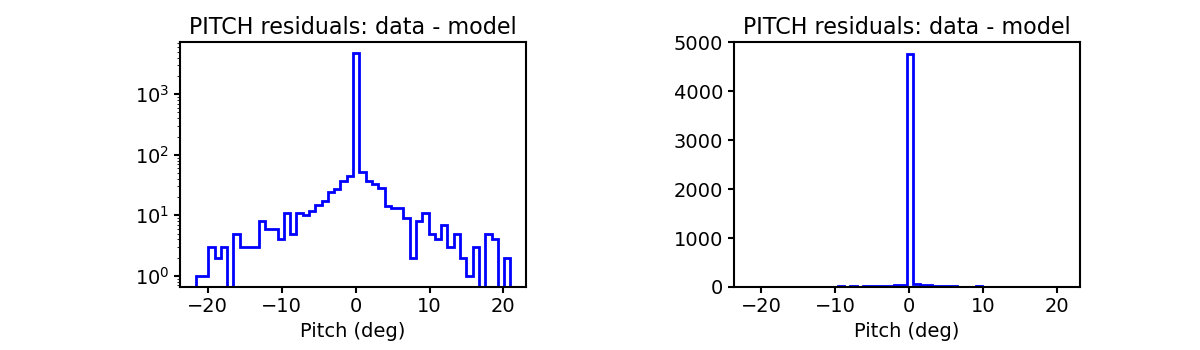

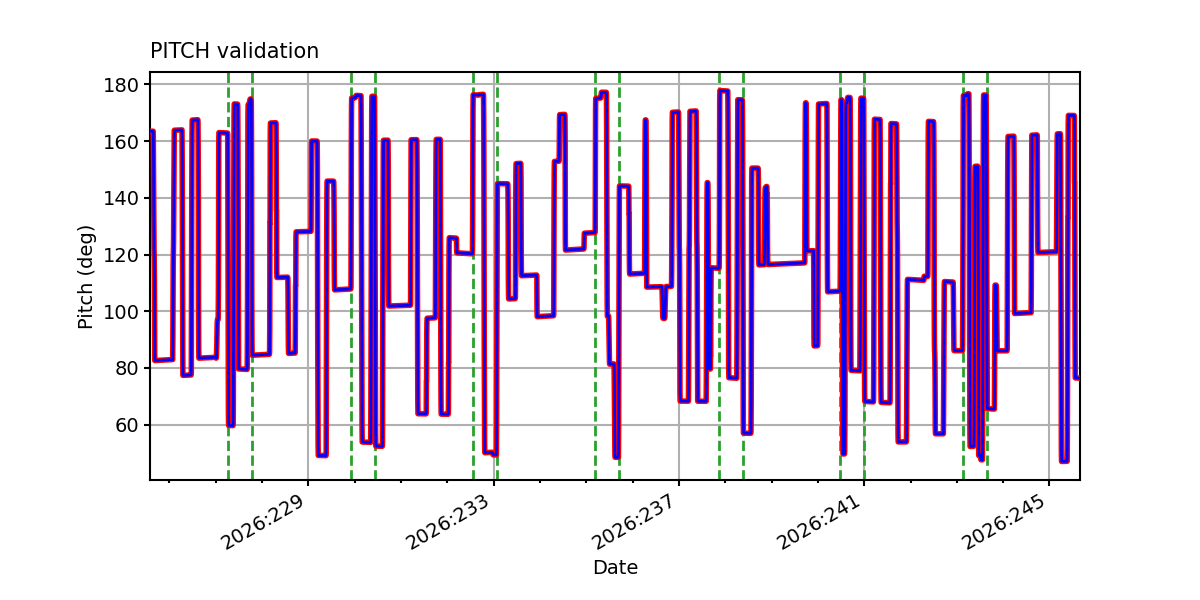

PITCH
TSCPOS

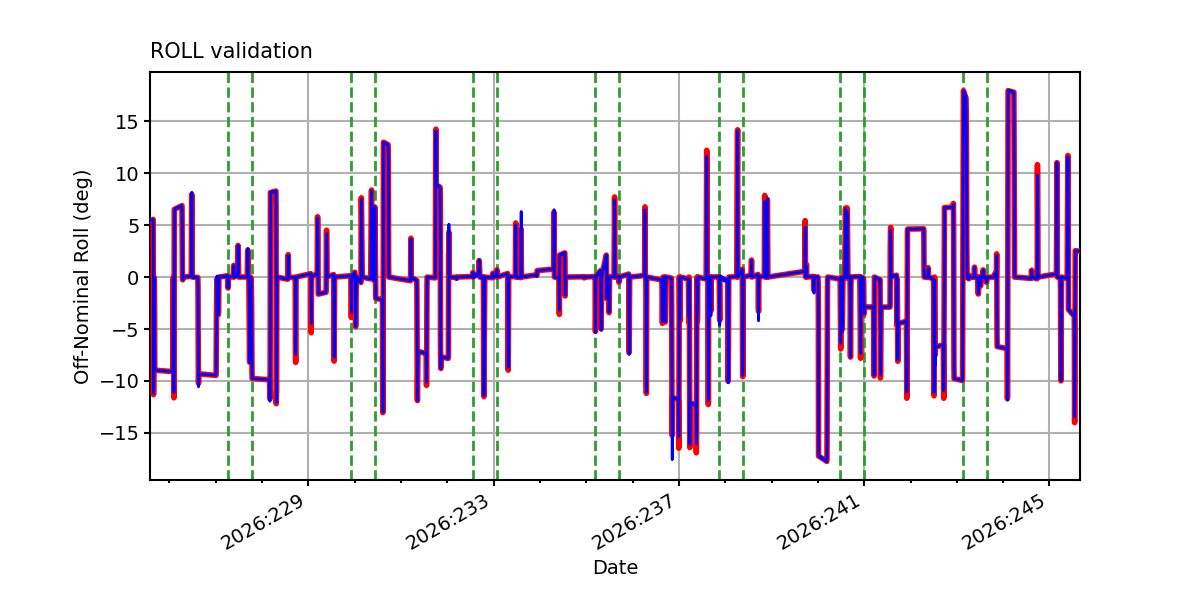

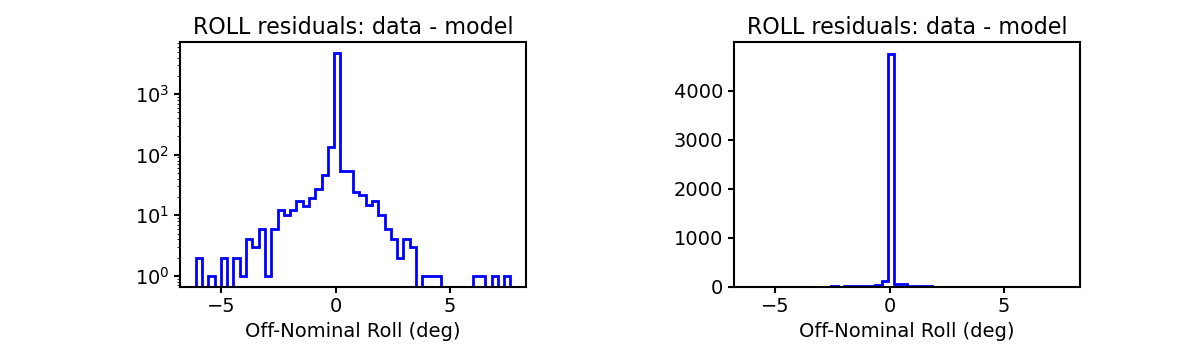

ROLL

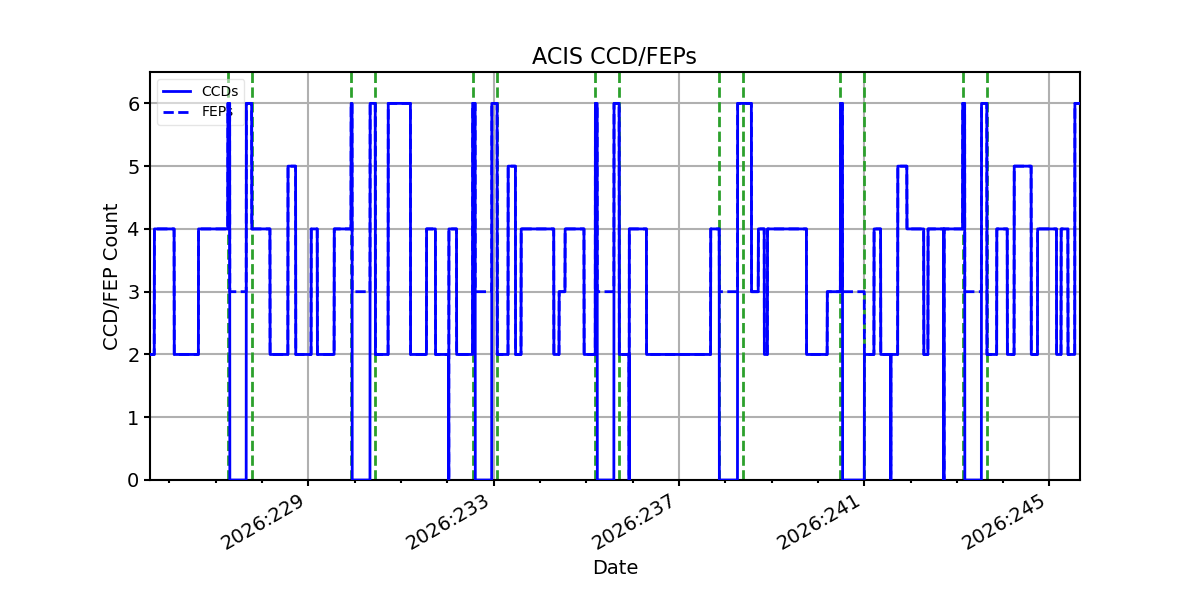

ACIS CCD/FEP Count

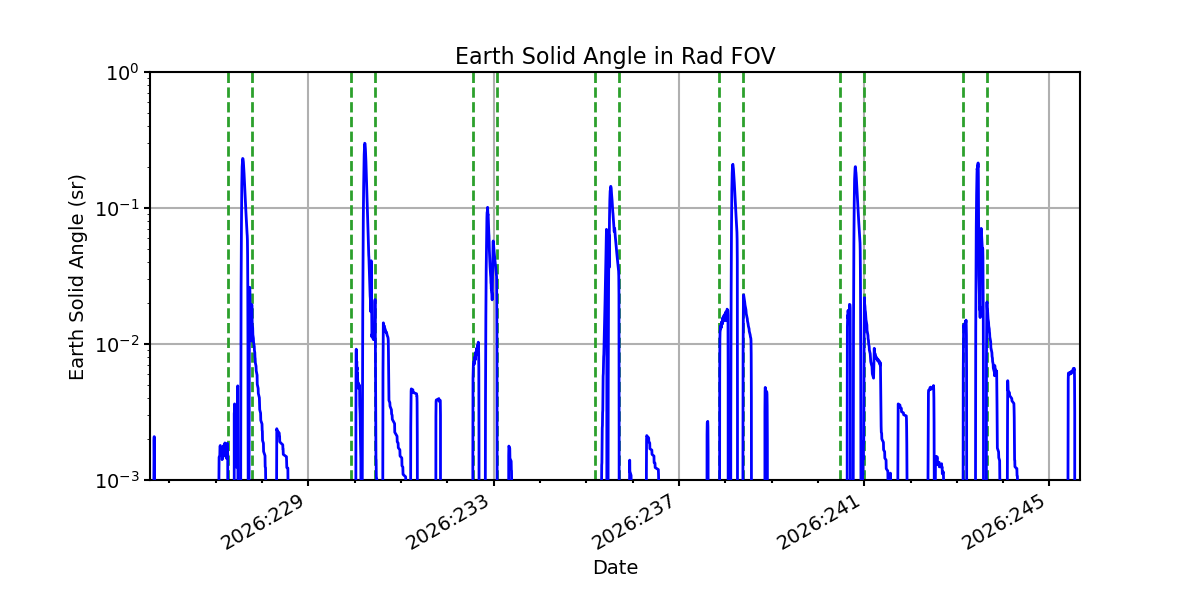

Earth Solid Angle
ADDITIONAL PLOTS

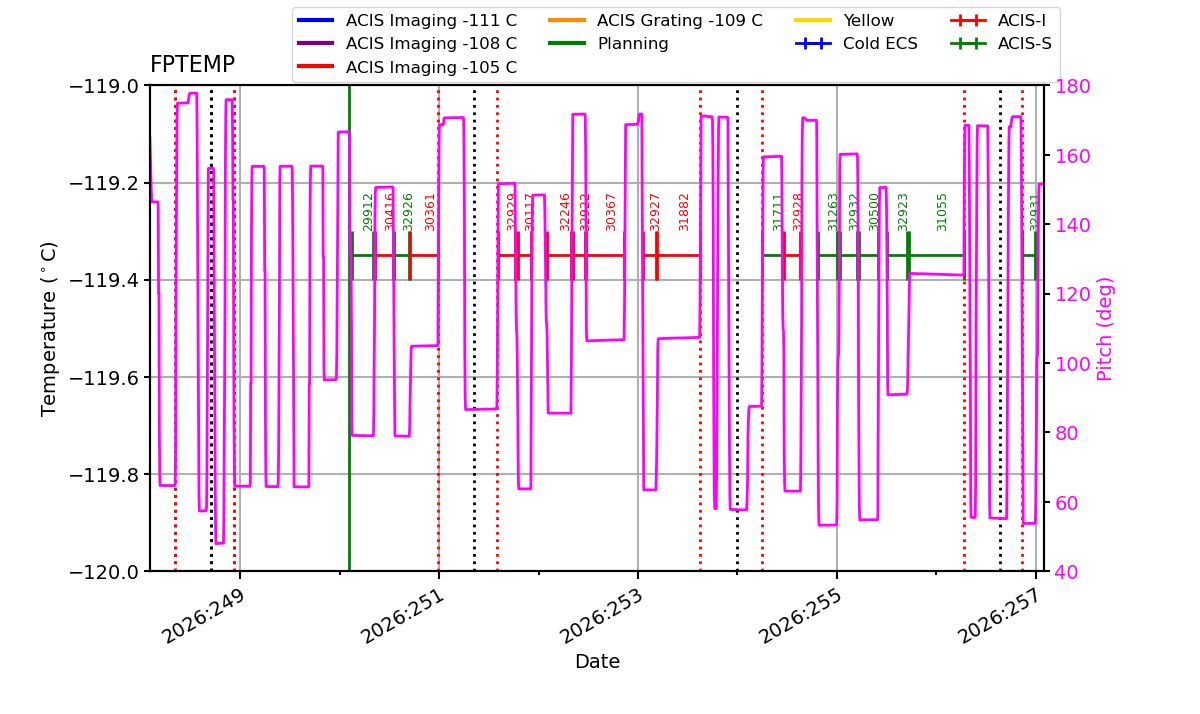

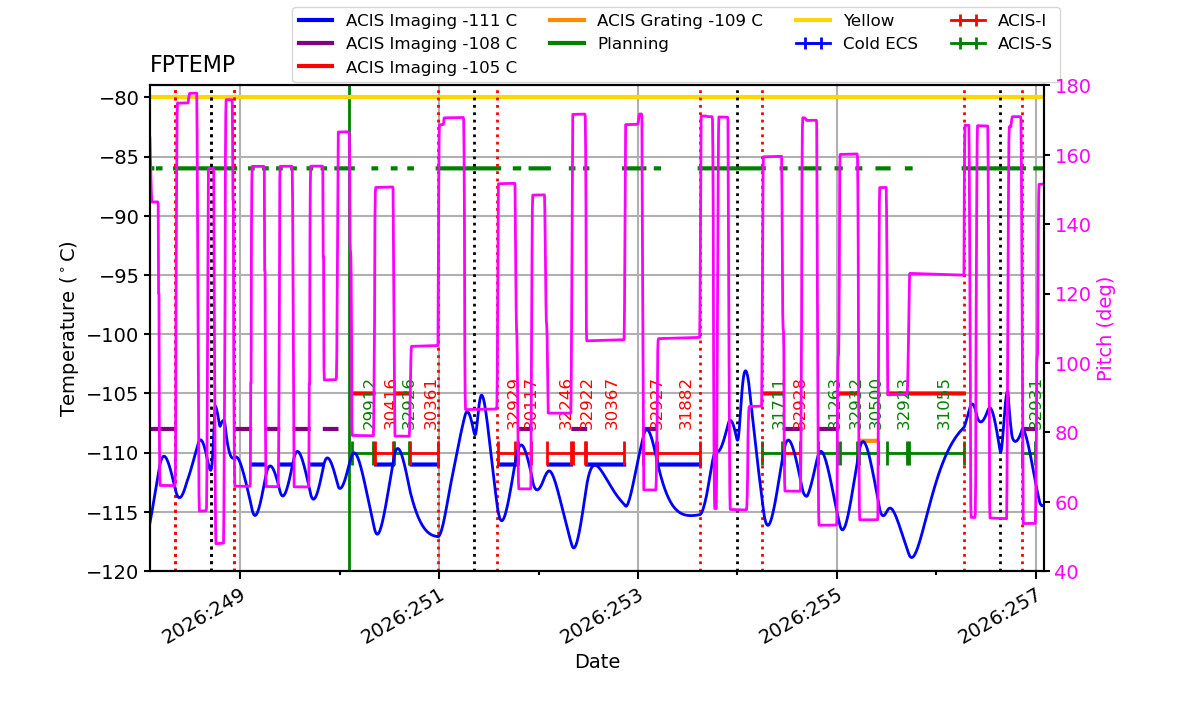

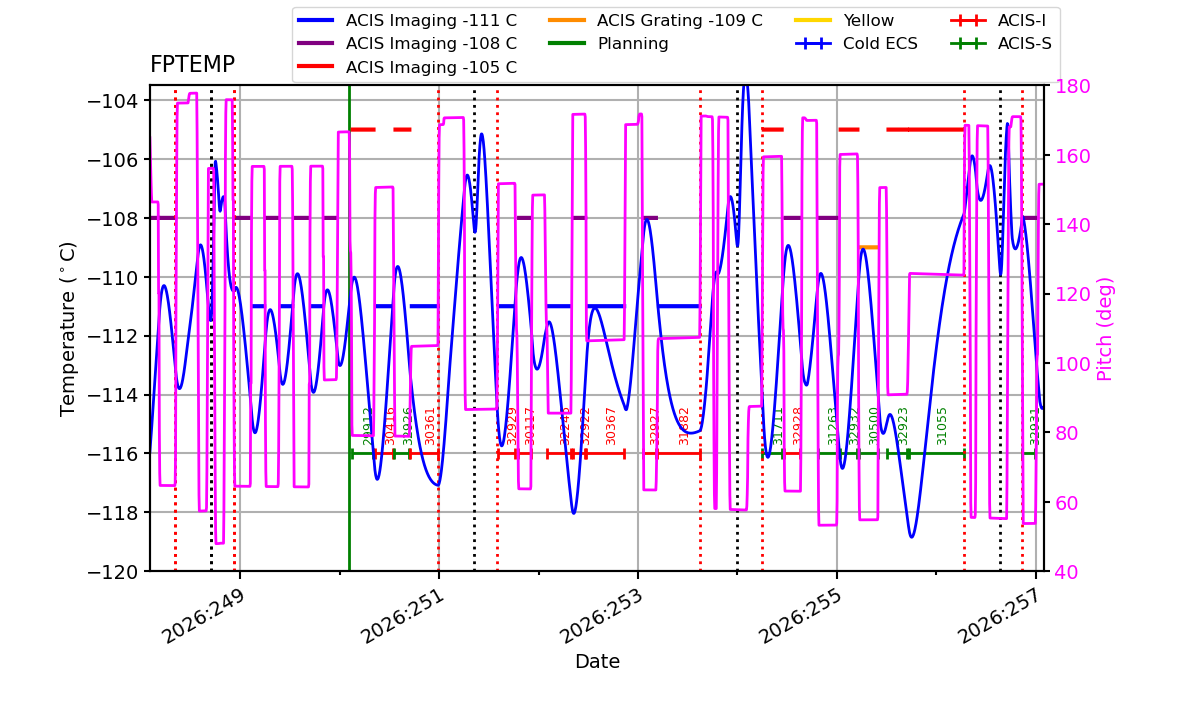

Additional plots of FPTEMP vs TIME for different temperature ranges
