ACISFP Temperatures Check
Summary
| Date start | 2026:257:02:06:19.916 |
| Date stop | 2026:264:01:05:49.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP1426/oflsa |
| Run time | Thu Sep 10 10:41:24 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.00 | -1.29 | -0.99 | -0.32 | 0.14 | 0.82 | 3.18 |
| pitch | -10.330 | -0.618 | -0.004 | -0.000 | 0.004 | 0.652 | 9.757 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.048 | -0.130 | -0.006 | -0.000 | 0.006 | 0.129 | 1.645 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 99 | 3.18 | 2.00 |
| PITCH | 1 | -10.33 | 3.00 |
| PITCH | 99 | 9.757 | 3.00 |

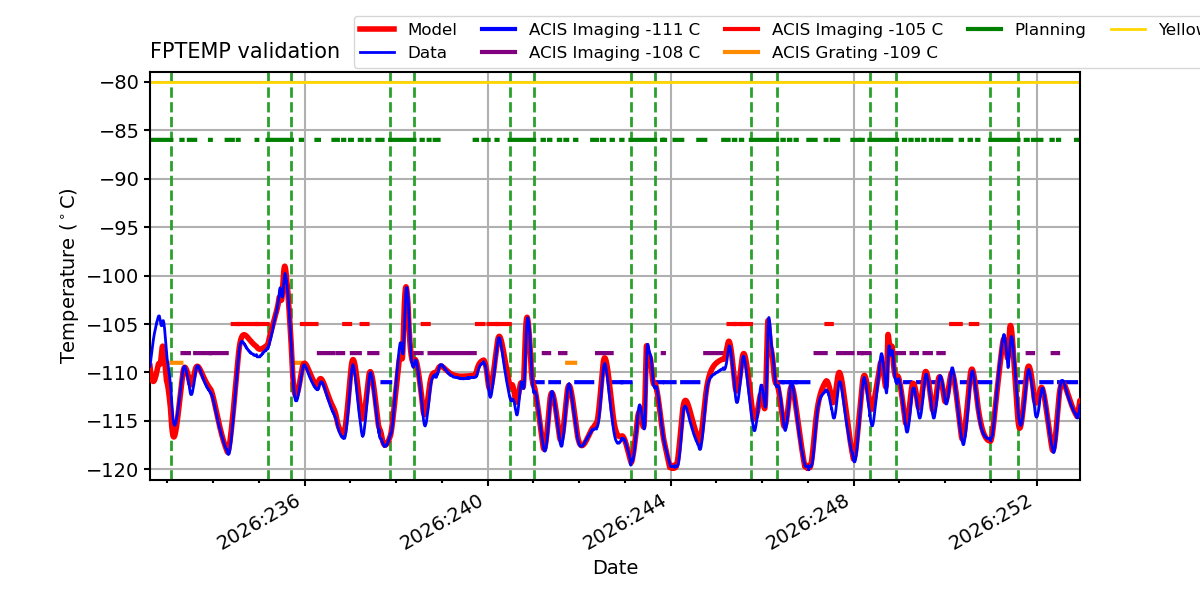

FPTEMP

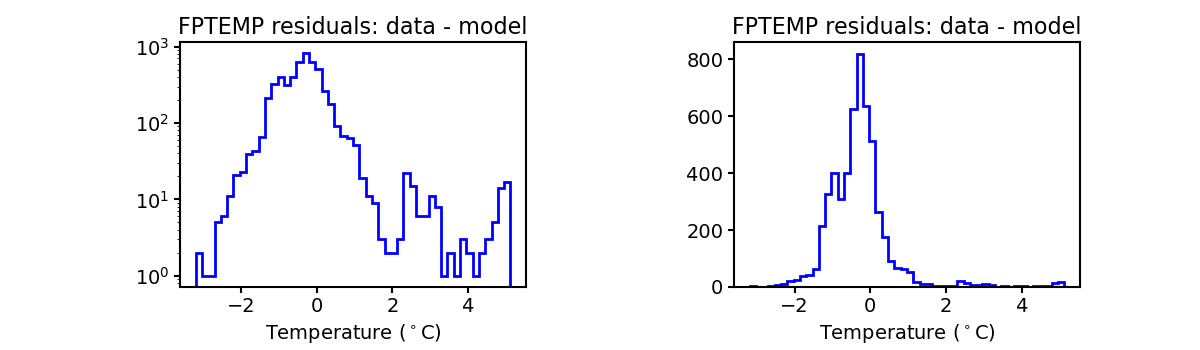

Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

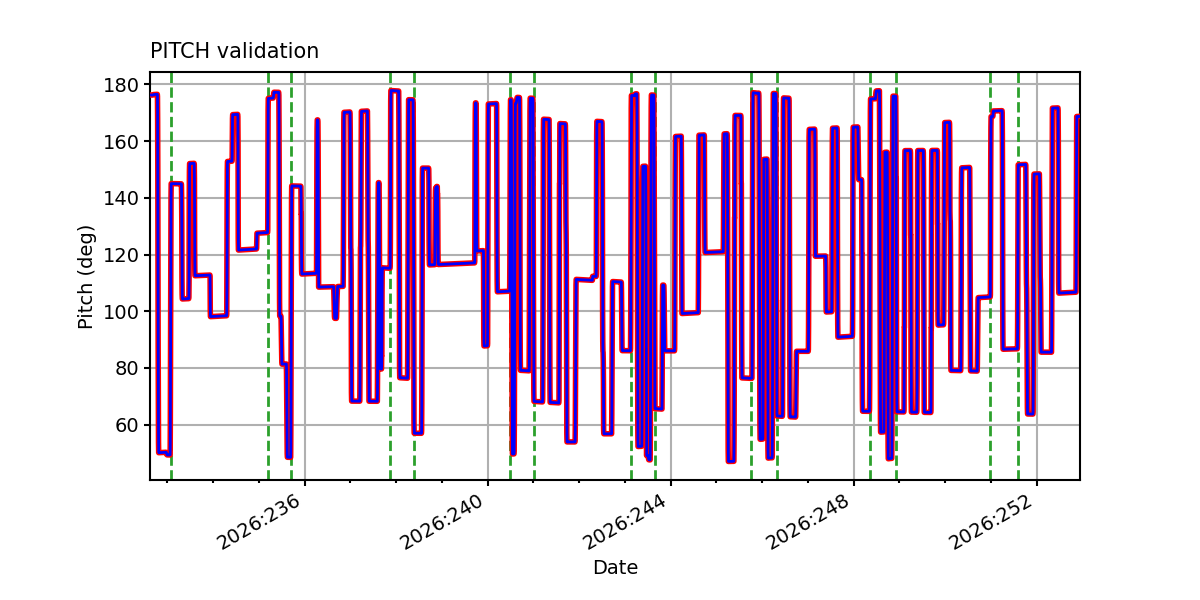

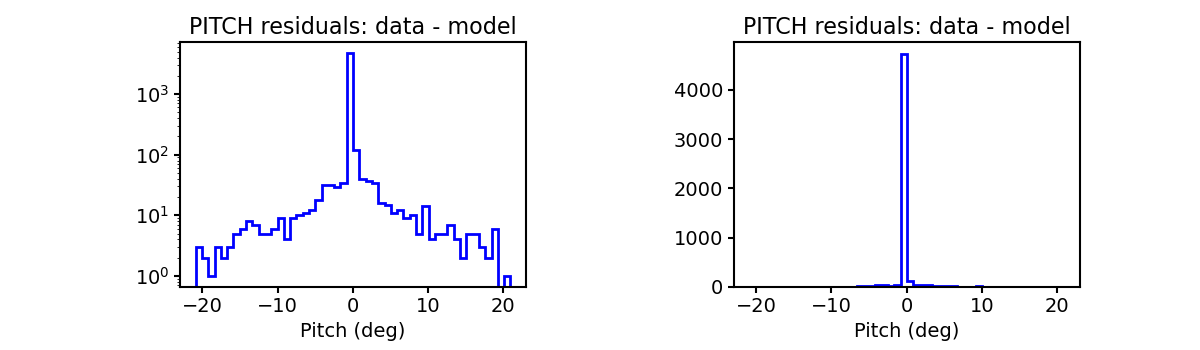

PITCH

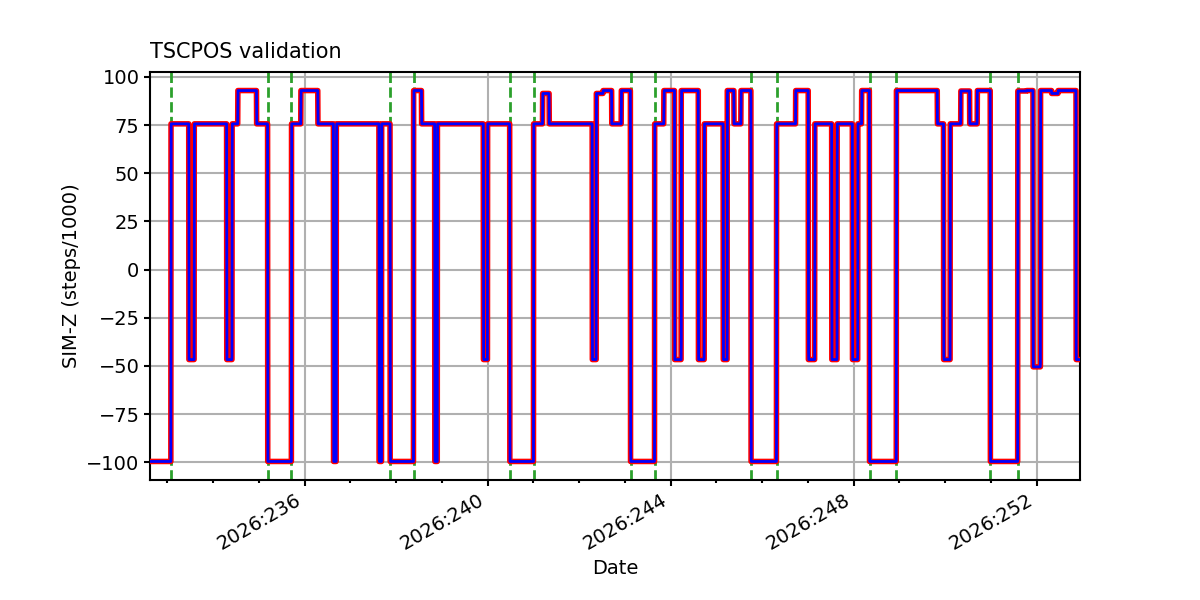

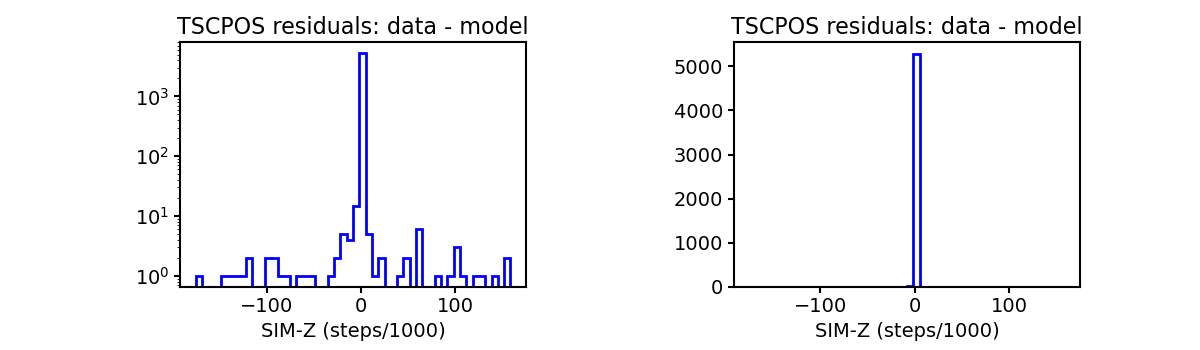

TSCPOS

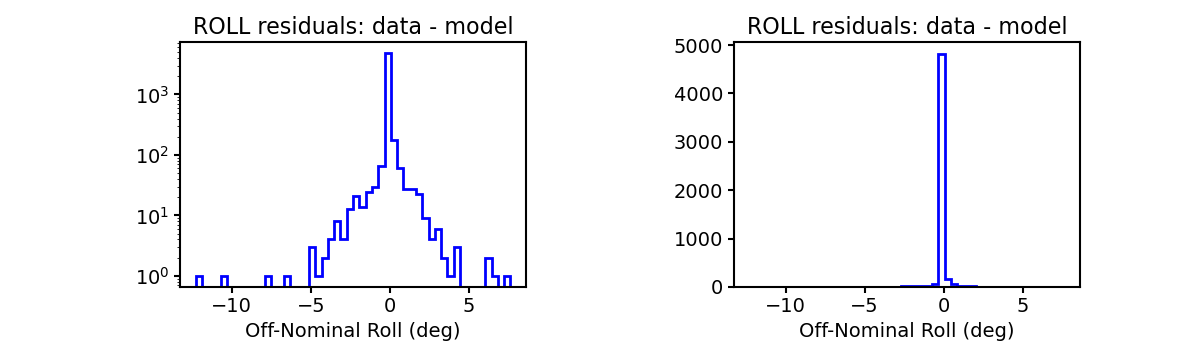

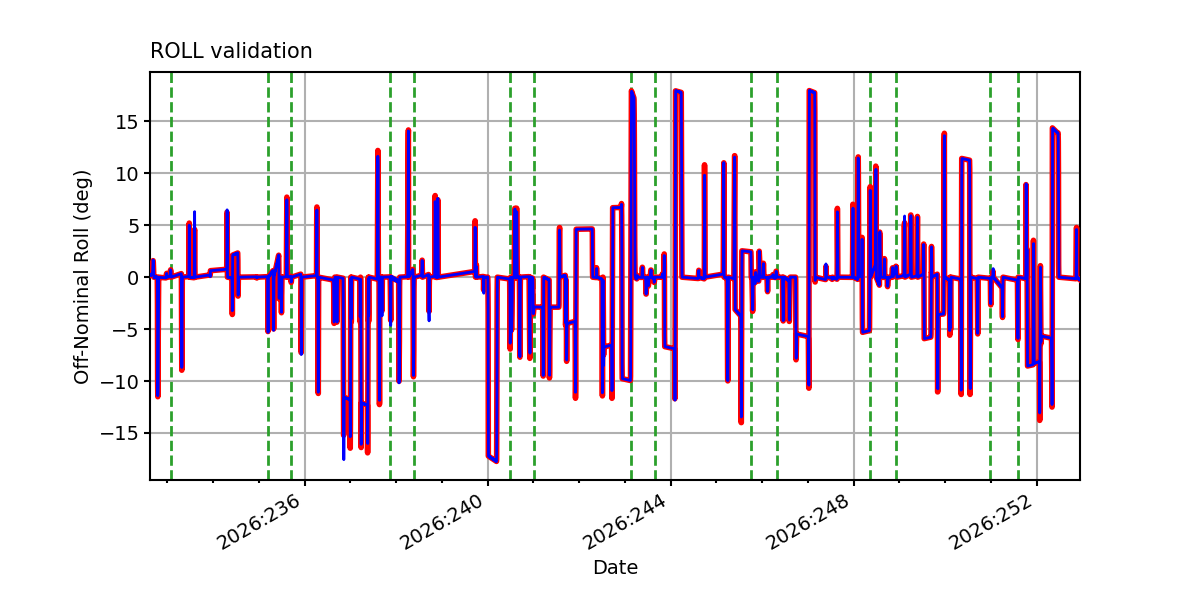

ROLL

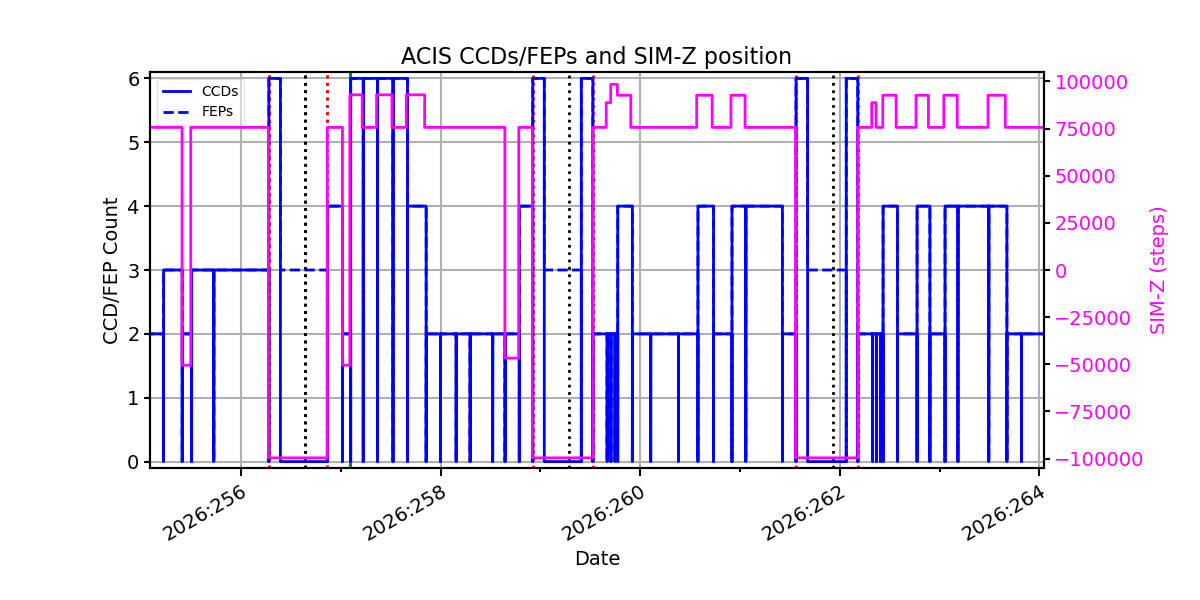

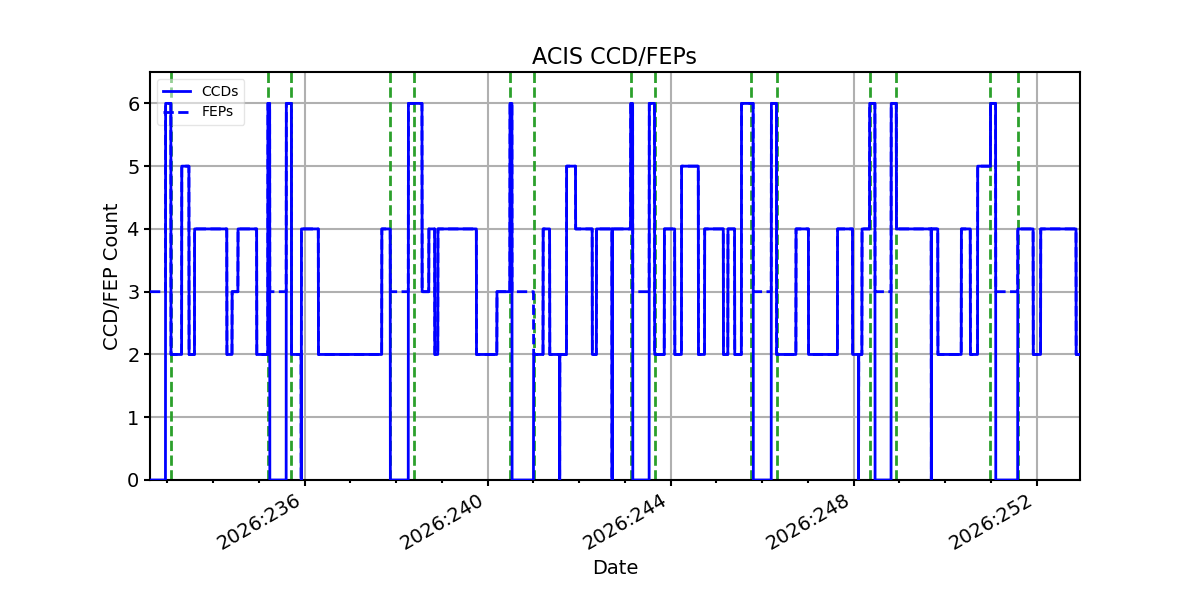

ACIS CCD/FEP Count

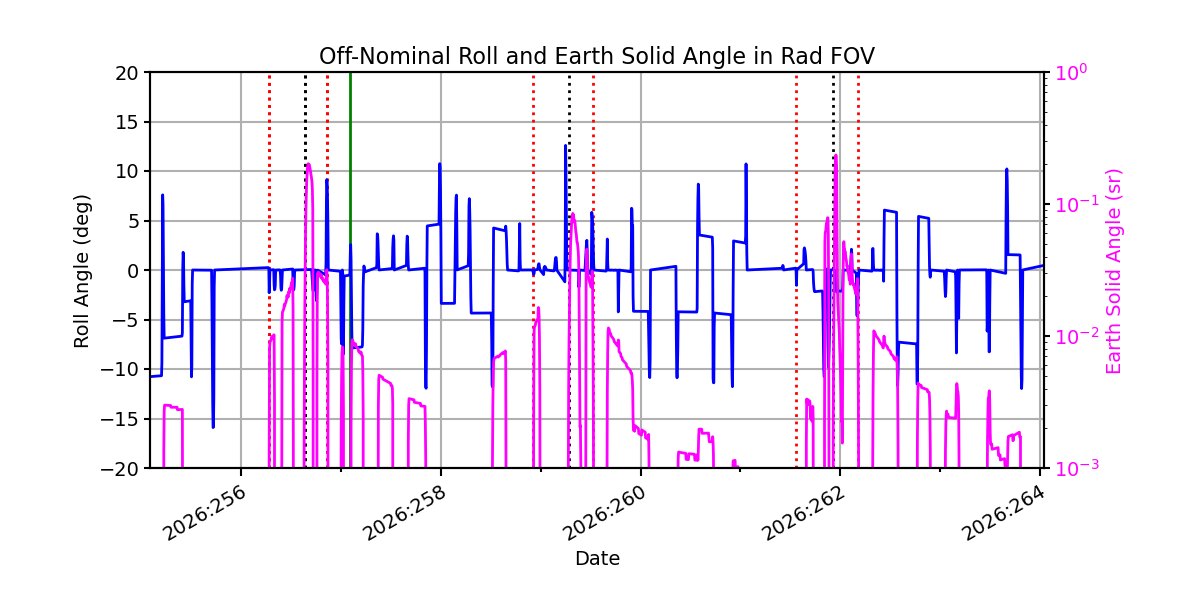

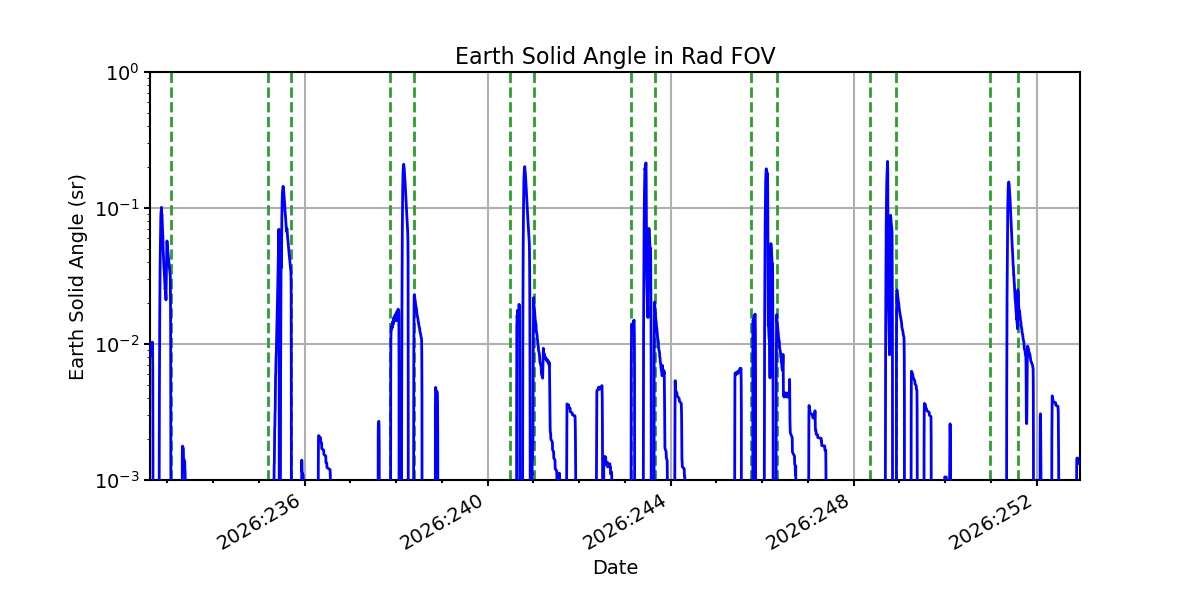

Earth Solid Angle
ADDITIONAL PLOTS

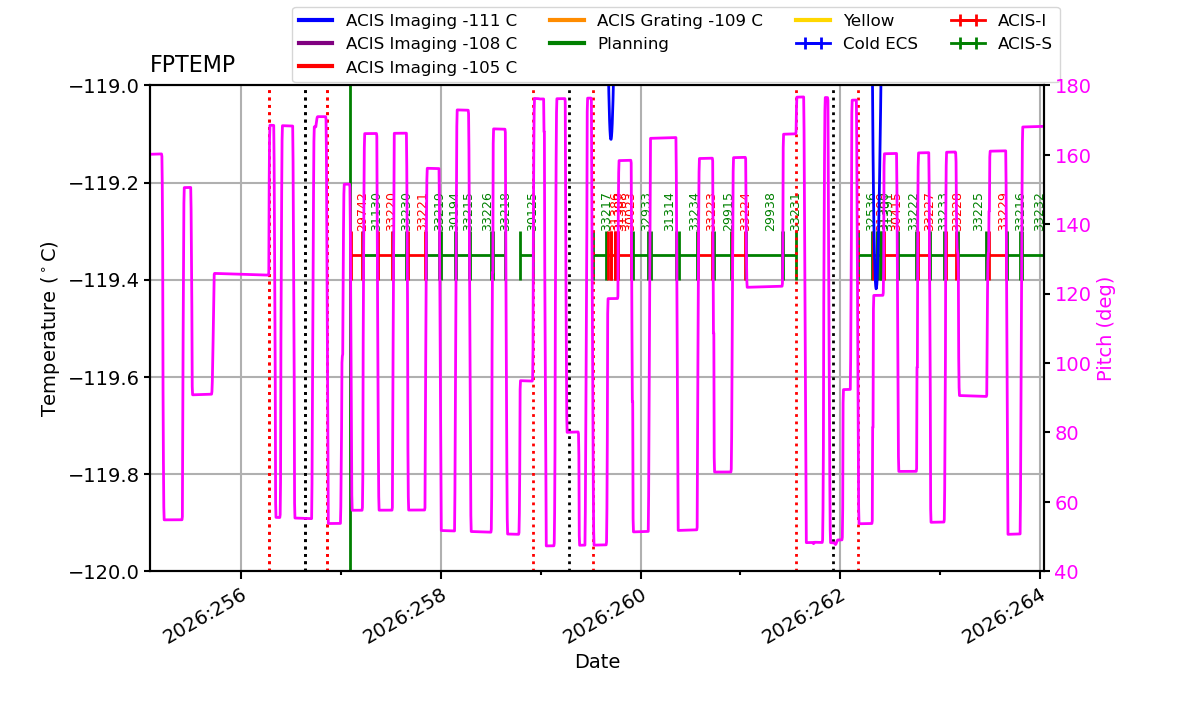

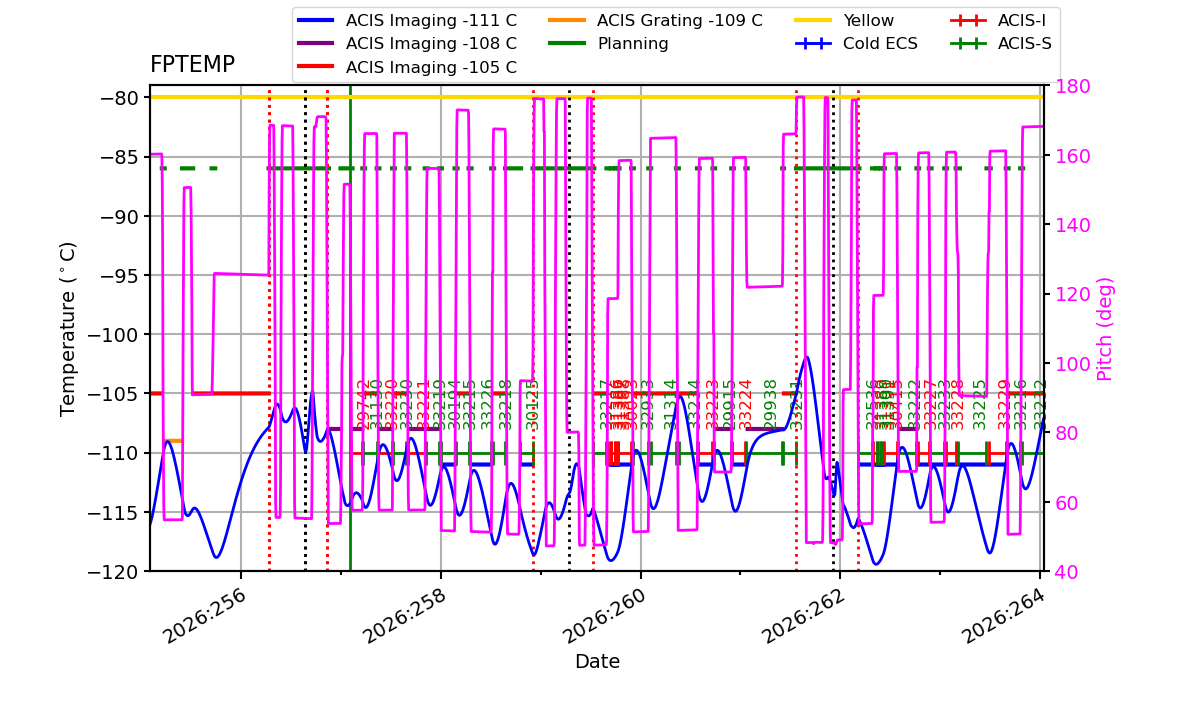

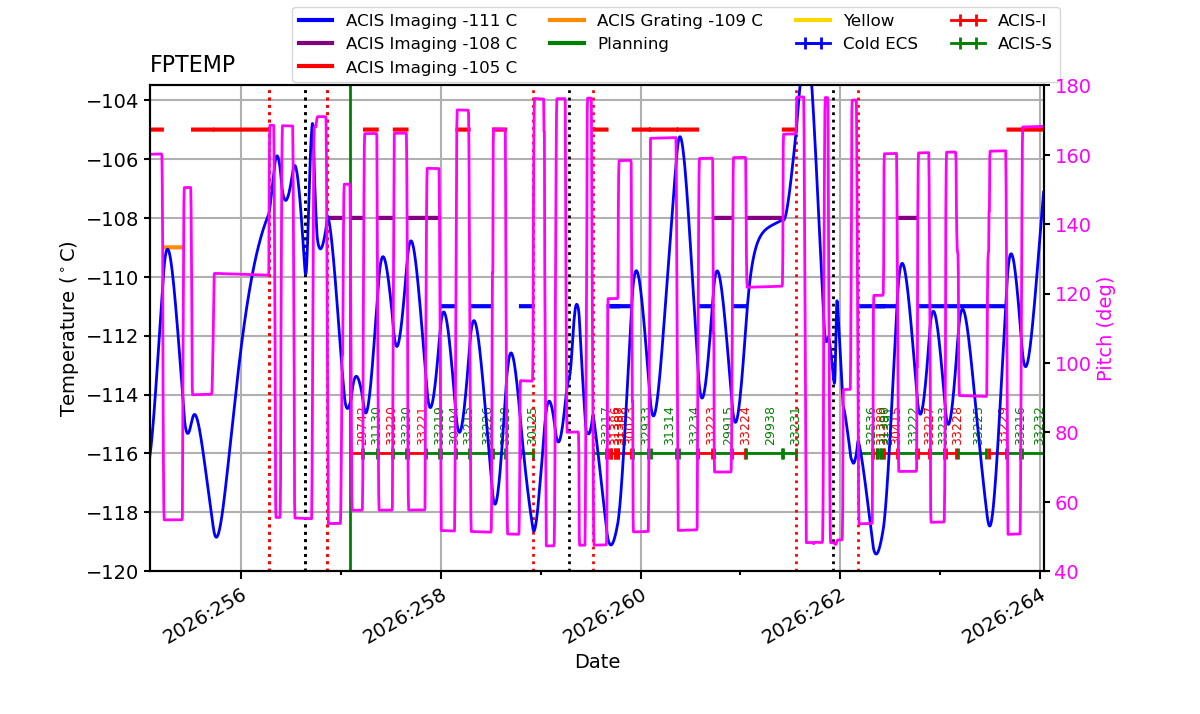

Additional plots of FPTEMP vs TIME for different temperature ranges
