ACISFP Temperatures Check
Summary
| Date start | 2026:264:01:02:49.516 |
| Date stop | 2026:271:01:24:07.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2126/oflsa |
| Run time | Wed Sep 16 11:13:48 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP Upper Limit Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -100.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| fptemp | -2.05 | -1.40 | -1.02 | -0.30 | 0.24 | 0.70 | 1.24 |
| pitch | -11.697 | -1.341 | -0.004 | -0.000 | 0.004 | 1.014 | 11.528 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.913 | -0.147 | -0.007 | 0.000 | 0.007 | 0.180 | 1.662 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| FPTEMP | 1 | -2.05 | 2.00 |
| PITCH | 1 | -11.697 | 3.00 |
| PITCH | 99 | 11.528 | 3.00 |

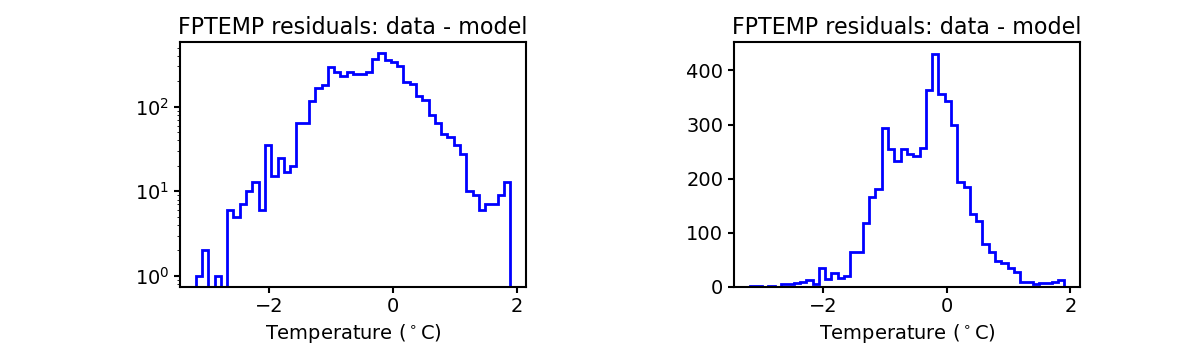

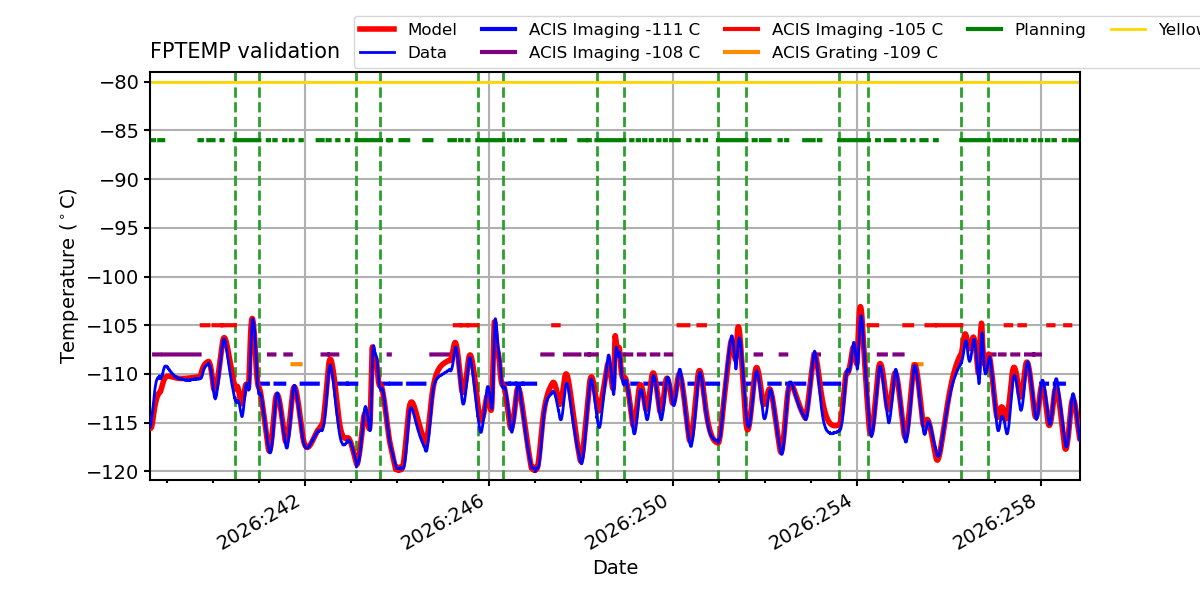

FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -100.0 C.

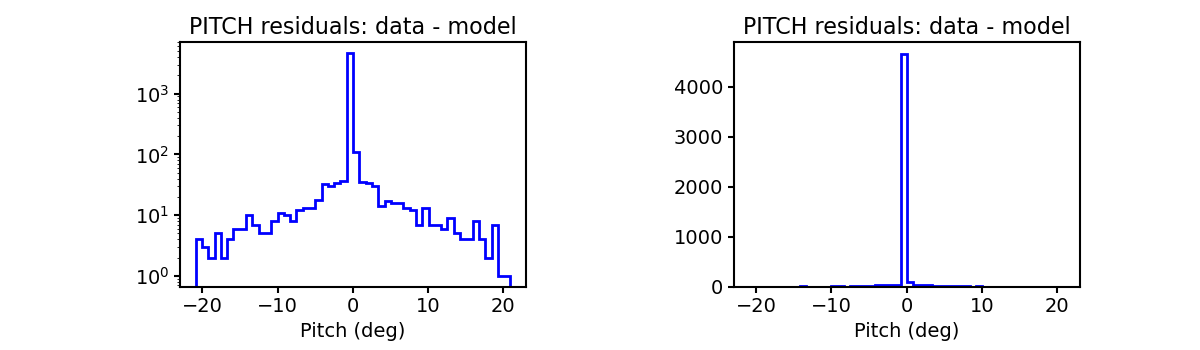

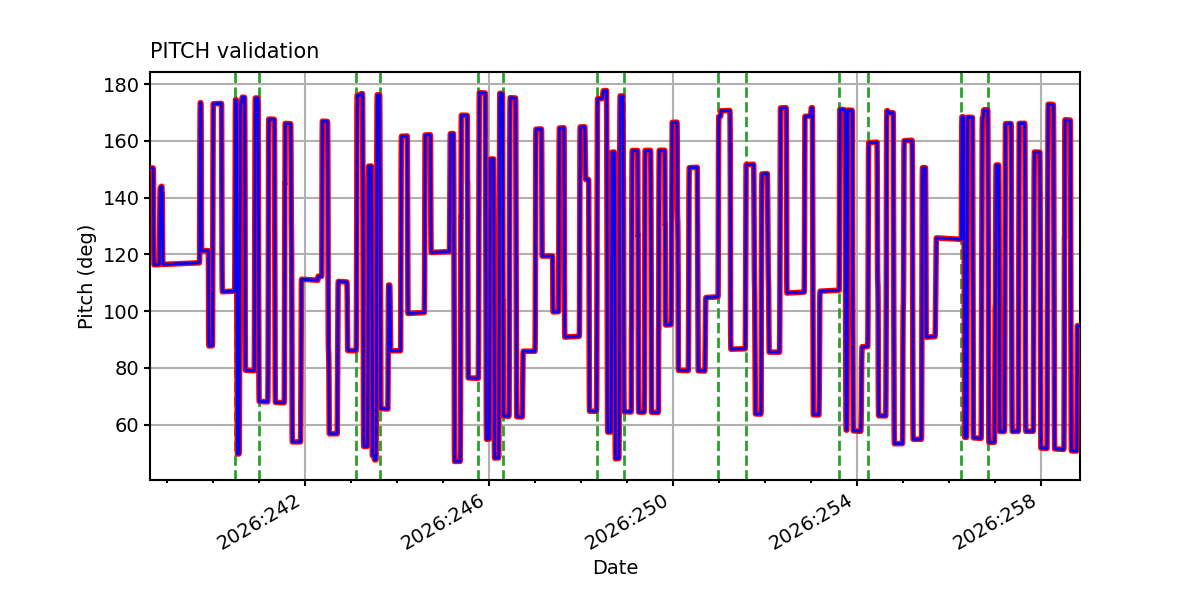

PITCH

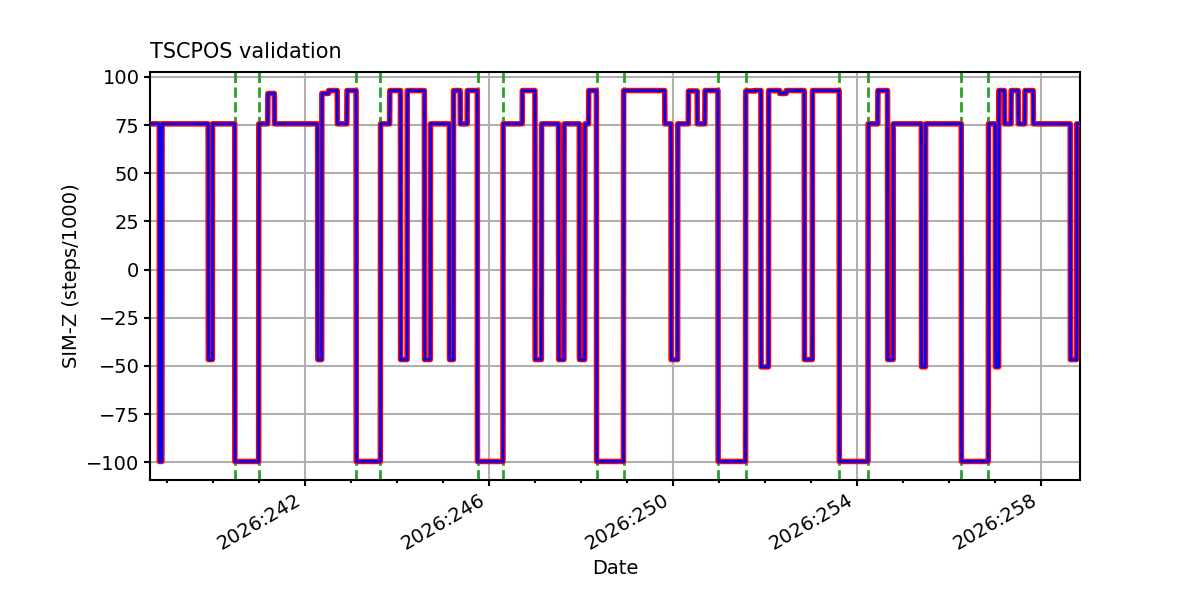

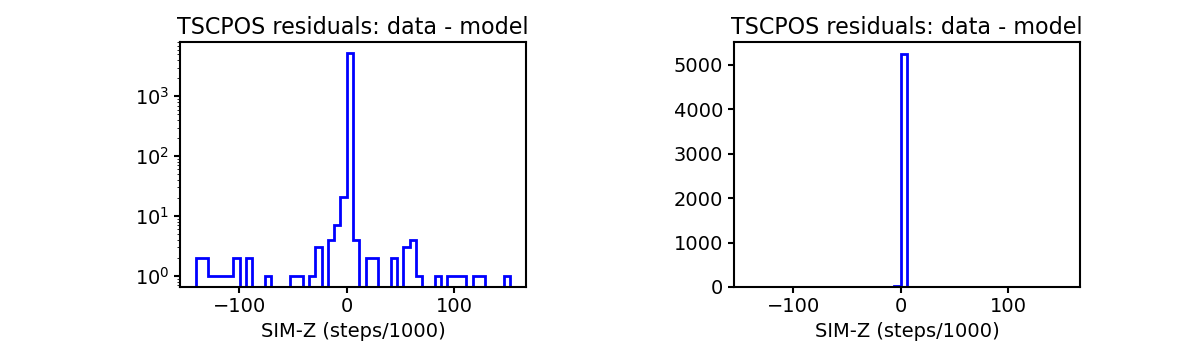

TSCPOS

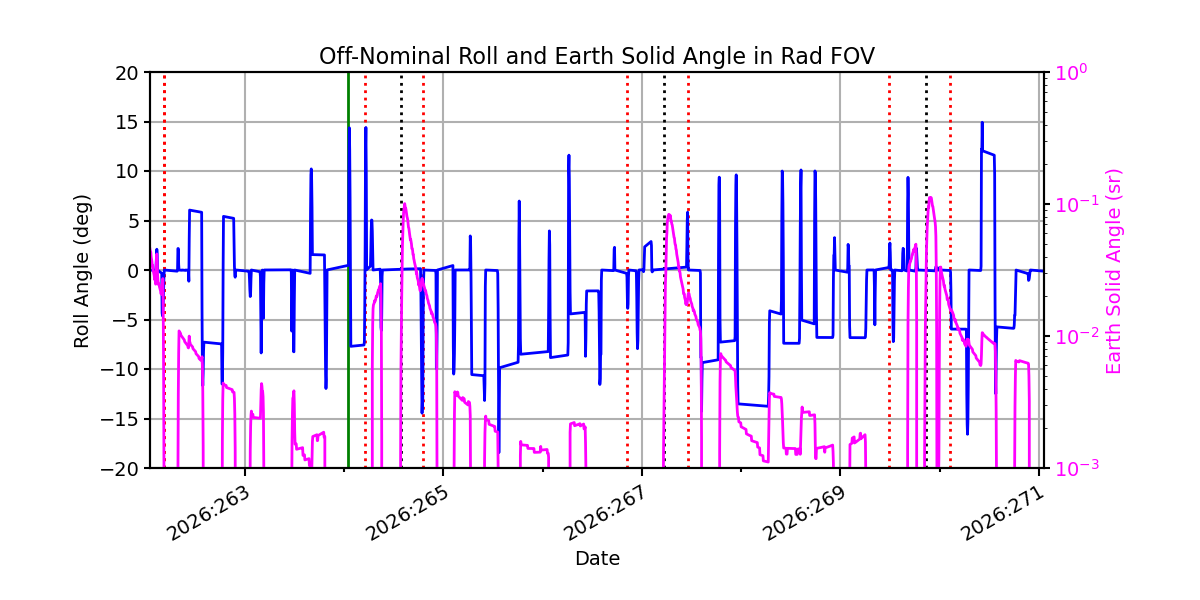

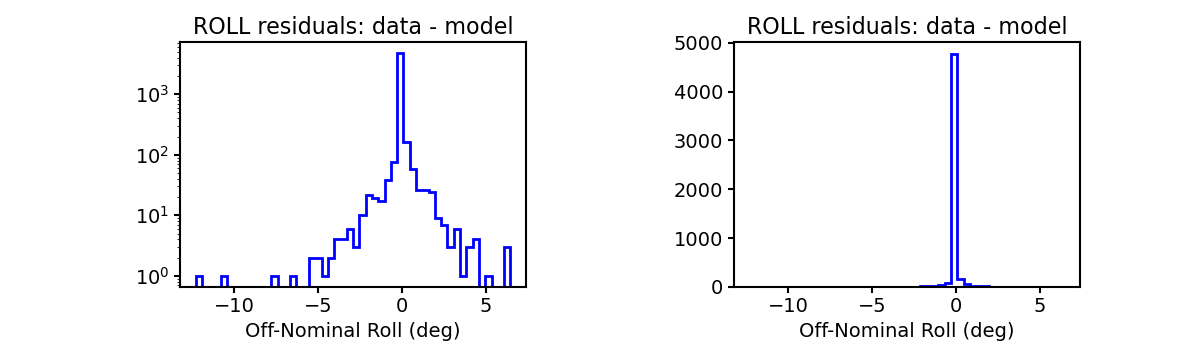

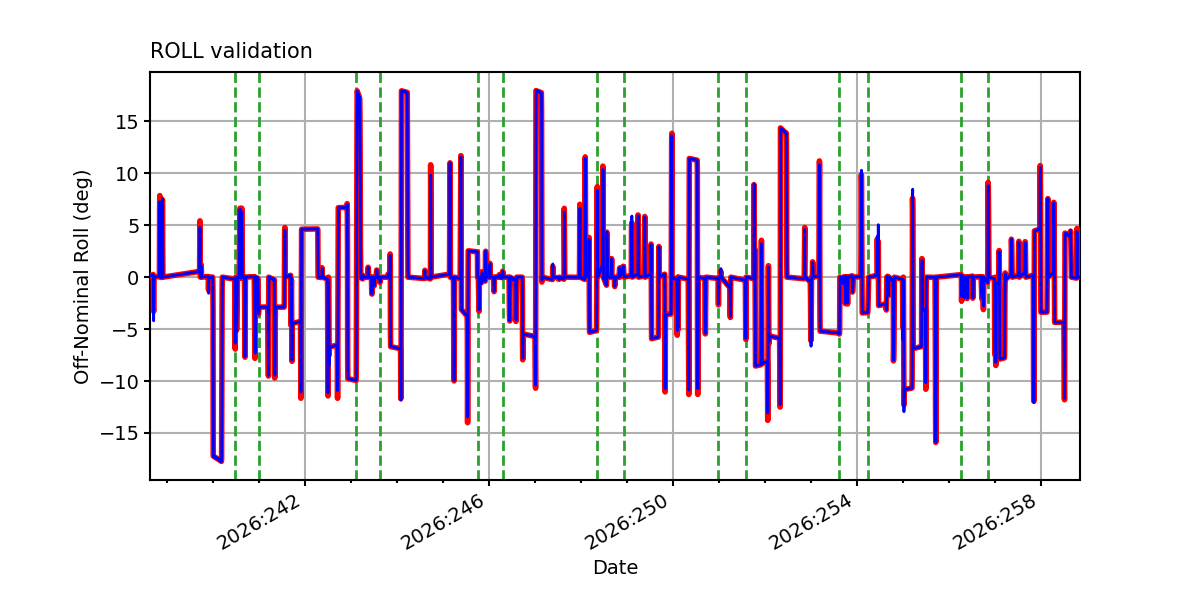

ROLL

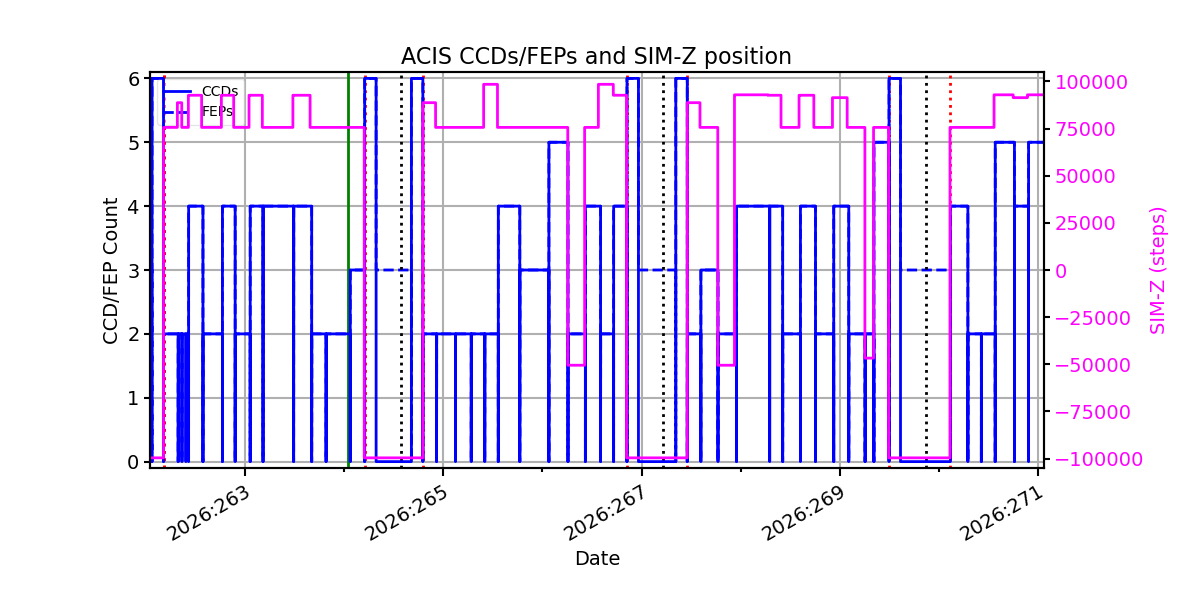

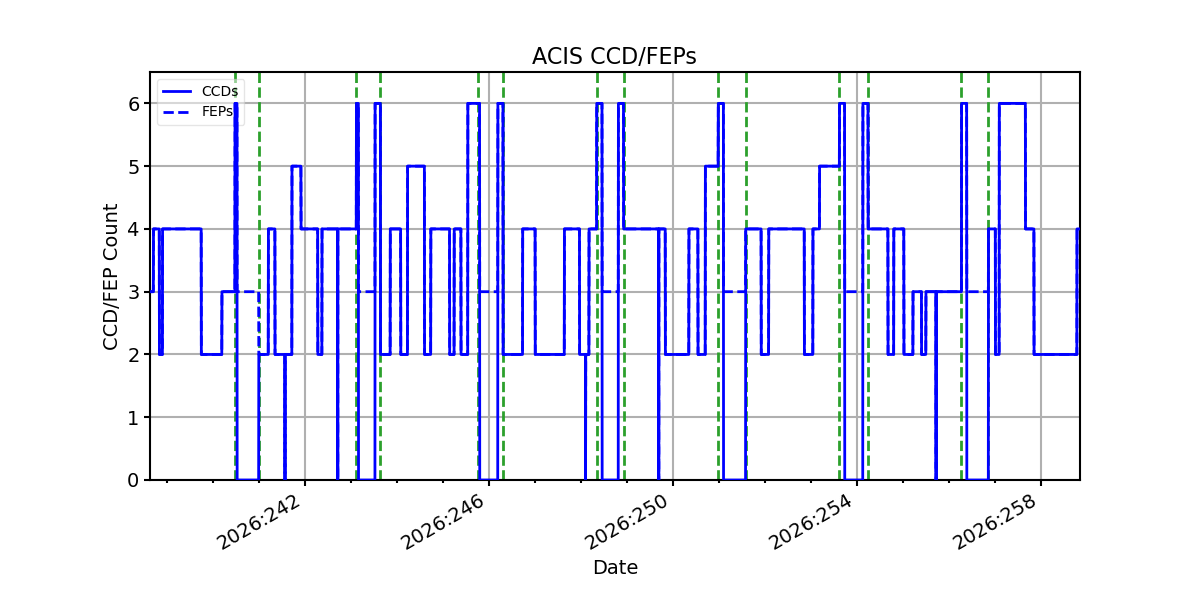

ACIS CCD/FEP Count

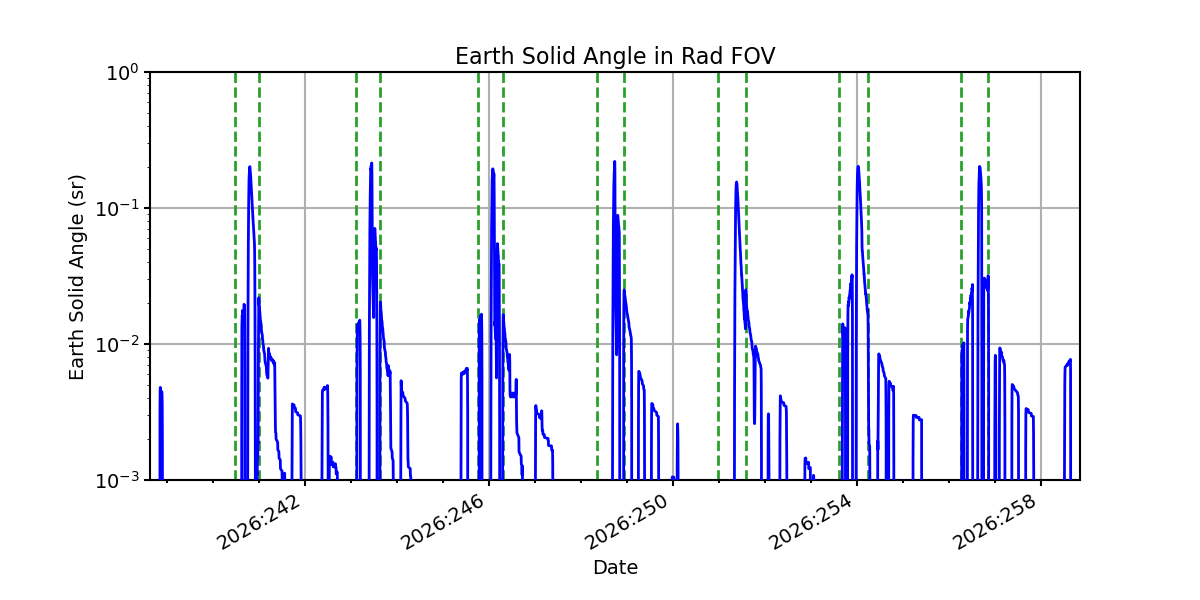

Earth Solid Angle
ADDITIONAL PLOTS

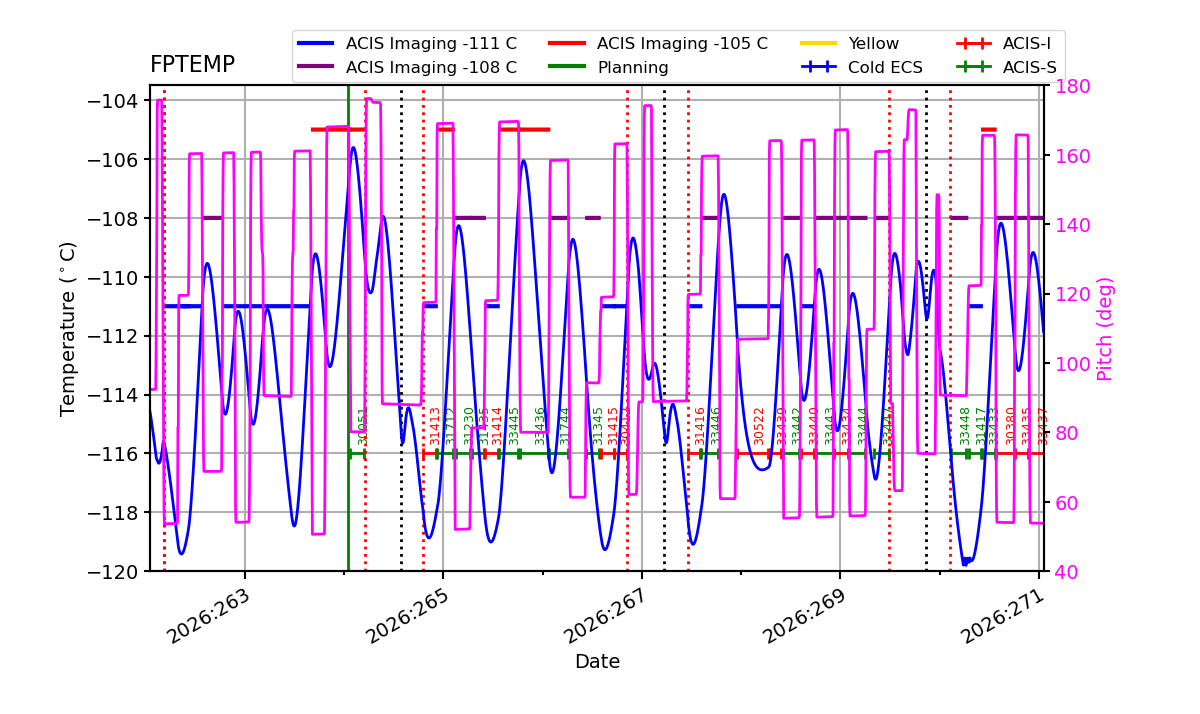

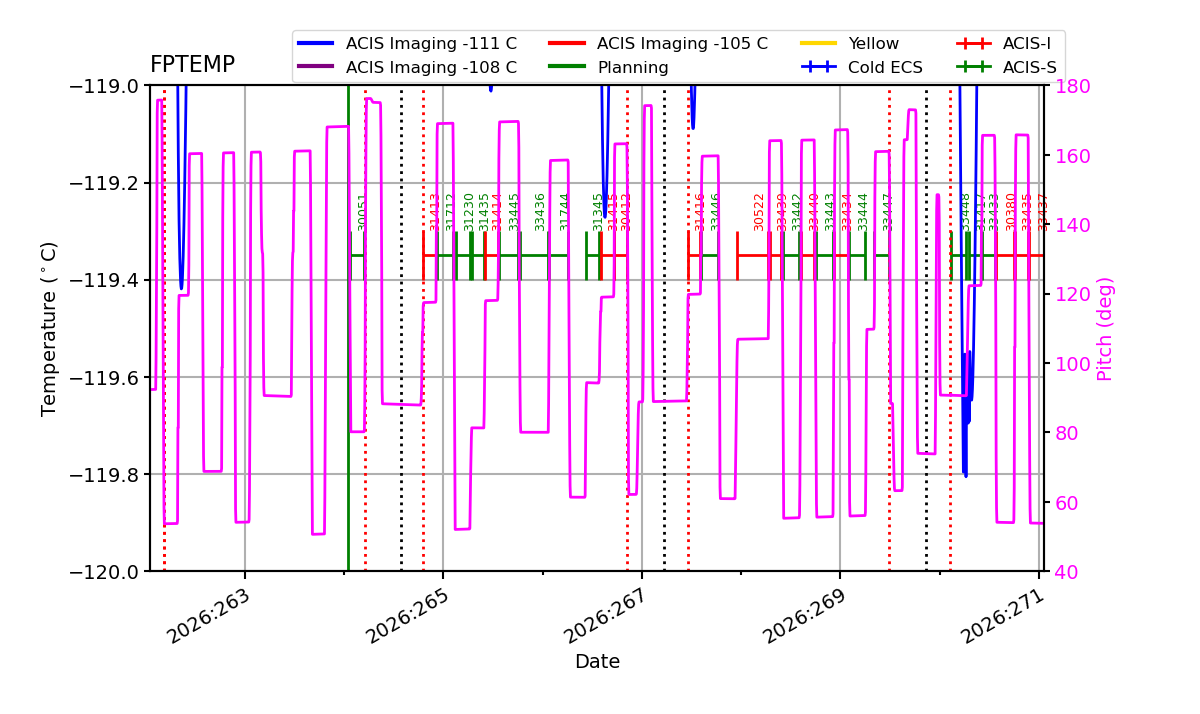

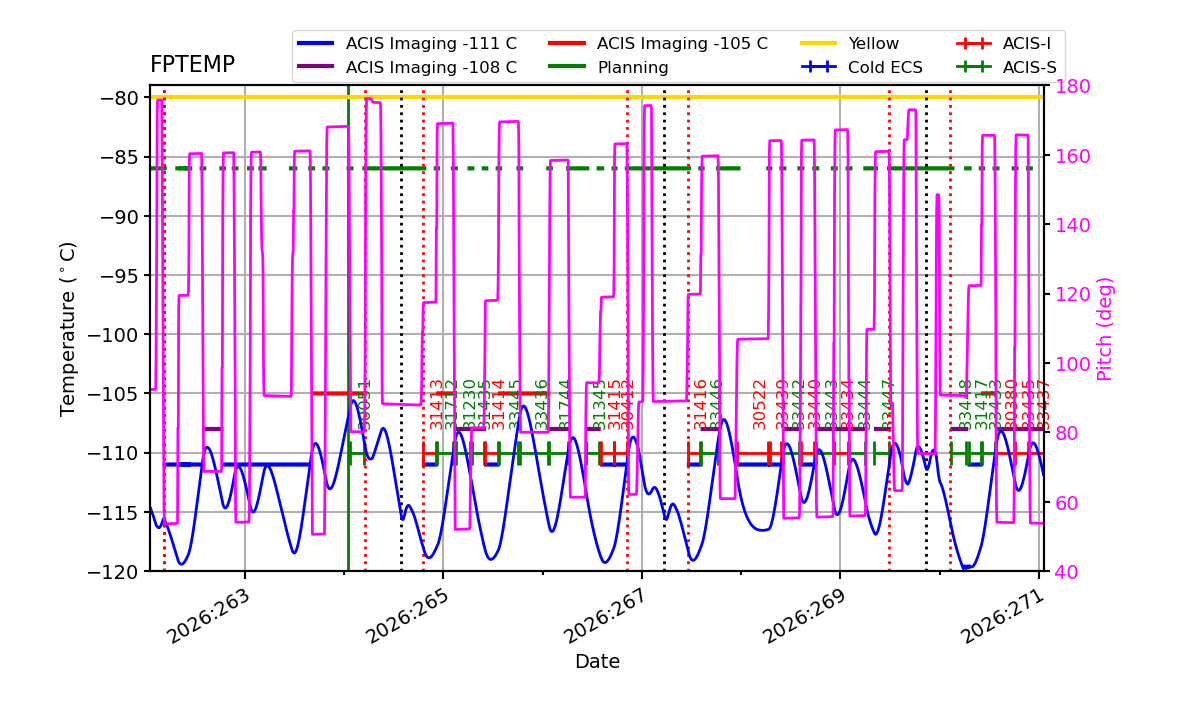

Additional plots of FPTEMP vs TIME for different temperature ranges
