PSMCBT Temperatures Check
Summary
| Date start | 2024:092:02:23:14.416 |
| Date stop | 2024:098:21:59:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/APR0124/oflsa |
| Run time | Thu Oct 8 16:01:03 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.94 | -3.09 | -2.34 | -0.90 | 0.60 | 1.36 | 2.05 |
| pitch | -7.965 | -0.477 | -0.004 | -0.000 | 0.004 | 0.316 | 8.965 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.179 | -0.128 | -0.007 | 0.000 | 0.007 | 0.174 | 2.247 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.94 | 2.50 |
| PITCH | 1 | -7.965 | 3.00 |
| PITCH | 99 | 8.965 | 3.00 |
1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

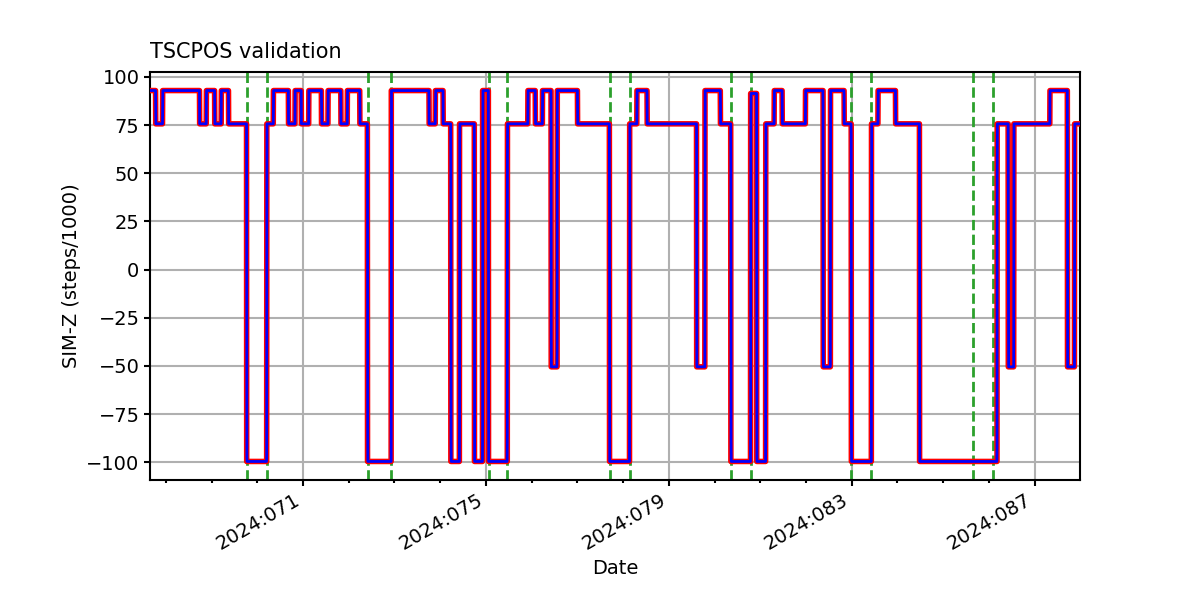

TSCPOS

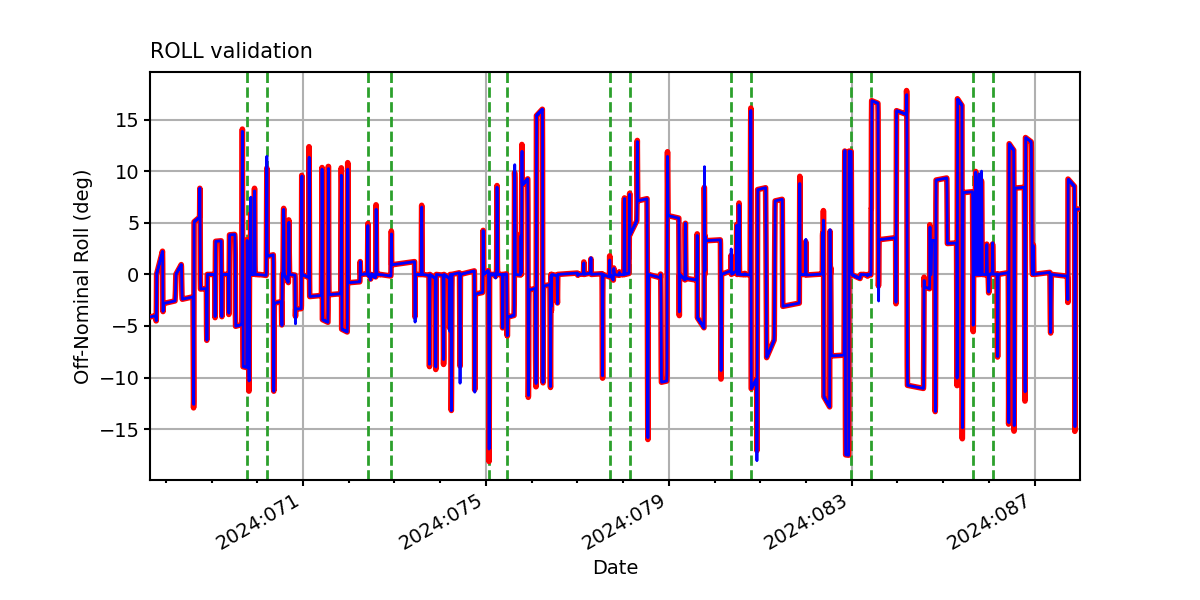

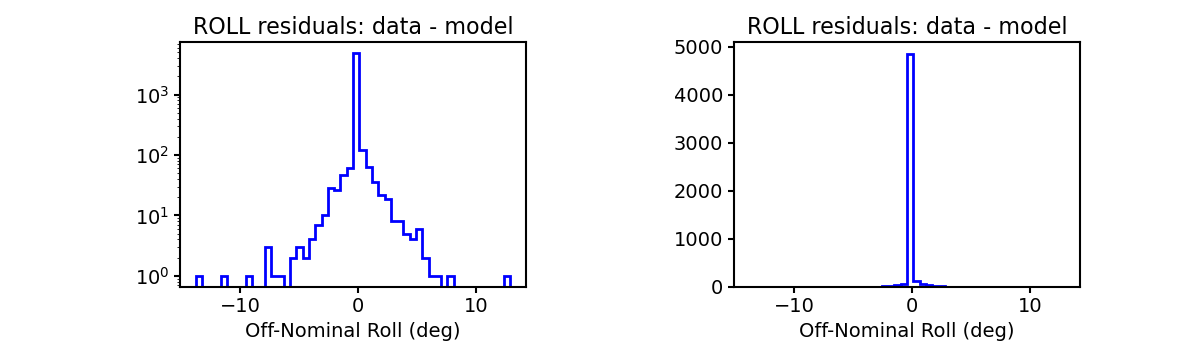

ROLL

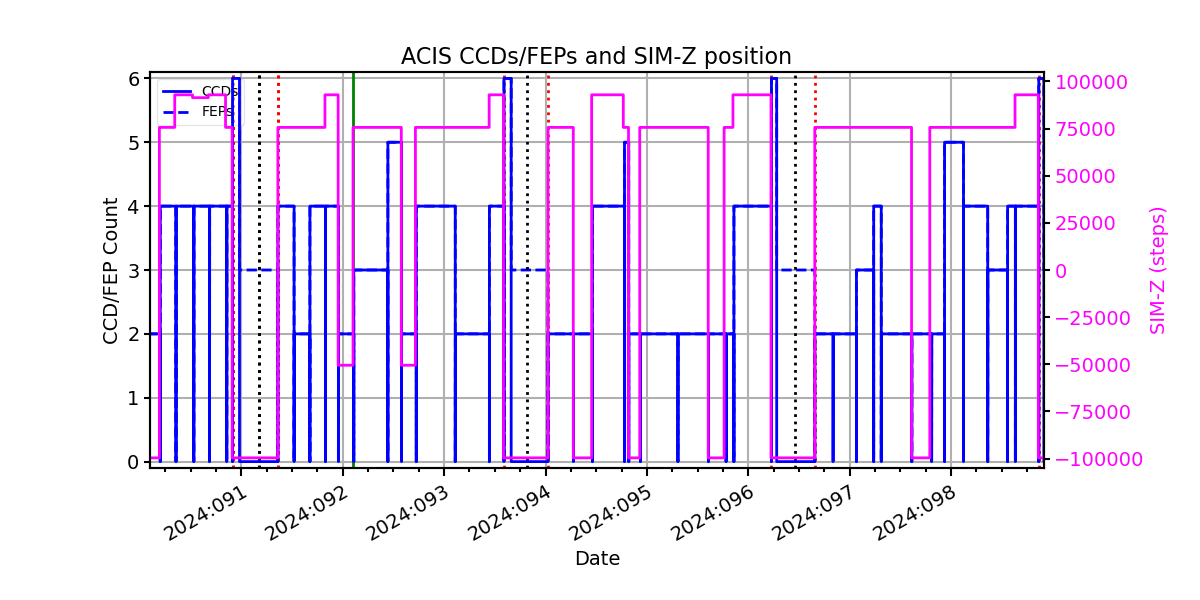

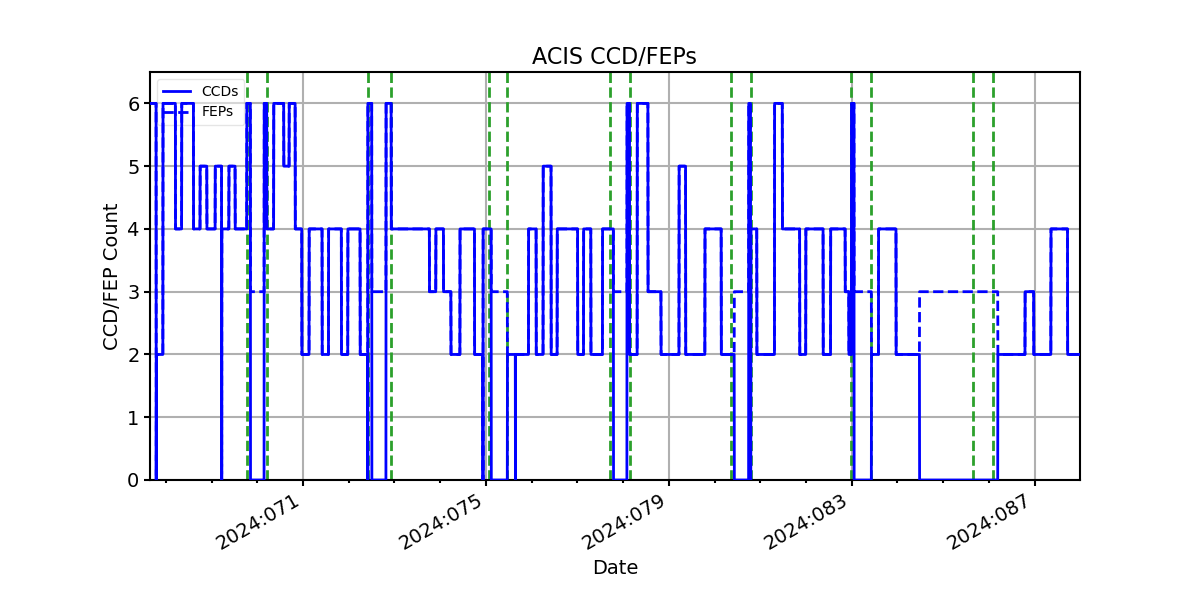

ACIS CCD/FEP Count
