PSMCBT Temperatures Check
Summary
| Date start | 2024:098:21:56:00.016 |
| Date stop | 2024:106:00:10:32.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/APR0824/oflsa |
| Run time | Thu Oct 8 16:01:03 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

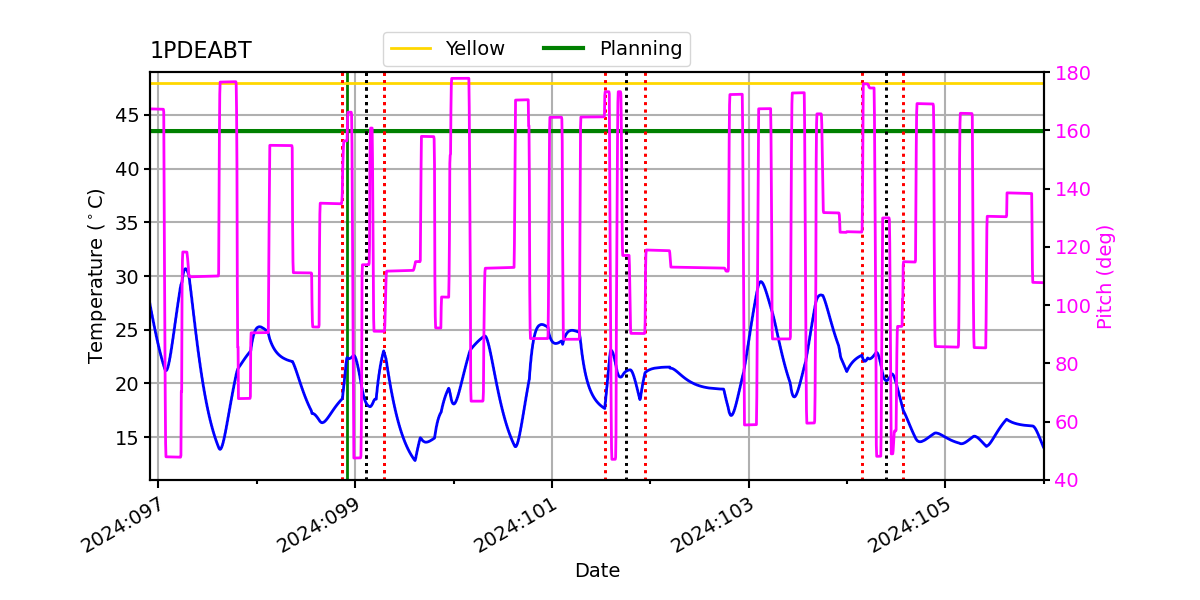

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.12 | -2.64 | -1.95 | -0.59 | 0.55 | 1.18 | 1.75 |
| pitch | -8.862 | -0.768 | -0.004 | -0.000 | 0.004 | 0.572 | 10.100 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.201 | -0.153 | -0.006 | 0.000 | 0.007 | 0.224 | 2.235 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.12 | 2.50 |
| PITCH | 1 | -8.862 | 3.00 |
| PITCH | 99 | 10.1 | 3.00 |

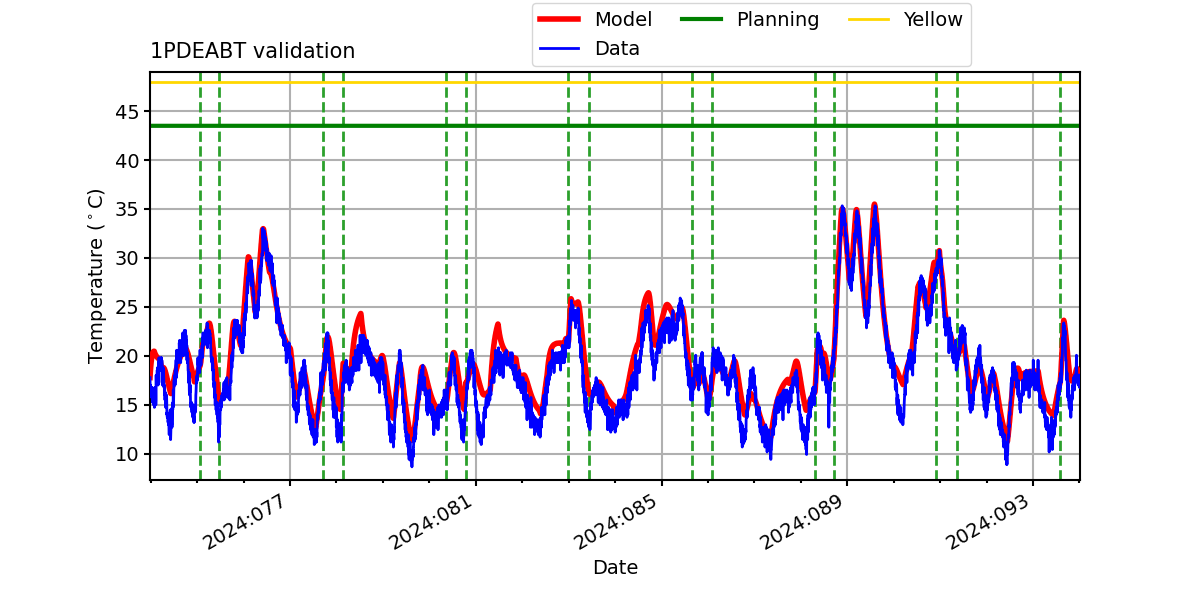

1PDEABT

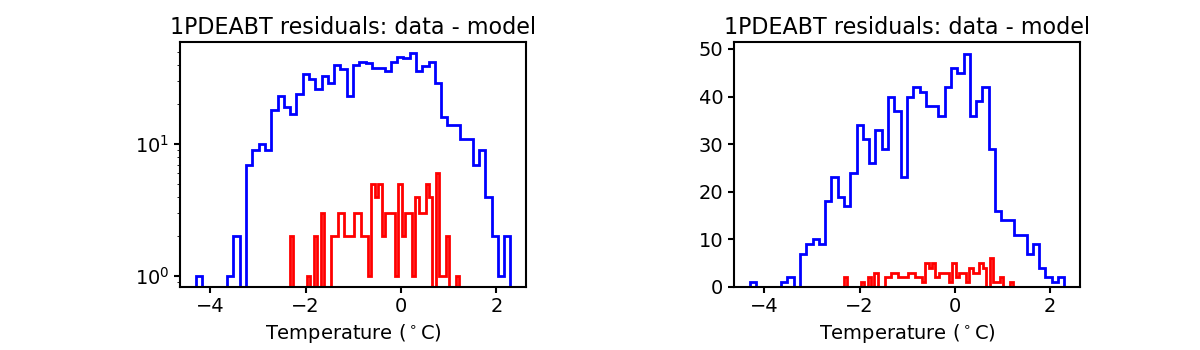

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

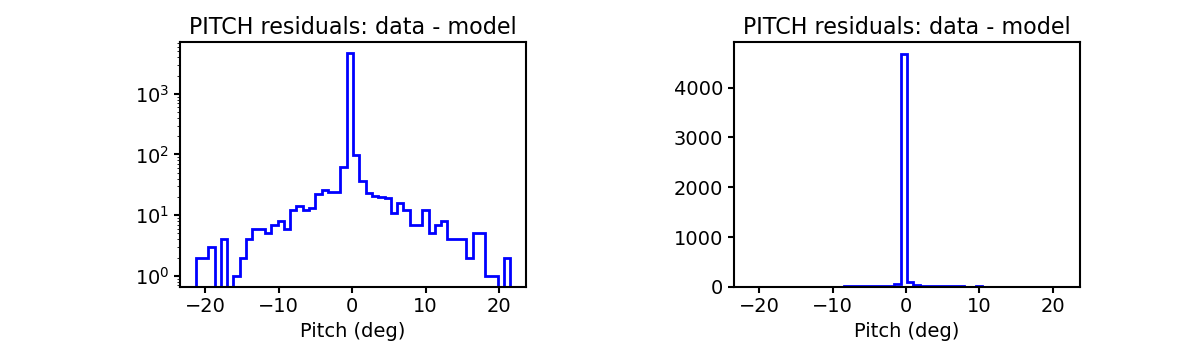

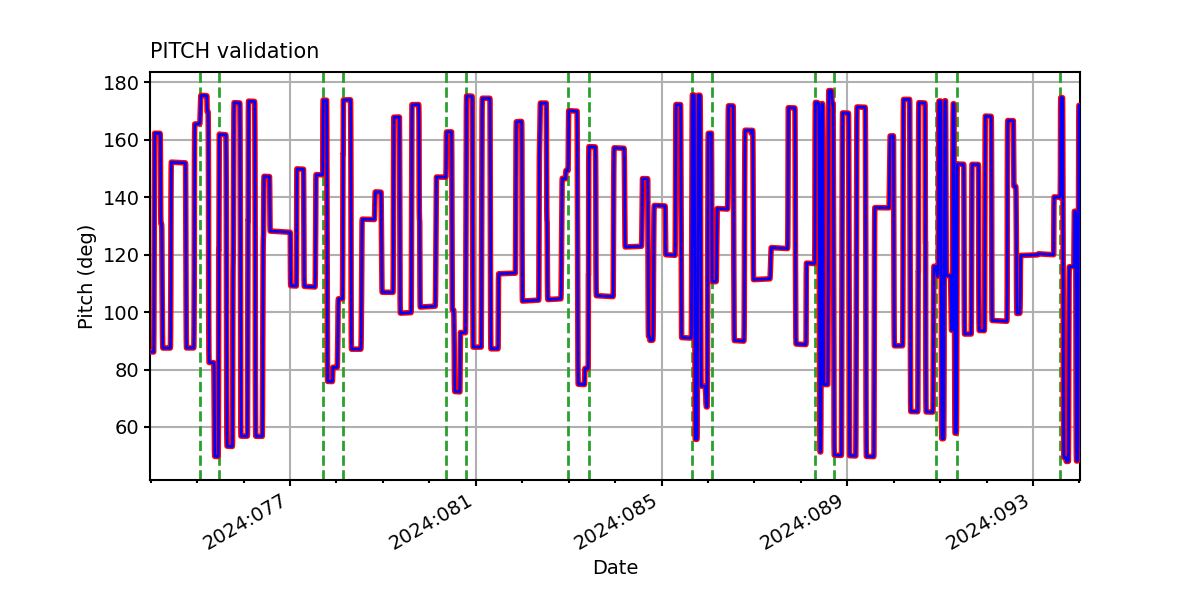

PITCH

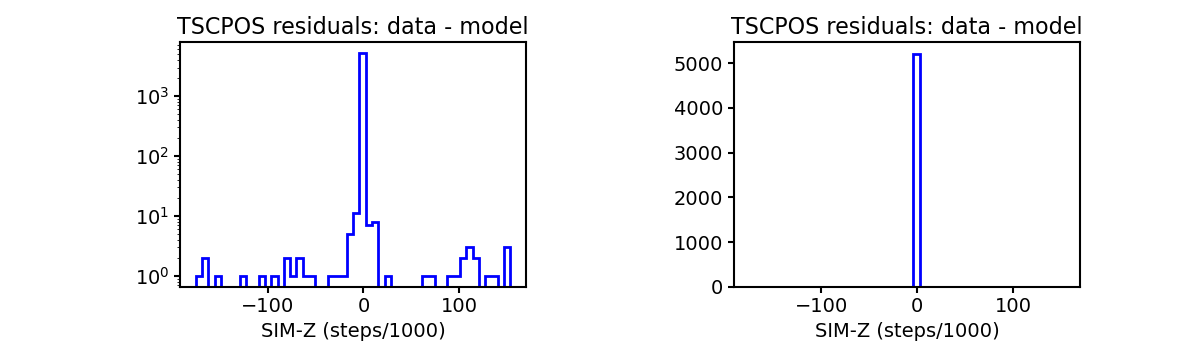

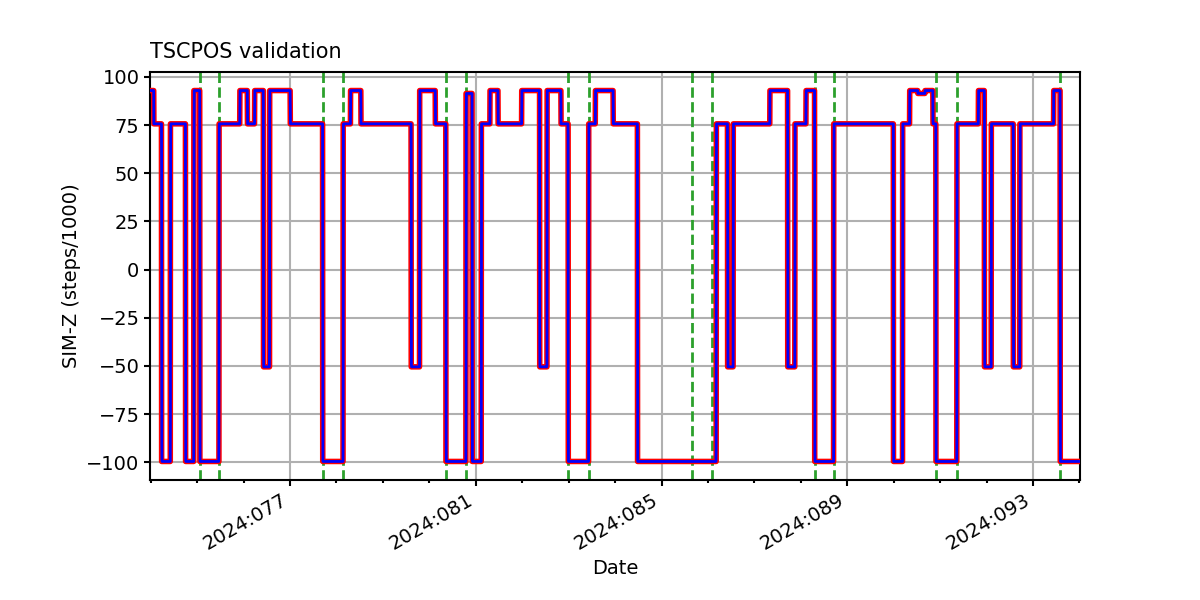

TSCPOS

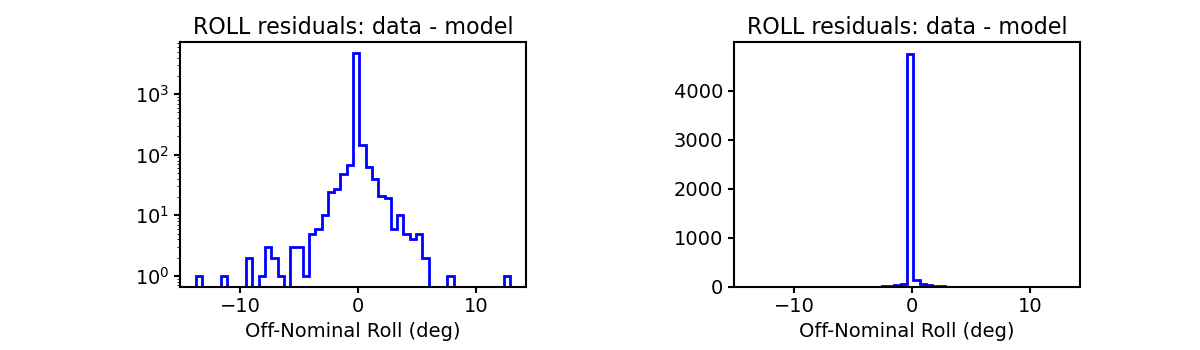

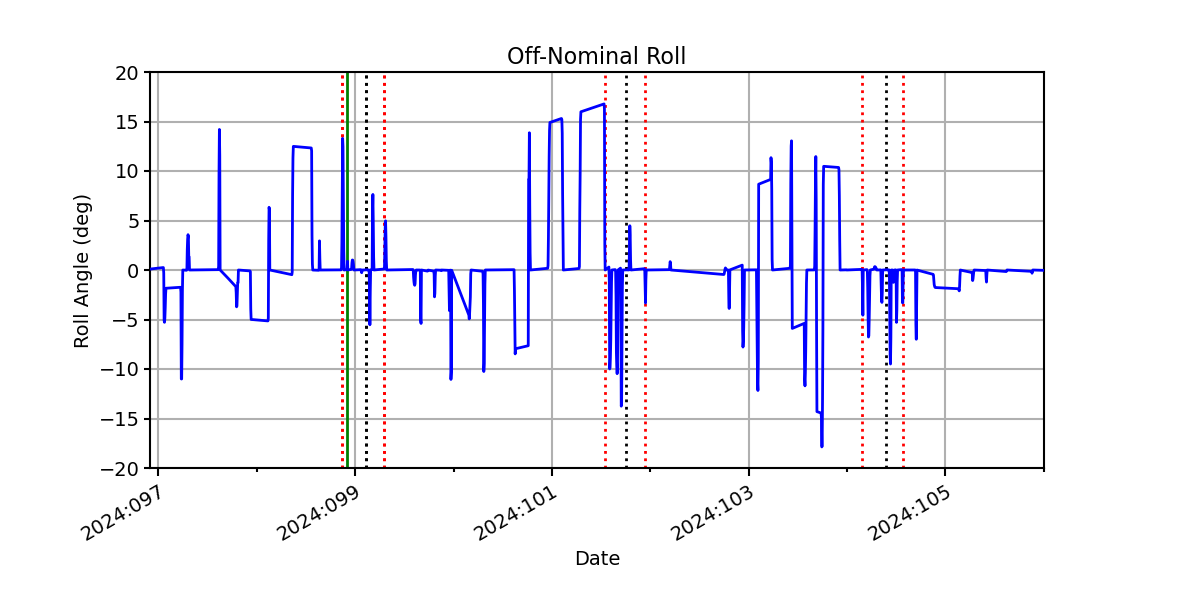

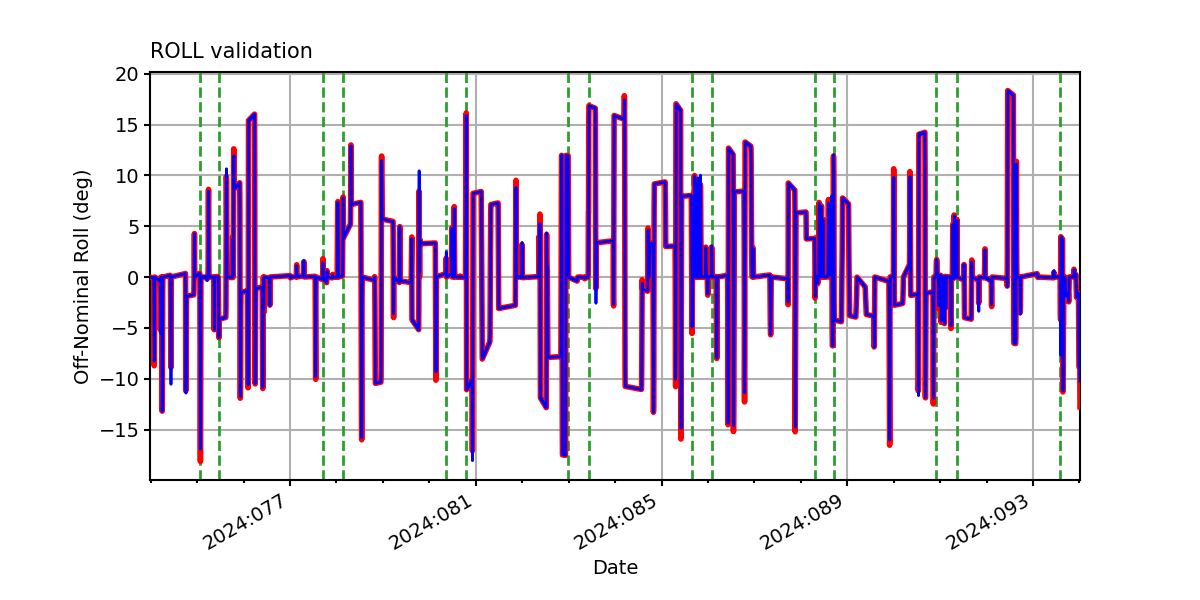

ROLL

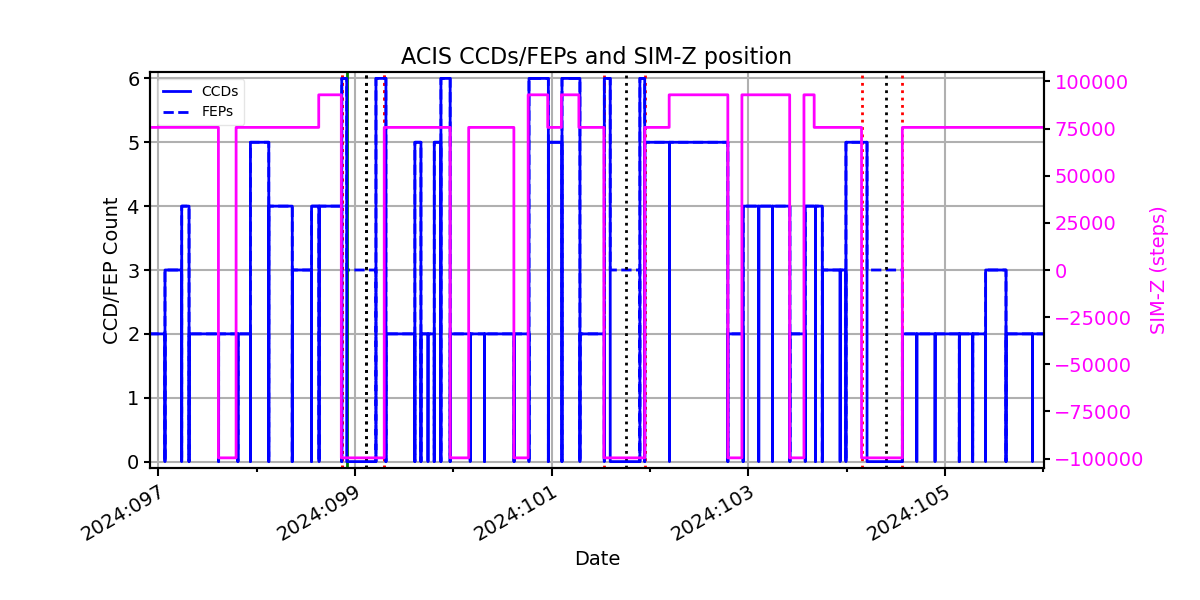

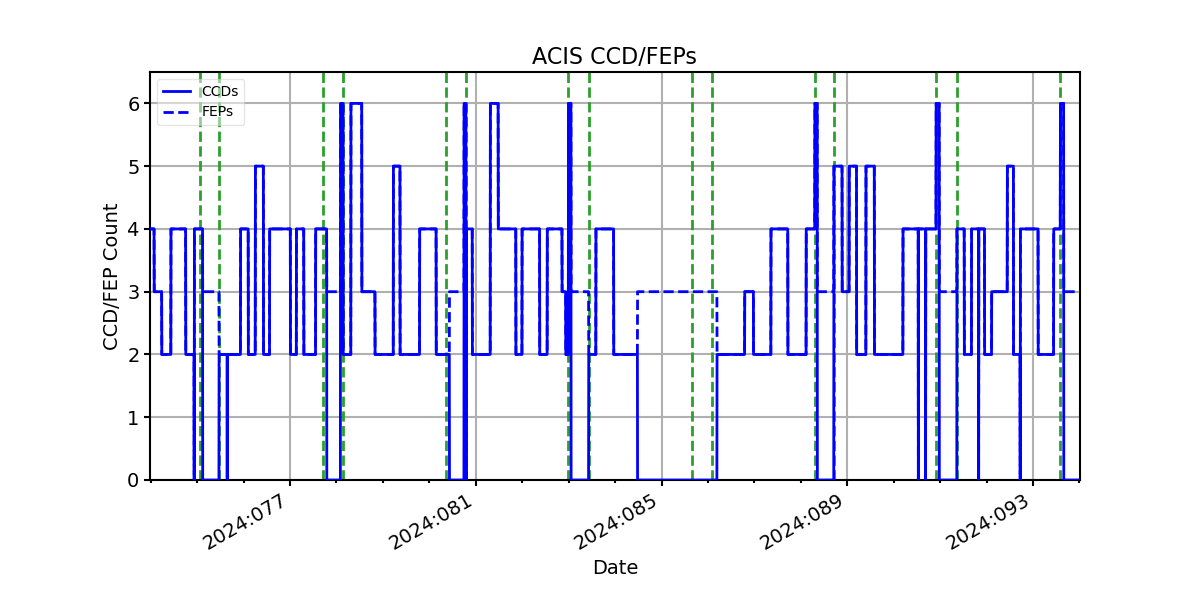

ACIS CCD/FEP Count
