PSMCBT Temperatures Check
Summary
| Date start | 2023:100:00:09:21.016 |
| Date stop | 2023:106:23:42:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/APR1023/oflsa |
| Run time | Thu Oct 8 16:01:03 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

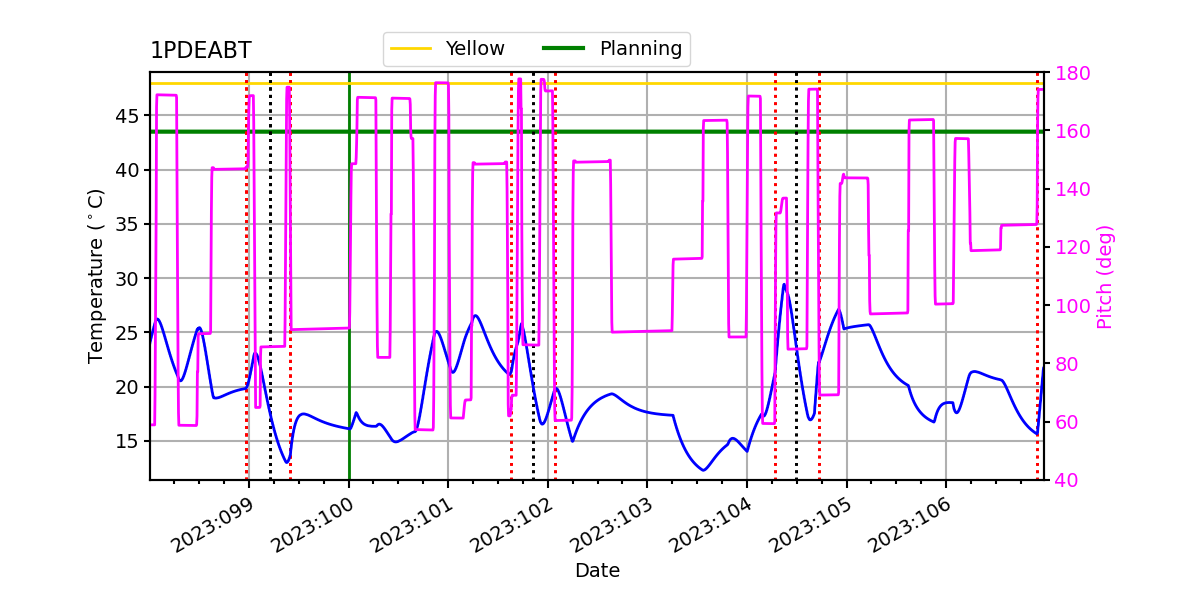

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.39 | -2.71 | -1.77 | -0.17 | 1.52 | 2.17 | 2.70 |
| pitch | -9.800 | -0.749 | -0.003 | -0.000 | 0.003 | 0.664 | 11.542 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.625 | -0.111 | -0.005 | -0.000 | 0.006 | 0.193 | 1.709 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.39 | 2.50 |
| PITCH | 1 | -9.8 | 3.00 |
| PITCH | 99 | 11.542 | 3.00 |

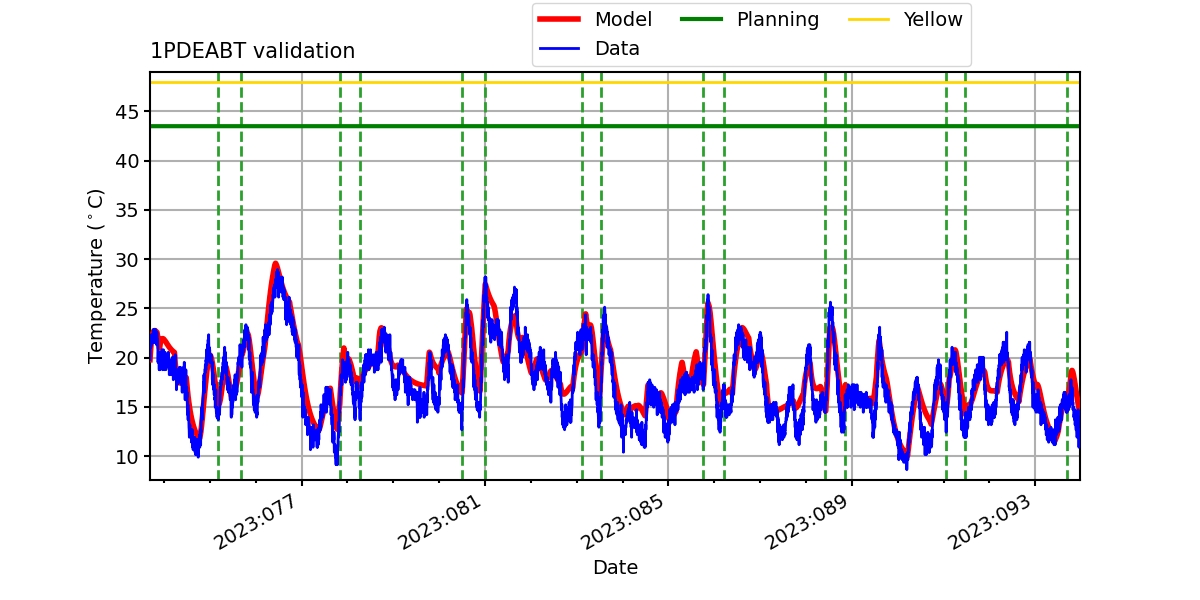

1PDEABT
Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

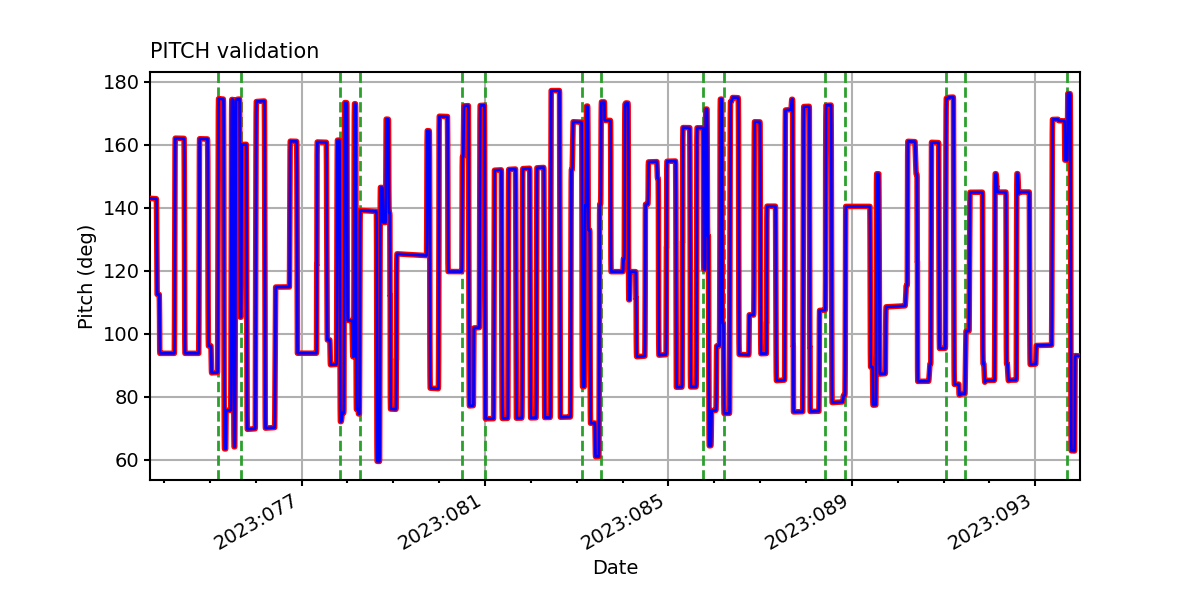

PITCH

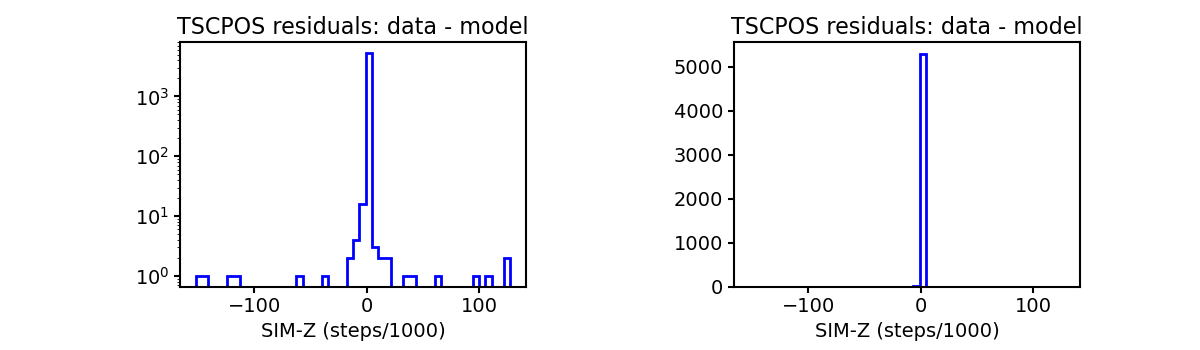

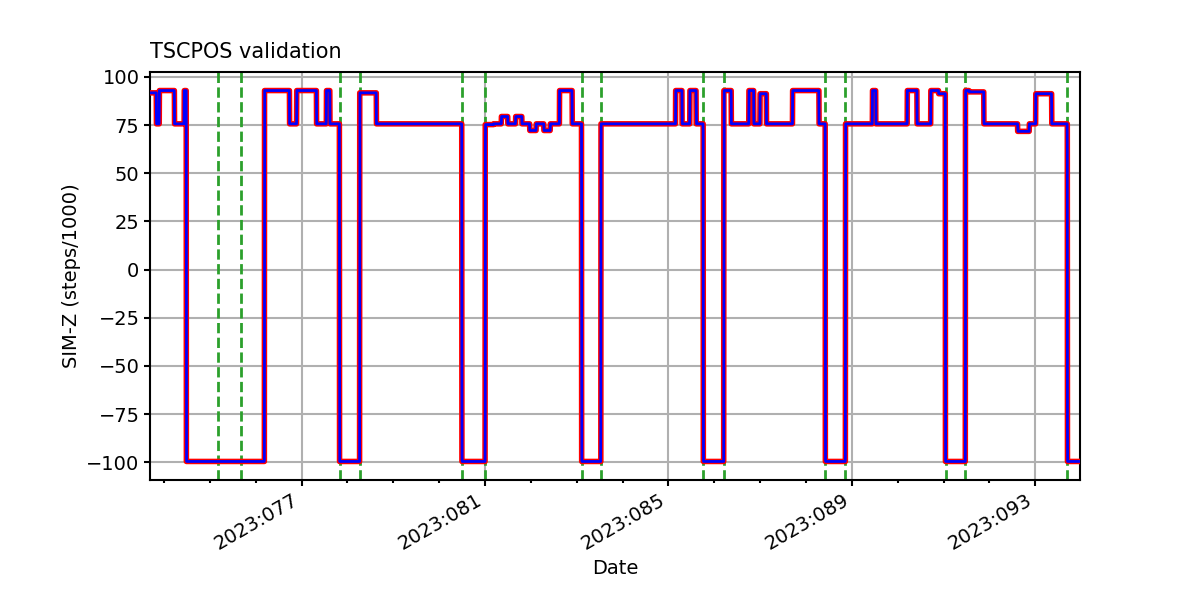

TSCPOS

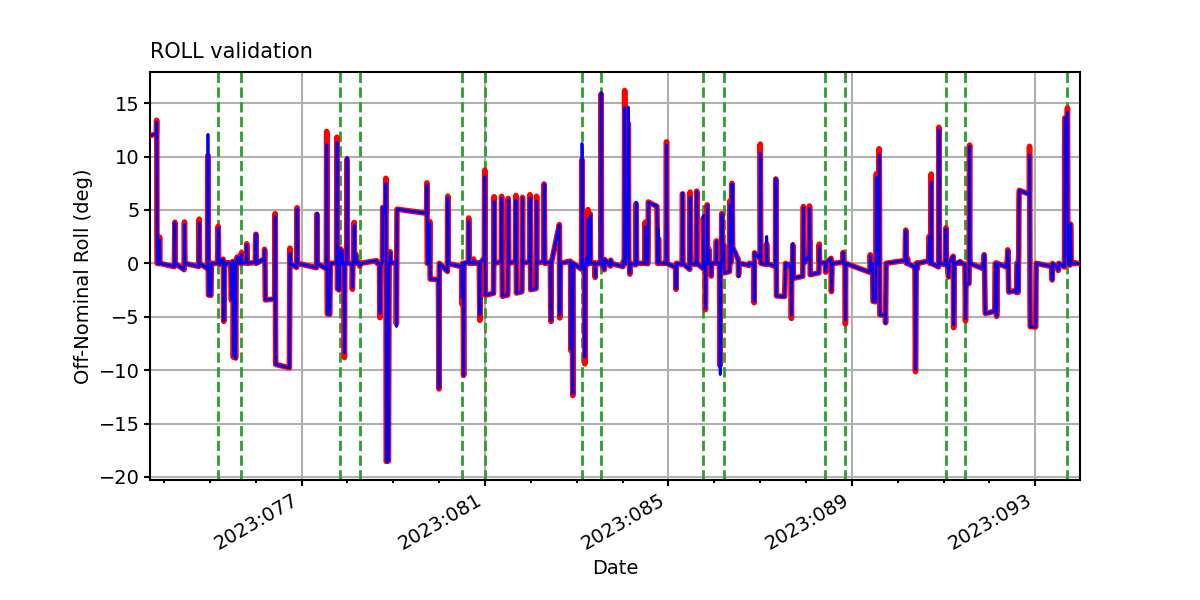

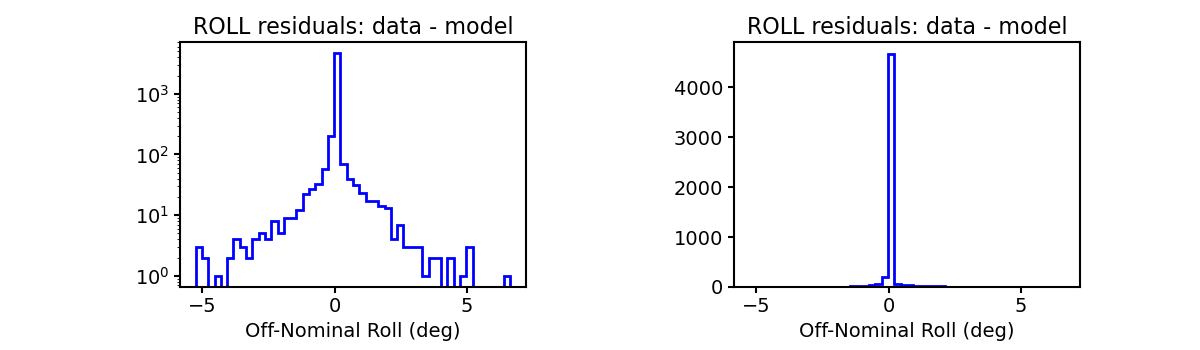

ROLL

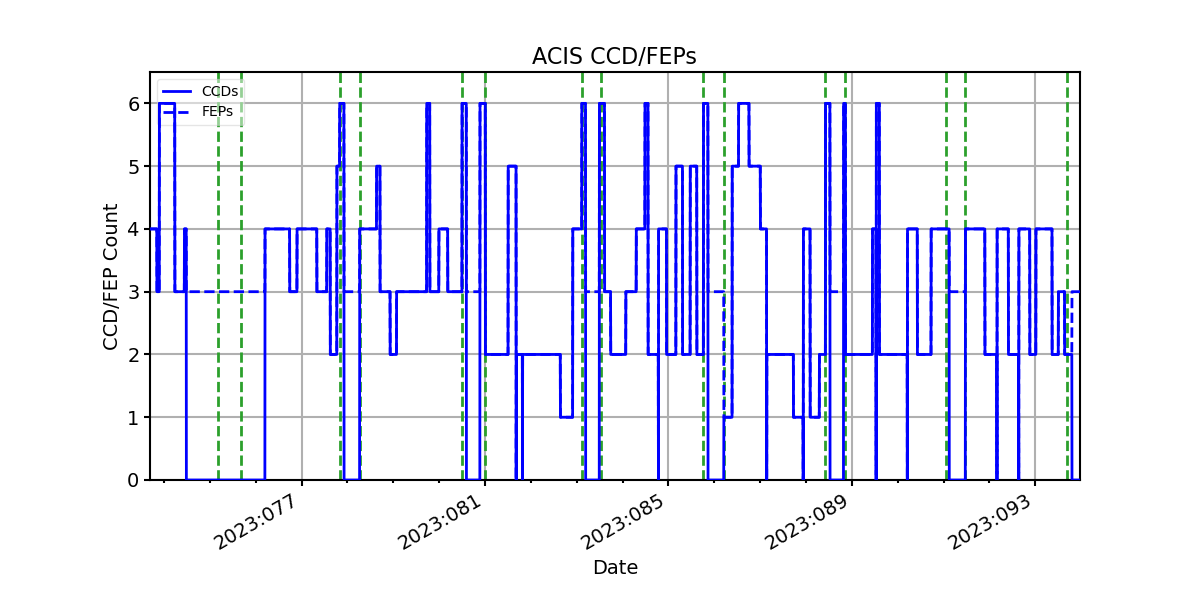

ACIS CCD/FEP Count
