PSMCBT Temperatures Check
Summary
| Date start | 2024:106:00:07:32.316 |
| Date stop | 2024:113:01:06:52.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/APR1524/oflsa |
| Run time | Thu Oct 8 16:01:32 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

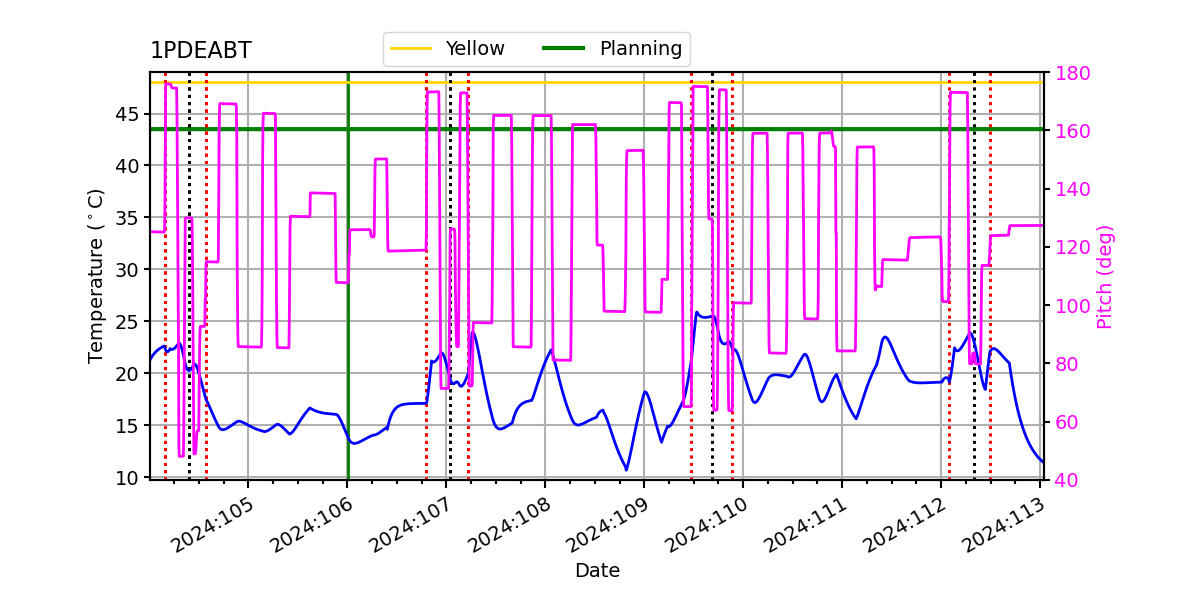

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.19 | -2.69 | -2.02 | -0.67 | 0.69 | 1.52 | 2.21 |
| pitch | -10.079 | -0.997 | -0.004 | -0.000 | 0.004 | 0.536 | 10.499 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.201 | -0.223 | -0.007 | 0.000 | 0.007 | 0.173 | 2.216 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.19 | 2.50 |
| PITCH | 1 | -10.079 | 3.00 |
| PITCH | 99 | 10.499 | 3.00 |
1PDEABT

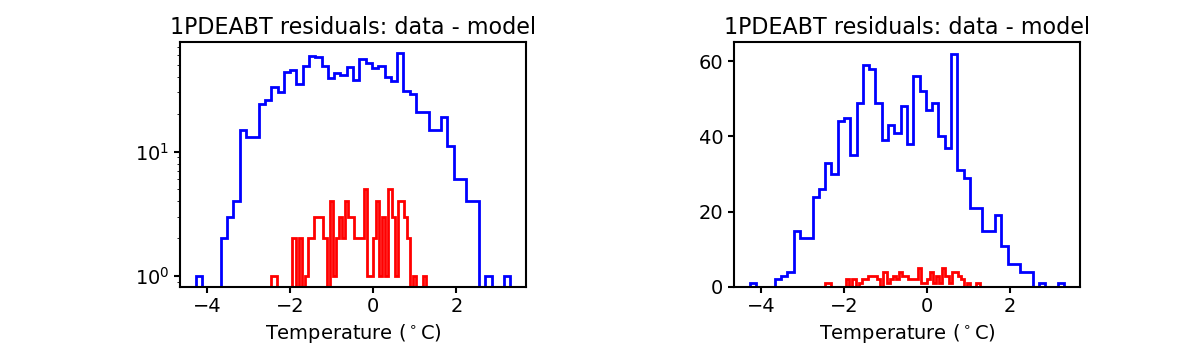

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

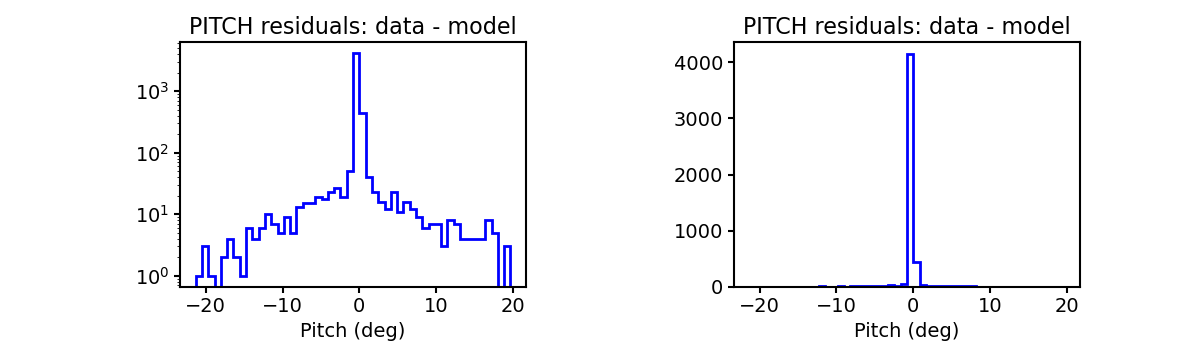

PITCH

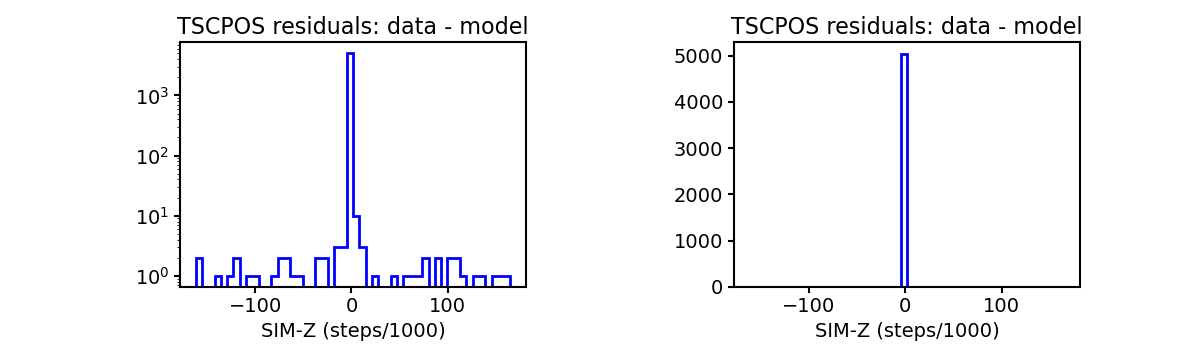

TSCPOS

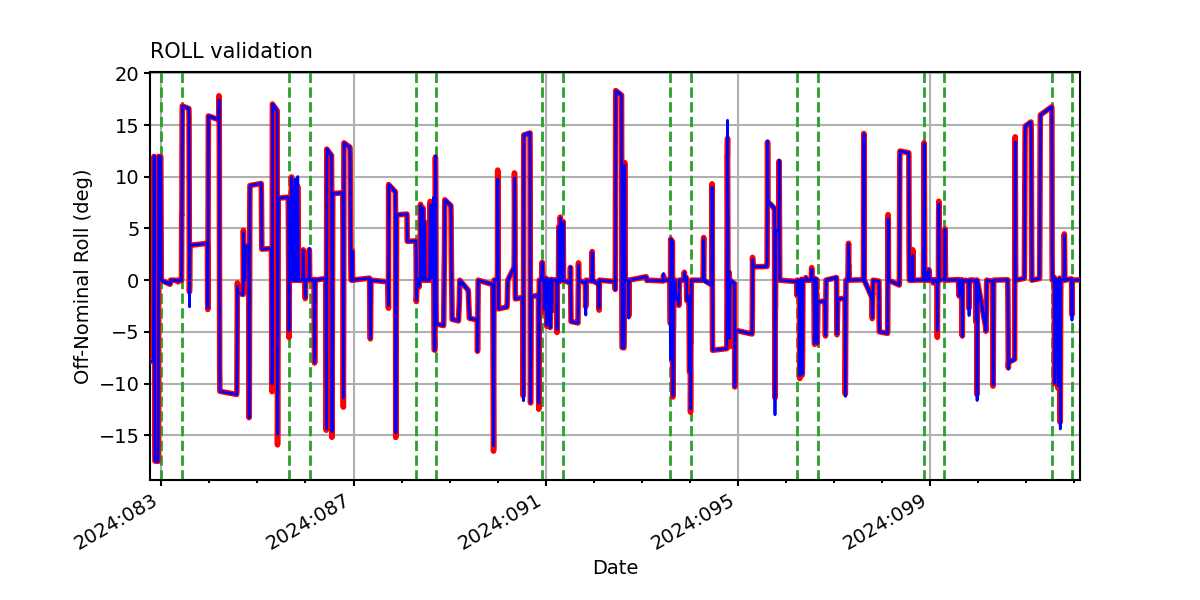

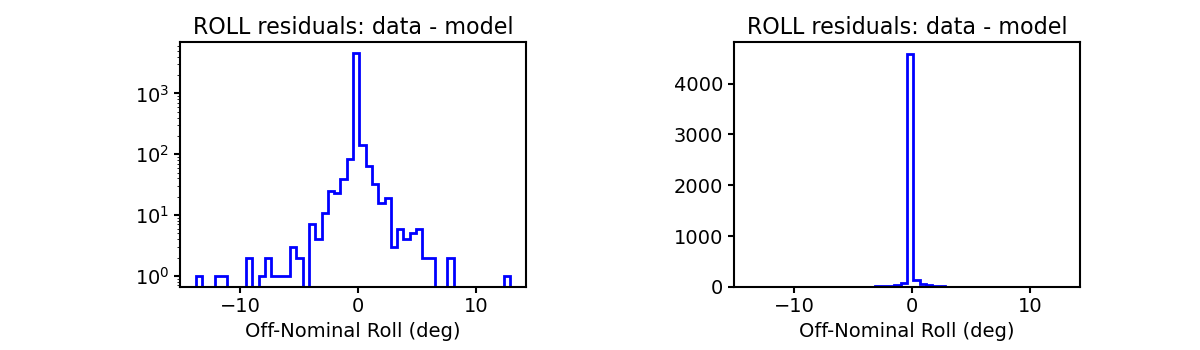

ROLL

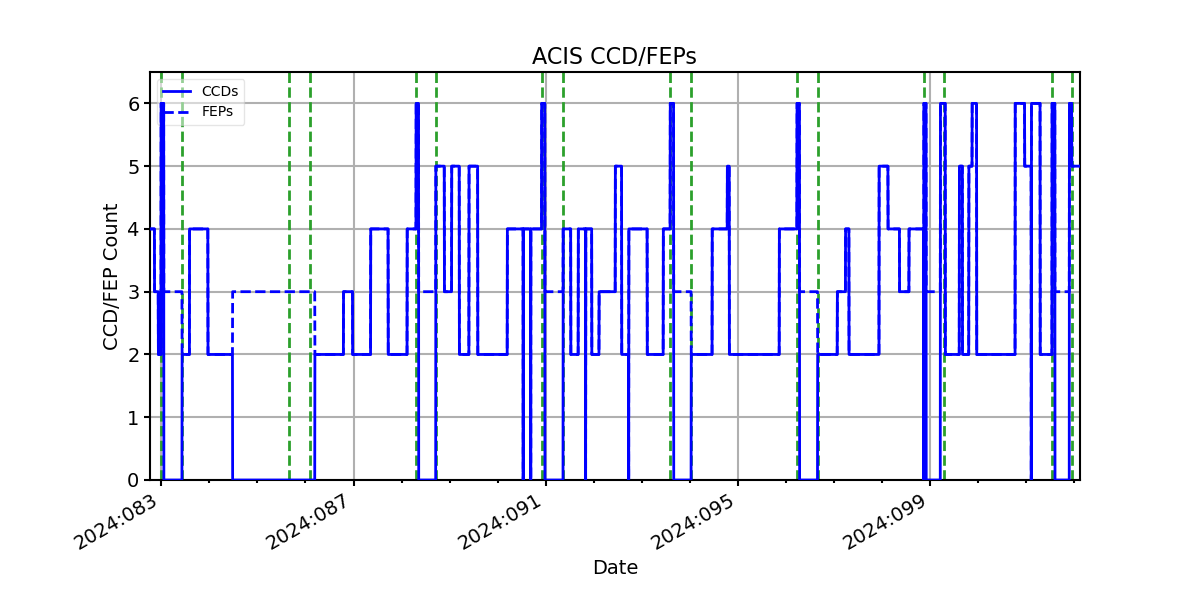

ACIS CCD/FEP Count
