PSMCBT Temperatures Check
Summary
| Date start | 2023:106:23:39:00.016 |
| Date stop | 2023:114:02:28:59.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2023/APR1723/oflsa |
| Run time | Thu Oct 8 16:01:32 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

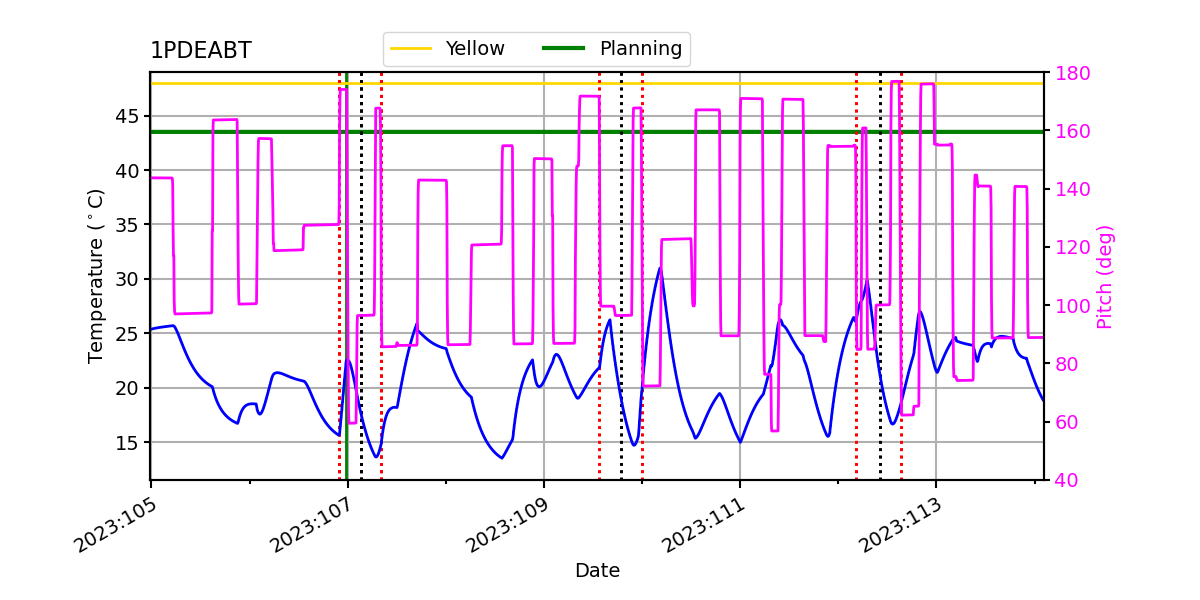

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.99 | -2.80 | -1.79 | -0.00 | 1.23 | 1.78 | 2.35 |
| pitch | -9.875 | -0.535 | -0.003 | -0.000 | 0.003 | 0.420 | 10.272 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.493 | -0.089 | -0.005 | -0.000 | 0.006 | 0.176 | 1.668 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.99 | 2.50 |
| PITCH | 1 | -9.875 | 3.00 |
| PITCH | 99 | 10.272 | 3.00 |

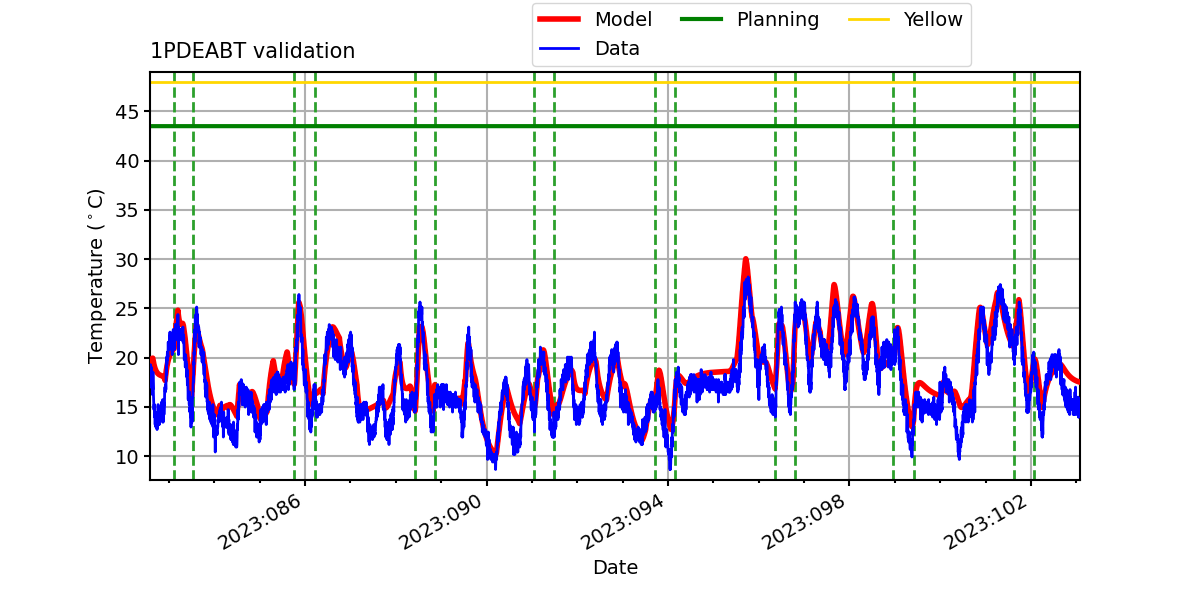

1PDEABT

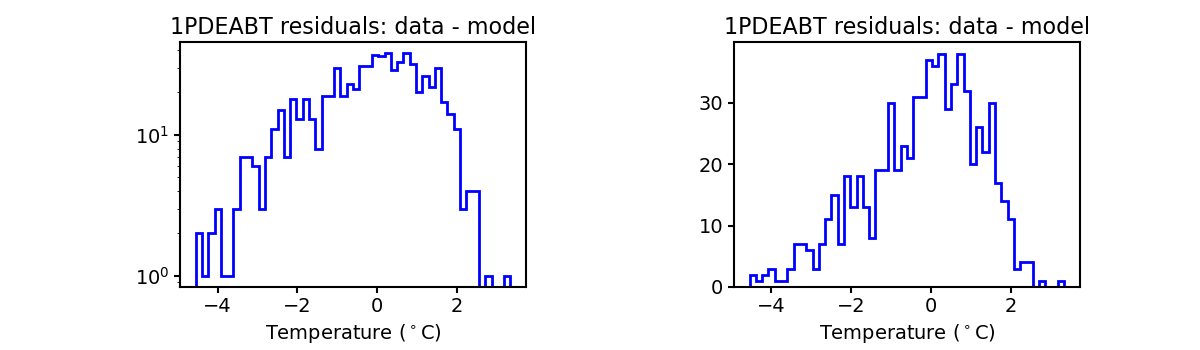

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

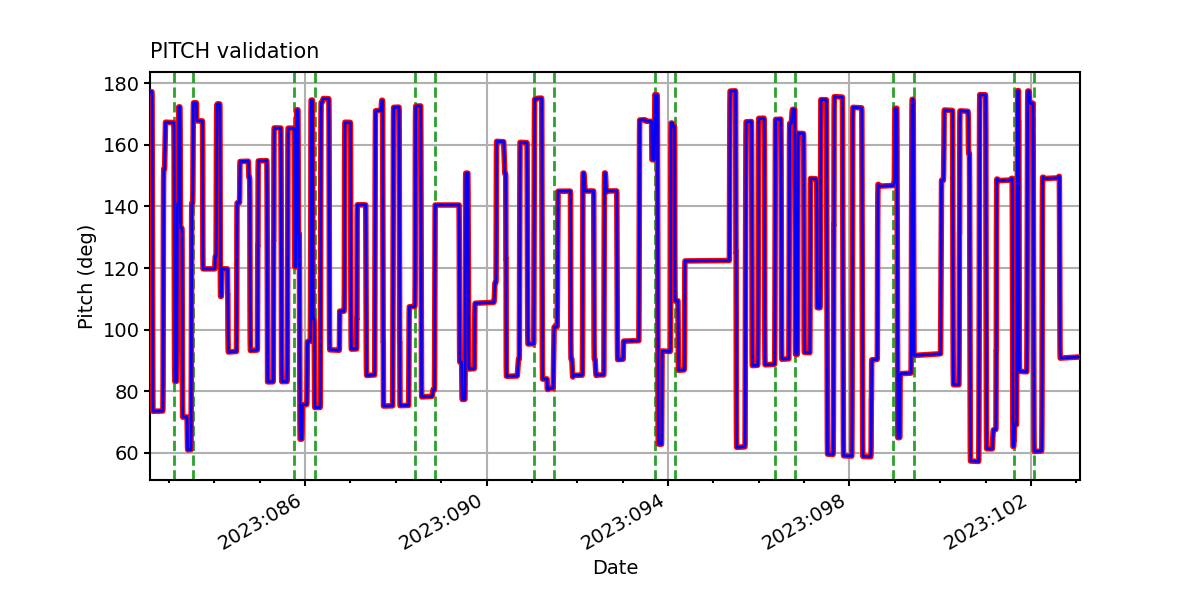

PITCH

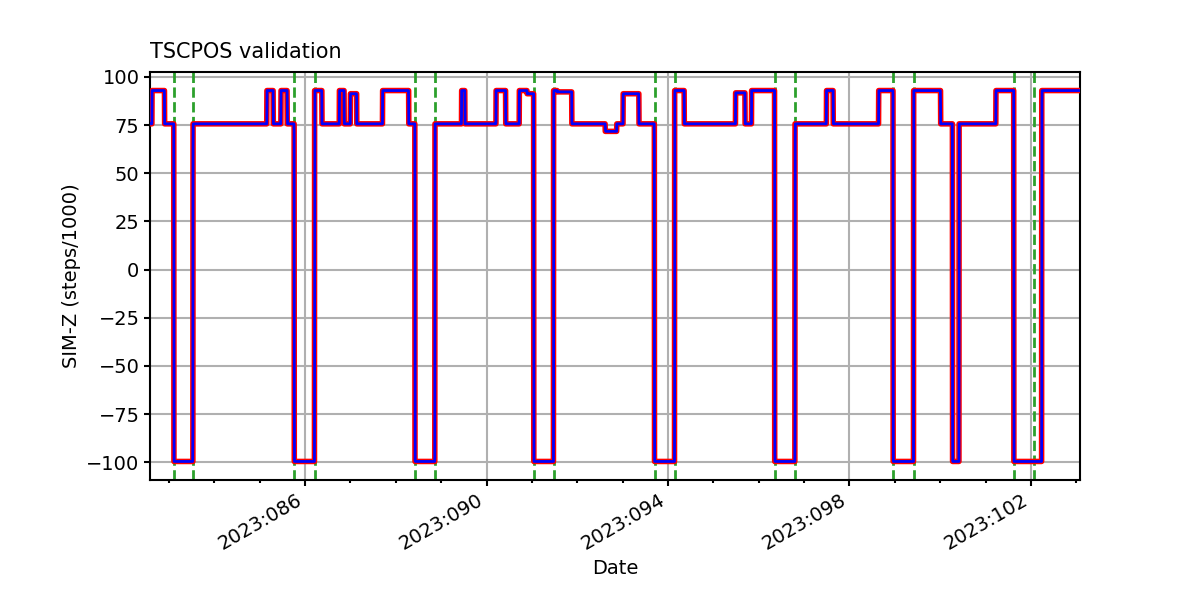

TSCPOS

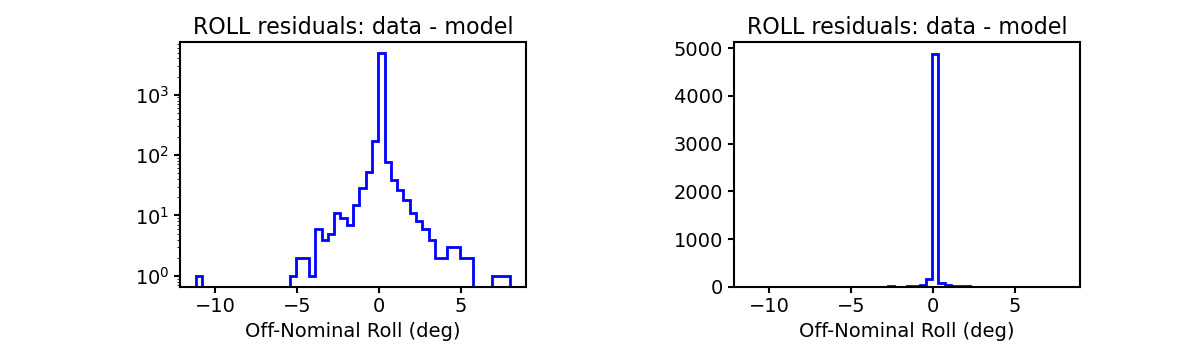

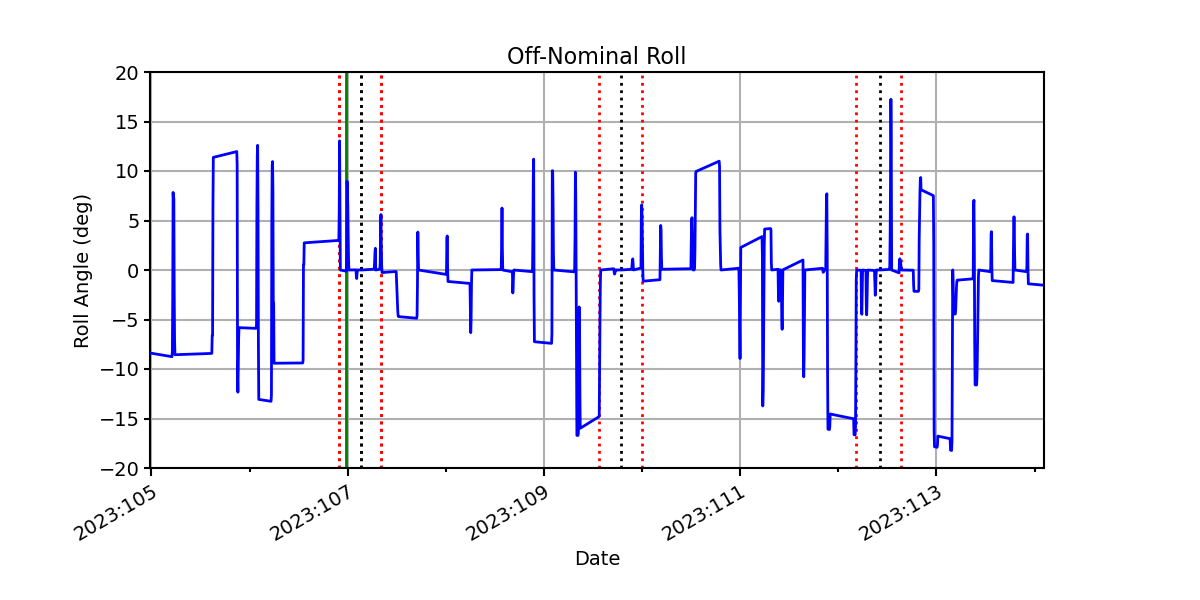

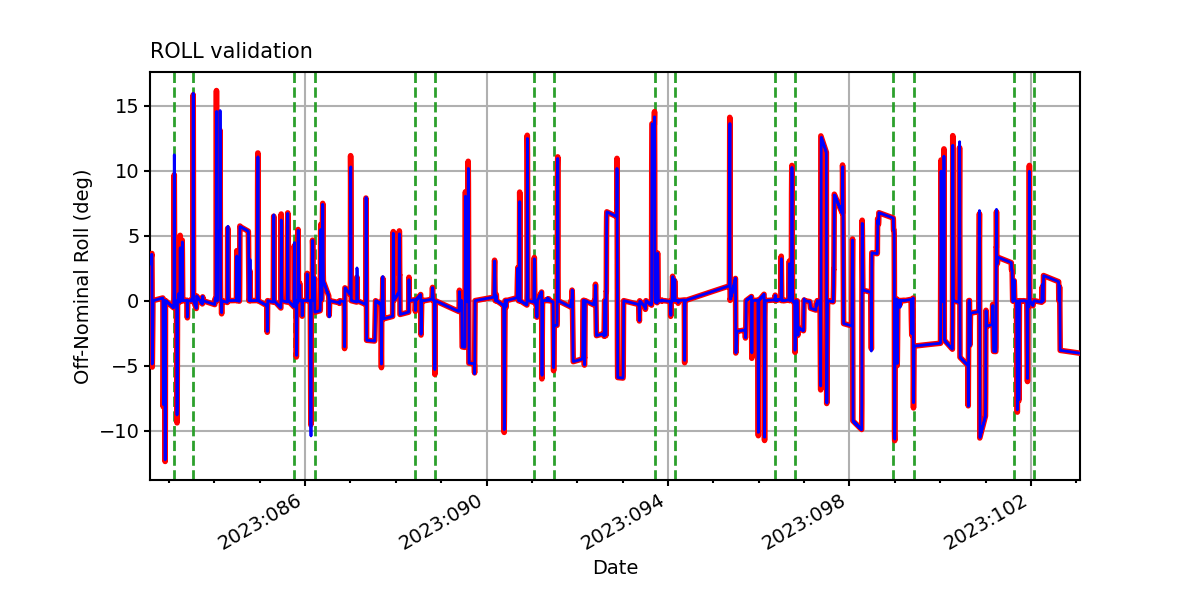

ROLL

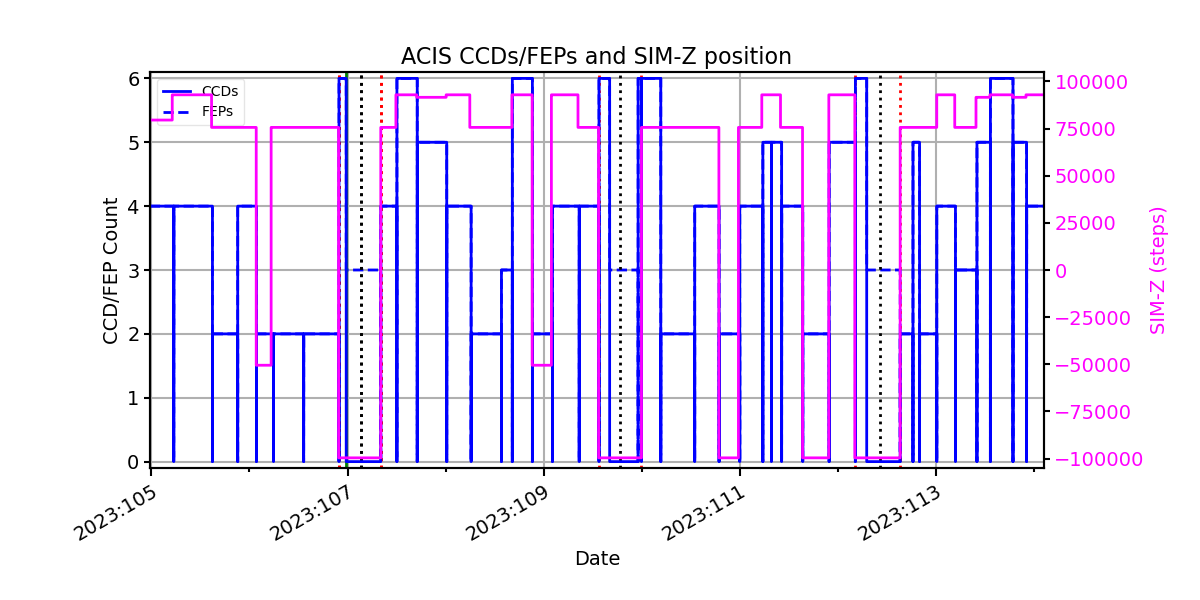

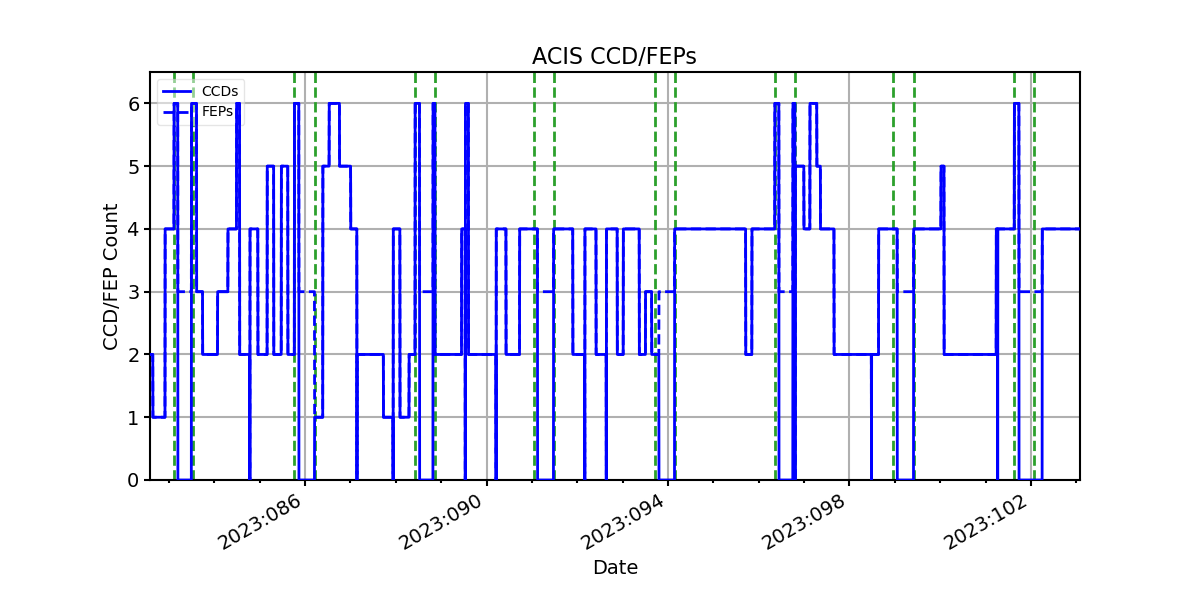

ACIS CCD/FEP Count
