PSMCBT Temperatures Check
Summary
| Date start | 2024:111:16:39:09.416 |
| Date stop | 2024:120:01:35:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2024/APR2024/oflsa |
| Run time | Thu Oct 8 16:01:32 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

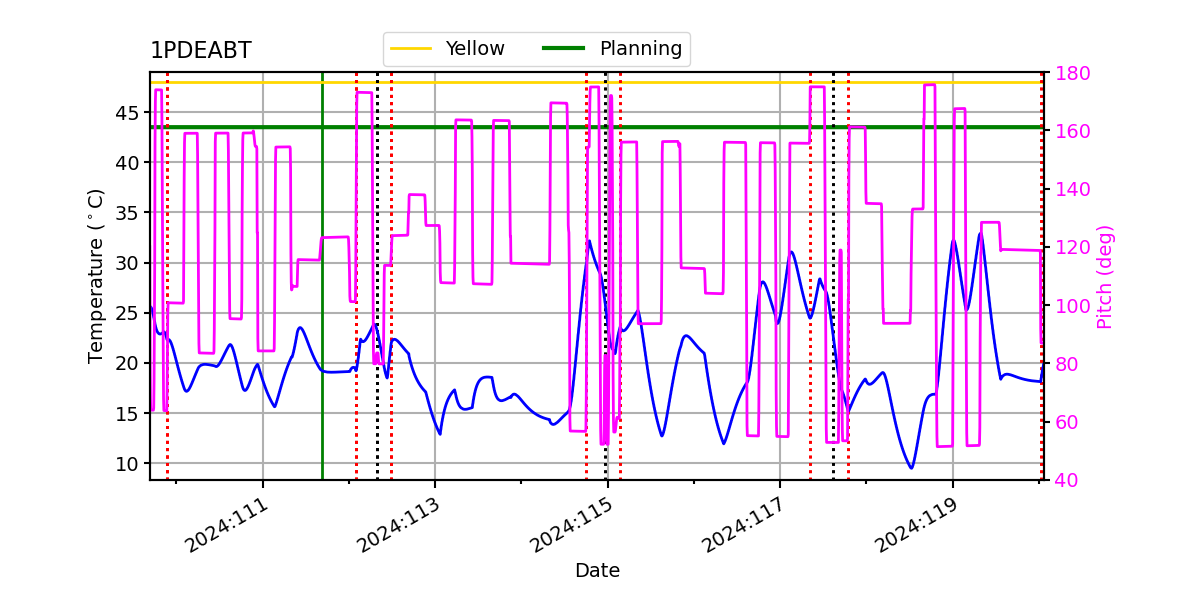

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -3.51 | -2.79 | -1.93 | -0.32 | 0.82 | 1.60 | 2.27 |
| pitch | -9.831 | -1.012 | -0.004 | -0.000 | 0.004 | 0.731 | 10.842 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.940 | -0.177 | -0.008 | 0.000 | 0.007 | 0.169 | 2.196 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEABT | 1 | -3.51 | 2.50 |
| PITCH | 1 | -9.831 | 3.00 |
| PITCH | 99 | 10.842 | 3.00 |

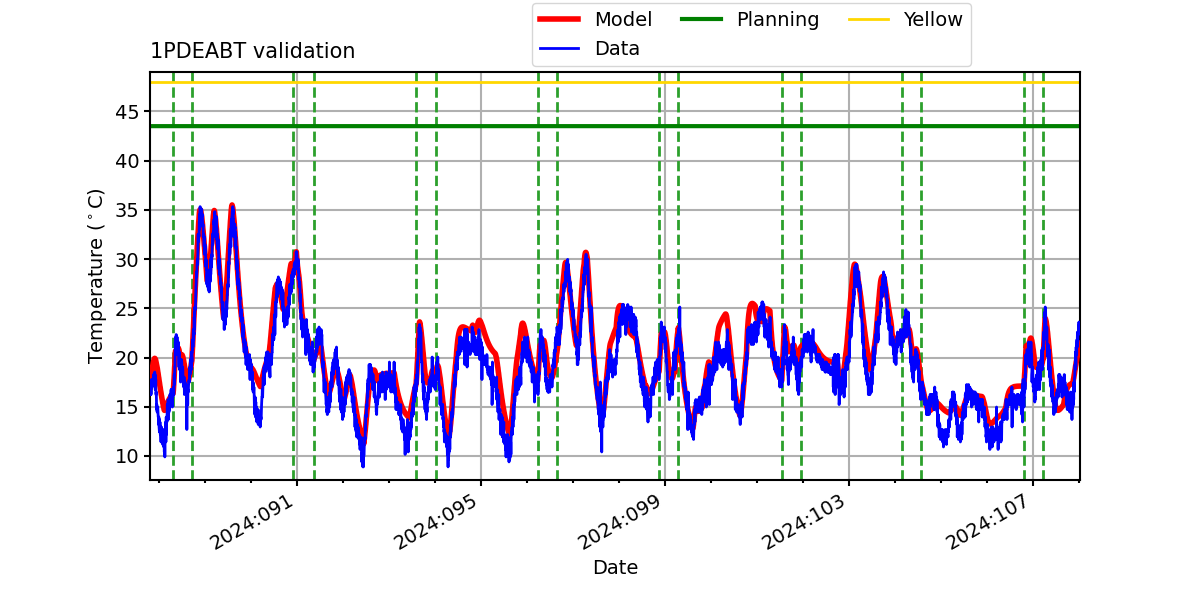

1PDEABT

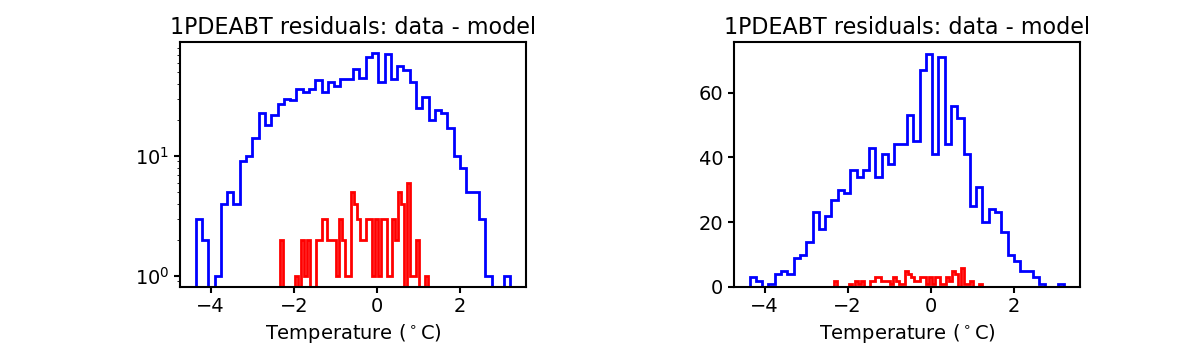

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.

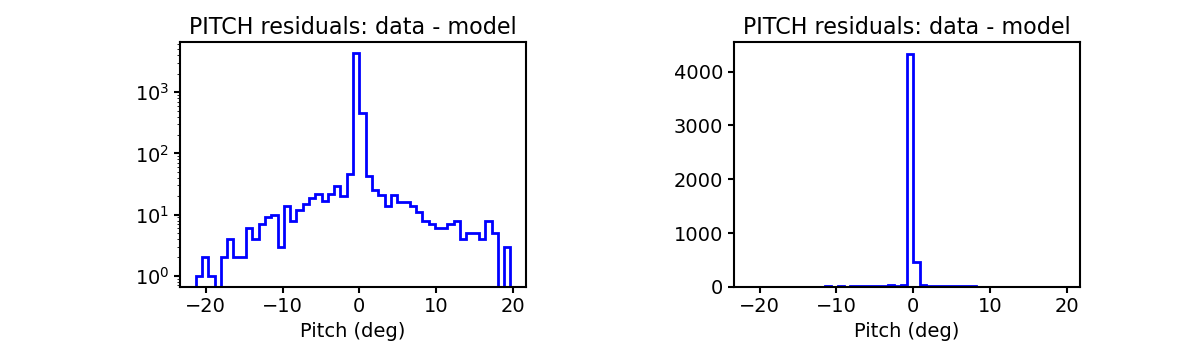

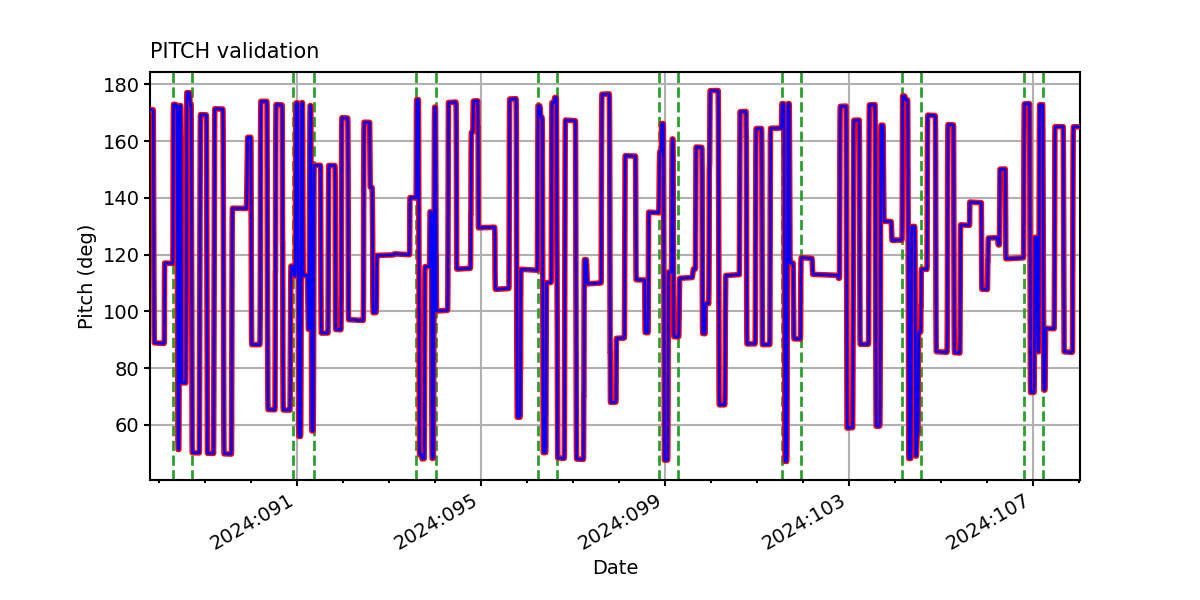

PITCH

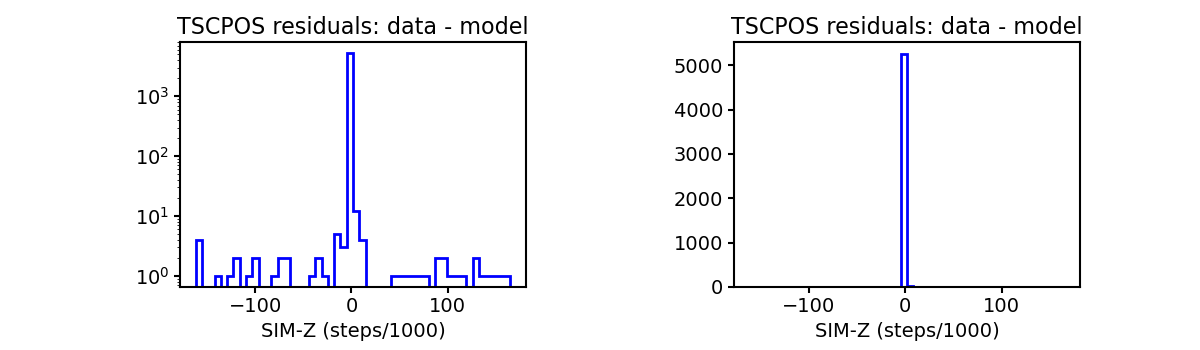

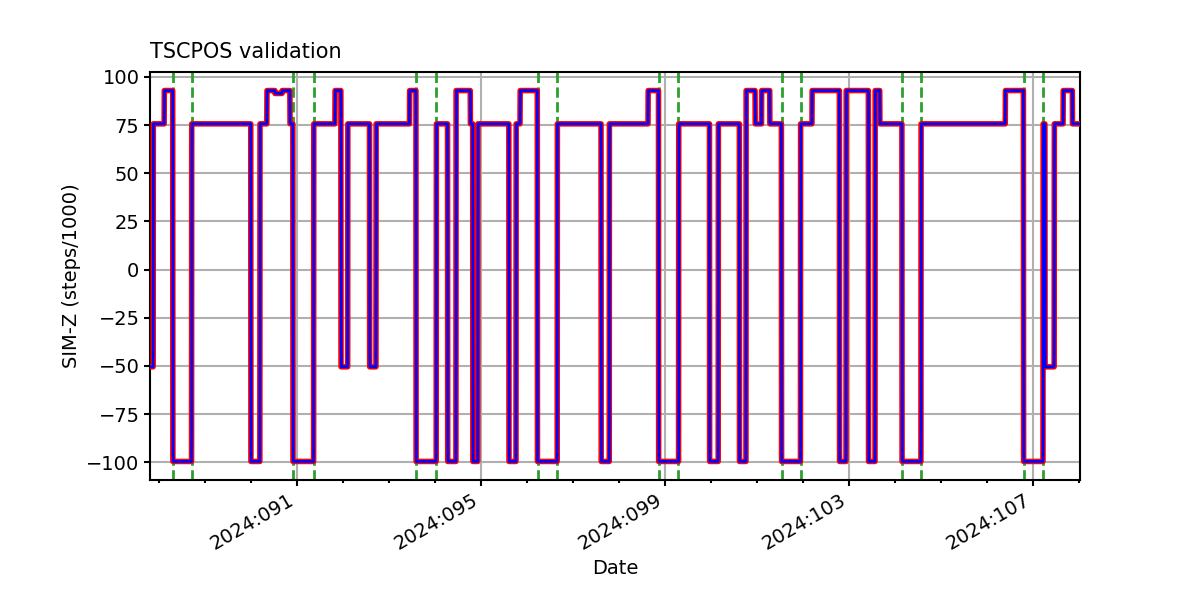

TSCPOS

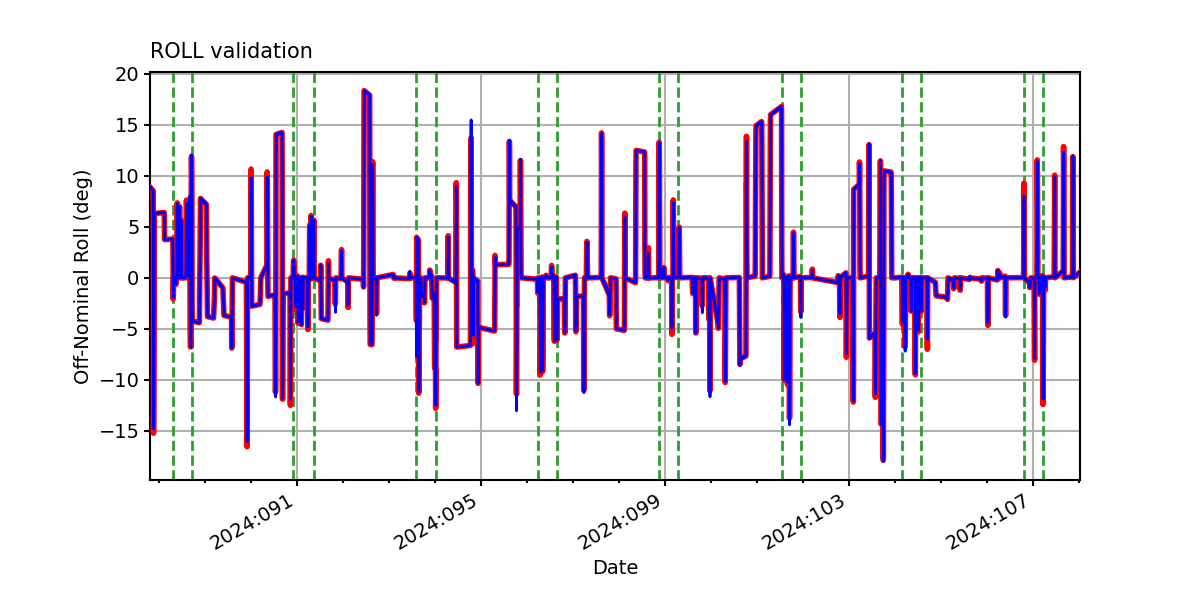

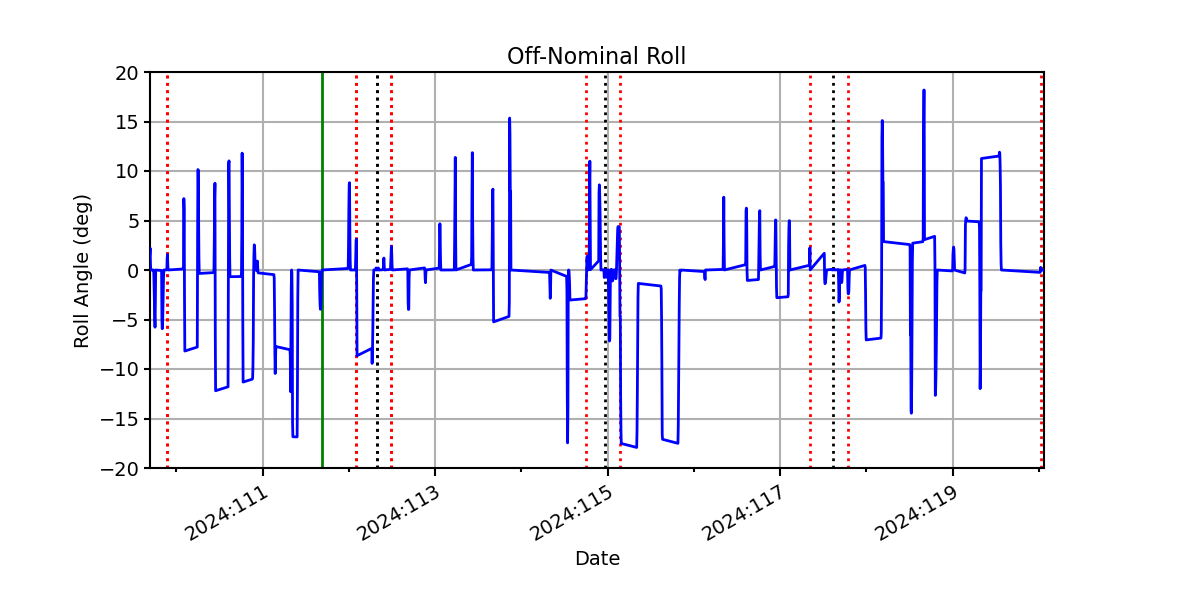

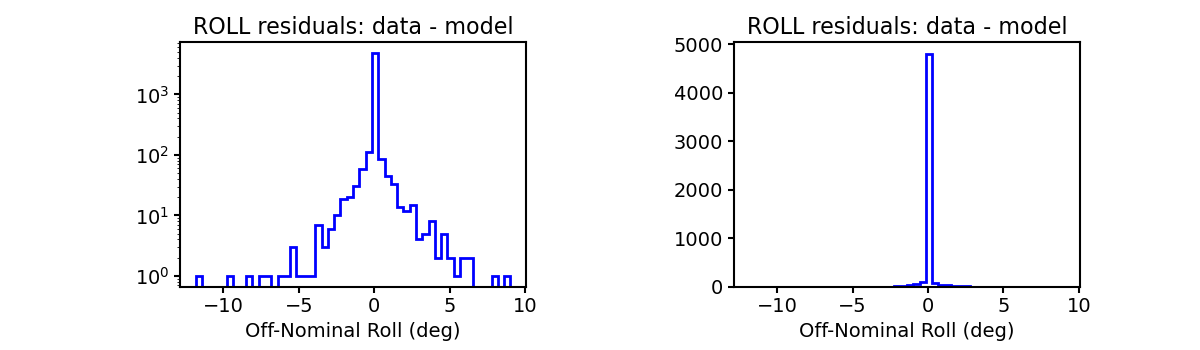

ROLL

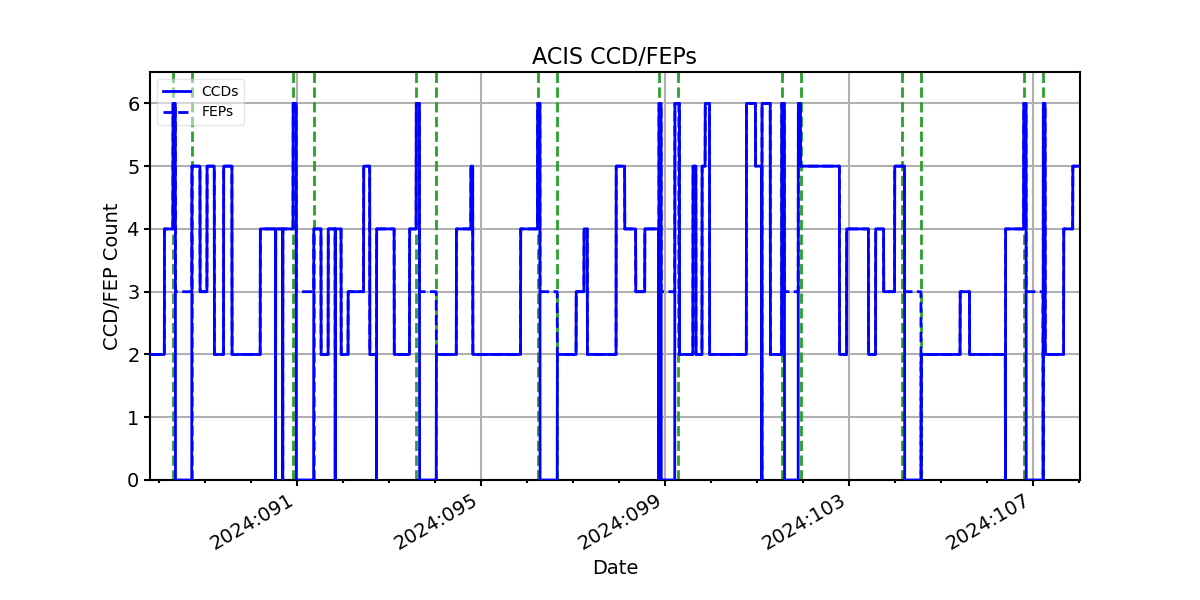

ACIS CCD/FEP Count
