PSMCBT Temperatures Check
Summary
| Date start | 2026:110:01:29:52.116 |
| Date stop | 2026:117:01:19:40.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/APR2026/oflsa |
| Run time | Thu Oct 8 16:01:32 2026 by jsteiner |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

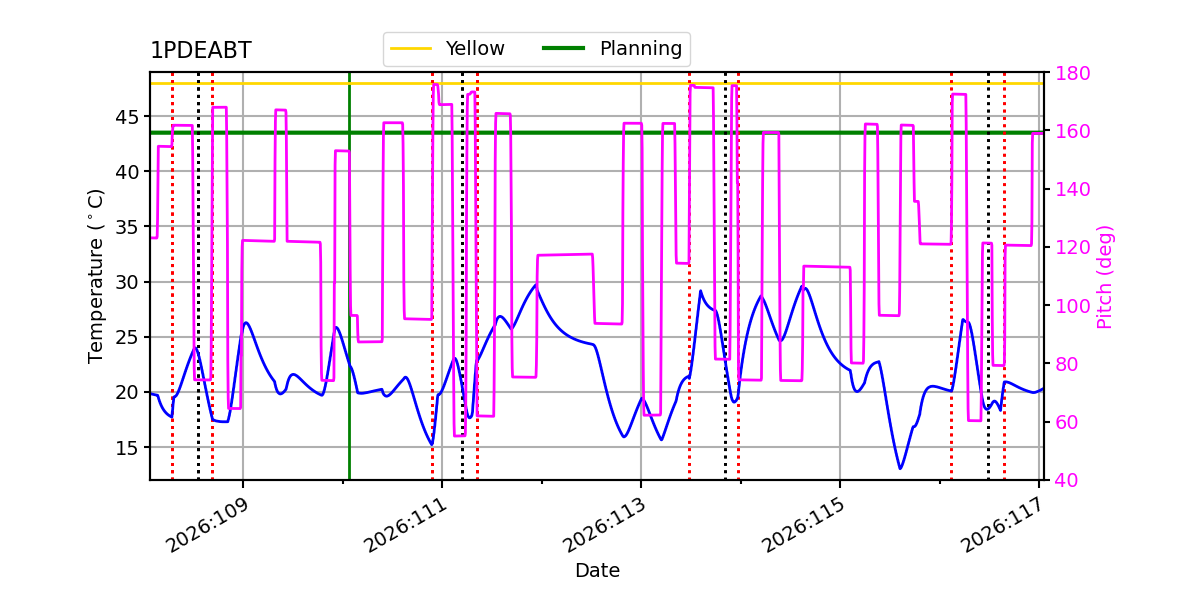

No 1PDEABT Upper Limit Violations
PSMCBT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEABT >= 22.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeabt | -2.49 | -1.82 | -1.14 | 0.26 | 1.57 | 2.34 | 3.11 |
| pitch | -11.191 | -0.929 | -0.004 | 0.000 | 0.004 | 1.401 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.035 | -0.174 | -0.007 | -0.000 | 0.006 | 0.168 | 1.978 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -11.191 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

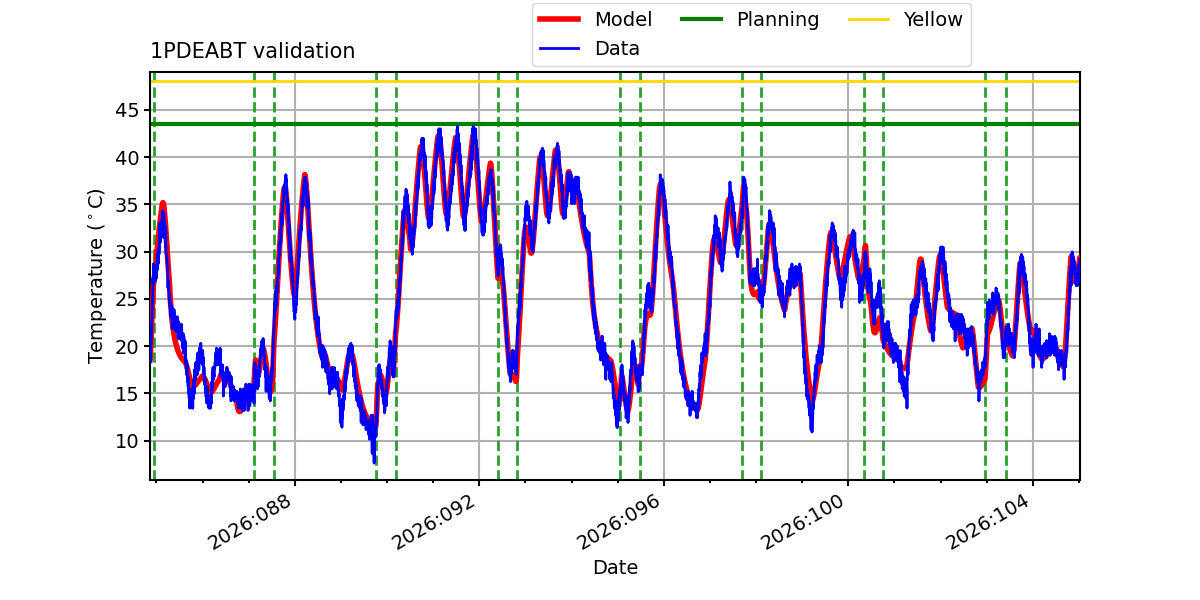

1PDEABT

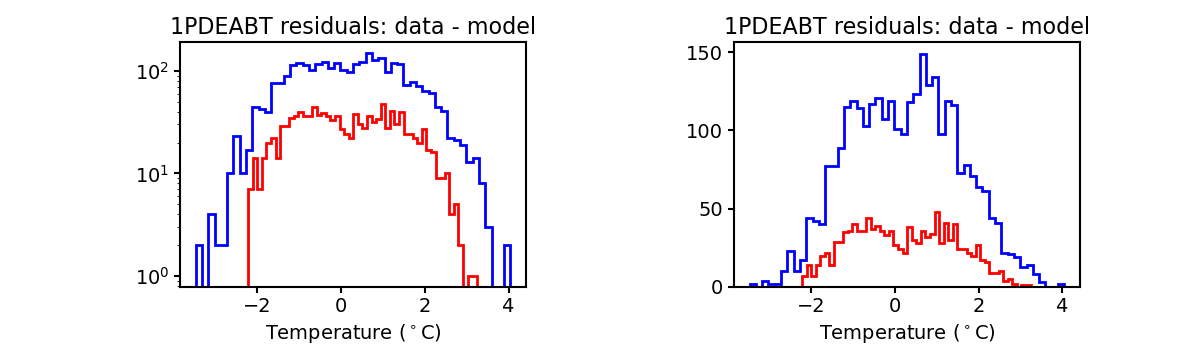

Note: 1PDEABT residual histograms include only points where 1PDEABT >= 22.0 C in blue and points where 1PDEABT >= 32.0 C in red.
PITCH

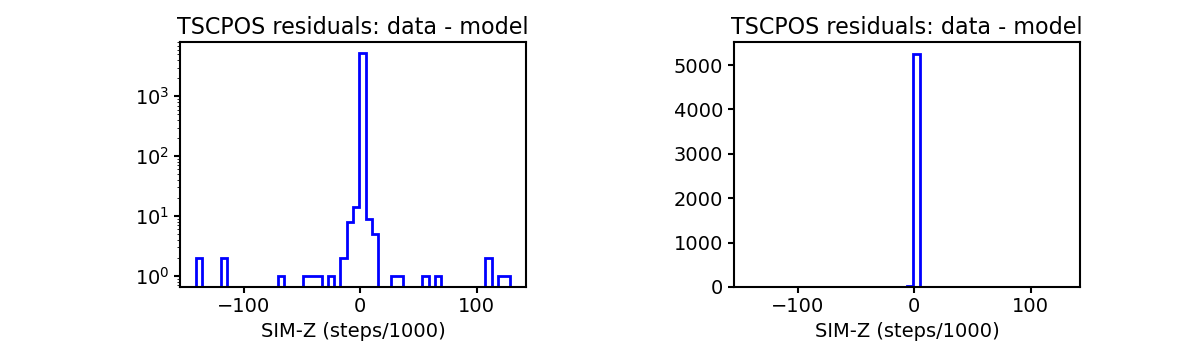

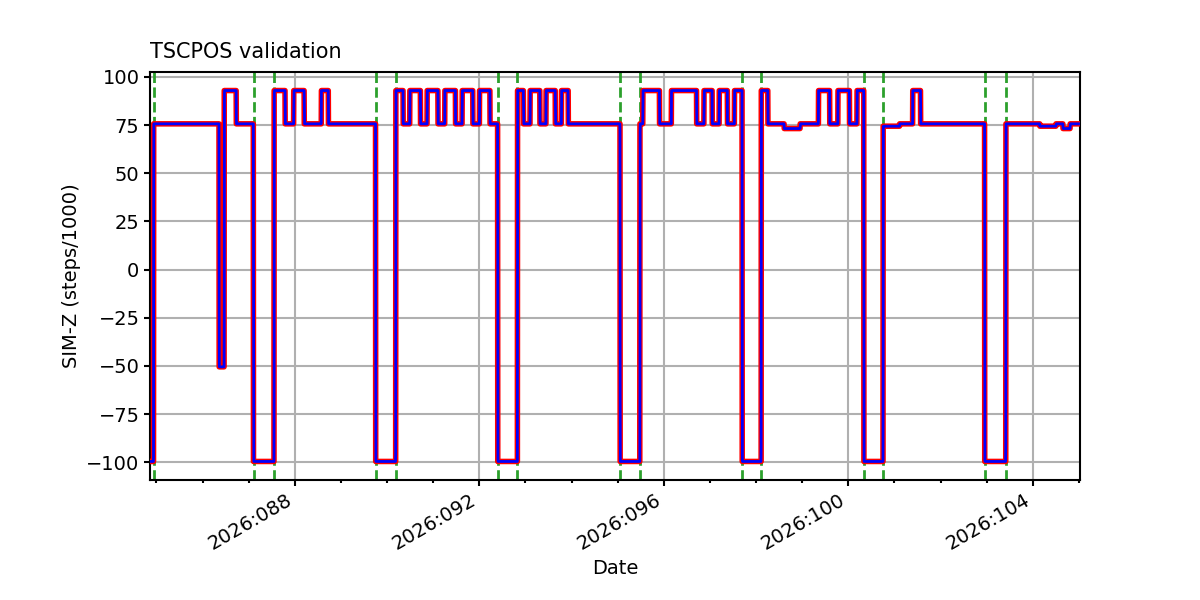

TSCPOS

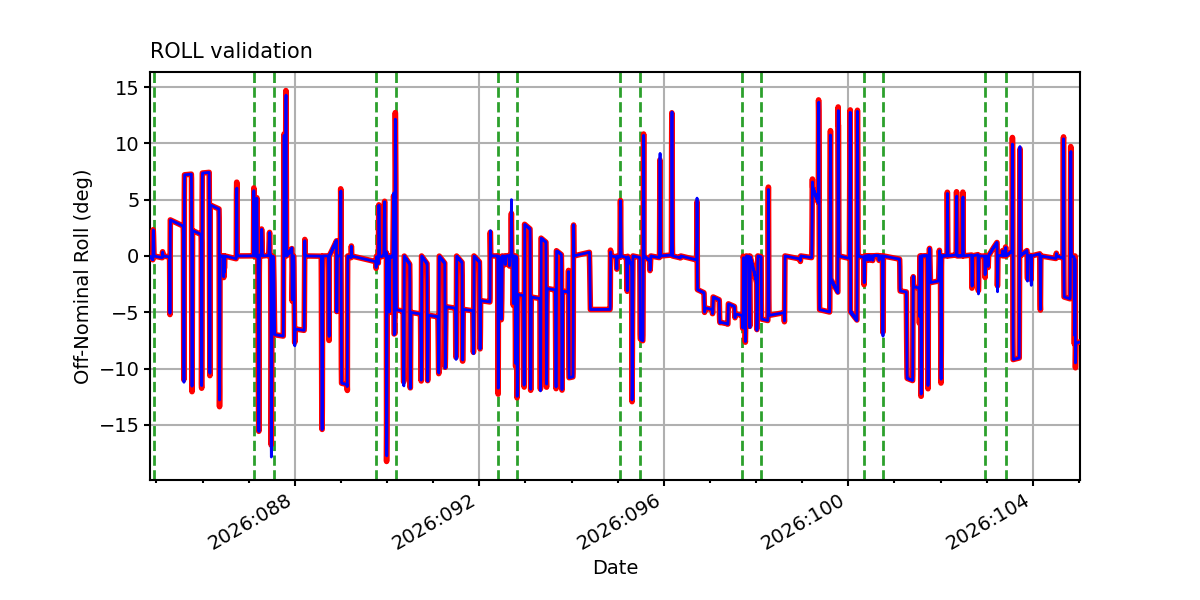

ROLL

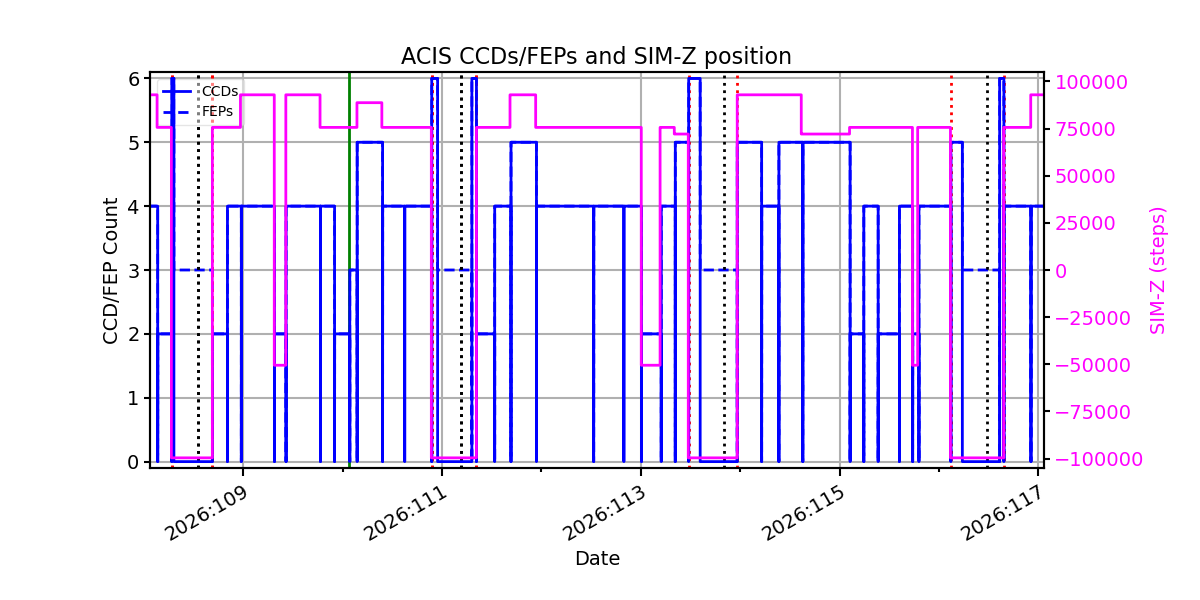

ACIS CCD/FEP Count
